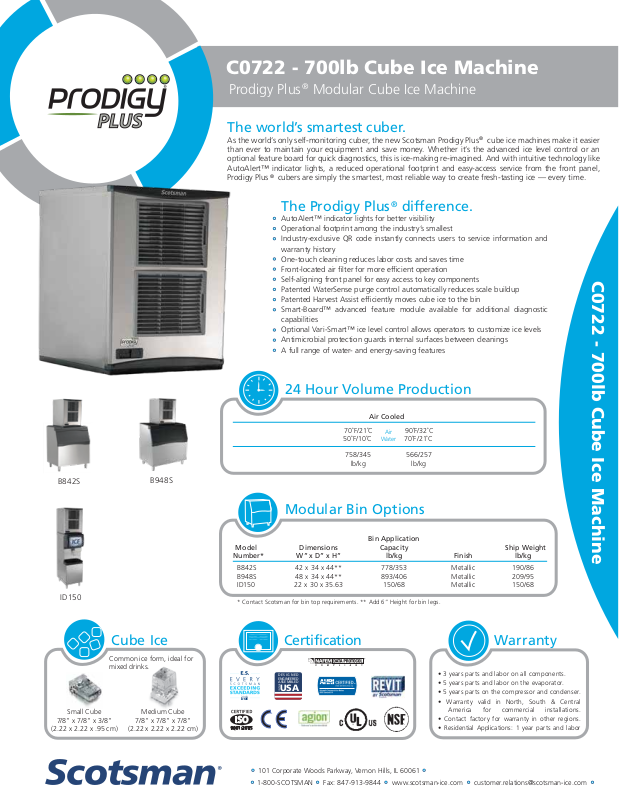

Scotsman C0722MA32, C0722SA32 Specifications

C0722 - 700lb Cube Ice Machine

DESIGNED ENGINEERED ASSEMBLED

USA

IN THE

9001:2015

Prodigy Plus Modular Cube Ice Machine

The world’s smartest cuber.

As the world’s only self-monitoring cuber, the new Scotsman Prodigy Plus cube ice machines make it easier than ever to maintain your equipment and save money. Whether it’s the advanced ice level control or an optional feature board for quick diagnostics, this is ice-making re-imagined. And with intuitive technology like AutoAlert™ indicator lights, a reduced operational footprint and easy-access service from the front panel, Prodigy Plus cubers are simply the smartest, most reliable way to create fresh-tasting ice — every time.

The Prodigy Plus difference.

AutoAlert™ indicator lights for better visibility Operational footprint among the industry’s smallest Industry-exclusive QR code instantly connects users to service information and warranty history One-touch cleaning reduces labor costs and saves time Front-located air ﬁlter for more efﬁcient operation Self-aligning front panel for easy access to key components Patented WaterSense purge control automatically reduces scale buildup Patented Harvest Assist efﬁciently moves cube ice to the bin Smart-Board™ advanced feature module available for additional diagnostic capabilities Optional Vari-Smart™ ice level control allows operators to customize ice levels Antimicrobial protection guards internal surfaces between cleanings A full range of water- and energy-saving features

C0722 - 700lb Cube Ice Machine

24 Hour Volume Production

Air Cooled

70˚F/21˚C

50˚F/10˚C

758/345

lb/kg

Air

Water

90˚F/32˚C

70˚F/21˚C

566/257

lb/kg

B842S

ID150

Cube Ice

Common ice form, ideal for mixed drinks.

Small Cube

7/8” x 7/8” x 3/8”

(2.22 x 2.22 x .95 cm)

B948S

Medium Cube

7/8” x 7/8” x 7/8”

(2.22 x 2.22 x 2.22 cm)

Modular Bin Options

Bin Application

Model

Number*

B842S 42 x 34 x 44** 778/353 Metallic 190/86 B948S 48 x 34 x 44** 893/406 Metallic 209/95 ID150 22 x 30 x 35.63 150/68 Metallic 150/68

* Contact Scotsman for bin top requirements. ** Add 6” Height for bin legs.

Dimensions

W” x D” x H”

Capacity

lb/kg Finish

Certification

• 3 years parts and labor on all components.

• 5 years parts and labor on the evaporator.

2018

DOE

101 Corporate Woods Parkway, Vernon Hills, IL 60061

1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com

• 5 years parts on the compressor and condenser.

• Warranty valid in North, South & Central America for commercial installations.

• Contact factory for warranty in other regions.

• Residential Applications: 1 year parts and labor

Ship Weight

lb/kg

Warranty

EXHAUST AIR

.88" DIA. ELECTRICAL ACCESS

C0722 - 700lb Cube Ice Machine

24.00 REF.

INTAKE AIR

17.8

7.00

73.7

29.01

5.1

2.00

48.4

19.05

ICE DROP OPENING

8.3

3.25

5.1

2.00

LOUVERS AND REMOVABLE FILTERS (2) AC UNITS ONLY

22.00 REF.

PLAN VIEW

57.7

22.70

10.25

Prodigy Plus Modular Cube Ice Machine

ULTRASONIC BIN LEVEL SENSOR (OPTIONAL)

20.2

7.94

63.9

25.15

3/8" FPT WATER INLET

AIR COOLED BACK VIEW

4.3

1.71

4.2

1.64

3/4" FPT DRAIN

LEFT SIDE VIEW

Specifications

Model Number

Cube Size: medium or small

C0722MA-32

sm.med.

C0722SA-32

Condenser

Unit

Air

Basic Electrical Volts/Hz/Phase

208-230/60/1

Max. Fuse Size or HACR Circuit Breaker (amps)

All Models

C0722 - 700lb Cube Ice Machine

Dimensions (W x D x H):

Unit:

22” x 24” x 29” (55.9 x 61.0 x 73.7 cm)

Shipping Carton:

26” x 28” x 35” (66.0 x 71.1 x 88.9 cm)

Model Number Description

KVS KSBU KSBU-N

Scotsman recommends all ice machines have water ﬁltration. See Scotsman water ﬁlter speciﬁcation sheet for details.

24.00

Circuit

Wires

Min. Circuit

Ampacity

Accessories

Vari-Smart™ Ice Level Control Smart-Board™ Advanced Control Smart-Board™ Advanced Control with Network Prodigy Plus Side Air Flow Kit for C0722KPPSA229

11.0

Energy Consumption kWh/100 lb (45.4 kg)

90˚F(32˚C)/70˚F(21˚C)

55.9

22.00

FRONT VIEW

Gallons/100 lb (liters/45.4 kg)

Potable Condenser

90˚F(32˚C)/70˚F(21˚C)

5.26

Program ice bin l evels to match ice needs.

18.0/68.1

Use additional operational da ta for fast diag nosis.

Water Usage

Network capable.

Shipping Weight:

189 lb / 86 kg

BTUs per hour:

12,750

Refrigerant: R-404A

101 Corporate Woods Parkway, Vernon Hills, IL 60061

1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com

Operating Requirements

Minimum

Air Temperatures Water Temperatures Remote Cond. Temps Water Pressures Electrical Voltage

Speciﬁcations and design are subject to change without notice.

50°F (10°C) 40°F (4.4°C)

-20°F (-29°C) 20 PSIG (1.4 bar)

-5%

Maximum

100°F (38°C) 100°F (38°C) 120°F (49°C) 80 PSIG (5.5 bar) +10%
