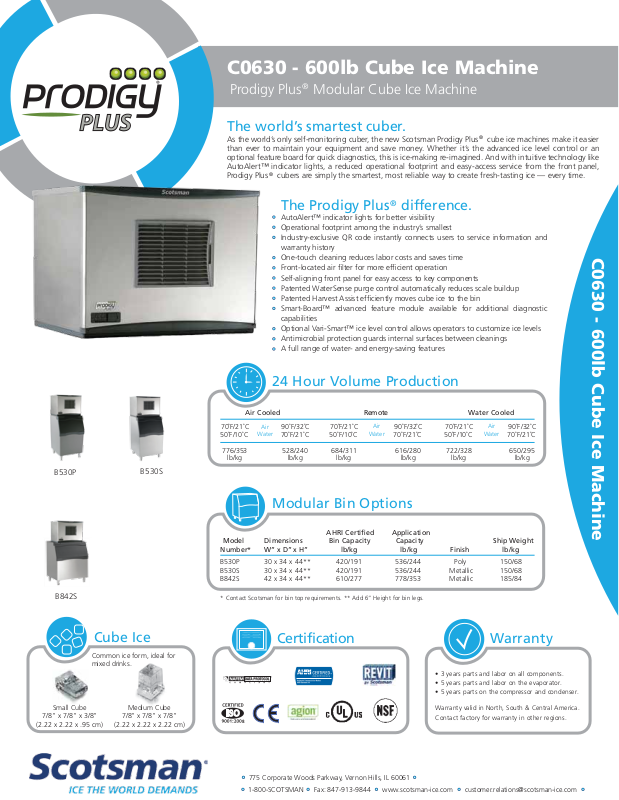

Scotsman C0630 Specification
C0630 - 600lb Cube Ice Machine
®
Prodigy Plus Modular Cube Ice Machine
®
B530P
PLUS
B530S
The world’s smartest cuber.
As the world’s only self-monitoring cuber, the new Scotsman Prodigy Plus cube ice machines make it easier
than ever to maintain your equipment and save money. Whether it’s the advanced ice level control or an
optional feature board for quick diagnostics, this is ice-making re-imagined. And with intuitive technology like
AutoAlert™ indicator lights, a reduced operational footprint and easy-access service from the front panel,
Prodigy Plus cubers are simply the smartest, most reliable way to create fresh-tasting ice — every time.
®
The Prodigy Plus difference.
AutoAlert™ indicator lights for better visibility
Operational footprint among the industry’s smallest
Industry-exclusive QR code instantly connects users to service information and
warranty history
One-touch cleaning reduces labor costs and saves time
Front-located air filter for more efficient operation
Self-aligning front panel for easy access to key components
Patented WaterSense purge control automatically reduces scale buildup
Patented Harvest Assist efficiently moves cube ice to the bin
Smart-Board™ advanced feature module available for additional diagnostic
capabilities
Optional Vari-Smart™ ice level control allows operators to customize ice levels
Antimicrobial protection guards internal surfaces between cleanings
A full range of water- and energy-saving features
®
®
24 Hour Volume Production
Air Cooled Water Cooled
70˚F/21˚C
50˚F/10˚C
776/353
lb/kg
Air
Water
90˚F/32˚C
70˚F/21˚C
528/240
lb/kg
70˚F/21˚C
50˚F/10˚C
684/311
lb/kg
Remote
Air
Water
90˚F/32˚C
70˚F/21˚C
616/280
lb/kg
70˚F/21˚C
50˚F/10˚C
722/328
lb/kg
Air
Water
90˚F/32˚C
70˚F/21˚C
650/295
lb/kg
C0630 - 600lb Cube Ice Machine
B842S
Cube Ice
Common ice form, ideal for
mixed drinks.
Small Cube
7/8” x 7/8” x 3/8”
(2.22 x 2.22 x .95 cm)
Medium Cube
7/8” x 7/8” x 7/8”
(2.22 x 2.22 x 2.22 cm)
Modular Bin Options
AHRI Certified
Model
Number*
B530P 30 x 34 x 44** 420/191 536/244 Poly 150/68
B530S 30 x 34 x 44** 420/191 536/244 Metallic 150/68
B842S 42 x 34 x 44** 610/277 778/353 Metallic 185/84
* Contact Scotsman for bin top requirements. ** Add 6” Height for bin legs.
Dimensions
W” x D” x H”
Bin Capacity
lb/kg
Certification
8
775 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
Application
Capacity
lb/kg Finish
• 3 years parts and labor on all components.
• 5 years parts and labor on the evaporator.
• 5 years parts on the compressor and condenser.
Warranty valid in North, South & Central America.
Contact factory for warranty in other regions.
Ship Weight
lb/kg
Warranty
C0630 - 600lb Cube Ice Machine
Prodigy Plus Modular Cube Ice Machine
®
3/8" FPT
CONDENSER
WATER INLET
1/2" FPT
CONDENSER
DRAIN
WATER COOLED
BACK VIEW
EXHAUST
AIR
37.8
14.87
6.7
2.62
28.2
11.10
3/8" FPT
WATER
INLET
AIR COOLED
BACK VIEW
1.48
3.8
5.3
2.07
.88" DIA
ELECTRICAL
ACCESS
3/8" FPT
WATER
INLET
4.4
1.73
27.3
10.76
7.8
3.07
3/4" FPT
DRAIN
36.9
14.53
Specifications
REMOTE CONDENSER
DISCHARGE LINE
1/2 MALE CPLG.
REMOTE CONDENSER
LIQUID LINE
3/8 MALE CPLG.
47.6
18.76
46
18.11
4.3
1.70
.88" DIA
ELECTRICAL
ACCESS
14.59
27.5
10.81
7.8
3.06
3/4" FPT
DRAIN
3.7
1.48
37
REMOTE COOLED
BACK VIEW
LEFT SIDE VIEW
18.11
46
24.00
37
14.57
6.7
2.62
3.8
1.48
61
3/8" FPT
WATER
INLET
5.3
2.07
10.82
3/4" FPT
DRAIN
.88" DIA
ELECTRICAL
ACCESS (2)
15.5
6.11
37
14.59
7.8
3.07
INTAKE
AIR
58.4
23.01
17.8
7.00
PLAN VIEW
ULTRASONIC
BIN LEVEL
SENSOR
(OPTIONAL)
78
30.70
76.2
30.00
FRONT VIEW
30.00
26
10.25
8.3
3.25
5.1
2.00
5.1
2.00
48.4
19.05
24.00
REF.
ICE DROP OPENING
REF.
LOUVER AND
REMOVABLE FILTER
AC UNITS ONLY
Model Number
Cube Size: medium or small
C0630MA-1
C0630MR-1
Condenser
Unit
Air
Remote
Basic Electrical
Volts/Hz/Phase
208-230/60/1
208-230/60/1
or HACR Circuit
Breaker (amps)
20
20
C0630MW-1 Water 208-230/60/1 20 2 17.0 4.1 18.6/70.5 173.0/656.0
Max. Fuse Size
C0630SA-1
sm.med.
C0630SR-1
C0630SW-1
Air
Remote
208-230/60/1
208-230/60/1
20
20
Water 208-230/60/1 20 2 17.0 4.1 18.6/70.5 173.0/656.0
All Models Accessories
C0630 - 600lb Cube Ice Machine
Dimensions (W x D x H):
Unit:
Shipping Carton:
30” x 24” x 23”
(76.2 x 61.0 x 58.4 cm)
33.5” x 27.5” x 28”
(85.1 x 69.9 x 71.1 cm)
Shipping Weight:
190 lb / 86 kg
BTUs per hour:
12,700
Refrigerant: R-404A
Model Number Description
KVS
KSBU
KSBU-N
KPAS
Scotsman recommends all ice machines have water filtration. See Scotsman water filter specification sheet for details.
Circuit
Wires
2
2
2
2
Min. Circuit
Ampacity
18.2
18.0
18.2
18.0
kWh/100 lb (45.4 kg)
90˚F(32˚C)/70˚F(21˚C)
Vari-Smart™ Ice Level Control Smart-Board™ Advanced Control -
Energy Consumption
6.0
5.8
6.0
5.8
Gallons/100 lb (liters/45.4 kg)
Potable Condenser
90˚F(32˚C)/70˚F(21˚C)
19.1/72.4
18.7/70.9
19.1/72.4
18.7/70.9
Program ice bin l evels to match i ce needs.
Use additional operational da ta for fast diagnosis.
Smart-Board™ Advanced Control with Network -
Water Usage
Remote condenser for C0630xR, 208-230/60/1 -ERC311-32
Line set, precharged, R-404A, 10ft.RTE10
Line set, precharged, R-404A, 25ft.RTE25
Consult remote condenser spec sheet for details
Line set, precharged, R-404A, 40ft.RTE40
Line set, precharged, R-404A, 75ft.RTE75
Prodigy Advanced Sustainability Kit - Includes KVS and KSBU - N
Operating Requirements
Network capable.
Energy
®
Star
-
-
-
-
775 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
Air Temperatures
Water Temperatures
Remote Cond. Temps
Water Pressures
Electrical Voltage
Minimum
50°F (10°C)
40°F (4.4°C)
-20°F (-29°C)
20 PSIG (1.4 bar)
-10%
Maximum
100°F (38°C)
100°F (38°C)
120°F (49°C)
80 PSIG (5.5 bar)
+10%
Specifications and design are subject to change without notice.
