Scotsman C0530 Prodigy Plus, C0630 Prodigy Plus, C0830 Prodigy Plus, C1030 Prodigy Plus User Manual
Installation and User’s Manual for
Remote Condenser Modular Cuber
Prodigy Plus D Series Models C0530, C0630,
C0830 and C1030
C0530D through C1030D
Remote Condenser Models - User Manual
Introduction
The design of this modular remote cuber is the result
of years of experience with remote ice machine
refrigeration systems. Standard features of this
product include front accessible on-off switches,
always-visible indicator lights, mechanical assist ice
harvest for extra efciency, automatically adjusting
water purge and a control system that optimizes
system operation.
This installation and user manual is divided into
three sections: Installation, Use and Operation and
Maintenance.
Contents
Installation: Product Specications
Model Number Description
C0530, C0630, C0830 and C1030 Cabinet Dimensions
Product Description and Electrical Requirements
Water

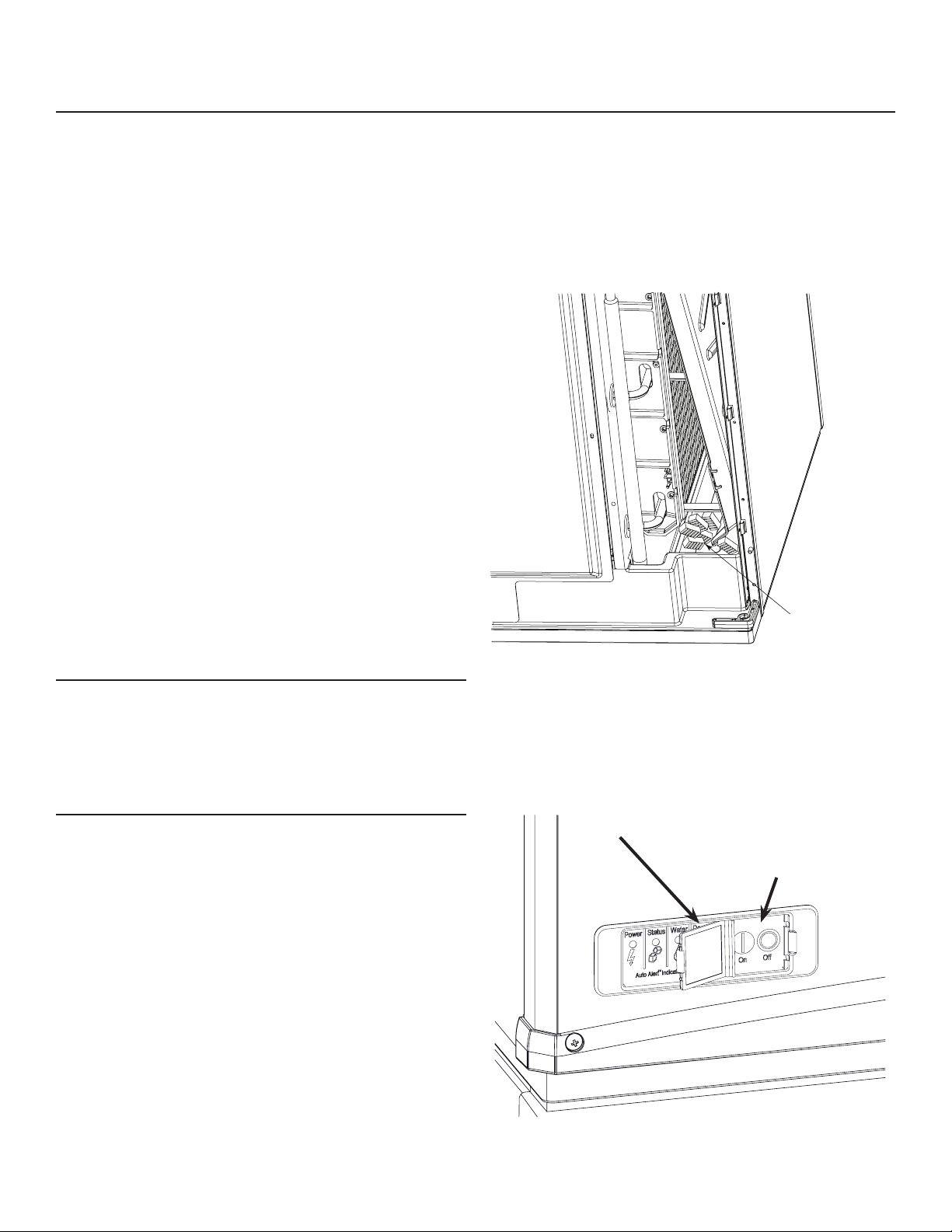

Panel Removal
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . 5
The Installation section provides the trade person with
the information needed to properly install and start
up this ice system. The Use and Operation section
provides the user with the information needed to use
the machine. The Maintenance section contains the
instructions and schedules for the sanitation and
cleaning of the machine.
. . . . . . . . . . . . . . . . . . . . . . . 4

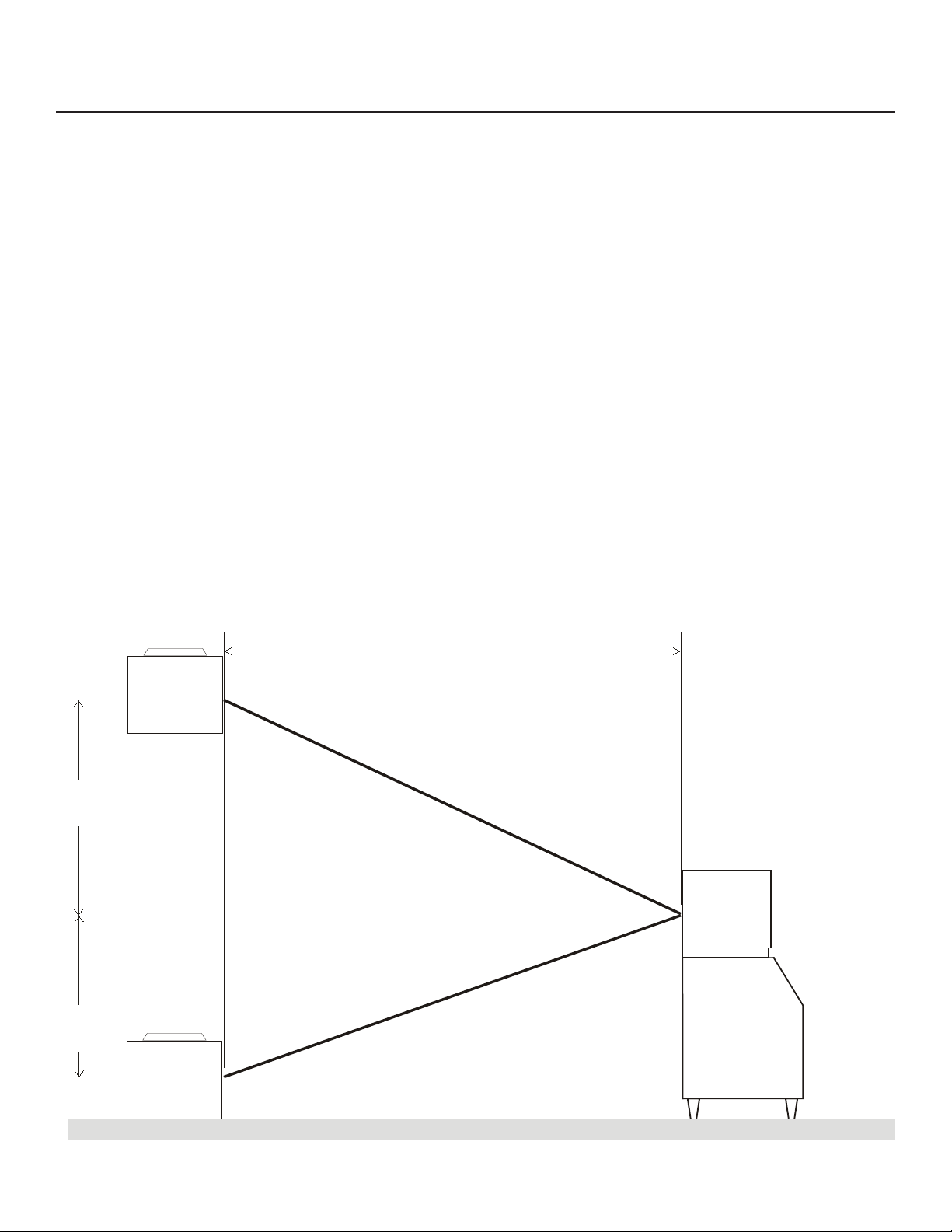

Remote Condenser Location
For The Installer: Remote Condenser

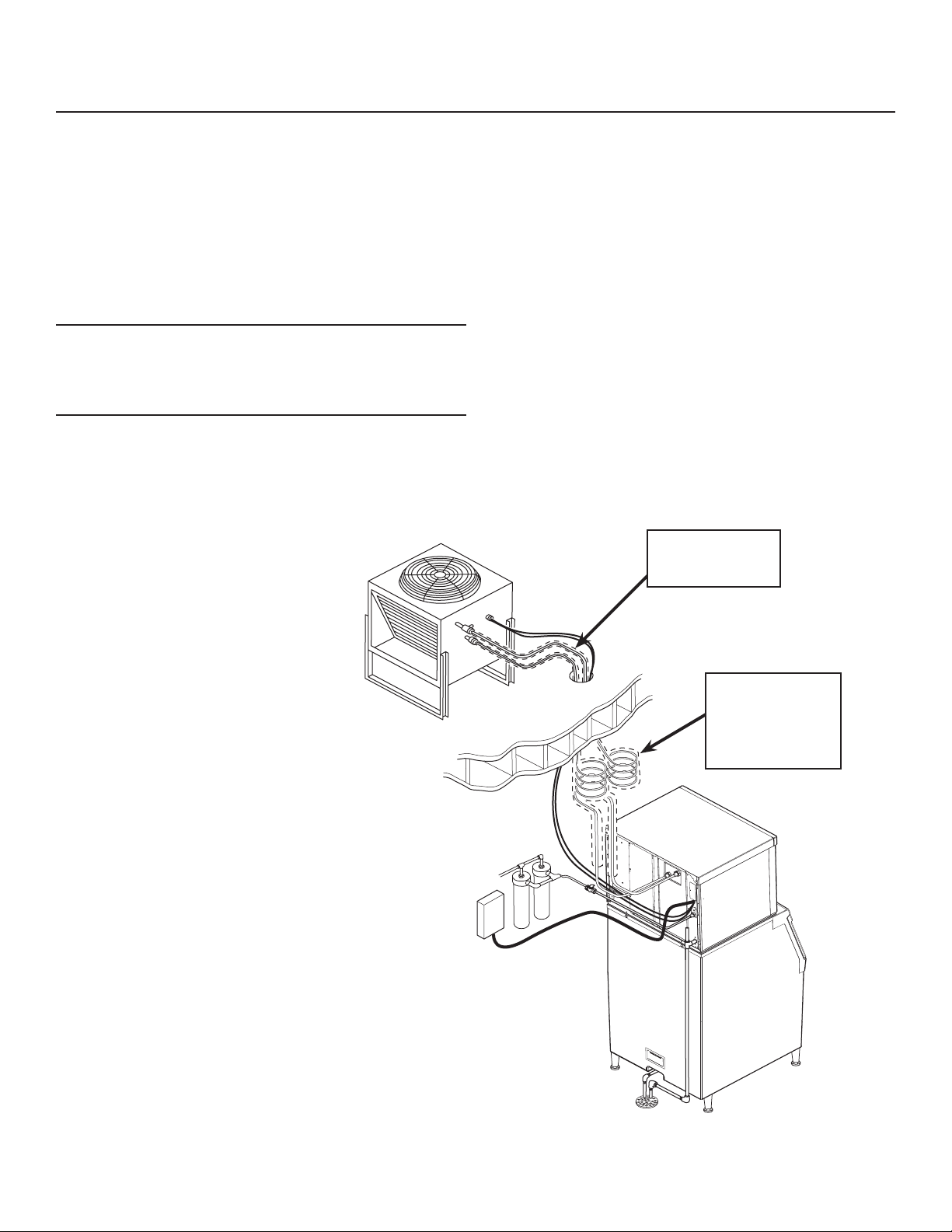

Precharged Line Routing
Coupling Instructions

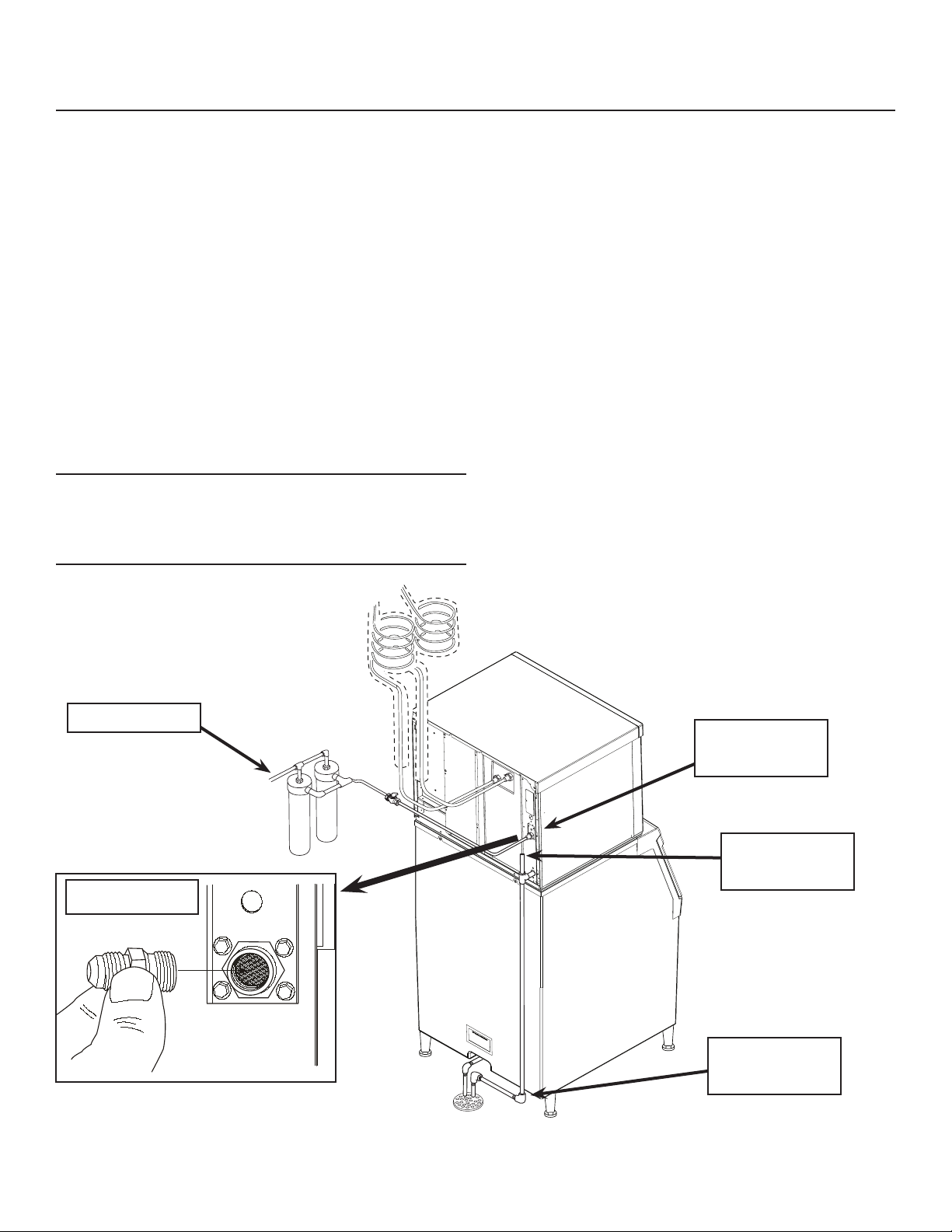

Plumbing Requirements

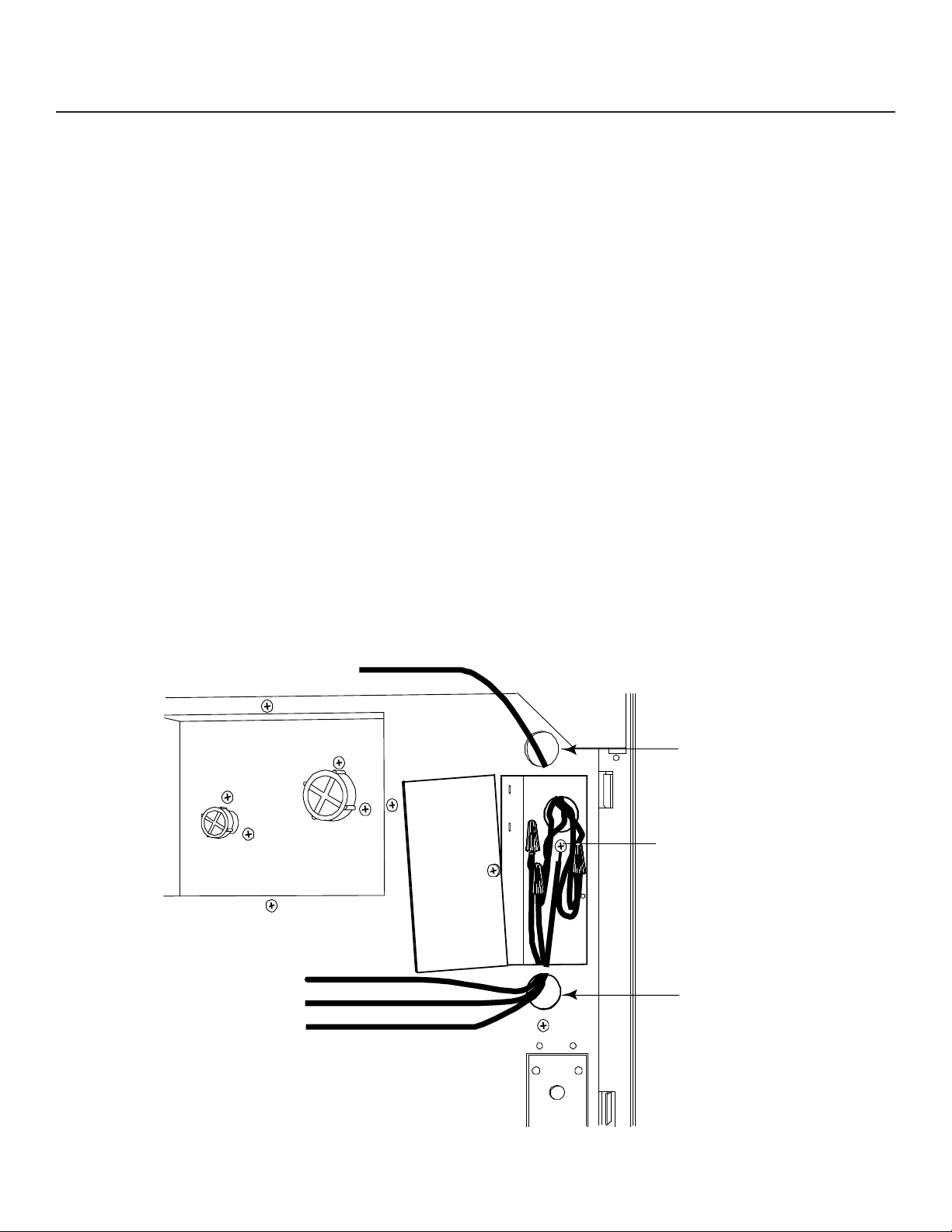

Electrical
Final Check List:
Initial Start Up
Adjustments
Use and Operation

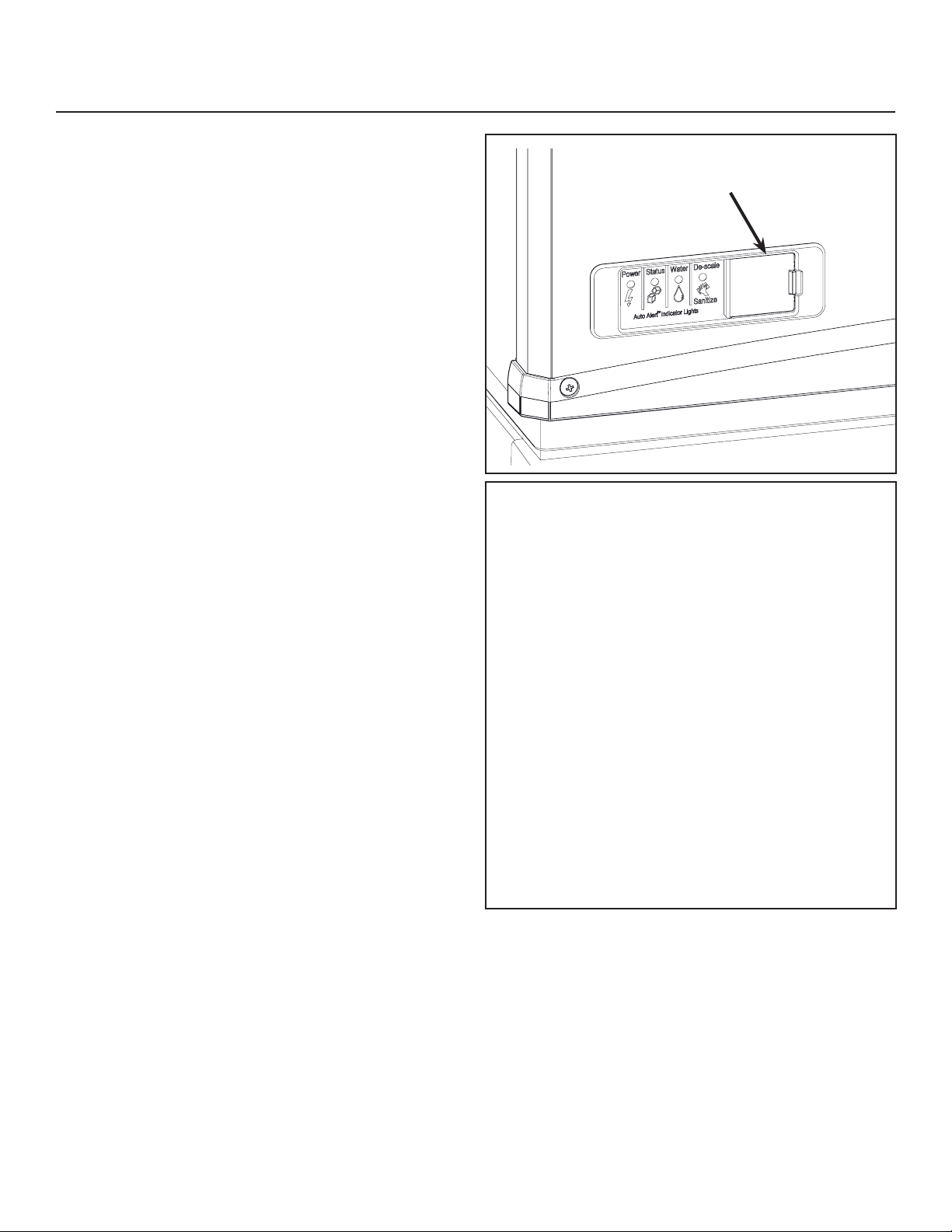

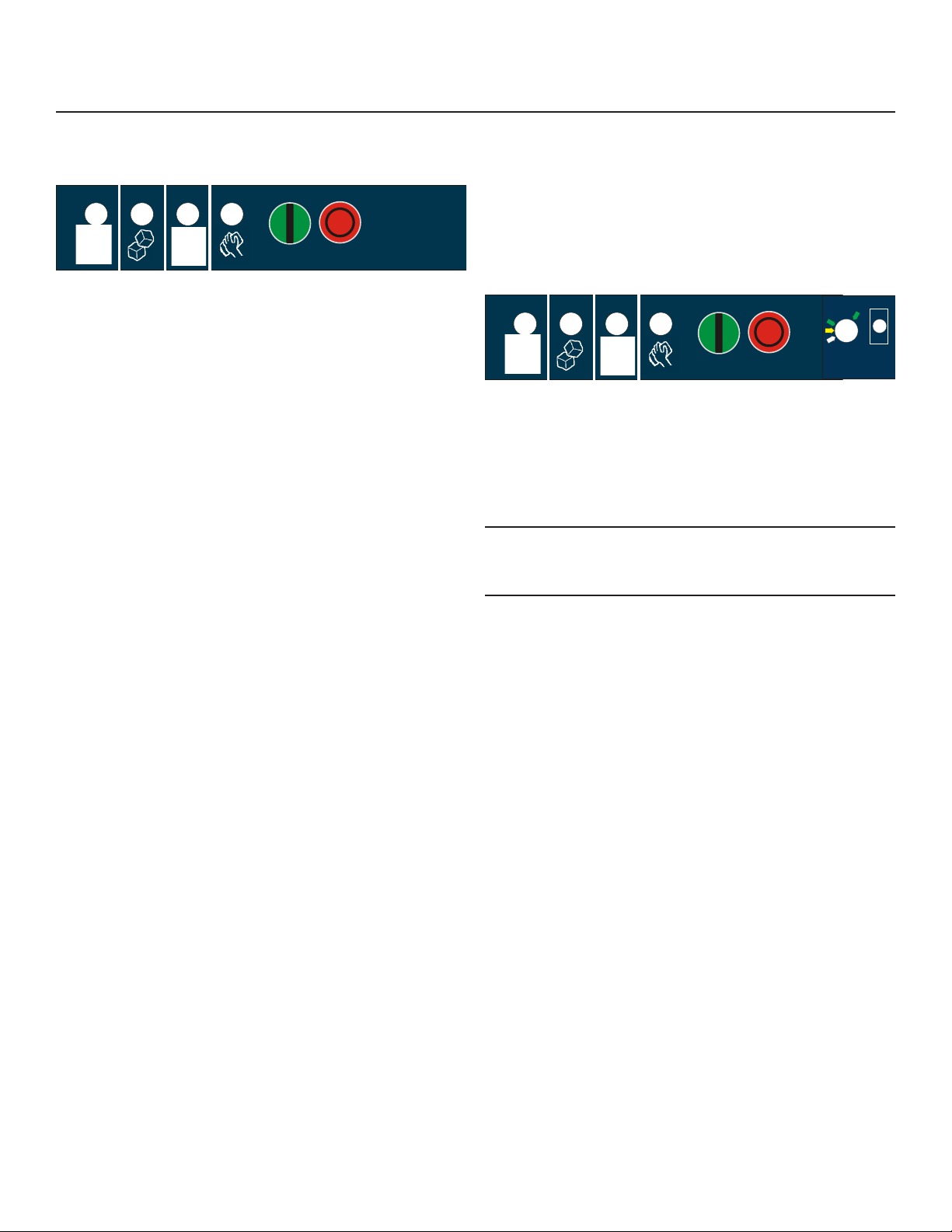

Control Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

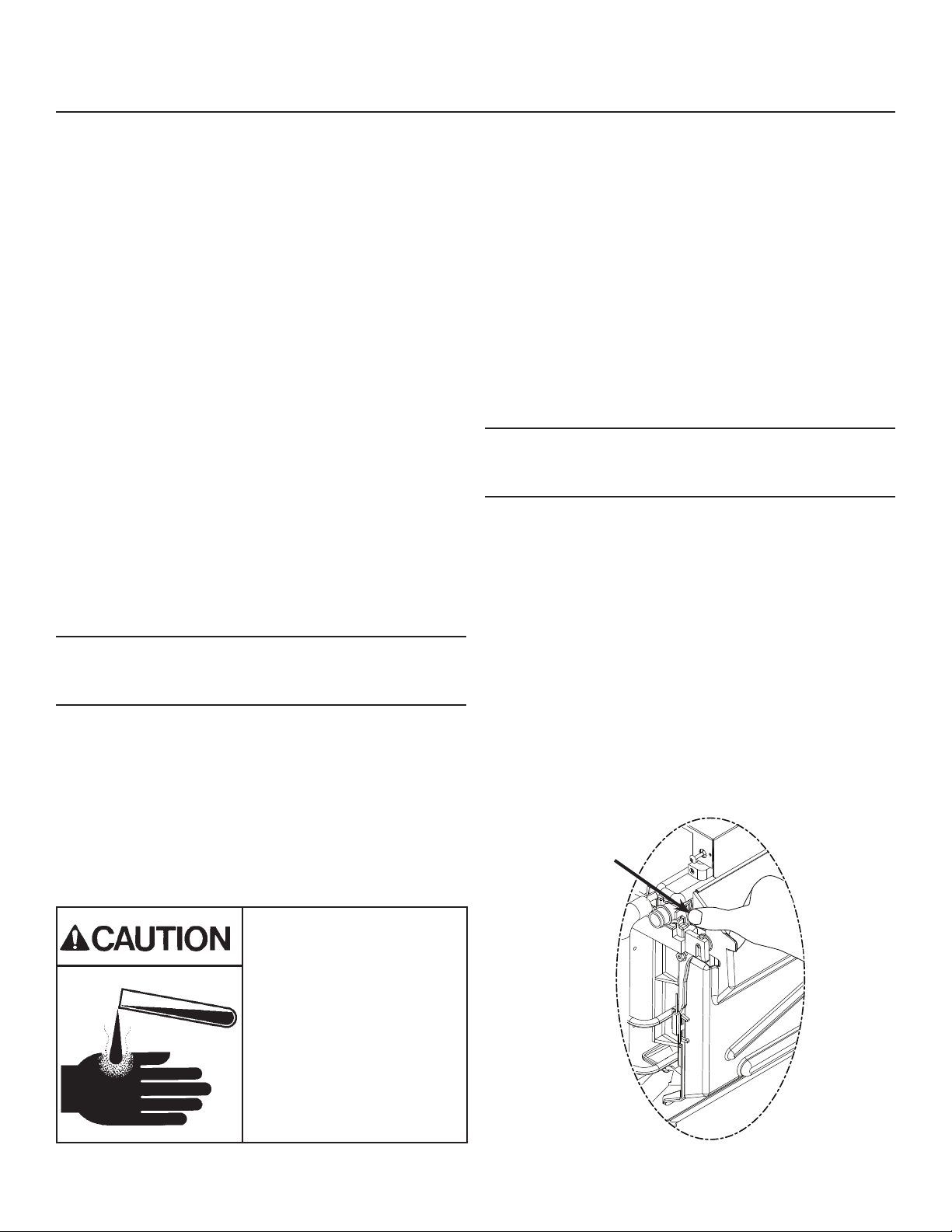

Cleaning, Sanitation and Maintenance

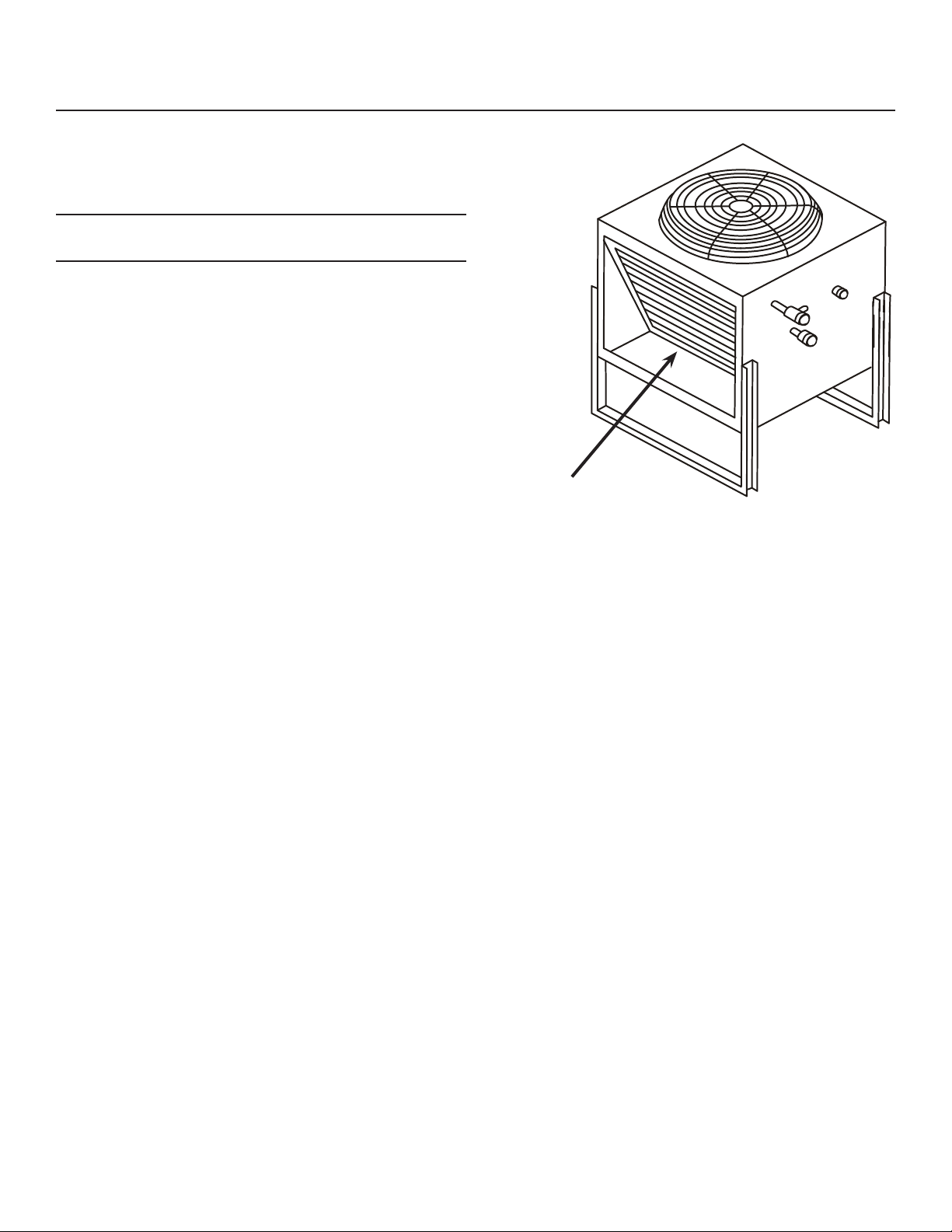

Remote condenser
What to do before calling for service
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
December 2014
Page 1
C0530D through C1030D
Remote Condenser Models - User Manual
Installation: Product Specications
Location Limitations

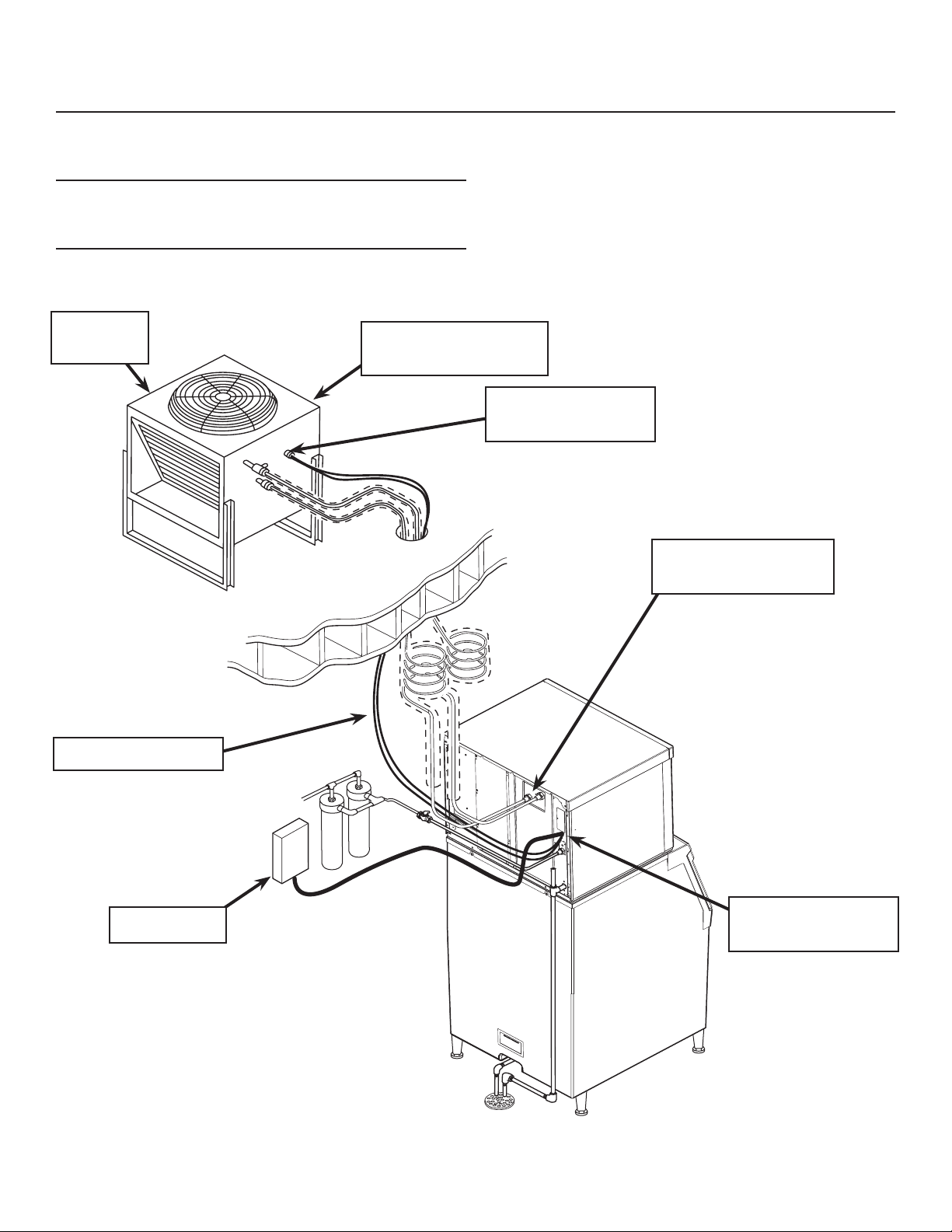

This ice system is made up of three parts, the ice
making machine, or head; the remote condenser; and
the interconnecting tubing. The ice making machine
must be installed indoors, in a controlled environment.
Space must be provided near the machine for service
access. The remote condenser may be installed
above or below the ice machine, per the limits stated
later in this manual. The remote condenser may
be installed outdoors within the temperature limits
listed below. The interconnecting tubing must be
installed per the directions stated in this manual,
and the amount of tubing exposed to uncontrolled
temperatures must be minimized.
Space Limitations
Although the machine will function with no clearance
to the top and sides, some space must be allowed
for service access. Building the machine in with no
access will cause higher service cost, in many cases
this extra cost may not be covered by warranty.
Environmental Limitations, ice machine:
Minimum Maximum
Air temperature 50
Water
o
F. 100oF.
o
40
F. 100oF.
temperature
Water Pressure 20 psi 80 psi
Warranty Information
The warranty statement for this product is provided
separately from this manual. Refer to it for applicable
coverage. In general warranty covers defects
in material and workmanship. It does not cover
maintenance, corrections to installations, or situations
when the ice machine is operated in circumstances
that exceed the limitations printed
above.
Product Information
The machine is a specialized version of a modular
cuber. A modular cuber does not include any ice
storage, it is designed to be placed onto an ice
storage bin or ice dispenser. Many installations only
require the matching bin, but some will need an
adapter to be placed between the ice machine and
the bin or dispenser. Additionally, the machine must
be connected to the correct remote condenser and
use the correct pre-charged tubing.
The machine is supplied with a full refrigerant charge,
eld charging is not required.
This product cannot be stacked. See the chart for
application information.
Environmental Limitations, remote condenser
Minimum Maximum
Air temperature -20
o
F. 120oF.
Power Supply
Minimum Maximum
115 volt model 104 volts 126 volts
208-230 volt
198 volts 253 volts
model
December 2014
Page 2
C0530D through C1030D
Remote Condenser Models - User Manual
Model Number Description
Example
• C0630SR-32D
• C=cuber
• 06=nominal capacity in 100s of pounds
• 30=nominal width of cabinet in inches
• S=cube size, S=small or half dice, M=medium or
full dice
• R=condenser type. R=Remote
• -32=Electrical code. -32=208-230/60/1, -3= 208-
230/60/3, -1 = 115/60/1
• D=series revision code. D=4th series.
Note: In some areas of this manual model numbers
may include only the rst ve characters of the model
number, meaning that cube size, condenser type and
voltage differences are not critical to the information
listed there.
Options:
There are several options available for eld
installation. They include:
• KVS - Vari-Smart Adjustable ice level system
• KSB - SmartBoard Advanced feature board
Some installations require bin or dispenser adapters.
See the table below.
Standard bin applications – Adapter information
Model B530P,
B330P,
B530S
C0530,
C0630,
C0830,
C1030
Direct t KBT28 KBT22
B842S B948S
Hotel Dispenser
Although an unlikely use for a remote cuber, HD30
can be used without an adapter:
HD30 – use with C0530R
Ice and Beverage Dispensers - Adapter
Information
Model ID150 ID200 or ID250
C0530, C0630,
C0830, C1030
Other bins and applications:
Note the drop zone and optional ultrasonic sensor
locations in the illustrations.
Scotsman ice systems are designed and
manufactured with the highest regard for safety and
performance. They meet or exceed the standards of
UL and NSF.
Scotsman assumes no liability of responsibility of
any kind for products manufactured by Scotsman
that have been altered in any way, including the use
of any part and/or other components not specically
approved by Scotsman.
Scotsman reserves the right to make design changes
and/or improvements at any time.
Specications and design are subject to change
without notice.
Does not t KBT44
December 2014
Page 3
C0530D through C1030D
Remote Condenser Models - User Manual
C0530, C0630, C0830 and C1030 Cabinet Dimensions
REMOTE CONDENSER
DISCHARGE LINE
1/2 MALE CPLG.
REMOTE CONDENSER
LIQUID LINE
3/8 MALE CPLG.
47.6
18.76
46
18.11
18.11
46
37
14.57
3/8" FPT
WATER
INLET
5.3
2.07
.88" DIA
ELECTRICAL
ACCESS (2)
15.5
6.11
37
14.59
10.82
58.4
23.01
26
10.25
ULTRASONIC
BIN LEVEL
SENSOR
(OPTIONAL)
17.8
7.00
PLAN VIEW
30.00
REF.
78
30.70
8.3
3.25
5.1
2.00
48.4
19.05
ICE DROP OPENING
24.00
5.1
2.00
REF.
REMOTE CONDENSER
DISCHARGE LINE
1/2 MALE CPLG.
REMOTE CONDENSER
LIQUID LINE
3/8 MALE CPLG.
62.9
24.76
61.1
24.06
REMOTE COOLED
BACK VIEW
44.1
17.35
6.7
2.62
3.8
1.48
7.8
3.07
3/4" FPT
DRAIN
61
24.00
LEFT SIDE VIEW
76.2
30.00
FRONT VIEW
C0530R, C0630R
26
35.1
13.81
2.20
10.25
ULTRASONIC
BIN LEVEL
SENSOR
(OPTIONAL)
17.8
7.00
PLAN VIEW
30.00
REF.
77.99
5.6
34.2
13.47
15.5
6.11
52.3
20.59
.88" DIA
ELECTRICAL
ACCESS (2)
73.7
29.00
30.70
8.3
3.25
5.1
2.00
48.4
19.05
ICE DROP OPENING
24.00
2.00
5.1
REF.
3/8" FPT
WATER
INLET
REMOTE COOLED
BACK VIEW
2.10
5.3
3.8
1.48
7.8
3.07
3/4" FPT
DRAIN
LEFT SIDE VIEW
C0830R, C1030R
Note: Top number is centimeters, bottom number is inches.
December 2014
Page 4
24.00
61
76.2
30.00
FRONT VIEW
C0530D through C1030D
Remote Condenser Models - User Manual
Product Description and Electrical Requirements
Dimensions
w” x d” x h”
30.75** x 24 x 23 C0530SR-1 D 115/60/1 ERC111-1 16.2 20
same C0630SR-32 D 208-230/60/1 ERC311-32 18 20
30.75** x 24 x 29 C0830SR-32 D 208-230/60/1 ERC311-32 10 15
same C0830SR-3 D 208-230/60/3 ERC311-32 8.2 15
same C1030SR-32 D 208-230/60/1 ERC311-32 15.6 20
same C1030SR-3 D 208-230/60/3 ERC311-32 10.8 15
*Or HACR circuit breakers.
** Maximum width at top panel.
Ratings include the remote condenser motor, as it
is designed to be powered by the ice machine. If
connecting remote condenser independently of the
ice machine, use the information on the condenser's
dataplate for fuse and wire sizes.
Table notes: Medium cube models have the same
electrical characteristics as Small. Series revision
code omitted. All the listed condensers include a
headmaster valve.
Model Series Electrical Use
condenser
Precharged tubing kits:
The ice making head’s and the remote condenser’s
refrigeration circuits must be connected. They
are designed to be connected using precharged
refrigerant tubing, supplied in kits of liquid and
discharge tubes. Several lengths are available, order
the one that just exceeds the length needed for the
site.
10” 20’ 40’ 75’
RTE10 RTE25 RTE40 RTE75
No additional refrigerant is required.
Minimum
Circuit
Ampacity
Maximum
Fuse Size*
Central Condenser Coils
The ice machine may be connected to a central
condenser coil. The requirements are:
• Coil – not previously used with mineral oil system.
Virgin coil preferred.
• Correct size (internal volume) and capacity
(BTUH).
• Includes a headmaster valve for discharge
pressure control. Headmaster kit available
for certain MAC condensers, kit number is
RCKCME6GX.
• Fan motor on all the time or controlled to be on
whenever the ice machine is operating.
• Non-Scotsman condensers must have prior
Scotsman Engineering approval for warranty
coverage to be in effect.
Note: Refrigerant charge is supplied with the ice
machine.
December 2014
Page 5
C0530D through C1030D
Remote Condenser Models - User Manual
Water
The quality of the water supplied to the ice machine
will have an impact on the time between cleanings
and ultimately on the life of the product. Water can
contain impurities either in suspension or in solution.
Suspended solids can be ltered out. In solution
or dissolved solids cannot be ltered, they must be
diluted or treated. Water lters are recommended
to remove suspended solids. Some lters have
treatment in them for dissolved solids. Check with a
water treatment service for a recommendation.
RO water. This machine can be supplied with Reverse
Osmosis water, but the water conductivity must be no
less than 10 microSiemens/cm.
Potential for Airborne Contamination
Installing an ice machine near a source of yeast
or similar material can result in the need for more
frequent sanitation cleanings due to the tendency of
these materials to contaminate the machine.
Most water lters remove chlorine from the water
supply to the machine which contributes to this
situation. Testing has shown that using a lter that
does not remove chlorine, such as the Scotsman
Aqua Patrol, will greatly improve this situation, while
the ice making process itself will remove the chlorine
from the ice, resulting in no taste or odor impact.
Additionally, devices intended to enhance ice machine
sanitation, such as the Scotsman Aqua Bullet, can
be placed in the machine to keep it cleaner between
manual cleanings.
Water Purge
Cube ice machines use more water than what ends
up in the bin as ice. While most water is used during
ice making, a portion is designed to be drained out
every cycle to reduce the amount of hard water scale
in the machine. That’s known as water purge, and an
effective purge can increase the time between needed
water system cleaning. In addition, this product is
designed to automatically vary the amount of water
purged based on the purity of the water supplied to
it. The water purge rate can also be set manually.
Adjustments of purge due to local water conditions
are not covered by warranty.
December 2014
Page 6
C0530D through C1030D
Remote Condenser Models - User Manual
Panel Removal
1. Locate and loosen the two screws at the bottom
of the front panel.
2. Pull the front panel out at the bottom and pull it
down and off the machine.
3. Remove two screws at the front edge of the top
panel, and lift up the top panel until it clears the
front of the side panels, then push back 1” and lift
it up and off the machine.
4. Locate and loosen the screws holding each side
panel to the base.
5. Pull the side panel forward to release it from the
back panel.
This manual covers several models of remote cubers.
The model number on the ice machine can be found
either on the dataplate, which is on the back panel, or
the serial number tag, which is behind the front panel.
See the illustration for the locations of the dataplate
and the serial number tag.
The remote condenser has a separate model and
serial number. Its model and serial number is on the
dataplate on the condenser near the quick connect
ttings.
Write the model and serial numbers here:
Model Serial Number
Ice machine
Bin
Condenser
5
Dataplate
Location
5
4. Remove
Screws
1. Remove
Screws
2
3
Dataplate Location and panel Removal
Check the bin top gasket for rips or gaps. If recycling
an older bin, replace the gasket or repair with food
grade sealant prior to placing the ice machine on the
bin.
Install the bin top adapter or ice dispenser adapter, if
one is required for the application.
If the ice machine has not been unpacked, do so now.
Remove the carton from the skid. Lift the ice machine
off the skid directly onto the bin.
Note: The machine is heavy. Use a mechanical lift if
necessary.
Write the day of start up here:_______________
Uncrate and Set Up
Begin with the ice storage bin or dispenser. If a bin,
remove the carton, and, using part of the carton as
a cushion, tip the bin on its back to remove the skid.
Attach the supplied legs or optional casters. Return
the bin to a normal, upright position.
December 2014
Secure the ice machine to the bin with the hardware
provided (two metal straps and four bolts).
Place the bin and ice machine in the selected location
and level it using the bin leg levelers.
Remove the white plastic covering the panels.
Page 7
Loading...
