Scotsman C0530MA32, C0530SW1, C0530SA32, C0530MW1 Specifications

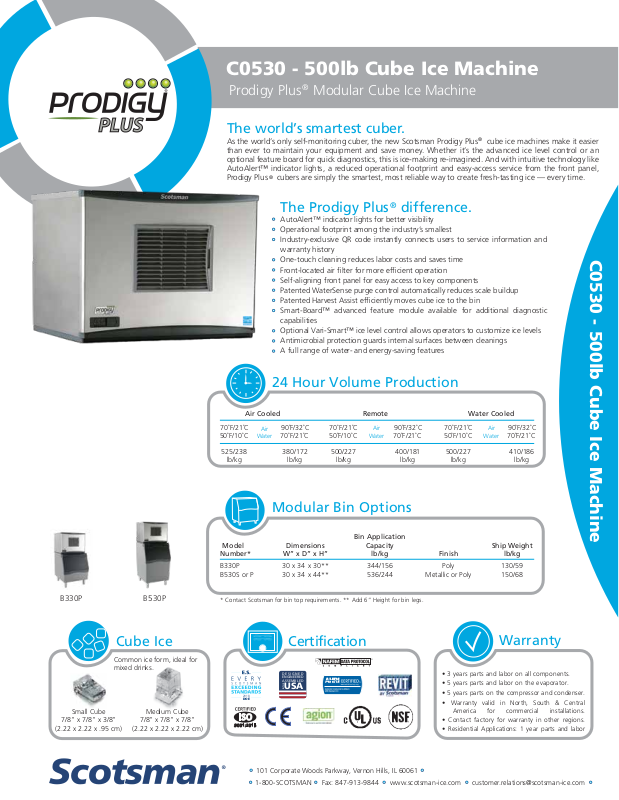

C0530 - 500lb Cube Ice Machine
DESIGNED
ENGINEERED
ASSEMBLED
USA
IN THE
Prodigy Plus Modular Cube Ice Machine
®
The world’s smartest cuber.
As the world’s only self-monitoring cuber, the new Scotsman Prodigy Plus cube ice machines make it easier
than ever to maintain your equipment and save money. Whether it’s the advanced ice level control or an
optional feature board for quick diagnostics, this is ice-making re-imagined. And with intuitive technology like
AutoAlert™ indicator lights, a reduced operational footprint and easy-access service from the front panel,
Prodigy Plus cubers are simply the smartest, most reliable way to create fresh-tasting ice — every time.
®
The Prodigy Plus difference.
®
AutoAlert™ indicator lights for better visibility
Operational footprint among the industry’s smallest
Industry-exclusive QR code instantly connects users to service information and
warranty history
One-touch cleaning reduces labor costs and saves time
Front-located air filter for more efficient operation
Self-aligning front panel for easy access to key components
Patented WaterSense purge control automatically reduces scale buildup
Patented Harvest Assist efficiently moves cube ice to the bin
Smart-Board™ advanced feature module available for additional diagnostic
capabilities
Optional Vari-Smart™ ice level control allows operators to customize ice levels
Antimicrobial protection guards internal surfaces between cleanings
A full range of water- and energy-saving features
®
24 Hour Volume Production
Air Cooled Water Cooled
70˚F/21˚C
50˚F/10˚C
525/238
lb/kg
Air
Water
90˚F/32˚C
70˚F/21˚C
380/172
lb/kg
70˚F/21˚C
50˚F/10˚C
500/227
lb/kg
Remote
Air
Water
90˚F/32˚C
70˚F/21˚C
400/181
lb/kg
70˚F/21˚C
50˚F/10˚C
500/227
lb/kg
Air
Water
90˚F/32˚C
70˚F/21˚C
410/186
lb/kg
C0530 - 500lb Cube Ice Machine
B330P B530P
Cube Ice
Common ice form, ideal for
mixed drinks.
Small Cube
7/8” x 7/8” x 3/8”
(2.22 x 2.22 x .95 cm)
Medium Cube
7/8” x 7/8” x 7/8”
(2.22 x 2.22 x 2.22 cm)
Modular Bin Options
Bin Application
Model
Number*
B330P 30 x 34 x 30** 344/156 Poly 130/59
B530S or P 30 x 34 x 44** 536/244 Metallic or Poly 150/68
* Contact Scotsman for bin top requirements. ** Add 6” Height for bin legs.
Dimensions
W” x D” x H”
Capacity
lb/kg Finish
Certification
• 3 years parts and labor on all components.
• 5 years parts and labor on the evaporator.
2018
DOE
9001:2015
101 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
• 5 years parts on the compressor and condenser.
• Warranty valid in North, South & Central
America for commercial installations.
• Contact factory for warranty in other regions.
• Residential Applications: 1 year parts and labor
Ship Weight
lb/kg
Warranty
C0530 - 500lb Cube Ice Machine
Prodigy Plus Modular Cube Ice Machine
®
3/8” REMOTE
CONDENSER
LIQUID LINE
47.6
18.76
4.3
1.70
.88" DIA
ELECTRICAL
ACCESS
27.5
10.81
7.8
3.06
3/4" FPT
DRAIN
18.11
46
37
14.59
1/2” REMOTE
CONDENSER
DISCHARGE LINE
REMOTE COOLED
BACK VIEW
46
18.11
6.7
2.62
61
24.00
LEFT SIDE VIEW
14.57
26
10.25
37
3.8
1.48
3/8" FPT
WATER
INLET
5.3
2.07
10.82
3/4" FPT
DRAIN
.88" DIA
ELECTRICAL
ACCESS (2)
15.5
6.11
37
14.59
7.8
3.07
INTAKE
AIR
58.4
23.01
17.8
7.00
PLAN VIEW
ULTRASONIC
BIN LEVEL
SENSOR
(OPTIONAL)
78
30.70
76.2
30.00
FRONT VIEW
30.00
REF.
3.25
5.1
2.00
48.4
19.05
ICE DROP OPENING
LOUVER AND
REMOVABLE FILTER
AC UNITS ONLY
8.3
3/8" FPT
CONDENSER
WATER INLET
1/2" FPT
CONDENSER
DRAIN
WATER COOLED
BACK VIEW
EXHAUST
AIR
37.8
14.87
6.7
2.62
28.2
11.10
3/8" FPT
WATER
INLET
AIR COOLED
BACK VIEW
1.48
3.8
5.3
2.07
.88" DIA
ELECTRICAL
ACCESS
3/8" FPT
WATER
INLET
4.4
1.73
27.3
10.76
7.8
3.07
3/4" FPT
DRAIN
14.53
36.9
3.7
1.48
Specifications
Water Usage
Gallons/100 lb (liters/45.4 kg)
Potable Condenser
90˚F(32˚C)/70˚F(21˚C)
18.0/68.1
18.0/68.1
18.0/68.1
18.0/68.1
Model Number
Cube Size: medium or small
C0530MA-1
C0530MR-1
Condenser
Unit
Air
Remote
Basic Electrical
Volts/Hz/Phase
115/60/1
115/60/1
Max. Fuse Size
or HACR Circuit
Breaker (amps)
20
20
Circuit
Wires
2
2
Min. Circuit
Ampacity
15.2
16.2
Energy Consumption
kWh/100 lb (45.4 kg)
90˚F(32˚C)/70˚F(21˚C)
5.80
6.50
C0530MW-1 Water 115/60/1 15 2 13.5 5.00 18.0/68.1 160.0/606.7
C0530MA-32 Air 208-230/60/1 15 2 7.8 5.80 18.0/68.1 -
C0530SA-1
sm.med.
C0530SR-1
C0530SW-1
C0530SA-32
Air
Remote
Water 115/60/1 15 2 13.5 5.00 18.0/68.1 160.0/606.7
Air 208-230/60/1 15 2 7.8 5.80 18.0/68.1 -
115/60/1
115/60/1
20
20
2
2
15.2
16.2
5.80
6.50
24.00
5.1
2.00
REF.
-
-
-
-
All Models Accessories
Model Number Description
C0530 - 500lb Cube Ice Machine
Dimensions (W x D x H):
Unit:
Shipping Carton:
30” x 24” x 23”
(76.2 x 61.0 x 58.4 cm)
33.5” x 27.5” x 28”
(85.1 x 69.9 x 71.1 cm)
Shipping Weight:
175 lb / 80 kg
BTUs per hour:
7,900
Refrigerant: R-404A
101 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
KVS
KSBU
KSBU-N
ERC111-1
BRTE10
BRTE25
BRTE40
BRTE75
KPAS
Scotsman recommends all ice machines have water filtration. See Scotsman water filter specification sheet for details.
Air Temperatures
Water Temperatures
Remote Cond. Temps
Water Pressures
Electrical Voltage
Specifications and design are subject to change without notice.
Vari-Smart™ Ice Level Control Smart-Board™ Advanced Control Smart-Board™ Advanced Control with Network Remote condenser for C0530xR, 115/60/110ft (3.0 m) line set, brazing required
25ft (7.6 m) line set, brazing required
40ft (12.2 m) line set, brazing required
75ft (22.9 m) line set, brazing required
Prodigy Advanced Sustainability Kit - Includes KVS and KSBU - N
Prodigy Plus Side Air Flow Kit for C0330, C0530 and C0630KPPSA323
®
Program ice bin l evels to match ice needs.
Use additional operational da ta for fast diag nosis.
Network capable.
Consult remote condenser spec sheet for details
Operating Requirements
Minimum
50°F (10°C)
40°F (4.4°C)
-20°F (-29°C)
20 PSIG (1.4 bar)
-5%
Maximum
100°F (38°C)
100°F (38°C)
120°F (49°C)
80 PSIG (5.5 bar)
+10%
SIS-SS-PP-C0530 02-18© 2018 Scotsman Ice Systems.
