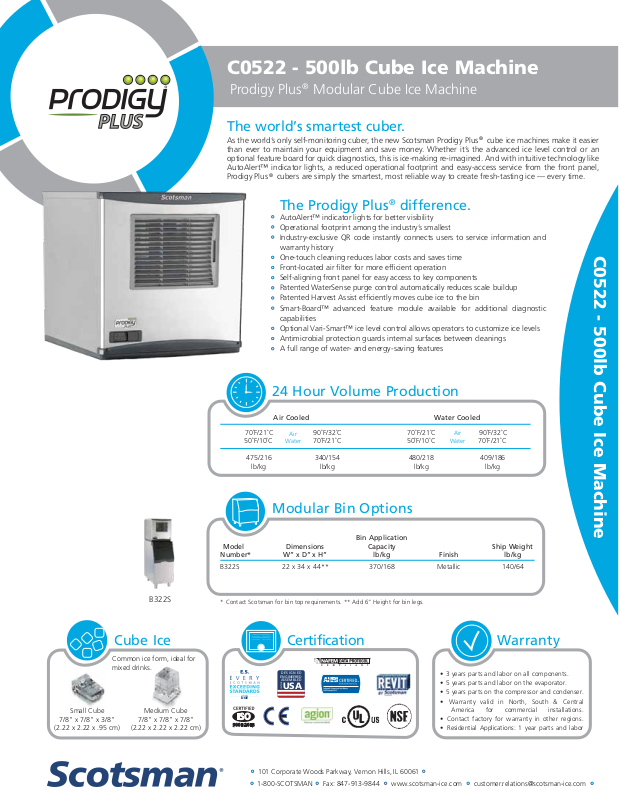

Scotsman C0522SW32, C0522MA32, C0522MW1 Specifications

C0522 - 500lb Cube Ice Machine

DESIGNED ENGINEERED ASSEMBLED

USA

IN THE

9001:2015

Prodigy Plus Modular Cube Ice Machine

The world’s smartest cuber.

As the world’s only self-monitoring cuber, the new Scotsman Prodigy Plus cube ice machines make it easier than ever to maintain your equipment and save money. Whether it’s the advanced ice level control or an optional feature board for quick diagnostics, this is ice-making re-imagined. And with intuitive technology like AutoAlert™ indicator lights, a reduced operational footprint and easy-access service from the front panel, Prodigy Plus cubers are simply the smartest, most reliable way to create fresh-tasting ice — every time.

The Prodigy Plus difference.

AutoAlert™ indicator lights for better visibility Operational footprint among the industry’s smallest Industry-exclusive QR code instantly connects users to service information and warranty history One-touch cleaning reduces labor costs and saves time Front-located air ﬁlter for more efﬁcient operation Self-aligning front panel for easy access to key components Patented WaterSense purge control automatically reduces scale buildup Patented Harvest Assist efﬁciently moves cube ice to the bin Smart-Board™ advanced feature module available for additional diagnostic capabilities Optional Vari-Smart™ ice level control allows operators to customize ice levels Antimicrobial protection guards internal surfaces between cleanings A full range of water- and energy-saving features

C0522 - 500lb Cube Ice Machine

24 Hour Volume Production

Air Cooled Water Cooled

70˚F/21˚C

50˚F/10˚C

475/216

lb/kg

Air

Water

90˚F/32˚C

70˚F/21˚C

340/154

lb/kg

70˚F/21˚C

50˚F/10˚C

480/218

lb/kg

Air

Water

90˚F/32˚C

70˚F/21˚C

409/186

lb/kg

Cube Ice

Common ice form, ideal for mixed drinks.

Small Cube

7/8” x 7/8” x 3/8”

(2.22 x 2.22 x .95 cm)

B322S

Medium Cube

7/8” x 7/8” x 7/8”

(2.22 x 2.22 x 2.22 cm)

Modular Bin Options

Bin Application

Model

Number*

B322S 22 x 34 x 44** 370/168 Metallic 140/64

* Contact Scotsman for bin top requirements. ** Add 6” Height for bin legs.

Dimensions

W” x D” x H”

Capacity

lb/kg Finish

Certification

• 3 years parts and labor on all components.

• 5 years parts and labor on the evaporator.

2018

DOE

101 Corporate Woods Parkway, Vernon Hills, IL 60061

1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com

• 5 years parts on the compressor and condenser.

• Warranty valid in North, South & Central America for commercial installations.

• Contact factory for warranty in other regions.

• Residential Applications: 1 year parts and labor

Ship Weight

lb/kg

Warranty

3/8" FPT CONDENSER WATER INLET

1/2" FPT CONDENSER DRAIN

WATER COOLED BACK VIEW

EXHAUST AIR

3/8" FPT WATER INLET

3/4" FPT DRAIN

.88" DIA ELECTRICAL ACCESS

REMOTE CONDENSER DISCHARGE LINE 1/2 MALE CPLG.

REMOTE CONDENSER LIQUID LINE 3/8 MALE CPLG.

C0522 - 500lb Cube Ice Machine

REMOTE COOLED

BACK VIEW

63.9

25.15

Prodigy Plus Modular Cube Ice Machine

3/8" FPT WATER INLET

3/4" FPT DRAIN

.88" DIA ELECTRICAL ACCESS (2)

15.5

6.11

INTAKE AIR

ULTRASONIC BIN LEVEL

24.00

REF.

SENSOR (OPTIONAL)

17.8

7.00

57.6

22.67

2.00

22.00

REF.

PLAN VIEW

5.1

10.25

LOUVER AND REMOVABLE FILTER AC UNITS ONLY

48.4

19.05

ICE DROP OPENING

5.1

2.00

8.3

3.25

3/8" FPT WATER INLET

3/4" FPT

AIR COOLED BACK VIEW

DRAIN

3.6

1.43

LEFT SIDE VIEW

Specifications

Model Number

Cube Size: medium or small

C0522MA-1 C0522MW-1

Condenser

Unit

Air

Water

Basic Electrical Volts/Hz/Phase

115/60/1 115/60/1

C0522MA-32 Air 208-230/60/1 15 2 6.5 5.94 18.0/68.2 -

C0522SA-1

sm.med.

C0522SW-1 C0522SA-32 C0522SW-32

C0522 - 500lb Cube Ice Machine

Air

Water

115/60/1 115/60/1

Air 208-230/60/1 15 2 6.5 5.94 18/68.2 -

Water 208-230/60/1 15 2 5.6 4.48 21.0/79.5 152/575.8

All Models

Dimensions (W x D x H):

Unit:

22” x 24” x 23” (55.9 x 61.0 x 58.4 cm)

Shipping Carton:

26” x 28” x 29” (66.0 x 71.1 x 73.7 cm)

Max. Fuse Size or HACR Circuit Breaker (amps)

15 15

Model Number Description

KVS KSBU KSBU-N KPAS

Scotsman recommends all ice machines have water ﬁltration. See Scotsman water ﬁlter speciﬁcation sheet for details.

FRONT VIEW

Circuit

Wires

2 2

Min. Circuit

Ampacity

13.5

11.9

13.5

11.9

Energy Consumption kWh/100 lb (45.4 kg) 90˚F(32˚C)/70˚F(21˚C)

5.94

4.48

5.94

4.48

Gallons/100 lb (liters/45.4 kg)

Potable Condenser

18.0/68.2 21/79.5

18.0/68.2

21.0/79.5

Accessories

Vari-Smart™ Ice Level Control Smart-Board™ Advanced Control Smart-Board™ Advanced Control with Network Prodigy Advanced Sustainability Kit - Includes KVS and KSBU - N Prodigy Plus Side Air Flow Kit for C0322 and C0522KPPSA223

Program ice bin l evels to match ice needs.

Use additional operational da ta for fast diag nosis.

Water Usage

90˚F(32˚C)/70˚F(21˚C)

152.0/575.8

Network capable.

Shipping Weight:

160 lb / 73 kg

BTUs per hour:

7,900

Refrigerant: R-404A

101 Corporate Woods Parkway, Vernon Hills, IL 60061

1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com

Operating Requirements

Minimum

Air Temperatures Water Temperatures Remote Cond. Temps Water Pressures Electrical Voltage

Speciﬁcations and design are subject to change without notice.

50°F (10°C) 40°F (4.4°C)

-20°F (-29°C) 20 PSIG (1.4 bar)

-5%

Maximum

100°F (38°C) 100°F (38°C) 120°F (49°C) 80 PSIG (5.5 bar) +10%
