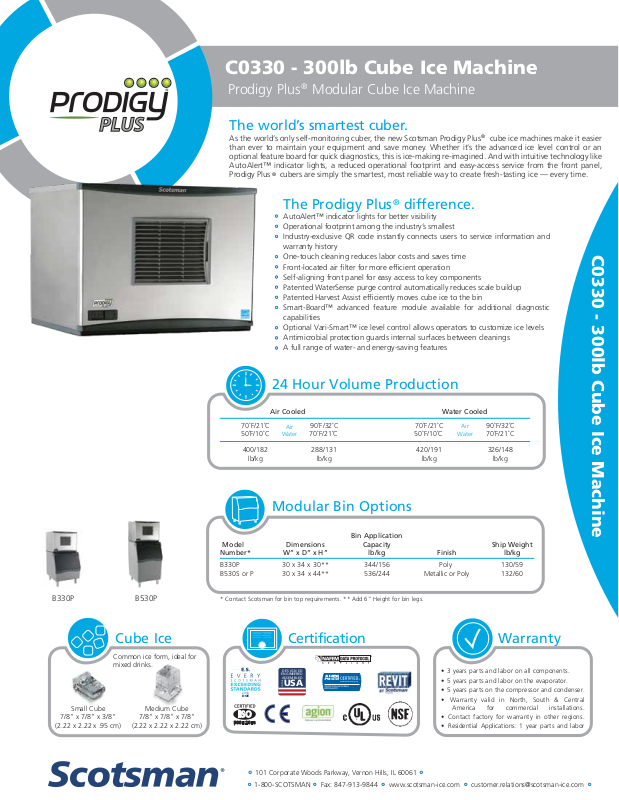

Scotsman C0330MA32, C0330MW1, C0330SW1 Specifications
C0330 - 300lb Cube Ice Machine
DESIGNED
ENGINEERED
ASSEMBLED
USA
IN THE
Prodigy Plus Modular Cube Ice Machine
®
The world’s smartest cuber.
As the world’s only self-monitoring cuber, the new Scotsman Prodigy Plus cube ice machines make it easier
than ever to maintain your equipment and save money. Whether it’s the advanced ice level control or an
optional feature board for quick diagnostics, this is ice-making re-imagined. And with intuitive technology like
AutoAlert™ indicator lights, a reduced operational footprint and easy-access service from the front panel,
Prodigy Plus cubers are simply the smartest, most reliable way to create fresh-tasting ice — every time.
®
The Prodigy Plus difference.
®
AutoAlert™ indicator lights for better visibility
Operational footprint among the industry’s smallest
Industry-exclusive QR code instantly connects users to service information and
warranty history
One-touch cleaning reduces labor costs and saves time
Front-located air filter for more efficient operation
Self-aligning front panel for easy access to key components
Patented WaterSense purge control automatically reduces scale buildup
Patented Harvest Assist efficiently moves cube ice to the bin
Smart-Board™ advanced feature module available for additional diagnostic
capabilities
Optional Vari-Smart™ ice level control allows operators to customize ice levels
Antimicrobial protection guards internal surfaces between cleanings
A full range of water- and energy-saving features
®
C0330 - 300lb Cube Ice Machine
24 Hour Volume Production
Air Cooled Water Cooled
70˚F/21˚C
50˚F/10˚C
400/182
lb/kg
Air
Water
90˚F/32˚C
70˚F/21˚C
288/131
lb/kg
70˚F/21˚C
50˚F/10˚C
420/191
lb/kg
Air
Water
90˚F/32˚C
70˚F/21˚C
326/148
lb/kg
B330P B530P
Cube Ice
Common ice form, ideal for
mixed drinks.
Small Cube
7/8” x 7/8” x 3/8”
(2.22 x 2.22 x .95 cm)
Medium Cube
7/8” x 7/8” x 7/8”
(2.22 x 2.22 x 2.22 cm)
Modular Bin Options
Bin Application
Model
Number*
B330P
B530S or P
* Contact Scotsman for bin top requirements. ** Add 6” Height for bin legs.
Dimensions
W” x D” x H”
30 x 34 x 30**
30 x 34 x 44**
Capacity
lb/kg Finish
344/156
536/244
Certification
2018
DOE
9001:2015
101 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
Ship Weight
lb/kg
Poly
Metallic or Poly
130/59
132/60
Warranty
• 3 years parts and labor on all components.
• 5 years parts and labor on the evaporator.
• 5 years parts on the compressor and condenser.
• Warranty valid in North, South & Central
America for commercial installations.
• Contact factory for warranty in other regions.
• Residential Applications: 1 year parts and labor
C0330 - 300lb Cube Ice Machine
Prodigy Plus Modular Cube Ice Machine
®
EXHAUST
AIR
3/8" FPT
CONDENSER
WATER INLET
1/2" FPT
CONDENSER
DRAIN
WATER COOLED
BACK VIEW
AIR COOLED
BACK VIEW
3/8" FPT
WATER
INLET
37.8
14.87
6.7
2.62
28.2
11.10
4.4
1.73
3.8
1.48
3.7
1.48
5.3
2.07
.88" DIA
ELECTRICAL
ACCESS
3/8" FPT
WATER
INLET
3/4" FPT
DRAIN
4.3
1.70
.88" DIA
ELECTRICAL
ACCESS
27.5
10.81
7.8
3.06
3/4" FPT
DRAIN
ULTRASONIC
BIN LEVEL
SENSOR
(OPTIONAL)
17.8
7.00
36.9
14.53
27.3
10.76
7.8
3.07
INTAKE
AIR
14.59
37
61
24.00
58.4
23.01
30.00
LEFT SIDE VIEW
REF.
PLAN VIEW
78
30.70
76.2
30.00
FRONT VIEW
26
10.25
ICE DROP OPENING
2.00
48.4
19.05
8.3
3.25
5.1
5.1
2.00
24.00
REF.
LOUVER AND
REMOVABLE FILTER
AC UNITS ONLY
Specifications
Model Number
Cube Size: medium or small
C0330MA-1
C0330MW-1
Condenser
Unit
Air
Water
Basic Electrical
Volts/Hz/Phase
115/60/1
115/60/1
C0330MA-32 Air 208-230/60/1 15 2 7.1 6.23 18.0/68.1 -
sm.med.
C0330SA-1
C0330SW-1
C0330 - 300lb Cube Ice Machine
Air
Water
115/60/1
115/60/1
All Models Accessories
Dimensions (W x D x H):
Unit:
30” x 24” x 23”
(76.2 x 61.0 x 58.4 cm)
Shipping Carton:
Shipping Weight:
155 lb / 70 kg
33.5” x 27.5” x 28”
(85.1 x 69.9 x 71.1 cm)
BTUs per hour:
5,200
Refrigerant: R-404A
Max. Fuse Size
or HACR Circuit
Breaker (amps)
15
15
15
15
Model Number Description
KVS
KSBU
KSBU-N
KPAS
Scotsman recommends all ice machines have water filtration. See Scotsman water filter specification sheet for details.
Air Temperatures
Water Temperatures
Remote Cond. Temps
Water Pressures
Electrical Voltage
Specifications and design are subject to change without notice.
Circuit
Min. Circuit
Wires
Ampacity
2
2
2
2
14.3
13.5
14.3
13.5
Vari-Smart™ Ice Level Control -
kWh/100 lb (45.4 kg)
90˚F(32˚C)/70˚F(21˚C)
6.23
4.97
6.23
4.97
Program ice bin l evels to match ice needs.
Smart-Board™ Advanced Control Smart-Board™ Advanced Control with Network -
Energy Consumption
Prodigy Advanced Sustainability Kit - Includes KVS and KSBU - N
Prodigy Plus Side Air Flow Kit for C0330, C0530 and C0630KPPSA323
®
Operating Requirements
Minimum
50°F (10°C)
40°F (4.4°C)
-20°F (-29°C)
20 PSIG (1.4 bar)
-5%
Maximum
100°F (38°C)
100°F (38°C)
120°F (49°C)
80 PSIG (5.5 bar)
+10%
Water Usage
Gallons/100 lb (liters/45.4 kg)
Potable Condenser
90˚F(32˚C)/70˚F(21˚C)
18.0/68.1
18.0/68.1
18.0/68.1
18.0/68.1
Use additional operational da ta for fast diag nosis.
Network capable.
-
139.0/526.2
-
139.0/526.2
101 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
SIS-SS-PP-C0330 02-18© 2018 Scotsman Ice Systems.
