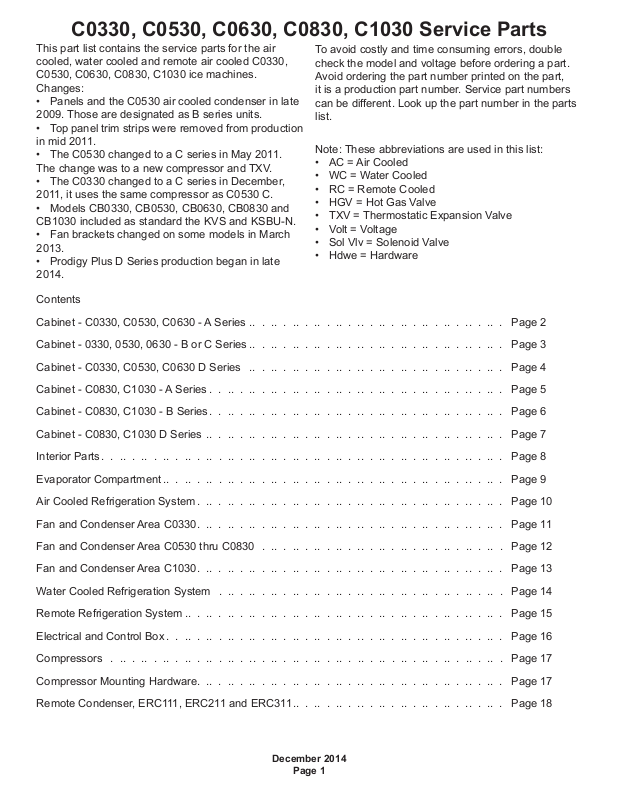

Scotsman C0330 Prodigy Plus, C0530 Prodigy Plus, C0630 Prodigy Plus, C0830 Prodigy Plus, C1030 Prodigy Plus Parts list
C0330, C0530, C0630, C0830, C1030 Service Parts
This part list contains the service parts for the air
cooled, water cooled and remote air cooled C0330,
C0530, C0630, C0830, C1030 ice machines.
Changes:
• Panels and the C0530 air cooled condenser in late
2009. Those are designated as B series units.
• Top panel trim strips were removed from production
in mid 2011.
• The C0530 changed to a C series in May 2011.
The change was to a new compressor and TXV.
• The C0330 changed to a C series in December,
2011, it uses the same compressor as C0530 C.
• Models CB0330, CB0530, CB0630, CB0830 and
CB1030 included as standard the KVS and KSBU-N.
• Fan brackets changed on some models in March
2013.
• Prodigy Plus D Series production began in late
2014.
Contents
Cabinet - C0330, C0530, C0630 - A Series .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 2
To avoid costly and time consuming errors, double
check the model and voltage before ordering a part.
Avoid ordering the part number printed on the part,
it is a production part number. Service part numbers
can be different. Look up the part number in the parts
list.
Note: These abbreviations are used in this list:
• AC = Air Cooled
• WC = Water Cooled
• RC = Remote Cooled
• HGV = Hot Gas Valve
• TXV = Thermostatic Expansion Valve
• Volt = Voltage
• Sol Vlv = Solenoid Valve
• Hdwe = Hardware
Cabinet - 0330, 0530, 0630 - B or C Series .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 3
Cabinet - C0330, C0530, C0630 D Series .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 4
Cabinet - C0830, C1030 - A Series . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 5
Cabinet - C0830, C1030 - B Series . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 6
Cabinet - C0830, C1030 D Series .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 7
Interior Parts . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 8

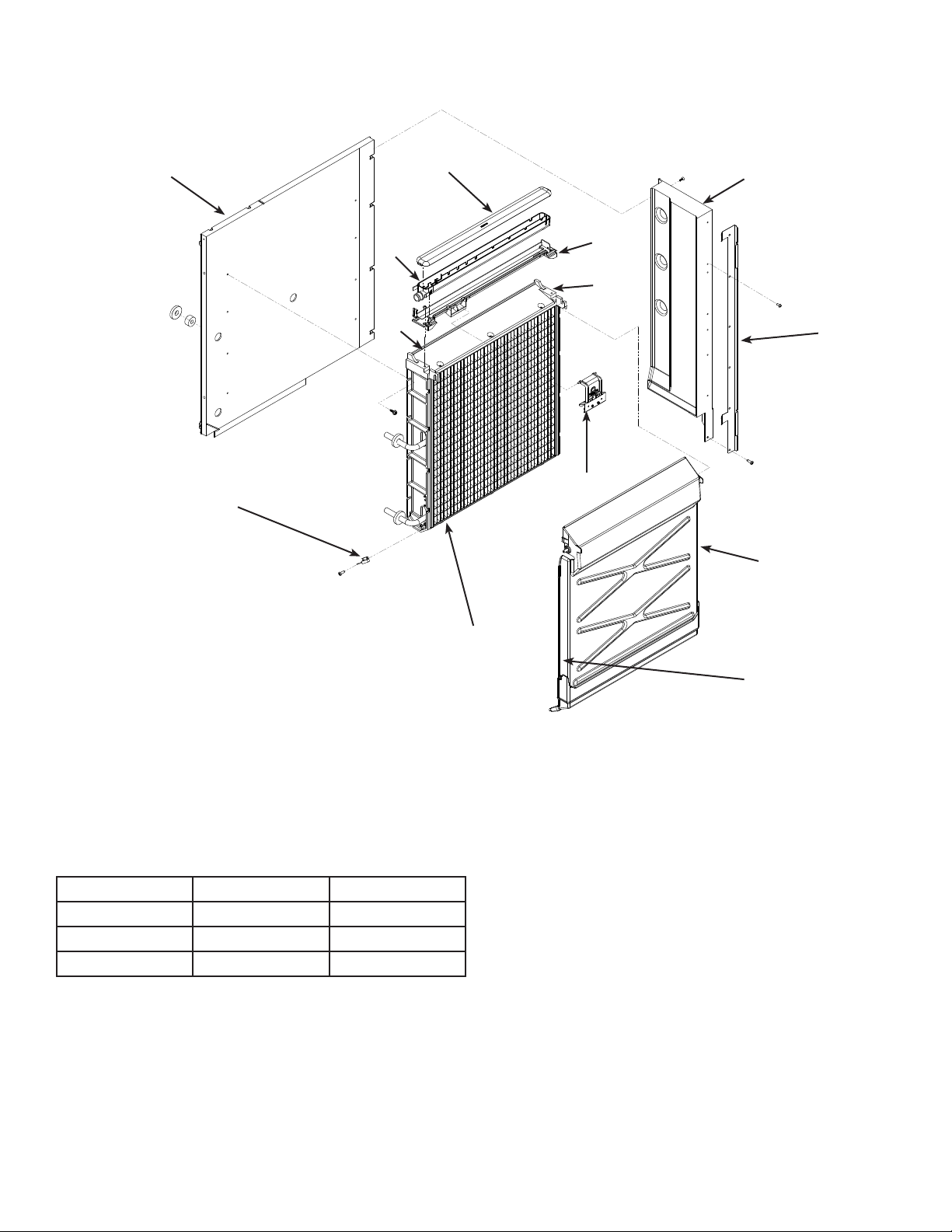

Evaporator Compartment .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 9
Air Cooled Refrigeration System . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 10
Fan and Condenser Area C0330. .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 11
Fan and Condenser Area C0530 thru C0830 . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 12
Fan and Condenser Area C1030. .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 13
Water Cooled Refrigeration System . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 14
Remote Refrigeration System .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 15
Electrical and Control Box . . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 16
Compressors . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 17
Compressor Mounting Hardware. .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 17
Remote Condenser, ERC111, ERC211 and ERC311.. . .. . .. . .. . .. . .. . .. . .. . .. . .. . Page 18
December 2014
Page 1
C0330, C0530, C0630, C0830, C1030 Service Parts
Cabinet - C0330, C0530, C0630 - A Series
1b
13
1a
1
2
2a
8b
8
8a 8b
10
15
17
16
6a
9
12
11
14
18
Item Part
Number Number Description
1* A38941-022 Top panel, w/trim strips
1a 02-4221-01 Left trim strip
1b 02-4221-02 Right trim strip
2 02-4240-01 Evaporator cover
2a 03-0727-05 Screw
3 02-4218-01 Sound shield - discontinued
late 2008
4* A38552-022 Front panel assembly,
includes trim strip, gussets and labels.
4a 02-4216-01 Top gusset
4b 02-4217-01 Bottom gusset
5 03-1735-03 Screw, front panel
6 02-4284-01 Bezel, full window
6a 02-4284-02 Bezel, partial window
7 02-4214-02 Trim strip
7a 03-1731-02 Push nut
8* A38553-021 Right side panel assy
3
4a
4b
7a
5
6
4
8a 02-4215-01 Receptacle
8b 03-3804-01 Screw receptacle
9 02-4067-01 Side panel support
for water cooled and remote models
02-4067-02 Side panel support
for air cooled models
10 02-4336-01 Right side panel liner
11 02-4212-01 Airlter
12 02-4224-01 Louver panel
12a A39222-001 Filter guide
12b A39238-001 Louver bracket
13* A38551-021 Left side panel, AC
A38551-022 Left side panel WC, RC
14 03-1404-12 Screw
15 A30911-015 Machine straps
16 16-0355-00 Inletwatertting,are
17 03-1405-15 Screw
18 A38608-001 Compressor deck
*Note: All panels supplied complete as used on unit
7
December 2014
Page 2
C0330, C0530, C0630, C0830, C1030 Service Parts
Cabinet - 0330, 0530, 0630 - B or C Series
1b
1
15
12
13
12a
11
1a
8b
12b
14
2
8
10
8a, 8b
2a
3
9
7a
4a
5
17
16
6a
7
6
4
Item Part
Number Number Description
1 A39579-022 Top panel
1a 02-4221-01 Left trim strip**
1b 02-4221-02 Right trim strip**
2 02-4240-01 Evaporator cover
2a 03-0727-05 Screw
3 A39571-001 Side panel clip
4* A39578-022 Front panel assembly,
includes trim strip and labels.
4a 02-4216-01 Top gusset
5 03-1735-03 Screw, front panel
6 02-4284-01 Bezel, full window
6a 02-4284-02 Bezel, partial window***
7 02-4214-02 Trim strip
7a 03-1731-02 Push nut
8* A39581-021 Right side panel assy
8b 03-3804-01 Screw receptacle
9 A38608-001 Compressor deck
10 02-4336-01 Right side panel liner
11 02-4212-01 Airlter
12 02-4224-01 Louver panel
12a A39238-001 Louver bracket
13* A39580-021 Left side panel, AC
A39580-022 Left side panel WC, RC
14 03-1404-12 Screw
15 A30911-015 Machine straps
16 16-0355-00 Inletwatertting,are***
17 03-1405-15 Screw
*Note: All panels supplied complete as used on unit,
except top panels do not have trim strips.
** Trim strips discontinued mid 2011
***Bezelandttingdiscontinuedfromproduction
2/8/2012.
8a 02-4215-01 Receptacle
December 2014
Page 3
C0330, C0530, C0630, C0830, C1030 Service Parts
Cabinet - C0330, C0530, C0630 D Series
15
2
1
4
17
16
13
14
3
5
18
13a
17
16
11
8
19
20
6
7
10
Item Part
Number Number Description
1 A40309-021 Top panel, includes item 2
2 02-4819-01 Trim strip
3 02-4336-01 Right side liner
4 02-4240-01 Evaporator cover
5 03-0727-05 Thumbscrew
6 A40308-021 Front panel, AC. Includes
items 7, 8, 9, 10, 11, 12
A40308-022 Front panel, WC or RC.
Includes items 9, 10, 11, 12
7 02-4212-03 Airlter
8 03-1419-26 Screw
9 02-4820-01 Trim strip
10 03-1735-03 Screw
12
9
12a 02-4822-01 Door, bezel with handle
12b 02-4822-02 Door, bezel secure
13 02-4823-01 Panel mount, left
13a 02-4823-02 Panel mount, right
13b 03-3804-01 Screw receptacle
14 03-1404-10 Screw
15 A40310-023 Left side panel, AC
A40310-021 Left side panel, WC & RC
16 02-4824-01 Spacer
17 03-3836-02 Screw
18 A40311-021 Right side panel
19 A30911-015 Machine straps
20 03-1405-15 Screw
11 02-4224-03 Louvers
12 02-4821-02 Bezel with standard door
December 2014
Page 4
C0330, C0530, C0630, C0830, C1030 Service Parts
Cabinet - C0830, C1030 - A Series
1b
1a
1
2
15
17
13
12a
12
11
Item Part
12b
14
8
10
8a, 8b
2a
3
9
18
4b
5
16
6a
7
6
4
Number Number Description
1* A38941-022 Top panel, w/trim strips
1a 02-4221-01 Left trim strip
1b 02-4221-02 Right trim strip
2 02-4240-02 Evaporator cover
2a 03-0727-05 Screw
3 02-4218-02 Sound shield - discontinued
late 2008
4* A38552-023 Front panel assembly,
includes trim strip, gussets and labels.
4a 02-4216-01 Top gusset
4b 02-4217-01 Bottom gusset
5 03-1735-03 Screw, front panel
6 02-4284-01 Bezel, full window
6a 02-4284-02 Bezel, partial window
7 02-4214-02 Trim strip
03-1731-02 Push nut
8* A38553-022 Right side panel assy
8a 02-4215-01 Receptacle
8b 03-3804-01 Screw receptacle
9 02-4067-03 Side panel support for water
cooled and remote models
02-4067-04 Side panel support for air
cooled models
10 02-4336-02 Right side panel liner
11 02-4212-01 Airlter
12 02-4224-01 Louver panel
12a A39222-001 Filter guide
12b A39238-001 Louver bracket
13* A38551-023 Left side panel, AC
A38551-024 Left side panel WC, RC
14 03-1404-12 Screw
15 A30911-015 Machine straps
16 16-0355-00 Inletwatertting,are
17 03-1405-15 Screw
18 A38611-001 Compressor deck
*Note: All panels supplied complete as used on unit.
December 2014
Page 5
C0330, C0530, C0630, C0830, C1030 Service Parts
Cabinet - C0830, C1030 - B Series
12b
12
13
12a
11
1a
8a, 8b
1b
1
2
10
8a, 8b
2a
8
9
7a
5
6
15
17
16
6a
7
14
Item Part
Number Number Description
1 A39579-022 Top panel
1a 02-4221-01 Left trim strip**
1b 02-4221-02 Right trim strip**
2 02-4240-02 Evaporator cover
2a 03-0727-05 Screw
3 A39571-001 Side panel clip
4* A39578-023 Front panel assembly,
includes trim strip and labels.
4a 02-4216-01 Top gusset
5 03-1735-03 Screw, front panel
6 02-4284-01 Bezel, full window
6a 02-4284-02 Bezel, partial window***
4
8b 03-3804-01 Screw receptacle
9 A38611-001 Compressor deck
10 02-4336-02 Right side panel liner
11 02-4212-01 Airlter
12 02-4224-01 Louver panel
12a A39238-001 Louver bracket
13* A39580-023 Left side panel, AC
A39580-024 Left side panel WC, RC
14 03-1404-12 Screw
15 A30911-015 Machine straps
161 6-0355-00 Inletwatertting,are***
17 03-1405-15 Screw
*Note: All panels supplied complete as used on unit,
except top panels do not have trim strips.
7 02-4214-02 Trim strip
03-1731-02 Push nut
8* A39581-022 Right side panel assy
8a 02-4215-01 Receptacle
** Trim strips discontinued mid 2011
***Bezelandttingdiscontinuedfromproduction
2/8/2012.
December 2014
Page 6
C0330, C0530, C0630, C0830, C1030 Service Parts
Cabinet - C0830, C1030 D Series
2
15
1
4
16
3
17
5
6
18
13a
16
17
14
13
11
19
20
7
8
Item Part
Number Number Description
1 A40309-021 Top panel, includes item 2
2 02-4819-01 Trim strip
3 02-4336-02 Right side liner
4 02-4240-02 Evaporator cover
5 03-0727-05 Thumbscrew
6 A40308-023 Front panel, AC. Includes
items 7, 8, 9, 10, 11, 12
A40308-024 Front panel, WC or RC.
Includes items 9, 10, 11, 12
7 02-4212-03 Airlter
8 03-1419-26 Screw
9 02-4820-01 Trim strip
10 03-1735-03 Screw
11 02-4224-03 Louvers
12
9
10
12a 02-4822-02 Door, bezel secure
13 02-4823-01 Panel mount, left
13a 02-4823-02 Panel mount, right
13b 03-3804-01 Screw Receptacle
14 03-1404-10 Screw
15 A40310-024 Left side panel, AC
A40310-022 Left side panel, WC & RC
16 02-4824-01 Spacer
17 03-3836-02 Screw
18 A40311-022 Right side panel
19 A30911-015 Machine straps
20 03-1405-15 Screw
12 02-4821-02 Bezel with standard door
June 2015
Page 7
C0330, C0530, C0630, C0830, C1030 Service Parts
Interior Parts
10a
6
5
11
7
9
10
12
8
15
21
19
18
13
23
16
2
20a
17
20
22
14
1, 3
Item Part
Number Number Description
1 15-0411-00 Strike (A series only)
2 11-0622-21 Light & switch panel D series
3 See page 4 Item # 13.13a.and 13b
4 A38732-001 Side panel mount A-C model
5 A38607-001 Strut, 0330-630
A38629-001 Strut, 0830, C1030
6 A38582-001 Brace
7 A38539-002 Control box top A thru C
A40283-001 Control box top, D
8 A38537-001 Control box side
9 Back panel, see page 14-15
10 12-2922-01 Inlet water sol vlv, 115 volt
12-2922-02 Inlet water sol vlv, 230 volt
12-2912-01 Water valve rebuild kit
10a 11-0568-02 Inlet water sol vlv, CE mod
14 02-4164-01 Water pump bracket
15 A39030-021 Water level sensor
16 see table Water pumps
Models 115 volt 208-230/60 50 Hz
0330, 0530 12-2919-21 12-2919-22 12-2919-26
0630 - 12-2919-22 12-2919-26
0830, 1030 - 12-2920-23 12-2620-25
17 see table Harvest assist mechanism
Models 115 volt 208-230 volt
0330, 0530 12-3060-21 12-3060-22
0630, 0830, 1030 - 12-3060-22
18 02-4647-01 Sump cover, use/w item 19
19 02-4646-01 WLS guard, use/w item 18
20 02-4154-03 Pump hose, 0830-1030
02-4154-02 Pump hose, 0530-0630
02-4154-01 Pump hose, 0330
20a 11-0515-21 Temp sensor set
11 11-0564-01 Purge valve, 115 volt
11-0564-02 Purge valve, 230 volt
12 A38860-002 Drain tube
13 A38860-001 Drain hose
21 13-0674-02 Fill hose order by ft
15-0821-01 Fill hose, -6 CE models
22 02-4152-01 Gusset
23 03-0727-05 Thumbscrew
June 2015
Page 8
C0330, C0530, C0630, C0830, C1030 Service Parts
Evaporator Compartment
12
1
2
11
3
13
6
8
5
10
7
Item Part
Number Number Description
1 02-4065-01 Water distributor cover
2 02-4064-01 Water distributor
3 02-4205-01 Mounting bracket
4 see table Evaporator
small cube medium cube
0330 A38626-021 A38626-022
0530, 0530 A38627-021 A38627-022
0830, 1030 A38628-021 A38628-022
5 A38596-001 Back wall, 0330, 0530, 0630
A38598-001 Back wall, 0803, 1030
6 A39031-021 Ice thickness sensor
4
9
7 02-4100-31 Curtain, 0330
02-4100-32 Curtain, 0530, 0630
7a 02-4611-21 Curtain, 0830, 1030
8 11-0563-01 Curtain switch
9 11-0563-02 Curtain switch magnet
10 02-4067-01 Side panel support short A*
A39560-001 Liner retainer, short B & C*
02-4067-03 Side panel support, long A*
A39584-001 Liner retainer long B*
11 03-1418-30 Mounting screw
12 13-0943-01 Gasket tape
13 02-4156-21 Spillway replacement kit
Note: Item 7 includes item 9, shipped loose.
Item 7a magnet is molded into curtain.
Short is 0330, 0530, 0630. Long is 0830 & 1030.
December 2014
Page 9
C0330, C0530, C0630, C0830, C1030 Service Parts
Air Cooled Refrigeration System
1
5
3
2
6
7
8
4
Item Part
Number Number Description
1 18-8890-01 Condenser, AC, 0330
18-8920-01 Cond, AC, C0530 - A series
18-8935-01 Cond, AC, 0530 - B - D series
18-8896-01 Condenser, AC, 0630
18-8895-01 Condenser, AC, 0830, 1030
2 16-1182-02 TXV, C0530 A or B Series
16-1184-01 TXV, 0530 C or D series
16-1182-01 TXV, 0630
16-1183-02 TXV, 0330
16-1142-01 TXV, 0830, 1030
19-0599-06 Insulation, TXV
3 11-0566-21 Fan cycle pressure sw.
4 11-0501-05 Hi pressure cut out, 0330 A-B
series, 0530 A-B series and 0630
7b
7a
9, 10
5 11-0493-02 Hot gas valve, 115 volt
12-2719-21 115 volt coil
11-0493-01 Hot gas valve, 230 volt
12-2719-22 230 volt coil
12-2733-30 HGV rebuild kit
6 11-0515-21 Thermistor
7 16-1137-01 Valve body
7a 16-1139-01 Core
7b 16-1140-01 Cap
8 02-3319-01 Dryer 0330 thru 0630
02-3319-02 Dryer 0830 & 1030
9 see page 17 Compressors
10 see page 17 Compressor mounting hdw
11 11-0515-21 Temp sensor set
Access valve changed 4-08. Prior valve:
16-0832-20 Access valve
16-0832-03 Port cap
16-0832-02 Stem cap
December 2014
Page 10
C0330, C0530, C0630, C0830, C1030 Service Parts
Fan and Condenser Area C0330
4a
4
7
6
9
2
1
Item Part
Number Number Description
1 12-1681-23 Fan motor, 0330, 115 volt
12-1681-04 Fan motor, 0330, 230 volt
2 18-8836-01 Fan blade, 0330
3 02-3692-21 Drain adapter - also for WC and RC
4 A38841-001 Fan shroud, 330 A Series
A39350-001 Fan shroud, 0330 B , C or D Series
4a A39593-001 Fan shroud top, B, C or D series
5 A38480-001 Fan motor bracket, 0330
8
5
6 02-4067-02 Side panel support, 0330, 0530, 0630 A Series Only
7 A38791-001 Utility channel, (Air Cooled) A series
A40418-001 Utility channel, (Air Cooled) B, C or D series
8 A39606-001 Back panel, B, C or D series
9 A38548-002 Junction box cover
June 2015
Page 11
C0330, C0530, C0630, C0830, C1030 Service Parts
Fan and Condenser Area C0530 thru C0830
7
6
1
2
4
5
3
8
Item Part
Number Number Description Voltage/Hz Fits Model Fits series
1 02-4067-02 Side panel support C0330-0630 A only
02-4067-04 Side panel support C0830-1030 A only
2 A38791-001 Utility channel C0330-0630 A
A40420-001 Utility channel C0830-1030 B-D
3 18-8926-01 Fan motor 115/60 C0530-1 A-D
18-8927-01 Fan motor 208-230/60 C0530, C0630. C0830-32,-3 A-D
4 18-8882-01 Fan blade C0530, C0630, C0830 A-D
5 A38554-001 Fan motor bracket C0530, C0630, C0830 A-C*
A40156-001 Fan motor bracket, right C0530, C0630, C0830 C**-D
5a A40148-001 Fan motor bracket, left C0530, C0630, C0830, C**-D
6 A39607-001 Fan shroud C0530, C0630 A-C*
A36603-001 Fan shroud C0830 A-C*
5a
A40146-001 Fan shroud C0530, C0630 C**-D
A40147-001 Fan shroud C0830 C**-D
7 A39608-001 Shroud top C0530, C0630 B-D
A39601-001 Shroud top C0830 B-D
8 02-3692-21 Drain adapter all
*Uptoserialnumber13031320011477.Fanbladeushwithendofmotorshaft.
** Beginning serial number 13031320011477. Then fan blade is .25” from end of shaft.
June 2015
Page 12
C0330, C0530, C0630, C0830, C1030 Service Parts
Fan and Condenser Area C1030
5
7
6
1
2
3
4
Item Part
Number Number Description Voltage/Hz Fits Model Fits series
1 18-8899-01 Fan motor 208-230/60 C1030-32, -3 A-D
18-8899-06 Fan motor 230/50 C1030-6 A-D
2 18-8900-01 Fan blade - C1030 A-D
3 A38655-001 Fan motor bracket C1030 A-D
4 A38624-001 Fan shroud C1030 A-D
5 A39610-001 Fan shroud top C1030 B-D
6 02-4067-04 Side panel support C0830-1030 A only
7 A40420-001 Utility channel C0830-1030 B-D
June 2015
Page 13
C0330, C0530, C0630, C0830, C1030 Service Parts
Water Cooled Refrigeration System
1a
10
6
4
9
3
4
1
Item Part
Number Number Description
1 18-8871-21 Condenser, WC, C0330,
C0530, C0630, C0830
1a 18-8893-21 Condenser, WC, C1030
2 16-1182-02 TXV, C0530 A or B series
16-1184-01 TXV, C0530 C series
16-1182-01 TXV, C0630
16-1183-02 TXV, C0330
16-1142-01 TXV, C0830, C1030
19-0599-06 Insulation TXV
3 11-0608-21 Water regulating valve
4 16-0874-01 Receiver, C0830, C1030
5 02-3319-01 Dryer, C0330 thru C0630
02-3319-02 Dryer, C0830 - C1030
6 A31828-002 Condenser drain
7 see page 17 Compressors
8 see page 17 Compressor mounting hdw
9 16-0355-00 Half union
2
11
13
7, 8
5
10 11-0501-21 High pressure cut out
11 11-0493-02 Hot gas valve, 115 volt
11-0493-01 Hot gas valve, 230 volt
12-2719-22 230 volt coil
12-2733-30 HGV rebuild kit
12 16-1063-01 Strainer no longer used
13 16-1137-01 Valve body
16-1139-01 Core
16-1140-01 Cap
Not Illustrated
A38634-001 Back pnl, WC - A Series 23"
A38625-001 Back pnl, WC - A Series 29"
A39561-001 Back pnl, WC - B/C series 23"
A39573-001 Back pnl, WC - B Series 29"
A40417-001 Back pnl, WC - D series 23”
A40419-001 Back pnl, WC - D series 29”
16-0832-20 Access valve (for hex wrench)
16-0832-03 Port cap
16-0832-02 Stem cap
June 2015
Page 14
C0330, C0530, C0630, C0830, C1030 Service Parts
Remote Refrigeration System
4
3
1
6
11
10
5
Item Part
Number Number Description
1 16-1176-01 Receiver, C0530, C0630
16-1175-01 Receiver, C0830, C1030
2 16-1182-02 TXV, C0530 A or B series
16-1184-01 TXV, C0530 C series
16-1182-01 TXV, C0630
16-1142-01 TXV, C0830, C1030
19-0599-06 Insulation, TXV
3 16-0850-01 Discharge quick connect
4 16-0850-03 Liquid quick connect
5 02-3319-02 Drier
6 16-1030-01 Liquid line access valve
7 see page 17 Compressors
8 see page 17 Compressor mounting hdw
8a see page 17 Crankcase heater
9 11-0515-21 Thermistor
10 11-0501-22 High pressure cut out
December 2014
11
9
12
7, 8, 8a
11 11-0493-02 Liquid line vlv or HGV, 115 v
11-0493-01 Liquid line vlv or HGV, 230 v
12 16-1137-01 Valve body
12a 16-1139-01 Core
12b 16-1140-01 Cap
Not Illustrated
16-1063-01 Strainer - no lnoger used
A37211-001 Top receiver bracket
A37212-001 Bottom receiver bracket
A38664-001 Back pnl, RC - A series 23"
A38665-001 Back pnl, RC - A series 29"
A39561-001 Bck pnl, RC - B/C series 23"
A39573-001 Back pnl, RC - B Series 29"
A40416-001 Back pnl, RC - D series, 23”
A40419-001 Back pnl, RC - D series, 29”
Prior access valve
16-0832-20 Access valve
16-0832-03 Port cap
16-0832-02 Stem cap
Page 15
2
C0330, C0530, C0630, C0830, C1030 Service Parts
Electrical and Control Box
5, 6
10
9
7
16
11
12
3
4
8
1
17
Item Part
Number Number Description
1 12-2469-03 Contactor, 115 volt
12-2469-02 Contactor, 230, single ph
12-2533-02 Contactor, three phase
2 12-2924-01 Transformer, 115 volt
12-2924-02 Transformer, 230 volt
2a 12-2639-01 Transformer, 50 Hz
3 12-1213-11 Snap bushing
4 12-1213-15 Snap bushing
5 11-0550-28 Service controller, thru C
series
11-0621-21 Servicecontroller,tsall
Prodigy cubers
6 02-4076-01 Control box door
02-4189-01 Overlay label
7 A39216-001 Barrier
2a
2
9 see next page PTCR -
10 12-2686-01 Fuse, 50 Hz only
11 12-2687-01 Fuse holder
12 18-8835-02 Bracket
Wiring Harnesses (not illustrated)
13 12-2931-01 Power harness, A & W
12-2931-02 Power harness, Remote
Power harness connects to J1 on controller
14 12-2932-01 Hi voltage harness, A & W
12-2933-01 Hi voltage harness, Rem
12-3064-01 Hi voltage, 50 Hz A & W
Hi voltage harness has the 8 pin connector
15 12-2928-02 WLS harness
16 KVS Vari-smart ice level control
17 KSBU-N
Items 16 and 17 standard on CB models.
8 see next page Run capacitor
December 2014
Page 16
C0330, C0530, C0630, C0830, C1030 Service Parts
Compressors
Model Series Electrical Compressor Overload Run Capacitor PTCR
C0330-1 A or B 115/60/1 18-8897-21 18-8897-23* 18-1902-69* 18-8835-01*
C0330-6 A or B 230/50 18-8897-26 18-8897-28* 18-1902-57* 18-8835-01*
C0330-32 A or B 208-230/60/1 18-8897-22 18-8897-27* 18-1902-57* 18-8835-01*
C0330-1 C or D 115/60/1 18-8948-21 18-8948-50* 18-1902-64* 18-8835-01*
C0330-6 C or D 230/50 18-8948-22 18-8948-51* 18-1902-65* 18-8835-01*
C0330-32 C or D 208-230/60/1 18-8948-23 18-8948-51* 18-1902-30* 18-8835-01*
C0530-1 A or B 115/60/1 18-8921-21 18-8921-23* 18-1902-45* 18-8835-01*
C0530-6 A or B 230/50 18-8921-26 18-8774-27* 18-1902-68* 18-8835-01*
C0530-32 A or B 208-230/60/1 18-8921-22 18-8774-28* 18-1902-68* 18-8835-01*
C0530-1 C or D 115/60/1 18-8948-21 18-8948-50* 18-1902-64* 18-8835-01*
C0530-6 C or D 230/50 18-8948-22 18-8948-51* 18-1902-65* 18-8835-01*
C0530-32 C or D 208-230/60/1 18-8948-23 18-8948-51* 18-1902-30* 18-8835-01*
C0630-32 all 208-230/60/1 18-8922-22 18-8922-27* 18-1902-57 18-8835-01
C0630-6 all 230/50 18-8922-26 internal 18-1902-71 18-8835-01
C0830-32 all 208-230/60/1 18-8813-23 internal 18-1902-69* 18-8835-01*
C0830-6 all 230/50 18-8813-27 internal 18-1902-69 18-8835-01
C0830-3 all 208-230/60/3 18-8813-25 internal - C0830-63 B 440/50/3 18-8813-08 internal - C1030-32 all 208-230/60/1 18-8726-23 internal 18-1902-69* 18-8835-01
C1030-6 all 230/50 18-8726-27 internal 18-1902-69 18-8835-01
C1030-3 all 208-230/60/3 18-8726-25 internal - CA1030-6 B 230/50/1 18-8749-27 internal 18-1902-70 18-8835-01
Compressor Mounting Hardware
Model Series Bolt Washer Grommet Sleeve
C/CB 0330 all 03-1405-20 03-1407-07 18-4700-28 18-0108-41
C0530 A or B 03-1405-20 03-1407-07 18-4700-28 18-0108-41
C/CB 0330 or 0530 C or D 03-1405-20 03-1407-07 18-2200-28 18-2200-27
C/CB 0630 all 03-1405-20 03-1407-07 18-4700-28 18-0108-41
C/CB 0830 or 1030 all 03-1405-20 03-1407-07 18-2300-27 18-2300-26
Model Crankcase heater
C0530R A or B Series 12-2942-01
C0530R C Series 12-3043-01
C0630R all 12-2942-02
C0830R or C1030R all 18-2308-01 internal 12-3043-03* external
*Replacementcompressorsincludeselectedcomponentsandalterdryer.Theymayalsoincludeother
componentsusedonlyonothermodels.CStypecompressorsincludettingstoadapttopriortubingsizes.
December 2014
Page 17
C0330, C0530, C0630, C0830, C1030 Service Parts
Remote Condenser, ERC111, ERC211 and ERC311
2
4
5
1
Item Part
Number Number Description
1 03-1405-08 Screw
3
6
Quick connects for line sets:
3/8 is part number 16-1100-08;
1/2 is 16-1100-09.
2 02-3575-01 Fan guard
3 11-0422-22 Headmaster
4 18-8816-01 Fan blade
5 12-2651-01 Fan motor - 230 volt (ERC311)
12-2651-02 Fan motor - 115 volt (ERC111 and ERC211)
6 18-8815-01 Coil, ERC111
18-8827-01 Coil, ERC311
Not Shown:
A37169-001 Leg
A37170-001 Leg brace
03-1645-01 Screw for legs
16-0850-01 Quick connect, discharge
16-0850-03 Quick connect, liquid
December 2014
Page 18
Loading...
