Scotsman C0330MA1 Specifications

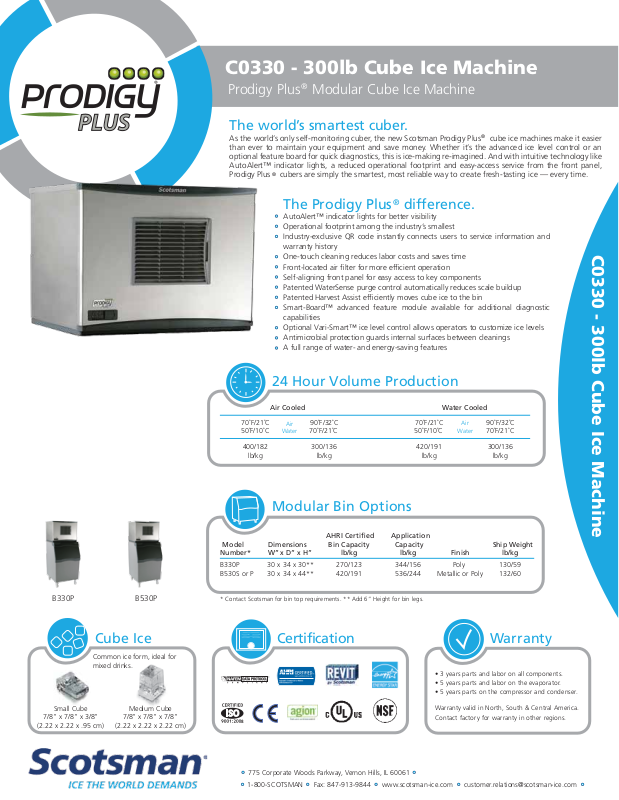

C0330 - 300lb Cube Ice Machine
®
Prodigy Plus Modular Cube Ice Machine
®
PLUS
The world’s smartest cuber.
As the world’s only self-monitoring cuber, the new Scotsman Prodigy Plus cube ice machines make it easier
than ever to maintain your equipment and save money. Whether it’s the advanced ice level control or an
optional feature board for quick diagnostics, this is ice-making re-imagined. And with intuitive technology like
AutoAlert™ indicator lights, a reduced operational footprint and easy-access service from the front panel,
Prodigy Plus cubers are simply the smartest, most reliable way to create fresh-tasting ice — every time.
®
The Prodigy Plus difference.
AutoAlert™ indicator lights for better visibility
Operational footprint among the industry’s smallest
Industry-exclusive QR code instantly connects users to service information and
warranty history
One-touch cleaning reduces labor costs and saves time
Front-located air filter for more efficient operation
Self-aligning front panel for easy access to key components
Patented WaterSense purge control automatically reduces scale buildup
Patented Harvest Assist efficiently moves cube ice to the bin
Smart-Board™ advanced feature module available for additional diagnostic
capabilities
Optional Vari-Smart™ ice level control allows operators to customize ice levels
Antimicrobial protection guards internal surfaces between cleanings
A full range of water- and energy-saving features
®
®
C0330 - 300lb Cube Ice Machine
24 Hour Volume Production
Air Cooled Water Cooled
70˚F/21˚C
50˚F/10˚C
400/182
lb/kg
Air
Water
90˚F/32˚C
70˚F/21˚C
300/136
lb/kg
70˚F/21˚C
50˚F/10˚C
420/191
lb/kg
Air
Water
90˚F/32˚C
70˚F/21˚C
300/136
lb/kg
B330P B530P
Common ice form, ideal for
mixed drinks.
Small Cube
7/8” x 7/8” x 3/8”
(2.22 x 2.22 x .95 cm)
(2.22 x 2.22 x 2.22 cm)
Medium Cube
7/8” x 7/8” x 7/8”
Modular Bin Options
AHRI Certified
Model
Number*
B330P
B530S or P
* Contact Scotsman for bin top requirements. ** Add 6” Height for bin legs.
Dimensions
W” x D” x H”
30 x 34 x 30**
30 x 34 x 44**
Bin Capacity
lb/kg
270/123
420/191
Application
Capacity
lb/kg Finish
344/156
536/244
CertificationCube Ice
8
775 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
Ship Weight
lb/kg
Poly
Metallic or Poly
130/59
132/60
Warranty
• 3 years parts and labor on all components.
• 5 years parts and labor on the evaporator.
• 5 years parts on the compressor and condenser.
Warranty valid in North, South & Central America.
Contact factory for warranty in other regions.
C0330 - 300lb Cube Ice Machine
Prodigy Plus Modular Cube Ice Machine
®
3/8" FPT
CONDENSER
WATER INLET
1/2" FPT
CONDENSER
DRAIN
WATER COOLED
BACK VIEW
EXHAUST
AIR
37.8
14.87
6.7
2.62
28.2
11.10
3/8" FPT
WATER
INLET
AIR COOLED
BACK VIEW
3.8
1.48
5.3
2.07
.88" DIA
ELECTRICAL
ACCESS
3/8" FPT
WATER
INLET
4.4
1.73
27.3
10.76
7.8
3.07
3/4" FPT
DRAIN
REMOTE CONDENSER
LIQUID LINE
3/8 MALE CPLG.
36.9
14.53
1.70
3/4" FPT
DRAIN
3.7
1.48
REMOTE CONDENSER
DISCHARGE LINE
1/2 MALE CPLG.
47.6
18.76
46
18.11
4.3
.88" DIA
ELECTRICAL
ACCESS
14.59
27.5
10.81
7.8
3.06
37
REMOTE COOLED
BACK VIEW
LEFT SIDE VIEW
18.11
46
24.00
37
14.57
6.7
2.62
3.8
1.48
61
3/8" FPT
WATER
INLET
5.3
2.07
10.82
3/4" FPT
DRAIN
.88" DIA
ELECTRICAL
ACCESS (2)
15.5
6.11
37
14.59
7.8
3.07
INTAKE
AIR
58.4
23.01
17.8
7.00
PLAN VIEW
ULTRASONIC
BIN LEVEL
SENSOR
(OPTIONAL)
78
30.70
76.2
30.00
30.00
REF.
26
10.25
ICE DROP OPENING
LOUVER AND
REMOVABLE FILTER
AC UNITS ONLY
2.00
48.4
19.05
8.3
3.25
5.1
5.1
2.00
24.00
REF.
FRONT VIEW
Specifications
Model Number
Cube Size: medium or small
C0330MA-1
C0330MW-1
sm.med.
C0330SA-1
C0330SW-1
C0330 - 300lb Cube Ice Machine
Condenser
Unit
Water
Water
Air
Air
Basic Electrical
Volts/Hz/Phase
115/60/1
115/60/1
115/60/1
115/60/1
All Models Accessories
Dimensions (W x D x H):
Unit:
30” x 24” x 23”
(76.2 x 61.0 x 58.4 cm)
Shipping Carton:
Shipping Weight:
160 lb / 73 kg
33.5” x 27.5” x 28”
(85.1 x 69.9 x 71.1 cm)
BTUs per hour:
5,200
Refrigerant: R-404A
Max. Fuse Size
or HACR Circuit
Breaker (amps)
15
15
15
15
Model Number Description
KVS
KSBU
KSBU-N
KPAS
Scotsman recommends all ice machines have water filtration. See Scotsman water filter specification sheet for details.
Air Temperatures
Water Temperatures
Remote Cond. Temps
Water Pressures
Electrical Voltage
Specifications and design are subject to change without notice.
Circuit
Wires
2
2
2
2
Min. Circuit
Ampacity
14.3
13.5
14.3
13.5
kWh/100 lb (45.4 kg)
90˚F(32˚C)/70˚F(21˚C)
6.5
5.2
6.5
5.2
Vari-Smart™ Ice Level Control Smart-Board™ Advanced Control Smart-Board™ Advanced Control with Network Prodigy Advanced Sustainability Kit - Includes KVS and KSBU - N
Operating Requirements
Energy Consumption
Minimum
50°F (10°C)
40°F (4.4°C)
-20°F (-29°C)
20 PSIG (1.4 bar)
-10%
Maximum
100°F (38°C)
100°F (38°C)
120°F (49°C)
80 PSIG (5.5 bar)
+10%
Water Usage
Gallons/100 lb (liters/45.4 kg)
Potable Condenser
90˚F(32˚C)/70˚F(21˚C)
18.0/68.2
18.5/70.2
18.0/68.2
18.5/70.2
Program ice bin l evels to match i ce needs.
Use additional operational da ta for fast diagnosis.
-
163.0/618.0
-
163.0/618.0
Network capable.
Energy
Star
®
775 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844 customer.relations@scotsman-ice.comwww.scotsman-ice.com
SIS-SS-PP-C0330 01-15© 2015 Scotsman Ice Systems.
