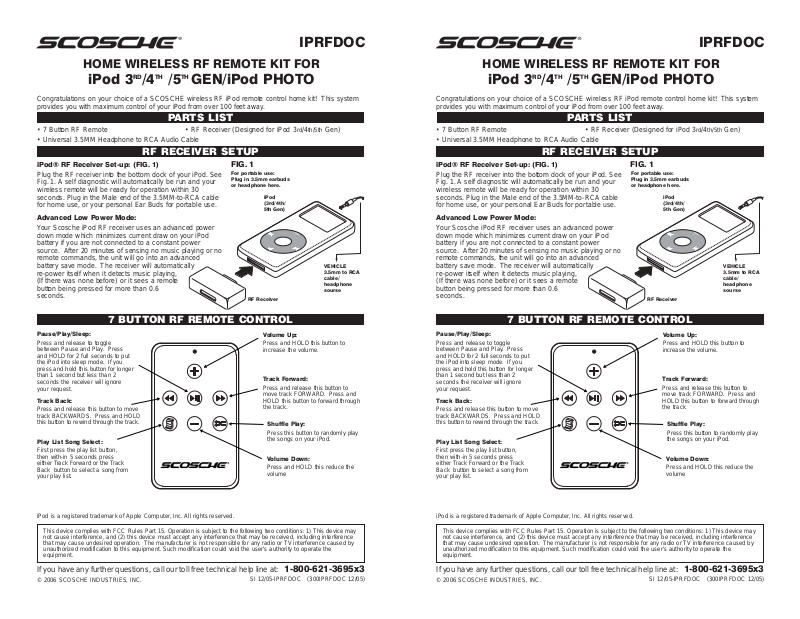

Scosche IPRFDOC Users Manual
IPRFDOC
IPRFDOC
HOME WIRELESS RF REMOTE KIT FOR
iPod 3RD/4TH /5
Congratulations on your choice of a SCOSCHE wireless RF iPod remote control home kit! This system
provides you with maximum control of your iPod from over 100 feet away.
• 7 Button RF Remote
• Universal 3.5MM Headphone to RCA Audio Cable
RF RECEIVER SETUP
iPod® RF Receiver Set-up: (FIG. 1)
Plug the RF receiver into the bottom dock of your iPod. See
Fig. 1. A self diagnostic will automatically be run and your
wireless remote will be ready for operation within 30
seconds. Plug in the Male end of the 3.5MM-to-RCA cable
for home use, or your personal Ear Buds for portable use.
Advanced Low Power Mode:
Your Scosche iPod RF receiver uses an advanced power
down mode which minimizes current draw on your iPod
battery if you are not connected to a constant power
source. After 20 minutes of sensing no music playing or no
remote commands, the unit will go into an advanced
battery save mode. The receiver will automatically
re-power itself when it detects music playing,
(If there was none before) or it sees a remote
button being pressed for more than 0.6
seconds.
7 BUTTON RF REMOTE CONTROL
Pause/Play/Sleep:
Press and release to toggle
between Pause and Play. Press
and HOLD for 2 full seconds to put
the iPod into sleep mode. If you
press and hold this button for longer
than 1 second but less than 2
seconds the receiver will ignore
your request.
Track Back:
Press and release this button to move
track BACKWARDS. Press and HOLD
this button to rewind through the track.
Play List Song Select:
First press the play list button,
then with-in 5 seconds press
either Track Forward or the Track
Back button to select a song from
your play list.
TH
GEN/iPod PHOTO
PARTS LIST
• RF Receiver (Designed for iPod 3
FIG. 1
For portable use:
Plug in 3.5mm earbuds
or headphone here.
RF Receiver
rd/4th/5th Gen)
iPod
(3rd/4th/
5th Gen)
VEHICLE
3.5mm to RCA
cable/
headphone
sourse
Volume Up:
Press and HOLD this button to
increase the volume.
Track Forward:
Press and release this button to
move track FORWARD. Press and
HOLD this button to forward through
the track.
Shuffle Play:
Press this button to randomly play
the songs on your iPod.
Volume Down:
Press and HOLD this reduce the
volume
HOME WIRELESS RF REMOTE KIT FOR
iPod 3RD/4TH /5
Congratulations on your choice of a SCOSCHE wireless RF iPod remote control home kit! This system
provides you with maximum control of your iPod from over 100 feet away.
• 7 Button RF Remote
• Universal 3.5MM Headphone to RCA Audio Cable
RF RECEIVER SETUP
iPod® RF Receiver Set-up: (FIG. 1)
Plug the RF receiver into the bottom dock of your iPod. See
Fig. 1. A self diagnostic will automatically be run and your
wireless remote will be ready for operation within 30
seconds. Plug in the Male end of the 3.5MM-to-RCA cable
for home use, or your personal Ear Buds for portable use.
Advanced Low Power Mode:
Your Scosche iPod RF receiver uses an advanced power
down mode which minimizes current draw on your iPod
battery if you are not connected to a constant power
source. After 20 minutes of sensing no music playing or no
remote commands, the unit will go into an advanced
battery save mode. The receiver will automatically
re-power itself when it detects music playing,
(If there was none before) or it sees a remote
button being pressed for more than 0.6
seconds.
7 BUTTON RF REMOTE CONTROL
Pause/Play/Sleep:
Press and release to toggle
between Pause and Play. Press
and HOLD for 2 full seconds to put
the iPod into sleep mode. If you
press and hold this button for longer
than 1 second but less than 2
seconds the receiver will ignore
your request.
Track Back:
Press and release this button to move
track BACKWARDS. Press and HOLD
this button to rewind through the track.
Play List Song Select:
First press the play list button,
then with-in 5 seconds press
either Track Forward or the Track
Back button to select a song from
your play list.
TH
GEN/iPod PHOTO
PARTS LIST
• RF Receiver (Designed for iPod 3
FIG. 1
For portable use:
Plug in 3.5mm earbuds
or headphone here.
RF Receiver
rd/4th/5th Gen)
iPod
(3rd/4th/
5th Gen)
VEHICLE
3.5mm to RCA
cable/
headphone
sourse
Volume Up:
Press and HOLD this button to
increase the volume.
Track Forward:
Press and release this button to
move track FORWARD. Press and
HOLD this button to forward through
the track.
Shuffle Play:
Press this button to randomly play
the songs on your iPod.
Volume Down:
Press and HOLD this reduce the
volume
iPod is a registered trademark of Apple Computer, Inc. All rights reserved.
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: 1) This device may
not cause interference, and (2) this device must accept any interference that may be received, including interference
that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modification to this equipment. Such modification could void the user's authority to operate the
equipment.
If you have any further questions, call our toll free technical help line at: 1-800-621-3695x3
© 2006 SCOSCHE INDUSTRIES, INC.
SI 12/05-IPRFDOC (300IPRFDOC 12/05)
iPod is a registered trademark of Apple Computer, Inc. All rights reserved.
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: 1) This device may
not cause interference, and (2) this device must accept any interference that may be received, including interference
that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modification to this equipment. Such modification could void the user's authority to operate the
equipment.
If you have any further questions, call our toll free technical help line at: 1-800-621-3695x3
© 2006 SCOSCHE INDUSTRIES, INC.
SI 12/05-IPRFDOC (300IPRFDOC 12/05)
