Scorpio SR-i500SW,SR-i600 Installation Manual And User's Manual

SR-i500SW / SR-i600

FM 2-Way Security System

INSTALLATION MANUAL

AND USER’S GUIDE

Standard Features

• ½ mile 2-Way FM Transceiver

• LCD Water proof / impact

resistant remote

• Ultra low power drain MCM

• Built-in accelerometer

• Ignition protection

• Range Confirmation Signal (RCS)

• Remote sensor control

• Battery safeguard with “sleep

mode”

• Violation display with time stamp

• Passive arming

• Selectable arming / disarming

• Programmable multi-tone siren

• Remote panic feature

Optional Accessories

• Perimeter sensor (SN-5) – A miniature multi stage microwave sensor that detects motion
in mass around the motorcycle.

• Ignition disable and anti-hijack kit (RID-5) - Allows remote disabling of the motorcycle’s
electrical system, should someone force you off your b ike. Also prevents the engine from
being started when the system is armed.

• Back-up battery (BAT-5) – A built-in back-up battery feature allowing the siren and
transmitter to continue operating when power is interrupted.

• Factory Connector Kits–OEM sty le connectors that simply plug into the motorcycl e’s
factory wiring harness. Connector kits are available for select motorcycle models.

Table of Contents

Installation

• Component List ---------------------------------------------------------------- Page 2

• Planning The Installation ---------- ------------------------------------------ Page 2

• Mounting The Components ----------------------------------------------- Page 3

• Color Codes --------------------------------------------------------------------- Page 3

• Connections --------------------------------------------------------------------- Page 4

• Using the T-tap Connectors ---------------------------- ----- -------- --- ---- Page 4

User’s Guide

• Remote Transceiver Icons and Message Display ------------------- Page 5

• Transceiver Charging Instructions ---------------------------------------- Page 5

• Transceiver Battery Status ----------------- ---------------------------------- Page 5

• Turning Transceiver On / Off ------------------------ ----------------------- Page 6

• Operating Instructions ----- ---------------------- ---------------------------- Page 6

• Alarm Triggers-------------------------------------------------------------------- Page 7

• Sensor Memory Display -------------------- ---------------------------------- Page 7

• RCS (Range Conformation Signal) -------------------------------------- Page 7

• Battery Safeguard with “Sleep Mode” --------------------- ---- ------- Page 7

• Motorcycle Battery Status ---------------- ---------------------------------- Page 8

• Locking the Transceiver’s buttons --------------------------------------- Page 8

• Checking Motorcycle Status and Violation Display --------------- Page 8

• Programming and customizing Instructions -------------------------- Page 9

• Selecting Transceiver Alert Typ e ------------------------------------------ Page 9

• Selecting Auto / Manual Arming ----------------------------------------- Page 10

• Selecting Siren Tone and Alarm Duration ------ ----------------------- Page 10

• Adjusting the Accelerometer (Shock / Tilt ) Sensor ---------------- Page 10

• Setting Clock Time ------------------------------------------------------------ Page 11

• Encoding a Transceiver ------------------------------------------------------ Page 11

Optional Accessories Instructions

• Perimeter Sensor (SN-5) ------------------------------------------------------ Page 12

• Ignition Disable / Anti-hijack Unit ----------------------------------------- Page 13

• Back-up Battery -------------------- -------------------------------------------- Page 14

Warranty and FCC Information

• Limited Warranty --------------------------------------- ------- --------- ------ Page 15

• FCC Notice ---------------------------------------------------------------------- Page 15

• Contact information --------------------------------------------------------- Page 15

1

Installation

Components List

MCM (Main Control Module)

Remote Transceiver

Accessory Harness

Generic Installation Kit (GEN-1)

Main Harness (HAR-1)

Planning the Installation

It is very important that before starting the installation of the security system, you carefully read
the installation instructions and spend time planning the installation. By planning ahead you will
be able to select the best approach in placing, securing and wiring the system to your specific
motorcycle. Although the installation is not difficult, there are a number of steps that must be
taken for the system to operate properly. We suggest the follo wing steps:

1. Check that your motorcycle battery is fully charged and that all electrical circuits are in
good working condition .

2. Check the layout a nd constru ction of the m otorcycle to decide wha t space is av ailable to
place the components.

3. Verify that no moving parts interfere with the components or their wires.

4. Do not route wires near sharp edges, which could cut wires and cause a short.

5. Do not mount components near extreme heat areas such as exhaust p ipes etc.

6. Allow at least an inch or two of slack at all connection points to reduce the chance that a
connection will break ap art due to vibration.

2

Mounting the Components

Select a suitable location under the seat or in a side cover. Mount the MCM using Velcro or
cable ties. Make sure that it is not exposed or easily reached.

Routing the Antenna Wire

The MCM includes an 18” antenna wire. The first 12” is a coaxial wire; the remaining 6” is the
reception antenna wire. When routing, try to avoid running the antenna along or near metal. For
best performance, have the antenna wire as vertical as possible and exposed.

Wire Connections

Note: All Connectors are unique and will only fit the appropriate component one way.

The MCM is equipped with two connectors. One is for the main harness (HAR-1) and the other is
for the optional accessories.

Accessory Harness

Plug in the accessory harness to the matching connector on the MCM. If no options are being
used, plug in the supplied dust cover.

Main Harness

Note: If the optional factory connector kit is being used, please disregard this section of the

instructions and refer to the instructions supplied with the factory connector kit.

The main harness consists of two harnesses. One is labeled (HAR-1) and the second is labeled
(GEN-1). Plug in the whit e 4 pin connector from the (HAR-1) into the matching 4 pin connector
from the (GEN-1). The (HAR-1) also has a waterproof connector tha t plugs into the MCM. The
wires should be connected as follows:

HAR-1

Black wire with fuse and ring terminal – To battery Positive (+).

GEN-1

Black wire – To ground (-).
Grey wi re – To tur n s ignal power wire (Left).
Grey wire – To turn signal power wire (Right).
Orange wire – To tail light wire or any oth er wire that is hot (+) when ignition is “ON” . (NOTE: this is
an input to the alarm this connection is not designed to flash the tail light).

Color Codes:

Ground (-) Tail Light Left Turn Signal Right Turn Signal
Honda Green wire Brown wire Orange wire Blue wire
Kawasaki Black wire Red wire Green wire Grey wire
Suzuki Black/White Brown wire Green or Black Grey wire
Yamaha Black wire Blue wire Green wire Brown wire

Harley Davidson

Black wire Blue wire Brown wire Purple wire

3

Connections

Fuse

To Battery (+)

Accessory
HAR-1 Connector

GEN-1

MCM

Black – To Ground (-)
Grey – To Turn Signal
Grey – To Turn Signal
Orange – To Tail Light

Note: Connect the (HAR-1) harness to the MCM only after installation is completed. If the

battery is to be removed, disconnect this connector first. Reconnect only after battery

terminals are reconnected.

Note: When the main harness (HAR-1) is plugged in, the siren should chirp. If the siren dose

not chirp; check the fuse, and battery (+) and ground (-) connections.

Using the T-tap Connectors

1) Place female T-tap con nector over wire to be tapped, close and squeeze until it snaps close.

2) Now slip male T-tap connector over hinged end of the female connector to make a

connection.
Motorcycle Wire

1)

Female T-tap

2) Female T-tap

Male T-tap
Motorcycle
Wire

Wire from (GEN-1)

4

User’s Guide

Remote Transceiver Icons and Message Displays

Shock Trigger

Perimeter Trigger

Clock

Signal Indicator

Alert Type Aud/Vibr System Status

Button #3

Button #2

Button # 1

Battery Level Indicator

Tilt Trigger

Ignition Trigger
Back up Power

Activated

Button #4

Audible/ Silent

Transceiver Charging Instructions

Charger Input

The transceiver is pre-charged at the fact ory and will opera te out of th e box but we recom m end
that it be charge for at least 10 hours when first operated to insure full life of battery.

1. Plug in provided charger into the transceiver.

2. While the transceiver is charging the

icon will scroll from empty to full.

3. When transceiver is fully charged the

icon will no longer change.

Recharge the transceiver every day to maintain full function.

Transceiver Battery Status

The LCD will display 3 different icons to show the Transceiver battery status.

5

Turning the Transceiver On/Off

Note: Out of the box the transceiver is turned “off” by default and should be turned “on” to

operate the alarm

• To turn “on” , press and hold button #4 until the transceiver chips two times. The power is
now “on”.

• To turn “off”, press and hold button #4 until the transceiver chips two time follo wed by
another two times. The power is now “Off”.

Note: When the Transceiver is in the “Off” mode only the and icons will still be
displayed

Operating Instructions

The following instruction assumes that the transceiver is with in range of the motorcycle.

Arm

1. Press button #1, siren chirps 3 times and the turn signal lights flash 1 time.

2. The Transceiver echoes 3 chirps and the LCD displays

and and PER OFF icons.

Disarm

1. Press button #2, siren chirps 1 time and lights flash 1 time.

2. The Transceiver echoes 1 chirp and the LCD displays icon.

Arming With Optional Perimeter Sensor

1. Press button #3, siren chirps 4 times and turn signal lights flash 1 time.

2. The Transceiver echoes 4 chirps and the LCD displays

, icons.

3. The system is armed and the perimeter sensor is activated.

Arming Without Siren / Paging Only

1. Press buttons #1 and #3 at the same time, siren chirps 5 times and the turn signal lights

flash 1 time.

2. The Transceiver echoes 5 chirps and the LCD displays

, and icons.

3. The system is armed but the siren and turn signal lights are disabled for a silent paging

only alert.

Arming Without Siren or Perimeter Sensor (optional) / Paging Only

1. Press buttons #2 and #3 at the same time, siren chirps 6 times and the turn signal lights

flash 1 time.

2. The Transceiver echoes 6 chirps and the LCD displays

, , and PER OFF icons.

3. The system is armed but the siren, turn signal lights and perimeter sensor are disabled.

Panic/ Stop Trigger

a. When system is armed press button #3 for Panic feature. (panic feature will
sound siren for a few seconds, drawing attention to your bike)
b. Pressing button #3 during an alarm trigger stops the alarm cycle but keeps
the system armed.

Note: When pressing button #1,2 or 3 the icon will flash to confirm the command has been

sent.

6

Alarm Triggers

When the system is triggered, the siren will sound and the turn signal lights will flash. The
Transceiver’s LCD will display the following messages:

1. If bike is bumped, the LCD displays

icon. The siren on the bike will sound for 5

seconds and the lights will flash. This cycle will repeat twice.

2. If the perimeter sensor triggers a full alarm cycle, the LCD displays icon. The siren

on the bike will sound for 5 seconds. This cycle will repeat twice
(Note: The turn signal lights will not flash for a perimeter sensor trigger).

3. If the bike is tilted, the LCD displays icon. The siren on the bike will sound for 30

seconds and the lights will flash. This cycle will repeat six times.

4. If the ig nition switch is tu rned on or tampere d with, the LCD dis plays

Icon. The siren
on the bike will sound for 30 seconds and the lights will flash. This cycle will repeat six
times.

5. With the optional back up system installed, the LCD displays icon if the main
harness or battery power supply is disconnected. The MCM will still continue to sound
and transmit from its internal power source. The siren on the bike will sound for 30
seconds. This cycle will repeat six times.

6. The Transceiver will continue to flash the triggered icon until any button is pressed.

Note: The Transceiver will sound a unique tone to correspond with the triggered sensor

Sensor Memory Display

When the system is disarmed the turn signals will flash to indicate if there has been an alarm
trigger. The lights will flash once to indicate that the system has been disarmed, additional flashes
indicate that the following trigger has occurred:

1 flash then 1 additional flash = Shock Trigger
1 flash then 2 additional flashes = Tilt Trigger
1 flash then 3 additional flashes = Perimeter Sensor Trigger
1 flash then 5 additional flashes = Ignition Trigger

RCS (Range Confirmation Signal)

If the Transceiver is within range of the MCM the LCD dis plays icon.
If the Transceiver does not receive the RCS signal the icon will not appear.

Motorcycle Battery Safeguard with “sleep mode”

• If the optional perimeter sensor is being used and the alarm is armed for more then 10 days
the system will automatically disable the perimeter sensor.

• If the alarm is armed for more than 30 days, the system will automatically disable the systems
receiver. In this mode the transceiver will no longer be able to operate the system but the
system is still armed and protecting the bike.

• To disarm, trigger the alarm, and press the #2 button.

7

Motorcycle Battery Status

When the voltage on the motorcycle battery drops below 11.2 volts The LCD displays icon.

Locking the Transceiver’s buttons

To “lock”, press button #4 for 2 sec. The Transceiver will beep and buttons will lock.
To “unlock”, press button #4 for 2 sec. The Transceiver will beep and buttons will unlock.

Checking Motorcycle Status and Violation Display with Time Stamp

1. Press button #4. The back light and the memory screen will be displayed. If the alarm

was not triggered, all the sensor icons will come on and the # 0 0 will be displayed.

2. If there was an alarm trigger, the last triggered sensor will flash. Press button #4

repeatedly to scroll through all the triggered sensors in the Transceiver’s memory.

3. The alternating numeric display shows the current trigger, numbering of triggers in

memory, and the time the trigger occurred. For Example:

[03 05] + [8:55] means the

tilt sensor was triggered. It was the 3

rd

sensor violated out of a total of 5 alarm triggers

and the event occurred a t 8:55am.

4. Press button #3 to exit.

5. To clear memory, press and hold down button #3 for 2 seconds.

If the system was trigged, the last triggered
sensor will be displayed

If no alarm triggers in memory, all
sensor icons will be displayed

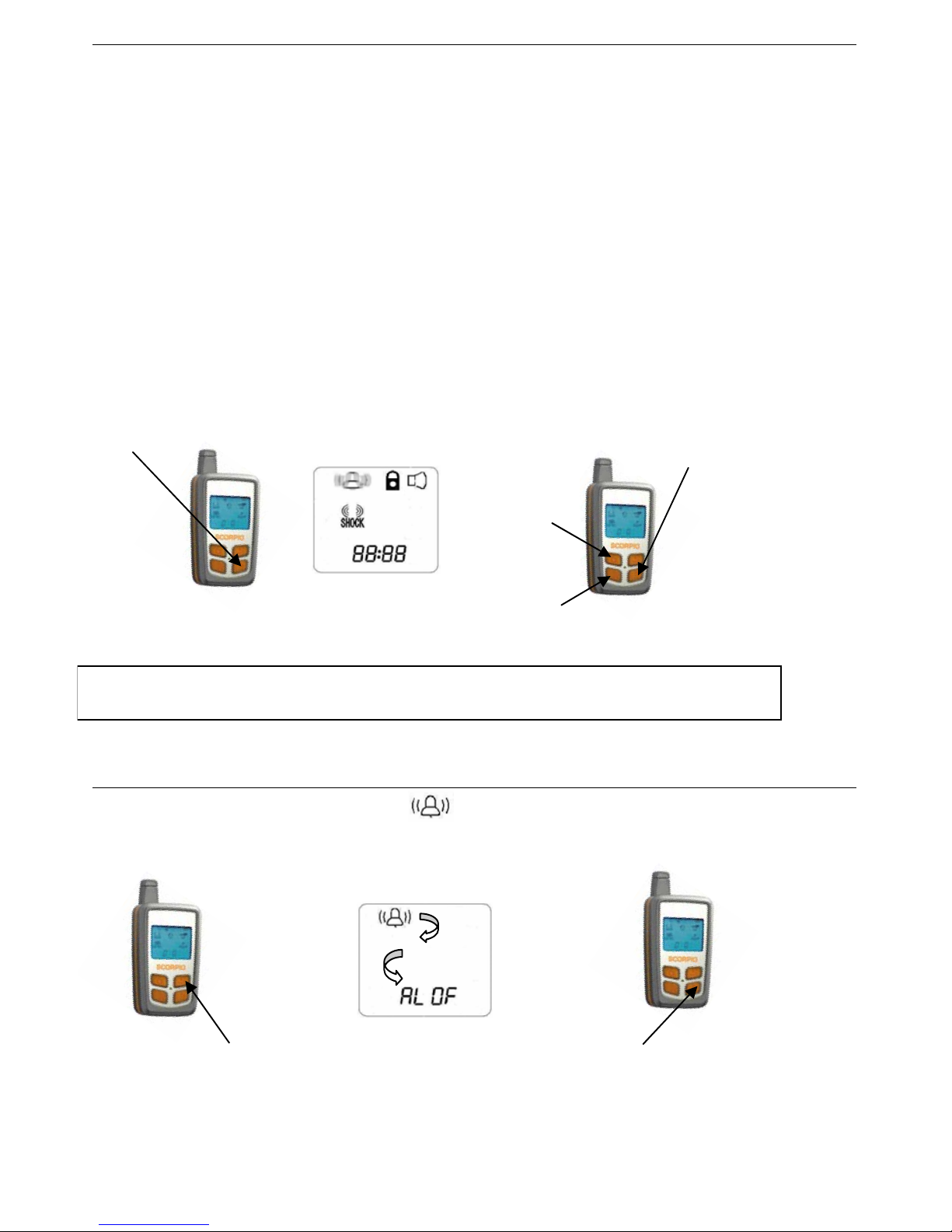

Press button
4 once

Time of trigger

Trigger # Total # of triggers

Press button 4 repeatedly to
scroll though the trigger memory

Pres button 3 to exit and clear.

Or, press and hold button 3 for 2
seconds to erase memory.

8

Programming and Customizing Instructions

There are two types of programming mode:

1) Programming the Transceiver- To program the transceiver the MCM does not have to be

installed or be within range. The programmable modes for the Transceiver are:

• Transceiver Alert Type (Audible/Silent Vibrate).

• Clock.

2) Programming the MCM- To program the MCM th e sys tem m us t be installed, with in range, and

in the disarmed mode. The programmable modes for the MCM are:

• Auto/Manual Arming.

• Siren Tones and Siren Duration.

• Adjusting ADL202 Accelerometer (impact/shock sensor).

Entering Programming Mode

Follow the steps below to enter the programming mode:

NOTE:
Press button 3 to exit without
chan

ging

the setting or saving

4. Press button
1 to select
icon and to
begin
programming

1. Press button 4 twice to
enter programming
mode

3. Press button 4
repeatedly to
scroll though the
programmable
icons

1. Press Button 2 to
scroll between the
alert options

Alert options include: alert off, vibrate,
audible, vibrate and audible

Selecting Transceiver Alert Type (Audible/Silent/Vibrate)

1. Enter programming mode. The icon will begin to flash, press button #1 to select.

The LCD will display the current settings. To program follow these steps:

Note. At any time during programming press button # 3 to exit without saving and return to the

main screen

2. Available programmable
options will be displayed.
The selected icon will flash

2. Press button
4 to save and
exit

9

Selecting Auto/Manual Arming

Enter the programming m ode. Scroll to the icon and Press Button #1 to enter the arming
selection screen. The LCD will display the current setting ([Act] or [PAS]) and the siren will chirp
two or three times. To program follow these steps:

2. Press button
#4 to save and
exit

1. Press button
4 to scroll
between the
sensor icons

3. Press button 1 to
toggle between
sound and duration

4. Press button 2
to adjust

5. Press button 4 to
save and exit

2. Press button 2 to adjust.
Siren will chirp to confirm
sensitivity level 1-5

1. Press button 1 to
toggle between
On/Off and
sensitivity levels

3. Press button 4
to save and exit

Tone Duration

In
Seconds

On/Off Sensitivity Level

When entering the arming program mode, the siren and turn signals will confirm the current mode

• Manual arming- siren chirps 2 times, lights flash 2 times

• Auto arming- siren chirps 3 times, lights flash 3 times (In this mode the system will automatically arm

itself 60 seconds after the ignition is turned off)

Selecting Siren Tone and Alarm Duration

Enter the programming mode. Scroll to the icon and Press Button #1 to select. The screen will
display all of the sensor icons. To program follow these steps:

.

Adjusting the ADL202 Accelerometer (Impact/Shock) Sensor

Enter the programming mode. Scroll to the icon and press Button #1 to select. The screen
will display the current shock setting, and the siren will chirp 1-5 times to confirm sensitivity level. To
program follow these steps:

1. Press button 2 to
toggle between
the alert options

2. Press button 1
to select sensor
icon

There are 5 siren tones
and 3 cycle duration
settin

g

s for each senso

r

To test sensitivity bump motorcycle while in sensitivity adjustment mode, a siren chirp will indicate an alarm
trigger

10

Setting Clock Time

1. Enter the programming mode.

2. Press button #4 repeatedly until the

icon begins to flash.

3. Press button #1 to select and enter clock setting mode.

4. Press button #1 to scroll through ‘hour’, ‘minute’ settings. The selected item will be

flashing.

5. Press button #2 to adjust the setting of the selected item.

6. Press button #4 to save setting and exit, or press button #3 to abort.

Encoding a Transceiver

Note: Transceivers are programmed from the factory. Encoding is only necessary should the
Transceiver loses its codes and will not arm or disarm the security system or if a second
or re

p

lacement remote is obtained.

1. Unplug HAR-1 from the MCM and plug it back in, the siren will chirp 2 times and the lights

will flash 2 times.

2. Within 6 seconds turn ignition switch “ON” and “OFF” 3 times.

3. If step 3 is done correctly and within the time allowed , the siren will chirp 2 times and

the lights will flash an additional 2 times to conf irm that the system is in “Learn Mode”.

4. Press and hold button # 1 until the system chirps 2 times and the lights flash 2 times to

indicate that the MCM has learned the code.

5. The Transceiver echoes 4 chirps and the LCD displays [LErn donE] to confirm that the

Transceiver is encoded.

6. Turn ignition “ON” and “OFF” to exit “Learn Mode”.

Transceiver Battery Information

The receiver is automaticall y turned on when ever the system is armed. To conserve battery the
transceiver should be turned off when not in use, or when it’s out of range for extended periods
of time.

Powering off receiver

Press and hold the #4 button until the transceiver chirps and the LCD only shows the and

icons. The receiver is turned off.

Low Battery Stages

It’s recommended that the transceiver be charged dail y when in regular used. If the transc eiver
is not charge daily the following stages will occur.

Low Battery: When the battery is low the

icon will cycle from 3 bars to 2 bars to 1 bar.

The transceiver should be charged as soon as possible.

Receiver Turns Off: If the transceiver is not charged, at some point (approximately 7 days) the

receiver will shut off. At this stage the LCD displays [CHRG BATT PAGE OFF]
and there are no bars in the

icon.

No response: If the battery is not recharged and all power is drained. The transceiver will

not respond. The transceiver has to be fully charged before it can operate
the system again. At this stage the LCD displays [CHRG BATT PAGE OFF] and

the no-bar icon

will flash.

11

Optional Accessories

Perimeter Sensor (SN-5)

Mounting the SN-5

The Perimeter sensor uses high frequency microwave technology to detect mass density
movement around the motorcycle. The signal can transmit through the seat, fiberglass, leather
and plastic, but not metal. It is recommended to place this sensor under the sea t as close as
possible to the center of the motorcycle. With the provided Velcro, you can mount this sensor on
top of the battery or any flat surface, making sure that the top side of the sensor is facing
upwards. Place Perimeter sensor as far away as possible from the MCM.

Adjusting the Sensor

Although the sensor is pre set from the factory it may be necessary to adjust the sensitivity to suit
your specific application.

1. Stand at least 10’ away from the motorcycle and arm the system.

2. Walk towards the motorcycle and try and lean over the top of it. Once the sensor detects
movement the siren will begin to chirp slowly. If you back away from the motorcycle the siren
will stop chirping. If you continue to move closer to the motorcyc le th e sire n wil l sta rt to chir p
faster and faster and then go into a full alarm.

3. Sensitivity can be adjusted by remov ing the plastic cap and tuning the adjustmen t screw. To
increase sensitivity, turn adjustment screw clockwise. To decrease sensitivity, turn the
adjustment screw counter clockwise.

4. The Perimeter sensor has an internal tuning control, which has been set at the factory. This

tuning control should only be changed if the sensor can not be properly set as described in
#3 above, please call Aritronix’ technical support.

Plastic Cap:
Remove to adjust
sensitivity

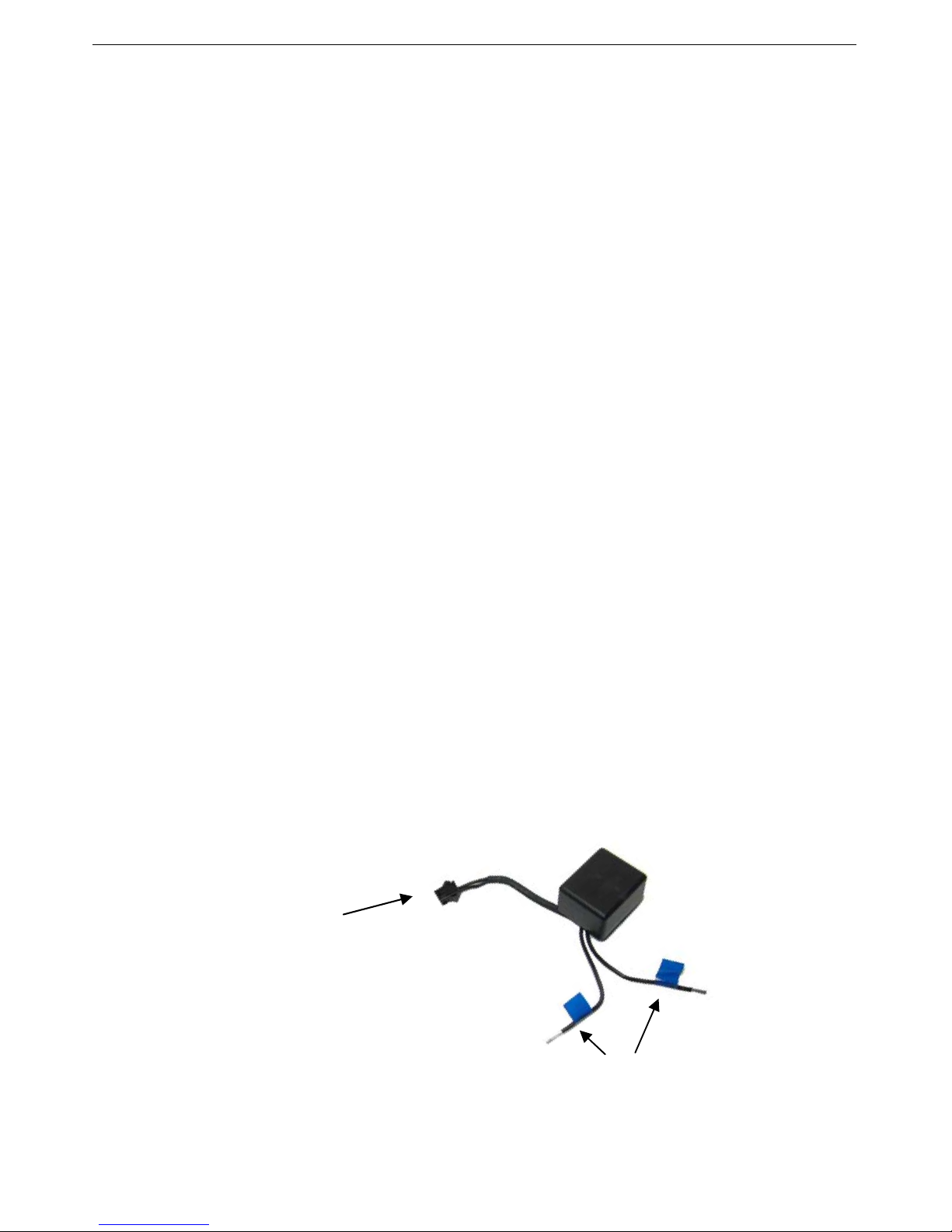

To Accessory Harness on
Main Control Module (MCM)

Note: Do not turn sensitivity above half way. Doing so may cause false alarms.

12

Ignition Disable / Anti-hijack Module (RID-5)

Installation

1. Cut the Ignition / Engine control wire (refer to options below)

2. Attempt to start bike to test if correct wire is selected. If bike starts the wrong wire is selected.
(contact Aritronix for assistance) If bike does not start, correct wire was selected continue to
step 3.

3. When Packaged the RID-5 wire ends have been treated with clear silicon to protect the
ends from fraying. Make sure they are stripped bare of this before continuing.

4. Connect one end of cut wire to one of the blue tap wires in RID-5 with provided butt
connector or any other solid connection options.

5. Connect second end of cut wire to second blue tab wire in RID-5 with provided butt
connector or any other solid connection options.

6. Test connections to insure that they are as solid as possible. *

7. Plug the RID-5 connector into the matching connector on Main Control Module (MCM)
Accessory Harness.

8. Test RI D-5 by acti va ting al arm (with out pe rime ter sen sor) and try to turn o n bi ke. If bike tu rns
on, please contact Aritronix for assistance.

* Failure to test for a loose wire could cause an accidental engine cut off.

The Ignition / Engine control wire Options:

Option #1: Positive lead wire on fuel pump
Option #2: Positive lead wire on fuel injection system
Option #3: Positive wire that goes to the ignition fuse in fuse box. This should be

either a 10 or 15 amp fuse labeled IGN or START. (Car b u r e t e d Bi kes)
Option #4: Ground wire from ignition module
Option #5: Positive wire from ignition module to ignition coil
Option #6: Wire connected between the ignition module an d engine stop button

Operating the Anti-Hijack feature

While the engine is running, press and hold the transceivers’ button #1 and button #2 at the same
time for 5 seconds. The siren will begin to chirp confirming that the Anti-Hijack feature has been
activated. 1 5 seconds later , the siren will go off continuously, and the engine will shut down. To
disarm, turn off the ignition switch and press button #2.

To Accessory Harness on
Main Control Module (MCM)

To CUT wire on Motorcycle

13

Back-up Battery (BAT-5)

The back-up battery provides the system the ability to transmit information and activate the siren
when power is interrupted. If power is ever interrupted while the system is activated the back-up
battery will be engaged, the transceiver will receive a full alarm and the siren will sound in 25
second increments. If power is not restored the alarm will continue to transmit and sound for six
cycles.

Note: The system has to be correctly installed for at least 12 hours before full function of the

back-up battery can be used.

To check the status of the back-up battery active the system using button #1.

• If the Alarm chirps 3 times the back-up battery is in good working condition

• If the system chirps 2 times the back-up battery is not fully charge.

Note: If the system chirps only 2 times and it has been correctly connected for more the 12

hours the battery needs replacement. (Contact Aritronix for replacement options)

This Section purposely left blank

14

Limited Warranty

Scorpio- branded security products come with a 2-year (from time of purchase) limited
warranty. This includes all components and accessories that are manufactured by
Aritronix Ltd. The following sections describe the limited warranties.

What is covered by this limited warranty?

This limited warranty covers defects in materials and workmanship in your — our end-user
customer's — Scorpio-branded hardware products, including Scorpio-branded
accessory products.

What is not covered by this limited warranty?

This limited warranty does not cover cosmetic damage, da mage/failure due to acts of
God: Problems that result from:

• External causes such as accident, abuse, misuse, or problems with electrical power.

• Usage that is not in accordance with product instructions or modifications of the

product.

• Failure to follow the pr oduct instructions.

• Problems caused by using accessories, parts, or components not manufactured or

approved by Scorpio.

What should you do if you experience a problem with a Scorpio product?

First contact Aritronix , Ltd. using one of the methods listed below. [Proof of purchase,
installer and motorcycle information will be requested]. If after assistance from our
trained staff it is determined that the Scorpio product may be faulty then you will provide
with detailed information on processing a warranty claim. All warranty claims must
contain a return authorization number (RA#). Aritronix, Ltd. will not accept any package
that does not have been approved for warranty repair/exchange.

FCC Notice

This device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this device.

For technical assistance with any of the procedures on this manual, or for warranty claims
please contact Aritronix at:

www.scorpioalarms.com

[e-mail]

Toll Free

[phone]

International

[phone]

Aritronix Ltd

16055 N. Dial Blvd. B-10

Scottsdale

,

AZ 85260
