Page 1

IRD-2900 Series

Professional Integrated Receiver Decoders

SER

ANUAL

COPUS DOCUMENTS (P/N

100793)

(REV. 4.6/ SW V1.80/ D

ECEMBER

2007)

Page 2

Page 3

IRD-2900 Series Professional Integrated Receiver Decoders

IRD-2900 Series

Professional

Integrated Receiver Decoders

SER

ANUAL

COPUS DOCUMENTS (P/N

100793)

(REV. 4.6/ SW V1.80/ D

ECEMBER

2007)

Page 4

Page 5

Scopus Video Networks Ltd.

International Headquarters

Scopus Video Networks Inc.

America

10 Ha’amal St., Park Afek

Rosh Ha’ayin, 48092

Israel

3 Independence Way

Princeton, NJ 08540.

USA

Tel: (972)-3-900-7777

Fax:(972)-3-900-7888

Tel: (609)-987-8090

Fax:(609)-987-8095

Email:

[email protected]

Web:

www.scopus.net

Email:

[email protected]

Web:

www.scopususa.com

OCUMENT HISTORY

ERSION

ATE

ETAILS

Rev. 1.0 April 2005 IRD-2900 v1.1

Rev. 1.4 June 2005 New features for SW v1.16

Rev. 2.0 August 2005 New features for SW v1.18

Rev. 2.5 January 2006 New features for SW v1.40

Rev. 2.6 March 2006 New features for SW v1.45

Rev. 2.7 March 2006 New features for SW v1.50

Rev. 3.0 June 2006 New features for SW v1.55

Rev. 4.0 September 2006 New features for SW v1.60

Rev 4.5 June 2007 New features for SW v1.70

Rev 4.6 December 2007 New features for SW v1.80

Scopus Video Networks Ltd. Reserves the rights to alter the equipment specifications and descriptions in this publication without prior notice. No part of this publication shall be deemed to be part of any contract or warranty unless specifically incorporated by reference into such contract or warranty.

The information contained herein is merely descriptive in nature, and does not constitute a binding offer for sale of the product described herein.

File

IRD-2900 User Manual Rev 4.6.doc

. Saved

12/6/2007 1:11:00 PM

Page 6

Page ii (Rev. 4.6/ SW v1.80/ December 2007)

Page 7

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page i

INTRODUCTION

Scopus Video Networks Ltd. takes great pride in delivery of its products and makes every endeavor to ensure its clients full satisfaction. On behalf of the whole Scopus team, we would like to extend our congratulations on your investment in the IRD-2900 Series of Professional Integrated Receiver Decoders.

ANUAL SCOPE AND STRUCTURE

This manual is comprised of the following main chapters:

1. OVERVIEW

An introduction and general description of the product, including highlights, benefits & typical applications, functional & physical descriptions, and main capabilities & specifications.

2. INSTALLATION

All the required procedures for installing and activating the unit. The procedures include site preparation & requirements, installation in a 19" rack, cable connections, rear panel options, pin-out descriptions, initial settings, and the serviceability check.

3. CONTROL INTERFACES

Various control interfaces, common tools, screen or windows and examples.

4. IRD-2900 OPERATION AND MANAGEMENT

The main section of this manual details screens and explaining every function and each parameter.

5. APPENDICES

The appendices in this manual cover the issues of software upgrade, aspect ratio configurations, warning massages, configuration file, and installation procedures in German and French.

Page 8

User Manual

Overview

Page ii (Rev. 4.6/ SW v1.80/ December 2007)

ECHNICAL SUPPORT

In case of technical problems with the IRD-2900 components, refer to additional system documentation. Usually, this may assist you to resolve technical difficulties. Call your local distributor for technical support if required.

ETURNING FAULTY PARTS

Before Returning an Item:

• Request an RMA (Return Merchandise Authorization) tracking number from your local distributor.

• Scopus Video Networks Support will assign the number; this must accompany the item being returned and is referred to in all correspondence.

• Send the item to Scopus Video Networks with the number included in the accompanying documentation (shipping and customs forms).

USTOMER SUPPORT POINT OF CONTACT

(POC)

Scopus Video Networks Ltd.

International Headquarters

Scopus Video Networks Inc.

Americas

10 Ha’amal St., Park Afek

Rosh Ha’ayin, 48092

Israel

100 Overlook Center Drive, 3rd Floor

Princeton, NJ 08540.

USA

Tel: (972)-3-900-7777 Fax:(972)-3-900-7888

Tel: (609)-987-8090 Fax:(609)-987-8095

Email:

[email protected]

Web:

www.scopus.net

Page 9

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page iii

ARRANTY

SCOPUS Video Networks Ltd. warrants that the product and any part thereof, including but not limited to spare parts will, when properly installed, conform to SCOPUS Video Networks Ltd. published specifications. Also, the product and any parts thereof, including but not limited to spare parts, will be free from defects deriving from faulty workmanship and faulty materials under standard use and service, for a period of twelve (12) months following the date of manufacture thereof. The supply of spare parts at a reasonable cost shall be available for a period of three (3) years from the date of delivery. This warranty does not cover ordinary wear and tear of the product or other defects due to circumstances beyond SCOPUS Video Networks Ltd. control, such as: unsuitable operating means, chemicals, electro-mechanical issues, or electrical influences and damages, which may be caused by interference by the CUSTOMER or any unauthorized third party. Defective cards and assemblies will be sent to SCOPUS Video Networks Ltd. for repair. The repaired cards and assemblies will be returned to the CUSTOMER within 30 days from their receipt by SCOPUS Video Networks Ltd. Cards and assemblies repaired during the twelve (12) month warranty period will carry a warranty of six (6) months from date of repair or until the end of original warranty period, whichever is the later date. SCOPUS Video Networks Ltd. sole liability under this warranty shall be limited to the repair or replacement with equivalent units at SCOPUS Video Networks Ltd. facilities, of any product or parts thereof that do not conform to SCOPUS Video Networks Ltd. published specifications or that are defective in material or workmanship, as specified above. The expense of installing repaired or replaced parts shall be borne by the CUSTOMER. SCOPUS Video Networks Ltd. sole obligation under this warranty is to be the supplier of the product to the CUSTOMER and to provide such services as set out in this warranty according to the SCOPUS Video Networks Ltd. terms and conditions provided for herein. In no event will SCOPUS Video Networks Ltd. be liable to the CUSTOMER for any: business expenses, loss of profits, or incidental, indirect, or consequential damages, however caused, unless such expenses, loss, or damages shall have derived from an infringement of patents of copyrights. THE WARRANTIES STATED HEREIN ARE EXCLUSIVE AND ARE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Beyond the warranty period, SCOPUS Video Networks Ltd. shall repair or replace defective cards and assemblies according to its standard and relevant price list at such time. Cards and assemblies thus repaired shall carry a warranty of six (6) months.

OMPLIANCE

EMC S

AFETY

EN55022 (CISPR 22) EN60950

EN55024 (CISPR 24) CB (IEC60950)

EN55013 (CISPR 13) UL60950

EN55020 (CISPR 20) cTUVus

FCC part 15 (class B)

Page 10

User Manual

Overview

Page iv (Rev. 4.6/ SW v1.80/ December 2007)

CE C

ERTIFICATION

The IRD-2900 meets all the CE Class A requirements. In order to meet CE requirements, the following cables must be connected on all ASI outputs (when applicable). When cables are connected to these outputs then the device is compliant with the use of FAIR-RITE 0443164151.

FCC C

OMPLIANCE NOTICE

These devices comply with Part 15 of the FCC Rules.

PERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

• These devices do not cause harmful interference.

• These devices must accept any interference received, including

interference that may cause non relevant operation.

The FCC Wants You to Know

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your expense.

FCC Warning

Modifications not expressly approved by the manufacturer could void your authority to operate the equipment under FCC Rules.

Trade Name

Scopus

Product Name

Integrated Receiver Decoder

Product Model Number

IRD-2900 Series

Page 11

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page v

WEEE/ROHS COMPLIANCE POLICY

Scopus Video Networks Ltd. complies with the European Union's Directive 2002/96/EC as amended by Directive 2003/108/EC, on Waste Electrical and Electronic Equipment, also known as “WEEE.” Scopus understands all of its products to fall under the WEEE Directive as IT and telecommunications equipment. Scopus will comply with the European Union's Directive 2002/95/EC on the Restriction of use of Hazardous Substances, also known as “RoHS”, by July 01,

2006. All our products are either compliant or exempt from the RoHS Directive’s lead-free requirements as far as the use of lead in solders for network infrastructure equipment for switching, signaling, transmission as well as network management for telecommunication, is concerned. Scopus ensures that all products will either be re-used or recycled in compliance with the WEEE Directive.

REEN PROCUREMENT POLICY

As part of its commitment to comply with global environmental initiatives, Scopus will continue to actively work with its supply chain to ensure the ongoing compliance with EU directives as well as the procurement and utilization of reliable, environmentally responsible alternatives to hazardous substances.

WEEE R

ECYCLING

The EU has set up targets for the recovery of waste from electric and electronic equipment (WEEE). In order to assist EU member states to preserve, protect and improve the quality of the environment, protect human health and utilize natural resources prudently and rationally, Scopus strives to recycle in compliance with the WEEE Directive any of its products that cannot be re-used. Scopus customers should:

• Discard equipment in dedicated disposal areas only.

• Arrange proper recycling of unneeded equipment, e.g. by re-using the

equipment or giving it away to charity.

• For the take-back of Scopus equipment, customers must act in accordance

with the Scopus take-back policy, as provided in the website.

Page 12

User Manual

Overview

Page vi (Rev. 4.6/ SW v1.80/ December 2007)

TABLE OF CONTENTS

Chapter 1. Overview........................................................1-1

1.1.

General Information.......................................................... 1-1

1.2.

Highlights and Benefits...................................................... 1-2

1.3.

Applications ..................................................................... 1-3

1.4.

Functionality .................................................................... 1-4

1.5.

Mechanical Structure ........................................................ 1-5

1.5.1.

Front Panel ...................................................................... 1-5

1.5.2.

Various Front-Ends ........................................................... 1-6

1.5.3.

Software Permission (Licensing) ......................................... 1-7

1.5.4.

IRD-2900 models ............................................................. 1-8

1.6.

Management...................................................................1-17

1.6.1.

Local Management...........................................................1-17

1.6.2.

Remote Management .......................................................1-17

1.7.

Characteristics and Specifications ......................................1-18

1.7.1.

Transport Stream Interface Options ...................................1-18

1.7.2.

Advanced Processing .......................................................1-21

1.7.3.

Decoder Outputs .............................................................1-22

1.7.4.

Conditional Access ...........................................................1-25

1.7.5.

Control and Monitoring .....................................................1-25

1.7.6.

Compliance.....................................................................1-26

1.7.7.

Environmental Conditions .................................................1-26

1.7.8.

Physical and Power Specifications ......................................1-27

Chapter 2. Installation ....................................................2-1

2.1.

Safety Precautions............................................................ 2-1

2.1.1.

Restricted Access Area ...................................................... 2-1

2.1.2.

Installation Codes............................................................. 2-1

2.2.

Inventory Check ............................................................... 2-2

2.3.

Installation Instructions..................................................... 2-2

2.3.1.

Site Preparation ............................................................... 2-2

2.3.2.

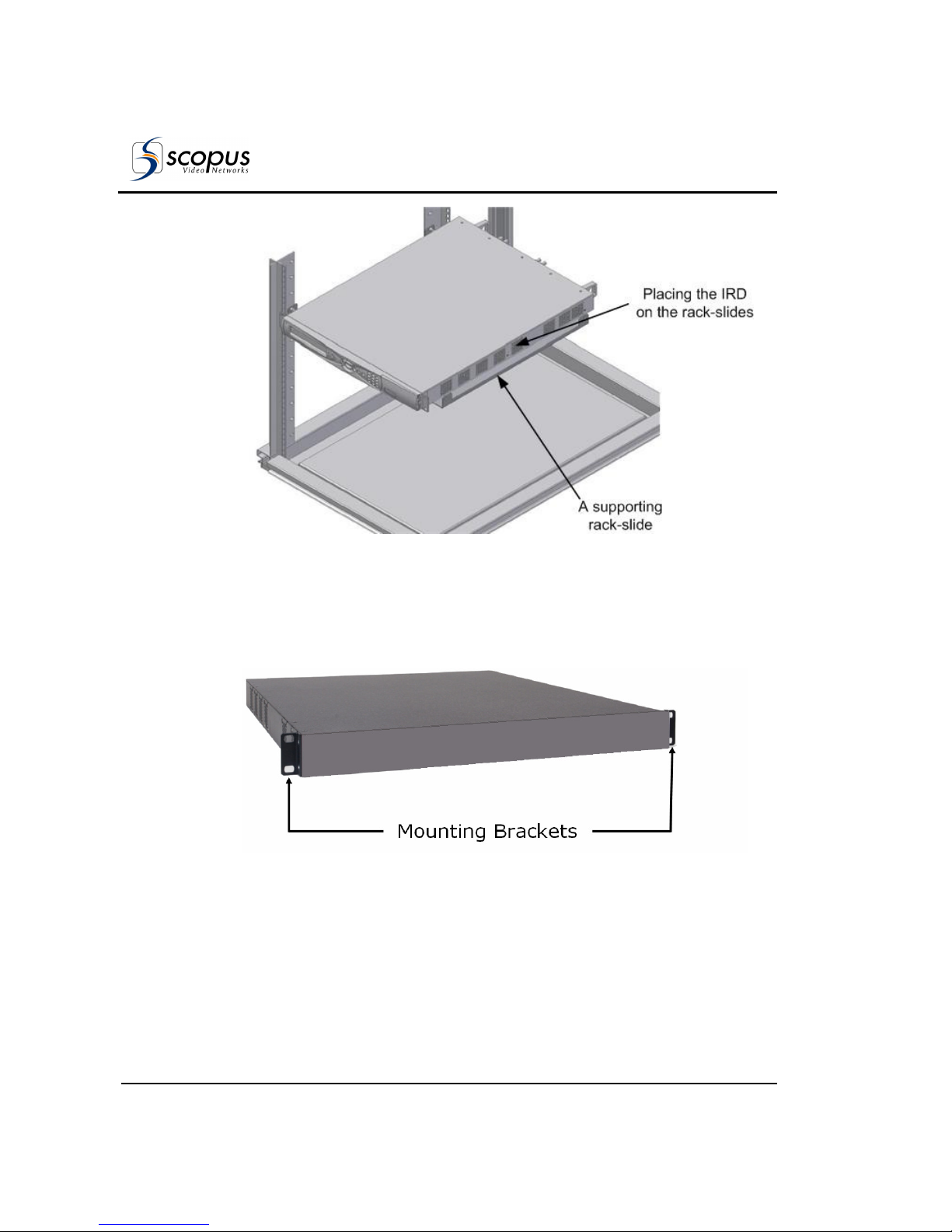

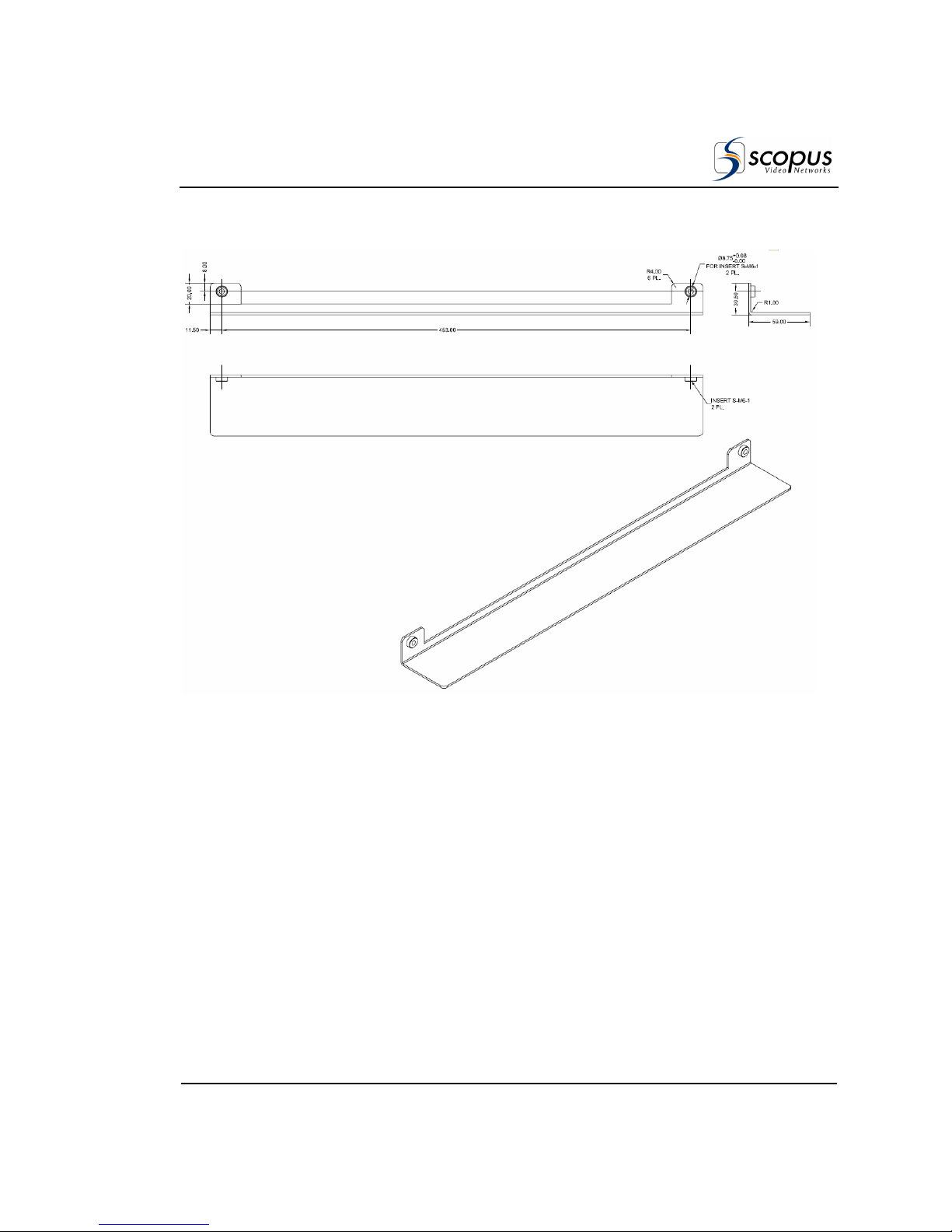

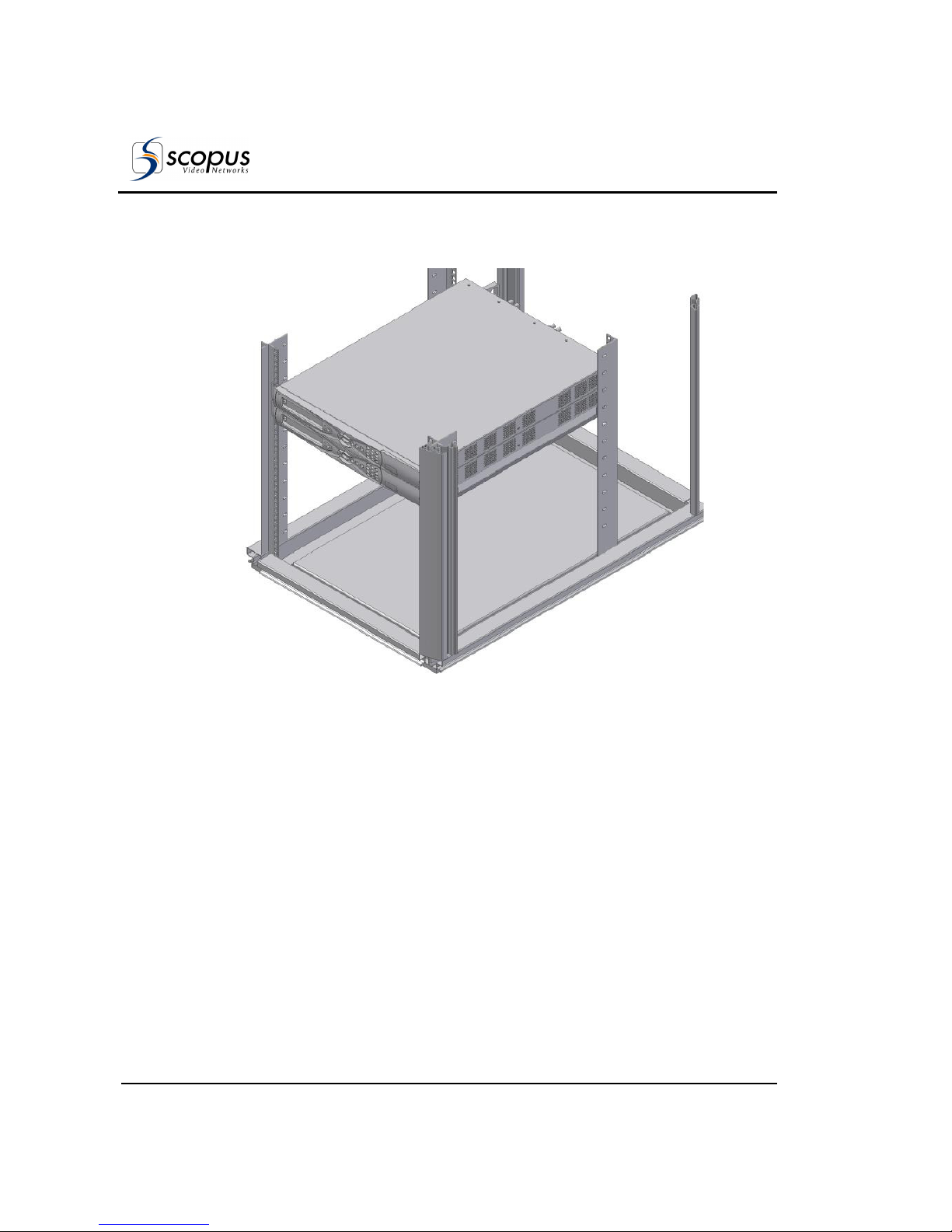

Mechanical Rack Installation .............................................. 2-3

2.3.3.

Insertion of the DVB-CI Module (PCMCIA) ........................... 2-9

2.4.

Cable Connection.............................................................2-10

2.5.

Initialization And Configuration..........................................2-14

2.5.1.

Electrical Power Connection ..............................................2-14

2.5.2.

Powering Up ...................................................................2-16

2.5.3.

Tuning ...........................................................................2-16

2.5.4.

Performing Serviceability Check ........................................2-17

Chapter 3. IRD-2900 Control Interfaces.......................... 3-1

3.1.

Front Panel Control Interface ............................................. 3-1

3.1.1.

Controls and Displays........................................................ 3-1

3.1.2.

IRD-2900 Front Panel Screen Types.................................... 3-3

Page 13

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page vii

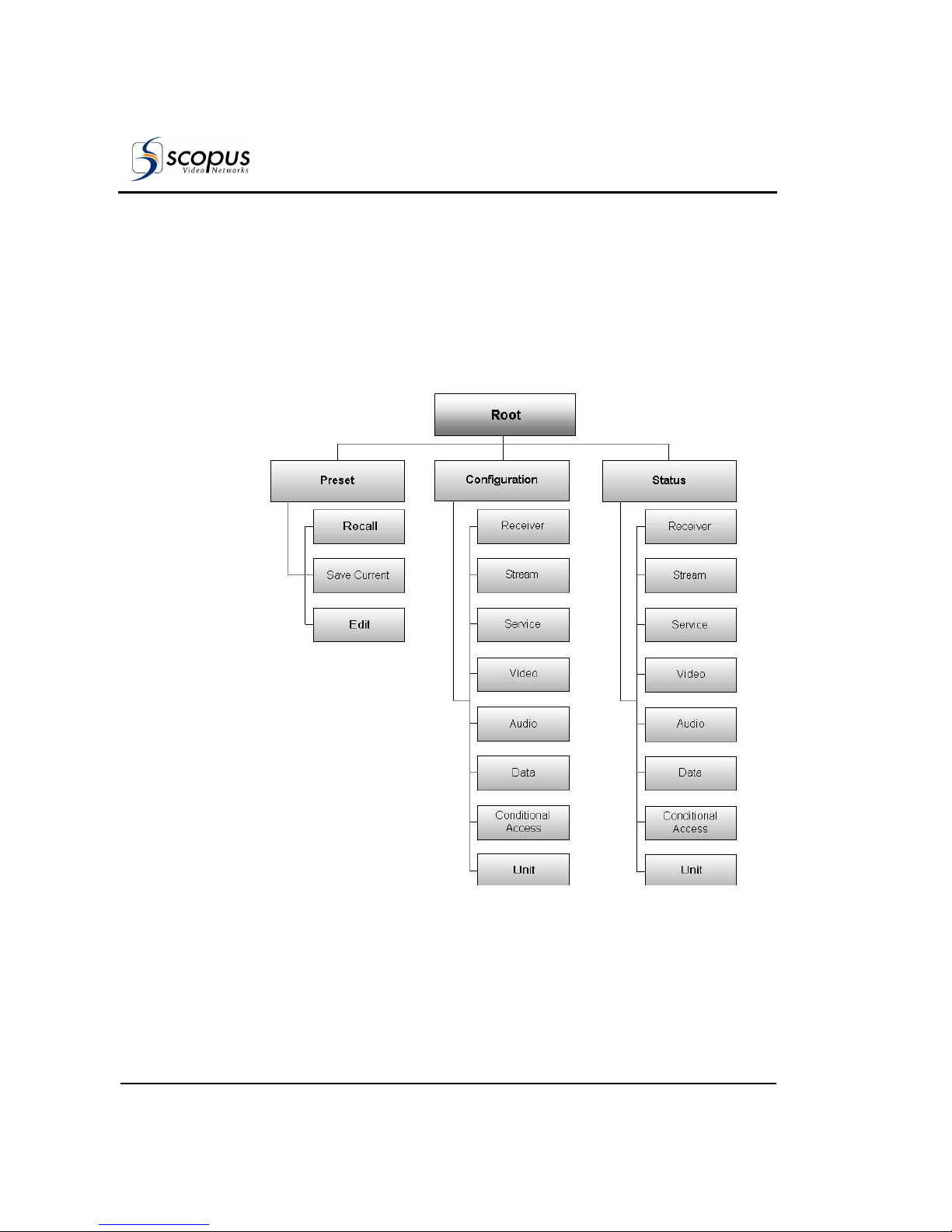

3.1.3.

IRD-2900 Menu Tree......................................................... 3-8

3.1.4.

Front Panel Initialization Sequence ..................................... 3-9

3.2.

Web-Based Management Interface.................................... 3-11

3.2.1.

Controls and Displays...................................................... 3-12

3.2.2.

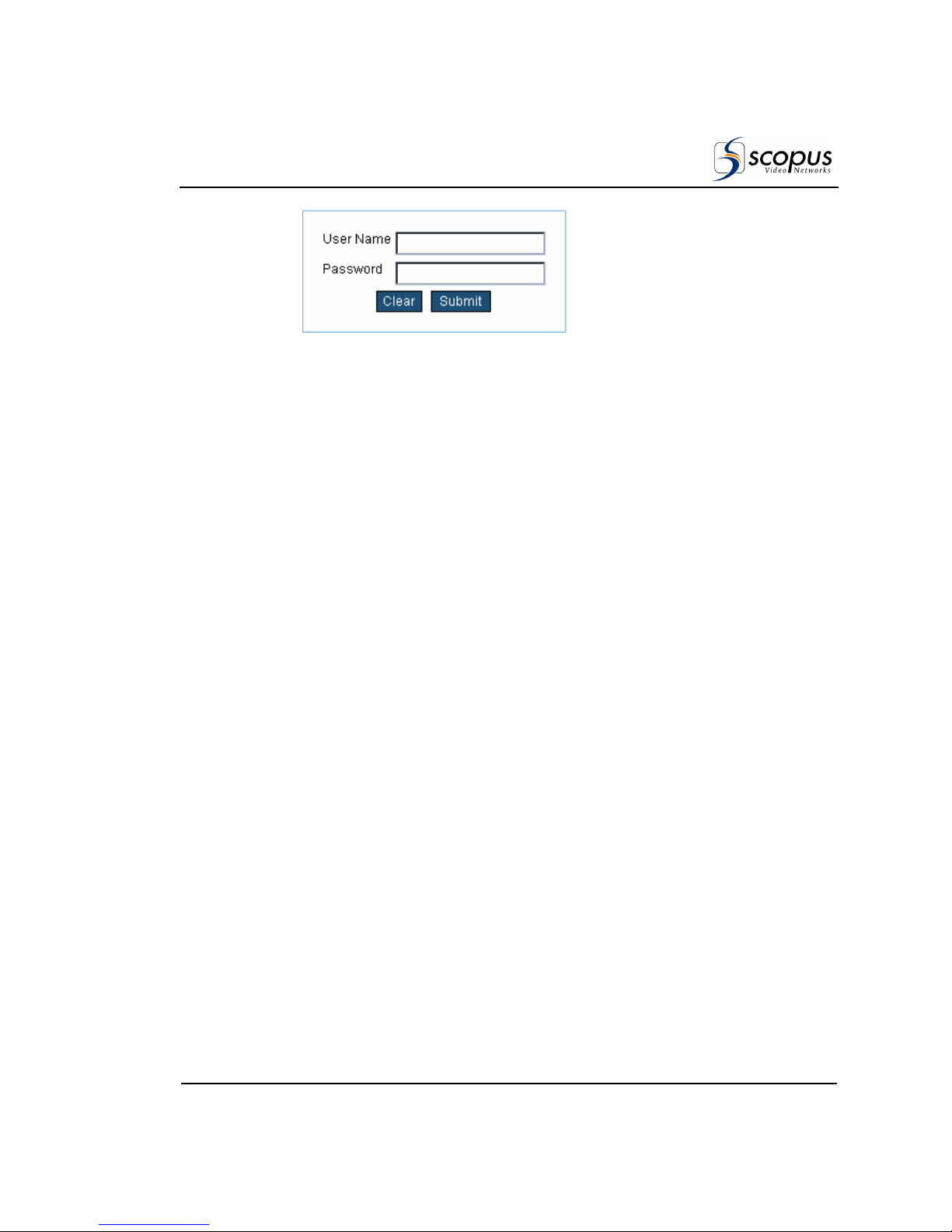

Initializing the Web-Based Management ............................ 3-17

Chapter 4. Operation and Management ........................... 4-1

4.1.

Preset ............................................................................. 4-1

4.1.1.

Recall Preset .................................................................... 4-3

4.1.2.

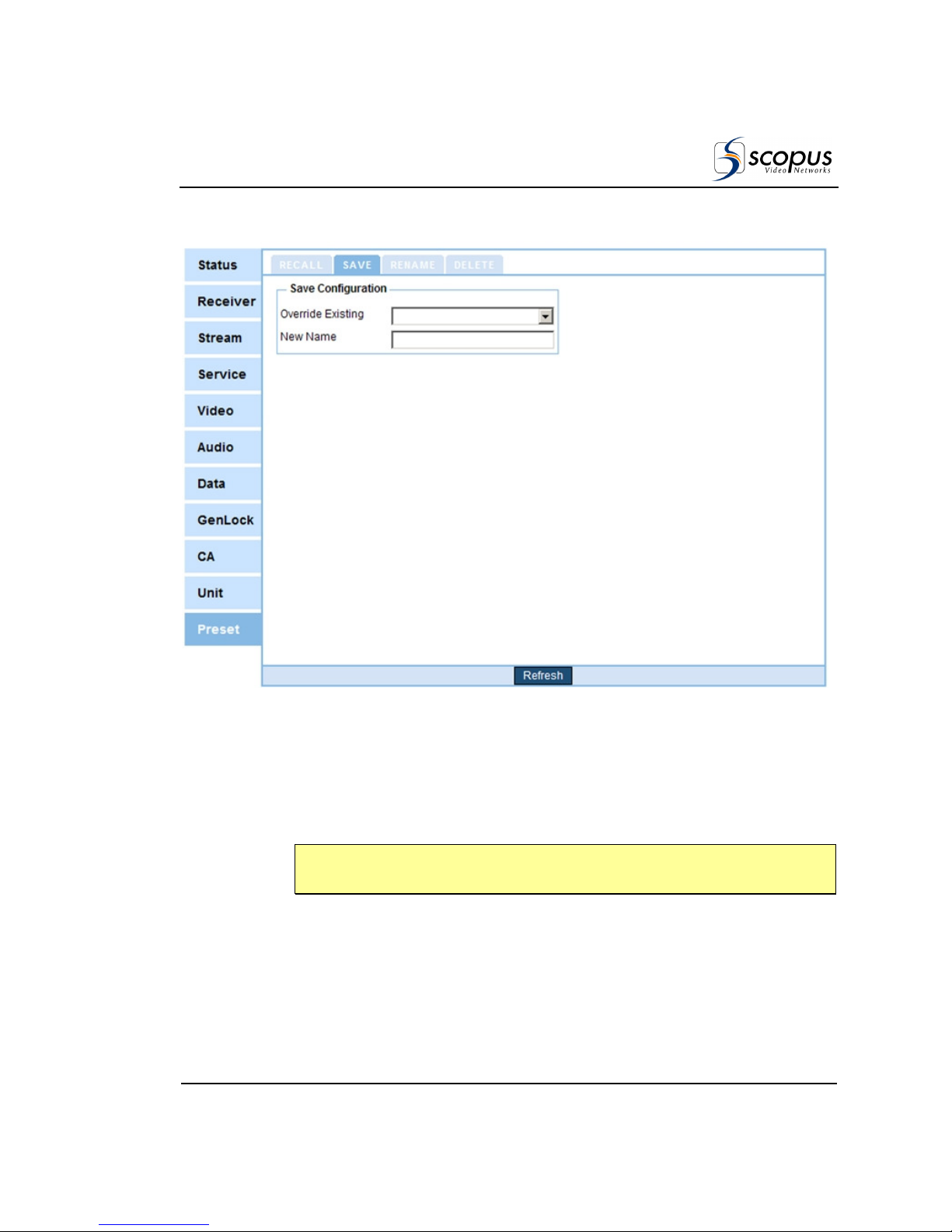

Save Current Preset .......................................................... 4-4

4.1.3.

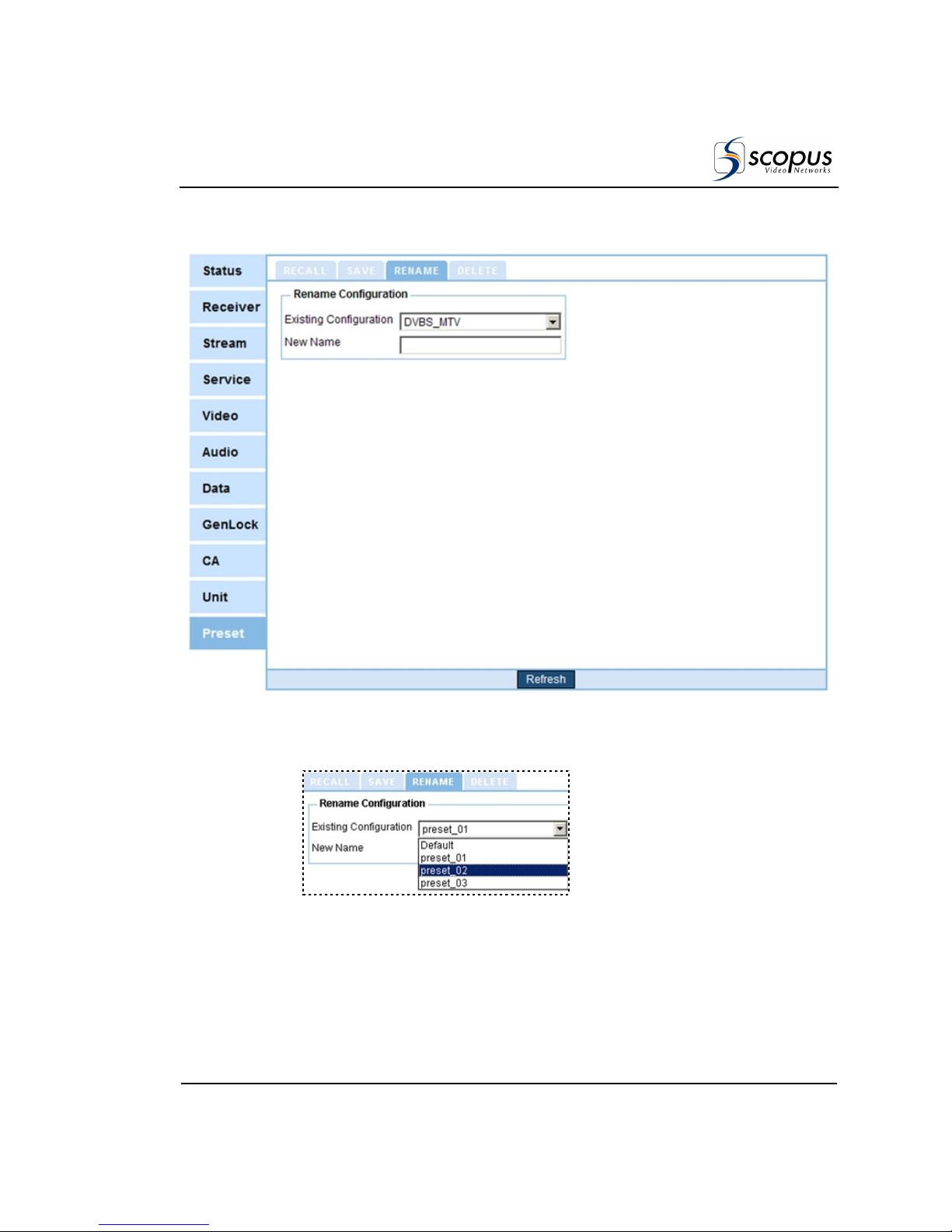

Rename Preset ................................................................. 4-8

4.1.4.

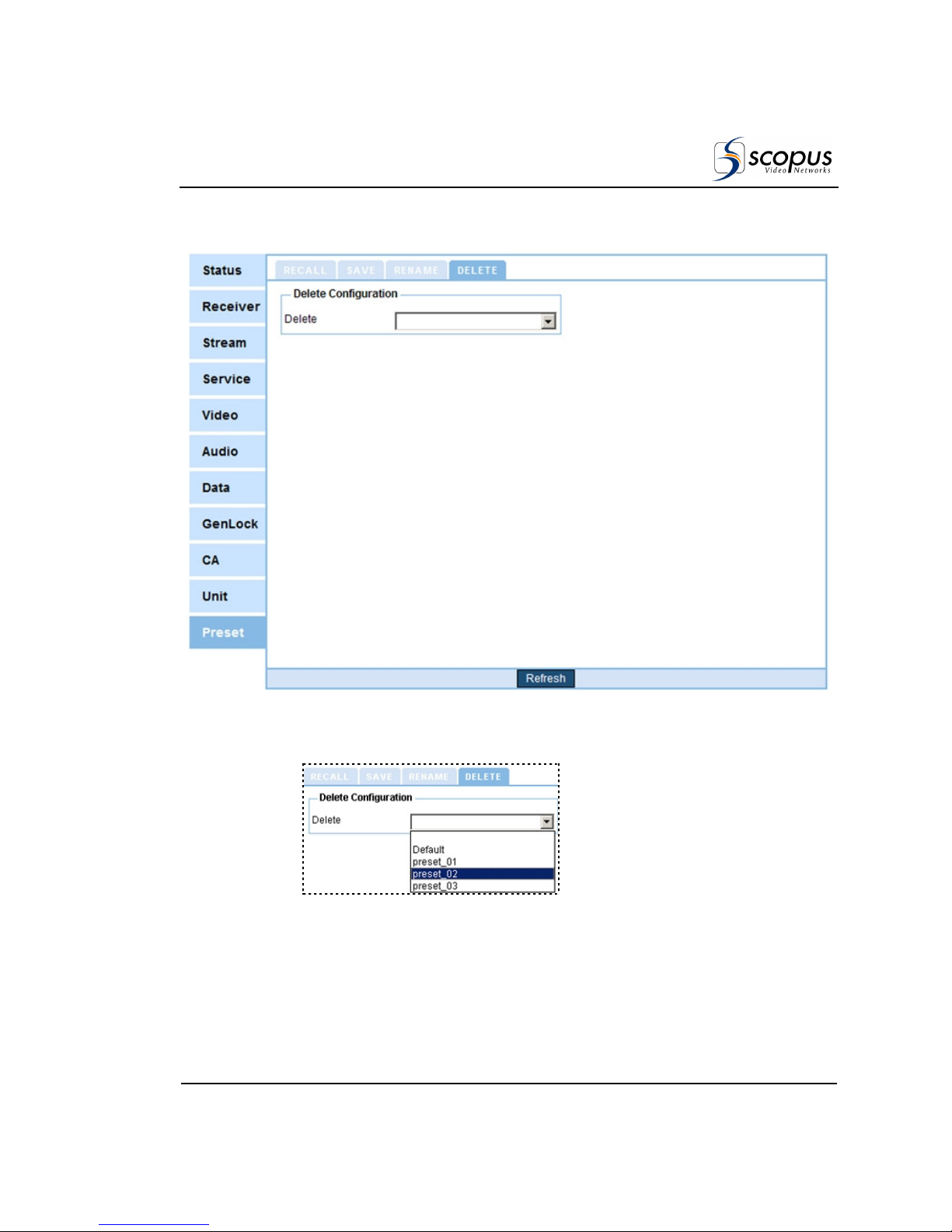

Delete Preset ................................................................. 4-10

4.1.5.

Delete All Presets ........................................................... 4-12

4.2.

Configuration ................................................................. 4-13

4.2.1.

Receiver Modules............................................................ 4-14

4.2.2.

Satellite Receiver Modules ............................................... 4-15

4.2.3.

Stream Configuration Menu.............................................. 4-55

4.2.4.

Filtering......................................................................... 4-62

4.2.5.

Service Configuration Menu ............................................. 4-74

4.2.6.

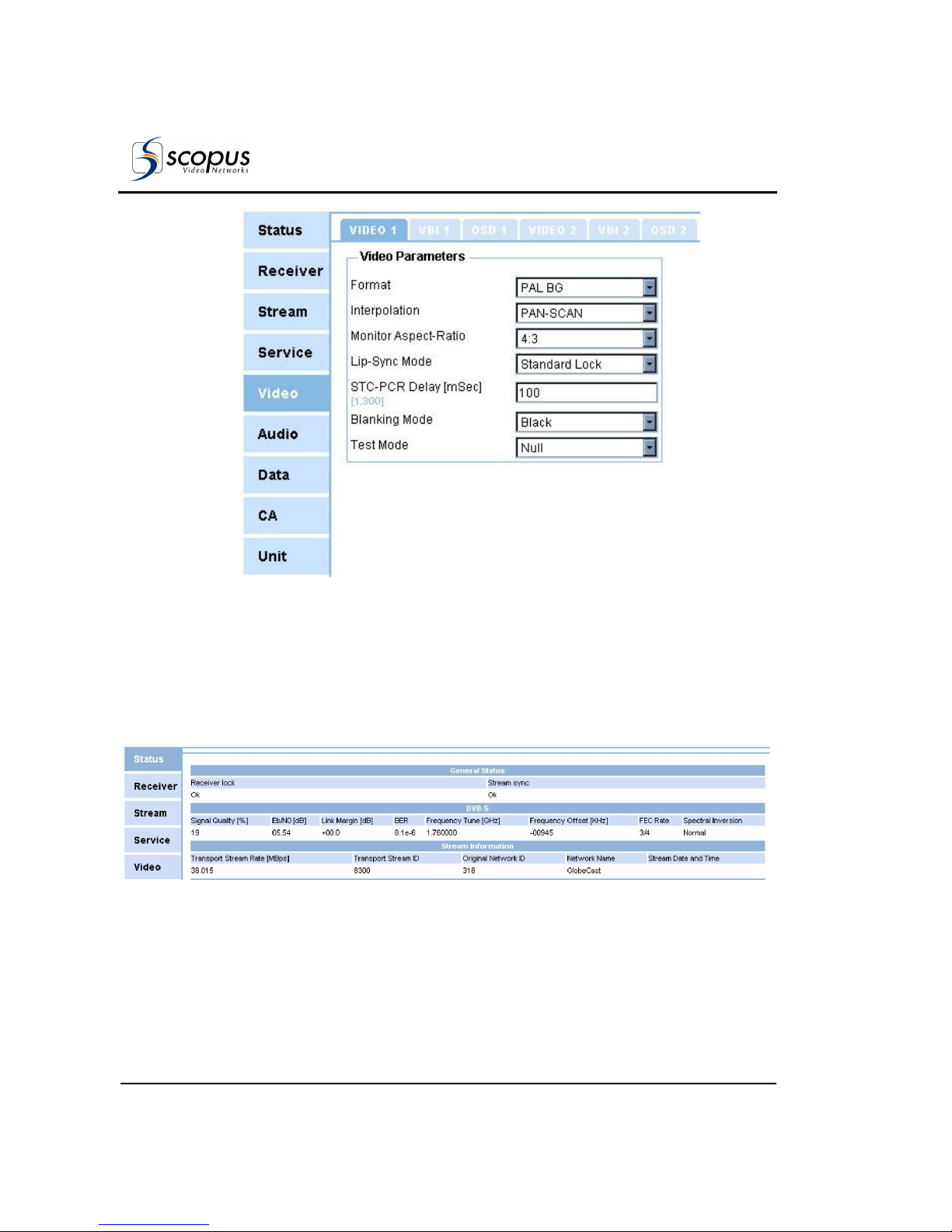

Video Configuration Menu ................................................ 4-92

4.2.7.

Audio Configuration Menu ...............................................4-116

4.2.8.

Data Configuration Menu ................................................4-126

4.2.9.

GenLock Configuration ...................................................4-137

4.2.10.

Conditional Access Configuration Menu.............................4-139

4.2.11.

Unit Configuration Menu .................................................4-148

4.3.

Status ..........................................................................4-170

4.3.1.

Receiver Status .............................................................4-171

4.3.2.

Stream Status Menu ......................................................4-177

4.3.3.

Service Status...............................................................4-180

4.3.4.

Video Status Menu .........................................................4-180

4.3.5.

Audio Status Menu.........................................................4-184

4.3.6.

Data Status Menu ..........................................................4-186

4.3.7.

GenLock Status .............................................................4-188

4.3.8.

Conditional Access Status Menu.......................................4-188

4.3.9.

Unit Status Menu ...........................................................4-191

Appendix A Software Download ........................................A-1

A.1

Downloading Software Using FTP ........................................ A-1

A.1.1

Introduction ..................................................................... A-1

A.1.2

Installation ...................................................................... A-1

A.2

Loading Software to the IRD-2900 through the Serial Port ..... A-6

A.2.1

PC Connection to the Serial Port ......................................... A-6

A.2.2

PC Serial-COM (Terminal) Software..................................... A-7

A.2.3

Opening Hyperterminal from MS Windows ........................... A-7

A.2.4

Defining the Communication .............................................. A-8

A.2.5

Checking PC Terminal Communication with the IRD ............ A-10

A.2.6

Installation: ................................................................... A-11

Page 14

User Manual

Overview

Page viii (Rev. 4.6/ SW v1.80/ December 2007)

Appendix B IP-Front End Software Upgrade Procedure ....B-1

Appendix C Aspect Ratio Configuration Process................ C-1

C.1

General ........................................................................... C-1

C.2

Aspect Ratio Conversion Machine........................................ C-1

C.3

Table of Conversions......................................................... C-3

Appendix D Configuration File...........................................D-1

D.1

Introduction.....................................................................D-1

D.2

Parameters ...................................................................... D-1

D.2.1

Stream Configurations ...................................................... D-1

D.2.2

Service Configurations ...................................................... D-2

D.2.3

Video Configurations .........................................................D-3

D.2.4

Audio Configurations .........................................................D-4

D.2.5

Data Configurations .......................................................... D-4

D.2.6

DVB S Receiver Configurations ........................................... D-4

D.2.7

IP Receiver Configuration .................................................. D-5

Appendix E Warning Messages ......................................... E-1

E.1

General ........................................................................... E-1

E.2

Warning leds.................................................................... E-1

E.3

Warning messages ........................................................... E-2

Appendix F Installation (deutsch) .................................... F-1

F.1

Sicherheits-Vorsichtsmaßnahmen ........................................F-1

F.1.1

Bereich mit beschränktem Zugang.......................................F-1

F.2

Installations-Anweisungen ..................................................F-1

F.2.1

Vorbereitung des Aufstellungsplatzes ...................................F-2

F.2.2

Mechanische Installation des Gestells..................................F-2

F.2.3

Einfügen des DVB-CI -Moduls (PCMCIA) ...............................F-7

F.3

Kabel -Anschluss ...............................................................F-8

F.4

Initialisierung und Konfiguration ........................................F-13

F.4.1

Anschluss an die Energieversorgung ..................................F-13

F.4.2

Aufladen.........................................................................F-15

F.4.3

Abstimmung ...................................................................F-16

F.4.4

Durchführen der Nutzbarkeitsprüfung ................................F-16

Appendix G Installation (française) ..................................G-1

G.1

MESURES DE SECURITE .................................................... G-1

G.2

Liste d’inventaire .............................................................. G-1

G.3

Instructions d’Installation .................................................. G-2

G.3.1

Préparation de l’emplacement ............................................ G-2

G.3.2

Installation mécanique du rack ...........................................G-3

G.3.3

Insertion du module DVB-CI (PCMCIA)................................ G-8

G.4

Connexion par Cable .........................................................G-8

G.5

Initialisation et Configuration ........................................... G-13

G.5.1

Connection à l’alimentation électrique ............................... G-13

G.5.2

Démarrer ...................................................................... G-15

G.5.3

Réglage......................................................................... G-15

Page 15

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page ix

G.5.4

Effectuer une vérification de fonctionnement ...................... G-16

LIST OF FIGURES

Figure 1-1:

Signal Path in the IRD-2900 – Functionality Block Diagram ...... 1-4

Figure 1-2:

IRD-2900 Unit.................................................................... 1-5

Figure 1-3:

Front View of the IRD .......................................................... 1-5

Figure 1-4:

IRD-2961 Rear Panel (IP Input interface) .............................. 1-6

Figure 1-5:

IRD-2961 Rear Panel (DVB-S Dual Input interface) ................. 1-6

Figure 1-6:

IRD-2961 Rear Panel (Decoder Only interface) ....................... 1-7

Figure 1-7:

IRD-2960 Rear Panel (Standard) .......................................... 1-8

Figure 1-8:

IRD-2961 Rear Panel .......................................................... 1-9

Figure 1-9:

IRD-2962 Rear Panel .........................................................1-10

Figure 1-10:

IRD-2963 Rear Panel .........................................................1-11

Figure 1-11:

IRD-2980 Rear Panel .........................................................1-12

Figure 1-12:

IRD-2981 Rear Panel .........................................................1-13

Figure 1-13:

IRD-2990 Rear Panel .........................................................1-14

Figure 1-14:

IRD-2991 Rear Panel .........................................................1-15

Figure 1-15:

IRD-2992 Rear Panel .........................................................1-16

Figure 2-1:

Pair of Scopus Rack Slides ................................................... 2-4

Figure 2-2:

Scopus Rack Slide Measurement Specifications....................... 2-5

Figure 2-3:

Laying the Device on the Rack-Slides .................................... 2-6

Figure 2-4:

Clipped Mounting Brackets ................................................... 2-6

Figure 2-5:

Device Mounted on a Pair of Rack-Slides ............................... 2-7

Figure 2-6:

Multiple Devices Mounted on a Single Pair of Rack-Slides......... 2-8

Figure 2-7: DVB-CI Module................................................................... 2-9

Figure 2-8:

IRD-2992 Rear Panel .........................................................2-10

Figure 2-9:

9-Pin Male Connector Pin Numbering....................................2-11

Figure 2-10:

Power Supply Configurations and Rack-Mount Grounding Jackscrew

.......................................................................................2-14

Figure 2-11:

DC Power Supply and Rack-Mount Grounding Jackscrew.........2-15

Figure 3-1:

Front Panel ........................................................................ 3-1

Figure 3-2:

IRD-2900 Front Panel Menu (Root Menu) - Basic Structure ...... 3-8

Figure 3-3:

Web-Based Management Window – General View ..................3-11

Figure 3-4:

IRD-2900 Web-Based Management Interface Screen (Example)3-12 Figure 3-5:

Web-Based Management Title .............................................3-13

Figure 3-6:

Web-Based Management Menu and Sub-Menu Tabs ...............3-14

Figure 3-7:

Status Menu .....................................................................3-14

Figure 3-8:

Main-Menu Tabs ................................................................3-15

Figure 3-9:

Sub-Menu Tabs .................................................................3-15

Figure 3-10:

Edit-Value Parameter .........................................................3-16

Page 16

User Manual

Overview

Page x (Rev. 4.6/ SW v1.80/ December 2007)

Figure 3-11:

Select-Value Parameter ......................................................3-16

Figure 3-12:

Refresh Button ..................................................................3-17

Figure 3-13:

IP Address Field ................................................................3-18

Figure 3-14:

IRD-2900 Web Management Access Box...............................3-19

Figure 4-1:

Web Interface Preset Screen.................................................4-2

Figure 4-2:

Web Interface Preset Recall Tab ............................................4-4

Figure 4-3:

Web Interface Save Preset Screen .........................................4-5

Figure 4-4:

Web Interface Save Tab .......................................................4-7

Figure 4-5:

Web Interface – Save Preset As New Name Tab ......................4-8

Figure 4-6:

Web Interface Rename Preset Screen ....................................4-9

Figure 4-7:

Web Interface – Rename Preset Tab ......................................4-9

Figure 4-8:

Web Interface Delete Preset Screen .....................................4-11

Figure 4-9:

Web Interface – Delete Preset Tab.......................................4-11

Figure 4-10:

IRD-2900 Configuration Main Menu .....................................4-13

Figure 4-11:

DVB-S Receiver Parameters Menu Screen .............................4-16

Figure 4-12:

DVB-S2 Receiver Parameters Menu Screen ...........................4-25

Figure 4-13:

DVB-DSNG Receiver Parameters Menu Screen ......................4-36

Figure 4-14:

DVB-IP Receiver – MPEGoIP 1 Parameters Menu Screen .........4-45

Figure 4-15:

DVB-IP Receiver – General Parameters Menu Screen .............4-51

Figure 4-16:

Stream Configuration Menu ................................................4-55

Figure 4-17:

Stream Parameters Menu Screen.........................................4-56

Figure 4-18:

Filtering Parameters web-management screen ......................4-63

Figure 4-19:

General Filtering Parameters Menu Screen............................4-64

Figure 4-20:

Select Service Menu Screen ................................................4-68

Figure 4-21:

Select PIDs Menu Screen ....................................................4-72

Figure 4-22:

Service Configuration Menu ................................................4-74

Figure 4-23:

TV1 Menu Screen ..............................................................4-77

Figure 4-24:

Preferred Language Screen .................................................4-81

Figure 4-25:

PID Select Menu Screen .....................................................4-85

Figure 4-26:

Port to Service Menu Screen ...............................................4-88

Figure 4-27:

General Service Menu Screen..............................................4-90

Figure 4-28:

Video Configuration Menu ...................................................4-92

Figure 4-29:

Video 1 Menu Screen .........................................................4-95

Figure 4-30:

VBI 1 Parameters ............................................................4-102

Figure 4-31:

OSD1 Menu Screen .......................................................... 4-112

Figure 4-32:

Audio Configuration Menu .................................................4-116

Figure 4-33:

Audio 1 Menu Screen ....................................................... 4-119

Figure 4-34:

Data Configuration Menu .................................................. 4-126

Figure 4-35:

IP Data Port Menu Screen .................................................4-131

Figure 4-36:

Web Interface Genlock Screen ..........................................4-137

Figure 4-37:

Conditional Access Configuration Menu............................... 4-139

Figure 4-38:

Web Interface Conditional Access Screen............................ 4-140

Figure 4-39:

Web Interface Common Interface Screen ...........................4-141

Page 17

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page xi

Figure 4-40:

Web Interface BISS Screen ...............................................4-145

Figure 4-41:

Unit Configuration Menu ...................................................4-148

Figure 4-42:

Web Interface - Unit Screen ..............................................4-149

Figure 4-43:

Soft Reset Web-Interface Screen .......................................4-151

Figure 4-44:

Change Password Screen ..................................................4-151

Figure 4-45:

Control Password Screen ..................................................4-152

Figure 4-46:

Unit Serial Screen ............................................................4-153

Figure 4-47:

Unit Ethernet Screen ........................................................4-156

Figure 4-48:

IRD-2900 Licensing Screen ...............................................4-158

Figure 4-49:

Alarms Web-Interface Screen ............................................4-165

Figure 4-50:

GPI Web-Interface Screen ................................................4-166

Figure 4-51:

Web Interface – Traps Screen ...........................................4-167

Figure 4-52:

Add New Trap Destination.................................................4-169

Figure 4-53:

Delete Trap Destination ....................................................4-169

Figure 4-54:

Modify Trap Destination ....................................................4-169

Figure 4-55:

IRD-2900 Status Screen ...................................................4-171

Figure 4-56:

IRD-2900 DVBS Status Screen ..........................................4-172

Figure 4-57:

IRD-2900 DVBS2 Status Screen ........................................4-174

Figure 4-58:

IRD-2900 DVB IP Status Screen ........................................4-175

Figure 4-59:

IRD-2900 Stream Status Screen........................................4-177

Figure 4-60:

IRD-2900 Service Status Screen........................................4-180

Figure 4-61:

IRD-2900 Video Status Screen ..........................................4-181

Figure 4-62:

IRD-2900 Audio Status Screen ..........................................4-184

Figure 4-63:

IRD-2900 IP Data Port Status Screen .................................4-187

Figure 4-64:

IRD-2900 Unit Status Screen ............................................4-191

Figure 4-65:

Unit – Identity (Status Screen)..........................................4-192

Figure 4-66:

Unit – Versions (Status Screen).........................................4-192

Figure 4-67:

Unit – Monitoring (Status Screen).....................................4-193

Figure 4-68:

Web-Management: Licensing ............................................4-195

Figure A-1:

Start Menu – Select Run ...................................................... A-2

Figure A-2:

Run Dialog Box................................................................... A-3

Figure A-3:

Open FTP Session ............................................................... A-3

Figure A-4:

Figure A-5:

Access Bin Folder................................................................ A-4

Figure A-6:

Loading the File .................................................................. A-5

Figure A-7:

Start Menu – Open HyperTerminal ........................................ A-8

Figure A-8:

HyperTerminal – Enter Connection........................................ A-9

Figure A-9:

Select PC COM Port ............................................................. A-9

Figure A-10:

Port Settings Tab .............................................................. A-10

Figure A-11:

HyperTerminal Window...................................................... A-11

Figure A-12:

Update Software Version Command .................................... A-12

Figure A-13:

Erasing Flash Process ........................................................ A-13

Figure A-14:

Ready to Receive New Software ......................................... A-14

Page 18

User Manual

Overview

Page xii (Rev. 4.6/ SW v1.80/ December 2007)

Figure A-15:

Send File Dialog Box ..........................................................A-15

Figure A-16:

Sending Status Dialog Box..................................................A-15

Figure A-17:

IRD Boot Application Starts.................................................A-16

Figure A-18:

Complete Software Loading ................................................A-17

Figure C-1:

Aspect Ratio Conversion Machine.......................................... C-2

Figure C-2:

Normal 4:3 Aspect Ratio...................................................... C-3

Figure C-3:

Normal 16:9 Aspect Ratio ................................................... C-4

Figure E-1:

Front panel warning LEDs .....................................................E-1

Abbildung 1-2:

Paar Scopus- Gleitschienen ..................................................F-3

Abbildung 1-3:

Maßspezifikationen der Scopus- Gleitschienen ........................F-4

Abbildung 1-4:

Auflegen des Geräts auf die Gleitschienen ..............................F-5

Abbildung 1-5:

Angeklemmte Montageträger ................................................F-5

Abbildung 1-6:

Auf einem Paar Gleitschienen montiertes Gerät .......................F-6

Abbildung 1-7:

Mehrfache auf einem einzigen Paar Gleitschienen montierte Geräte...................F-7

Abbildung 1-8: DVB-CI -Modul ....................................................................F-8

Abbildung 1-9:

IRD-2992- Tafel auf der Rückseite .........................................F-8

Abbildung 1-10:

Nummerierung des 9 Stift-Verbindungssteckers .................... F-10

Abbildung 1-11:

Energieversorgungs-Konfigurationen und Gestellmontage-Erdungs-Schraubenwinde

(jackscrew)..........................................................................F-14

Abbildung 1-12:

Gleichstrom-Energieversorgung und Gestellmontage-Erdungsschraubenwinde

(Jackscrew) .........................................................................F-15

Image G-1:

Paire de Rack Slides de Scopus ........................................... G-3

Figure G-2:

Spécifications de dimensions des rack-slides de Scopus........... G-4

Figure G-3:

poser l’appareil sur les Rack-Slides ....................................... G-5

Figure G-4:

Crochets d’assemblage attachés........................................... G-5

Figure G-5:

Appareil monté sur une paire de Rack-Slides ......................... G-6

Figure G-6:

Plusieurs appareils montés sur une simple paire de Rack-Slides G-7

Figure G-7: DVB-CI Module................................................................... G-8

Image G-8:

Panneau arrière d’IRD-2992................................................. G-9

Figure G-9:

9-Pin connecteur male de numérotation des pins .................. G-10

Figure G-10:

Configuration d’alimentation électrique et vis de contact a la masse

de montage sur rack. ........................................................ G-14

Figure G-11:

Alimentation électrique DC et vis de contact à la masse ........ G-15

Page 19

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page xiii

LIST OF TABLES

Table 2-1:

IRD-2900 Rear Panel – Connectors and Cables ......................2-10

Table 2-2:

RS-232/RS-485 Control Connector Pin-Out ...........................2-12

Table 2-3:

RS-232 Low Speed Data and GPI Pin-Out .............................2-12

Table 2-4:

RS-422 High Speed Data Pin-Out.........................................2-12

Table 2-5:

Audio 3-4 Breakout Cable Pin-Out (Scopus P/N 204346).........2-13

Table 2-6:

AES/EBU Balanced Breakout Cable Pin-Out (Scopus P/N 204345)2-13

Table 2-7:

IRD-2900 Serviceability Check ...........................................2-17

Table 4-1:

Band Frequency Range .......................................................4-17

Table 4-2:

Band Frequency Designations..............................................4-26

Table 4-3:

IRD-2900 Rear Panel – Connectors and Cables ......................4-29

Table 4-3:

Band Frequency Range .......................................................4-37

Table C-1:

Table of Conversions - 4:3 Stream Option ............................. C-4

Table C-2:

Table of Conversions - 16:9 Options ..................................... C-6

Tabelle 1-3:

Hintere Tafel des IRD-2900 – Steckverbindungen und Kabel ...F-9

Tabelle 1-4:

Konfiguration und Funktion eines jeden Stiftes des RS-232/RS-485 -

Verbindungsstücks .................................................................F-11

Tabelle 1-5:

Konfigurationen und Funktion eines jeden Stiftes der RS-232-

Niedriggeschwindigkeitsdaten und der Graphikprozedur-Schnittstelle .........F-11

Tabelle 1-6:

RS-422 Konfigurationen und Funktion eines jeden Stiftes der

Hochgeschwindigkeitsdaten ................................................F-12

Tabelle 1-7:

Konfiguration und Funktion eines jeden Stiftes des Audio 3-4 –

Aufschlüsselungskabels (Scopus P/N 204346) .......................F-12

Tabelle 1-8:

Konfiguration und die Funktion eines jeden Stiftes des vorgesteuerten Aufschlüsselungskabels (Scopus P/N 204345)...F-12

Tabelle 1-9:

IRD-2900 –Nutzbarkeits-Prüfung .........................................F-16

Tableau G-1:

Panneau arrière d’IRD-2900 – Connecteurs et câbles .............. G-9

Tableau G-2:

RS-232/RS-485 Control Connector Pin-Out .......................... G-11

Tableau G-3:

RS-232 données a faible vitesse et GPI Pin-Out .................... G-11

Tableau G-4:

RS-422 Données de vitesse élevée Pin-Out .......................... G-12

Tableau G-5:

Pin-Out cable à fibre optique Audio 3-4 (Scopus P/N 204346) G-12

Tableau G-6:

AES/EBU pin-out de câbles à fibres optiques équilibrés (Scopus P/N

204345) ........................................................................... G-12

Tableau G-7:

IRD-2900 vérification de fonctionnement ............................ G-16

Table A-1:

RS-232 Control Cable Pin-to-Pin ........................................... A-6

Table A-2:

RS-485 Control Cable Pin-to-Pin Designations ........................ A-7

Page 20

Page 21

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-1

Chapter 1.

VERVIEW

1.1. G

ENERAL INFORMATION

The IRD-2900 professional MPEG-2 DVB and ATSC processing platform is designed to meet even the most demanding application requirements while maximizing ease of use and flexibility. With a graphical front-panel display, the IRD-2900 Series includes:

• Variety of Telco and cable front-end options

• MPEG-over-IP inputs

• MPEG-over-IP output

• ASI transport-stream input

• SNMP and web based management support

The IRD-2900 Series concurrently decodes up to two video programs from the transport stream. The IRD-2900 Series features the following product lines:

• IRD-296x

- Professional single 4:2:0 decoder IRD

• IRD-298x

- Professional single 4:2:0/4:2:2 decoder IRD

• IRD-299x

- Professional dual 4:2:0 decoders IRD-2900

Housed in a true 1RU slim-line chassis and featuring low power consumption, the IRD-2900 fully integrates with the Scopus product platform.

Page 22

User Manual

Overview

Page 1-2 (Rev. 4.6/ SW v1.80/ December 2007)

1.2. H

IGHLIGHTS AND BENEFITS

The processing platform’s main features and options include:

• MPEG2 4:2:0/4:2:2 decoder

• H.264 4:2:0 field upgradeable using Scopus-Neotion module

• Variety of front-end options including DVB-S, DVB-S2, DVB-DSNG, G.703,

MPEG-over-IP and DS3-ATM

• DVB-S2 professional

• MPEG-over-IP (MPEGoIP) inputs supporting up to 44Mbps (SPTS and MPTS)

• Configurable De-Jitter delay

• Physical Link Redundancy

• Logical Source Redundancy

• FEC (Forward Error Correction) ProMPEG CoP3v2

• MPEGoIP output supporting up to 60Mbps

• IP-over-MPEG output up to 60 Mbps (MPE decapsulation)

• 1 or 2 L-Band inputs

• ASI transport stream input and output

• Service and PID Filtering over the ASI and IP outputs (dynamic and static

modes)

• DVB common interface (2 slots – 1 active simultaneously)

• SDI, AES/EBU and analogue outputs

• Up to 4 pairs of audio outputs supporting:

• Musicam

• Dolby Digital® AC-3 Pass-Through

• Dolby Digital® AC-3 2.0 Down Mixing

• Linear PCM Audio and Dolby-E Pass-Through (up to 3 outputs)

• Embedded audio in SDI and re-insertion of VBI

• VBI re-insertion in composite and SDI

• Genlock for high-end accurate frame synchronization and phase

compensation.

• Redundancy support, 2 GPI Dry Contact relays with separate control

• OSD (On-Screen Display) subtitling

• Various of management interfaces: Graphical front-panel, user-friendly Web-

Interface, command-line-interface (CLI) and SNMP

• SW permission mechanism enables future upgrade

• 50 different user defined setups

Page 23

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-3

1.3. A

PPLICATIONS

The IRD-2900 processing platform is a technologically advanced choice for a wide range of applications. Some typical uses include:

• Digital turnaround

• CATV IP head-end receiver/decoder

• CATV IP distribution edge decoder

• Satellite distribution

• Telco distribution

• DSNG

• Syndication

Scopus offers this series of professional IRDs in a wide range of standard configurations, with the flexibility to select specific interfaces and applicable required features.

Page 24

User Manual

Overview

Page 1-4 (Rev. 4.6/ SW v1.80/ December 2007)

1.4. F

UNCTIONALITY

The TS Router block receives input streams from an available source, for example: L-Band, MPEG-over-IP IN and ASI IN. Then the block routes the selected input to the Master and Slave decoders. Each decoder decodes one program from the input stream, routed by the TS router block, and provides decoded digital audio and video streams. These streams are provided to the Video Router block that routes them to the relevant outputs as well as to the analog video output. The Analog Video Output receives a digital video, converts the digital video into analog video, and outputs the analog video. The analog and digital audio output component outputs the digital and analog audio.

Figure 1-1: Signal Path in the IRD-2900 – Functionality Block Diagram

Page 25

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-5

1.5. M

ECHANICAL STRUCTURE

The IRD-2900 is housed in a rugged industrial enclosure, 1RU by 19" (rack mount).

Figure 1-2: IRD-2900 Unit

1.5.1. Front Panel

The front panel allows control using a four-way touch pad, [Enter] key, [Esc] key, and two programmable [F1]/[F2] keys. Operational commands and parameters are displayed on a graphical LCD. The four-way touch pad allows parameter modification and scrolling through the embedded VBI menus. Two LEDs show the WARNING and PWR/FAIL status (see Figure 1-3).

Figure 1-3: Front View of the IRD

Page 26

User Manual

Overview

Page 1-6 (Rev. 4.6/ SW v1.80/ December 2007)

1.5.2. Various Front-Ends

IRD-2900 supports the following interfaces:

• DVB-S Single L-Band input

• DVB-S Dual L-Band input

• DVB-DSNG Dual L-Band input

• DVB-S2 Dual L-Band input

• MPEG over IP (MPEGoIP) dual input

• G.703 E3 single input with Loop-through

• ASI-In Decoder only (except for IRD-2960)

In this manual all rear panels are displayed with the DVB-S interface. Each model has standard features and interfaces as well as features requiring active software licenses. The MPEGoIP input interface can be supported by all IRD-2900 devices. Figure 1-4 illustrates the IRD-2961 rear panel with an MPEGoIP input interface.

Figure 1-4: IRD-2961 Rear Panel (IP Input interface)

Figure 1-5 illustrates the IRD-2961 rear panel with DVB-S (QPSK) Dual Input configuration.

Figure 1-5: IRD-2961 Rear Panel (DVB-S Dual Input interface)

Figure 1-6 displays the IRD-2961 rear panel with Decoder Only configuration.

Page 27

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-7

Figure 1-6: IRD-2961 Rear Panel (Decoder Only interface)

OTE

IRD-2900 models supporting MPEGoIP output and IP data out (MPE de-capsulation) output can be configured to support either MPEGoIP or IP data out.

1.5.3. Software Permission (Licensing)

Each IRD-2900 model is provided with a basic feature package. In order to suit specific requirements, additional license-permitted features are available. The Next chapter specifies the basic and optional features available for each model. In order to enable optional features perform one of the following:

• Upon unit ordering - order the relevant features. The unit will be provided with the ordered features enabled.

• After unit ordering - order the relevant features. In this case, a 16 character key issued by Scopus video networks will be provided. The key must be entered to the unit thru the front-panel or the webinterface. For details see section 4.2.11.6

OTE

When RS-232 low-speed-data and/or RS-422 high-speed-data are enabled the PID Filtering is unavailable.

Page 28

User Manual

Overview

Page 1-8 (Rev. 4.6/ SW v1.80/ December 2007)

1.5.4. IRD-2900 models

1.5.4.1. IRD-2960 Interfaces and Features

The IRD-2960 is a single 4:2:0 Decoder IRD. The IRD-296x devices consist of two composite video interfaces. The CVBS #1 connector is used for broadcasting quality video and the CVBS #2 connector is used for monitoring. Figure 1-7 illustrates the IRD-2960 rear panel. The IRD-2960 basic features and software-licensed features are also detailed.

Figure 1-7: IRD-2960 Rear Panel (Standard)

Basic Features

• 1 composite video - Broadcast quality (upper connector)

• 1 composite video - Monitoring quality (lower connector)

• 2 active analog – audio - stereo balanced interfaces

• GPI

Software-Licensed Features

• Dolby digital (AC-3) LT/RT downmixing

• RS-232 low speed data output

• RS-422 high speed data output

• H.264 (Scopus-Neotion module)

• DVB-S2 Advance Modulation

(optional)

OTES

The IRD-2960 does not support the Decoder Only configuration. The Russian SECAM D/K (composite video only) is available only through Special orders.

Page 29

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-9

1.5.4.2. IRD-2961 Interfaces and Features

The IRD-2961 is a single 4:2:0 decoder IRD. The IRD-296x family consists of two composite video interfaces. The CVBS #1 connector is used for broadcast quality video and the CVBS #2 connector is used for monitoring. Figure 1-8 illustrates the IRD-2961 rear panel. The IRD-2961 basic features and software-licensed features are also detailed.

Figure 1-8: IRD-2961 Rear Panel

Basic Features

• 1 composite video - Broadcast quality (upper connector)

• 1 composite video - Monitoring quality (lower connector)

• 2 active analog – audio - stereo balanced interfaces

• SNMP management (10/100 Base-T)

• Web based management

(10/100Base-T)

• GPI

Software-Licensed Features

• ASI Input

• Dual (identical) ASI outputs

• MPEG-over-IP output or IP data

output (MPE de-capsulation)

• Dolby Digital (AC-3) LT/RT downmixing

• Pro MPEG FEC

• IP Dual input (link and source

redundancy

• PID and service filtering

• RS-232 low speed data output

• H.264 (Scopus-Neotion module)

• DVB-S2 Advance Modulation

(optional)

OTES

In the case of power failure or system shutdown, ASI OUT 1 output will become ASI loop-through. Use ASI OUT 1 output for cascading a chain of IRD-2900. The Russian SECAM D/K (composite video only) is available only through special orders.

Page 30

User Manual

Overview

Page 1-10 (Rev. 4.6/ SW v1.80/ December 2007)

1.5.4.3. IRD-2962 Interfaces and Features

The IRD-2962 is a single 4:2:0 decoder. The entire IRD-296x family consists of two composite video interfaces. The CVBS #1 connector is used for broadcast quality video and the CVBS #2 connector can is for monitoring. Figure 1-9 illustrates the IRD-2962 rear panel. The IRD-2962 basic features and software-licensed features are also detailed.

Figure 1-9: IRD-2962 Rear Panel

Basic Features

• 1 composite video - Broadcast quality (upper connector)

• 1 composite video - Monitoring quality (lower connector)

• 2 SDI interfaces

• Embedded VBI and up to 2 stereo

channels in SDI

• 2 activated analog-audio-stereo balanced interfaces

• 2 activated AES/EBU-SPDIF audiounbalanced interfaces

• SNMP management (10/100 Base-T)

• Web-based management (10/100

Base-T)

• GPI

• Front panel A/V monitoring

connectors

Software-Licensed Features

• ASI Input

• Dual (identical) ASI outputs

• MPEG-over-IP output or IP data

output (MPE de-capsulation)

• Genlock input and loop-through output

• Dolby Digital (AC-3) LT/RT downmixing.

• Pro MPEG FEC

• PID and service filtering

• H.264 (One Program Only)

• RS-232 low speed data output

• H.264 (Scopus-Neotion module)

• DVB-S2 Advance Modulation

(optional)

OTE

In the case of power failure or system shutdown, ASI OUT 1 output will become ASI loop-through. Use ASI OUT 1 output for cascading a chain of IRD-2900.

Page 31

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-11

1.5.4.4. IRD-2963 Interfaces and Features

The IRD-2963 is a single 4:2:0 decoder. The entire IRD-296X family consists of two composite video interfaces. The CVBS #1 connector is used for broadcast quality video and the CVBS #2 connector is used for monitoring. Figure 1-10 illustrates the IRD-2963 rear panel. The IRD-2963 basic features and software-licensed features are described below.

Figure 1-10: IRD-2963 Rear Panel

Basic Features

• 1 composite video - Broadcast quality (upper connector)

• 1 composite video - Monitoring quality (lower connector)

• 2 SDI interfaces

• Embedded VBI and up to 2 stereo

channels in SDI

• 2 active analog-audio-stereo balanced interfaces

• 2 active AES/EBU-SPDIF audiobalanced interfaces

• SNMP management (10/100 Base-T)

• Web-based management (10/100

Base-T)

• GPI

• Front panel A/V monitoring

connectors

Software-Licensed Features

• ASI input

• Dual (identical) ASI output

• MPEG-over-IP output or IP data

output (MPE de-capsulation)

• Genlock input and loop-through output

• Dolby Digital (AC-3) LT/RT downmixing

• Pro MPEG FEC

• IP Dual input (link and source

redundancy

• PID and service filtering

• RS-232 low speed data output

• H.264 (Scopus-Neotion module)

• DVB-S2 Advance Modulation

(optional)

OTES

This model requires a breakout cable to connect to the AES/EBU interfaces. In case of power failure or system shutdown, ASI OUT 1 output will become ASI loop-through. Use ASI OUT 1 output for cascading a chain of IRD-2900

Page 32

User Manual

Overview

Page 1-12 (Rev. 4.6/ SW v1.80/ December 2007)

1.5.4.5. IRD-2980 Interfaces and Features

The IRD-2980 is a single 4:2:0/4:2:2 decoder. The IRD-298x family consists of two composite video interfaces. Both CVBS #1 and CVBS #2 connectors are for broadcast quality video. Figure 1-11 illustrates the IRD-2980 rear panel. The IRD-2980 basic and software-licensed features are also detailed.

Figure 1-11: IRD-2980 Rear Panel

Basic Features

• 2 composite video interfaces – Broadcast quality

• 2 SDI interfaces

• Embedded VBI and up to 4

stereo channels in SDI

• Decoding 4:2:2 PP@ML (1.5–50 Mbps)

• 2 out of 4 active analog-audiostereo balanced interfaces

• 2 out of 4 active AES/EBU-SPDIF audio unbalanced interfaces

• 1ST and 2ND active AES/EBU- SPDIF

• SNMP management (10/100 Base-T)

• Web-based management (10/100 Base-T)

• GPI

• Front panel A/V monitoring

connectors

Software-Licensed Features

• ASI input

• Dual (identical) ASI output

• MPEG-over-IP output or IP data

output (MPE de-capsulation)

• 3RD Active analog stereo pair

• 4TH Active analog stereo pair

• 3RD Active AES/EBU-SPDIF

• 4TH Active AES/EBU-SPDIF

• Dolby Digital (AC-3) LT/RT

downmixing

• Linear PCM (SMPTE 302M 2000), Dolby-E pass-through

• Pro MPEG FEC

• IP Dual input (link and source

redundancy

• PID and service filtering

• RS-232 low speed data output

• DVB-S2 Advance Modulation

(optional)

OTES

This model requires a breakout cable to connect to the 3rd and 4th analog stereo pairs. In the case of power failure or system shutdown, ASI OUT 1 output will become ASI loop-through. Use ASI OUT 1 output for cascading a chain of IRD-2900.

Page 33

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-13

1.5.4.6. IRD-2981 Interfaces and Features

The IRD-2981 is a single 4:2:2 decoder. The IRD-298x family consists of two composite video interfaces. Both CVBS interfaces are for service broadcast video quality. Figure 1-12 illustrates the IRD-2981 rear panel. The IRD-2981 basic and software-licensed features are also detailed.

Figure 1-12: IRD-2981 Rear Panel

Basic Features

• 2 composite video interfaces – Broadcast quality

• 2 SDI interfaces

• Embedded VBI and up to 4 stereo

channels in SDI

• Decoding 4:2:2 PP@ML (1.5–50 Mbps)

• 2 out of 4 active analog-audio-stereo balanced interfaces

• 2 out of 4 active AES/EBU-SPDIF audio-balanced interfaces

• Genlock input and loop-through output

• SNMP management (10/100 Base-T)

• Web-based management (10/100

Base-T)

• GPI

• Front panel A/V monitoring

connectors

Software-Licensed Features

• ASI input

• Dual (identical) ASI output

• MPEG-over-IP output or IP data

output (MPE de-capsulation)

• 3rd Active analog stereo pair

• 4th Active analog stereo pair

• 3rd Active AES/EBU-SPDIF

• 4th Active AES/EBU-SPDIF

• Dolby Digital (AC-3) LT/RT

downmixing

• Linear PCM (SMPTE 302M 2000), Dolby-E pass-through

• Genlock input and loop-through output

• Dolby Digital (AC-3) LT/RT downmixing.

• Pro MPEG FEC

• PID and service filtering

• H.264 (One Program Only)

• RS-232 low speed data output

• DVB-S2 Advance Modulation

(optional)

Page 34

User Manual

Overview

Page 1-14 (Rev. 4.6/ SW v1.80/ December 2007)

OTES

This model requires a breakout cable to connect to the AES/EBU interfaces and to connect to the 3rd and 4th analog stereo pairs. In the case of power failure or system shutdown, ASI OUT 1 output will become ASI loop-through. Use ASI OUT 1 output for cascading a chain of IRD-2900.

1.5.4.7. IRD-2990 Interfaces and Features

The IRD-2990 is a dual 4:2:0 decoder. The IRD-299x family consists of three composite video interfaces. The CVBS #1 connector is for the broadcast quality video of decoder #1. The CVBS #2 is used for monitoring. The CVBS #3 connector is for the broadcast quality video of decoder #2. Figure 1-13 illustrates the IRD-2990 rear panel. The IRD-2990 basic and software-licensed features are also detailed.

Figure 1-13: IRD-2990 Rear Panel

Basic Features

• 1 composite video for program 1- Broadcast quality (upper-right connector)

• 1 composite video for program 2 Broadcast quality (upper-left connector)

• 1 composite video for program 1Monitoring quality (lower connector)

• 4 active analog-audio-stereo balanced interfaces

• SNMP management (10/100 Base-T)

• Web-based management (10/100 Base-T)

• RS-422 high speed data output

• GPI

Software Licensed Features

• ASI input

• Dual (identical) ASI output

• Dolby Digital (AC-3) LT/RT

downmixing

• H.264 (One program only)

• RS-232 low speed data output

• RS-422 high speed data output

• DVB-S2 Advance Modulation

(optional)

Page 35

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-15

OTE

1.5.4.8. IRD-2991 Interfaces and Features

The IRD-2991 is a dual 4:2:0 decoder. The IRD-299x family consists of three composite video interfaces. The CVBS #1 connector is for the broadcast quality video of decoder #1. The CVBS #2 is used for monitoring. The CVBS #3 connector is for broadcast quality video of decoder #2. Figure 1-13 illustrates the IRD-2991 rear panel. The IRD-2991 basic features and software-licensed features are also detailed.

Figure 1-14: IRD-2991 Rear Panel

Basic Features

• 3 composite video interfaces (2 for broadcast, 1 for monitoring)

• 2 SDI interfaces

• Embedded VBI and up to 4 stereo

channels in SDI

• 4 active analog-audio-stereo balanced interfaces

• 4 active AES/EBU-SPDIF audio unbalanced interface

• SNMP management (10/100 Base-T)

• Web-based management (10/100 Base-T)

• GPI

Software-Licensed Features

• ASI input

• Dual (identical) ASI output

• MPEG-over-IP output or IP data

output (MPE de-capsulation)

• Dolby Digital (AC-3) LT/RT downmixing

• Linear PCM (SMPTE 302M 2000), Dolby-E pass-through.

• Pro MPEG FEC

• H.264 (One program only)

• PID and service filtering

• RS-232 low speed data output

• DVB-S2 Advance Modulation

(optional)

Page 36

User Manual

Overview

Page 1-16 (Rev. 4.6/ SW v1.80/ December 2007)

OTES

This model requires a breakout cable to connect to the 3rd and 4th analog stereo pairs. In case of power failure or system shutdown, ASI OUT 1 output will become ASI loop-through. Use ASI OUT 1 output for cascading a chain of IRD-2900.

1.5.4.9. IRD-2992 Interfaces and Features

The IRD-2992 is a dual 4:2:0 decoder. The IRD-299x family consists of three composite video interfaces. The CVBS #1 is for service broadcast video quality. The CVBS #2 is for service monitoring and OSD video quality. The CVBS #3 is for additional service broadcast video quality. Figure 1-15 illustrates the IRD-2992 rear panel. The IRD-2992 basic features and software-licensed features are also detailed.

Figure 1-15: IRD-2992 Rear Panel

Basic Features

• 3 composite video interfaces (2 for broadcast, 1 for monitoring)

• 2 SDI interfaces

• Embedded VBI and up to 4 stereo

channels in SDI

• 4 active analog-audio-stereo balanced interfaces

• 4 active AES/EBU-SPDIF audio balanced interfaces

• SNMP management (10/100 BasT)

• Web-based management (10/100 Base-T)

• GPI

Software-Licensed Features

• ASI input

• Dual (identical) ASI output

• MPEG-over-IP output or IP data

output (MPE de-capsulation)

• Genlock input and loop-through output

• Dolby Digital (AC-3) LT/RT downmixing

• Linear PCM (SMPTE 302M 2000), Dolby-E pass-through

• Pro MPEG FEC

• H.264 (One program only)

• PID and service filtering

• RS-232 low speed data output

• DVB-S2 Advance Modulation

(optional)

Page 37

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-17

OTES

1.6. M

ANAGEMENT

The following sections detail the different management interfaces and methods available to control the iRD-2900

1.6.1. Local Management

The IRD-2900 supports two local management methods:

• Front Panel Control - The IRD-2900 front panel provides an easy to use graphical display with a large LCD screen and intuitive control.

• PC Terminal Control - The IRD-2900 supports PC terminal control from a standard PC terminal (over RS-232 or RS-485). The terminal provides access to control and monitor functionalities that are not available when using any IRD-2900 front panel feature.

1.6.2. Remote Management

IRD-2900 supports three remote management methods:

• NMS-4000 and Future NMS-7000 - The NMS-4000 Network Management System enables management of the IRD-2900 through the transmission link. The NMS-4000 provides a menu and dialog-driven interface from which control, modification, and upgrade operations can be performed on the IRD.

• Web-Based Management - IRD-2900 supports web-based management. Managing IRD-2900 parameters using web-based control is as easy as pointand-click.

• Telnet - The IRD-2900 supports remote control throughout the Internet. The IRD-2900 can be controlled and configured from a standard PC terminal (over Ethernet). The terminal provides access to control and monitor functionalities that are not available when using any IRD-2900 front panel feature.

Page 38

User Manual

Overview

Page 1-18 (Rev. 4.6/ SW v1.80/ December 2007)

1.7. C

HARACTERISTICS AND

PECIFICATIONS

The following section provides with the IRD-2900 Characteristics and specification.

1.7.1. Transport Stream Interface Options

EATURE

PECIFICATIONS

DVB-S S

INGLE INPUT

• Interface - F-type 75Ω

• Constellation - QPSK

• Single L-band input

• Frequency range - 950-2150 MHz

• RF Input level: (-65) – (-25) dBm

• Symbol rate range - 1-45M Sym/s

• L-Band RF input with LNB control and loop-through

output

DVB-S D

UAL INPUT

• Interface - F-type 75Ω

• Constellation - QPSK

• Dual L-band input

• Dual independent demodulators

• Manual selection between inputs

• Frequency range - 950-2150 MHz

• Symbol rate range - 1-45M Sym/s

• L-Band RF input with LNB control and loop-through

output

Page 39

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-19

EATURE

PECIFICATIONS

DVB-DSNG S

INGLE INPUT

• Interface - F-type 75Ω

• Constellation – QPSK, 8PSK and 16QAM

• Single L-band input

• Frequency range - 950-2150 MHz

• Symbol rate range - 1-45M Sym/s

• L-Band RF input with LNB control and loop-through

output

DVB-S2 S

INGLE INPUT

• Applications - Broadcast services and DSNG EN 302 307

• Mode – CCM, ACM

• Constellations: QPSK, 8PSK, 16APSK

• FEC frames: Normal (64800 bits), short (16200 bits)

• Roll-Off: 0.35, 0.25, 0.20

• Pilots – On, Off

• Frequency range: 950 MHz - 2150 MHz

• Symbol rate range – 1Msym/s - 45Msym/s

• 2 L-Band RF 75Ω inputs with LNB control

• Modulation Scheme Recovery: Automatic (ACM

mode)

• Physical Layer Scrambling support

• Multiple input transport stream (MSI) support using

Input Stream Identifier (ISI)

Page 40

User Manual

Overview

Page 1-20 (Rev. 4.6/ SW v1.80/ December 2007)

EATURE

PECIFICATIONS

MPEGOIP I

NPUT

• Two physical links - 10/100 Base-T, RJ-45 – one active at a time

• Two logical sources (sockets) – one active at a time

• Physical Link and logical source redundancy

(coupled)

• De-Jittering buffer size - configurable 100-2000mSec

• TS bit rate: up to 44 Mbps

• Encapsulation type: UDP and RTP (Automatic

detection)

• SPTS/MPTS

• Unicast/Multicast

• IGMPv2

• Forward Error Correction (FEC)

• ProMPEG CoP3v2

• Maximum input bit-rate: 25Mb/s

• Columns only FEC protection

• Matrix dimensions - Columns 1-20, Rows 4-20.

Columns*Rows ≤ 100 (Automatic detection)

MPEGOIP

OUTPUT

• TS bit rate - up to 60 Mbps

• SPTS/MPTS

• Encapsulation - UDP

• All programs and PIDs are present in the output TS

• Interface 10/100 Base-T, RJ-45

DVB-ASI I

NPUT

• Interface: copper, BNC 75 ohm

• TS bit rate: up to 100 Mbps (Byte and Burst mode)

Page 41

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-21

EATURE

PECIFICATIONS

DVB-ASI O

UTPUT

• 2 ASI connectors: copper, BNC 75 ohm

• ASI options:

• ASI OUT 1 - output stream with decrypted

selected program, output stream and loopthrough

• ASI OUT 2 - output stream with decrypted selected program, output stream

• ASI output rate - up to 100 Mbps (Byte mode)

ELECOM

G.703

NPUT

• Unframed PDH Data rates::E1,E2 or E3

• FEC (optional): DVB-C FEC

• Loop-through output

DVB-PDH I

NPUT

• Interface: ATM AAL-1

• Data rates: DS3 or E3

• Loop-through output

1.7.2. Advanced Processing

EATURE

PECIFICATIONS

ERVICE AND

PID

ILTERING

• Active on ASI and IP outputs

• PCR re-stamping

• VBR and CBR modes (NULL stuffing)

• Forward only and filter only modes

• Dynamic Service filtering (tracks PIDs'

modifications)

• Static PID filtering

• PSI/SI tables are not modified.

Page 42

User Manual

Overview

Page 1-22 (Rev. 4.6/ SW v1.80/ December 2007)

EATURE

PECIFICATIONS

ATA

• High speed data: RS-422 Up to 20 Mbps, RJ-45 (supported by IRD-2960, IRD-2990)

• IP Data Out (RJ-45): up to 60Mbps (MPE decapsulation)

1.7.3. Decoder Outputs

EATURE

PECIFICATIONS

IDEO

• Video Formats:

• PAL-B/G/I/M/N/D, NTSC, SECAM L/B/G/K1

• Russian SECAM D/K (composite video only

supported only by special order in IRD-2960, IRD-2961 and IRD-2990)

• Decoding:

• 4:2:0 MP@ML (1.5 – 15 Mbps)

• 4:2:2 PP@ML (1.5 – 50 Mbps) (supported only

in IRD298x)

• Maximum TS decoding bit rate: 108Mbps

• Video resolution interpolation: Pan-scan, letter box

or Pass through

• Aspect ratios: 4:3/16:9

• Aspect ratio 14:9 by signaling over VBI video index

• Graphical processing (OSD): DVB subtitling, EBU

(Teletext) subtitling

• OSD only through monitoring output

• Genlock input and loop-through output and phase

compensation (supported only by IRD2962, IRD2963, IRD2981 and IRD2992)

• Genlock Sync lock resolution: +/- 37nSec

Page 43

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-23

EATURE

PECIFICATIONS

H.264

Based on Scopus-Neotion CAM module

Video Characteristics:

• Video decoding standard: H.264 part 10

• Profile: Full D1 Main Profile up to Level 3.0 (one

4:2:0 service)

• Video Format: PAL & NTSC

• Video bit-rate: CBR only

• Picture aspect ratio: 4:3 and 16:9

Transport-Stream characteristics:

• Maximum Transport-stream BW: 40Mb/s

• Minimum Transport stream stuffing: 200Kb/s

• PCR should be included in the video PID

RONT PANEL

ONITORING

• Video monitor output connector (Supported only by 298x)

• Audio monitor output connector (Supported only by 298x)

VBI RE-

INSERTION

• All VBIs adhere the relevant standards including the line numbers

• In composite video and embedded SDI

• WST Teletext and inverted Teletext

• WSS, VPS, VITC, CC, AMOL I, AMOL II (Nielsen),

TV-Guide, V-CHIP

• Enhanced VITS with built-in generator

Page 44

User Manual

Overview

Page 1-24 (Rev. 4.6/ SW v1.80/ December 2007)

EATURE

PECIFICATIONS

UDIO

• Modes: stereo, joint stereo, dual channel, single channel

• Analog max output level: +18 dBu @ 600Ω

• Digital max output level: 0 dBFs

• Attenuation control at -64 dB to 0 dB and mute

• Dolby Digital (AC-3) Pass-through

• Dolby Digital (AC-3) LT/RT downmixing

• Linear PCM (SMPTE 302M 2000) supported over

analog and digital outputs 2/3/4 (supported in IRD2980, IRD2981, IRD2991, IRD2992)

• Dolby-E pass-through supported over digital outputs 2/3/4 (supported in IRD2980, IRD2981, IRD2991, IRD2992)

Page 45

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-25

1.7.4. Conditional Access

EATURE

PECIFICATIONS

MBEDDED

DVB-

ESCRAMBLING

• BISS mode-1

• BISS-E

• CAS-5000

DVB-CI

• Interface – 2 CI slots EN-50221 (Only 1 active simultaneously)

• Maximum of decrypted programs - 1 for single decoder, and 2 for dual decoder (in case the specific CAM supports it).

• Maximum TS bitrate – 72 Mbps

• CA methods: Multicrypt, Simulcrypt

• CASs: Viaccess®, Irdeto®, Conax®,

MediaGuard®, Nagravision®, Cryptoworks®, VideoGuard®, OnDigital®, CODICrypt®

1.7.5. Control and Monitoring

EATURE

PECIFICATIONS

OCAL

• Graphical easy-to-use front panel

• Advanced satellite scanning (CLI support only)

• Operates in service and PID modes

• 2 GPI dry contacts for various status and fault

indications

NHANCED

DVB

ONITORING

• Front panel display: signal quality, Eb/N0, BER, ASI format, network and service information, CA information, CI slots, video and audio decoded information

Page 46

User Manual

Overview

Page 1-26 (Rev. 4.6/ SW v1.80/ December 2007)

EMOTE

• SNMP management

• Web-based management

• Telnet

• Terminal via RS-232 or RS-485

• Software download

VER THE AIR

• Software download

1.7.6. Compliance

EATURE

PECIFICATIONS

EMC

• EN55013 (CISPR 13)

• EN55020 (CISPR 20)

• EN55022 (CISPR 22)

• EN55024 (CISPR 24)

• FCC part 15 (Class B)

AFETY

• EN60950

• CB (IEC60950)

• UL60950

• cTUVus

1.7.7. Environmental Conditions

EATURE

PECIFICATIONS

PERATION

• Temperature - 0°C - 50°C

• Humidity - 5% - 90% (non-condensing)

TORAGE AND

RANSPORTATION

• Temperature - -40°C - 70°C

• Humidity - 0% - 95% (non-condensing)

Page 47

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 1-27

1.7.8. Physical and Power Specifications

EATURE

PECIFICATIONS

HYSICAL

• 1RU unit, 19’’ rack mountable

• Dimensions (HxWxD) –

1RU X 19” X 14”/44mm X 482.6mm X 357mm

• Weight – 3.5Kg. (7.7lbs).

OWER

• Voltage:

• 100 - 240V AC, 50/60Hz

• Power consumption – up to 50w max

Page 48

Page 49

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 2-1

Chapter 2.

NSTALLATION

This section details the safety precautions and inventory check when installing the IRD-2900 Series.

2.1. S

AFETY PRECAUTIONS

To avoid injury and prevent equipment damage, observe the following safety precautions:

• Do not move or ship equipment unless it is correctly packaged in its original

wrapping and shipping containers.

• Only Scopus trained personnel can perform service and maintenance.

• To prevent lightning damage, ground the unit according to local regulations.

• Do not permit unqualified personnel to operate the unit.

2.1.1. Restricted Access Area

The DC powered equipment should only be installed in a Restricted Access Area

2.1.2. Installation Codes

This device must be installed according to national electrical codes. For North America, equipment must be installed in accordance with the US National Electrical Code, Articles 110-16, 110-17, and 110-18 and the Canadian Electrical Code, Section 12.

Add Markings for AC units for Denmark, Finland, and Sweden (marked on product):

• Denmark- “Unit is class I, unit shall be used with an AC cord set suitable

with Denmark deviations. Cord shall including an earthing conductor. Unit shall be plugged into a wall socket outlet which connected to protective earth. Socket outlets which are not connected to earth shall not be used!”

• Finland - (Marking label and in manual) -"Laite on liitettävä

suojamaadoituskoskettimilla varustettuun pistorasiaan”

• Sweden (Marking label and in manual) - "Apparaten skall anslutas till jordat

uttag."

Page 50

User Manual

Installation

Page 2-2 (Rev. 4.6/ SW v1.80/ December 2007)

OR NORTH AMERICAN

power connection, select a power supply cord that is UL Listed and CSA Certified 3 - conductor, [18 AWG], terminated in a molded on plug cap rated 125 V, [15 A], with a minimum length of 1.5m [six feet] but no longer than

4.5m...For European connection, select a power supply cord that is internationally harmonized and marked "<HAR>", 3 - conductor, 0,75 mm2 minimum mm2 wire, rated 300 V, with a PVC insulated jacket. The cord must have a molded on plug cap rated 250 V, 10 A...".

2.2. I

NVENTORY CHECK

AUTION

F ANYTHING IS MISSING OR DAMAGED, DO NOT CONTINUE WITH THE INSTALLATION. SEE THE

PROCEDURES IN THE FRONT OF THIS MANUAL FOR SCOPUS SUPPORT INFORMATION

Before installing the unit, ensure that all the equipment has arrived and check for damage according to the following list:

TEM

UANTITY

IRD-2900 Professional Integrated Receiver Decoder 1

Power cable 1

User manual, IRD-2900 Professional Integrated Receiver Decoder 1

Breakout cable if applicable 1/2

2.3. I

NSTALLATION INSTRUCTIONS

This section explains the mechanical installation of the rack and IRD-2900 device.

2.3.1. Site Preparation

When installing the IRD-2900 in a standard 19" rack, verify that the rack is fully prepared for the installation. To facilitate easy access during installation and maintenance, leave sufficient space behind the rack.

Page 51

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 2-3

The IRD-2900 must be installed within 1.5m (5 feet) from an easily accessible grounded AC outlet, capable of furnishing the required supply voltage as detailed in Section 2.5.1. The use of a UPS (Uninterrupted Power Supply) and an AVR (Automated Voltage Regulation) is highly recommended to ensure uninterrupted operation. Ensure that a qualified electrician has installed the main power supply in accordance with local power authority regulations. All powering should be wired with an earth leakage in accordance with local regulations.

ARNING

TO AVOID ELECTROCUTION ENSURE THAT THE RACK HAS BEEN CORRECTLY GROUNDED BEFORE SWITCHING ON THE IRD-2900 DEVICE. WHEN REMOVING THE UNIT, REMOVE THE GROUNDED CONNECTION ONLY AFTER THE UNIT IS SWITCHED OFF AND UNPLUGGED.

2.3.2. Mechanical Rack Installation

Due to its considerable weight, the device must be placed on a pair of rackslides, specially designed for Scopus products (see Figure 2-1).

AUTION

HE RACK-SLIDES MUST BE INSTALLED IN THE DEVICE’S DESIGNATED LOCATION WITHIN THE RACK,

SINCE THEY ARE INTENDED TO CARRY THE DEVICE’S WEIGHT. DO

NOT

RELY ONLY ON THE

DEVICE’S MOUNTING BRACKETS FOR SUPPORTING THE DEVICE’S WEIGHT. DOING SO MAY RESULT

IN DAMAGE TO THE RACK, DEVICE, AND OTHER MOUNTED DEVICES

Page 52

User Manual

Installation

Page 2-4 (Rev. 4.6/ SW v1.80/ December 2007)

Figure 2-1: Pair of Scopus Rack Slides

Slide structure is especially designed to ensure proper ventilation of Scopus products, as it is consistent with the ventilation scheme of all Scopus rackmount devices.

AUTION

SING RACK-SLIDES THAT ARE NOT SPECIALLY DESIGNED FOR SCOPUS RACK-MOUNT DEVICES MAY

RESULT IN OVERHEATING AND DAMAGE TO ONE OR MORE MOUNTED DEVICES

Page 53

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 2-5

Figure 2-2 illustrates the exact measurements of Scopus’ special rack-slides.

Figure 2-2: Scopus Rack Slide Measurement Specifications

Fasten the pair of rack slides to the rack’s side rails in the device’s designated location with four M6 screws (two on each side of the rack) before continuing. After tightly fastening the supporting rack-slides to the rack, perform the following steps to install the device within the rack:

1. Lay the device on the rack-slides in its designated location within the rack.

Figure 2-3 is a see-through illustration, demonstrating the placing of the device on the rack-slides.

Page 54

User Manual

Installation

Page 2-6 (Rev. 4.6/ SW v1.80/ December 2007)

Figure 2-3: Laying the Device on the Rack-Slides

2. The device is supplied with two mounting brackets (see Figure 2-4). The mounting brackets are clipped to the device chassis on both sides before leaving the factory. Align the mounting brackets’ holes with the relevant holes in the rack’s side rails.

Figure 2-4: Clipped Mounting Brackets

3. Fasten the mounting brackets to the side-rails with four screws (two on each side). The device is now safely installed within the rack.

Page 55

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 2-7

Figure 2-5 illustrates a general view of the device, when installed within the 19’’ rack.

Figure 2-5: Device Mounted on a Pair of Rack-Slides

A single pair of rack-slides can carry up to 50Kg (110 lbs). This allows saving rack space by placing a number of Scopus rack-mount devices one upon the other (be careful not to exceed the specified maximum weight).

ARNING

DO NOT APPLY OVER 50KG (110LBS) OF WEIGHT ON A SINGLE PAIR OF RACK-SLIDES. DOING SO MAY RESULT IN COLLAPSING OF THE RACKSLIDES, SERIOUS INJURIES TO PERSONNEL, AND DAMAGE TO EQUIPMENT.

Page 56

User Manual

Installation

Page 2-8 (Rev. 4.6/ SW v1.80/ December 2007)

Figure 2-6 illustrates multiple devices when rack-mounted on a single pair of rack-slides.

Figure 2-6: Multiple Devices Mounted on a Single Pair of Rack-Slides

Page 57

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 2-9

2.3.3. Insertion of the DVB-CI Module (PCMCIA)

AUTION

O NOT REMOVE OR INSERT THE

DVB-CI

MODULE OR THE SMART CARD WHILE THE

IRD-2900

IS POWERING UP OR INITIALIZING.

Figure 2-7: DVB-CI Module

Figure 2-7 illustrates the IRD-2900 with the DVB-CI module (PCMCIA card) and the Smart Card used to decrypt the incoming signal. The IRD-2900 is provided with two PCMCIA slots for up to two DVB-CI modules. The PCMCIA should be firmly inserted into one of the two provided slots to ensure contact. Each DVB-CI module accommodates one Smart Card, inserted with the UP mark pointing upwards and forward.

When installed, the card is detected automatically by the IRD-2900 and enabled if the three following conditions are valid:

• The installed card must be EN50221 compatible

• Services have been selected at TV1/TV2 (for further information see section 4.2.5.1)

• Using a valid card licensing

Page 58

User Manual

Installation

Page 2-10 (Rev. 4.6/ SW v1.80/ December 2007)

2.4. C

ABLE CONNECTION

The IRD-2900 provides all the connections on its rear panel. The rear panel is comprised of audio outputs, video outputs, data outputs, and control interfaces (see Table 2-1 for cable connection specifications). Figure

2-8

illustrates the IRD-2992 rear panel in order show connector types.

Figure 2-8: IRD-2992 Rear Panel

Table 2-1: IRD-2900 Rear Panel – Connectors and Cables

NTERFACE

ONNECTOR TYPE

ABLE TYPE

L-Band Front-end RF IN

75 Ω F-Type

RG-6

L-Band Front-end Loop-Through Connector

75 Ω F-Type

RG-6

MPEGoIP Input

RJ-45 FTP Cat 5

Management

RJ-45 FTP Cat 5

MPEGoIP/DATA Output

RJ-45 FTP Cat 5

Analog Audio Out1 left

600 Ω XLR (balanced)

Shielded audio cable

Analog Audio Out1 right

600 Ω XLR (balanced)

Shielded audio cable

Analog Audio Out2 left

600 Ω XLR (balanced)

Shielded audio cable

Analog Audio Out2 right

600 Ω XLR (balanced)

Shielded audio cable

Video Out, S-Video Y/C

75 Ω DIN connector

Super video cable

Composite Video Out, CVBS1

75 Ω BNC

RG-59

RG11 A/U (recommended)

Composite Video Out, CVBS2

75 Ω BNC

RG-59 RG11 A/U (recommended)

Composite Video Out, CVBS3

75 Ω BNC

RG-59 RG11 A/U (recommended)

Page 59

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 2-11

Table 2-1: IRD-2900 Rear Panel – Connectors and Cables

NTERFACE

ONNECTOR TYPE

ABLE TYPE

Data Output (RS-232/RS-422)

9 PIN D-Type Serial Cable

Control (RS-232/RS-485)

9 PIN D-Type Serial Cable

Audio Balanced 3 & 4

600 Ω D-sub 15p to 4XLR

Breakout Cable 204346 (Scopus material)

AES/EBU 1-4 Unbalanced

75 Ω 4xBNC or

75 Ω D-sub 15p

BNC Cable

ASI in/out1/out2

75 Ω BNC

RG-59

RG11 A/U (recommended)

Genlock In

75 Ω BNC

RG-59

RG11 A/U (recommended)

Genlock Out

75 Ω BNC

RG-59

RG11 A/U (recommended)

SDI out 1 &2

75 Ω BNC

RG-59

The IRD-2900 series supports terminal-control from a standard PC through a serial RS-232/RS-485 connector. Figure 2-9 illustrates the Control Interface and Low Speed Data/GPI 9-pin male connectors pin numbering.

Figure 2-9: 9-Pin Male Connector Pin Numbering

Page 60

User Manual

Installation

Page 2-12 (Rev. 4.6/ SW v1.80/ December 2007)

Table 2-2 lists the RS-232/RS-485 Control Interface connector pin-out.

Table 2-2: RS-232/RS-485 Control Connector Pin-Out

PIN F

UNCTION

PIN F

UNCTION

1 RS-232 CD/RS-485 TX (+) 6 RS-232 DSR/RS-485 TX (-)

2 RS-232 RxD 7 RS-232 RTS

3 RS-232 TxD 8 RS-232 CTS/RS-485 RX (+)

4 RS-232 DTR 9 RS-232 Ring/RS-485 RX (-)

5 Common

Table 2-3 lists the RS-232 low speed data and GPI interface pin-out. This connector is used at the same time for both GPI and low-speed data output.

Table 2-3: RS-232 Low Speed Data and GPI Pin-Out

PIN F

UNCTION

PIN F

UNCTION

1 GPI1 NC 6 GPI1 Common

2 RxD 7 GPI1 NO

3 TxD 8 GPI2 NC

4 GPI2 Common 9 GPI2 NO

5 Common

Table 2-4 lists the RS-422 high speed data and interface pin-out.

Table 2-4: RS-422 High Speed Data Pin-Out

PIN F

UNCTION

PIN F

UNCTION

3 Enable (-) 6 Enable (+)

4 Data (-) 7 Clock (-)

5 Data (+) 8 Clock (+)

Page 61

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 2-13

Table 2-5 lists the Audio 3-4 breakout cable interface pin-out.

Table 2-5: Audio 3-4 Breakout Cable Pin-Out (Scopus P/N 204346)

PIN F

UNCTION

PIN F

UNCTION

1 Audio 4 XLR Right (+) 8 Audio 4 XLR Left Common

2 Audio 4 XLR Left (+) 10 Audio 3 XLR Left Common

3 Audio 3 XLR Right Common 11 Audio 4 XLR Right (-)

4 Audio 3 XLR Right (+) 12 Audio 4 XLR Left (-)

5 Audio 3 XLR Left (+) 14 Audio 3 XLR Right (-)

7 Audio 4 XLR Right Common 15 Audio 3 XLR Left (-)

Table 2-6 lists the AES/ABU balanced breakout cable pin-out.

Table 2-6: AES/EBU Balanced Breakout Cable Pin-Out (Scopus P/N

204345)

PIN F

UNCTION

PIN F

UNCTION

1 AES/EBU 4 (+) 8 AES/EBU 3 Common

2 AES/EBU 3 (+) 10 AES/EBU 1 Common

3 AES/EBU 2 Common 11 AES/EBU 4 (-)

4 AES/EBU 2 (+) 12 AES/EBU 3 (-)

AES/EBU 1 (+) 14 AES/EBU 2 (-)

7 AES/EBU 4 Common 15 AES/EBU 1 (-)

Page 62

User Manual

Installation

Page 2-14 (Rev. 4.6/ SW v1.80/ December 2007)

2.5. I

NITIALIZATION AND

ONFIGURATION

Before powering-up the IRD-2900, ensure that all cabling is correct. Ensure that the unit is connected to the main power supply and correctly grounded.

2.5.1. Electrical Power Connection

The IRD-2900 is powered by an AC power supply unit or by an optional external DC power source. The following describes the AC and CD electrical power connections.

2.5.1.1. AC Power Supply

Grounding of is provided when the AC power cable is connected to the device’s AC connector. The IRD-2900 is shipped with either AC connector configuration, as shown in Figure 2-10. Before powering-up a rack-mounted IRD-2900, the device’s grounding jackscrew must be connected to the rack housing, which must be correctly grounded (see Figure 2-10).

AC Power Supply Configuration 1 AC Power Supply Configuration 2

Figure 2-10: Power Supply Configurations and Rack-Mount Grounding Jackscrew

Page 63

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 2-15

2.5.1.2. DC Power Supply

DC power supply is an optional feature of the IRD-2900. If the unit is fitted with a -48V CD power supply, connect the external 48V DC source by performing the following (refer to Figure 2-11):

1. Connect a (+) 48V DC source wire to the (+) contact on the power terminal board.

2. Connect a (-) 48V DC source wire to the (-) contact on the power terminal board.

3. Connect Grounding point wire to the (GND) contact on the power terminal board.

When the IRD is rack-mounted, the jackscrew (see Figure 2-11) must be connected to the rack housing, which in turn should be properly grounded.

Figure 2-11: DC Power Supply and Rack-Mount Grounding Jackscrew

Grounding

Jackscrew

Contact

GND Contact

Page 64

User Manual

Installation

Page 2-16 (Rev. 4.6/ SW v1.80/ December 2007)

2.5.2. Powering Up

When powering up the IRD-2900 and the receiver is not tuned, expect one of the following warnings:

• Front-End warning – Demodulator not sync

• Bit Stream warning – No sync – 0x47 detected

• Bit Stream warning – PSI not detected

In case the IRD-2900 warning LED is lit orange, the operator must perform the following:

• Tune or configure the IRD-2900 device

• Select a service from the input stream

When the IRD-2900 is correctly configured, “All OK” is displayed and both LEDs are lit green.

OTE

Prior to initialization, review Chapter 4-Operation and Management, for how to use and navigate through the menus and for information on configuration

parameters.

2.5.3. Tuning

The IRD-2900 receiver must be configured to receive a transport stream. For details about an IRD-2900 device with a DVB-S receiver module, see Section

4.2.2. For details about an IRD-2900 device with an MPEG-over-IP front-end module, see Section 4.2.2.4.

Page 65

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 2-17

2.5.4. Performing Serviceability Check

After installing, initializing, or configuring the IRD, maintenance checks must be performed to ensure that the unit is serviceable. A video monitor must be connected to the IRD-2900 to perform the check lists systematic instructions for performing a serviceability check.

Table 2-7: IRD-2900 Serviceability Check

TEP

HECK

1 On the LCD display, the LCD status message reads "STATUS OK".

2 On the IRD-2900 front panel the two LEDs are lit green.

3 The service selected is displayed on the LCD display.

4 Video picture is displayed on monitor.

5 Audio channels left and right.

Page 66

Page 67

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 3-1

Chapter 3.

IRD-2900 C

ONTROL INTERFACES

This section explains the Front Panel and Web Management control interfaces used for operating, configuring, and monitoring the IRD-2900.

3.1. F

RONT PANEL CONTROL

NTERFACE

The front panel control interface explained in this section is composed of the following:

• Controls and Displays – see section 3.1.1

• Front Panel Screens – see section 3.1.2

• Menu Tree – see section 3.1.3

• Front Panel Initialization Sequence – see section 3.1.4

3.1.1. Controls and Displays

The front panel is used for extensive local control and for monitoring the device’s operation. Figure 3-1 illustrates the IRD-2900 front panel.

Figure 3-1: Front Panel

The IRD-2900 front panel contains:

• LCD Display

The LCD display is a large, easy to use, graphical display. It is used to display enhanced menus with graphical interfaces, such as: charts, radio buttons, tables,

and icons.

Page 68

User Manual

IRD-2900 Control Interfaces

Page 3-2 (Rev. 4.6/ SW v1.80/ December 2007)

• Status LEDs

The two LEDs indicate WARNING and PWR/FAIL statuses, when both LEDs are lit green the IRD-2900 status is OK. The WARNING LED (Green/Orange) indicates the operational status. The PWR/FAIL LED (Green/Red) indicates the hardware status.

• Arrow Keys

The arrow keys include [Up], [Down], [Right], [Left]. The keys are used to navigate between the different menu items and sub-menus. They are also used to select and change parameters during setup and configuration procedures.

• [Enter] Key

The Enter key is used for selecting or entering a configuration setup.

• [Esc] Key

The ESC key is used to abort a configuration setup or to return to the menu's previous level.

• Programmable Keys

The [F1] and [F2] buttons allows quick access to specific front-panel menu screen. Each programmable key can store one menu screen path.

To create a quick access shortcut:

1. Go to the wanted front-panel menu screen. Use the keypad to navigate.

2. Press and hold the [F1] key or the [F2] key, when press [Esc].

3. Press [ENTER] (while holding the [F1] key or the [F2] key).

4. Release the [ENTER] key.

5. Release the [F1] key or [F2] key.

Page 69

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 3-3

3.1.2. IRD-2900 Front Panel Screen Types

The IRD-2900 display leads to the following five screen types:

• Menu Navigation screen

• Edit Menu screen

• Table Menu screen

• Edit Value screen

• Select Value screen

OTE

The Front panel can display only up to four menu items at a time. When a menu has more than four items, the first four are visible in the panel, followed by a scroll icon [ ]. Additional items can be accessed using the [up]/[down] arrows. To illustrate the difference between the two types of items, two types of screen shots were used in this user manual: dark grey for the visible items and light grey for the hidden ones.

Sections 3.1.2.1 to 3.1.2.5 detail the different front panel screen types.

3.1.2.1. Menu Navigation Screen

The Menu Navigation screen enables navigating through the tree structure of the IRD-2900 menu. In this example, the menu navigation screen displays the following items:

Configuration

Configuration Configuration

Configuration

1111----2222

1 1

Receiver

ReceiverReceiver

Receiver

2222

Stream

Stream Stream

Stream

3333

Service

Service Service

Service

4444

Video

Video Video

Video

5555

Audio

Audio Audio

Audio

6666

Data

Data Data

Data

7777

Conditional Access

Conditional Access Conditional Access

Conditional Access

Unit

Unit Unit

Unit

Page 70

User Manual

IRD-2900 Control Interfaces

Page 3-4 (Rev. 4.6/ SW v1.80/ December 2007)

A. Top line indicates the menu name (Configuration) and the menu hierarchal

position (

1111----2222

, for example

Configuration

ConfigurationConfiguration

Configuration

under the

Root

RootRoot

Root

menu). [ Up]/[ Up/Down]/[ Down] symbols indicate that up or down scrolling is enabled.

B. Next up to four displayed lines is a list of numbered items. C. Additional Available Items

The list can include more than four items, but only four items are visible at a time. When more than four items are enabled, you can scroll using the [UP]/[Down] arrow keys. The currently selected option is displayed with white characters over a black background (see Item #3 in the example above). To access the next menu level press [Enter] to select the marked item (either another menu navigation screen or an Edit Menu screen).

3.1.2.2. Edit Menu Screen

The Edit menu screen enables selecting, changing or displaying the value of a parameter or set of parameters. In this example, the Edit Menu screen displays the following items:

Stream

Stream Stream

Stream

1111----2222----2222

1111

Decoder Stream Source

Decoder Stream Source Decoder Stream Source

Decoder Stream Source FRONT

FRONT FRONT

FRONT----END (QPSK)

END (QPSK)END (QPSK)

END (QPSK)

2222

27MHz Synchronization

27MHz Synchronization 27MHz Synchronization

27MHz Synchronization STREAM PCR

STREAM PCR STREAM PCR

STREAM PCR

A. Top line indicates the menu name (

Stream

StreamStream

Stream

) and the menu hierarchal

position (

1111----2222----2222,

for example

Root

RootRoot

Root----Configuration

ConfigurationConfiguration

Configuration----Stream

StreamStream

Stream

) in the IRD-2900 Menu Tree. [ Up]/[ Up/Down]/[ Down] symbols indicate that up or down scrolling is enabled.

B. Next up to four displayed lines is a list of numbered items relevant to the

menu and their current values. The information provided for each list item is:

• Left-aligned column displays a numbered list of parameters.

• Right-aligned column displays parameter values.

- Editable parameters have a pencil icon next to them.

- Parameters without the pencil icon are for information only.

Page 71

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 3-5

C. Additional Available Items

The list can include more than four items, but only four items are visible at the time. When more than four items are enabled, you can scroll the list using the

[UP]/[Down] arrow keys. The currently selected option is displayed with white characters over a black background (see Item #1 in the example above).

Press [ESC] to abort the selection or to return to the menu’s previous level.

Press [Enter] to select the pointed editable option; a parameter-editing screen is displayed. This can be a Table Menu screen, an Edit Value screen, or a

Select Value screen.

3.1.2.3. Table Menu Screen

The Table menu screen displays parameter information, using a table format. In this example, the Table Menu screen displays the following columns:

Name

NameName

Name ID

IDID

ID Type

TypeType

Type Mode

ModeMode

Mode

1111

 PROGRAM 1

PROGRAM 1 PROGRAM 1

PROGRAM 1 000A

000A000A

000A TV

TVTV

TV FTA

FTAFTA

FTA

2222

 PROGRAM 2

PROGRAM 2 PROGRAM 2

PROGRAM 2 0046

00460046

0046 TV

TVTV

TV FTA

FTAFTA

FTA

3333

 PROGRAM 3

PROGRAM 3 PROGRAM 3

PROGRAM 3 0050

00500050

0050 TV

TVTV

TV CAS

CASCAS

CAS

4444 PROGRAM 4

PROGRAM 4 PROGRAM 4

PROGRAM 4 01F7

01F7 01F7

01F7 TV

TVTV

TV CAS

CASCAS

CAS

A. Top line displays the headers for each table column. B. Next up to four displayed lines is a numbered list of parameters relevant

to the menu and their current values. A radio button indicates which parameter is currently active (



is currently enabled and



is currently

disabled)

C. Additional Available Items

The list can include more than four items, but only four items are visible at a time. When more than four items are available, you can scroll the list using the [UP]/[Down] arrow keys. The currently selected option is displayed with white characters over a black background (see Item #2 in the example above). Press [ESC] to abort the selection and return to the Edit Menu screen without changing the parameters. Press [Enter] to select the currently enabled button

.

The selected option

becomes enabled and the former active option is disabled.

Page 72

User Manual

IRD-2900 Control Interfaces

Page 3-6 (Rev. 4.6/ SW v1.80/ December 2007)

3.1.2.4. Edit Value Screen

The Edit Value screen enables setting a parameter value. The parameter value can be a number or a string of characters. Each digit or character is set up individually. In this example, the Edit Value screen displays the following information:

Pcr1

Pcr1 Pcr1

Pcr1

1111062 [Hex]

062 [Hex]062 [Hex]

062 [Hex]

<0000

<0000 <0000

<0000 –––– 1FFF>

1FFF> 1FFF>

1FFF>

A. Top line displays the parameter name (

Pcr1

Pcr1Pcr1

Pcr1

). The pencil icon

indicates that the parameter value is editable.

B. Second line displays the current parameter value. Change the value of the

parameter with the arrow keys:

• [Left] and [Right] arrow keys are used to mark a digit or a character

for change. The marked digit or a character is displayed with white character over black background (see example in page 3-5)

• [Up] and [Down] arrow keys are used to scroll up or down the digits (0

through 9) or the characters (a to z, A to Z, 0 to 9 and so on.). The scroll range can be limited to prevent values being out of range.

C. Third line displays the allowed range of parameter values.

Press [ESC] to abort the setup and return one level up to the Edit Value Screen without changing the parameters. Press [Enter] to accept the value. The display returns one level up to the Edit Value Screen and the new value is displayed as the current parameter value.

OTE

When entering an wrong or out-of-range value the display dismisses the last change and returns one level up in the menu tree.

Page 73

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 3-7

3.1.2.5. Select Value Screen (Multiple Choices)

The Select Value screen displays a list of selectable items. In this example, the Select Value screen displays the following information:

Format

Format Format

Format

3333

 PAL M

PAL M PAL M

PAL M

4444

 PAL BG

PAL BG PAL BG

PAL BG

5555

 PAL D

PAL D PAL D

PAL D

6666

 PAL N

PAL N PAL N

PAL N

A. Top line displays the parameter name (

Format

FormatFormat

Format

). The pencil icon indicates that the items are selectable from the list of displayed options. [ Up]/[ Up/Down]/[ Down] symbols indicate that up or down scrolling is enabled.

B. Next up to four displayed lines is a numbered list of parameters relevant

to the menu and their current values. A radio button indicates which parameters are currently activated (

 is

currently enabled and

 is

currently disabled)

C. Additional Available Items

The list can include more than four items, but only four items are visible at a

time. When more than four items exist, you can scroll the list using the [UP]/[Down] arrow keys.

The currently selected option is displayed with white characters over a black

background (see Item #4 in the example above). Press [ESC] to abort setup and return one level up to the Select Value Screen without changing the parameters. Press [Enter] to select the marked option (the selected option is enabled



and

the former enabled option is disabled



). The display returns up one level to the

Select Value screen; the new option is displayed as the current parameter

option.

Page 74

User Manual

IRD-2900 Control Interfaces

Page 3-8 (Rev. 4.6/ SW v1.80/ December 2007)

3.1.3. IRD-2900 Menu Tree

Setup, control, and monitoring of the IRD-2900 operation can be performed locally by using the IRD-2900 Menu. This menu is displayed on the front panel LCD display and is operated using the front panel control keys. The basic tree structure of the IRD-2900 front panel menu is illustrated in Figure 3-2.

Figure 3-2: IRD-2900 Front Panel Menu (Root Menu) - Basic Structure

Page 75

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 3-9

3.1.4. Front Panel Initialization Sequence

To activate the IRD-2900 Front Panel Root Menu perform the following:

1. Power up the IRD-2900. The IRD-2900 initialization phase begins and the

initialization message is displayed.

MPEG

MPEG MPEG

MPEG----2 I.R.

2 I.R.2 I.R.

2 I.R. Service1:

Service1:Service1:

Service1:

Initializing

InitializingInitializing

Initializing Please Wait...

Please Wait...Please Wait...

Please Wait...

2. When initialization complete, the IRD-2900 displays one of two options:

• Status OK – Both LEDs are lit green.

Status OK

Status OKStatus OK

Status OK Service1: TV

Service1: TVService1: TV

Service1: TV

Click Enter for menu

Click Enter for menu Click Enter for menu

Click Enter for menu TRT

TRT TRT

TRT INT

INTINT

INT

OTE

Blank Service1 and/or Service2 fields at the front panel' root screen, means service not chosen. In order to select services see section 4.2.5.1

• Front-End Warning – The warning LED turns orange (For details see

Appendix E).

____________________ ______________________ _

____________________ ______________________ _____________________ ______________________ _

____________________ ______________________ _

Service1:

Service1:Service1:

Service1:

Click Enter for menu

Click Enter for menu Click Enter for menu

Click Enter for menu

____________________ ______________________ _

____________________ ______________________ _____________________ ______________________ _

____________________ ______________________ _

Page 76

User Manual

IRD-2900 Control Interfaces

Page 3-10 (Rev. 4.6/ SW v1.80/ December 2007)

3. Click [Enter] to activate and enter the IRD-2900 Root Menu:

Root

Root Root

Root

1111

Preset

Preset Preset

Preset

2222

Configuration

Configuration Configuration

Configuration

3333

Status

Status Status

Status

The Root Menu provides the following main branch options:

• IRD-2900 Preset Menu – See Section 4.1 for details.

• IRD-2900 Configuration Menu – See Section 4.2 for a detailed

description.

• IRD-2900 Status Menu – See Section 4.3 for details.

Page 77

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 3-11

3.2. W

-B

ASED MANAGEMENT

NTERFACE

The IRD-2900’s Web-Based Management software is a user-friendly graphical interface that allows easy control and configuration of the device as well as monitoring the devices current condition. All this is performed through a remote computer, using a regular web browser. No additional software is needed. Managing the IRD-2900 using the Web-based management GUI is as easy as point-and-click. The Web-Management interface is used for remotely controlling, configuring, and monitoring the device, using a standard PC and any standard web browser (see Figure 3-3 for general view example).

Figure 3-3: Web-Based Management Window – General View

OTE

The web-based management is best viewed by Internet Explorer 6.0. Scopus cannot guarantee viewing quality in older IE versions or other web-browsers, such as FireFox, Opera, and so on.

Page 78

User Manual

IRD-2900 Control Interfaces

Page 3-12 (Rev. 4.6/ SW v1.80/ December 2007)

The section is divided into the following groups:

• Control and Displays – Details the web-management screen sections and their control elements (see Section 3.2.1)

• Initializing the Web-Based Management – Details the initialization procedure of the Web- management control interface (see Section 3.2.2)

3.2.1. Controls and Displays

The web-based management is divided into menus and submenus. Each menu's sub-menu displays (in an explorer window) a list of parameters related to the menu. In case of any additional parameters, such as advanced configuration parameters, another parameter-section is displays in the explorer window (see example in Figure 3-4.

Figure 3-4: IRD-2900 Web-Based Management Interface Screen (Example)

Page 79

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 3-13

The following sections detail the different web-management display objects.

3.2.1.1. Display Elements

The web-based management is divided into display sections for an easy orientation and to offer a user-friendly control interface. The following paragraphs detail the different sections:

1. T

ITLE

A static title to the web-based management, displays the Scopus logo and the device's type (IRD-2900, see Figure 3-5).

Figure 3-5: Web-Based Management Title

2. M

ENU AND SUB-MENU TABS

The tabs surround the explorer window section (see the following paragraph). The menu tabs are displayed at all times. The sub-menu tabs are dynamic, and change according to the selected menu (for more information, see Section

3.2.1.2. See tabs example in Figure 3-6).

Page 80

User Manual

IRD-2900 Control Interfaces

Page 3-14 (Rev. 4.6/ SW v1.80/ December 2007)

Figure 3-6: Web-Based Management Menu and Sub-Menu Tabs

3. S

TATUS MENU

The Status menu, located under the 'Status' tab, displays a read-only table. The table details information regarding the various services encoded by the unit (see Figure 3-7. For detailed information about the Status menu, see Section

4.3).

Figure 3-7: Status Menu

Page 81

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 3-15

3.2.1.2. Control Elements

The different display sections use different control elements to navigate, view, and manage the IRD-2900 configuration. The following paragraphs detail these sections.

1. M

AIN MENU TABS

The main-menu tabs are light-blue tabs that allow the user to select one of the main menus in the encoder (such as video, audio, unit, and so on).

The main-menu tabs are listed at the left-side of the explorer-window section. A selected main-menu tab changes its color from light-blue to darker blue (see Figure 3-8).

Figure 3-8: Main- Menu Tabs

2. S

UB MENU TABS

The sub-menu tabs are light-blue tabs that allow the user to select one of the specific sub-menus available in the selected menu. For example, 'Audio' main menu holds the 'Audio 1' and 'Audio 2' tabs, allowing the user to select Audio 1 or Audio 2 configuration menus. The sub-menu tabs are aligned above the explorer-window section. A selected sub-menu tab changes its color from light-blue to darker-blue (see Figure 3-9).

Figure 3-9: Sub-Menu Tabs

Page 82

User Manual

IRD-2900 Control Interfaces

Page 3-16 (Rev. 4.6/ SW v1.80/ December 2007)

3. E

DIT VALUE PARAMETER

The parameters-sections in the explorer window display lists of editable parameters, available for user-configuration. The edit-value parameters provides a free-text field for the user to type the required value (from within a given range). The edit-value parameter is divided into two sections:

• Left Side - Displays the parameter's name. Measure units are specified within brackets ([]) and the available range is specified in light-blue.

• Right Side - A free-text field. To edit the text, the user must click the field once, for the cursor to appear. Once the cursor is displayed the user can type the requested value.

Figure 3-10: Edit-Value Parameter

OTE

In order for the new value to take affect the user must type [Enter] after inserting the new value.

4. S

ELECT VALUE PARAMETER

The parameters-sections in the explorer window display lists of editable parameters, available for user-configuration. The select-value parameters display a drop-down list of available values. The select-value parameter is divided into two sections:

• Left Side - Displays the parameter's name.

• Right Side – A select-value field displaying the currently-selected value.

Clicking the downward-arrow at the right-end of the field displays the drop-down list of all available values.

Figure 3-11: Select-Value Parameter

5. R

EFRESH BUTTON

Page 83

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 3-17

The 'Refresh' button is located at the bottom of each screen and available at all times. Clicking this button refreshes the web-page. This is useful for updating changes that were configured in the front-panel.

Figure 3-12: Refresh Button

3.2.2. Initializing the Web-Based Management

Setting the management connection through the front panel involves the following procedures:

• Set the IP Address

• Set the Subnet Mask

• Set the Default Gateway

OTE

In order to avoid any errors and faults, Scopus recommends all Ethernet configurations to be preformed through the front-panel or the RS323 only

A. To set the IP Address:

1. Access the IP Address edit screen. To access the screen, from the Root

menu select ConfigurationUnitEthernet Management portIP Address.

2. Enter a valid IP Address.

3. Verify that the entered IP address is not allocated to any other device.

B. To set the Subnet Mask:

1. Access the Subnet Mask edit screen. To access the screen, from the Root

menu select ConfigurationUnitEthernet Management portSubnet Mask.

2. Enter a valid subnet mask.

C. To set the Default Gateway:

1. Access the Default Gateway edit screen. To access the screen, from the Root

menu select ConfigurationUnitEthernet Management portDefault

Gateway

2. Enter a valid Default Gateway.

Page 84

User Manual

IRD-2900 Control Interfaces

Page 3-18 (Rev. 4.6/ SW v1.80/ December 2007)

3. Verify that the IP Address (set in the procedure A) is correlated with the Default Gateway address.

3.2.2.1. Accessing the Web-Management

Once the IP definitions are set according to the network, the user can access the web-based management interface. To access the web-management, perform the following:

1. Launch the web browser.

OTE

The web-based management is supported and can be operated through most web browsers. However, Scopus recommends Internet Explorer 5.0 and higher for optimal operation.

2. Enter the IRD-2900 IP Address in the Address field, in the following format:

http://xxx.xxx.xxx.xxx (where xxx.xxx.xxx.xxx is the IP address of the

Management port). Once the web-management is displayed, the address changes to http://xxx.xxx.xxx.xxx/home.asp. See the example in Figure 3-13:

Figure 3-13: IP Address Field

To access the web-based management, user-name and password must be entered. The default values are:

• User name – ird

• Password – ird

Enter your user name and password in the access box. Press Submit to confirm or Clear to start over. For password change see section 4.2.11.2 Figure 3-14 displays the Web Management access box.

Page 85

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 3-19

Figure 3-14: IRD-2900 Web Management Access Box

Once the initialization is complete and the web-management is displayed, the user can set up the system. For details on the web-management operation, see Chapter 4.

Page 86

Page 87

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 4-1

Chapter 4.

PERATION AND

ANAGEMENT

This chapter details controlling the IRD-2900 with its front panel and Web management interfaces. The Front Panel control interface contains all the existing IRD-2900 control parameters, while the Web management interface allows easy access to the same parameters from a remote computer. Therefore the description of these two interfaces is interlaced and brought together in this chapter.

4.1. P

RESET

The IRD-2900 allows creating, storing and managing up to 50 different user-defined setups. Each setup stores the following parameters:

• Front-End - (Satellite, IP, ATM, ASI) all parameters.

• Service (Dual for 299x or Single 298x-296x) selected parameters.

• Audio- - Decode mode and Volume parameters.

• CAS - BISS keys (mode and keys).

OTE

The IRD-2900 configuration includes all parameters detailed in section 4.2, however, a Setup includes only the parameters mention above.

The setups are configurable through the front panel, web-interface CLI and SNMP. To access the Preset menu through the front panel, go to Root



Preset.

The following figure shows the front panel Preset menu:

Preset

PresetPreset

Preset

1111----1111

1111

Recall

RecallRecall

Recall

2 2

Save Current

Save CurrentSave Current

Save Current

3 3

Rename

RenameRename

Rename

4 4

Delete

DeleteDelete

Delete

5555

Delete All

Delete AllDelete All

Delete All OFF

OFFOFF

OFF

Page 88

User Manual

Operation and Management

Page 4-2 (Rev. 4.6/ SW v1.80/ December 2007)

To access the Preset menu through the web-interface from the management bar, click on the Preset tab. The following figure shows the web-interface Preset menu:

Figure 4-1: Web Interface Preset Screen

The Preset menu consists of the following five submenus:

• Recall – For details see section 4.1.1.

• Save current – For details see section 4.1.2.

• Rename – For details see section 4.1.3.

• Delete – For details see section 4.1.4.

• Delete all – For details see section 4.1.5 (front-panel only).

The following sections detail the Preset submenus.

Page 89

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 4-3

4.1.1. Recall Preset

Recall submenu allows loading saved presets from the unit's non-volatile storage.

To recall a preset though the front panel:

1. To access the Preset menu from the front panel go to:

Root



Preset



Recall.

The following figure shows the front panel Recall screen:

Name

Name Name

Name

1111

Default

DefaultDefault

Default

2 2

Setup_1

Setup_1Setup_1

Setup_1

3 3

Setup_2

Setup_2Setup_2

Setup_2

4 4

Setup_3

Setup_3Setup_3

Setup_3

The Recall screen lists all stored presets and allows selecting a preset to recall.

2. Select one of the listed presets by using the [UP], [down] and [ENTER] keys.

When selecting a preset to recall – the following screen appears:

Setup_1

Setup_1Setup_1

Setup_1

1111

 RECALL

RECALLRECALL

RECALL

This screen shows the selected preset name at its title and the option Recall.

3. Select the RECALL submenu tab.

OTE

When selecting a preset, the front panel's orange warning light might lit until the unit is synced with the new setup applied.

Page 90

User Manual

Operation and Management

Page 4-4 (Rev. 4.6/ SW v1.80/ December 2007)

To recall a preset through the web-interface:

1. From the management bar, click the Preset tab.

2. Click Recall tab. Figure 4-2 shows the Recall tab:

Figure 4-2: Web Interface Preset Recall Tab

3. Open the Recall drop-down menu. From the list select a preset to recall.

4.1.2. Save Current Preset

The IRD-2900 can store up to 10 different setups. Save Current submenu allows saving the unit's current setup. To access the Save Current menu through the front panel, go to Root



Preset



Save Current.

The following figure shows the front panel Save Current submenu screen:

Save Current

Save CurrentSave Current

Save Current

1111----1111

1111

Overwrite Existing

Overwrite Existing Overwrite Existing

Overwrite Existing

2 2

New Name

New NameNew Name

New Name

To access the Save menu from the web-interface, go to Preset



Save.

Page 91

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 4-5

The following figure shows the web-interface Save submenu screen:

Figure 4-3: Web Interface Save Preset Screen

Save Current menu includes two options:

• Overwrite Existing –For details see section 4.1.2.1.

• New Name- –For details see section 4.1.2.2.

OTE

Scopus recommends storing the default manufacture's setup as a preset.

Page 92

User Manual

Operation and Management

Page 4-6 (Rev. 4.6/ SW v1.80/ December 2007)

4.1.2.1. Overwrite an Existing Preset

The Overwrite Existing option allows saving the unit's current setup over a stored one.

To overwrite an existing preset through the front panel:

1. Access the Overwrite Existing screen. From the front panel go to Root



Preset



Save Current



Overwrite Existing.

The following figure shows the front panel Overwrite Existing screen:

Name

Name Name

Name

1111

Default

DefaultDefault

Default

2 2

Setup_1

Setup_1Setup_1

Setup_1

3 3

Setup_2

Setup_2Setup_2

Setup_2

4 4

Setup_3

Setup_3Setup_3

Setup_3

The Overwrite Existing screen lists all stored presets and allows selecting a preset to overwrite.

2. Select one of the listed presets by using the [UP], [DOWN] and [ENTER] keys.

When selecting a preset to overwrite – the following screen appears:

Setup_1

Setup_1Setup_1

Setup_1

1111

 OVERWRITE

OVERWRITEOVERWRITE

OVERWRITE

This screen shows the selected preset name at its title and the option Overwrite.

3. Select OVERWRITE.

To overwrite an existing preset through the web-interface:

1. From the management bar, click on the Preset tab.

2. Click on Save tab. Figure 4-4 shows the Save tab:

Page 93

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 4-7

Figure 4-4: Web Interface Save Tab

3. Open the Overwrite Existing drop-down menu. From the list select a preset to overwrite.

4.1.2.2. Name a New Preset

New Name option allows saving the unit's current setup under a new name.

To Name a new preset through the front panel:

1. Access the New Name screen. From the front panel go to:

Root



Preset



Save Current



New Name.

The following figure shows the front panel New Name edit screen:

New Name

New NameNew Name

New Name

||||

2. Name the preset by using the keypad. To select a character, use the [UP] and [DOWN] keys. To move between the characters, use the [LEFT] and

[RIGHT] keys. To save, press [ENTER].

To name a new preset through the web-interface:

1. From the management bar, click on the Preset tab.

2. Click on Save tab. Figure 4-5 shows the New Name section:

Page 94

User Manual

Operation and Management

Page 4-8 (Rev. 4.6/ SW v1.80/ December 2007)

Figure 4-5: Web Interface – Save Preset As New Name Tab

3. Type a name for the preset in the New-Name textbox.

4. Press [ENTER] to finish.

4.1.3. Rename Preset

The Rename submenu allows editing a stored preset name.

To rename a preset through the front panel:

1. Access the Overwrite Existing screen. From the front panel go to Root



Preset



Rename.

The following screen appears, lists all stored presets and allows selecting a preset to rename.

Name

Name Name

Name

1111

Default

DefaultDefault

Default

2 2

Setup_1

Setup_1Setup_1

Setup_1

3 3

Setup_2

Setup_2Setup_2

Setup_2

4 4

Setup_3

Setup_3Setup_3

Setup_3

2. Select one of the listed presets by using the [UP], [DOWN] and [ENTER] keys.

When selecting a preset to rename – the Rename edit screen appears:

Rename

RenameRename

Rename

SSSSetup_1

etup_1etup_1

etup_1

3. Name the preset by using the keypad. To change a character, use the [UP] and [DOWN] keys. To move between the characters, use the [LEFT] and

[RIGHT] keys. To save, press [ENTER].

To rename a preset through the web-interface:

1. From the management bar, click on the Preset tab.

Page 95

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 4-9

The following figure shows the web-interface Rename submenu screen:

Figure 4-6: Web Interface Rename Preset Screen

2. Click on Rename tab. Figure 4-7 shows the Rename tab:

Figure 4-7: Web Interface – Rename Preset Tab

3. Open the Existing Configuration drop-down menu. From the list select a preset to rename.

4. Type a new name for the preset in the New-Name textbox.

Page 96

User Manual

Operation and Management

Page 4-10 (Rev. 4.6/ SW v1.80/ December 2007)

4.1.4. Delete Preset

The Delete submenu allows removing stored preset.

To delete a preset through the front panel:

1. Access the Delete screen. From the front panel go to Root



Preset



Save

Current



Delete.

The following screen appears, lists all stored presets and allows selecting a preset to delete.

Name

Name Name

Name

1111

Default

DefaultDefault

Default

2 2

Setup_1

Setup_1Setup_1

Setup_1

3 3

Setup_2

Setup_2Setup_2

Setup_2

4 4

Setup_3

Setup_3Setup_3

Setup_3

2. Select one of the listed presets by using the [UP], [DOWN] and [ENTER] keys.

When selecting a preset to delete – the following screen appears:

Setup_1

Setup_1Setup_1

Setup_1

1111

 DELETE

DELETEDELETE

DELETE

This screen shows the selected preset name at its title and the option Delete.

3. Select DELETE.

To delete a preset through the web-interface:

1. From the management bar, click on the Preset tab.

Page 97

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 4-11

The following figure shows the web-interface Delete submenu screen:

Figure 4-8: Web Interface Delete Preset Screen

2. Click on Delete tab. Figure 4-9 shows the Delete tab:

Figure 4-9: Web Interface – Delete Preset Tab

3. Open the Delete drop-down menu. From the list select a preset to delete.

Page 98

User Manual

Operation and Management

Page 4-12 (Rev. 4.6/ SW v1.80/ December 2007)

4.1.5. Delete All Presets

The Delete All submenu allows removing all stored preset.

To delete all presets through the front panel:

1. Access the Delete screen. From the front panel go to Root



Preset



Save

Current



Delete All.

The following figure shows the front panel Delete All screen:

Delete All

Delete AllDelete All

Delete All

1111

 OFF

OFFOFF

OFF

1111

 ON

ONON

Save Current menu includes two options:

• OFF –The function is disabled.

• ON- –Delete all stored presets.

2. Select ON.

Page 99

IRD-2900 Series Professional Integrated Receiver Decoders

Scopus Documents (p/n 100793) Page 4-13

4.2. C

ONFIGURATION

The Configuration menu screen allows the user to manage the IRD-2900 through the front panel. The Configuration menu consists of eight sub-menus. Each sub-menu manages a specific IRD module. The following lists IRD-2900 configuration sub-menus:

• Receiver - For details, see Section 4.2.1.

• Stream - For details, see Section 4.2.3.

• Service - For details, see Section 4.2.4.

• Video - For details, see Section 4.2.6.

• Audio - For details, see Section 4.2.7.

• Data - For details, see Section 4.2.8.

• GenLock – For details, see Section 4.2.9.

• Conditional Access – For details, see Section 4.2.10.

• Unit - For details, see Section 4.2.11.

OTE

Sub-menus parameters may be vary from one model to another according to the IRD-2900 technical specifications and licensing

Configuration

ConfigurationConfiguration

Configuration

1111----2222

1111

Receiver

Receiver Receiver

Receiver

2222

Stream

StreamStream

Stream

3333

Service

ServiceService

Service

4444

Video

VideoVideo

Video

5555

Audio

AudioAudio

Audio

6666

Data

DataData

Data

7777

Conditional Access

Conditional AccessConditional Access

Conditional Access

8888

Unit

UnitUnit

Unit

Figure 4-10: IRD-2900 Configuration Main Menu

Page 100

User Manual

Operation and Management

Page 4-14 (Rev. 4.6/ SW v1.80/ December 2007)

OTE

The IRD-2900 can support either IP or L-Band receiver modules. The configuration menu structure changes according to each of these available module options.

4.2.1. Receiver Modules

The purpose of the receiver module is to single out a selected Transport Stream from the transmission that reaches the IRD-2900 inputs, to demodulate it, and pass on the digital transport stream to the decoder module. Different networks require various receiver types. According to its licensing, the IRD-2900 supports two types of receivers:

1. Satellite Receiver Modules:

• DVB-S Receiver Module The configuration parameters of the DVB-S

receiver module are detailed in Section 4.2.2.1.

•

DVB-S2 Receiver Module

The configuration parameters of the

DVB-S2 receiver module are detailed in Section 4.2.2.2.

• DSNG Module The configuration parameters of the DSNG receiver

module are detailed in Section 4.2.2.3.

• ATM Module The configuration parameters of the ATM receiver module

are detailed in Section 4.2.2.4.

2. IP Receiver Module: The configuration parameters of the IP receiver module are detailed in Section 4.2.2.5.

To access the Receiver Configuration menu using the front panel, select ConfigurationReceiver (independently of the receiver module type).
