Movement Caliber2330
Instruction Manual
125 pgs9.02 Mb0

S.Coifman Movement Caliber 1069, Movement Caliber 763, Movement Caliber2330, Movement Caliber 130 Instruction Manual

Download
Instruction Manual
2 3

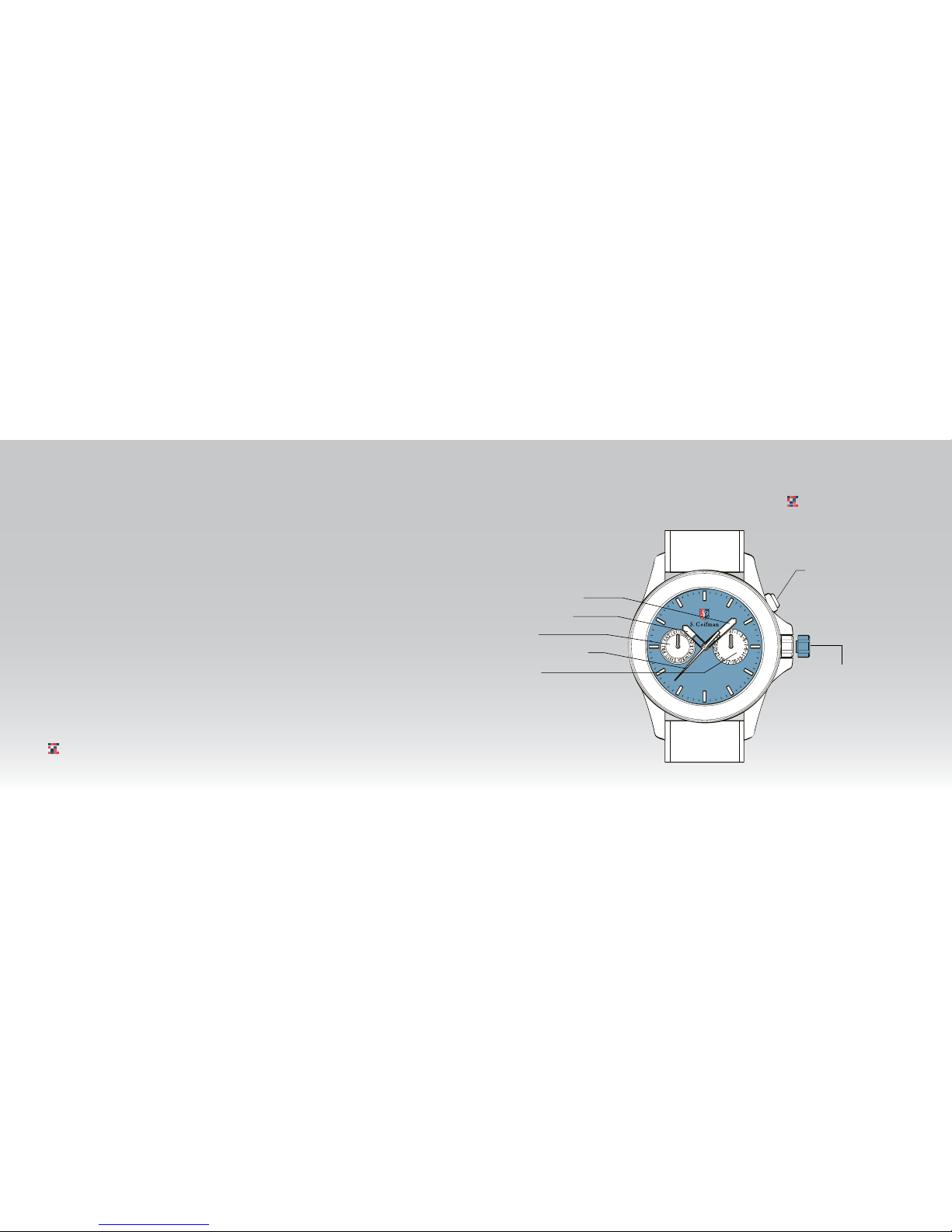

PRESENTATION
Movement Caliber : 1069
Movement Caliber
1069
Minute Hand
Hour Hand
Second Hand
Control Buttons
Crown Positions:
1. Normal position
2. Setting of hour, minute
1 2
4 5

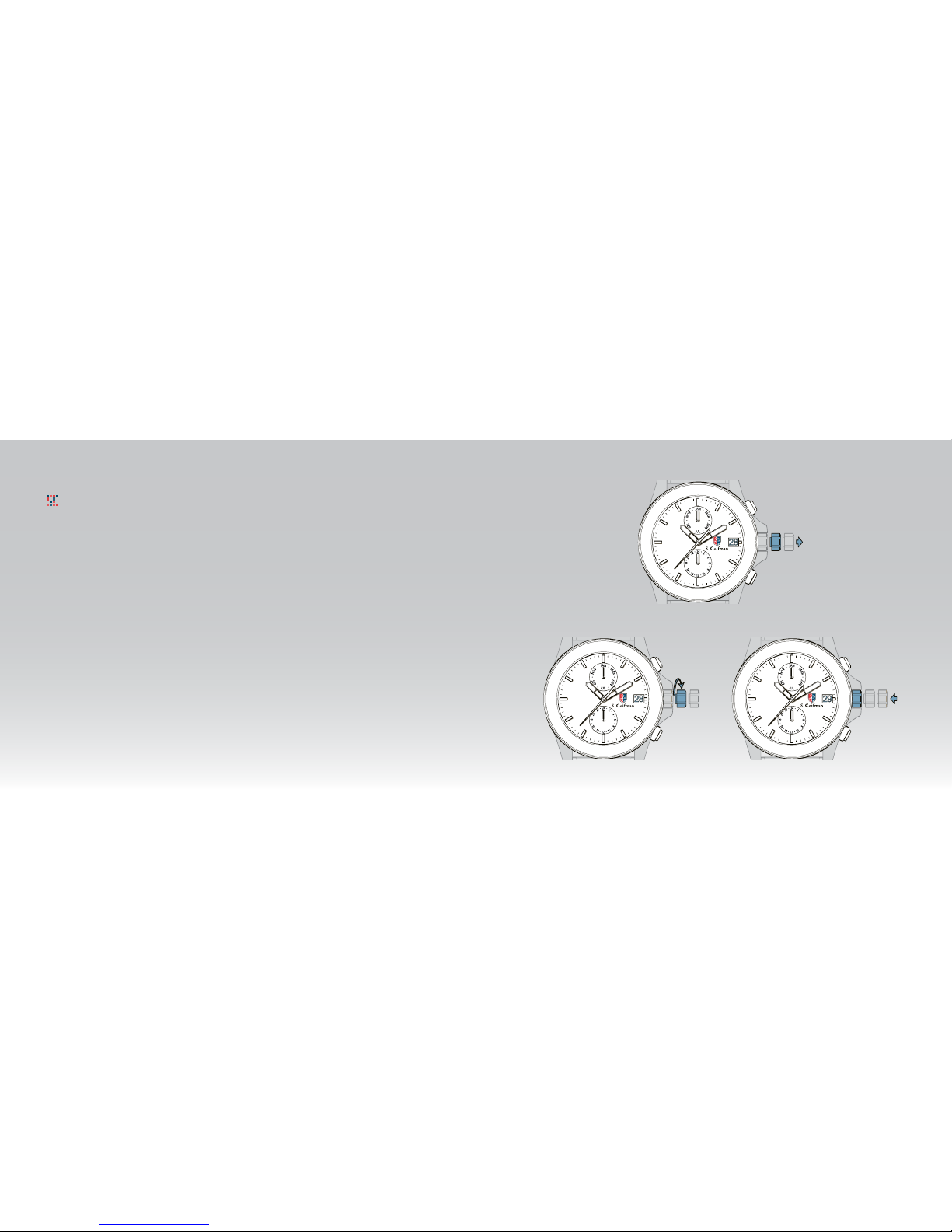

Setting the Time
1.1 Pull the crown to position 2.
1.2 Turn the crown clockwise to set the hour / minute hands to the desired time.
1.3 Push the crown back to position 1.
SETTINGS
Movement Caliber : 1069
1.1
1.2 1.3
6 7
Movement Caliber
2330 / 130 & 763
PRESENTATION
Movement Caliber : 2330
/
130 & 763
Minute Hand
Hour Hand
Second Hand
Date
Control Buttons
Crown Positions:
1. Normal position
2. Quick correction of date
3. Setting of hour, minute, date
1 2 3
8 9

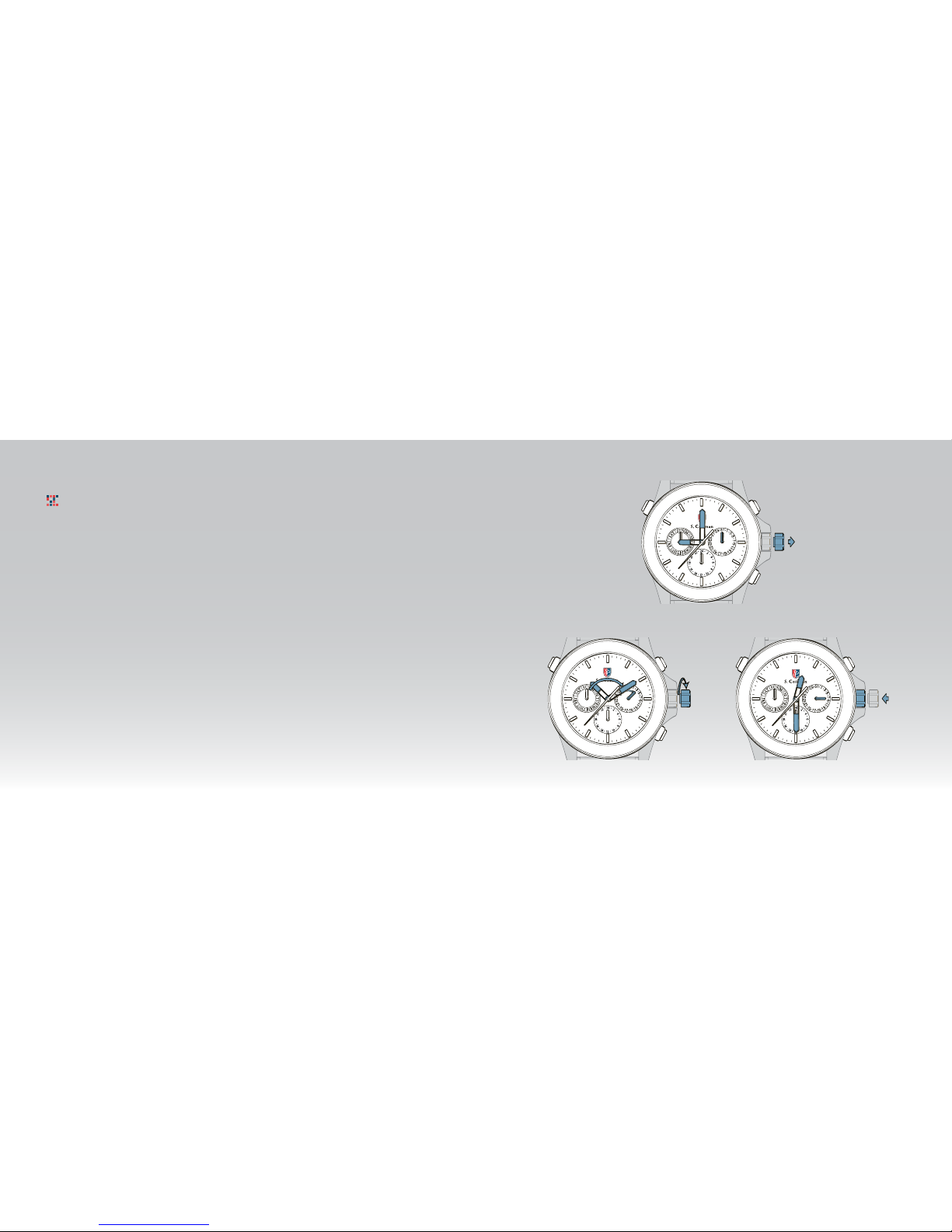

Setting the Time
1.1 Pull the crown to position 3.
1.2 Turn the crown clockwise to set the hour / minute hands to the desired time.
1.3 Push the crown back to position 1.
SETTINGS
Movement Caliber : 2330
/
130 & 763
1.1
1.2 1.3
10 11
Quick Correction of Date
3.1 Set the crown to position 2.
3.2 Turn the crown clockwise step-by-step to the desired date.
3.3 Push the crown back to position 1.
!! Attention !!
Please Do Not set between 21:00 and 00:30.
SETTINGS
Movement Caliber : 2330
/
130 & 763
2.1
2.2 2.3
12 13

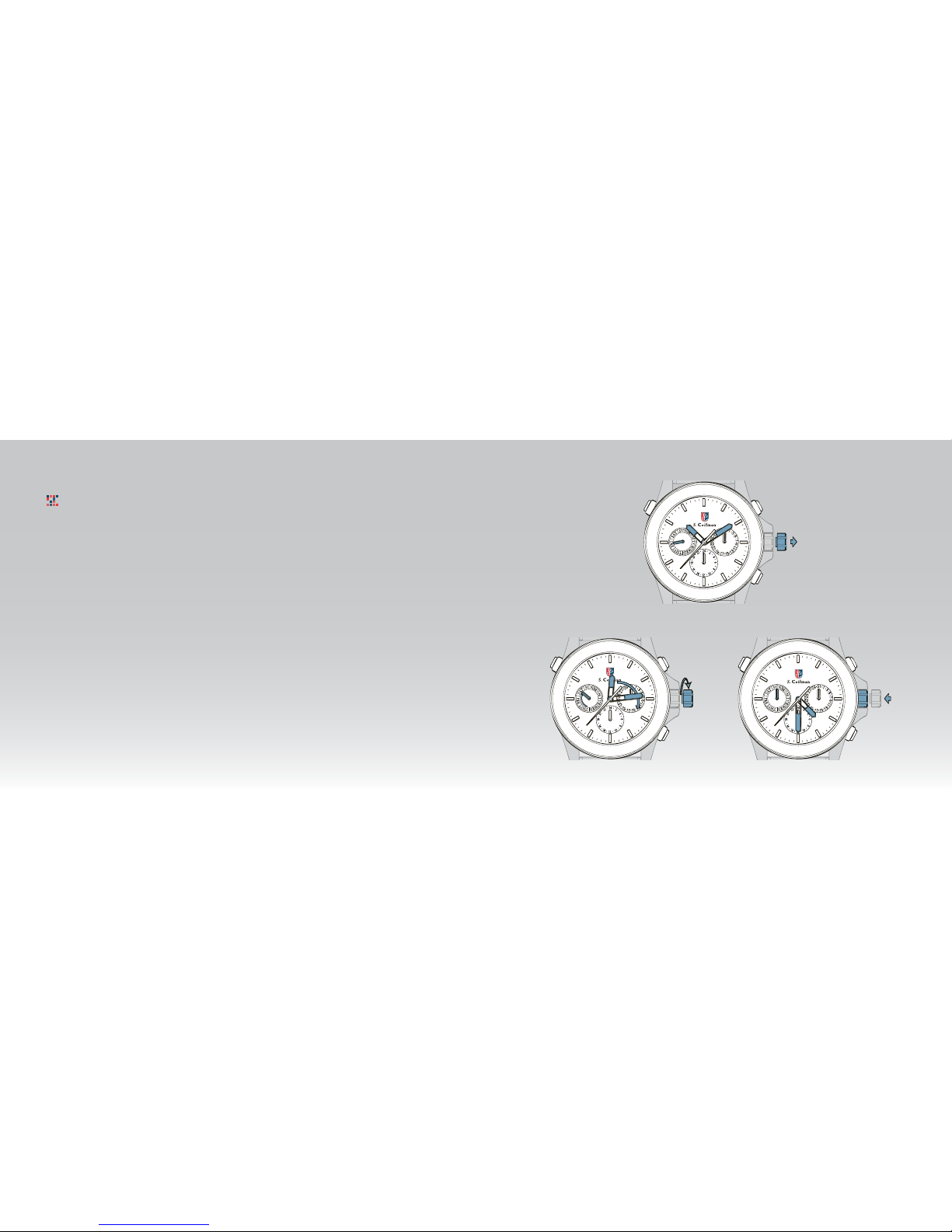

Movement Caliber
3540.D
PRESENTATION
INFO
Movement Caliber : 3540.D
Crown Positions:
1. Normal position
2. Quick correction of date
3. Correction of hour, minute, day, date and second time zone / 24-hour
Minute Hand
Center Stop-Second
1/10 Second Counter
(Hour counter after 30 minutes)
Hour Hand
Minute Counter
Second Hand
Date
Push Button A
Push Button B
Battery: 384
(diametaer 7.9mm x 3.6mm / SR 41 Accuracy: +20 / -10 seconds per monthSW)
Control Buttons
1 2 3
14 15
Setting the Time
➊
Pull out the crown to position 3
(the watch stops)
.*
➋
Turn the crown until you reach the correct time 8:45.
➌
Push the crown back into position 1.*
SETTINGS
Movement Caliber : 3540.D
1.1 1.2
Please note
* In order to set the time to the exact second,➊ must be pulled out when the second hand is in position «60». Once the hour and minute hands have been set,
➌
must be
pushed back into position 1 at the exact second.
➊ ➌
➋
16 17

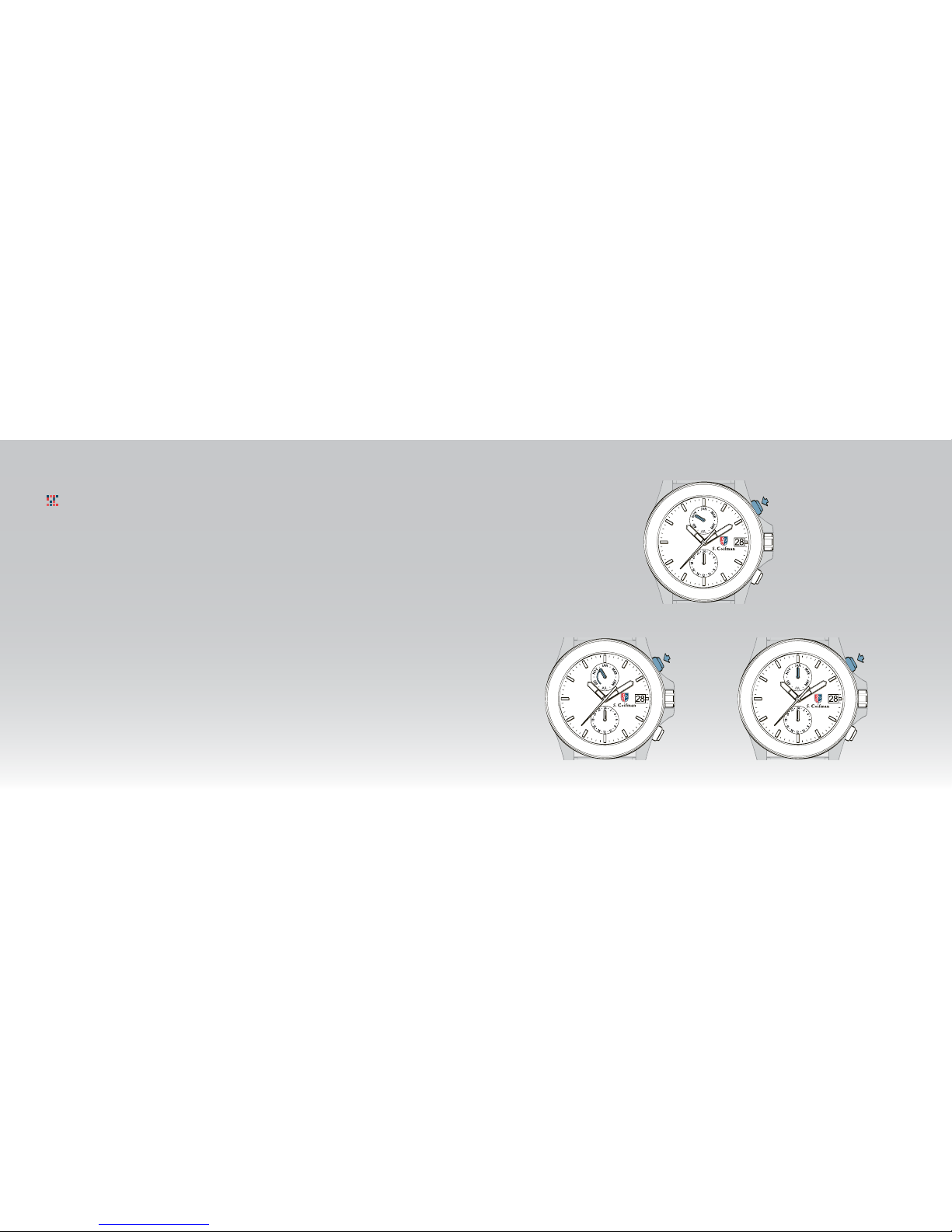

Setting the Date
(Quick Mode)
➊
Pull out the crown to position 2
(the watch continues to run)
.
➋
Turn the crown until the correct date 1 appears.
➌
Push the crown back into position 1.
SETTINGS
Movement Caliber : 3540.D
Please note:
The date can be changed during the date changing phase between 8:30 PM and 12:00 PM; please note that the date must be set to the date of the following day as in this case, the automatic date changing does not occur at midnight.
2.1 2.2
➊ ➌
➋
18 19

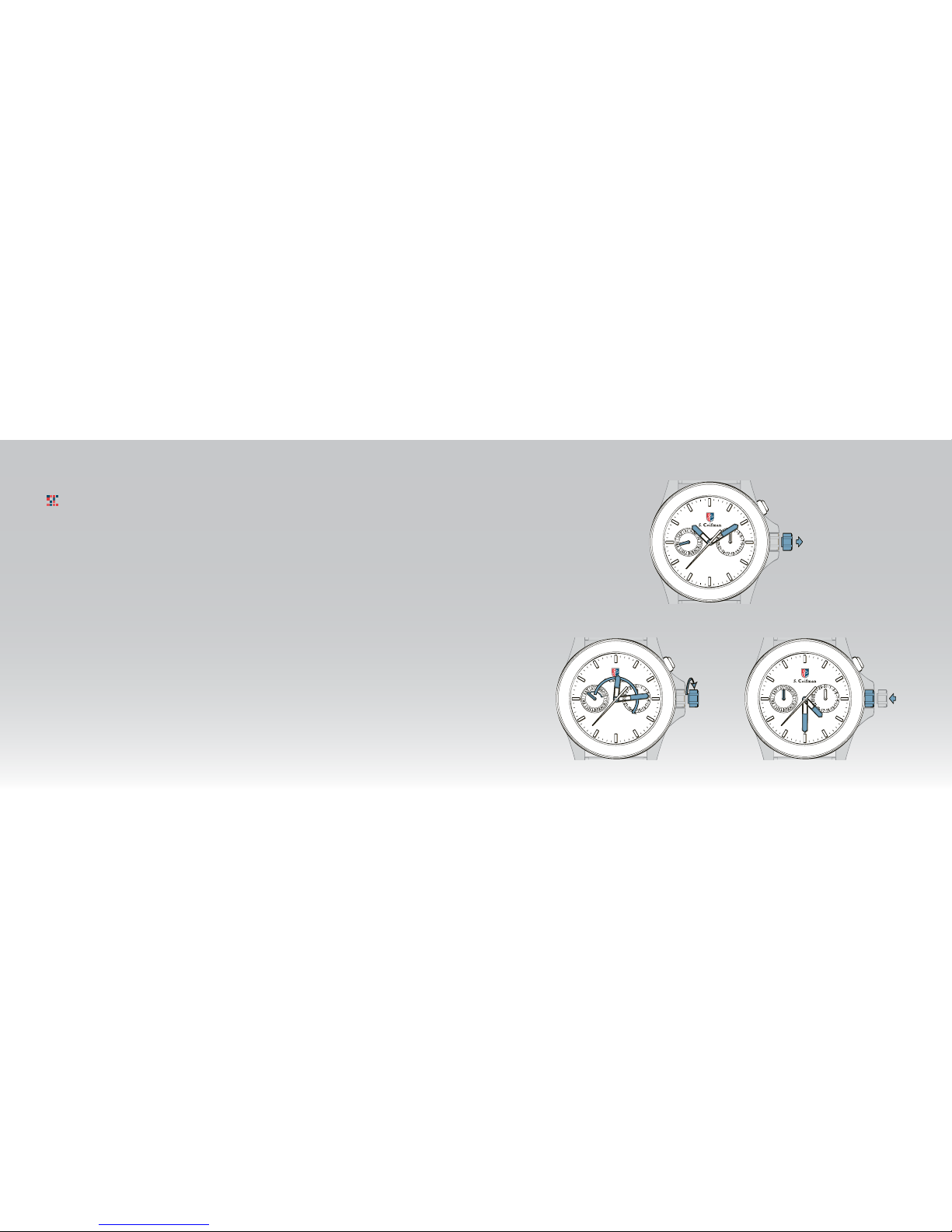

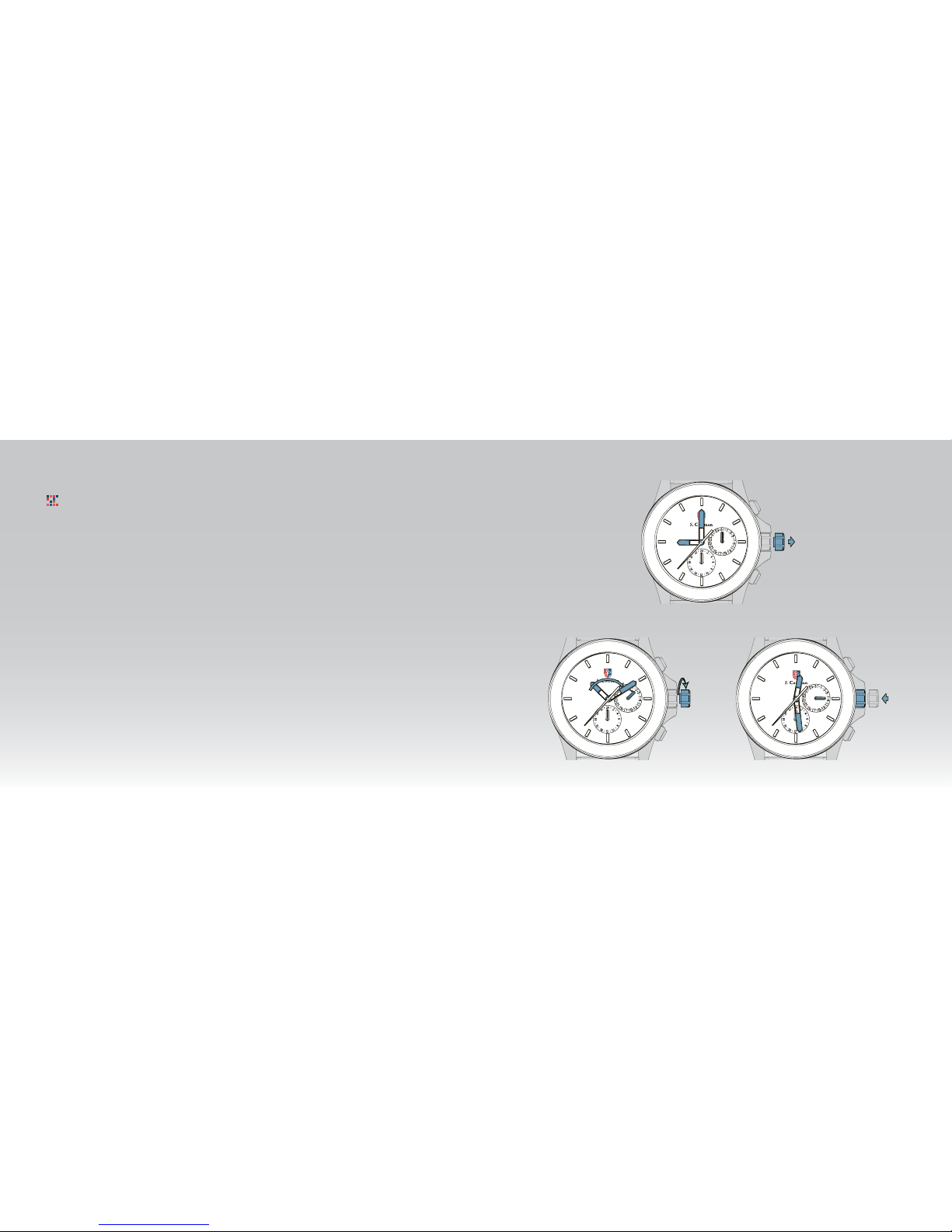

Setting the Date / Time
Example: – Date / time on the watch: 17 / 1:25 AM – Present date / time: 4 / 8:30 PM
➊
Pull out the crown to position 2 (the watch continues to run).
➋
Turn the crown until yesterday's date appears 3 .
➌
Pull out the crown to position 3 (the watch stops).*
➍
Turn the crown until the correct date 4 appears.
➎
Continue to turn the crown until the correct time 8:30 PM appears.**
➏
Push the crown back into position 1.
SETTINGS
Movement Caliber : 3540.D
3.3
3.1
3.4
3.2
➊
➏
➍ ➎
➌
➋
Please note:
* To set your watch to the exact second, please refer to chapter titled “Setting the Time”.
** Please observe the AM / PM clock rhythm.
20 21
FUNCTIONS
Movement Caliber : 3540.D
4.1 4.2
A ➊ ➋
B➌

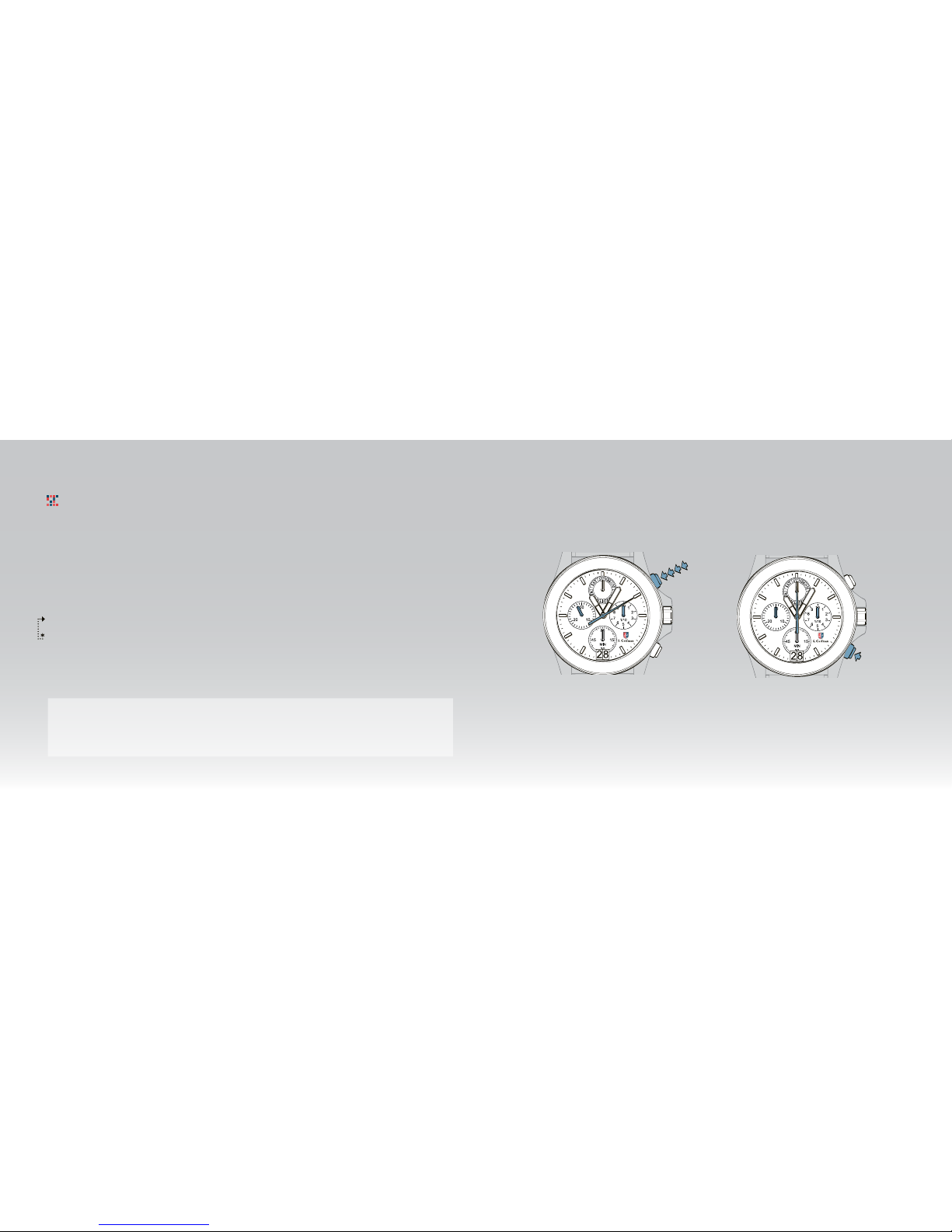

Chronograph: Basic Function
(Start / Stop / Reset)
Example:
➊
Start: Press push button A.
➋
Stop: To stop the timing, press push button A once more and read the
3 chronograph counters: 4 min / 38 sek / 7/10 sec
➌
Zero positioning: Press push button B.
(The 3 chronograph hands will be reset to their zero position).
22 23
FUNCTIONS
Movement Caliber : 3540.D
5.1 5.2
A ➊➋➌➍
B➎

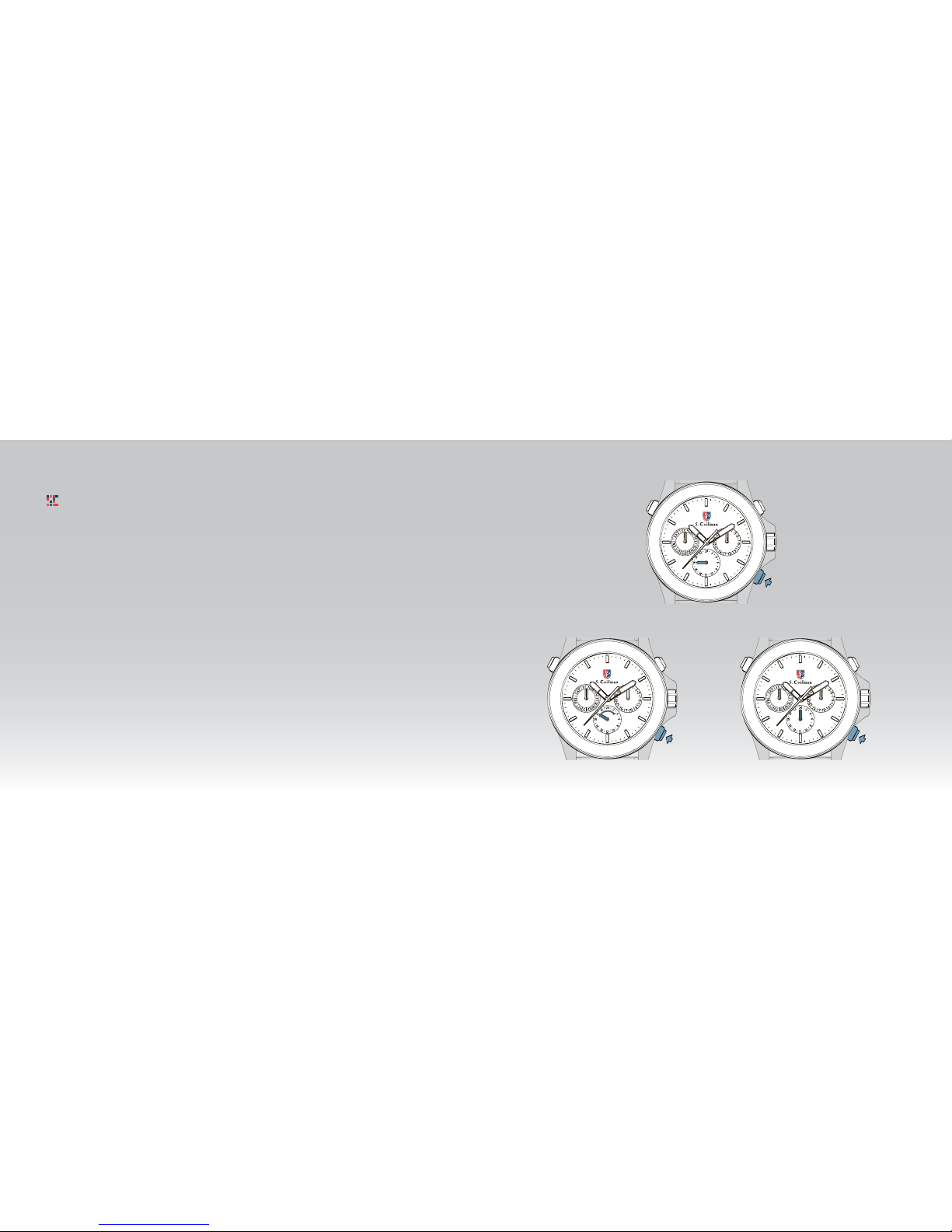

Chronograph: Accumulated Timing
Example:
➊
Start:
(start timing)
➋
Stop:
(e.g. 15 min 5 sec following ➊)
➌
Restart:
(timing is resumed)
➍
Stop:
(e.g. 13 min 5 sec following ➌)
= 28 min 10 sec
(The accumulated measured time is shown)
*
➎
Reset: The 3 chronograph hands are returned to their zero position.
Please note:
* Following ➍, the accumulation of the timing can be continued by pressing push button A (Restart / Stop, Restart / Stop, …)
24 25
FUNCTIONS
Movement Caliber : 3540.D
6.1 6.2
A ➊➍
B ➋➌
B➎
Chronograph: Intermediate or Interval Timing
Example:
➊
Start:
(start timing)
➋
Display interval: e.g. 10 minutes 10 seconds
(timing continues in the background)
➌
Making up the measured time:
(the 3 chronograph hands are quickly advanced to the ongoing measured time)
.
➍
Stop:
(Final time is displayed)
➎
Reset: The 3 chronograph hands are returned to their zero position.
Please note:
* Following ➍, the accumulation of the timing can be continued by pressing push button A (Restart / Stop, Restart / Stop, …)
26 27
7.1
7.2 7.3
CALIBRATION
Movement Caliber : 3540.D
Adjusting the Chronograph Hands to Zero Position
Example: One or several chronograph hands are not in their correct zero position and have to be adjusted
(e.g. following a battery change)
.
➊
Pull out the crown to position 3
(all 3 chronograph hands are in their correct or incorrect zero position)
.
➋
Keep push-buttons A and B depressed simultaneously for at least 2
seconds
(the center stop-second rotates by 360°➡corrective mode is activated)
.
Adjusting the center stop second➡Single step A1 x short➡Continuous A long➡Adjusting the next hand B➡Adjusting the 1/10 second counter hand (position 6h)➡Single step A1 x short
➡
Continuous A long➡Adjusting the next hand B➡Adjusting the minute counter (position 9h)
➡
Single step A1 x short➡Continuous A long
➌
Returning the crown to position 1. Termination of the chronograph
hands adjustment can be carried out at any time.
➊
➌
A➋
B➋
28 29
Movement Caliber
5040.D
INFO
Battery: 395
(diameter 9.5mm x 2.6mm / SR 927 SW) Accuracy: +20 / -10 seconds per month
PRESENTATION

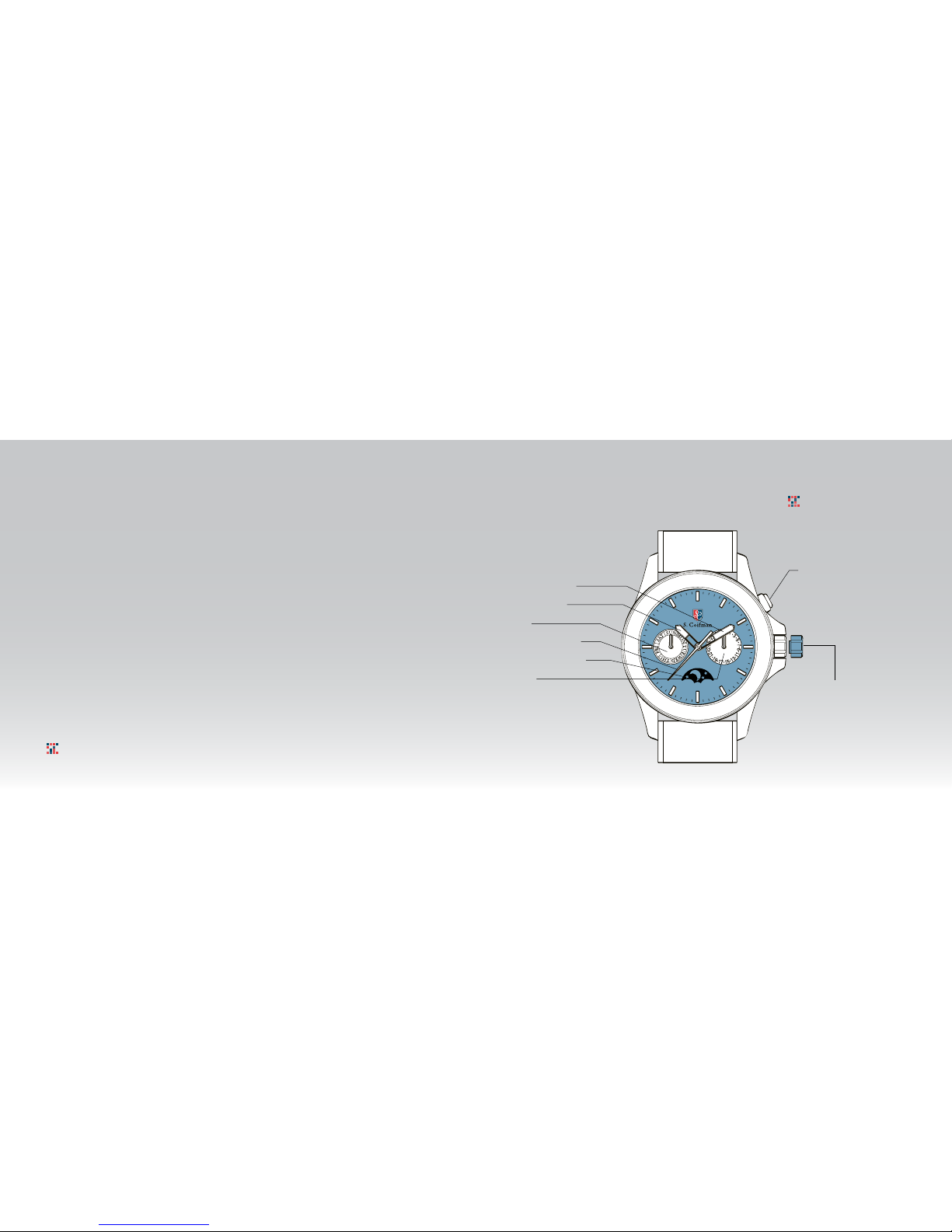

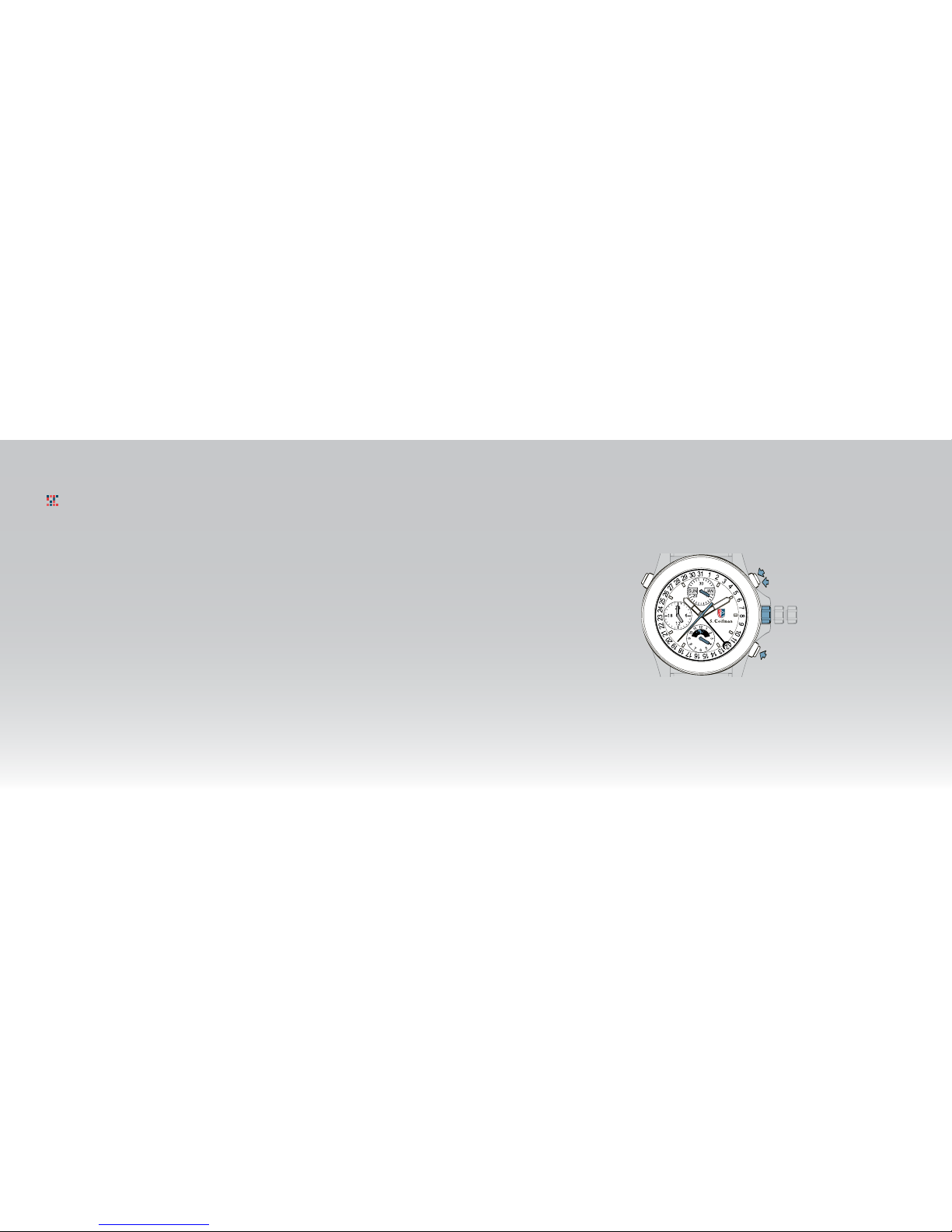

Movement Caliber : 5040.D
Crown Positions:
1. Normal position
2. Quick correction of date
3. Correction of hour, minute, day, date and second time zone / 24-hour
Minute Hand
Center Stop-Second
Second Hand
Hour Hand
Minute Counter
1/10 Second Counter
(Hour counter after 30 minutes)
Date Window
Push Button A
Quick correction of month
Push Button B
Quick correction of second time zone / 24-hour
Control Buttons
1 2 3
30 31
Setting the Time
➊
Pull out the crown to position 3
(the watch stops)
.*
➋
Turn the crown until you reach the correct time 8:45.
➌
Push the crown back into position 1.*
SETTINGS
Movement Caliber : 5040.D
Please note
* In order to set the time to the exact second,➊ must be pulled out when the second hand is in position «60». Once the hour and minute hands have been set,➌ must be pushed back into position 1 at the exact second.
1.1 1.2
➊ ➌
➋
32 33
2.1 2.2
➊ ➌
➋
Setting the Date
(Quick Mode)
➊
Pull out the crown to position 2
(the watch continues to run)
.
➋
Turn the crown until the correct date 1 appears.
➌
Push the crown back into position 1.
SETTINGS
Movement Caliber : 5040.D
Please note:
The date can be changed during the date changing phase between 8:30 PM and 12:00 PM; please note that the date must be set to the date of the following day as in this case, the automatic date changing does not occur at midnight.
34 35
3.3
3.1
3.4
3.2
➊
➏
➍ ➎
➌
➋
Setting the Date / Time
Example: – Date / time on the watch: 17 / 1:25 AM – Present date / time: 4 / 8:30 PM
➊
Pull out the crown to position 2 (the watch continues to run).
➋
Turn the crown until yesterdays date appears 3 .
➌
Pull out the crown to position 3 (the watch stops).*
➍
Turn the crown until the correct date 4 appears.
➎
Continue to turn the crown until the correct time 8:30 PM appears.**
➏
Push the crown back into position 1.
SETTINGS
Movement Caliber : 5040.D
Please note:
* To set your watch to the exact second, please refer to chapter titled “Setting the Time”.
** Please observe the AM / PM clock rhythm.
36 37
4.1 4.2
A ➊ ➋
B➌
FUNCTIONS
Movement Caliber : 5040.D
Chronograph: Basic Function
(Start / Stop / Reset)
Example:
➊
Start: Press push button A.
➋
Stop: to stop the timing, press push button A once more and read the
3 chronograph counters: 4 min / 38 sek / 7/10 sec
➌
Zero positioning: Press push button B.
(The 3 chronograph hands will be reset to their zero position).
38 39
5.1 5.2
A ➊➋➌➍
B➎
FUNCTIONS
Movement Caliber : 5040.D
Chronograph: Accumulated Timing
Example:
➊
Start:
(start timing)
➋
Stop:
(e.g. 15 min 5 sec following ➊)
➌
Restart:
(timing is resumed)
➍
Stop:
(e.g. 13 min 5 sec following ➌)
= 28 min 10 sec
(The accumulated measured time is shown)
*
➎
Reset: The 3 chronograph hands are returned to their zero position.
Please note:
* Following ➍, the accumulation of the timing can be continued by pressing push button A (Restart / Stop, Restart / Stop, …)
40 41
6.1 6.2
A ➊➍
B ➋➌
B➎
FUNCTIONS
Movement Caliber : 5040.D
Chronograph: Intermediate or Interval Timing
Example:
➊
Start:
(start timing)
➋
Display interval: e.g. 10 minutes 10 seconds
(timing continues in the background)
➌
Making up the measured time:
(the 3 chronograph hands are quickly advanced to the ongoing measured time)
.
➍
Stop:
(Final time is displayed)
➎
Reset: The 3 chronograph hands are returned to their zero position.
Please note:
* Following ➍, the accumulation of the timing can be continued by pressing push button A (Restart / Stop, Restart / Stop, …)
42 43
7.1
7.2 7.3
CALIBRATION
Movement Caliber : 5040.D
Adjusting the Chronograph Hands to Zero Position
Example: One or several chronograph hands are not in their correct zero position and have to be adjusted
(e.g. following a battery change)
.
➊
Pull out the crown to position 3
(all 3 chronograph hands are in their correct or incorrect zero position)
.
➋
Keep push-buttons A and B depressed simultaneously for at least 2
seconds
(the center stop-second rotates by 360°➡corrective mode is activated)
.
Adjusting the center stop second➡Single step A1 x short➡Continuous A long➡Adjusting the next hand B➡Adjusting the 1/10 second counter hand (position 6h)➡Single step A1 x short
➡
Continuous A long➡Adjusting the next hand B➡Adjusting the minute counter (position 9h)
➡
Single step A1 x short➡Continuous A long
➌
Returning the crown to position 1. Termination of the chronograph
hands adjustment can be carried out at any time.
➊
➌
A➋
B➋
44 45
Movement Caliber
6497
PRESENTATION
Movement Caliber : 6497
Minute Hand
Hour Hand
Second Hand
Control Buttons
Crown Positions:
1. Normal position
2. Setting of hour, minute
1 2
46 47
Setting the Time
1.1 Pull the crown to position 2.
1.2 Turn the crown clockwise to set the hour / minute hands to the desired time.
1.3 Push the crown back to position 1.
SETTINGS
Movement Caliber : 6497
1.1
1.2 1.3
48 49
Movement Caliber
7004.P
PRESENTATION
Movement Caliber : 7004.P
Date
Minute Hand
Day
Hour Hand
Second Hand
Control Buttons
Crown Positions:
1. Normal position
2. Setting of hour, minute, day
INFO
Battery: 381 (diameter 11.6mm x 2.15mm)
1 2 3
50 51
Setting the Time
1.1 Pull the crown to position 3.
1.2 Turn the crown to set the hour / minute hands to the desired time.
1.3 Push the crown back to position 1.
SETTINGS
Movement Caliber : 7004.P
1.1
1.2 1.3
52 53
Setting the Date (Quick Mode)
2.1 Pull the crown to position 2.
2.2 Turn the crown clockwise. Continue to turn the crown until the desired date is set.
2.3 Push the crown back to position 1.
SETTINGS
Movement Caliber : 7004.P
2.1
2.2 2.3
Please note:
An extreme acceleration in setting the date with quick mode can create a false date indication. The synchronization is re-established by setting the date from 01 till 31 (crown position 2).
54 55
Setting the Day (Quick Mode)
3.1 Set the crown to position 3.
3.2 Turn the crown clockwise to advance the day hand until the desired day is set.
3.3 Push the crown back to position 1.
SETTINGS
Movement Caliber : 7004.P
3.1
3.2 3.3
Please note:
70% of power is saved when the crown is pulled out.
56 57
Movement Caliber
7750
PRESENTATION
Movement Caliber : 7750
30 Minute Counter
Minute Hand
Hour Hand
Second Hand
60 Second Hand
Day
Date
Control Buttons
Crown Positions:
1. Normal position
2. Setting of hour, minute, day
1 2 3
58 59
Crown 3 Positions
Rapid date and day correction is not possible between 8 p.m. and 2 a.m.
1. Normal running of watch and hand-winding
2. Rapid correction of the date Rapid correction of the day
3. Position for setting the time with stop second and correction of the date at every passing of midnight

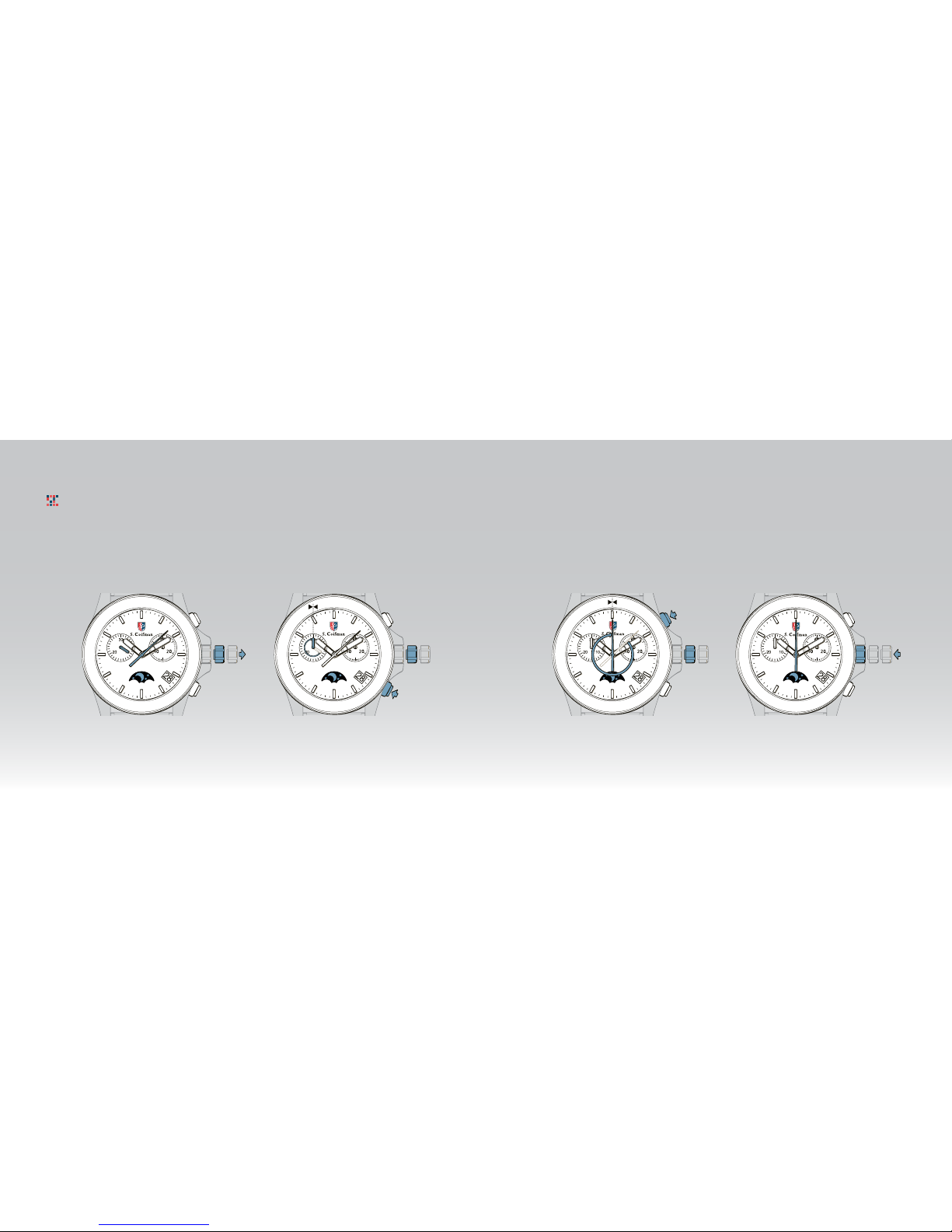

SETTINGS
Movement Caliber : 7750
1.1
Please note:
The movement of the wrist winds the watch.
A
B
Loading...
+ 95 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
