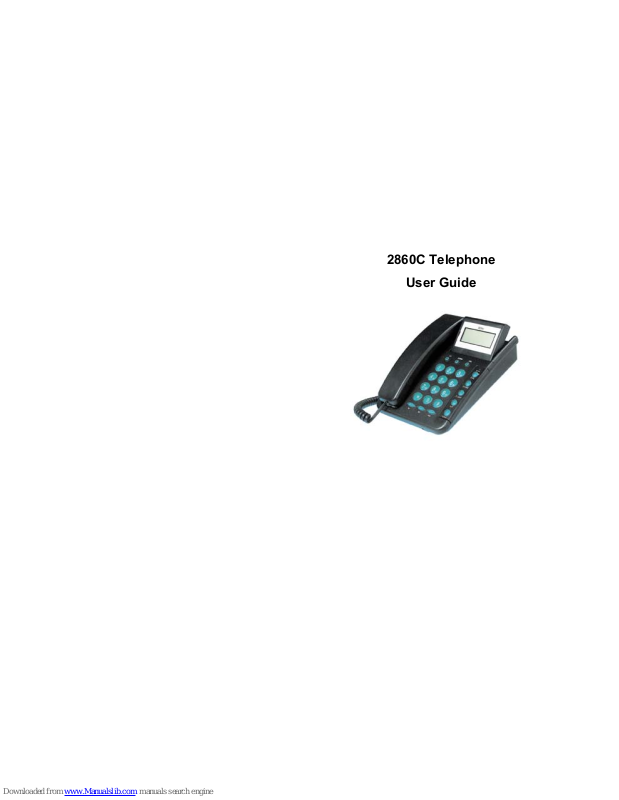

2860C Telephone
User Guide
Unpacking your telephone:
Verify that the package contains the following supplied items:
• Telephone base unit
• Handset
• Coiled handset cord
• Straight line cord
Assembling your telephone:
To assemble the 2860C telephone, connect the supplied coiled handset
cord between the jack on the end of handset and the jack on the left side
of the telephone base unit. Place the handset on the telephone base unit
to depress the hook switch.
Installing your telephone:
Connect the supplied straight modular cord between the jack on the
rear of telephone and the telephone system wall jack. Lift the handset,
and a dial tone should be heard if the telephone is correctly installed.
Telephone Features:
• Ηands-free speaker phone function with adjustable speaker volume
• Electronic ringer with adjustable high/low level
• Μulti-function LCD display with adjustable contrast level
• Low battery detection (indicated on LCD display)
• FLASH function (600ms, 300ms and 100ms time programmable)
• 32 digit last number redial
• Two one-touch speed dial memory keys (M1 and M2), holding up
to 22 digits each
• Call timer displays length of call in minutes and seconds
• Hearing aid compatible handset with three-level volume
adjustment
• Speech and dialing functions are functional even if batteries are
low or not installed.
Caller ID Features:
• Compatible with TYPE I & TYPE II Caller ID
• Multiple & Single message compatible
• Selectable prompt language (English, Spanish or French)
• Retains up to 80 messages in memory
• Displays name (up to 15 characters), telephone number (up to 14
digits), date, and time simultaneously
• Programmable 3-digit local area code; automatically prefixes long
distance telephone numbers with a “1” when using one-touch dial
back.
• Τwo Caller ID delete modes: single call or all calls at once
• Real time clock with 12-hour format. Automatically set by an
incoming call or may be set manually if desired
Key and Switch Function Definition
1) 0-9, *, #: Standard 3 x 4 telephone keypad for dialing.
2) M1, M2: Keys for one-touch memory dialing
3) VOL: Key to adjust handset volume (3 levels)
4) UP : Key to display the previous Caller ID entry
5) DOWN : Key to display the next Caller ID entry
6) DEL : Key to delete the Caller ID entries (one or all)
7) DIAL: Key to dial the selected Caller ID entry. Also used during
telephone setup for options programming
8) STORE: Key to store numbers into speed dial memory keys M1
and M2
9) FLASH: Key to generate a flash at the programmed flash time
(600ms , 300ms or 100ms)
10) R/P: Redial/Pause key, used to redial last number dialed, or a 2.2
seconds pause
11) SPKR: Key to set the hands-free speakerphone function on or off
12) RING: Switch (on rear) to set ringer volume high or low
13) VOLUME: Switch (on rear) to adjust speakerphone volume high
or low.
Operating instructions
Telephone Options Setup:
The user options should be set on the 2860C prior to placing it into
service. The following options are user-programmable on the 2860C:
• Language (English, Spanish, or French)
• Local area code (3 digits)
• Real time clock time and date (hour, minute, month, and day)
• Flash time (600ms, 300ms, or 100ms)
• LCD contrast level (1-8)
To set user options on the 2860C:
1) Verify that the telephone is “on-hook” and that it is in standby
mode (TOTAL and NEW call counts are displayed on the LCD).
2) Press and hold the DIAL key for at least 3 seconds, until
“OPTIONS MENU ▼▲” appears on the LCD display. Release the
DIAL key.
3) Within three seconds, press the UP or DOWN key to select the
option to be set: “SET LANGUAGE”, “LOCAL AREA CODE”,
“SET TIME/DATE”, “SET FLASH TIME”, or “(LCD)
CONTRAST”, then press the DIAL key to confirm.
4) Press the UP or DOWN key to set the option to the desired value,
then press the DIAL key to confirm.
5) After setting all options as desired, select “EXIT OPTION” or
“OPTIONS MENU ▼▲”, then press the DIAL key to return to
standby mode.
Placing a call:
1) Lift the handset or press SPKR button and listen for a dial tone.
2) Dial the desired telephone number using the keypad. The dialed
digits will be displayed on the LCD as the number is dialed.
3) The call length timer will begin counting after 15 seconds.
4) To end a call, place the handset on the telephone base unit, or if
using the hands-free speakerphone, press the SPKR key. The call
time length will remain on the display for 5 seconds, and then the
display will revert to the standby display mode.
Last number redial:
1) Lift the handset or press SPKR button and listen for a dial tone.
2) Press the R/P button; the last number dialed will appear on the
LCD display and is dialed automatically.
Handset Volume Adjustment:
Press the VOL key repeatedly to adjust the handset volume to the
desired level. One of three levels (low, medium, and high) may be
selected.
Speakerphone Volume Adjustment:
Set the VOLUME switch (located on the rear of the 2860C) to the
desired position (HI or LOW).
Speed Dial Memory Key Programming and Dialing -
Programming the One-Touch Speed Dial Keys (M1 and M2):
1) Press the STORE key; “STORE NUMBER” will appear on the
display.
2) Dial the telephone number to be stored, up to 22 digits. These digits
may be 0-9, Tone(*), #, and pause (key R/P), each of which is
counted as one digit.
3) Press the desired one-touch speed dial key (M1 to M2) to store the
dialed number in memory.
4) To change a stored number, repeat the instructions above and the
new telephone number will replace the previously stored number.
Making calls with the One-Touch Speed Dial Keys (M1 and M2):
1) Pick up the handset or press the SPKR key, and listen for dial tone.
2) Press the desired one-touch speed dial key M1 or M2; the stored
number will be dialed automatically.
Viewing Caller ID entries:
The 2860C telephone stores Caller ID data for the last 80 calls received
including “UNAVAILABLE” and “BLOCKED” calls.
1) Press the DOWN key to view calls starting with the newest call.
2) Press the UP button to view calls starting with the oldest call.
3) Repeatedly press the UP or DOWN button to scroll through the
call list as desired.
4) After all new calls are viewed, the “New Call” LED indicator will
stop flashing.
Deleting entries from the Caller ID list –
Deleting a single Caller ID entry:
1) Press the UP or DOWN key as needed to select the Caller ID entry
to be deleted.
2) Press the DEL key once, and “DELETE CALL ? ” will be
displayed on the LCD.
3) To cancel without deleting the selected entry, press either the UP or
DOWN key.
4) To continue and delete the selected caller ID entry, press the DEL
key.
Deleting all Caller ID entries:
1) Press the UP or DOWN key to display any caller ID entry.
2) Press and hold the DEL button down for at least 5 seconds, until the
LCD display changes to “DEL ALL CALLS ?”
3) To cancel without deleting any calls, press either the UP or the
DOWN key.
4) To continue deleting all entries, press the DEL key. All entries will
be deleted and “NO CALLS” will be displayed on the LCD.
Dialing using a Caller ID entry:
On-hook:
1) Use the UP and DOWN keys to select the caller ID entry to be
dialed.
2) Press the DIAL key. The LCD will display “PICK UP OR ADJ ”
for 10 digit numbers, or “PICK UP PHONE ” for 7 digit or 11 digit
numbers.
3) To adjust the phone number, press the DIAL key. For instance, a
7-digit local number sometimes cannot be dialed because it
requires a 10-digit or 11-digit format. Press the DIAL key
repeatedly to scroll through the 7, 10, and 11-digit numbers.
4) To dial the displayed number, pick up the handset or press the
SPKR key. The LCD will display “DIALING ... ” and the number
will be dialed automatically.
Off-hook:
With Local Area Code programmed:
1) Select the telephone number variation to be dialed using the UP
and DOWN keys.
2) If the displayed number is 10 digits, press the DIAL key and the
LCD will display “DIALING ... + 1 ”. The selected 10 digit number
will be prefixed with a “1” and dialed automatically.
3) If a prefixed “1” is not desired, press and hold the DIAL key for 2
seconds. The LCD will display “DIALING...” and the 10 digit
number will be dialed automatically.
4) If the displayed number is 7 digits, no adjustment can be made.
With Local Area Code not programmed (default setting “- - -”):
1) Use the UP and DOWN keys to select the number to be dialed.
2) If the displayed number is 10 digits, press the DIAL button. The
LCD will display “DIALING...” and the 10-digit number will be
dialed automatically.
3) To prefix the 10 digit number with a “1”, press and hold the DIAL
key for 2 seconds. The LCD will display “DIALING ... + 1” and a
“1” followed by the 10 digit number will be dialed automatically.
4) If the displayed number is 7 digits, no adjustment can be made.
Low Battery Detection:
The “low battery” symbol will appear on the LCD display when the
phone detects that the batteries need to be replaced. To replace the
batteries, remove the battery cover on the bottom of telephone and
install 3 new type “AA” batteries.
Required FCC Notice
This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On the bottom of this equipment
is a label that contains, among other information, a product identifier in
the format US:AAAEQ##TXXXX. If requested, this number must be
provided to the telephone company.
The REN is used to determine the number of devices that may be
connected to a telephone line. Excessive RENs on a telephone line
may result in the devices not ringing in response to an incoming call. In
most but not all areas, the sum of RENs should not exceed five (5.0).
To be certain of the number of devices that may be connected to a line,
as determined by the total RENs, contact the local telephone company.
The REN for this telephone is part of the product identifier that has the
format US:AAAEQ##TXXXX. The digits represented by ## are the
REN without a decimal point (e.g., 03 is a REN of 0.3).
If this equipment causes harm to the telephone network, the telephone
company will notify you in advance that temporary discontinuance of
service may be required. If advance notice isn't practical, the
Telephone Company will notify you as soon as possible. Also, you will
be advised of your right to file a complaint with the FCC if you believe
it is necessary.
The Telephone Company may make changes in its facilities,
equipment, operations, or procedures that could affect the operation of
this telephone. If this happens, the Telephone Company will provide
advance notice in order for you to make the necessary modifications in
order to maintain uninterrupted service.
If you experience trouble with this telephone, please contact Scitec, Inc.
at (217) 384-6041 for repair or warranty information. If the trouble is
causing harm to the telephone network, the Telephone Company may
request that you remove this equipment from the network until the
problem is resolved.
The customer can do the following repairs: replacement of cords or
handset; replacement of window for telephone number.
Connection to party line service is subject to state tariffs. Contact the
state public utility commission, public service commission or
corporation commission for information.
This telephone cannot be used on Telephone Company provided coin
service.
If your home has specially wired alarm equipment connected to the
telephone line, ensure the installation of the 2860c telephone does not
disable your alarm equipment. If you have questions about what will
disable alarm equipment, consult your telephone company or a
qualified installer.
If the 2860c is used with a leased system, permission of the owner of
the equipment must be obtained for connection of the telephone
because modification of the host system is often required.
Jacks
A plug and jack used to connect this equipment to the premises wiring
and telephone network must comply with the applicable FCC Part 68
rules and requirements adopted by the ACTA. A compliant telephone
cord and modular plug is provided with this product. It is designed to
be connected to a compatible modular jack that is also compliant. See
installation instructions for details.
The 2860c telephones use RJ11C USOC standard modular jacks.
Warranty
Scitec, Inc. (“Scitec”) warrants your 2860c to be free from defects in
material and workmanship for a period of one (1) year
from the date of
purchase.
This warranty applies only to the original purchaser, and only to
products employed in normal use and service in standard commercial
offices, schools/universities, hotel/motel guest rooms, healthcare
facilities, and/or residences.
This Warranty is only valid for merchandise purchased directly from
Scitec or from an authorized Scitec dealer or distributor.
If this product is found to be defective within the terms of this warranty,
Scitec's only obligation -- and your exclusive remedy -- is the repair or
replacement of this product, at Scitec's discretion, provided that the
product has not been damaged through misuse, abuse, accident,
modification, alteration, neglect or mishandling.
This warranty shall not apply to any product found to have been
improperly installed, configured, or used in any way not in accordance
with the instructions supplied with this product.
For repair or replacement, please call Scitec at (217) 384-6041 to
request a “ Return Authorization Form.” A simple one-page form and
complete instructions will be sent to you, to be filled out and returned
to Scitec. You will be asked to describe the failure symptoms of your
telephone, provide the date purchased (and proof of purchase date if
requested), and provide the name of the Scitec dealer or distributor
from which the telephone was purchased. The completed form may
then be faxed or mailed back to Scitec. Then, when your return
authorization request has been approved, Scitec will contact you with a
“Return Authorization Number” which must be clearly placed on the
outside of the box that you use to return your telephone. You, the
customer, are responsible for paying all shipping costs to return your
defective product to Scitec. Scitec then pays for shipping the repaired
or replaced product back to you.
Please note that Scitec will not accept, repair, or replace any products
returned without a “Return Authorization Number.” Any such product
sent to Scitec without a “Return Authorization Number” will either be
returned at the customer’s expense or be disposed of.
Scitec does not warrant and specifically disclaims any warranty,
whether express or implied, of the fitness for a particular purpose other
than the warranty contained herein. No implied warranty on this
product, created by state law, shall extend beyond the term of this
warranty unless such law otherwise provides.
Scitec specifically disclaims any liability and shall not be liable for any
consequential or incidental loss or damage, including but not limited to
damages to any equipment with which this product is used. Some states
do not allow the exclusion or limitation of incidental or consequential
damages so the above limitations or exclusions may not apply to you.
No agent, representative, dealer or employee of Scitec has the authority
to increase or alter the obligations or terms of this Warranty. This
Warranty gives you specific legal rights and you may have other rights,
which vary from state to state.
Loading...
