Preface

Welcome to the “Magnetic Hotplate-Stirrer with Timer

User Manual”. Users should read this Manual carefully,

follow the instructions and procedures, and be aware of all

the cautions when using this instrument.

Service

When help needed, you can always contact the Service

Department of manufacturer for technical support in the

following ways:

SCILOGEX, LLC

1275 Cromwell Ave.

Suite C6

Rocky Hill, CT 06067 USA

Tel: [phone]

Fax: [phone]

[e-mail]

www.scilogex.com

Please provide the customer care representative with the
following information：

•Serial number（on the rear panel）

•Certification

•Description of problem (i.e., hardware or software)

•Methods and procedures adopted to resolve the problems

•Your contact information

Warranty

This instrument is warranted to be free from defects in

materials and workmanship under normal use and service,

for a period of 24 months from the date of invoice. The

warranty is extended only to the original purchaser. It shall

not apply to any product or parts which have been damaged

on account of improper installation, improper connections,

misuse, accident or abnormal conditions of operation.

For warranty claims please contact your local supplier. You

may also send the instrument directly to manufacturer,

enclosing the invoice copy and by giving reasons for the

claim.

2

1 Safety Instructions

Warning!

•Read the operating instructions carefully

before use.

•Ensure that only trained staff work with the

instrument.

Risk of burn!

•Caution when touch the housing parts and

the hotplate which can reach temperature of

340°C.

•Pay attention to the residual heat after

switching off.

Protective ground contact！

•Make sure that the electrical socket is

grounded (protective ground contact) before

use.

•When operating wear personal safety protection to avoid

the risk from:

- Splashing and evaporation of liquids

- Release of toxic or combustible gases

•Use the instrument in a spacious area on a stable, clean,

non-slip, dry and fireproof surface. Do not operate the

instrument in explosive atmospheres, with hazardous

substances or around water.

•Gradually increase the speed, reduce the speed if:

- Stirring bar breaks away due to high speed

- The instrument is not running smoothly, or the container

is not centered on the plate

•Temperature must always be set to at least 50C lower than

the flash point of the media used.

•Be aware of hazards due to:

- Flammable materials or media with a low boiling

temperature

- Overfilling of media

- Unsafe container

•Process pathogenic materials only in closed vessels.

•If the case of the stirrer bar is PTFE, please note：

- Elemental fluorine, three fluoride and alkali metals will

corrode the PTFE and Halogen alkanes make it expand at

room temperature

- Molten alkali，alkaline earth metals or their solution, as

well as the powder in second and third ethnic of the

Periodic Table of Elements will have chemical reaction

with PTFE when temperature reaches 300 ~ 400C .

•Check the instrument and accessories prior to each use.

Do not use damaged components. Safe operation is only

guaranteed with the accessories listed in the “Accessories”

3

section. Accessories must be securely attached to the device

and must be removed when not in use. Always disconnect

the power before fitting accessories.

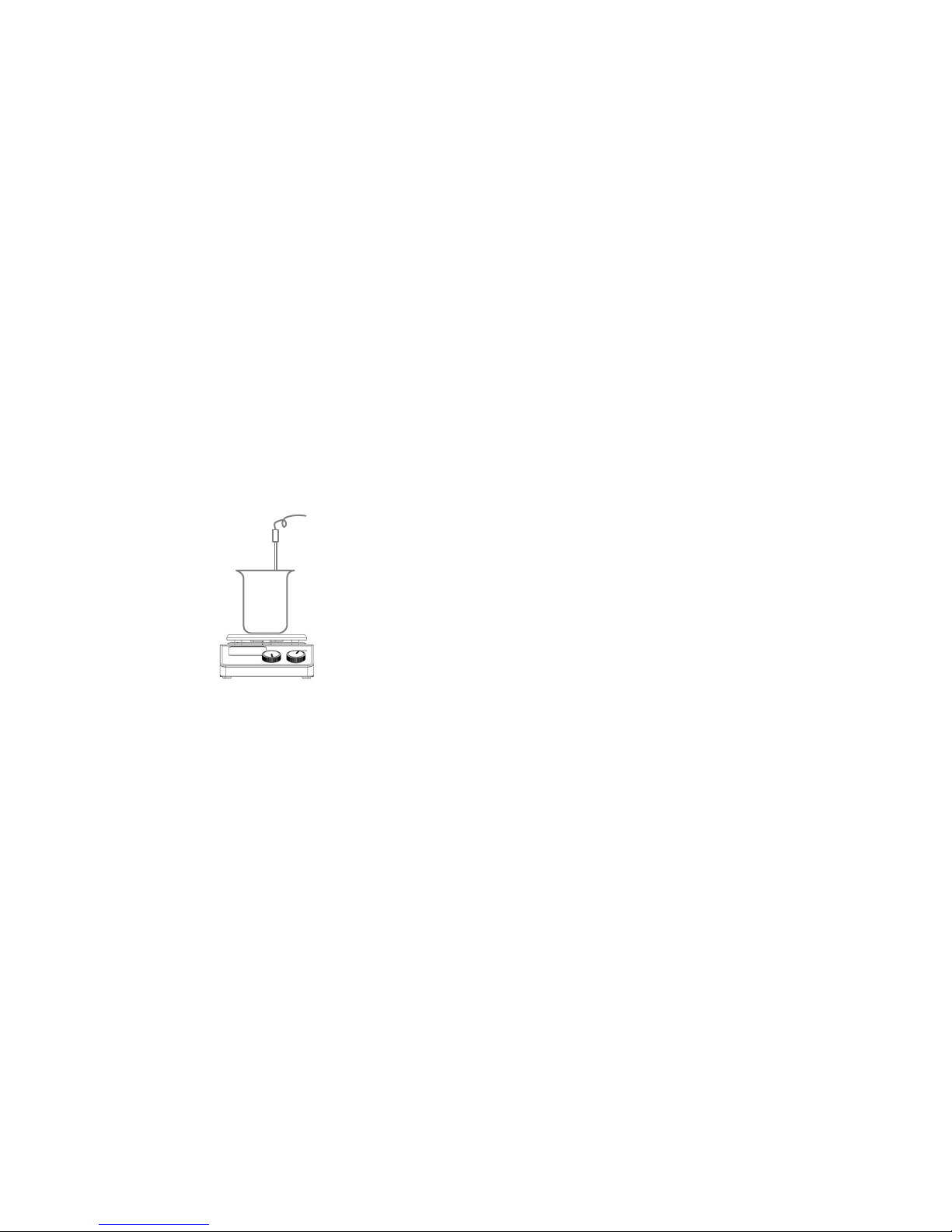

•When using the external temperature sensor, the tip of the

measuring sensor must be at least 5-10mm from vessel’s

bottom and wall.

•The instrument can only be fully disconnected from the

main power supply by turning off the main or disconnecting

the plug.

•The voltage stated on the label must correspond to the

main power supply.

•Ensure that the main power supply cable does not touch

the hotplate. Do not cover the device.

•The instrument must only be operated by adults.

•Keep away from high magnetic fields.

2 Proper Use

The instrument is designed for mixing and/or heating

liquids in laboratories:

•Do not use more than 2000 meters above sea level

•Temperature between 0℃and 40℃

•Installation T ype: Product is designed to connect the

indoor outlet, where voltage fluctuation is not more

than ±10% compared with normal.

•Observe the minimum distances between multiple

units, and distances to the rear wall and above the

assembly (min. 100 mm).

Figure 1

This device is not suitable for using in residential areas or

other constraints mentioned in Chapter 1.

3 Inspection

3.1 Receiving Inspection

Unpack the equipment carefully and check for any damage

which may have arisen during transport. Please contact

manufacturer/supplier for technical support.

>100mm

>100mm

4

Note:

If there is any apparent damage to the unit, do not

attempt to operate.

3.2 Listing of Items

The package includes the following items:

Items

Qty

Main unit 1

Power cable 1

Stirrer bar 1

User Manual 1

Table 1

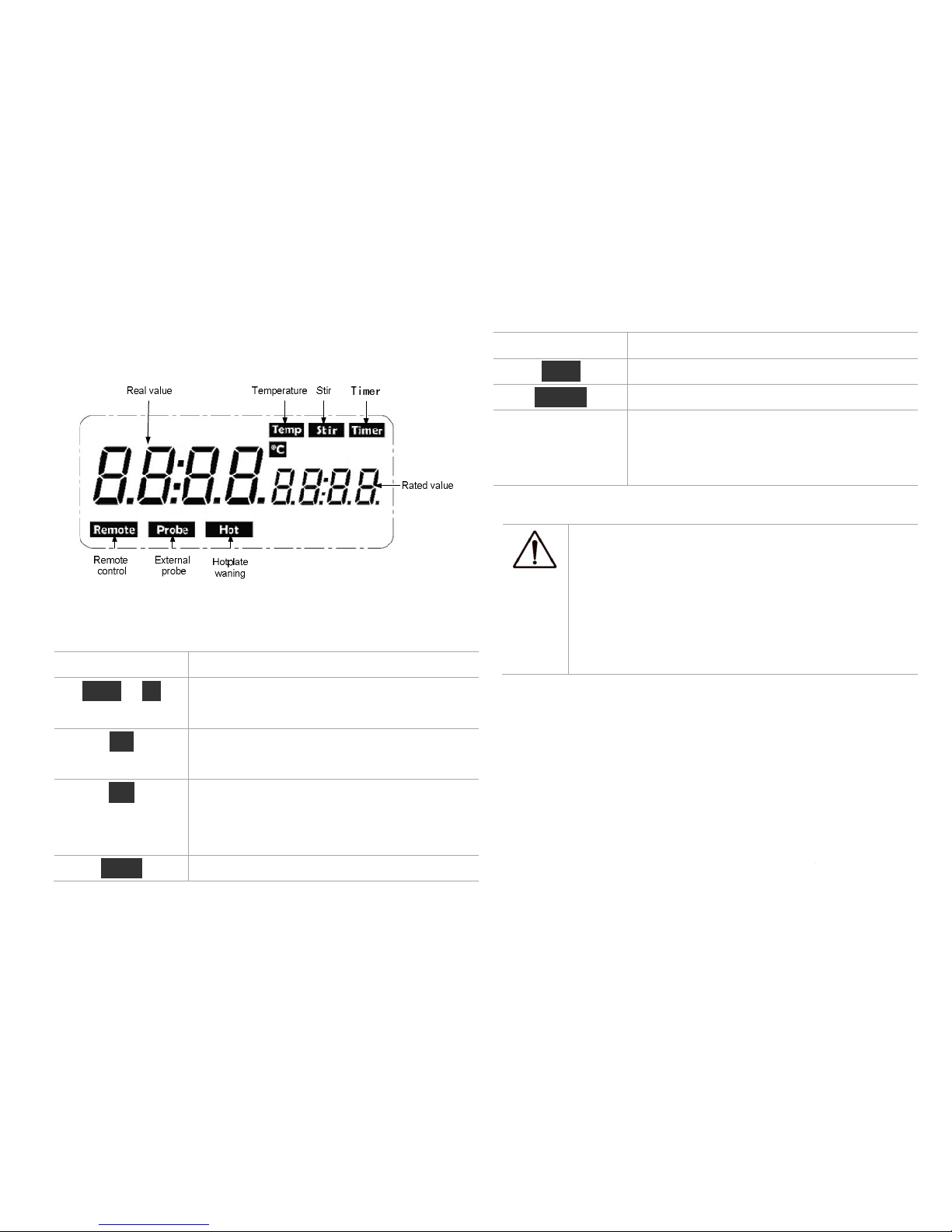

4.Control

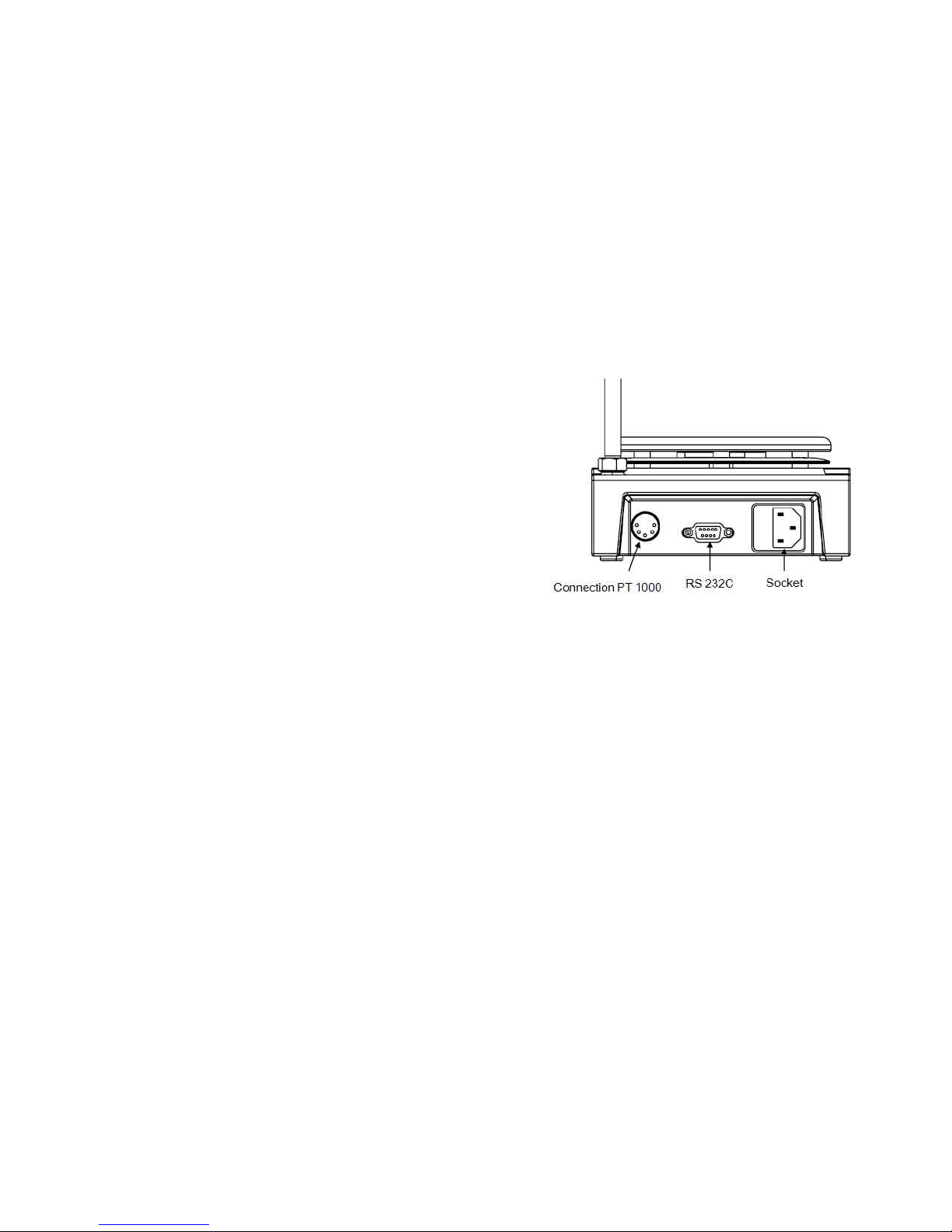

4.1 Control elements

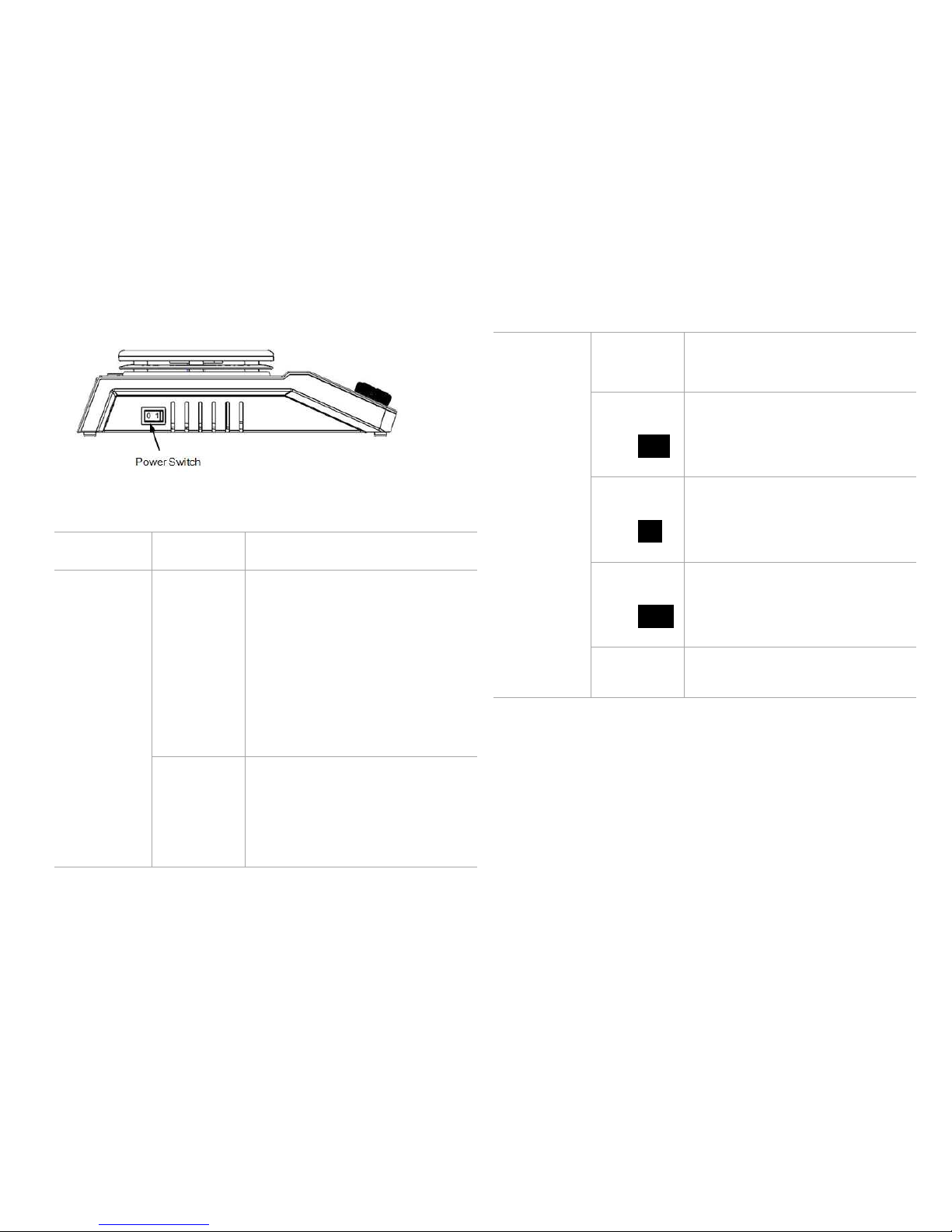

Figure 2
