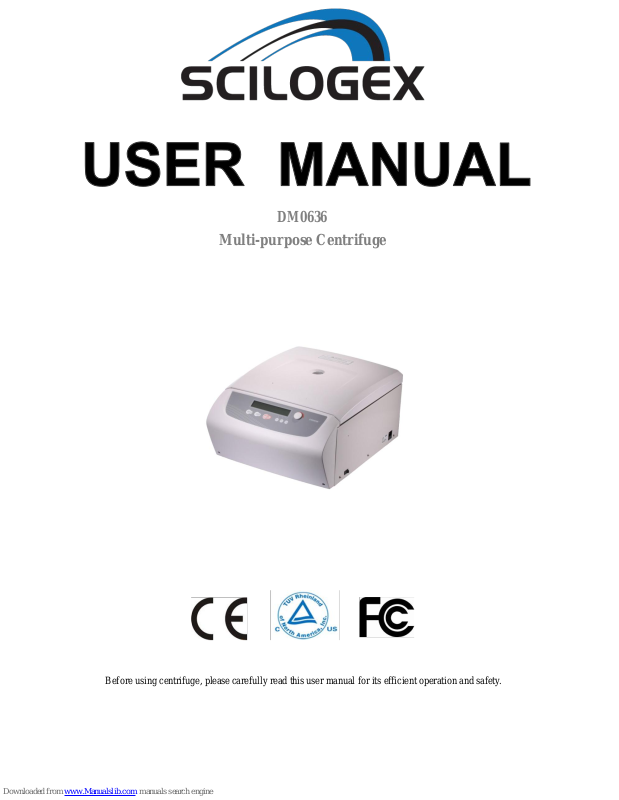

Scilogex DM0636 User Manual

DM0636
Multi-purpose Centrifuge
Before using centrifuge, please carefully read this user manual for its efficient operation and safety.
USER MANUAL
Contents
Safety Reminder .............................................................................................................................................. 1[
1. Specifications ............................................................................................................................................... 3
2. Declaration of Conformity ........................................................................................................................... 3
3. Required Operational Condition .................................................................................................................. 4
3.1 Basic operational Conditions .............................................................................................................. 4
3.2 Transport and storage condition ......................................................................................................... 4
4. Installation .................................................................................................................................................... 4
4.1 Location .............................................................................................................................................. 5
4.2 Connection of the power cord and grounding .................................................................................... 5
5. Structure ....................................................................................................................................................... 5
6. Operation panel ............................................................................................................................................ 6
7. Rotor Preparation ......................................................................................................................................... 7
7.1 Prepare the samples ............................................................................................................................ 7
7.2 Inject the samples into tubes. ............................................................................................................. 7
7.3 Keep the tubes balance ....................................................................................................................... 7
7.4 Inspect the rotor .................................................................................................................................. 8
7.5 Symmetrically load centrifuge tubes in rotor ..................................................................................... 8
8.1 Normal Operation ............................................................................................................................... 8
8.2 RCF Operation ................................................................................................................................. 12
8.3 Pulse Operation ................................................................................................................................ 12
9. Maintenance ............................................................................................................................................... 12
9.1 Cleaning ........................................................................................................................................... 12
9.2 Consumables .................................................................................................................................... 13
9.3 The replacement of seal rings ........................................................................................................... 13
9.4 Routine inspection ............................................................................................................................ 14
10. Troubleshooting ........................................................................................................................................ 14
10.1 Possible problems and solutions ..................................................................................................... 14
10.2 How to open the door ..................................................................................................................... 15
10.3 Replacement of fuses...................................................................................................................... 16
11. Instructions of rotor and tube ................................................................................................................... 16
11.1 The rotor instructions...................................................................................................................... 16
11.2 Tubes .............................................................................................................................................. 18
12. Calculate Relative Centrifuge Force(RCF) .............................................................................................. 19
13. Ordering information ................................................................................................................................ 20
14. Warranty ................................................................................................................................................... 21
14.1 Warranty of the centrifuge .............................................................................................................. 21
14.2 Warranty of the rotor ...................................................................................................................... 21
15. After-sales Service .................................................................................................................................... 21
USER MANUAL
2
Copyright:
No part of this manual may be reproduced or transmitted without prior written permission of original manufacture. We can not be responsible to inform at real-time if the outline and specifications of centrifuge is subject to change for improvement.
VERSION201510
USER MANUAL
Safety Reminder
Common safety precautions
Carefully read the following safety precautions for a thorough understanding.
Follow the instructions and procedures described in this manual to operate this centrifuge safely. Carefully read all safety messages in this manual and the safety instructions on the instrument. Safety messages are labeled as indicated below. They are in combination with signal words of
“WARNING” and “CAUTION” with the safety alert symbol to call your attention to items or operations that could be dangerous to you or other persons using this instrument. The definitions of signal words are as follows:
WARNINGPersonal Danger
Warning notes indicate any condition or practice, which if not strictly observed, could result in personal injury or possible death.
CAUTIONPossible damage to instrument
Caution notes indicate any condition or practice, which if not strictly observed or remedied, could result in damage or destruction of the instrument.
NOTENotes indicate an area or subject of special merit, emphasizing either the product‟s capability or common errors in operation or maintenance.
Do not operate this centrifuge in any manner not described in this User manual. When in doubt or have
any troubles with this centrifuge, ASK FOR HELP.
The precautions described in this User manual are carefully developed in an attempt to cover all the
possible risks. However, it is also important that you are alert for unexpected incidents. Be carefully operating this centrifuge.
WARNING
This centrifuge is not explosion-proof. Never use explosive or flammable samples. Do not install the centrifuge in or near places where inflammable gases are generated or chemicals are
stored.
Do not place dangerous material within 30cm around the centrifuge.
USER MANUAL
2
Make sure to prepare necessary safety measures before using samples that are toxic, radioactive or
contaminated with pathogenic micro-organisms at your own responsibility.
If the instrument, rotor and/or accessories that has been contaminated by solutions with toxic, radioactive
or pathogenic materials, clean it according to the decontamination procedure that you are specified.
If you require services at site, please sterilize and decontaminate it in advance, and then notice the service
center involved in the details of the particular materials.
Do not handle the power cord or turn on or off the POWER switch with wet hands to void electrical
shocks.
For safety purposes, do not enter within 30cm around this centrifuge while it is in operation. While the rotor is rotating, never forcedly release the door lock. Unauthorized repairs, disassembly, and other services to the centrifuge except by our service center are
strictly prohibited.
CAUTION
This centrifuge must be located on one firm and level table. Make sure the centrifuge is horizontal before running. Make sure the angle between the door and cover is greater than 70 degrees when open the door. Be careful not put your fingers or hands between the door and cover when the door off. Do not move or relocate this centrifuge while it is running. If fluid spills in the rotor chamber, please promptly clean and dry with a dry cloth to avoid sample
contamination.
Ensure to remove any objects and fragments of the tubes dropped inside the rotor chamber before running
this centrifuge.
Cautions on rotors (1) Always check for corrosion and damages on the rotor surface before using it. Do not use the rotor if an abnormality is found. (2) Do not set the centrifuge speed beyond the allowable minimum speed of the rotor kits (rotor or adapters). Make sure to run it below the allowable minimum speed. (3) Do not exceed the allowable imbalance. (4) Use the rotor and tubes within their actual capacities. (5) If the rotor is attached with a lid, ensure it is tightened before operation. If any abnormal condition occurs during operation, please stop it immediately and contact our service
center. Notify the service center is a warning code if displayed.
Vibrations are likely to damage the centrifuge, contact our service center if abnormality observed.
USER MANUAL
1. Specifications
Maximum speed
6000rpm(300-6000rpm), increment: 10rpm
Speed accuracy
±20rpm
Maximum RCF
4020×g, increment: 10×g
Maximum capacity
100ml×4(swing out rotor), 50ml×6angle fix rotor
Rotor types
Swing out rotor: 100ml×4, micro plate rotor
Angle rotor: 2.0ml×30, 2.0ml×60, 5.0mlV×18, 50mlV×6, pcr8×12, 15ml×30, 50ml×8,
Timer
30seconds -99minutes-HOLD, continuous operation
Driving Motor
Brushless DC motor
Memory
9
Acceleration / Deceleration
9/10 (deceleration10: free braking)
Safety devices
Dual door interlockOver-speed detectorChamber over-temperature detectorMotor over-temperature detectorImbalance protection, Automatic internal diagnosis
Power requirements
Single-phase, 220V-240V, 50Hz/60Hz, 8A.
110V-120V, 50Hz/60Hz, 12A
Dimensionsmm
L280×(W364×(H266
Weight
30kg
Additional features
Speed/RCF switch、Pulse operation、Processing display、Voice reminder
2. Declaration of Conformity
Construction in accordance with the following safety standards:
EN 61010-1
EN 61010-2-020
Construction in accordance with the following EMC standards:
EN 61326-1/ FCC Part 15 Subpart B/ IECS 001
Associated EU guidelines:
EMC-guidelines: 2004/108/EC Instrument guidelines: 2006/95/EC
This ISM device complies with Canadian ICES-001.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
USER MANUAL
4
NOTE: This centrifuge has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the centrifuge is operated in a commercial environment. The centrifuge generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the user manual, may cause harmful interference to radio communications. Operation of centrifuge in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference.
3. Required Operational Condition
3.1 Basic operational Conditions
1Power:
Single-phase, 220V-240V, 50Hz/60Hz, 8A;
Single-phase, 110V-120V, 50Hz/60Hz, 12A; 2Ambient temperature: 2℃~40℃. 3Relative humidity: ≤80%. 4No vibration and airflow around. 5No electric dust, explosive and corrosive gases around.
3.2 Transport and storage condition
1Storage temperature: -40℃~55℃. (2Relative humidity: ≤93%.
4. Installation
This section describes the instructions that you should abide when install the centrifuge to ensure your safety and the optimum performance. Before moving the centrifuge, the rotor must be removed.
WARNING
Improper power supply may damage centrifuge. Make sure the power source conforms to the required power supply before connecting.
USER MANUAL
4.1 Location
1Place the centrifuge on a firm, flat and level table, ensure the four feet of this centrifuge stand on the table firmly. Avoid installing on the slippery surface or surface prone to vibration. 2Ideal ambient temperature is 20℃±5, avoid placing the centrifuge in direct sunlight if temperature
exceeds 30. 3Keep clear of the centrifuge at least 10cm on both sides and at least 30cm behind it to guarantee the
cooling efficiency. (4)Keep away from heat or water to avoid sample temperature issues or centrifuge failures.
4.2 Connection of the power cord and grounding
WARNING
To avoid electrical shocks, ensure your hands are dry when touching the power cord. This centrifuge must be grounded properly.
A minimum 10A outlet providing a sufficient ground is required, and this must meet with local safety requirements.
5. Structure
Figure 5.1 D1536 Front view of the centrifuge
Seal ring of door
Operation panel
Door lock hook
POWER switch
Cover
Outlet
USER MANUAL
6
Figure 5.2 D1536 back view of the centrifuge
6. Operation panel
Figure 6-1 Operation Panel
Item
Symbol
Name
Function
1
Pulse key
When the door closed, press and hold the key to accelerate running, release the key to stop it.
2
Open/ lock key
Press the key to open the door The key is not available when the centrifuge is running.
3 Start/ Stop key
Press the key to start running. The centrifuge will brake to stop running if press the key during centrifugation.
4 Acceleration key
Press the key to set the acceleration curve. 1: the slowest acceleration. 9: the fastest acceleration
Speed Temperature Time Acceleration Deceleration Memory
Air vents View
Door hole
rpm
min
USER MANUAL
5 Deceleration key
Press the key to set the deceleration curve. 0: inertial braking. 9: fastest braking.
6 Memory key
Load program: Press the key shortly to load the program Save program: Press and hold key for 5 seconds
7 Parameter key
Clockwise rotate to increase parameter values. counter­clockwise rotate to decrease parameter values. Press down the key, shift between speed , RCF and time display.
Figure 6-2 the main interface
Main interface is as figure 6-2. The speed is set to be 6000rpm, temperature of centrifugal chamber is 20, and the running time is 30 minutes, acceleration curve is 9, and deceleration curve is 9, memory program is
7. When speed symbol is rotating, indicating the centrifuge is running, the rotation is faster, the speed is higher. Temperature only displays the temperature of chamber and can not be controlled. Time symbol
displays the ratio of working to time setting. The total time setting is divided into 10 scales.
7. Rotor Preparation
7.1 Prepare the samples
7.2 Inject the samples into tubes.
CAUTION
Do not overload samples into the centrifuge which will cause leaking. Do not exceed the actual capacity allowed in the user manual.
7.3 Keep the tubes balance
Although the centrifuge can accept sample balancing by eye, we recommend that you keep this
centrifuge in a well-balanced condition to extend its life expectancy.
Never intentionally run the centrifuge under unbalanced condition even though the allowable
USER MANUAL
8
imbalance is not exceeded.
7.4 Inspect the rotor
Check the rotor for corrosion or scratches before using.
CAUTION
If any abnormality such as corrosions or scratches are found, stop using the rotor and contact our
service center.
Only manufacturer‟s rotors must be used with the unit.
7.5 Symmetrically load centrifuge tubes in rotor
CAUTION
Make sure the rotor lid is securely fixed on the rotor, as well as the rotor and shaft are tightened.
Otherwise, the rotor may be moved off while rotating and cause damage of the centrifuge and rotor.
Firmly tighten the rotor door with rotor.
8. Operation
CAUTION
Do not push or lean against the centrifuge while it is running. Do not run the centrifuge when fragments or sample solutions are left in the centrifuge chamber.
Always keep the centrifugal chamber clean.
If the centrifuge makes strange noise during operation, stop it immediately and contact our service
center. Notify them of the warning code if displayed.
8.1 Normal Operation
Turn on the power switch, centrifuge will start self-diagnostic checks, see figure 8-1 below:
Figure 8-1 Self-checking interface
USER MANUAL
After self-checking, instrument will display accumulative running time, see figure below:
Figure 8-2 Accumulative running time interface
Figure 8-2 indicates the centrifuge has accumulated running time 1657 hours 12 minutes and 9 seconds, and then the centrifuge displays the last running values, see figure 8-3 below:
Figure 8-3 Last running interface
Speed: 6000rpm. Running time: 30 minutes.
The door lock is released.
8.1.1 Load and replace the rotor
Figure 8-2 Load the rotor
CAUTION
Attach the rotor to the rotor shaft. Ensure the rotor is in position and connected with the shaft,
tightening the locking nut to secure the rotor with shaft, to prevent the rotor damaging the centrifuge.
Ensure the rotor lid is firmly tightened to the rotor.
Load the rotor to shaft to ensure rotor is in position until it connected with the shaft. You should feel a „click‟ when the rotor is properly loaded to the shaft. If not, there may be something
USER MANUAL
10
stuck between the rotor and the shaft. Double check and clean it if necessary.
Rotate the rotor slightly with your fingers to check if the rotor vibrates. If so reinstall the rotor again. Rotate the nut clockwise using the wrench to tighten the rotor to the shaft firmly. Close the rotor lid, firmly tighten clockwise the lid to the rotor and ensure is in position. Close the door
and then start running.
The method of removing the rotor is as same as the above mentioned by turning the locking nut
counterclockwise.
8.1.2 Set the operation parameters
Press the key to select required parameters. The parameter can be modified when the parameter is flashing. Clockwise rotate the parameter key to increase parameter value; counter-clockwise rotate the parameter key to decrease parameter value. Parameter key rotate faster, parameter value increase
faster. The minimum speed increment is 100 rpm, the minimum time increment is 1 second. 1Set the speed
Press the key until the speed rpm is displayed. When the speed is selected, the speed symbol will flash the speed value. The minimum speed value you can set 300rpm, the minimum increment is 100rpm.
Rotate parameter key clockwise to increase speed value, rotate the parameter key
anti-clockwise to decrease speed value.
You can speed-up set the speed value by rotating parameter key quickly. There is a circulating function to increase/decrease the speed values. Rotate the parameter key
clockwise to change settings from small → large → maximum → minimum. Rotate the parameter key anti-clockwise to change settings from large → small → minimum → maximum.
2Set the time
Press key , time value flashes in the time setting mode. Rotate the parameter key to set running time from 10 seconds to 99 minutes.
When time displays HD, this is a continuous running mode.
(3) Set acceleration and deceleration Press key , acceleration value flash, press the again, the value will increasing.the value will
change from 1 to 9, then from 9 to1. 1 acceleration: the slowest acceleration; 9 acceleration: the fastest acceleration.
Press key , deceleration value flash, press the again, the value will increasing.the value will
change from 0 to 9, then from 9 to 0. 0 deceleration: free braking; 1deceleration: the slowest deceleration; 9deceleration: the fastest deceleration.
USER MANUAL
(4) Set program There are 1 9 program groups. Saving the program
Press and hold the key more than 5 seconds, the current parameters are saved under the selected program number.
Loading the program
Press the key shortly, the program number will be increasing, from 1 to 9, then from 9 to 1, the
corresponding parameters changing as well.
8.1.4 Start the operation
1Press key to start running
The door should be locked before rotor starts rotating. Timer will operate once the speed setting value is reached, the screen displays the remaining run time.
2View and modify the operation programs
Pressing key , returns the display to the program interface and displays settings programs. Press the
key to the desired program. When flashing, rotate the key to modify values. Release the key after 5 seconds, and the centrifuge will return to normal operation mode and run according to the new value.
If the set time value has been modified, the operation time is not affected and will continue. 3Warning display If an error occurs during the operation, the centrifuge will brake to stop automatically, and display the
error code on the time/display area. The error code can be checked in the table 10-1, and corrective actions can be applied accordingly.
8.1.5 End the operation
1The centrifuge will brake when it reaches the setting time or key is pressed.
When the rotor stops rotating, centrifuge will start beeping to alert the operation has finished.
2Open the door
The door can be released automatically when the operation has stopped (D1536). The centrifuge keeps the door close when operation has stopped (D1536R).
With the door closed, you are able to press the key to open it. After ending the operation, the program will store the setting parameters of this operation, and will
recall these parameters when restart the program.
3Open the door and take out the rotor and samples.
USER MANUAL
12
8.2 RCF Operation
1Turn on the power switch. 2Set a RCF (Relative Centrifugal Force) value.
CAUTION
● Do not exceed the allowable maximum RCF value of the rotor and adapters.
Press the key and choose speed unit ×g, the speed symbol will flash into RCF value input status. If no key is pressed after the speed value has flashed for 5 seconds, the input mode will be shut down.
Rotate the key to input a RCF value, RCF increment is100×g.
3Set operating conditions
The other operation, please refer to the section 8.1.
8.3 Pulse Operation
This function is used to remove the residual samples adhered on the interior of the tubes.
1Turn on the power switch and load the rotor to the shaft, tighten the rotor lid and make sure it is in secured position, and then close the door.
2The centrifuge gets into preparation mode and displays last running values. The values can be reset.
3Press key and hold, the centrifuge will speed up to the setting speed. While releasing
key during acceleration, the centrifuge will start to decelerate and stop.
9. Maintenance
9.1 Cleaning
CAUTION
If do not follow the recommended instructions for cleaning or disinfecting may damage the centrifuge.
1Centrifuge If the centrifuge is exposed to ultraviolet rays for a long time, the color of the doors may be changed or
the label may be came off. After using, cover the centrifuge with a piece of cloth to protect it from direct exposure.
NoteThe key works only when the rotor stopped and the door is locked.
USER MANUAL
If the centrifuge needs cleaning, clean it with a cloth or sponge moistened with a neutral detergent
solution.
Sterilize the centrifuge by wiping with a cloth moistened with 70% ethanol solution. 2 Rotor chamber
If the rotor chamber needs cleaning, clean with cloth or sponge moistened with a neutral detergent
solution. Sterilize the centrifuge by wiping with a cloth moistened with 70% ethanol solution.
3Drive shaft We recommend regular maintenance for drive shaft. You can wipe the drive shaft with soft cloth, and
then apply a thin coat of silicon grease.
4Door Clean and sterilize the door using the same method as the step (1) above. 5Rotor To prevent corrosion, remove the rotor from rotor chamber. If not in use for a lone term, then detach
the rotor lid and turn upside down to dry the tube holes and keep clean.
For sample leaks in the rotor, rinse the rotor with water. Apply a thin coat of silicon grease to the rotor
when it is completely dry.
The rotor should be regular maintenance, recommend to cleaning it each 3 months to ensure tube and
rotor holes keep clean, and then apply a thin coat of silicon grease.
(6) Drain (D1536R) The centrifuge is equipped with drain pipe for excess water. Drain off water when water is in drain
pipe.
9.2 Consumables
Replaceable wearing parts listed below. It is recommended to replace these according this table.
Item.
Replacement parts
Replacement conditions
1
Rubber block of temperature sensor
Cracked
2
Seal ring of centrifuge chamber (3024R)
Cracked
9.3 The replacement of rotor seal rings
9.3.1 Instructions
There are three high-temperature rubber seal rings that equipped into rotor to achieve bio-safe. The seal
CAUTION
Do not directly pour water, neutral detergent or disinfectant solution into the rotor chamber. Otherwise
fluids may leak into the drive units and cause corrosion or deterioration to the bearings.
USER MANUAL
14
rings may fall off or aging after several autoclaving, need to be replaced or re-installed.
Figure 9-1 Seal rings of rotor
9.3.2 Replacement methods
1Clean the seal ring slot with neutral detergent solution and make it dry. 2Evenly coated with glue (501) in the seal ring slot and keep the seal ring into slot, press evenly to make
it contact enough with the slot bottom and bond firmly. 3Place for 20 minutes and waiting for the glue to completely solidified.
9.4 Routine inspection
(1) Check that if the centrifuge is on a firmflat and level table, ensure the four feet stand on the table firmly.
(2) Check if the centrifuge grounded properly: Use multi-meter to check if is short circuit between the power cord grounding pin and the motor shaft. If yes, indicating grounded properly; if is open circuit, need to check failure reason first and make troubleshooting before use.
10. Troubleshooting
10.1 Possible problems and solutions
This centrifuge has a self-diagnostic function. If a problem occurs, an error/warning code will be displayed on the time display screen and the operator can determine the malfunction with the warning code below.
Symptom
Causes
Solutions
Nothing appears on the screen when the POWER is turned on.
·Building power circuit breaker trips.
·the fuse was blown out.
·Remove the trouble and turn on the POWER.
·Replace the fuse.
Seal ring 1 2 3
Seal ring 2 3
USER MANUAL
Error code appeared on the time display screen
E-02
Door fault
·The door opened in running.
·Press the key while the door opening.
·Close the door immediately.
·Close the door and then start to operate.
E-03
ROTOR ID
·The centrifuge can not identify the rotor ID.
·Reconfirm the ID code of the rotor and make a correct selection.
E-04
Temp sensor fault
·the connection fault.
·the sensor fault.
·reconnect
·Replace temperature sensor
E-06
Set wrong parameter
·The setting parameter exceed the allowable range.
·Modify the parameter value.
E-08
Chamber over hot
·The air inlets are blocked.
·cooling fan is damaged.
·Clean air inlets.
·Replace the cooling fan.
E-09
imbalance
· the allowable imbalance is exceeded.
·some wrong in the drive system
·Balance the sample
·checked by professional person.
E-1086
·Read the service manual.
·Contact with service center.
Table 10-1 Possible problems and solutions
10.2 How to open the door
10.2.1 In the case of power on
1Turn on the POWER switch, the door lock will release automatically. 2The door lock will release automatically once the operation finished.
3It is available to release the door by pressing key once the rotor stops.
10.2.2 In the case of power outage
The door cannot be opened automatically if there is a power outage. It is available to be opened manually. 1Ensure if the rotor has stopped rotating. Listen carefully to ensure no rotating sound can be heard. 2Insert a screw driver into the hole to open the door.
CAUTION
The door just can be opened while the power on and rotor stops rotating.
USER MANUAL
16
Two holes are located on the both sides in the top right corner of the cover. Insert a screw driver into the hole and push forward to release the door.
10.3 Replacement of fuses
1There are two fuses, 250V, 6.3A time-delay type, size: Ф5×20. 2The fuse holder is located in the power inlet. Pull out the fuse holder from power inlet and replace
the fuses if necessary.
11. Instructions of rotor and tube
CAUTION
Read the instructions thoroughly, correct use rotor. Do not exceed the allowable maximum speed of rotortube and adapters etc., be care that the allowable
maximum speed of some adapters are lower than the rotor‟s maximum speed.
11.1 The rotor instructions
11.1.1 Rotor structure
Figure 11-1 The rotor structure
11.1.2 Available rotors and adapters
Closed angle rotors, such as AS30-2, AS18-5V, AS60-2, AS12-PCR8, AS6050V, are used for bio-safe when the rotor lid was tightened with the rotor, centrifuge tubes will be enclosed into rotor to ensure the sample does not leak in centrifugal process. If rotor lid is not available, the rotor would be no bio-sealing function. The rotors can be used as follows:
Knob Locking nut Cover
Seal ring identify ring
USER MANUAL
Rotor type
ID
code
Tube/bottle
Adapter
Max. speed (rpm)
Max.centrifugal radius
r
max
(cm)
Max. RCF
Rcf (×g)
1
AS30-2
2/1.5ml ×30
6000
10
4020
0.2ml ×30
A02P2
6000
8.5
3415
0.5ml×30
A05P2
6000
9
3618
2
AS60-2
2/1.5ml ×60
6000
10
4020
0.2ml×60
A02P2
6000
8.5
3415
0.5ml×60 A05P2
6000
9
3618
3
AS18-5V
5mlV×18
6000
10
4020
4
AS12-PCR8
8-PCR ×12
6000
10
4020
0.2ml×96
6000
10
4020
5
AS6-50V
50mlV×6
6000
10.7
4306
6
A30-15
15mlV×30
4500
R1=14.2 R2=12.2
3210 2760
7
A8-50
15mlV×16
50mlV×8
5000
12.4
3460
8
SE4-100A
100ml ×4
4000
15.9
2840
85ml ×4
A85P100
4000
15.9
2840
50mlV ×4
A50VP100
4000
15.9
2840
15mlV ×8
A15VP100
4000
15.1
2700
310ml ×8
A10P100
4000
14.7
2630
9
S2-MP
(dimension)
mm
MTP
(128×85.6×15)
4000
12.1
2160
Cell culture
(128×85.6×21)
4000
12.1
2160
DWP
(128×85.6×45)
4000
12.1
2160
Kits
(128×85.6×60)
4000
12.1
2160
* 15mlV means 15ml conical tube, as well as 5mlV and 50mlV.
Table 11.1 Rotors and adapters
11.1.3 Notice
(1) The centrifuge rotor can separate sample which density lower than 2.0g/ml, if the samples density is
over 2.0g/ml, please calculate allowable speed depending on the following formula.
Allow Speed (rpm)= Maximum speed×(2.0(g/ml)/Sample density (g/ml))
1/2
2To prevent corrosion, remove the rotor from rotor chamber if do not use for a long time, then detach the
rotor lid and upside the rotor down to dry the tube holes.
USER MANUAL
18
3If some samples leaked in the rotor hole, wash the hole with water, apply a thin coat of silicon grease
on the rotor surface after drying.
4It is necessary for a regular maintenance for rotor, recommend to clean it each 3 months to keep
cleaning of tube hole and shaft hole, and then apply a thin coat of silicon grease on it.
11.1.4 Autoclaving
All rotors are manufactured in high-strength aluminum alloy material or stainless still and can be autoclaved:
121℃ (1.0kg/cm2), 20 minutes.
But some adapters are made of plastics, these adapters can be deformed after autoclaving, so you‟d better
use other disinfecting methods.
11.1.5 Bio-safe seal ring The rotor is sealed by bio-safe structures, achieved using three high-temperature rubber seal rings. The seal rings may fall off or aging after several autoclaving, need to be replaced or re-installed. The replacement methods please refer to the section 9.3.
11.2 Tubes
11.2.1 Cleaning and sterilizing tubes
Condition Material
PA
PC
PP
Cleaning
Cleaning fluids
AcidicpH5 or lower
X X X
Acidichigher than pH5
O O O
Alkalinehigher than pH9
O X O
AlkalinepH9 or lower
O O O
NeutralpH7
O O O
Warm water(up to 70)
O O O
Ultrasonic cleaning
Neutral detergentpH7
O O O
Sterilization
Autoclaving
115℃(0.7kg/cm2)30minutes
O O O
121℃(1.0kg/cm2)20 minutes
X O O
126℃(1.4kg/cm2)15 minutes
X X X
Boiling
15 to 30 minutes
O O O
Ultraviolet sterilization
200-300nm
X X X
Gas sterilization
Ethylene oxide
O X O
Formaldehyde
O O O
USER MANUAL
PA: PolyallomerPCPolycarbonatePPPolypropylene
11.2.2 Cleaning PC tubes
PC materials are low in chemical resistance against alkaline solutions. Avoid using neutral detergents with pH higher than 9. Note that pH of some neutral detergents are still higher than 9 even if diluted according to the instruction in the maker‟s catalog. Use detergent with its pH between 7 and 9.
11.2.3 Autoclaving PAPC and PP tubes
PA begins softening at about 120, PC and PP at about 130. Autoclave PA tubes at 115℃( 0.7kg/cm2)for 30 minutes and PC and PP tubes at 121℃(0.1kg/cm2)for 20 minutes. If a certain temperature is exceeded,
the tubes may be deformed. When using a sterilizing chamber, please operate as follows:
1 Place tubes in vertical position, mouths upward. If tubes are placed sideways, they may deform
into an oval shape due to gravity.
2Remove screw nuts and inner covers to prevent from deformation or rupture. 3Wait until the sterilizing chamber cools down to the room temperature before the tubes are
removed.
11.2.4 Condition and life expectancy of tubes
The life expectancy of plastic tubes depends on the characteristics of samples, speed of the rotor used, and temperature applied, and so on. When the plastic tubes are used for centrifuge of ordinary aqueous samples (pH between 5 and 9), their life expectancies are defined as follows. Be operated at the maximum speed:
High quality tubes (PAPCPP): 30-50 operations Ordinary tubes(PAPCPP): around 10 operations(Using in low speed can extend the tube life.
Life expectancy of tubes also depends on the pretreatment conditions such as cleaning and sterilization, lifetime can be cut down.
Notice: Do not use damaged or cracked tubes.
12. Calculate Relative Centrifuge Force(RCF)
Relative Centrifuge Force (RCF) can be determined with the following calculation formula. RCF=1.118×r×n2×10-5 Rrotating radius, unit: cm; nrotating speed, unit: rpm
USER MANUAL
20
13. Ordering information
Cat. No.
Model
Descriptions
912015137777
DM0636
Multi-purpose Centrifugewith SE4-100 rotor kits, US plug, 110V/50Hz/60Hz
91211517777
DM0636
Multi-purpose Centrifugewith SE4-100 rotor kits, Cn plug, 220V/50Hz/60Hz
912215127777
DM0636
Multi-purpose Centrifuge,with SE4-100 rotor kits, Euro plug , 220V/50Hz/60Hz
912315127777
DM0636
Multi-purpose Centrifugewith SE4-100 rotor kits, UK plug, 220V/50Hz/60Hz
Accessories
19400002
AS30-2
Rotor kits with cover, fixing clips and O'ring, 6000rpm, 2ml*30, used with D1536 & D1536R
19400002
AS18-5V
Rotor kits with cover, fixing clips and O'ring, 6000rpm, 5mlV*18, used with D1536 & D1536R
19400003
AS60-2
Rotor kits with cover, fixing clips and O'ring, 6000rpm, 2ml*60, used with D1536 & D1536R
19400002
AS12-PCR8
Rotor kits with cover, fixing clips and O'ring, 6000rpm, PCR8*12, used with D1536 & D1536R
19400002
AS650V
Rotor kits with cover, fixing clips and O'ring, 6000rpm, 50mlV*6, used with D1536 & D1536R
19400002
A30-15
30-Φ 17stainless tubes, 4500rpm, 30-15mlV tubes, used with D1536 & D1536R
19400004
A8-50
16-Φ 17stainless tubes and 8-Φ 31stainless tubes, 5000rpm, 16-15mlV tubes and 8-50mlV tubes, used with D1536 & D1536R
19400004
SE4-100A
4-Φ 45stainless tubes and 4-45 stainless rings, 4000rpm, 4-100ml tubes, used with D1536 & D1536R
19400004
S2-MP
2-buckets and 2-stainless carrier, 4000rpm, used with D1536 & D1536R
A85P100
85ml rotor adapter, used with SE4-100 rotors, 4pcs/pk
A50VP100
50mlV rotor adapter, used with SE4-100 rotors, 4pcs/pk
A15VP100
15mlV rotor adapter, used with SE4-100 rotors, 4pcs/pk
A10P100
310ml rotor adapter, used with SE4-100 rotors, 4pcs/pk
19500001
A02P2
0.2ml rotor adapter, used with AS30-2 & AS60-2 rotors 30pcs/pk
19500002
A05P2
0.5ml rotor adapter, used with AS30-2 & AS60-2 rotors,
USER MANUAL
30pcs/pk
9 hole-bucket assembly
4 hole-bucket assembly
2 hole-bucket assembly
1 hole-bucket assembly
14. Warranty
14.1 Warranty of the centrifuge
This centrifuge is guaranteed for two years from the date of delivery provided that it has been operated and maintained properly.
14.2 Warranty of the rotor
The rotor is guaranteed for 5 years from the date of delivery upon manufacture. Please pay attention, do not use the rotor once it has been corrosion or fatigue damage. We do not guarantee this centrifuge and the rotor under the following conditions even if within the guarantee period expires:
1Failures caused by incorrect installation. 2Failures caused by rough or improper handling. 3Failures caused by conveyance or relocation after installation. 4Failures caused by unauthorized disassembly or modification. 5Failures caused by using parts of the other companies, such as rotors and adapters. 6Failures caused by natural disasters including fire, earthquakes and so on. 7Consumables and parts have a limited guarantee period
15. After-sales Service
In order to ensure to operate centrifuge safely and efficiently, it is necessary for regular maintenance. If centrifuge has problems, do not attempt to repair it by yourself. Contact our sales or service center.
USER MANUAL
22
SCILOGEX, LLC
1275 Cromwell Ave., Suite C6, Rocky Hill, CT, 06067
United States.
Office: +1-860-436-9221
Fax: +1-860-436-9745
Sales/service contact: info@scilogex.com
www.scilogex.com
Loading...
