Scilogex 91101511 User Manual
USER MANUAL

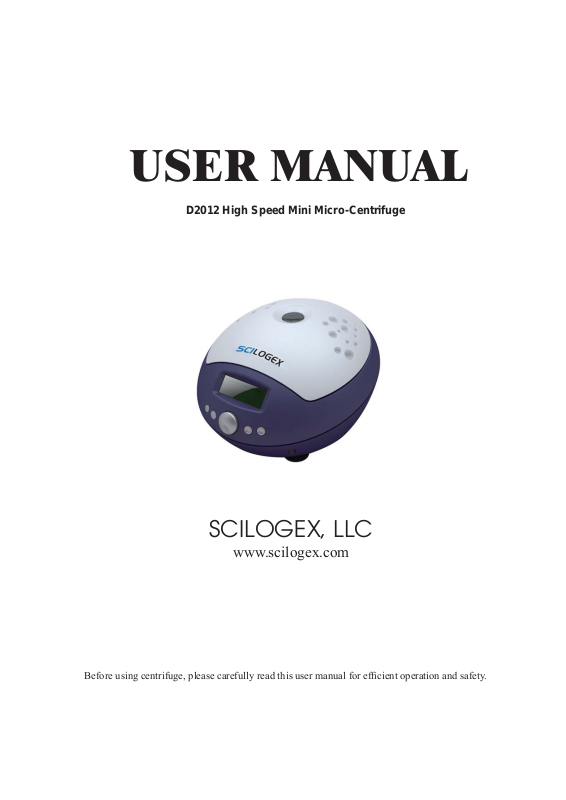

D2012 High Speed Mini Micro-Centrifuge
SCILOGEX, LLC
www.scilogex.com
Before using centrifuge, please carefully read this user manual for efficient operation and safety.
USER MANUAL
Contents
Copyright ...................................................................................................................................................................... 3
Safety Reminder ........................................................................................................................................................... 4
1. Specifications .............................................................................................................................................................6
2. Declaration of Conformity .......................................................................................................................................6
3. Required Operation Conditions ..............................................................................................................................7
4. Installation .................................................................................................................................................................7
4.1 Location ....................................................................................................................................................................7
4.2 Connection of the Power Cord and Grounding .........................................................................................................7
5. Structure ....................................................................................................................................................................8
6. Operation Panel ........................................................................................................................................................9
7. Rotor Preparation ...................................................................................................................................................10
7.1 Prepare the Sample .................................................................................................................................................10
7.2 Inject the Sample into Tubes ...................................................................................................................................10
7.3 Keep the Tubes Balance ..........................................................................................................................................10
7.4 Inspect the Rotor .....................................................................................................................................................10
7.5 Symmetrically Load Centrifuge Tubes to Rotor .....................................................................................................10
8. Operation .................................................................................................................................................................11
8.1 Normal Operation ...................................................................................................................................................11
8.2 RCF Operation ........................................................................................................................................................13
8.3 Pulse Operation .......................................................................................................................................................14
9. Maintenance ............................................................................................................................................................14
10. Troubleshooting ....................................................................................................................................................15
10.1 Possible Problems and Solutions ..........................................................................................................................15
10.2 How to Open the Door ..........................................................................................................................................15
11. Instructions for the Rotor and Tubes ..................................................................................................................16
11.1 Rotor Instructions ..................................................................................................................................................16
11.2 Tubes .....................................................................................................................................................................17
12. Calculate RCF .......................................................................................................................................................18
13. Ordering Information .........................................................................................................................................18
14. Warranty ...............................................................................................................................................................19
14.1 Warranty of the Centrifuge....................................................................................................................................19
14.2 Warranty of the Rotor............................................................................................................................................19
15. After-sales Service ................................................................................................................................................19
Page 2
www.scilogex.com
D2012 High Speed Mini Micro-Centrifuge
Copyright:
No part of this manual may be reproduced or transmitted without prior written permission of SCILOGEX.
We can not be responsible to inform at real-time if the outline and specifications of centrifuge are subject to change for improvement.
VERSION201104
www.scilogex.com
Page 3
USER MANUAL
Safety Reminder
Common safety precautions
Carefully read the following safety precautions for a thorough understanding.
● Follow the instructions and procedures described in this manual to operate this centrifuge safely.
● Carefully read all safety messages in this manual and the safety instructions on the centrifuge.
● Safety messages are labeled as indicated below. They are in combination with signal words of “WARNING” and
“CAUTION” with the safety alert symbol to call your attention to items or operations that could be dangerous to you
or other persons using this centrifuge. The definitions of signal words are as follows:
WARNING: Personal Danger
ʽ
Warning notes indicate any condition or practice, which if not strictly observed, could result in personal injury
or possible death.
CAUTION:Possible damage to centrifuge
ʽ
Caution notes indicate any condition or practice, which if not strictly observed or remedied, could result in
damage or destruction of the centrifuge.
NOTE:Notes indicate an area or subject of special merit, emphasizing either the product’s capability or
common errors in operation or maintenance.
● Do not operate this centrifuge in any manner not described in this User manual. When in doubt or have any troubles
with this centrifuge, ASK FOR HELP.
● The precautions described in this User manual are carefully developed in an attempt to cover all the possible risks.
However, it is also important that you are alert for unexpected incidents. Be careful operating this centrifuge.
ʽ
WARNING
● This centrifuge is not explosion-proof. Never use explosive or flammable samples.
● Do not install the centrifuge in or near places where inflammable gases are generated or chemicals are stored.
● Do not place dangerous materials within 30cm around the centrifuge.
● Prepare all necessary safety measures before using samples that are toxic, radioactive or contaminated with
pathogenic micro-organisms. Use of these is at your own responsibility.
● If the centrifuge, rotor and accessories that have been contaminated by solutions with toxic, radioactive or
pathogenic materials, clean it according to the decontamination procedure as specified.
● If you require service at site, please sterilize and decontaminate the centrifuge in advance, and then notify the
service center the details of the materials and procedure.
● To avoid electrical shocks, insure hands are dry before handling the power cord or turn on/off the power
switch.
● For safety purposes, do not enter within 30cm around this centrifuge when it is in operation.
● While the rotor is rotating, never release the door lock.
Unauthorized repairs, disassembly or modifying the centrifuge except by our service center are strictly
prohibited.
Page 4
www.scilogex.com
D2012 High Speed Mini Micro-Centrifuge
CAUTION
ʽ
● This centrifuge must be located on a firm and level table.
● Make sure the centrifuge is horizontal before running.
● Make sure the angle between the door and cover is greater than 70 degrees when opening the door.
● Be careful not put your fingers or hands between the door and cover while the door is open.
● Do not move or relocate the centrifuge when it is running.
● If fluid spills in the rotor chamber, please promptly clean and dry with a dry cloth to avoid sample
contamination.
● Ensure to remove any objects and fragments of the tubes dropped inside the rotor chamber before running the
centrifuge.
● Cautions with rotor
(1) Always check for corrosion and damages on the rotor surface before using it. Do not use the rotor if an
abnormality is found.
(2) Do not set the speed beyond the allowable minimum speed of the rotor kits (rotor or adapters). Make sure to
run it below the allowable minimum speed.
(3) Do not exceed the allowable imbalance.
(4) Use the rotor and tubes within their actual capacities.
(5) If the rotor is attached with a lid, ensure it is tightened before operation.
● If any abnormal condition occurs during operation, please stop it immediately and contact our service center.
Notify the service center is a warning code if displayed.
● Vibrations are likely to damage the centrifuge, contact our service center if abnormality observed.
www.scilogex.com
Page 5
USER MANUAL
1. Specifications
Maximum speed 15000rpm, increment: 100rpm
Maximum RCF 15100×g, increment: 100×g
Maximum capacity 2ml×12
Timer 30 seconds -99 minutes-HOLD, continuous operation
Driving Motor Brushless DC motor
Safety devices Door interlock; Over-speed detector; Over-temperature detector; Automatic internal diagnosis
Power requirements Single-phase, 110V-240V, 50Hz/60Hz, 3A
Dimensions(mm) (L)255×(W)245×(H)140
Weight 6kgs
Additional features Speed/RCF switch; Pulse operation; Processing display; Voice reminder
2. Declaration of Conformity
Construction in accordance with the following safety standards:
EN 61010-1
EN 61010-2-20
Construction in accordance with the following EMC standards:
EN 61326-1/ FCC Part 15 Subpart B/ IECS 001
Associated EU guidelines:
EMC-guidelines: 2004/108/EC
Centrifuge guidelines: 2006/95/EC
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme à la norme NMB-001 du Canada.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
NOTE: This centrifuge has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the centrifuge is operated in a commercial environment. The centrifuge generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the user manual, may cause harmful interference to radio
communications. Operation of centrifuge in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference.
Page 6
www.scilogex.com
