MX-S/MX-F Vortex Mixers
User Manual
MX-S Adjustable speed Vortex
MX-F Fixed speed Vortex
Please read the User Manual and the related Video of this
instrument on our website carefully before use, and follow
all operating and safety instructions!
The website www.scilogex.com
Cat No.12300139
1
Contents
Contents 1
Preface 2
Service 2
Warranty 2
1 Safety Instructions 3
2 Proper use 4
3 Inspection 4
3.1 Receiving Inspection 4
3.2 Listing of Items 4
4 Trial run 4
5 Operation 5
5.1 Continuous Operating 5
5.2 Touch Operating 5
6 Maintenance and Cleaning 6
7 Associated Standards and Regulations 6
8 Technical Data 7
9 Products and Accessories 7
2
MX-S(F) Vortex Mixers （Adjustable and Fixed Speed Models）
Preface
Welcome to the “Vortex Mixers （Adjustable and Fixed
Speed Models） User Manual”. Users should read this
manual carefully, follow the instructions and procedures, and
beware of all the cautions.
• Description of problem
• Methods and procedures adopted once to resolve the
problems
• Your contact information.
Warranty
Service
When help needed, you can always contact the sevice department
of manufacturer for technical support in the following ways:
SCILOGEX, LLC
500 Four Rod Road
Suite 122
Berlin, CT 06037
USA
Tel：1- (860) 828-5614
Fax：1- (860) 828-5389
E-mail: info@scilogex.com
Website：Http://www.scilogex.com
When calling manufacturer, please provide the following
information:
• Serial Number（on the bottom panel）
You have purchased a Scilogex instrument. This instrument
is warrant ed to be free from defec ts in materia ls and
workmanship under normal use and service, for a period
of 24 months from the date of invoice. The warranty is
extended only to the original purchaser. It shall not apply to
any product or parts which have been damaged on account
of improper installation, improper connections, misuse,
accident or abnormal conditions of operation.
For claims under the warranty please contact your local
dealer. You may also send the instrument direct to our works,
enclosing the invoice copy and by giving reasons for the
claim. You would be solely liable for freight costs.
3
MX-S(F) Vortex Mixers （Adjustable and Fixed Speed Models）
1 Safety Instructions
Warning!
• Read the operating instructions carefully
before use.
• Ensure that only trained staff use the
instrument.
Protective ground contact！
• Make sure the socket is earthed
(protective ground contact) before use.
- When work ，wear the personal guard to avoid the risk
from
- Splashing of liquids.
- Mechanical vibration may leads to glass breakage.
- Being trapped of parts of the body, hair or pieces of
clothing in the moving parts.
• During manual manipulation:
- Keep medium vessels vertical as much as possible.
- Mix the medium in the minimum pressure required.
- Use attachment supplied when mixing a mass of different
medium.
• Set up the instrument in a spacious area on an stable,
clean, non-slip, dry and fireproof surface. Do not operate
the instrument in explosive atmospheres, with hazardous
substances or under water.
• P ut th e spee d con trol knob to the low est positio n .
G
radually increase the speed (MX-S), reduce the speed if :
- The medium splashes out of the vessel because of too
high speed.
- The instrument is not running smoothly or moves on the
stage.
• Safe operation is only guaranteed with the accessories
described in the “Accessories” chapter.
• Accessories must be securely attached to the instrument
and can not come off by themselves.
• Check the instrument and accessories before hand for
damage each time you use them. Do not use damaged
components.
• Place a vessel at the centre of the mixing head and spread
out others uniformly.
• A sharp edged vessel can wear-out the mixing head.
• Always disconnect the plug before fitting accessories.
• The instrument may heat up when in use.
• The operating voltage required on the label and voltage
supply network must match.
• Protect the instrument and accessories from bumps and
impacts.
• The instrument may only be opened by qualified and
trained technician only.
4
MX-S(F) Vortex Mixers （Adjustable and Fixed Speed Models）
2 Proper use
The instrument is designed for mixing liquids in schools,
laboratories or factories. This device is not suitable for use
in residential areas or other areas that may cause danger to
the user or instrument as mentioned in Chapter 1.
3 Inspection
3.1 Receiving Inspection
Unpack the equipment carefully and check for any damages
which may have arisen during transport. If it happens, please
contact manufacturer for technical support.
Note:
If there is any apparent damage to the system,
please do not plug it into the power line.
Please retain all packing materials. Additional shipping
charges will be assessed if packing is unavailable for the
system warranty service.
4 Trial run
Figure 1
3.2 Listing of Items
The packing includes the following items:
Items Qty
Main unit 1
User manual 1
Table 1
Note:
Ensure the two-direction switch must be in
the middle (off state) before powering on.
If these operations above are normal, the instrument is ready
to operate following the “operation” chapter. If these
operations are not normal, the instrument may be damaged.
please contact manufacturer for technical support.
5
MX-S(F) Vortex Mixers （Adjustable and Fixed Speed Models）

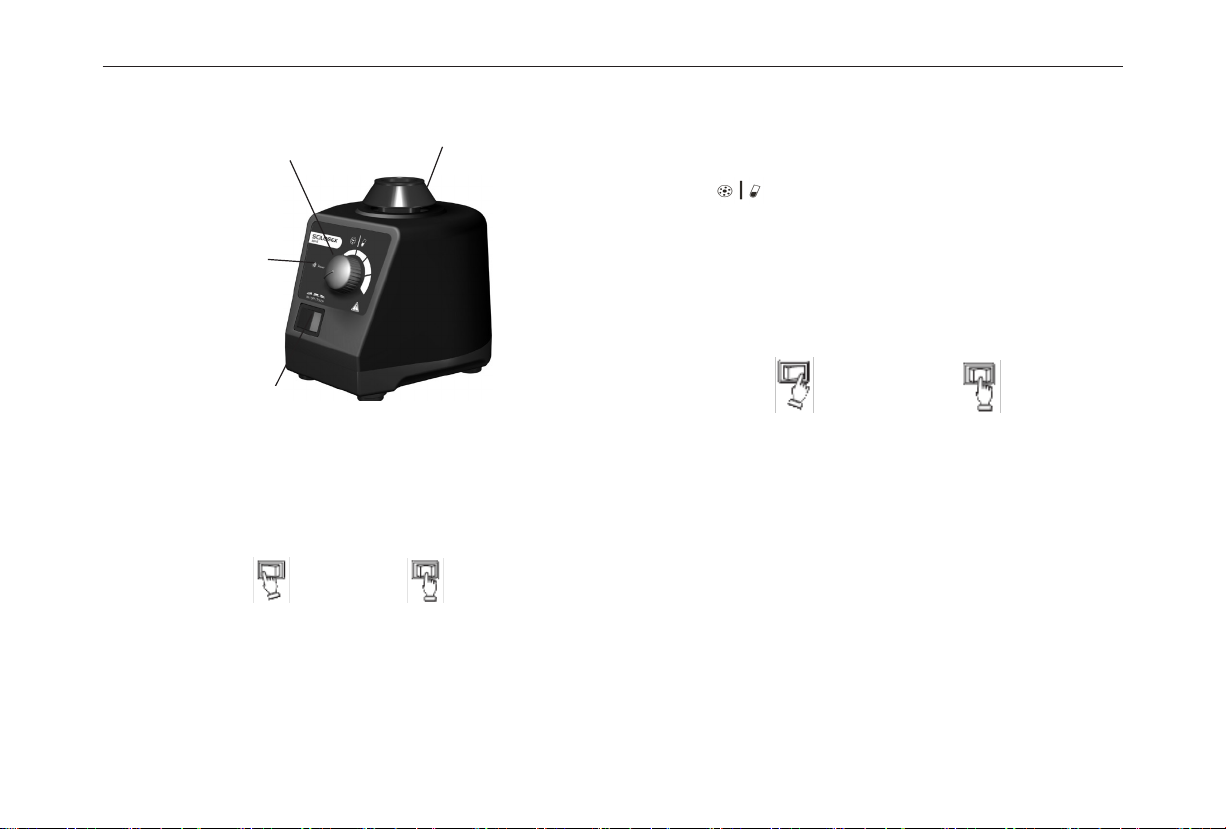

5 Operation
ON
OFF
OFF
Touch
Speed control knob
（
）
MS-S
Power
LED
Two direction swetch
Figure 2
5.1 Continuous operating
Figure 3
• Ensure the speed control knob to the lowest position Put
the instrument on the stable and safe place and plug in the
main power.
Mixing heed
• Push the two-direction switch leftward to ON and power
LED is lit. Then the instrument begins to work.
• Turn the speed control knob to set the rated speed (MX-S).
• If use the Nonstandard accessories，please ensure the
speed in
indicating range (MX-S)
• Push the two-direction switch rightward gently to OFF
and LED power is closed and the instrument is turned off.
5.2 Touch operating
Figure 4
• Ensure the speed control knob to the lowest position Put
the instrument on the stable and safe place and plug in the
main power.
• Push the two-direction switch rightward to the touch
mode.
• Turn the speed control knob to set the rated speed (MX-S).
• If a test tube is pressed into the mixing head vertically, the
instrument will begin to work and the power LED will be lit.
• Push the two-direction switch leftward gently to OFF and
the instrument is turned off.
6
MX-S(F) Vortex Mixers （Adjustable and Fixed Speed Models）
Note:
• Place vessels such as a test tube as vertical as
possible into the centre of the mixing head in
order to mixing smoothly.
• Adjust the speed control knob slowly in order
to have the instrument work smoothly.
6 Maintenance and cleaning
• Proper maintenance can keep instruments working in a
good state and lengthen its life time.
• Be careful not spray the cleanser into the instrument when
cleaning.
• Unplug the power line when cleaning.
• Only use cleanser that we advised as below:
Dyes Isopropyl alcohol
Construction materials
Cosmetics
Foodstuffs Water containing tenside
Fuels Water containing tenside
For materials which are not listed, please request information
Water containing tenside /
isopropyl alcohol
Water containing tenside /
isopropyl alcohol
Table 2
from manufacturer.
• Before using other method for cleaning or decontamination,
the user must ascertain with the manufacturer t
method does not destroy the instrument.
• Wear the proper protective gloves during cleaning of the
instruments.
NOTE:
• Electrical instruments may not be placed in the cleansing
agent for the purpose of cleaning.
• The instrument is a sophisticated electronic products,
avoiding severe shake in work and transportation
• The instrument must be cleaned and put it into the initial
packaging carto n before sending to service for repair,
avoiding the contamination of hazardous.
• Switch OFF the instrument and put it in the dry, clean,
stable place at room temperature in long-term disuse.
hat this
7 Associated standards and regulations
Construction in accordance with the following safety
standards:
EN 61010-1
Constructi on in accordance with the follow ing EMC
standards:
7
MX-S(F) Vortex Mixers （Adjustable and Fixed Speed Models）
EN 61326-1
Associated EU guidelines:
EMC-guidelines: 89/336/EWG
Instrument guidelines: 73/023/EWG
8 Technical data
Items Parameters
Voltage [VAC] 220-230 / 110-120
Frequency [Hz] 50 / 60
Power [W] 60
Shaking movement Orbital
Orbital diameter [mm] 4
Motor type Shaded-pole motor
Motor rating input [W] 58
Motor rating output [W] 10
Permissible ON time 100%
Speed range [rpm] 0-2500(MX-S)/ 2500(MX-F)
Speed display Scale
Run type Continuous/touch operation
Dimensions (mm) 127×130×160
Weight [kg] 3.5
Permitted ambient
temperature[°C]
5-40
Items Parameters
Permitted relative humidity 80%
Protection class acc. to DIN
60529
IP21
Table 3
9 Products and Accessories
Cat.No. Description
821100019999 MX-F fixed speed Vortex，with VT
1.1 Standard Attachment, Cn plug,
220v/50Hz
821100029999 MX-F fixed speed Vortex，with VT
1.1 Standard Attachment, Cn plug,
220v/60Hz
821100039999 MX-F fixed speed Vortex，with VT
1.1 Standard Attachment, USA plug,
110v/50Hz
821100049999 MX-F fixed speed Vortex，with VT
1.1 Standard Attachment, USA plug,
110v/60Hz
821100059999 MX-F fixed spee
1.1 Standard Attachment, Euro plug,
220v/50Hz
d Vortex，with VT
8
MX-S(F) Vortex Mixers （Adjustable and Fixed Speed Models）
821100069999 MX-F fixed speed Vortex，with VT
1.1 Standard Attachment, UK plug
220v/50Hz
821100079999 MX-F fixed speed Vortex，with VT
1.1 Standard Attachment, Euro plug,
220v/60Hz
821100089999 MX-F fixed speed Vortex，with VT
1.1 Standard Attachment, UK plug,
220v/60Hz
821100159999 MX-F fixed speed Vortex，with VT
1.1 Standard Attachment, USA plug,
220v/60Hz
821100169999 MX-F fixed speed Vortex，with VT
1
.1 Standard Attachment, USA plug,
220v/50Hz
821200019999 MX-S adjustable speed Vortex，
with VT 1.1 Standard Attachment, Cn
plug, 220v/50Hz
821200029999 MX-S adjustable speed Vortex，
with VT 1.1 Standard Attachment, Cn
plug, 220v/60Hz
821200039999 MX-S adjustable speed Vortex，with
VT 1.1 Standard Attachment, USA
plug, 110v/50Hz
821200049999 MX-S adjustable speed Vortex，with
VT 1.1 Standard Attachment, USA
plug, 110v/60Hz
821200059999 MX-S adjustable speed Vortex，with
VT 1.1 Standard Attachment, Euro
plug, 220v/50Hz
821200069999 MX-S adjustable speed Vortex，with
VT 1.1 St andard Attachmen t, UK
plug, 220v/50Hz
821200099999 MX-S adjustable speed Vortex，with
VT 1.1 Standard Attachment, Euro
plug, 220v/60Hz
821200109999 MX-S adjus
table speed Vortex，with
VT 1.1 St andard Attachmen t, UK
plug, 220v/60Hz
821200159999 MX-S adjustable speed Vortex，with
VT 1.1 Standard Attachment, USA
plug, 220v/60Hz
82120016999 MX-S adjustable speed Vortex，with
VT 1.1 Standard Attachment, USA
plug, 220v/50Hz
MX-S(F) Vortex Mixers （Adjustable and Fixed Speed Models）
Accessories
C a t. No a n d
Designation
18900034
VT1.1
standard top
18900035
VT1.3
universal top
plate
18900020
VT1.3.1
tubeadapte
18900021
VT1.3.2 tube
adapter
18900022
VT1.3.3 tube
adapter
18900023
VT1.3.4 tube
adapter
Serviceable
range
Fortest tubes and
small vessels upto
diameter 30 mm
1 0 0 m m - p la t e
attachment with
rubber pad
For 48 Eppendorf
tubes
For 18 test tubes
Ø1 0m m f o r VT
1.3
For 12 test tubes
Ø12mm , for VT
1.3
For 8 test tube s
Ø16mm, for VT
1.3
Operation
mode
Continuous
/touch
operation
Continuous
operation
Con t in uou s
operation
Con t in uou s
operation
Con t in uou s
operation
Con t in uou s
operation
18900024
VT1.3.5tu b e
adapter
18900043
VT1.3.6,
plateform pad
For 8 test tube s
Ø20mm, for VT
1.3
F o r < Ø 9 9 m m
tubes and small
vessels
Con t in uou s
operation
Touch
openation
Table 4
NOTE: VT1.3～VT1.3.5 adapter and pad are only suitable to
MX-S Adjustable speed Vortex
Serial Number and pattern number and accessories names
on the type plate must be supplied when ordering other
accessories.
Changing attachment
Figure 5
info@scilogex.com | www.scilogex.com
SCILOGEX, LLC
1275 Cromwell Ave.
Suite C6
Rocky Hill, CT 06067 USA
Tel: +1(860) 436-9221
Fax: +1(860) 436-9745
Loading...
