Scilogex 81112102 User Manual

MS-H-S/MS-S Magnetic/Hotplate Stirrers

MS-H-S Analog Hotplate Magnetic Stirrer

MS-S Analog Magnetic Stirrer

Please read the User Manual and the related Video of this
instrument on our website carefully before use, and follow
all operating and safety instructions!

The website www.scilogex.com

User Manual

Cat No.12300135

1

Contents

Contents 1
Preface 2
Service 2
Warranty 2
1 Safety Instructions 3
2 Proper use 4
3 Inspection 4

3.1 Receiving Inspection 4

3.2 Listing of Items 4
4 Trial run 5
5 Control and Display 5
6 Operation 6
7 Faults 6
8 Maintenance and Cleaning 6
9 Associated Standards and Regulations 7
10 Technical data 7
11 Products and Accessories 8

2

MS-(H)-S Analog (Hotplate) Magnetic Stirrer

Preface

Welcome to the “MS-(H)-S Analog Hotplate Magnetic
Stirrer User Manual”. Users should read this Manual
carefully, follow the instructions and procedures, and beware
of all the cautions when using this instrument.

Please provide the customer care representative with the
following information:

• Serial Number（on the rear panel）

• Description of problem (i.e., hardware or software)

• Methods and procedures adopted to resolve the problems

• Your contact information

Service

When help needed, you can always contact the sevice department
of manufacturer for technical support in the following ways:
SCILOGEX, LLC
500 Four Rod Road
Suite 122
Berlin, CT 06037
USA
Tel：1- [phone]
Fax：1- [phone]
E-mail: [e-mail]
Website：Http://www.scilogex.com

Warranty

You have purchased a Scilogex instrument. This instrument
is warrant ed to be free from defec ts in materia ls and
workmanship under normal use and service, for a period
of 24 months from the date of invoice. The warranty is
extended only to the original purchaser. It shall not apply to
any product or parts which have been damaged on account
of improper installation, improper connections, misuse,
accident or abnormal conditions of operation.
For claims under the warranty please contact your local
dealer. You may also send the instrument direct to our works,
enclosing the invoice copy and by giving reasons for the
claim. You would be solely liable for freight costs.

3

MS-(H)-S Analog (Hotplate) Magnetic Stirrer

1 Safety Instructions

Warning!

• Read the operating instructions carefully before
use the instrument.

• Ensure that only trained staff work with the
instrument.

• Forbid to heat the substances with low- burning
point or easy-volatile（MS-H-S）
Risk of burn!

• Caution when touching the housing parts and
the heating plate. The heating plate can reach
temperatures of 340 ℃.

• Pay attention to the residual heat after switching
off.
Protective ground contact！

• Make sure that socket is earthed (protective
ground contact) before use.

• When work ，wear the personal guard to avoid the risk
from:

- Splashing and evaporation of liquids

- Release of toxic or combustible gases.

• Set up the instrument in a spacious area on an stable,
clean, non-slip, dry and fireproof surface, do not operate
the instrument in explosive at

mospheres, with hazardous

substances or under water.

• Gradually increase the speed, reduce the speed if :

- The stirring bar breakaway because of too high speed

- The instrument is not ru nning smoothl y, or if the
container moves on the base plate.

• Temperature must always be set to at least 25 ℃ lower
than the fire point of the media used.

• Beware of hazards due to:

- Flammable materia

ls or media with a low boiling

temperature

- Overfilling of media

- Unsafe container

• Process pathogenic materials only in closed vessels.

• If the case of the stirrer bar is PTFE,please note：

- Elemental fluorine, three fluoride and alkali metals will
corrode the PTFE and Halogen alkanes make it expansion at
room temperature

- Molten alkali ，alkaline earth metals or their solution, as
well as the powder in second and third ethnic of the periodic
table of elements will have chemical reaction with PTFE
when temperature reaches 300 ~ 400 ℃.

• The voltage stated on the label must correspond to the
main power supply.

• Ensure that the mains power supply cable does not touch
the hotplate. Do not cover the instrument.

4

MS-(H)-S Analog (Hotplate) Magnetic Stirrer

>100mm

• The instrument may only be opened by experts.

• Keep away from high magnetic field.

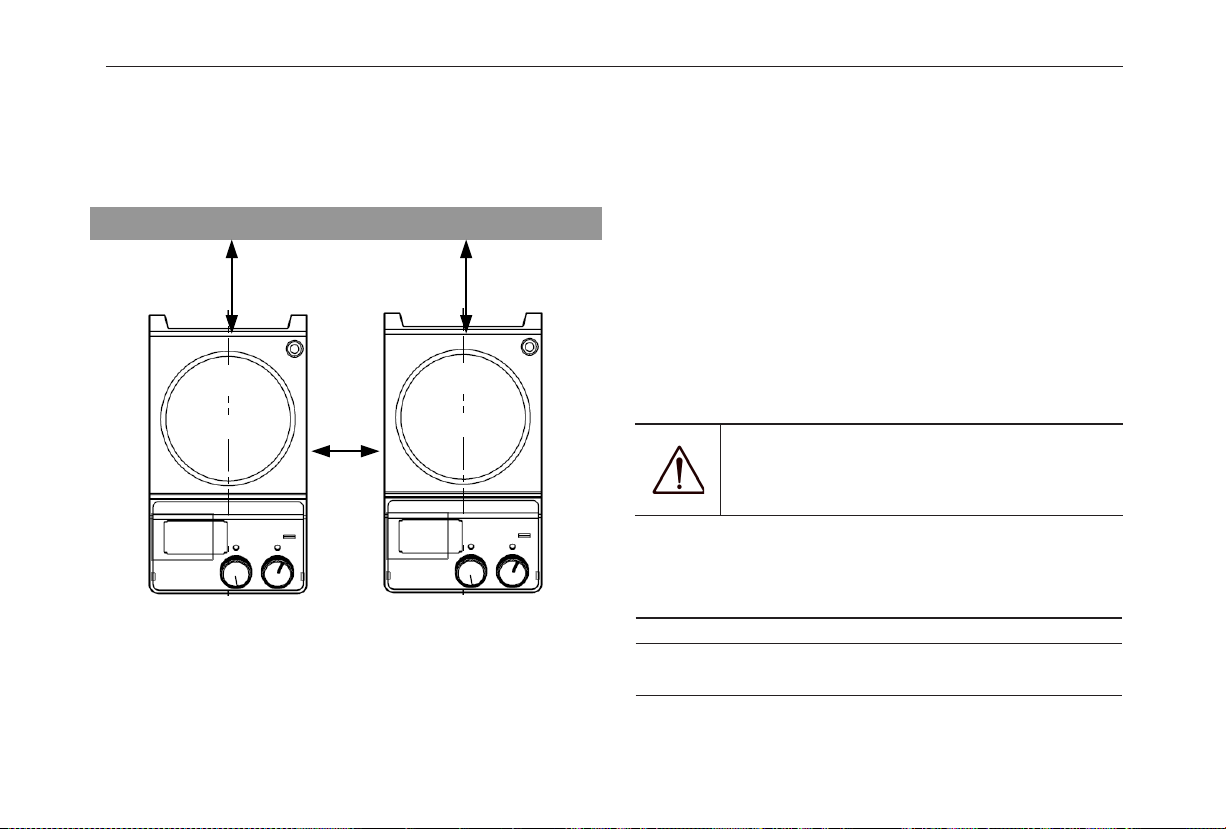

• Observe the minimum distances between the devices,

be t ween the instru m ents and the wa l l and abov e the
assembly (min. 100 mm).

Figure 1

2 Proper use

The instrument is designed for schools, laboratories or
factories. This device is not suitable for use in residential
areas or other areas that may cause danger to the user or
instrument as mentioned in Chapter 1.

3 Inspection

3.1 Receiving Inspection

Unpack the equipment carefully and check for any damages
which may have arisen during transport. If it happens, please
contact manufacturer Limited for technical support.

Note:
If there is any apparent damage to the system,
please do not plug it into the power line.

3.2 Listing of Items

The packing includes the following items:

Items Qty
Main unit 1
Power cable 1

5

MS-(H)-S Analog (Hotplate) Magnetic Stirrer

Stirrer bar 1
User manual 1

Table 1

4 Trial run

• Make sure the required operating voltage and power
supply voltage match.

• Ensure the socket must be earthed.

• Ensure the power be off and the speed control knob and

the temperature control knob to the lowest position

• Plug in the power cable and power on the device.

• Add the medium into the vessel with a stirring bar.

• Put the vessel on the plate.

• Set the rated stirring speed and the device begins to work.

• Set the rated temperature and the device begins to

work(MS-H-S).

• Keep the temperature control knob and the speed control
knob slowly to the lowest position to turn off the function.
If these operations above are normal, the device is ready to
operate. If these operations are not normal, the device may
be damaged during transportation, please contact DragonLab
corporation for technical support.

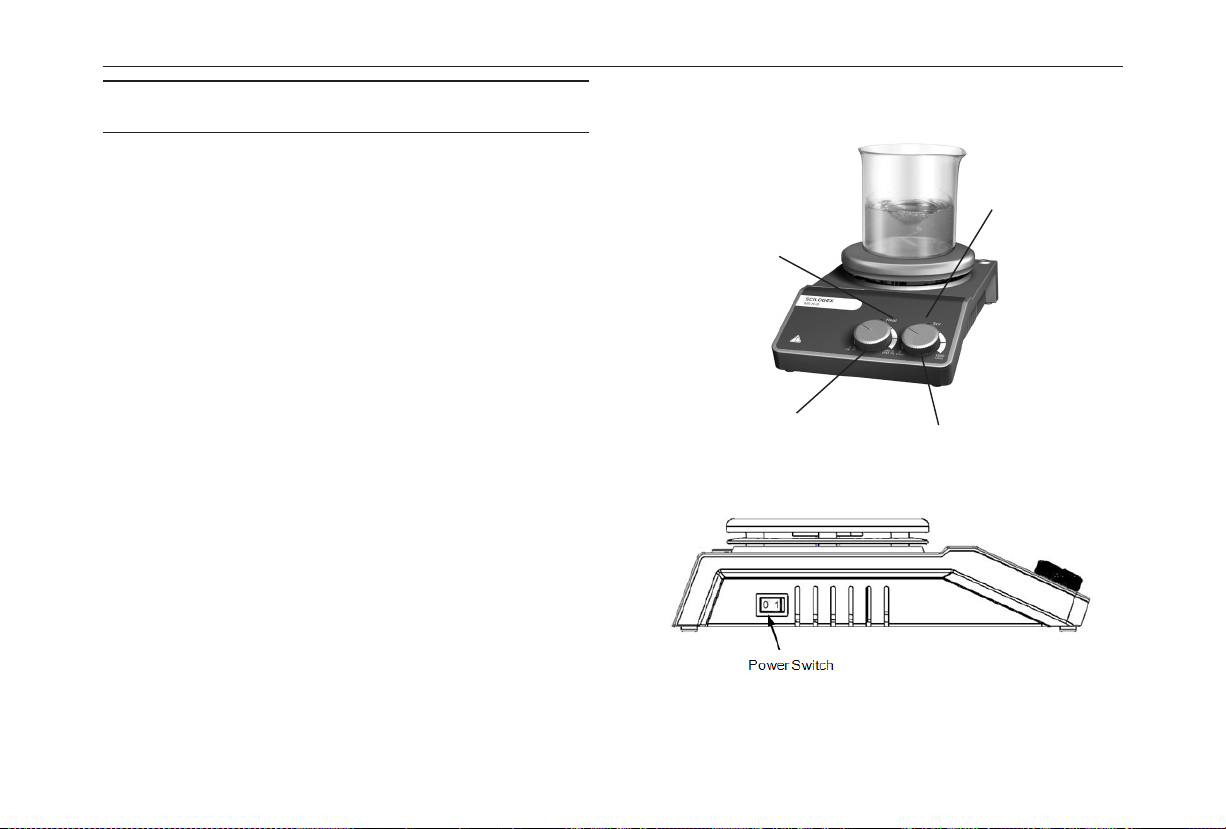

5 Control and Display

LED

Heat

Heating Knob

(MS-H-S)

Stirring Knob

Figure 2

LED

Stir

Figure 3

6

MS-(H)-S Analog (Hotplate) Magnetic Stirrer

Items Descriptions

Set the rated rotary speed in the safe

Stir knob

Heat knob
(MS-H-S)

LED heating Lit when heating

LED Power

switch Switch ON or OFF.

Mains

stirring range from 0 to 1500 rpm. The
function “Stirring” is switched ON or
OFF via the knob

Set the rated temperature in the safe
temperature range from room temperature
to 340 ℃. The function “heating” is
switched ON or OFF via the knob.

When the device is switched ON, the
LED power is lit.

Table 2

6 Operation

• Put the device on the stable and safe place，ensure the
speed control knob and the temperature control knob to the
lowest position and plug in the mains power.

• Turn ON the power switch.

• Turn the speed control knob regulation to set the rated

rotary speed in the safe speed limit from 0 to 1500 rpm.

• Turn the temperature control knob regulation to set the

rate

d temperature in the safe limit from 0 to 340℃.(MS-H-S)

• The instrument begins to work.

Note：
Forbid to transfer the vessel when the instrument
working，or you must restart Stir function again,
avoiding Stirring bar breakaway.

7 Faults

• If a unit fault happens, please power down the instrument.

• Switch OFF the unit at the main ON/OFF switch for a few

seconds.

• The stirring function will continue to operate at the speed
set before the fault took place.

• The heating function will continue to operate at the set
point before the fault took place.

• If the problem is not solved, take the unit to your technical
service center.

8 Maintenance and Cleaning

• Proper maintenance can keep instruments working in a
good state and lengthen its lifetime.

• Be careful not spray the cleanser into the instrument when

7

MS-(H)-S Analog (Hotplate) Magnetic Stirrer

cleaning.

• Unplug the power line when cleaning.

• Only use cleanser that we advised as below:

Dyes Isopropyl alcohol

Construction materials

Cosmetics

Foodstuffs Water containing tenside

Fuels Water containing tenside

• Before using other method for cleaning or decontamination,
the user must ascertain with the manufact urer that this
method does not harm or destroy the instrument.

• Wear the proper pro
instrument.

• The instrument must be cleaned and put it into the initial
packaging carton before sending to service for repair,
avoiding the contamination of hazardous.

• Use the instrument in a dry clean room and temperature
stable environment.

Water containing tenside /
isopropyl alcohol

Water containing tenside /
isopropyl alcohol

Table 3

tective gloves during cleaning of the

9 Associated standards and regulations

Construction in accordance with the following safety
standards:
EN 61010-1
UL 3101-1
CAN/CSA C22.2(1010-1)
EN 61010-2-10
Constructi on in accordance with the follow ing EMC
standards:
EN 61326-1
Associated EU guidelines:
EMC-guidelines: 89/336/EWG
Machine guidelines: 73/023/EWG

10 Technical data

Items Parameters

Voltage [VAC] 200-240 / 100-120

Frequency [Hz] 50/60

Power [W] 530(MS-H-S) / 130(MS-S)

Stirring point position
quantity

Max. stirring quantity (H2O) [L] 20

1

8

MS-(H)-S Analog (Hotplate) Magnetic Stirrer

Max. magnetic bar [mm] 80

Motor type

External rotor
brushless motor

Max. power input of motor [W] 18

Max.power output of motor [W] 10

Speed range[rpm] 0 ~ 1500

Speed display accuracy [rpm] 1

Hotplate material Stainless steel/porcelain enamel

Ø of the hotplate [mm] Ø 135

Heating power[W] 500(MS-H-S)

Heating rate (1L water) [K/min] 6(MS-H-S)

Temperature range[℃] RT~340(MS-H-S)

The safety temperature range
of the hotplate

[℃]

350(MS-H-S)

Dimensions (mm) 280×160×85

Weight [kg] 2.8

Permitted ambient
temperature[℃]

5 ~ 40

Permitted relative humidity 80%

Protection class acc. to DIN 60529 IP42

Table 4

11 Products and Accessories

Cat.NO Descriptions

811121019999

811121029999

811121039999

811121049999

811121059999

811121069999

811121109999

811121119999

811121159999

MS - H- S w i th He a ti n g，P or c el a in
enamel, Cn plug, 220V/50Hz/60Hz

MS - H- S w i th He a ti n g，P or c el a in
enamel, USA plug, 110V/50Hz/60Hz

MS-H-S with Heating，Stainless Steel,
Cn plug, 220V/50Hz/60Hz

MS-H-S with Heating，Stainless Steel,
USA plug, 110V/50Hz/60Hz

MS - H- S w i th He a ti n g，P or c el a in
enamel, Euro plug, 220V/50Hz/60Hz

H- S w i th Hea ti n g，P or c el a in

MS ­enamel, UK plug, 220V/50Hz/60Hz

MS-H-S with Heating，Stainless Steel
Euro plug, 220V/50Hz/60Hz

MS-H-S with Heating，Stainless Steel,
UK plug, 220V/50Hz/60Hz

MS - H- S w i th He a ti n g，P or c el a in
enamel, USA plug, 220V/50Hz/61Hz

MS-(H)-S Analog (Hotplate) Magnetic Stirrer

811111019999

811111029999

811111039999

811111049999

Accessories

18900001

18900002 MS 135.2 Quarter, 4 ml reaction vessel

8900003 MS 135.3 Quarter, 20 ml reaction vessel

1

18900004 MS 135.4 Quarter, 30 ml reaction vessel

18900005 MS 135.5 Quarter, 40 ml reaction vessel

18900048 MS 135.6 Quarter, 8 ml reaction vessel

18900049 MS 135.7 Quarter, 16 ml reaction vessel

18900006 Stirring bars（10mm x 6mm），1pcs/pk

18900007 Stirring bars（15mm x 8mm），1pcs/pk

18900008 Stirring bars（20mm x 8mm），1pcs/pk

18900009 Stirring b

MS-S without Heating，Stainless Seel,
Cn plug 110V/220V/50Hz/60Hz

MS-S without Heating ,Stainless Seel,
Euro plug 110V/220V/50Hz/60Hz

MS-S without Heating，Stainless Seel,
UK plug 110V/220V/50Hz/60Hz

MS-S without Heating，Stainless Seel,
USA plug 110V/220V/50Hz/60Hz

MS 135. 1 Car r ier pla t e，Used with
MS135.2--5

ars（25mm x 8mm），1pcs/pk

12500005 Stirring bars（30mm x 6mm），1pcs/pk

12500005 Stirring bars（30mm x 6mm），1pcs/pk

18900011 Stirring bars（40mm x 8mm），1pcs/pk

12500004 Stirring bars（50mm x 8mm），1pcs/pk

18900013 Stirring bars（65mm x 8mm），1pcs/pk

18900014 Stirring bars（80mm x 13mm），1pcs/pk

18900015 Stirring bar mover，1pc

18900018

18900019

F100 unit cover，for none heat plate
model MS-Pro,MS-S

F101 unit cover，for heat plate model
MS-H-S,MS-H-Pro

Table 5

SCILOGEX, LLC

1275 Cromwell Ave.

Suite C6

Rocky Hill, CT 06067 USA

Tel: [phone]

Fax: [phone]

[e-mail] | www.scilogex.com
