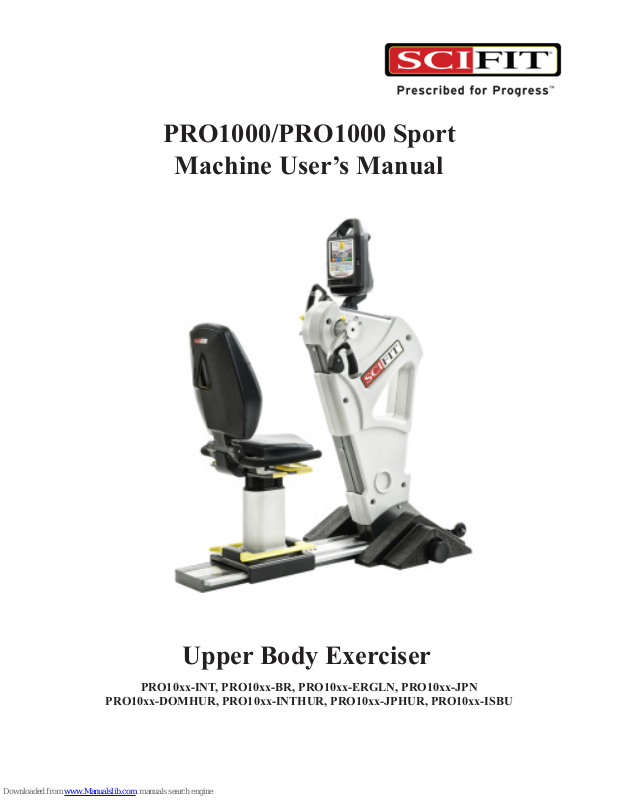

SCIFIT PRO1000, PRO1000 Sport User Manual

PRO1000/PRO1000 Sport

Machine User’s Manual

Upper Body Exerciser

PRO10xx-INT, PRO10xx-BR, PRO10xx-ERGLN, PRO10xx-JPN

PRO10xx-DOMHUR, PRO10xx-INTHUR, PRO10xx-JPHUR, PRO10xx-ISBU

User and Service Documents Link________________________________________________

Operation Manuals and other Product Information available at http://www.scit.com/resources/specications-manuals/

عقوملا ىلع ةحاتم زاهجلا نع ىرخأ تامولعمو ليغشتلا ةلدأ http://www.scit.com/resources/specications-manuals/

操作マニュアルおよびその他の製品情報については、http://www.scit.com/resources/specications-manuals/ を ご 覧くだ さ い 。

如需操作手册和其他产品信息，请登录：http://www.scit.com/resources/specications-manuals/

操作手冊和其他產品資訊請見 http://www.scit.com/resources/specications-manuals/

작동 설명서 및 기타 제품 정보는 http://www.scit.com/resources/specications-manuals/ 에서 찾을 수 있습니다.

Trobareu el manual de funcionament i altra informació de producte a http://www.scit.com/resources/specications-manuals/

Mae Llawlyfrau Gweithredu a Gwybodaeth Arall am Beiriannau ar gael yn http://www.scit.com/resources/specications-manuals/

Die Betriebsanleitung und andere Produktinformationen erhalten Sie unter http://www.scit.com/resources/specications-manuals/

Encontrará el manual de funcionamiento y otra información de producto en http://www.scit.com/resources/specications-manuals/

Erabiltzailearen Eskuliburua eta Beste Produktuei buruzko Informazioa eskuratu

http://www.scit.com/resources/specications-manuals/

Käyttöoppaat ja muut tuotetiedot ovat saatavana osoitteessa http://www.scit.com/resources/specications-manuals/

Les manuels d’utilisation, ainsi que d’autres informations sur les Produits, sont disponibles sur

http://www.scit.com/resources/specications-manuals/

Felhasználói kézikönyvek és más termékinformációk: http://www.scit.com/resources/specications-manuals/

Manuali di funzionamento e altre informazioni sui prodotti disponibili su http://www.scit.com/resources/specications-manuals/

Instrukcje obsługi i inne informacje o produktach dostępne na stronie http://www.scit.com/resources/specications-manuals/

Manuais de Operação e Informações sobre outros produtos disponíveis em http://www.scit.com/resources/specications-manuals/

Руководства по эксплуатации и другую касающуюся нашей продукции информацию можно найти, перейдя по ссылке

http://www.scit.com/resources/specications-manuals/

Kullanım Kılavuzları ve Diğer Ürün Bilgileri http://www.scit.com/resources/specications-manuals/

CORPORATE HEADQUARTERS

Columbia Centre III, 9525 West Bryn Mawr Avenue, Rosemont, Illinois 60018 • U.S.A.

847.288.3300 • FAX: [phone]

Service phone number: 800.351.3737 (toll-free within U.S.A., Canada)

Global Website: www.lifefitness.com

AMERICAS

North America
SCIFIT

5151 S. 110th E. Avenue
Tulsa, OK, 74146 U.S.A
Toll Free: [phone]
Fax: [phone]
Email: [email protected]
Service Website: www.scifit.com/Support
Operating Hours: 7:00 am - 5:00 pm (CST)

Brazil
Life Fitness Brasil

Av. Cidade Jardim, 900
Jd. Paulistano
São Paulo, SP 01454-000
BRAZIL
SAC: 0800 773 8282
Telephone: [phone]
Fax: [phone]
Service Email: suporte@lifefitness.com.br
Sales/Marketing Email:
lifefi[email protected]
Service Operating Hours:

9:00 - 17:00 (BRT) (Monday-Friday)

Store Operating Hours:

9:00 - 20:00 (BRT) (Monday-Friday)
10:00 - 16:00 (BRT) (Saturday)

Latin America & Caribbean*
Life Fitness Inc.

Columbia Centre III
9525 West Bryn Mawr Avenue
Rosemont, IL 60018 U.S.A
Telephone: [phone]
Fax: [phone]
Service Email:
customersupport@lifefitness.com
Sales/Marketing Email:

commercialsales@lifefitness.com

Operating Hours: 7:00am - 6:00pm (CST)
______________________________________

EUROPE, MIDDLE EAST, & AFRICA

(EMEA)

Netherlands & Luxemburg
Life Fitness Atlantic BV

Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: [phone]
Fax: [phone]
Service Email:
service.benelux@lifefitness.com
Sales/Marketing Email:

fi[e-mail]

Operating Hours: 9.00h - 17.00h (CET)

* Also check www.SCIFIT.com for local representation or distributor/dealer

* Order online 24/7 at www.SCIFIT.com

United Kingdom & Ireland
Life Fitness UK LTD

Queen Adelaide
Ely, Cambs, CB7 4UB
Telephone: General Office (+44)

1353.666017
Customer Support (+44) 1353.665507
Fax: [phone]
Service Email: uk.support@lifefitness.com
Sales/Marketing Email: life@lifefitness.com
Operating Hours:

(GMT)

Germany & Switzerland
Life Fitness Europe GMBH

Siemensstraße 3
85716 Unterschleißheim
GERMANY
Telephone: [phone] (Germany)
([phone] (Switzerland)
Fax: [phone] (Germany)
([phone] (Switzerland)
Service Email:
kundendienst@lifefitness.com
Sales/Marketing Email:

Operating Hours: 08.30 - 16.30h (CET)

Austria
Life Fitness Austria

Vertriebs G.m.b.H.
Dückegasse 7-9/3/36
1220 Vienna
AUSTRIA
Telephone: [phone]
Fax: [phone]
Service Email: kundendienst@lifefitness.

com

Marketing/Sales Email:

Operating Hours: 08:30 - 16.30.h (MEZ)

Spain
Life Fitness IBERIA

C/Frederic Mompou 5,1º1ª
08960 Sant Just Desvern Barcelona
SPAIN
Telephone: [phone]
Fax: [phone]
Service Email: servicio.tecnico@lifefitness.
com
Sales/Marketing Email:
info.iberia@lifefitness.com
Operating Hours:

General Office: 9.00am - 5.00pm (GMT)
Customer Support: 8.30am - 5.00pm

kundenberatung@lifefitness.com

kundenberatung@lifefitness.com

9.00h - 18.00h (Monday-Thursday)

8.30h - 15.00h (Friday)

Belgium
Life Fitness Benelux NV

Parc Industrial de P
4800 Verviers
BELGIUM
Telephone: [phone]
Fax: [phone]
Service Email:
service.benelux@lifefitness.com
Sales/Marketing Email:

marketing.benelux@lifefitness.com

Operating Hours: 9.00h - 17.00h (CET)

All Other EMEA Countries &
Distributor Business C-EMEA*

Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: [phone]
Fax: [phone]
Service Email:
service.db.cemea@lifefitness.com
Sales/Marketing Email:

marketing.db.cemea@lifefitness.com

Operating Hours: 9.00h - 17.00h (CET)
____________________________________

ASIA PACIFIC (AP)

Japan
Life Fitness Japan

Japan Nippon Brunswick Bldg., #8F
5-27-7 Sendagaya
Shibuya-Ku, Tokyo
Japan 151-0051
Telephone: [phone]
Fax: [phone]
Service Email: service@lifefitnessjapan.com
Sales/Marketing Email:
sales@lifefitnessjapan.com
Operating Hours: 9.00h - 17.00h (JAPAN)

Hong Kong
Life Fitness Asia Pacific LTD

32/F, Global Trade Square
21 Wong Chuk Hang Road
HONG KONG
Telephone: [phone]
Fax: [phone]
Service Email:
HongKongEnquiry@lifefitness.com
Sales/Marketing Email:

Marketing.HK.Asia@lifefitness.com

Operating Hours: 9.00h - 17.00h
Service Operating Hours: 9.00h - 18.00h

All Other Asia Pacific countries &
distributor business Asia Pacific*
Life Fitness Asia Pacific LTD

32/F, Global Trade Square
21 Wong Chuk Hang Road
HONG KONG
Telephone: [phone]
Fax: [phone]
Service Email:
HongKongEnquiry@lifefitness.com
Sales/Marketing Email:

Marketing.HK.Asia@lifefitness.com

Operating Hours: 9.00h - 17.00h
Service Operating Hours: 9.00h - 18.00h

etit-Rechain

Safety

Introduction

TABLE OF CONTENTS

1

Safety information

Service and technical data

Maintenance

Adjustments

Machine relocation

Machine Power-uP

Console adjustment

UPPer crank adjustment

Rowing motion set-uP

Biomechanical Positioning

Machine entry

Initiating a workout

Exit the machine

SPecifications

SPecifications - Pro1000/Pro1000 sPort

Warranty

What is covered

Who is covered

How long is it covered

1

2

3

4

5

6

7-8

9

9

9

10

11

11

11

service

ho

W

What

Pays

w

ransPortation

t

c

o

t

o

d

e

orrect

and i

efects

d

nsurance

for

What is not covered

What you must do

How to get rePlacement Parts & service

Exclusive warranty 12

Changes in warranty not authorized

Effects of state laws

Our Pledge to you

© Copyright 2017, Life Fitness, a division of Brunswick Corporation. All Rights Reserved.

5151 S. 110th E. Avenue, Tulsa, OK 74146 • 1-800-745-1373

www.scit.com • A6965A • March 2017

11

11

11

11

11

12

12

12

SAFETY

Introduction

Thank you for your purchase of the SCIFIT PRO1000 exercise machine. We have incorporated the nest technology and ergonomic
design into this machine to assist you in achieving your tness goals.

The SCIFIT PRO1000 is designed for class “S” (commercial) and class “A” (high accuracy) applications. The intended uses are
for general health and wellness, cardio & pulmonary rehabilitation, sports medicine, physical therapy, physical conditioning and
strength training. SCIFIT equipment is suitable for placement in medical, wellness, tness, and recreational facilities. The PRO1000
has 191 levels of console controlled resistance, which ensures that users of all tness levels will be able to get a challenging but not
overwhelming workout.

To review the latest guidelines and recommendations, visit the American College of Sports Medicine website:

www.acsm.org

FCC Warning - Possible Radio / Television Interference

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own

expense.

Safety Information

• Read all warnings and instructions on each product prior to using your SCIFIT exercise machine. Save these instructions for future

reference.

• If warnings are missing or damaged, please contact SCIFIT immediately for replacement warning labels. Warning labels are shipped

with every product and should be installed before product is used. SCIFIT is not responsible for missing or damaged warning labels.

• Use the exercise machine only for its intended purposes as described in this manual. Do not use attachments not recommended by

the manufacturer.

• Never drop or insert any object into any opening.

• This machine is intended for indoor use only. Do not place in direct sunlight, high humidity or where water is present (i.e. pool or

spa areas).

• Consult your physician or medical specialist before participating in any exercise program, especially if you are pregnant or if you
are suffering from heart disease, respiratory disease, diabetes, high blood pressure, elevated cholesterol, arthritis, or any other
diseases and physical complaints.

• This machine is not intended for use by persons with reduced physical sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their
safety. Keep children under the age of 13 away from this machine.

• To prevent muscle injuries and soreness, you should always cool down at least 5 minutes. Always stretch after a workout session to
reduce the risk of personal injury. Failure to stretch properly may result in injury to yourself.

• WARNING! Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death If you feel
faint stop exercising immediately.

• DANGER! To reduce the risk of electrical shock, always unplug SCIFIT products before cleaning or attempting any

maintenance activity.

• WARNING! To reduce the risk of burns, re, electrical shock, or injury, it is imperative to connect each product to a properly
grounded electrical outlet.

• Injuries to health may result from incorrect or excessive training. Failure to stop exercising can result in injury or death to
yourself.

• Health and Environmental Regulation Warning - This product may contain chemicals known to the state of California to cause
cancer, birth defects, or other reproductive harm. For more information related to the European Commission Regulation (EC) No.
1907/2006 (REACH) and the California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition 65), please visit
https://www.lftechsupport.com/web/guest/environment-regulations-information.

1

Maintenance

COMPONENT ACTION WHEN

Upholstery Clean With a Damp Cloth Daily

Base Roller Track Clean With a Damp Cloth Weekly

Battery Refer to “Rotary CNSL Prog. Manual” For battery Check Instruct. Monthly

Chain General Purpose Chain Lubricant Every 6 Mo.

SERVICE AND TECHNICAL DATA

ATTENTION: C o n t a c t y o u r l o c a l w a s t e m a n a g e m e n t a g e n c y f o r s p e c i  c r e q u i r e m e n t s
concerning recycling and disposal locations of batteries.

2

ADJUSTMENTS

Machine Relocation

WARNING: Two People Required

WARNING: Failure to place the machine on a stable and level surface may result in injury to yourself and others.

Components:

Seat Assembly (Premium shown) RH and LH Offset end caps

1 2

ATTENTION: Adjust RH and LH end caps
to level machine.

3

Machine Power-Up

A B

1

AC Wall Adapter

4

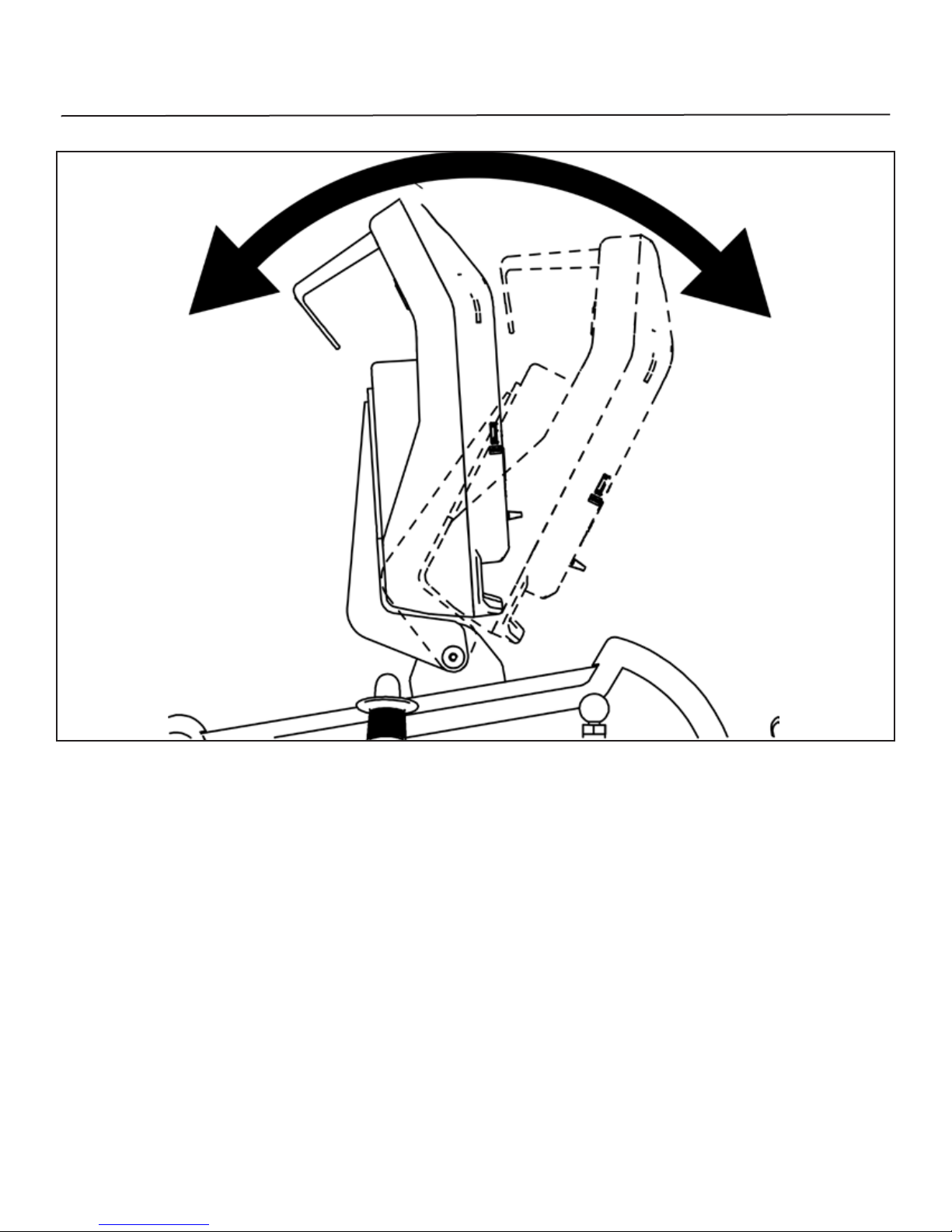

Console Adjustment

5

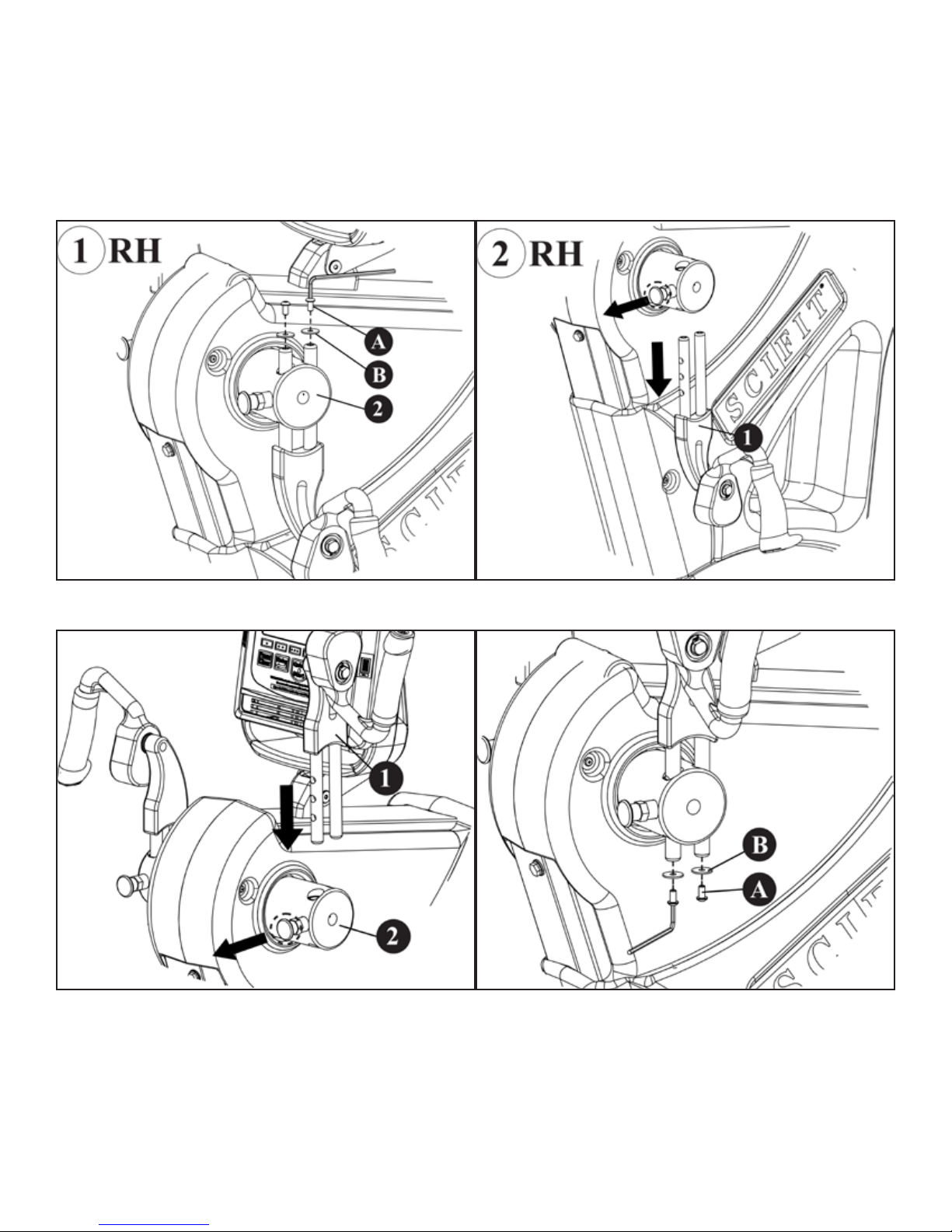

Upper Crank Adjustment

NOTE: The images shown below are for the PRO1000 adjustments. PRO1000 Sport adjustments will

require the 5/8-11 x 1/2 set screw (where the yellow adjustment knob would be located) to be removed,
then placed in the new hole selection of the crank rod.

WARNING: Ensure that the yellow adjustment knob is fully engaged into the hole of the crank rod after
selecting crank distance extension.

8” (20 cm) radius, 1st hole position

7” (18 cm) radius, 2nd hole position 6” (15 cm) radius, 3rd hole position

6

Rowing Motion Set-Up

Components: Hardware:

1

Right Upper Crank Upper RH Hub

Tools Required:

• Supplied 5/32” (4mm) Allen Hex Wrench

Rowing Option Set-Up View

2

Screw, 1/4-20 x 1/2”, BSCS

A

Washer, Flat, .25 ID x .835

(Qty. 2)

B

OD (Qty. 2)

7

8

BIOMECHANICAL POSITIONING

Machine Entry

1. Choose one of the following to position seat for entry.

• Press and hold the yellow foot lever located on either side of the seat base (see Seat System manual), then move the

seat back to allow sufcient entry space and release the foot lever. You may grab the handles on either side of the
console to stabilize yourself and sit on the seat.

• Lift upward on the yellow swivel lever (Premium only) located on either side of the seat (see Seat System manual)
and rotate the seat 90 degrees to the right or left to access the bottom seat pad and release, then sit down and again lift
upward on the swivel lever and rotate back into the original position.

2 . P o s i t i o n t h e s e a t f o r w a r d o r b a c k w a r d t o a c o m f o r t a b l e l o c a t i o n u s i n g t h e y e l l o w f o o t l e v e r , t h e n r e l e a s e t h e l e v e r
allowing for a slight knee bend when placing your feet on the foot pads.

3 . A d j u s t t h e h e i g h t ( P r e m i u m o n l y ) o f t h e s e a t u s i n g t h e y e l l o w b a r o n t h e f r o n t o f t h e s e a t ( s e e S e a t S y s t e m m a n u a l ) t o
obtain a comfortable position.

Initiating a Workout

1. Place your hands on the upper crank handles and begin to rotate them continuously to keep the console powered-up.

Note: The AC adapter may also be connected to the machine to keep the console continuously power-up

2. Select the workout program preferred (see Console Program manual) and begin the workout.

Exit The Machine

Choose one of the following ways to exit the machine.

1. Press and hold the yellow foot lever located on either side of the base of the seat base, then move the seat back to
allow sufcient exit space and release the foot lever. You may grab the handle under the console for stabilization, then
lift yourself and exit the machine.

2. Lift upward on the yellow swivel lever (Premium only) located on either side of the seat and rotate the seat 90 degrees
right or left, then release. Carefully lift yourself upward and exit the machine.

9

Specications - PRO1000/PRO1000 Sport

SPECIFICATIONS

SPECIFICATIONS

Max User Weight

Power

Resistance System

Programs

Accuracy Class

Machine Weight

Length

Height

Width

Standard Seat - 500 lbs (227 kg) Bariatric Seat- 600 lbs (272 kg) Premium Seat - 450 lbs (204 kg)

Self generating w/auto recharge battery back-up. Standard 18V AC Adapter

Electromagnetic Self Generating Bi-Directional Resistance

Quick Start, Manual, Constant Workout, ISO-Strength, Hills, Heart Rate, Fit-Quik, Random, Stress
Test, Heart Fit Test, Heart Fit Training, Power Fit test and Power Fit Training

Class A

223 lbs (101kg)

61 in. (155cm)

62 in. (158cm)

30 in. (77cm)

1

Intelli-Fit Console

2

Ergonomic Seat Assembly (Premium Seat Shown)

3

Adjustable Upper Cranks with Ergo Grips (PRO1000)

3A

Fixed Upper Cranks with Ergo Grips (PRO1000 Sport)

4

Forward/Backward Seat Adjustment Foot Lever

Safety Perimeter

40” (1m)

5

Leveling Endcaps

40” (1m)

40” (1m)

40” (1m)

10

WARRANTY

SPECIFICATIONS

What is Covered

This SCIFIT commercial exercise equipment (“Product”) is warranted to be free of all defects in material and workmanship.

Who is Covered

The original purchaser or any person receiving a newly purchased Product as a gift from the original purchaser. Warranty will be voided on
subsequent transfers.

How Long Is It Covered

All coverage is provided by specic Product according to the guidelines listed on the chart below.

Item 6 mo. 1 Year 2 Years 3 Years 5 Years
Frame X

Electrical X
Mechanical (except cranks & drive system) X
Labor X
C r a n k s / D r i v e S y s t . ( L a t i t u d e o n l y ) X
Upholstery, Seats, Grips, Walk
belts, Decks X

Battery X

High Wear Items
(Heartrate Straps, Pedal Straps) X

Who Pays Transportation and Insurance For Service

If the Product or any covered part must be returned to a service facility for repairs, We, SCIFIT, will pay all transportation and insurance charges
for the rst year. You are responsible for transportation and insurance charges during the second and third years (if applicable).

What We Do To Correct Defects

We will ship to you any new or rebuilt replacement part or component, or, at our option, replace the Product. Such replacement parts are warranted
for the remaining portion of the original warranty period.

What Is Not Covered

Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or installation, debris resulting from any
construction activities in the Product’s environment, rust or corrosion as a result of the Product’s location, alterations or modications without our
written authorization or by failure on your part to use, operate and maintain the Product as set out in your Operation Manual (“Manual”).

One type RJ45 interchangeable Network ready and Fitness Entertainment port is supplied with the Product. This port complies with the FitLinxx
CSAFE specication dated August 4, 2004 stating: 4.75VDC to 10VDC; maximum current of 85mA. Any product damage caused by a load
exceeding this FitLinxx CSAFE specication is not covered by warranty.

All terms of this warranty are void if this product is moved beyond the continental borders of the United States of America (excluding Alaska,
Hawaii and Canada) and are then subject to the terms provided by that country’s local authorized SCIFIT representative.

Detailed warranty guidelines are available at: http:/www.SCIFIT.com/Support/Service information/

What you Must Do

Register your Product online at http:/www.SCIFIT.com/warrantyregistration.

Retain proof of purchase; use, operate and maintain the Product as specied in the Manual; notify Customer Support Services of any defect within
10 days after discovery of the defect; if instructed, return any defective part for replacement or, if necessary, the entire Product for repair.

OPERATION MANUAL: It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the product. Remember to perform the
periodic maintenance requirements specied in the Manual to assure proper operation and your continued satisfaction.

How To Get Replacement Parts & Service

Refer to the front of this manual for your local service contact information. Reference your name, address and the serial number of your product.
They will tell you how to get a replacement part, or, if necessary, arrange for service where your product is located.

11

Exclusive Warranty

THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND EITHER EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, AND ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART. We neither assume nor authorize any person to assure for us
any other obligation or liability concerning the sale of this Product. Under no circumstances shall we be liable under this warranty, or otherwise,
of any damage to any person or property, including any lost prots or lost savings, for any special, indirect, secondary, incidental or consequential
damages of any nature arising out of the use of or inability to use this product. Some states do not allow the exclusion or limitation of implied
warranties or of liability for incidental or consequential damages, so the above limitations or exclusions may not apply to you. Warranty coverages
and terms may differ outside the United States. Please contact the SCIFIT ofce servicing your country (contact information found at the front of
this manual) or visit the applicable local SCIFIT website to receive the specic warranty information for your country.

Changes In Warranty Not Authorized

No one is authorized to change, modify or extend the terms of this limited warranty.

Effects Of State Laws

This warranty gives you specic legal rights and you may have other rights which vary from state to state and country by country.

Our Pledge To You

Our Products are designed and manufactured to the highest standards. We want you completely satised with our Products and will do everything
possible under the terms of this warranty to keep you secure in knowing you have bought the best!

12

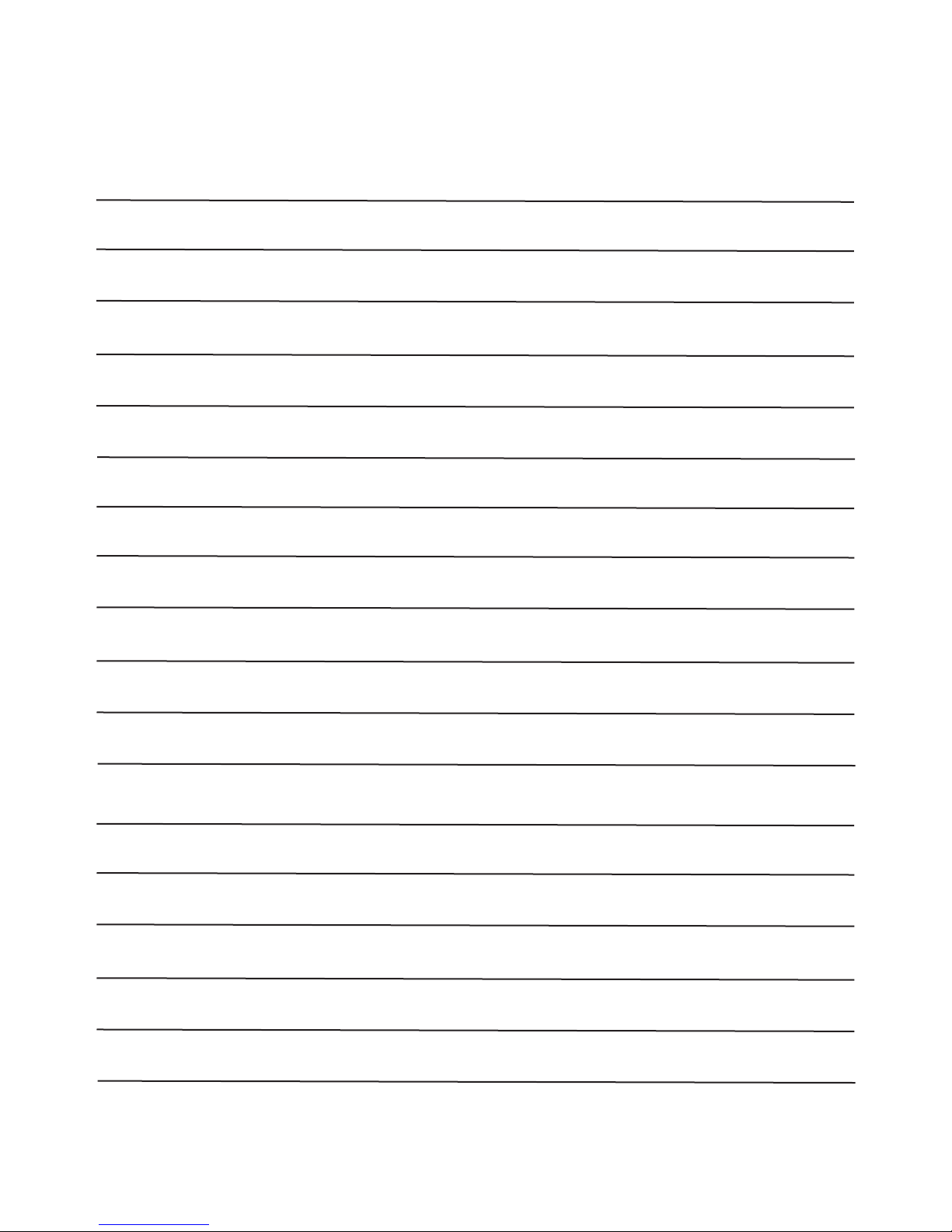

NOTES

NOTES

A6965A

May, 2017

www.scit.com
