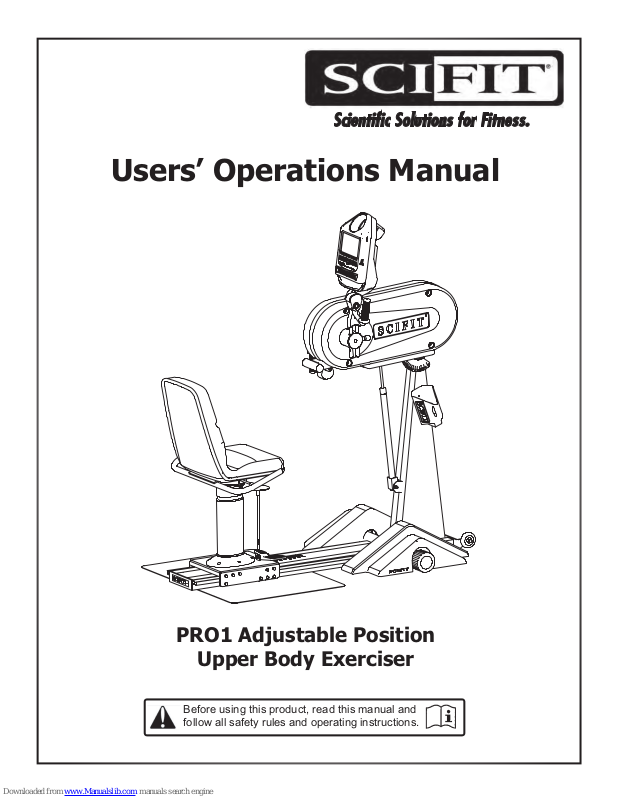

SCIFIT PRO1 User's Operation Manual

Users’ Operations Manual

Before using this product, read this manual and
follow all safety rules and operating instructions.

PRO1 Adjustable Position

Upper Body Exerciser

This page purposely left blank

SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

TABLE OF CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

SETUP & INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

KEYPAD FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

HEART RATE TRANSMITTER STRAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

SAFETY INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 11

PRODUCT OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

BIOMECHANICAL POSITIONING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 - 16

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

PROGRAM INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 - 27

MAINTENANCE & SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 33-

O

rder online

24/7 at

www

.SCIFIT.

com

SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

SCIFIT • Scientific

Solutions for Fi

tness • SCIFIT • Scientific

Solutions for Fi

tness •

SCIFIT

SAFETY INFORMATION

1

Read all instructions before using your SCIFIT
exercise

machine. Save these instructions for future

reference.

Close supervision is necessary when exercise machine
is being used by, or near children, or individuals with
disabilities. Keep children away from extended hand
and foot supports.

Use the exercise machine only for its intended use as
described in this manual. Do not use attachments not
recommended by the manufacturer.

Never drop or insert any object into any opening.

Do not use outdoors or in a harsh environment where
water is present (i.e. pool or spa areas).

Failure to obey a safety warning

can

result in injury
to yourself and others. Always follow the safety
precautions to reduce the risk of personal injury.

The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols,
and their explanations, deserve your careful attention
and understanding.The safety warnings do not, by
themselves, eliminate any danger.The instructions
or warnings they give are not substitutes for proper
accident prevention measures.

Look for these symbols to point out important safety
precautions. It means attention! Your safety is
involved.

WARNING

Failure to obey a safety caution

can

result in injury
to yourself and others. Always follow the safety
precautions to reduce the risk of personal injury.

CAUTION

SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

INTRODUCTION

2

Thank you for your purchase of the SCIFIT
PRO1 Adjustable Position Upper Body Exerciser. We
have incorporated the finest technology and ergonomic
design into this machine to assist you in achieving
your fitness goals. However, for your safety, please
adhere to the following recommendations before you
begin to exercise.

The SCIFIT PRO1 Upper Body Exerciser is designed
for Class “S” (Studio), Class “I” (Special Needs) and
Class “II a” (Medical Device Directive) applications.
The intended uses are for Cardio & Pulmonary
Rehabilitation as well as Sports Medicine, Physical
Therapy, Physical Conditioning and Strength Training.
SCIFIT equipment is suitable for placement in fitness,
medical rehab, sports performance and recreational
facilities. The PRO1 has 200 levels of computer
controlled resistance, which ensures that users of all
fitness levels will be able to get a challenging but not
overwhelming workout.

Consult Your Physician

Consult your physician or medical specialist before
participating in any exercise program, especially if
you are pregnant, or if you are suffering from: heart
disease, respiratory disease, diabetes, hypertension,
high blood pressure, elevated cholesterol, arthritis, or
any other diseases or physical complaints.

Adult Usage

SCIFIT equipment is designed and intended for adult
usage and children of appropriate ages while being
supervised. Young children should be kept a safe
distance away from equipment.

Cool Down

To prevent muscle injuries and soreness, you should
always cool down (at least 5 minutes) by doing a
series of stretches after each workout.

Train Intelligently

T

o ensure a future of good health, you should always
eat well balanced meals, drink plenty of fluid/water
during a workout, and stay fit by exercising intelligently.
Always follow training guidelines that are specific to
your own physical condition.

Stop exercising immediately if you feel nausea,

dizziness, sharp pain, or any other physical

discomfort. Failure to stop excercising can result in

injury or death to yourself.

WARNING

Always stretch after a workout session to reduce
the risk of personal injury. Failure to stretch
properly may result in injury to youerself.

CAUTION

Guidelines for Healthy Adults

The American College of Sports Medicine (ACSM) and
the American Heart Association (AHA) are continuously
updating guidelines and recommendations for physical
activity.

The current basic recommendations from ACSM and
AHA is:

Do moderately intense cardio 30 minutes a day, five
days a week.
OR
Do vigorously intense cardio 20 minutes a day, three
days a week.
AND
Do eight to ten strength-training exercises, eight to
twelve repetitions of each exercise twice a week.

Moderate-intensity physical activity means working
hard enough to raise your heart rate and break a
sweat, yet still being able to carry on a conversation.
It should be noted that to lose weight or maintain
weight loss, 60 to 90 minutes of physical activity may
be necessary. The 30 minute recommendation is
for the average healthy adult to maintain health and
reduce the risk for chronic disease.

To review the latest guidelines and recommendations,
visit the American College of Sports Medicine website:

www.acsm.org

Injuries to health may result from incorrect or

excessive training. Failure to stop excercising can

result in injury or death to yourself.

WARNING

SPECI FI CATI ONS

Weight . . . . . . . . . PRO1-248 lbs. (112 Kg.) / PRO1 SPORT - 178 lbs. (81 Kg.)

Max User Weight . . 500 lbs. (227 Kg.) - Fixed Seat
450 lbs. (204 Kg.) - Swivel Seat
600 lbs. (272 Kg.) - Bariatric Seat

Power . . . . . . . . . . Self generating w/auto recharge battery back-up.

Optional Low Voltage AC adapter available.
Resistance System . Electromagnetic Self Generating Bi-directional Resistance

Programs . . . . . . . Manual, Fit Quik, Constant Workout, ISO-Strength, 7 pre-programmed Hills profiles,

Ac

curacy Class. . . . . Class A

Warranty . . . . . . . . Within U.S. & Canada 3 years parts, 1 year labor

Outside U.S. 3 years parts, no labor

Heart Rate, Power Fit test, Power Fit traing, Heart Fit test, Heart Fit Training, Stress Test
and Random

60”

1524 mm

30”

762 mm

67”

1702 mm

SCIFIT • Scientific S olutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFI T

3

SETUP & INSTALLATION

SCIFIT • Scientific

Solutions for Fi

tness • SCIFIT • Scientific

Solutions for Fi

tness •

SCIFIT

4

Placement of Cardio Machine

To

aid in the placement of equipment, two wheels
are located on the front of the unit. Movement of
machine should be done with two people. Carefully
lift the rear of the unit until the wheels are engaged

.noitacol derised ni tinu noitisop dna roofl no

Position the unit in a location that has a stable and
level

sub-floo

r. Equipment should be positioned
in a location that is not in direct sunlight, in areas
of extreme temperature and humidity, or where
the equipment may be splashed with water or

fluids.

This machine is intended for indoor use only.

Equipment should be positioned with a safety
perimeter of 40” or 1 meter around the unit.

Level Cardiovascular Machine

If the sub-floor is unle

vel, the unit is equipped with
leveling end caps. The end caps are designed with
the recess of end cap off centered. This allows you
to rotate the endcap(s) to a position that will level
the equipment. After adjustment, check and make
sure end caps are fully seated against base frame
tubes.

40” / 1 Meter

Safety Space

40” / 1 Meter

Safety Space

40” / 1 Meter

Safety Space

40” / 1 Meter

Safety Space

Offset Endcap

Endcap

Endcap

Proper Supervision

Close supervision is required when the exercise
machine is being used by or near individuals with
disabilities. Keep unsupervised children outside the
safety perimeter.

Cleaning

Never clean the machine with orga ,stnevlos cin
alcohol or bleach based cleaners. To promote a
healthy environment, wipe any sweat off of unit with
a commercially manufactured wipe designed for the

finess industr

y, or a damp cloth.

Failure to place the equipment on a stable and level

sub-floor with a safety perimeter can result in injury
to yourself and others.

WARNING

ASSEMBLY

SCIFIT • Scientific

Solutions for Fi

tness • SCIFIT • Scientific

Solutions for Fi

tness •

SCIFIT

5

Required Tools:

1/2” Socket with Ratchet
Long Needle Point Center Punch
5/16” Allen Drive Socket

Mount Wheelchair Platforms to Base Frame

Locate two Wheelchair Platforms (A2502) and with the aid

.dne deleehw non sti no emarF esaB dnats ,tnatsissa na fo

(A)

With a 1/2” socket, loosen the four middle bolts that

secure the Stainless Steel Adjustment Track to base frame,

.rehsawkcol eht rednu mroftalp eht edils ot hguone tsuj

NOTE: Do Not remove or loosen bolts more than
necessary. (B)

Engage slots of wheelchair platform over
the four bolts .ebut erauqs dna rehsawkcol eht neewteb ,
With the

flat

horizontal surface of the wheelchair platform

flush

against base frame square tube,

(C)

tighten the four

bolts. Repeat process for the opposite side.

Required Parts:

1 2 PRO Wheelchair Platform A2502
2 4 3/8 x 1” Socket HD Cap Bolt N/A

3 4 3/8 Flat Split Lock Washer N/A
4 4 3/8 Flat Washer N/A

Assembly

Some equipment shipped overseas assembly is required.
Follow the steps below for assembly.

Monocoque Frame is top heavy. Two people are
required to position frame in place. Failure to support
frame properly

may

result in injury to yourself and/or

others.

CAUTION

Assemble Monocoque Frame to Base Frame

With the aid of a second person, align bottom mounting
threaded nutserts of Monocoque Frame with the Base
Frame mounting holes.

To aid in maintaining alignment,

(A)

insert a long needle
point center punch through one of the front threaded
mounting holes of the base frame.

(B)

push up on frame

until nut-serts are aligned the with mounting holes.

(C)

Slide
(Qty.1) 3/8” split washer and (Qty.1) 3/8” flat washer onto
each 3/8” bolt, then align and

loosely thread

them into the

three open mounting holes.

(D)

Return to center punch and

pull it out to loosely thread in the last remaining bolt.

(E)

Tighten all bolts to 48 ft/lbs or 576 in/lbs (6.64 kg/m).

1

(A)

Loosen

Four (4) Bolts

(B)

Slide Slots

Under Washers

(C)

Tighten Bolts

2

(A)

(B)

(C)

(D)

3

4

Item Qty. Description Part No:

ASSEMBLY

SCIFIT • Scientific

Solutions for Fi

tness • SCIFIT • Scientific

Solutions for Fi

tness •

SCIFIT

6

SWIVEL SEAT ASSEMBLY

Tools Required:

St

ep 1:

Pull upward the yellow paddle handle of the seat adjustment lever, then lift and slide the seat post onto
the frame track making sure the roller guide rail is between the top and bottom wheels of the base.

3/16 Hex wrench
1/2” Wrench or socket

Roller guide

Step 2:

Attach the handlebar plate to the seat post with (Qty. 4) of items #1, #2,
#3 and #4 as shown on the drawing below.

Item #1 (x 4)
5/16-18 x 1 Socket Flat Head Screw

Item #2 (x 4)
5/16 Flat Washer

Item #3 (x 4)
5/16 Split Washer

Item #4 (x 4)
5/16 Nut

#1

#2
#3
#4

ASSEMBLY

SCIFIT • Scientific

Solutions for Fi

tness • SCIFIT • Scientific

Solutions for Fi

tness •

7

SWIVEL SEAT ASSEMBLY CONT’D

Tools Required:

St

ep 3: (Bucket

Seat Assembly )

a. Align the front holes of the bucket seat with the 3rd set of holes from the front of the handlebar plate,
(see diagram), then loosely screw in (Qty. 1) of item #1 into one of the front holes.
b. Align the other three holes and loosely screw in item #1 into each hole.
c. Tighten all four screws to secure the bucket seat.

1/2” Wrench or socket

Step 3a: (2-Piece Seat Assembly)

a. Align the front two holes of the seat mount plate with the 1st set of holes of the handlebar plate
(see diagram), then insert (Qty. 1) of item #1 into one of the front holes to hold the seat mount plate
in place.
b. Align the front hole of the bottom seat pad with the inserted screw and loosely screw it into the seat pad.
c. Align the other front hole of the seat pad and loosely screw in (Qty. 1) of item #1 screw.
d. Slide (Qty. 1) of item #3, then (Qty. 2) of item #4 onto each item #2 screws, then loosely screw
them into the rear two holes of the seat pad.
e. Tighten all four screws to secure the bottom seat pad and plate mount.

Item #1 (x 4)
5/16-18 x 1.25 Serrated Screw

#1

#1 #2

#3

#4

Item #1 (x 2)
5/16-18 x 1.25 Serrated Screw

Item #2 (x 2)
5/16-18 x 1 Hex Head Screw

Item #3 (x 2)
5/16 Split Washer

Item #4 (x 4)
5/16 Flat Washer

Tools Required:

1/2” Wrench or socket

Rear holes to mount Seat plate

Two front holes to mount Seat plate

Rear holes for Bucket seat

Front holes for Bucket seat

Seat Mount Plate

Bottom Seat Pad

ASSEMBLY

SCIFIT • Scientific

Solutions for Fi

tness • SCIFIT • Scientific

Solutions for Fi

tness •

SCIFIT

8

FIXED SEAT ASSEMBLY

Step 1:

Pull upwa

rd the yellow knob of the seat adjustment lever, then lift and slide the seat post onto

the frame track making sure the roller guide rail is between the top and bottom wheels of the base.

Roller Guides

Tools Required:

1/2” Wrench or socket

Item #1 (x 4)
5/16-18 x 1.25 Serrated Screw

Step 2: (Bucket Seat Assembly)

a. Align one of the front two holes of the Bucket seat with the front set of holes on the fixed seat mount
(see diagram), then insert (Qty. 1) of item #1 into one of the seat holes and loosely tighten into place.
b. Align the second front hole of the seat and loosely tighten with (Qty. 1) item #1 screw.
d. Insert and loosely tighten the remaining two rear holes with (Qty. 2) item #1 screws.
e. Tighten all four screws to secure the seat to the fixed seat mount.

Align holes of seat with these
holes on the fixed seat mount.

Front

Rear

ASSEMBLY

SCIFIT • Scientific

Solutions for Fi

tness • SCIFIT • Scientific

Solutions for Fi

tness •

SCIFIT

9

FIXED SEAT ASSEMBLY CONT’D

Align bottom seat pa

d holes

with these four hole locations

(Item #1) x 4

Step 2a: (2-Piece Seat Assembly)

a. Align the front two holes of the seat mount plate with the 1st set of holes of the fixed seat mount.
(see diagram), then insert (Qty. 1) of item #1 into one of the front holes to hold the seat mount plate
in place.
b. Align the front hole of the bottom seat pad with the inserted screw and loosely screw it into the seat pad.
c. Align the other front hole of the seat pad and loosely screw in (Qty. 1) of item #1 screw.
d. Align, then loosely screw in (Qty. 2) of item #1 into the two remaining rear holes.
e. Tighten all four screws to secure the bottom seat pad and plate mount.

Item #1 (x 2)
5/16-18 x 1.25 Serrated Screw

Tools Required:

1/2” Wrench or socket

ASSEMBLY

Verifying Crank Hubs Secure

During shipment it is possible that the two set screws securing the crank hub to the shaft may become slightly loose.
It is strongly recommended that these set screws be checked before attaching the crank handles.
The following steps will explain this procedure.

Tools Required:

5/16 Hex bit
Torque wrench set for 480 in/ lbs.

Step 1:

Starting on the right side, use a 5/16 Hex bit to remove the
1st set screw #P3110 (5/8-18 x .5 Socket) and place to the
side.

Step 2:

Using a 5/16 Hex bit and Torque wrench set at 480 in/lbs.
Insert the bit into the crank hub to reach the 2nd set screw
#P3111 (5/8-18 x .75 Socket) and TIGHTEN to the 480 in/lb
setting on the wrench.

Note: The wrench will click when it has reached the
480 in/ lb (5.53 Kg/m) setting.

Step 3:

Again using a 5/16 Hex bit and Torque wrench set at
480 in/lbs, reinsert the set screw removed in step 1 into the
crank hub and TIGHTEN to the 480 in/lb setting on the
wrench.

Step 4:

Repeat steps 1 thru 3 for the left side.

SCIFIT • Scientific S olutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFI T

10

ASSEMBLY

SCIFIT • Scientific

Solutions for Fi

tness • SCIFIT • Scientific

Solutions for Fi

tness •

SCIFIT

11

Left Hand

Crank Handle

Right Hand

Crank Handle

Assemble Hand Crank Handles to Hubs

Identify Left and Right Hand Crank Handles

(A)

Insert parallel rods through bearing holes of hub.

(B)

Pull yellow crank arm locking pin out and push

rods through until end of rod protrudes from farside.

.noitisop otni skcol ti litnu mra evom dna nip esaeleR

(C)

To prevent unwanted dropping of crank arm when
adjusting crank arm positions, install a 1/4-20 x 1/2”
socket button head screw and 1/4” washer into the
end of each rod.

1/4”

Washer

Left Hand Crank

Handle Shown

(A)

1/4-20 x 1/2”

SBH Screw

(C)

(B)

Wheelchair Platform

For equipment that is shipped assembled, the
wheelchair platforms need to be installed.

With the aid of an assistant, carefully raise the base
up, and lower the work console down until the console
is resting on the

floo

r. To prevent damage to the case,

place a pad, piece of carpet or cardboard between the
case and

floo

r.

(A)

With a 1/2” socket, loosen the four top bolts that

secure the Stainless Steel Adjustment Track to the

base frame, just enough to slide the platform under the

lockwasher.

NOTE: Do Not remove or loosen

bolts more than necessary.
(B)

Engage

the four bolts, between the lockwashe and square tube.

With the flat

horizontal surface of the wheelchair

platform

flush against the base frame square tube.

(C)

Tighten the four bolts. Repeat the process for the

Protective Pad

(A)

Loosen

Four (4) Bolts

(B)

Slide Slots

Under Washers

(C)

Tighten Bolts

the slots of the wheelchair platform over

opposite side.

PRODUCT OVERVIEW

SCIFIT • Scientific

Solutions for Fi

tness • SCIFIT • Scientific

Solutions for Fi

tness •

SCIFIT

12

Leveling Base

Endcaps

Water Bottle

Holder

Transport Wheels

Adjustable Display

& Control Console

Adjustable Crank Arm

(Right Side is Reversible)

Wheelchair Platform

Fixed or
Adjustable Swivel Seat.
(Swivel Shown)

Molded Footrest

Adjustment
Lever

Work Level Status LCD Screen -

The Work Level Status LCD Screen gives
a progressive real-time indication of the
current work level of any and all programs

KEYPAD FUNCTI ONS

o

0

o s o o a o ra

s g

ll

-

PAUSE/CLEAR - The [Pause/Clear]
key will pause the workout. Pressing

[Pause/Clear] a second time when in

the pause mode will stop the workout
and return to the main screen.

To restart in the paused mode press
the[Quick Start] key.

ENTER -

The E nter Key is pressed to
enter selected values for the
workout parameters.

QUICK START

“Quick Start” into the Manual mode, or after logging
into a program.The Quick Start key will activate the
selected program.

Profile Selection Area -

Allows the user option to
choose from 12 different
workout profiles

Up Arow and Down Arrow - These keys
increase or decrease values of the workout
parameters.

- This key provides a one-touch

SCIFIT • Scientific S olutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFI T

13

BIOMECHANICAL POSITIONING

SCIFIT • Scientific

Solutions for Fi

tness • SCIFIT • Scientific

Solutions for Fi

tness •

SCIFIT

14

Standing Use

.esab fo kcab eht ffo gnidils yb 1ORP eht morf taes evomeR

Place feet securely in a comfortable position. Do not lock

.mroftalp eht dnoyeb evom ot teef wolla ton od dna seenk
The PRO1 encourages function and natural movement;
therefore, ideal foot placement and body position depends
on the goal of the user. Adjust the height of the cranks to
a comfortable position that encourages proper posture or at
the desired angle f

or specific t

raining movements.

Swivel or Fixed Seat and Wheelchair Use

Adjust seat or wheelchair forward or backward to a
comfortable location for the upper body movement. A slight
torso rotation is desired on extension. Avoid locking arms
at extension by adjusting the seat position or arm crank
radius. Adjust the height of the cranks to a comfortable
position that

encourages proper posture or at the desired

angle for

specific

training or rehabilitation movements. Such
movements and adjustments should be under the guidance
and supervision of a

fitness

or medical professional. If
your Pro1 features a seat with height adjustment, you may
adjust either the seat height or the control head to obtain
the desired axis of rotation and body position

.

Crank Length Adjustment

Adjust crank arm radius to desired length. The longer the
crank arm length the larger the circle the user will experience
when exercising. Generally a larger circle will result in
broader muscle recruitment and greater torso rotation.

Comfort is a key issue and these guidelines may be
helpful.

Users Height:

5’ 6” and under = shortest crank settings
5’ 7” to 5’10” = middle two crank settings
5’ 11” and taller = longest crank setting

Important Note:

When using this product for medical
or rehabilitation purpose, the crank radius, seat height and
distance should be set by the attending therapist or medical

professional based on the specific needs of the user.

Always follow medical professionals guidelines to
reduce the risk of personal injury. Failure to follow
their directions

may

result in injury to yourself.

CAUTION

ADJUSTMENTS

SCIFIT • Scientific

Solutions for Fi

tness • SCIFIT • Scientific

Solutions for Fi

tness •

SCIFIT

15

Crank Arm Adjustment

Crank

arms can be adjusted to accomodate user height,
achieve proper bio-mechanical positioning and work
different muscle groups. To adjust crank arm position, pull
yellow spring loaded locking pin out and move crank arm to
new position.

Reversing Crank Arms

The upper body crank arms can be easily adjusted to work
in unison or in a rotary rowing motion. To take advantage of
this feature,

first

remove the Allen head screw and washer
from the steel crank rods on the right side of the unit. The
allen keys and instructions are included in your owners
package. This is done one time only. To reverse the crank,
pull the yellow pin and slide the crank arm completely out
of the Crank hub. Pull the yellow pin and re-insert the crank
arm carefully in the opposite position. The crank arms will
now be working in unison.

Using your SCIFIT

PRO1 in this manner encourages
abdominal and back involvement and can be used to in the
tr

eatment of specific medical conditions.

Fixed Seat Adjustment

Seat position is dependent on user height, work console
position and crank arm adjustment. The seat should be
positioned so that the arm has a slight bend at the furthest
rotation point of crank arm. To adjust seat, lift up on seat
adjustment knob located below the front side of the seat
bottom, move seat forward or backwards as desired. The

seat will adjust in 1” (25.4mm) increments.

Work Console Adjustment

To achieve the optimal workout position, and also to work
different muscle groups, the work console can be adjusted
up or down by pulling the gas assisted lift and locking tab.

Control Console Adjustment

The control console should be positioned so it is eye level
or in direct line of sight of the user. The control console
can be repositioned by pushing backwards or pulling for-
ward.

Pull Out

Yellow Knob

Pull Up

Yellow Knob

Pull Black

Tab

Adjustable

ADJUSTMENTS

SCIFIT • Scientific

Solutions for Fi

tness • SCIFIT • Scientific

Solutions for Fi

tness •

SCIFIT

16

Swivel Seat Adjustments (Fig. A & Fig. B)

Horizontal

Adjustment - The seat can be adjusted in
1” increments and is held in place with a spring loaded
adjustment pin. The seat system is easily adjusted by
pulling the yellow T-handle up and sliding the seat
assembly forward or backward. The seat may also be
adjusted by pressing the foot assist pedal. Adjust the

.noisnetxe lluf ta dneb thgils a evah smra eht os taes
The feet can be located in the most comfortable area
on the flat surface of the foot rest.

Vertical Adjustment - Pull up on the yellow paddle
shaped lever to move the seat up or down.

Note: The seat will only move up when no
weight is on it.

Swivel Adjustment - Push the paddle shaped lever
down and rotate, until it locks in place. The seat will
lock into place at each 90 degree posistion.

Seat Removal (Fig. C & Fig. D)

To remove the seat for standing exercise or wheelchair
access, pull up and hold the yellow knob (fixed seat)
or yellow T-handle (swivel seat) and move seat to
the rear until the seat rollers disengage the seat roller
tracks.To place the seat back on,engage the seat roller
wheels onto seat roller tracks, pull up on the yellow
knob or yellow T-handle and push seat forward to
desired position.

Pull up to
raise or lower
the seat

Push down to
rotate the seat

Push down pedal
to move seat
forward and back

Pull up on T-handle
to move seat
forward and back

Remove

- Pull T-handle up and

push seat backwards off the track.

Replace

- Pull T-handle up and

push seat forward onto track.

Remove

- Pull knob up and

push seat backwards off the track.

Replace

- Pull knob up and

push seat forward onto track.

Fixed

Fig. C

Fig. D

Fig. B

Fig. A

ACCESSORI ES

12V Power Pack - #P1562 Dom. or #P3733 Int’l

To provide continous power to the console when the
equipment is not in operation, plug in the 12V power
pack into the power entry connector located on the
lower

front of the machine frame.

Wheelchair Tie Downs - #P2506

wheelchair tie down straps are

The
shipped with the wheelchair platform and are standard
equipment with the PRO1. The tie downs will assist
maintaining
routine. The foot rest must be removed to access the
tie down anchors.

wheelchair position during exercise

Optional Glove Assist - #P3981

For individuals tha have limited strength with fingers
and wrist, the Assist Glove is available. Fit hand into
glove, wrap glove pad with fingers around crank
handles and secure in place with velcro strips.

Optional External Rotation Device - #A2974

For rehabilitation of rotator cuff, the external rotation
arm is available. To install follow the same procedure

Assemble Hand Crank Handles to Hubs on page 10.

for

Consult therapist for setup and range of motion.

SCIFIT • Scientific S olutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFI T

18.96”

Order online 24/ 7 at www.SCIFI T.com

17

HEART RATE TRANSMITTER STRAP

Uses of the Heart Rate Transmitter Strap

The optional wireless heart rate transmitter accessory
(#65190) is a useful device if you desire continuous
feedback on your current heart rate during a workout.,
in addition the PRO1 includes a Heart Rate Control
program which requires use of the strap.

The Heart Rate Control program enables the user to set­up a target heart rate. Through real-time monitoring

the user’s heart rate, the computer maintains the

of
user’s heart rate at or below this established target
rate by decreasing the workload if the user’s heart rate
exceeds the target.

Activating & Deactivating Transmitter

Heart Rate Transmitter Straps come in a variety of styles
and manufacturers. To properly activate, secure strap
to the chest and to deactivate follow the instructions
that come wi

th the Transmitter Strap.

CAUTION

Always follow manufacturers instructions for proper

care and use. Failure to follow manufacturers
instructions may result in injury to yourself

.

Calculating Target Heart Rate Zone

Your approximate Maximum Heart Rate (MHR)
is equal to 220 minus your age. The upper limit of
your target zone is equal to 0.85 times your MHR. The
lower limit of your target zone is equal to 0.60 times
your MHR.

For Example:
Your age is 40:
220 - 40 = 180
180 x .85 = 153 (max MHR)
180 x .65 = 108 (min MHR)

These values are based upon averages, always consult
your physician to establish the proper Heart Rate Zone

or your individual health condition.

f

WARNING

eart Rate monitoring systems may be inaccurate

H

f you feel faint, stop exercising immediately. Over

I

exercising may result in serious injury or death.

SCIFIT • Scientific S olutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFI T

.

18

PROGRAM INSTRUCTIONS

Programs

SCIFIT products have 200 levels of computer controlled
resistance, which ensures that users of all fitness levels
will be able to get a challenging but not overwhelming
workout. Because the resistance is adjustable in .1
increments, it is easy for the user to track progress.
SCIFIT products feature one of the highest resistance
capabilities available on any cardio equipment.

e 00

ev 0

Weight 150

SCIFIT products are self generated and have an
extremely low starting resistance. One pedal movement
or crank revolution activates the console and the
screen will remain lit at the most minimal levels of
movement.

SCIFIT products have a battery back up which will
keep the screen lit for a short period after exercise or
if the user stops. This varies between 0 seconds and
5 minutes and can change with the amount of use each
product gets.

If you prefer the console to remain lit before and
after

use, an optional wall pack can be plugged in to
accomplish this. This is common in medical settings
and with Fit-Key Programs.

Manual Workout

Allows the user to set the intensity at any level. This
level will not change unless the user manually increases
or decreases the intensity using the [UP] or [DOWN]
arrow keys.

Adjust level intensity with the

keys, then press

e 5 00

Level 1.0

Weig 0

Enter user weight with the keys,

then press and begin exercise.

Fit Quik

Press Then

MANUAL

e 00

Level 1.0
Weight 150

Adjust workout time with the keys,

then press

Allows the user to select a two stage program of
cardiovascular work with ISO-strength (Isokinetic)
work loads and duration determined within the
factory set up.

Press Then

Fit-Quik

19

SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

PROGRAM INSTRUCTIONS

Fit-Quik Cont’d

The categories displayed will depend on the
workout that is selected in the factory setting. The
following will be seen for the workout choosen.

Manual or Hills

eve

Weight 150

Adjust the Level and Weight with the
keys, then press

Constant Workout

We 50

Constant Work

Pedal resistance is automatically adjusted to
compensate for any change in pedal speed (RPM),
thus workload (Watts) will remain constant at any
given setting.

Press Then

5 00

W tt 20
Weight 150

Adjust workout time with the

keys, then press

CONSTANT WORK

Adjust the Weight with the

keys, then press

Ti e 0

Wa s 20

Weight 150

Adjust target watts with the

keys, then press

me 5 00

W tt 20

e 0

Enter the user weight with the

keys, then press and begin exercise

SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

20

PROGRAM INSTRUCTIONS

ISO-Strength Program

ISO-Strength is a isokenitic program, meaning that
the unit will resist your movements in order to force
you to stay at a set speed. This type of strength
workout will not cause excessive soreness because

it is accommodating. The computer will adjust

resistance to keep the user at the target RPM speed.

e 5 00

RPM 35

We 0

Enter user weight with the keys,

Press Then

ISO-STRENGTH

5 00

RP 35

Weight 150

Adjust workout time with the
keys, then press

Ti e 00

P 35

Weight 150

then press and begin exercise

Hills Program

Allows the user to select from seven different Hill
profiles at various pre-programmed intensities.
The following profiles are available:
Hill Course, Sprints, Twin Peaks, Peak,
Progressive, Multi-Peaks and Ramp.

Press Then

Prole Course

Time 15:00
Level 1.0

HILLS

Adjust target RPM with the keys,

then press

SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

Select 1 of 7 profiles with the

keys, then press

21

PROGRAM INSTRUCTIONS

Hills Cont’d

Prole Course

i e 0

Level 1.0

Adjust workout time with the

keys, then press

Prole Course

Time 15:00

Level 1.0

MORE

Pressing this key will enter the user into the 2nd
of three workout program selection screens. This
screen will show an additional five more
pre-programmed workout profiles.

Press

A new screen will appear with additional programs:
Heart Rate, Stess Test, Random, Power Fit and
Heart Fit.

MORE

Heart Rate Program

The Heart Rate Transmitter Strap is required for this
program. Refer to page 18 for a complete

instruction on using the strap and to understand

how to calculate your Target Heart Rate.

•

Put on Heart Rate Transmitter Strap

Adjust level intensity with the

keys, then press

Time 15:00

Level 1.0

Weight 150

Enter user weight with the keys,

then press and begin exercise

Press Then

HEART RATE

e 5 00

Heart Rate 120
Weight Rate 150

Adjust the workout time with the
keys, then press

SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

22

Heart rate Cont’d

PROGRAM INSTRUCTIONS

0

e 20

Weight 150

Adjust the target Heart Rate with the

keys, then press

Ti e 5 00

ear a e 20

W i 50

Enter the user weight with the

keys, then press and begin exercise

F ar e 0

I c e e

Interval 5:00

Select wattage increments after each interval with

the keys, then press

Fi s Targ 50

e

I erva 00

Select the length of each interval with the

keys, then press

Stress Test

A designed step test to be used as training
program or use with other diagnostic devices
(if appropriate). The user sets a target wattage
with timed intervals and preset wattage
increments.

Fi T g

n eme t 5

I t v 00

Weigh 50

Enter user weight with the

keys, then press and begin exercise

Increment 5
Interval 5:00

Select target wattage with the
keys, then press

23

SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

PROGRAM INSTRUCTIONS

Random Program

The Intelli-Fit console will randomly display
different workout profiles each with its own level of
difficulty. The operator only has to choose the type
of the profile, then select the time length of the
workout and the level difficulty.

Note: The highest column of the profile represents
the workout level you selected. Columns below it
are percentages of the level selected.

Prole Random

Time 15:00

Level 1.0

Adjust level intensity with the

keys, then press

Press Then

RANDOM

Prole Random

Time 15:00
Level 1.0

Select a random profiles with the

keys, then press

Prole Random

Ti e

Level 1.0

Time 15:00

Level 1.0

Weight 150

Enter user weight with the keys,

then press and begin exercise

Adjust workout time with the

keys, then press

SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

24

PROGRAM INSTRUCTIONS

Power Fit Programs

This key displays two options “Test” and “Training”.
These programs are power and strength indicators
for the user.

Press and the screen will display
a choice of “Test” or “Training” as shown below.

Power Fit

Power Fit

Test

Training

Training

Specifically designed preset wattage training
programs based off user Power Fit test evaluation.

Three programs and four levels
(Beginner, Intermediate, Advanced and
Sport Performance) are available.

Press Then

o a

Level Beginner
Weight 150

Select 1 of 3 programs with the
keys, then press

TRAINING

Test

This program is based on a pre-programmed
wourkout designed to evaluate your
“Power Drop %”, which gives a fitness indication
of power and strength using wattage as the main
measurement.

Press Then

and begin exercise

TEST

P o a

e e Beg r

Weight 150

Select 1 of 4 levels with the keys,
then press

P o a

eve egi e

Wei 0

Enter user weight with the keys,
then press and begin exercise

SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

25

PROGRAM INSTRUCTIONS

Heart Fit Programs (Use Chest Strap)

This key displays two options “Test” and “Training”.
These programs are Heart Rate recovery indicators
for the user.

Press and the screen will display
a choice of “Test” or “Training” as shown below.

Heart Fit

Heart Fit

Test

Training

eve B er

W igh 50

Enter user weight with the keys,
then press and begin exercise

Training

Designed training programs based on the user’s
evaluated Heart Fit test. A training schedule with
retesting is recommended. The user has three
programs and four levels: Beginner, Intermediate,
Advanced and Sports Performance to choose from.

Press Then

TRAINING

Test

This program is based on a pre-programmed
workout designed to evaluate your Heart Rate
recovery. The user can select from 1 to 4 levels:
Beginner, Intermediate, Advanced and
Sports Performance.

Press Then

evel e

Weight 150

Select 1 of 4 levels with the keys,
then press

TEST

evel ner

Program 1
Weight 150

Select 1 of 4 level with the keys,
then press

ve Be n e

P o m

Weight 150

Select 1 of 3 programs with the
keys, then press

SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

26

PROGRAM INSTRUCTIONS

Training Cont’d

e Begi e

Progr

Wei 50

Enter user weight with the keys,
then press and begin exercise

Additional Key Features

SCIFIT has also included extra user friendly key
features the user ma

Allows the user to change the viewing fomat of the
workout profile and data displayed on the LCD
screen during the workout.

y use during a workout.

CHANGE

VIE

W

If at anytime the user may want to pause during a
workout, this may done by pressing the
[Pause/Clear] key. The screen workout will then
minimize and provide the user three options

1. Continue - Maximizes the workout screen and
continues the workout where the
user had stopped.

2. Change - Returns to a sub-menu where
information may changed that was
previously entered by the user.

3. Stop - Exits the workout and returns to the
main menu.

Note: The console will reset to the main menu after
a short period of time if no selection is made.

FAN

The console contains two 3-speed cooling fans that
can be activated by the user at anytime.

Power
Burst

When activated a count down will display on the
screen for the user to prepare to pedal faster for a
small duration of time. This time duration can be
increased or decreased in the “User Set-up”.

27

SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT

MAI NTENANCE & SERVICE

Maintenance

The PRO1 is virtually maintenance free. After training,
always wipe down your SCIFIT exercise product.
Perspiration that continuously settles on the frame,
upholstery, casings, and control console may
eventually cause rust or damage. Damage resulting
from lack of maintenance is not covered under
warranty.

If defective components are identified and
requi

re replacement, the equipment should be put

out of service until repaired.

CAUTION

I

n order to maintain a safe level of operation
equipment must be inspected on a routine basis for
damaged or worn parts
may result in injury to yourself or others.

. F

ailure to inspect equipment

PRO1 Maintenance Schedule

Any mechanical or electrical work conducted
within the main body of a medical CE class IIa
unit MUST be recalibrated. The generic
maintenance schedule below should be applied
to medical CE and non-medical CE products

COMPONENT USE WHEN BY WHOM

Covers, Seat,Handlebars Damp Cloth Daily Club Maintenance

and Console

,

UNITED STATES CUSTOMER SERVICE

For assistance in the service of SCIFIT products;
phone : [phone] or [phone]

fax : [phone]
e-mail: service@scifit.com

The Product Support department is staffed from 7:00
AM t

o 6:00 PM CST Monday through Friday. A voice
mail service is available 24 hours a day for recording
messa

ges to request technical support and to order

replacement parts. Our mailing address is:
SCIFIT Systems Inc.

5151 S. 110th E. Ave.
Tulsa, OK 74146
USA

UK & EUROPEAN CUSTOMER SERVI CE

phone : [phone]

fax: [phone]
e-mail: info@scifit.uk.com

SCIFIT LTD (UK)

L

exham House

Forest Road
Binfield
Berkshir

e, RG42 4HP

UK

LCD Screen LCD TV Screen Weekly Club Maintenance
soft cleaning cloth

Chains Lightly Applied Monthly Club Maintenance

Chain Lubricant

Nuts and Bolts Tighten When Bimonthly Club Maintenance
neccessary

Base Roller Guide Track Damp Cloth Monthly Club Maintenance

SCIFIT • Scientific S olutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFI T

Company Number: 5970624 (UK)

* COUNTRIES OUTSIDE OF UK & EUROPE

PLEASE USE USA CONTACT NUMBERS*

Order online 24/ 7 at www.SCIFIT.com

28

WARRANTY

t is very im portant that your

I

online

at

http://www.SCIFIT.com/warrantyregistration.shtml

S C IFIT

mac hine is regis tered

regis tration fo rm at the bac k of this man ual

SCIFIT Statement of Warranty

SCIFIT

normal and proper use subject to the following limitations

warranties new products against defective workmanship and/or materials under

a

) SCIFIT’s

(

ithin the United States and Canada both parts and the cost of labor required to

W

replace or repair a defective product for a period of one

purchase da
been re

for a period of two
replacement parts or products with any labor costs associated with such
replacement or repair to be at Buyer’s expense
components outside this policy clause

O

labor for a period of three (3) years from user purchase date as documented by

*

warranty card and if warranty

shipment from factory.

obligation to the original purchaser shall apply to

te as documented by *warranty card and if warranty card has not

tur

ned by user/dealer, then date of shipment from the factory. Thereafter

years, such obligation shall extend only to the supply of

(2)

.

utside the United States and Canada replace defective product with no

card

has not been returned by user then date of

*N

ote

riginal purchaser must register their purchased products either by

: O

warranty card return, web site registration or fax to activate warranty period or
shipment date is extantfor start of warranty period. A ninety (90) day period is to
be given for warranty registration to allow stock rotation and showroom stock
thereafter none registration will be shipment date for the start of the warranty
period

.

his c an be done

. T

or fill out and mail the

.

:

:

(1)

year from

. R

efer to clause (e) for

user/dealer

,

(

(

b) SCIFIT’s obligation shall be limited to repairing or replacing defective parts.

o allowance shall be granted for repairs made by Buyer without SCIFIT’s prior

N

written approval. The decision to replace or repair shall be solely at SCIFIT’s
discretion

c) SCIFIT’s warranty does not apply to parts requiring replacement or repair due

to normal and abnormal wear and tear, improper use, corrosion (perspiration
improper maintenance, improper installation, improper rated, grounded or
dedicated electr
part of the product has been altered from its original state by Buyer or a third
party.

.

),

circuits or improper storage, nor does it apply where all or

ical

(d) THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,

EXPRESSED OR IMPLIED, ARISING BY LAW OR OTHERWISE
INCLUDING WARRANTY OR MERCHANTABILITY OF FITNESS FOR
PARTICULAR PURPOSE, AND IS IN LIEU OF ALL OTHER
LIABILITIES OF SCIFIT INCLUDING DIRECT, INDIRECT, SPECIAL
AND CONSEQUENTIAL DAMAGES OR PENALTIES EXPRESSED OR
IMPLIED WHETHER ARISING OUT OF CONTRACT, NEGLIGENCE OR
OTHER SORT.

SCIFIT • Scientific S olutions for Fitness • SCIFIT • Scientific Solutions for Fitness •

29

WARRANTY

SCIFIT STATEMENT OF WARRANTY

(e) The

determined to be defective

T

readmills

readmill belts

T

readmill belts decks

T

T

readmill structure

T

readmill drive system inclusive of

motor

T

readmill Handrails

readmill Heart rate grips

T

T

readmill water bottle holders

readmill trays

T

U

pholstery

S

addles/Seats

Rotary Pedals 12 months

ubber grips

R

eart rate grips

H
R

otary structure

R

ubber footPads

otary water bottle holders

R

otary trays

R

below listed items have the following warranty coverage unless

. T

hese items include, but are not limited to

– AC5000

only

&

inverter

90

R

otary Products

12

models

&

frame

& H

andles

12

W

W

arranty Period

12
12

5

3

90

arranty Period

12

months
months

years

5

years

years

months

days

days

months
months

& F

rame

(BioF

) 12

lex

12

12

5

90

90

months
months
years

months

days
days

:

A

ccessories

edal straps

P

H

eart Rate Receiver/Transmitter

Low

support boots

H

igh support boots
ssist gloves

A

USB K

(f) F

ires, floods, and acts of God,are not covered under this warranty

SCIFIT • Scientific S olutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFI T

N

90

eys and Lanyards

P

roducts

W

arranty Period

ormal wear

90

12

12

90

30

days

months

months

days
days

&

tear

.

WARRANTY

reight and Shipping

F

SCIFIT

during transit or installation
part for shipping damage at time of delivery or installation, and prior to signing receiving
paperwork
appropriate transit company

is not responsible for the repair or replacement of any unit or part damaged

customer is responsible for inspection of each unit and

. The

. The

customer is responsible for pursuing all freight damage claims with the

. If the customer signs

damage goods, the customer is solely responsible for the cost of the repair or
replacement for such freight damage.

M

aintenance

After training, always wipe down your SCIFIT exercise product.

erspiration that continuously settles on frame, upholstery, cas

P

ings

and control panels may eventually cause rust or damage.

D

amage resulting from lack of maintenance will NOT be covered
under warranty. To clean upholstery, use mild soap and warm
water. Dry with a clean towel. Refer to the Treadmill maintenance
schedule.

P

roduct Support

ssistance for the service of

A

or fax

C

for

O

our

[phone].

entral Time Monday

recording messages to

ur goal is to return every

normal business hours

lea s e have the following informa tion prior to calling technica l support

P

M
S
P
D

through Friday

odel number of equipment
erial number of equipment
oint of contact name and phone number
etailed description of symptoms encountered

SCIFIT

The

product support department is staffed from

request technical support and to order replacement parts

voicemail call within

.

SCIFIT • Scientific S olutions for Fitness • SCIFIT • Scientific Solutions for Fitness •

products is available by calling

voicemail service is available

. A

minutes of when it is placed during

30

.

31

[phone]

7 AM to 5 PM

hours daily

24

:

.

WARRANTY

I

nstallation

SCIFIT

during installation
damage at the time of installation
claims with the installer.

I

f an order includes software, such computer software is transferred by
customer pursuant to a single user license, the royalty, term
set forth on or in the package accompanying such software

K

eligible for product upgrades for one year following purchase

SCIFIT
T

hese names must not be used by other entities in the fitness business

SCIFIT

copied without prior approval fro

is not responsible for the repair or replacement of any unit or part damaged

. The

customer is responsible for inspection of each unit and part for

. The

S

oftware, Trademarks, Copyrights, and Patents

eyMaster software will receive

has trademarked several names to uniquely identify its business and products

decals,user’s manuals, and service manuals are copyrighted and may not be

1

year of call-in technical support and owners will be

SCIFIT.

m

customer is responsible for pursuing all damage

SCIFIT to

,

s

and conditions of that are

.

.

.

the

.

SCIFIT

products
features

D
D

nextday delivery
requiremen
overnight or 2nd day parts shipping, at customer’s expense. If requested, SCIFIT will
charge the customer’s
ground shipment and overnight or 2nd day

has obtained several patents on features and designs that are unique to its

. SCIFIT

and designs in other products

uring the first 30 days warranty parts will be shipped via overnight delivery.
etermination must be made before

ts

will defend these patents against those who attempt to utilize these

.

P

arts Shipment

2:00 PM C

. D

uring the remainder of the first year warranty period

will be filled via ground shipment

UPS

account,or

COD

entral Time on any given weekday for

,

parts

. The

the difference in freight cost between

customer is welcome to request

.

32

SCIFIT • Scientific S olutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFI T

WARRANTY

Return of Parts

SCIFIT

meet this commitment, the rapid return of defective parts is essential
of the parts by our engineering department leads to changes that insure the same
problem does not re-occur. Thank you in advance for your assistance!

W

within
the parts invoice net

is committed to continual improvement in the equipment we market. In order to

. The

hen requested by

20

days of receipt of replacement part

SCIFIT,

30

days

defective parts must be returned to the

. O

ther

wise

SCIFIT

.

SCIFIT

will expect payment on

examination

factory

Please follow these three easy steps for returning parts.
S

tep 1

K

eep the box and packing material in which the new parts arrived

S

2

tep

W

rap the defective part and place in the box for safe return

moment needed to fill in the return parts form that is enclosed in the box with the new

.

parts

S

3

tep

A UPS

returned
be
will

prepaid Return Label will be in the part box for only those parts that need to be

. W

issued for the original parts invoice

NOT be

ALL of

hen

paid until defective parts are returned to the factory

the parts are received and inspected at the factory, a credit will

. A

ttention service companies

. P

.

lease take the brief

-

labor invoices

.

S

ervice Labor

W

here applicable, the

technician to provide field support. Every effort will be made to schedule service during

48

business hours
soon as repair parts are available to the field service technician
will be supplied in advance of the field service technicians so that the product is repaired
with one call

A

ll purchased parts will carry a

installation for more details

T

his Limited Commercial Warranty supercedes the limited commercial warranty printed

I

f you have questions or require additional information, please contact

.

in the

“U

SCIFIT

(8

hours per business day) following notification of a problem or as

product support personnel will arrange a local field service

P

urchased Parts

12 month

warranty

.

sers Operation Manual” for all

Inc. at 1-800-745-1373 or

. W

here possible, parts

. R

efer to Purchased parts shipments and

SCIFIT S

ystems

, Inc.

products

.

SCIFIT S

[e-mail]

ystems

33

,

SCIFIT • Scientific S olutions for Fitness • SCIFIT • Scientific Solutions for Fitness •

Warranty Card

Register online at

http://www.SCIFIT.com/warrantyregistration.shtml

or complete this form, fold it and return it to SCIFIT. We request you
send this card within 2 weeks after your equipment has been delivered
to insure proper warranty registration.

Company Name

Contact Name

Address

City/State/Zip

Home Phone (____) Business Phone (_____)

Model Purchased

Date Received Serial Number

Entity Purchased From

City/State

Please rank the following reasons (1 through 6) for selecting SCIFIT with 1 being most
important:

____Features ____ Quality ____Price ____Dealer ___User Friendly ___Appearance

Please Check the appropriate box(s) on how you were introduced to SCIFIT:

Saw in __________________________ Magazine

Introduced by SCIFIT Dealer

Saw at __________________________ Tradeshow Referred by SCIFIT User

Other

Comment

Thank You For Choosing

SCIFIT

Email Address

www.SCIFIT.com

ci if c i i

R

P2278 Rev. B

Warranty Card

SCIFIT SCIFIT SCIFIT SCIFIT

From

SCIFIT

5151 South 110th East Avenue

Tulsa, OK

74146

Important: Please keep this page for “Recalibration records”

Model Number:

Serial Number:

Date of Purchase:

Calibration Date
(Medical units):

Supplied By: SCIFIT Systems Inc.

User Manual: #P4698A (11/2010)

1st
Recalibration

2nd
Recalibration

3rd
Recalibration

4th
Recalibration

5th
Recalibration

DATE

CLUB OR
CERTIFICATION LOCATION

CERTIFIED SERVICE COMPANY

TECH
INITIALS

Please make extra blank chart copies for future use

5151 South 110th East Avenue

Tulsa, Oklahoma 74146

USA

Sales: 1-800-278-3933 • 1-918-359-2000

Customer Service: 1-800-745-1373

Order online 24/ 7 at www.SCIFI T.com
