Schweigen UM1390-6SP, UM1390-6SEL Installation Manual
RANGEHOOD & INSTALLATION GUIDE
UM1390-6S
(09.2018/v1.0)
www.schweigen.com.au
1. Welcome
Thank you for purchasing this Schweigen appliance.
To achieve the optimal performance from your appliance, and to avoid the risk of accident
or damage, it is essential to read this manual before installation and rst time use.
This guide contains important information on the use and maintenance of the appliance, as well
as important safety notes.
Your appliance has been thoroughly checked for safety and functionality before being packaged and leaving
the manufacturer.
Please keep this instruction manual in a safe place so you can refer to it at any time.
IMPORTANT!
The appliance should only be operated when you have read and understood this manual thoroughly.
The appliance can be only used for the purpose for which it was designed. Any other use is improper and
can be dangerous.
Installation and maintenance of gas and electrical appliances should only be carried out by qualied and
authorised professionals familiar with Australian Appliance Industry regulations.
Upon collection or delivery of your appliance, any damage or defects must be reported within 48 hours
to your retailer or Schweigen Customer Service, in order to recognise any claim.
The manufacturer reserves the right to introduce product improvements, which do not aect the
operation of the appliance.
Page 2
Table of Contents
1. Welcome ____________________________________________________________________ 2
2. Important Safety Information ___________________________________________________ 4
3. Description __________________________________________________________________ 7
4. Installation __________________________________________________________________ 8
5. Operation __________________________________________________________________ 14
6. Cleaning and Maintenance _____________________________________________________ 15
7. Troubleshooting _____________________________________________________________ 18
8. Technical Specications ______________________________________________________ 21
9. Disclaimer __________________________________________________________________ 23
Page 3
2. Important Safety Information
Please read the instructions carefully. Only then will you be able to operate your appliance safely and correctly.
Retain the instruction manual for future use or for subsequent owners.
Check the appliance for damage after unpacking it. Do not connect or install the appliance if it has been
damaged in transport.
Any damage must be reported within 48 hours.
There must be adequate ventilation in the room when the rangehood is used at the same time as appliances
burning gas or other fuels.
The air must not be discharged into a ue that is used for exhausting fumes from appliances burning gas or
other fuels.
Air exhaust systems must be installed in accordance with local and federal laws.
There is a re risk if regular cleaning is not carried out in conjunction with the instructions.
Do not ambé (ignite food while cooking) under the rangehood. This will damage the rangehood and will void
warranty.
Do not ignite burners that give o intense uncontrolled ames beneath the rangehood.
Flames beneath the pan must be contained at all times and cannot exceed the width of the
pan in use.
Do not leave any packaging material (bags, corner brackets etc.) within reach of children.
This appliance is not intended for use by person/s (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and/or knowledge. Unless, the person is given supervision or instruction
concerning the safe usage of the appliance by person/s responsible for their safety. Children must be
supervised to ensure that they do not play with the appliance, it is not a toy.
Accessible parts may become hot when used with cooking appliances.
Before performing any cleaning or maintenance operation, disconnect the rangehood from the mains power,
using the respective mains or sector switch, or by unplugging it.
Do not use the rangehood without the grease lters.
Keep the grease lters clean and respect the recommended cleaning frequencies.
It is forbidden to use the rangehood as an aspirator.
Page 4
2. Important Safety Information
Before Installation
We recommend this appliance be installed or repaired by a qualied Schweigen Home Appliances technician.
Please see our website www.schweigen.com.au for a list of our recommended installers.
It is dangerous to modify any part of this appliance. Modication of any kind will immediately void the warranty.
The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
Ensure that the location in which this appliance is installed, has good and permanent ventilation.
Please consult local laws and regulations and install in accordance.
Please use an earthed electrical connector that coincides with relevant local laws and regulations.
Check that the power voltage in your area corresponds to the appliance voltage indicated on the rating label.
This appliance must be connected to an electrical supply that has a grounded connection.
Check that the indicated instructions and local regulations are met and carried out by a qualied technician,
using materials that are complaint with the applicable legislation.
Schweigen will not be responsible for any installations executed by non-qualied technicians that fail to heed
the applicable legislation on electrical safety.
The electrical technical data can be found inside the rangehood, after removing the grease lters.
The exible power cables supplied are already connected internally and emerges from the rangehood near the
air outlet tube.
Before installing the electrical connections, you should:
• Verify that the indicated electrical data coincides with the voltage values and frequency of the electrical
circuit in the house where the rangehood is to be installed.
• Check that the premises has electrical protection against short circuits and electrocution.
• Before commencing maintenance the current must be turned o using the double-pole switch (mains power
switch). The power can only be turned on for normal use, once the operation has been completed.
• Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged, it
must be replaced by the manufacturer, service agent or a similarly qualied person in order to avoid a hazard.
Page 5
2. Important Safety Information
Product Use
The Rangehood has one mode of operation:
Air extraction: The air is drawn in by the rangehood, ltered through the grease lters, and then expelled
outside. Please check the cleaning and maintenance section for advice on the lter’s cleaning schedule.
This product is designed for household use and must not be used for commercial applications.
After use, always ensure that all controls are in the “OFF” position.
Never ambé any food beneath the rangehood.
Always switch o the power source and unplug the connection before conducting maintenance
or cleaning.
Respect the cleaning frequencies and intervals for changing the lters, otherwise, the accumulated grease
could cause a re or damage to the appliance.
Changes made to the steel surface will render the warranty invalid.
In addition to the size of the rangehood, the height of the rangehood above the cooktop is important to obtain
the best performance.
For recommended heights, please refer to Mounting Laws and Regulations.
Match the Rangehood Size to your Cooktop
Page 6
Rangehood larger than
cooking zone
OPTIMAL
Rangehood same size as
cooking zone
ADEQUATE
Rangehood smaller than
cooking zone
INADEQUATE
Rangehood
1. For use with Isodrive© motor system
3. Description
1
3
2. Male plug (main power 240V)
3. Single 200mm outlet
©
4. Reducer (for Isodrive
650 only)
5. Filter
6. Lamp (for GU10 ttings, please twist to remove)
NOTE: Filter and light quantity may vary from
model to model.
*IMPORTANT: Electronics MUST be accessible for
service and/or maintenance once installed, failure to
do so, will result in any charges involved with accessing
the part (removal of cabinetry etc.) being forwarded to
the customer.
2
5
4
6
Page 7
4. Installation
System Overview
1. Isodrive Motor
2. Roof Seal Kit (Dektite)*
1
2
3
4
5
8
6
7
9
3. Support Straps*
4. Attach Flexi Duct to Bell-Mouth Adaptor
using cable tie or ring clamp. Please
DO NOT rip the ducting.
5. Isodrive Motor Power Lead (Male Plug)
6. Rangehood to Isodrive Motor Lead
(Female Plug)
7. Main Power Lead (Male Plug, 10 Amp)

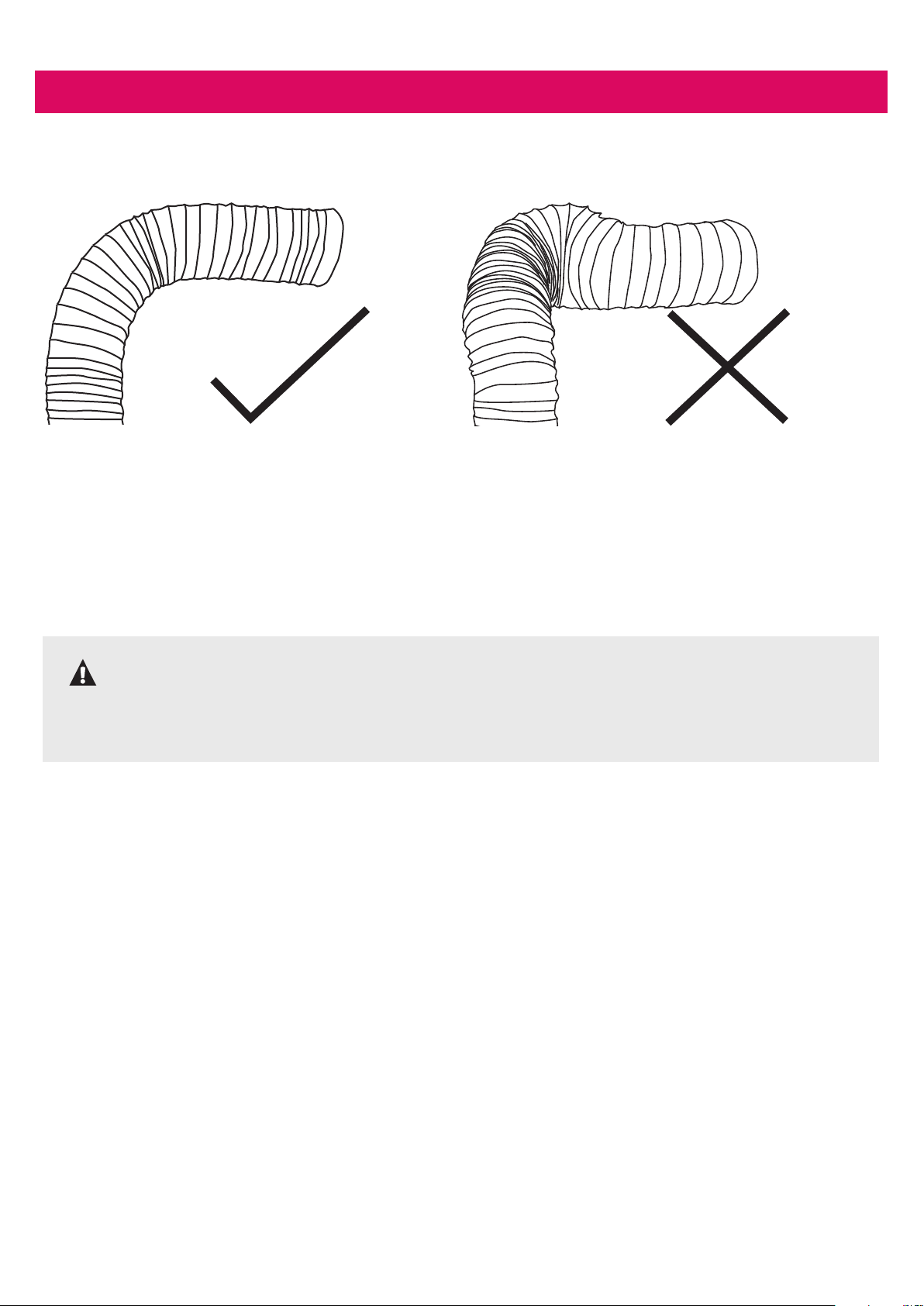

8. Flexi Ducting must be pulled taut.
DO NOT crush or kink the ducting.
9. Connect exi ducting to the outlet on
rangehood using cable tie or ring clamp.
Please DO NOT rip the ducting.
*NOTE: The Isodrive motor system does not
include the roof seal kit, cable ties, ring clamp or
the support straps.
Pictures are for illustrative purposes only, not to scale.
DANGER
All electrical wiring from the motor to
the rangehood should be kept inside
the roof space.
NOTE: The general power outlet for the
rangehood should be located in an easy
to access area.
Page 8
