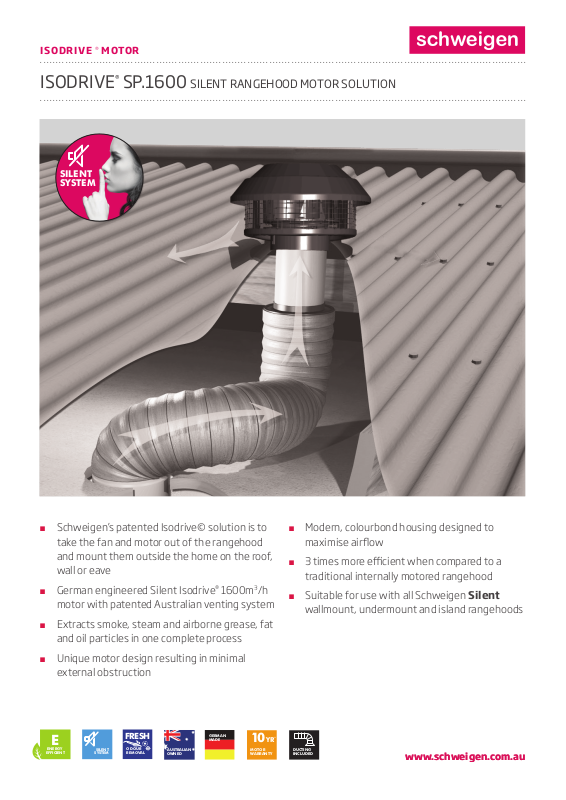

ISODRIVE® S P.1600 SILENT RANGEHOOD MOTOR SOLUTION
...........................................................................................................................................................
...........................................................................................................................................................
SILENT
SYSTEM
■ Schweigen’s patented Isodrive© solution is to
take the fan and motor out of the rangehood
and mount them outside the home on the roof,
wall or eave
■ German engineered Silent Isodrive
®
1600m3/h
motor with patented Australian venting system
■ Extracts smoke, steam and airborne grease, fat
and oil particles in one complete process
■ Unique motor design resulting in minimal
external obstruction
GERMAN
E
ENERGY
EFFICIENT
SILENT
SYSTEM
FRESH
ODOUR
REMOVAL
AUSTRALIAN
OWNED
MADE
MOTOR
WARRANTY
■ Modern, colourbond housing designed to
maximise airow
■ 3 times more ecient when compared to a
traditional internally motored rangehood
■ Suitable for use with all Schweigen Silent
wallmount, undermount and island rangehoods
*
YR
DUCTING
INCLUDED
www.schweigen.com.au
www.schweigen.com.au
ISODRIVE ® MOTOR
...........................................................................................................................................................
ISODRIVE® S P.1600 SILENT RANGEHOOD MOTOR SOLUTION
...........................................................................................................................................................
DESCRIPTION
• Isodrive
®
motor with
mounting system
• Patented anti-water intrusion,
weather protection system
(IPX4 rated)
• Super quiet, long vane, backward
curved centrifugal fan
• Can be used with any Schweigen
Silent rangehood
• Motor can be mounted 6 to
10 metres from the rangehood
• Mounts on the roof or wall
• Ducting included
TECHNICAL DATA
Isodrive
®
1600
• Fan Module
• 3.5 metre 10amp cable
• Weather Guard
• Bell Mouth Adaptor
• Flexible Ducting (6m), 200mm
• 150mm Fire resistant PVC riser pipe
• Back draft shutter
• Instruction Manual
Optional Accessories:
• SP Accessory Kit– Y branch
Flexi-Duct
MOTOR POWER
• Single motor -1600m
3
/hr extraction
power
• 10 Year Warranty on Motor
For more
information
• Wall cover plate
• Wall hanging bracket
...........................................................................................................................................................
405mm
148mm
Dektite
220mm
440mm
190mm
90mm
35mm
225mm
160mm
Isodrive® 1600 single motor dimensions
Each motor weight: 6kg net.
Shutter assembly is not shown in the diagram.
Product specications subject to change without notice, images are for illustrative purposes only. Please check nal product details with your retailer.
© Schweigen Home Appliances Pty Ltd. 2018. 8/3-4 Anzed Court, Mulgrave, Victoria 3170. Phone: 1300 881 693. Email: sales@schweigen.com.au. www.schweigen.com.au
