Schweigen PKCL7275SE, PKCC-INARTSE, PKCC-PARA4WSE, PKCC-PARA4SE Installation Guide
INSTALLATION GUIDE
HOME APPLIANCES
Isodrive 3200
Revision V1.1
www.schweigen.com.au
Index
1. Welcome ____________________________________________________________________________________________________ 3
2. Your Safety
Warning ______________________________________________________________________________________________________ 4
Before Installation __________________________________________________________________________________________ 4
Electrical Cord ______________________________________________________________________________________________ 4
Motor Features ______________________________________________________________________________________________ 5
General Notes on Installation and Use __________________________________________________________________ 5
Recommended Installation Distance ____________________________________________________________________ 5
Minimum Mounting Height ________________________________________________________________________________ 6
Avoidance of Back Flow __________________________________________________________________________________ 6
Safety of Children __________________________________________________________________________________________ 6
Replacement of Supply Cord ____________________________________________________________________________ 6
Why Flexi-duct ______________________________________________________________________________________________ 6
3. Description
Isodrive Motor _______________________________________________________________________________________________ 7
4. Installation

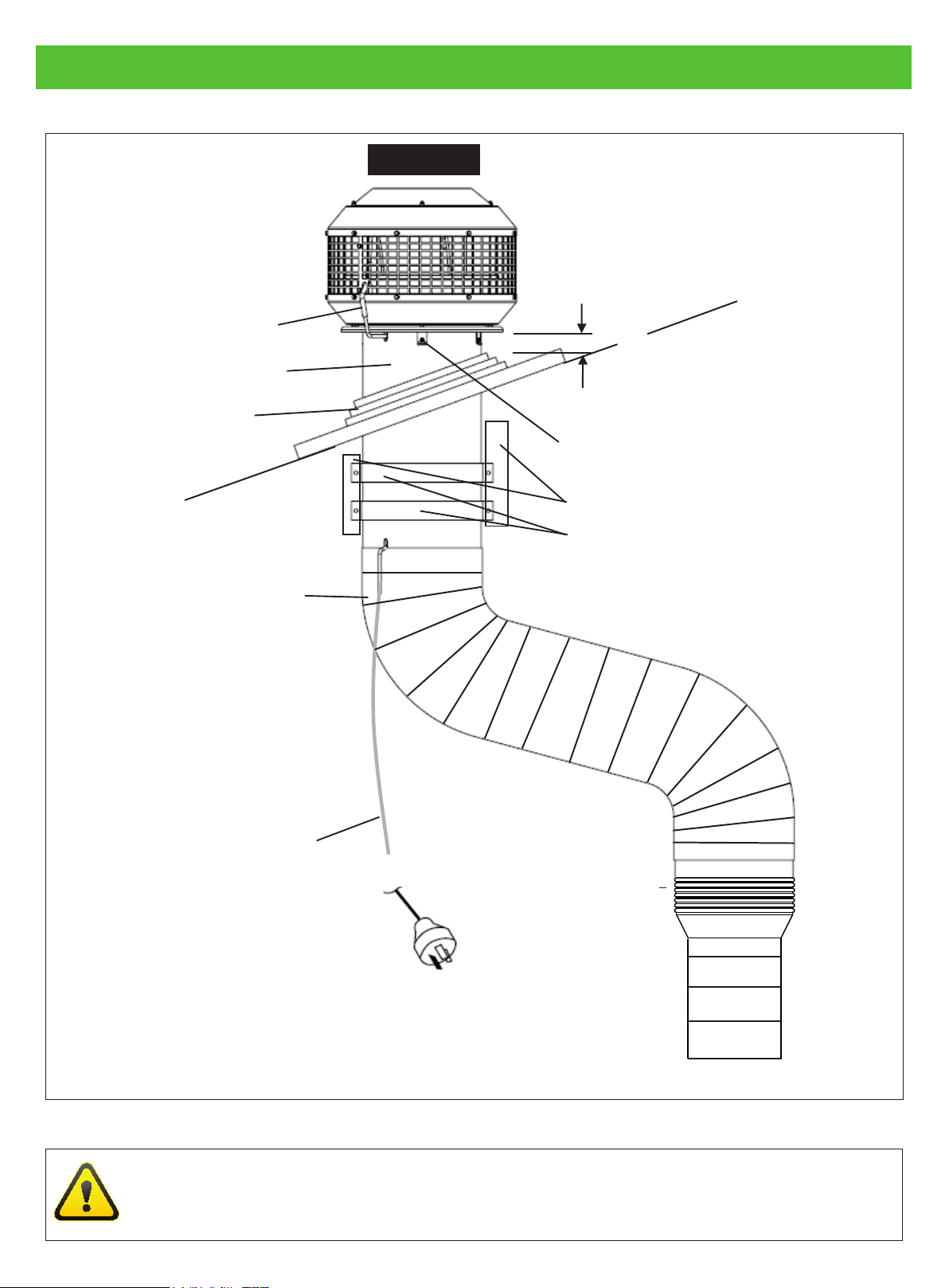

Roof Installation _____________________________________________________________________________________________ 9

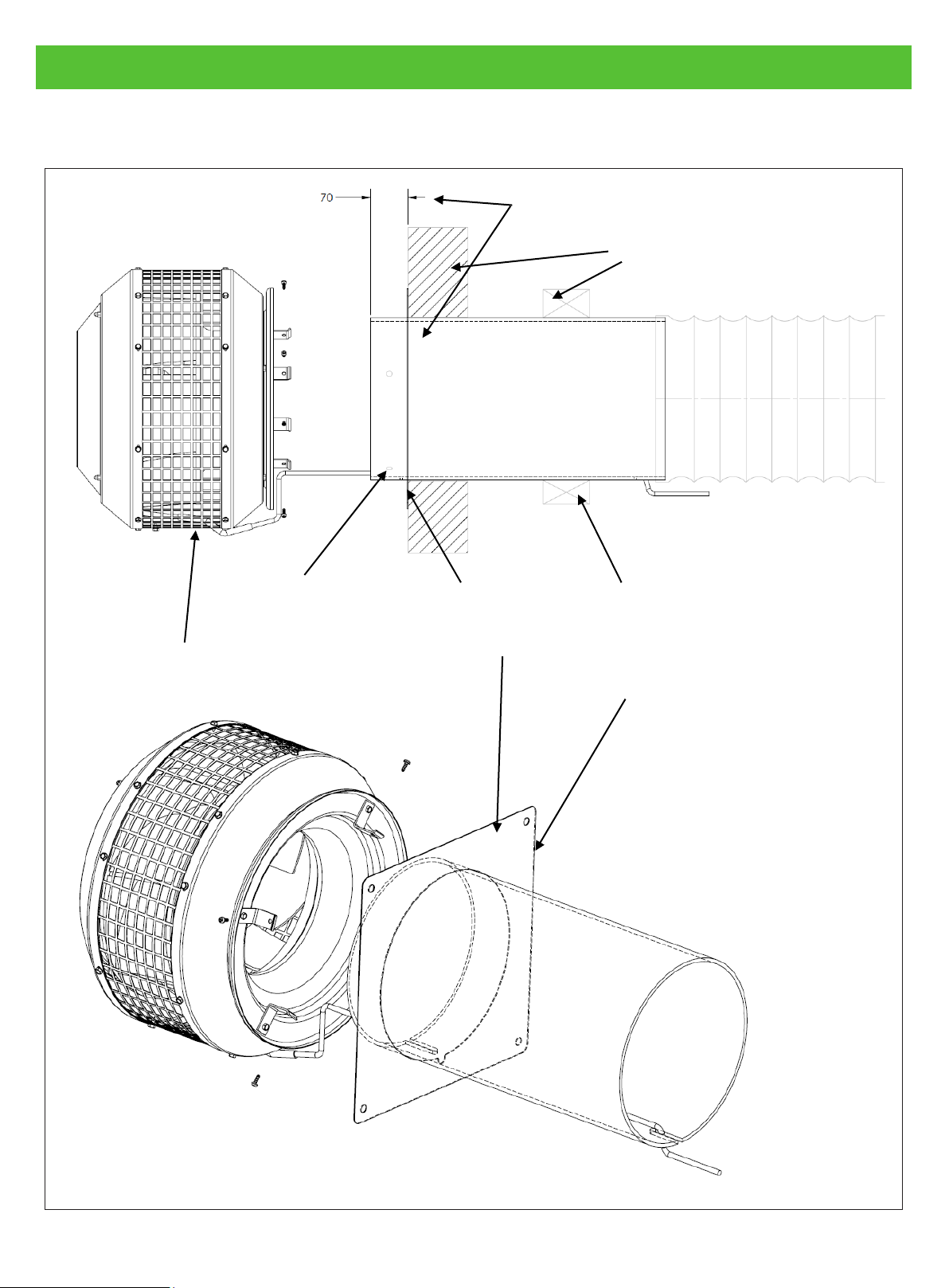

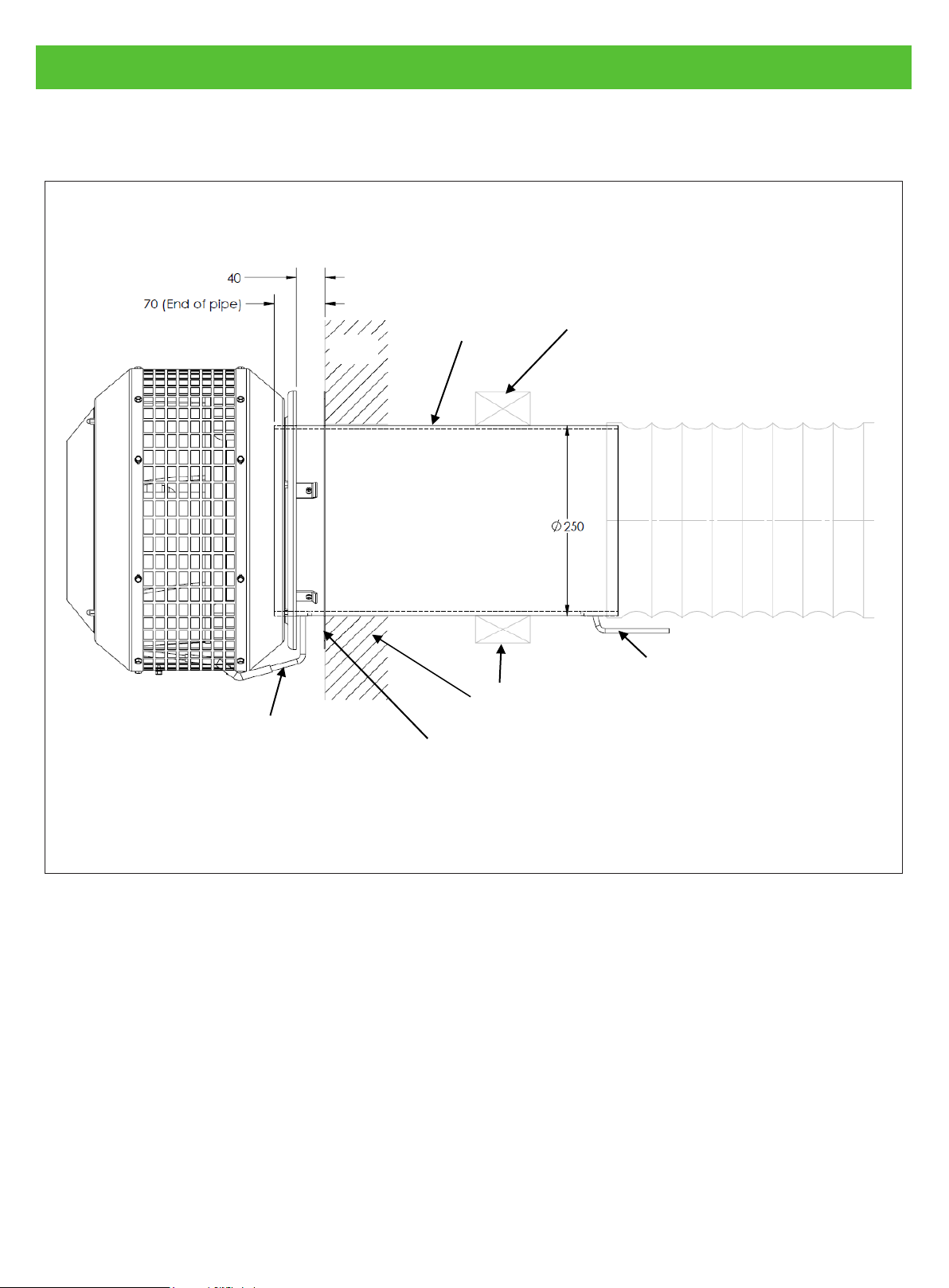

Through Wall Installation ___________________________________________________________________________________ 10

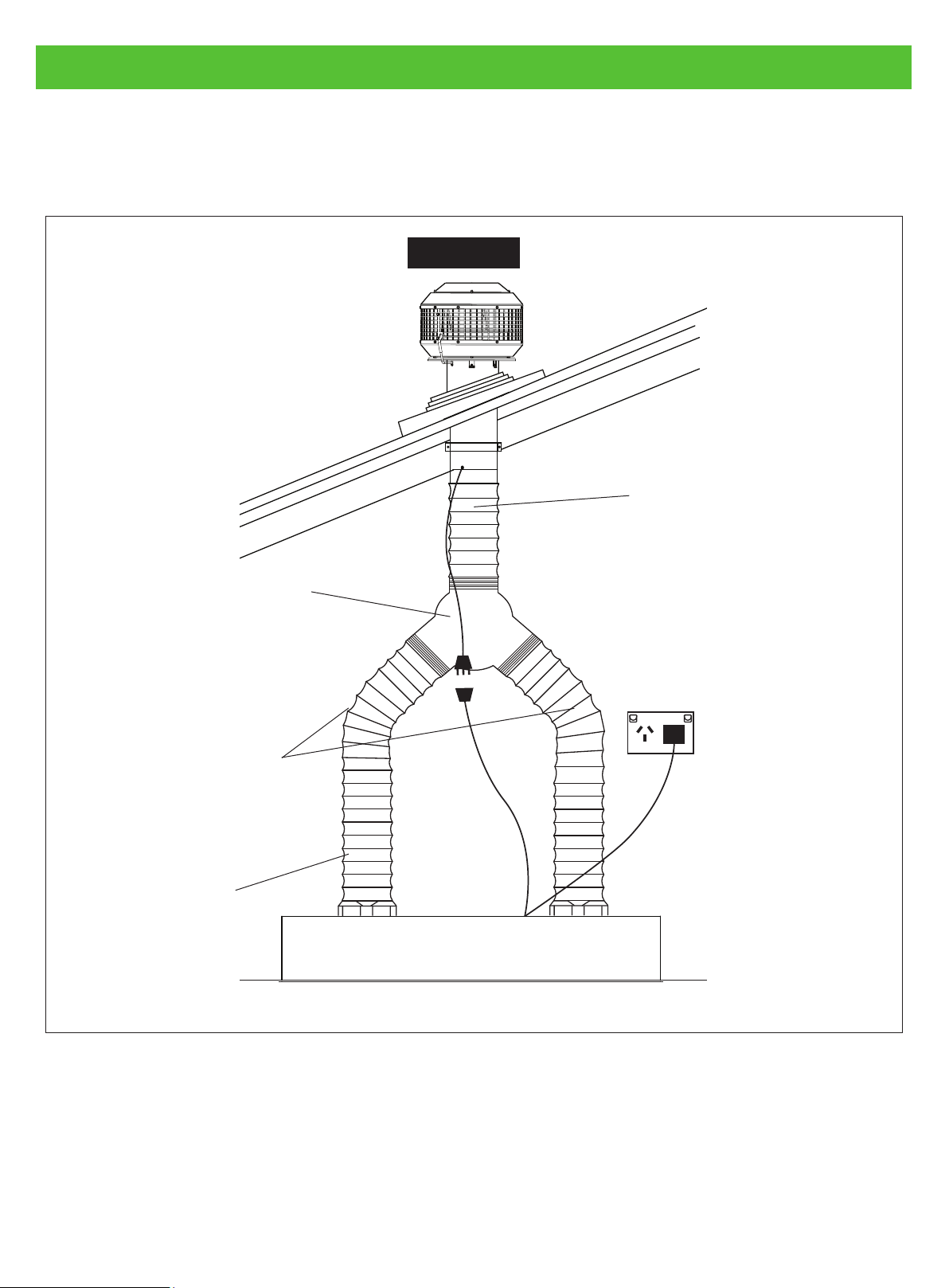

Twin 200mm Outlet Installation Example ________________________________________________________________ 12
5. Measurements

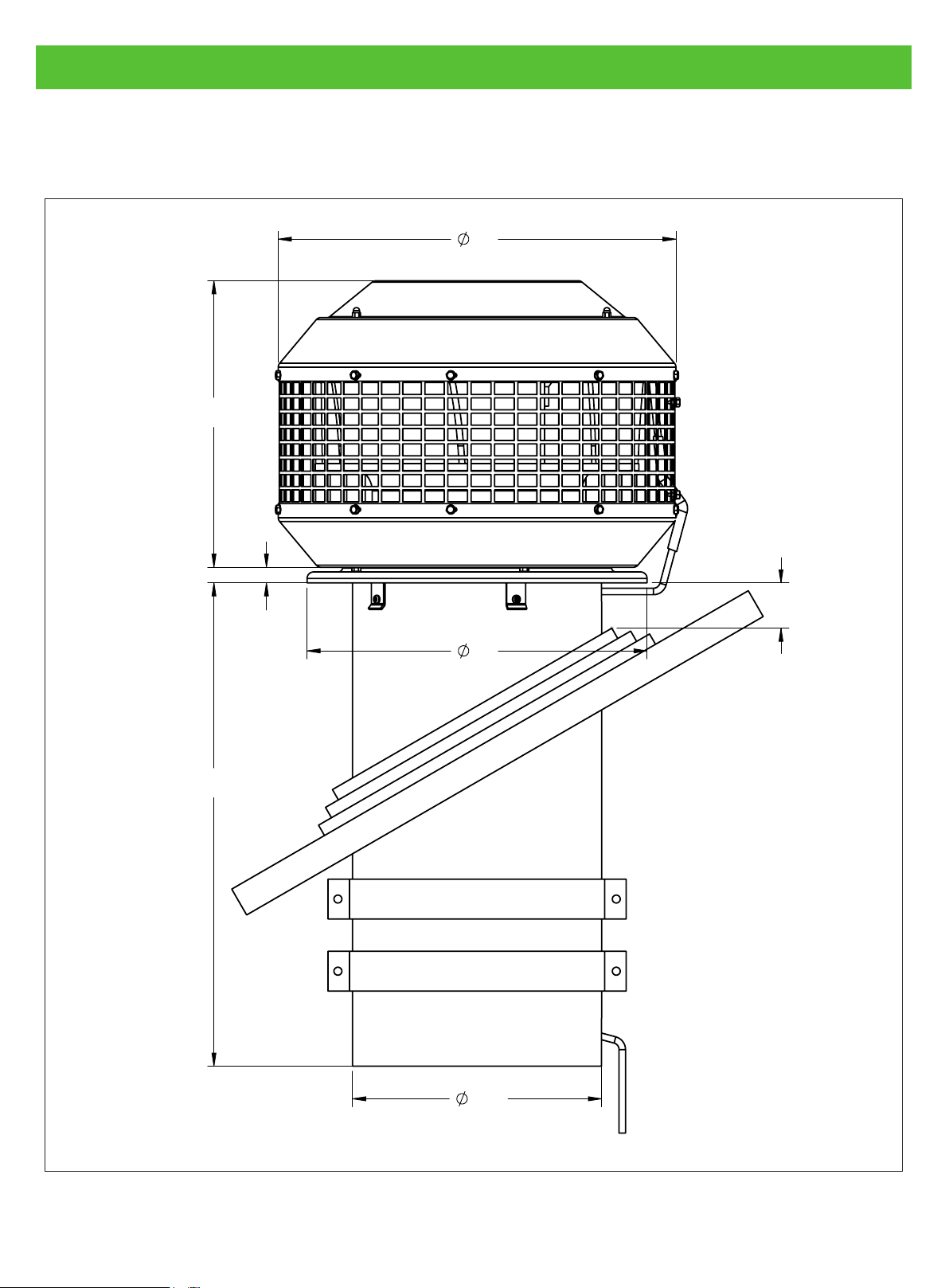

Measurements for Isodrive 3200 __________________________________________________________________________ 13
6. Flexible Duct
Flexible Ducting __________________________________________________________________________ 14

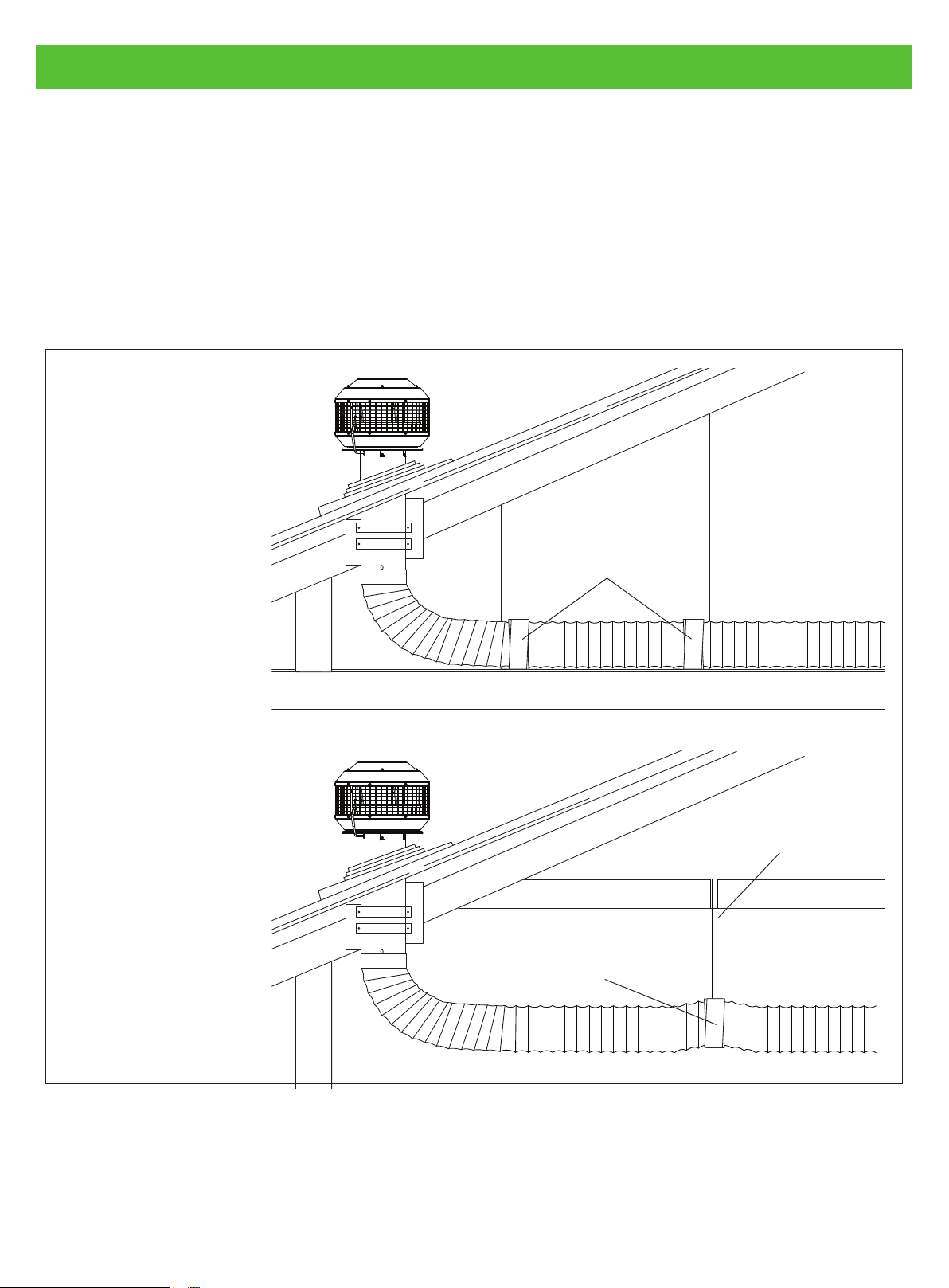

Shallow Roof Space ______________________________________________________________________ 15
Important Note ___________________________________________________________________________ 15
Securing Flexible Duct ____________________________________________________________________ 16
7. Parts List

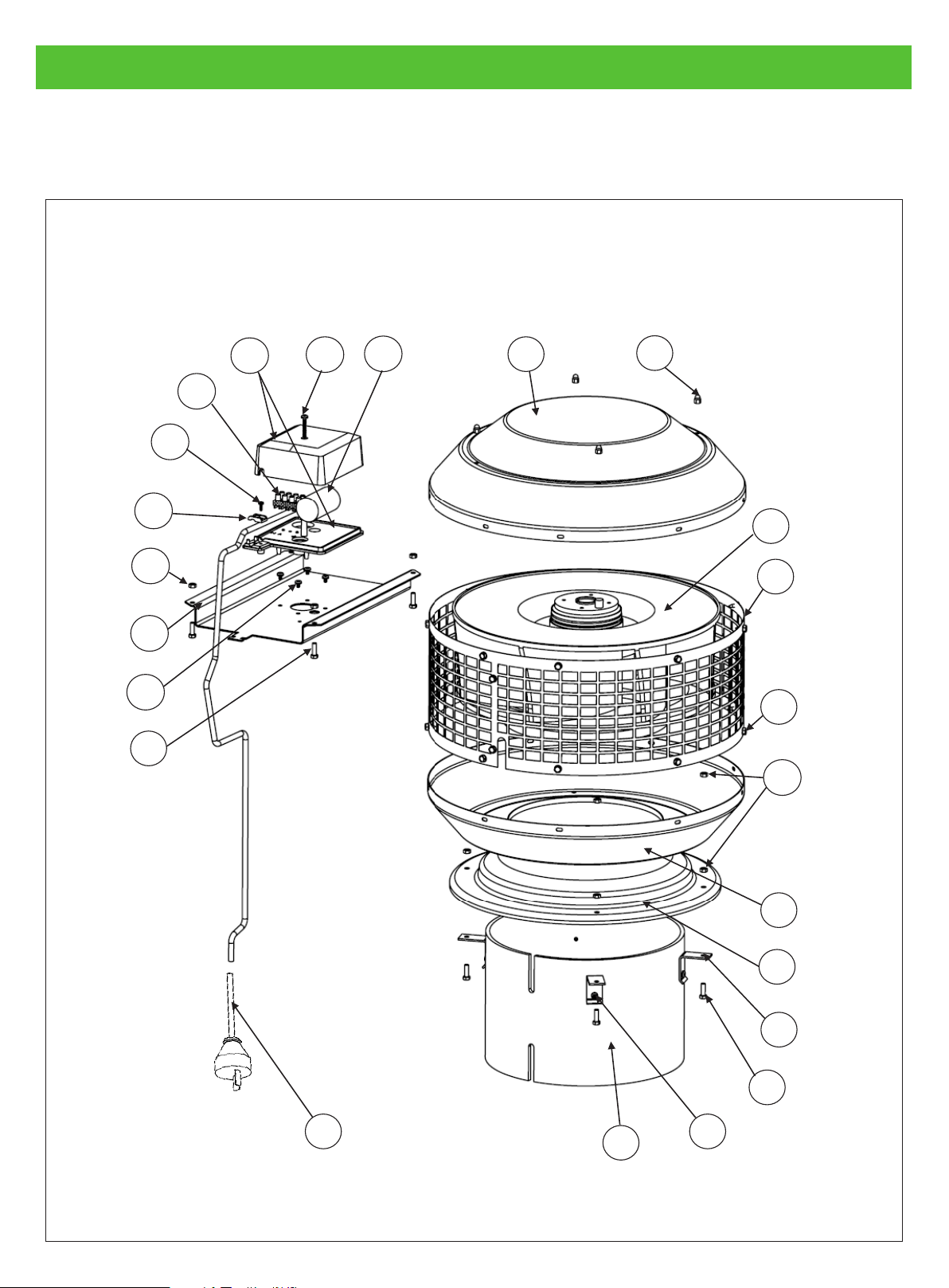

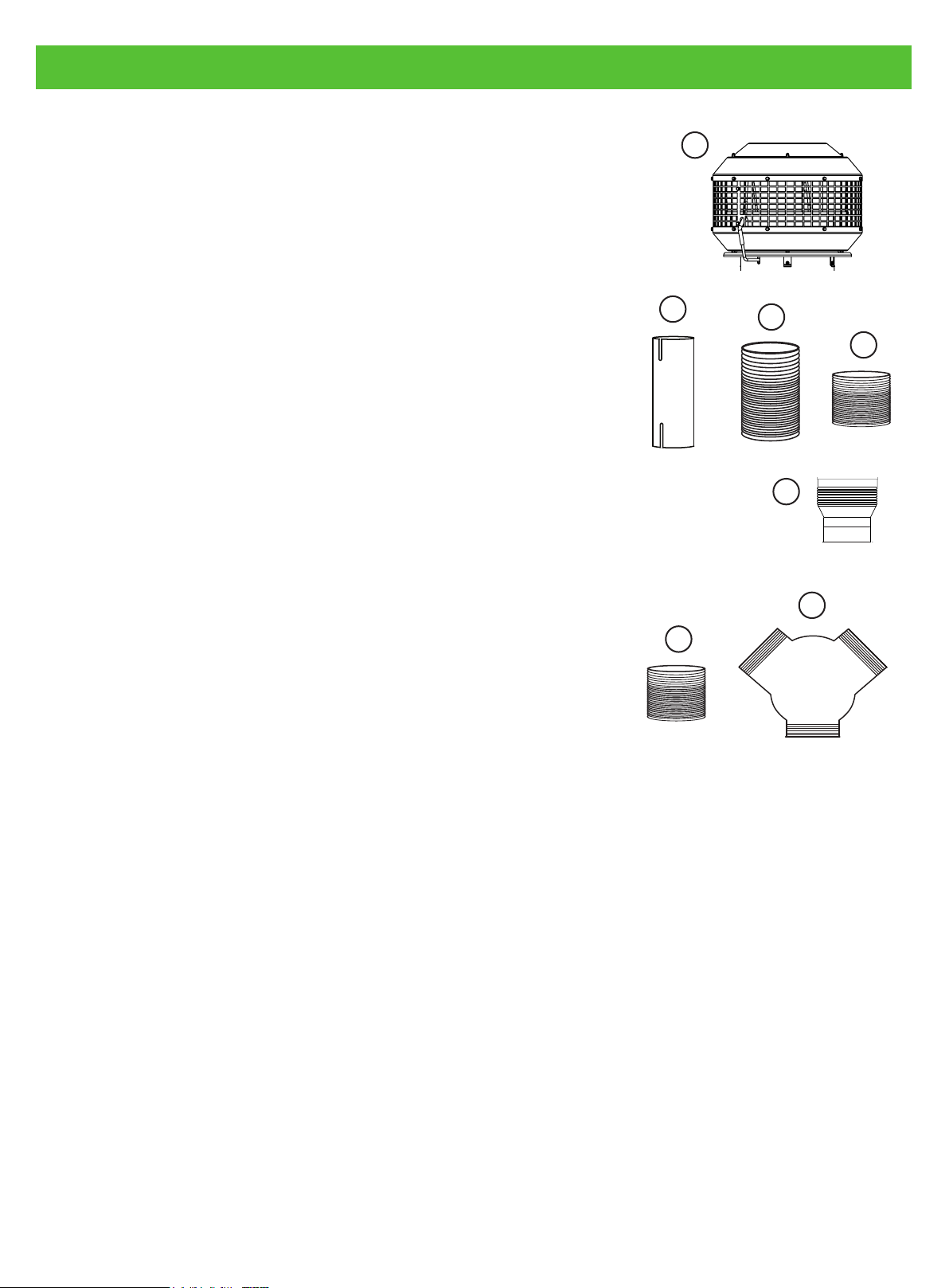

Parts List for Isodrive 3200 __________________________________________________________________ 17
8. Maintenance

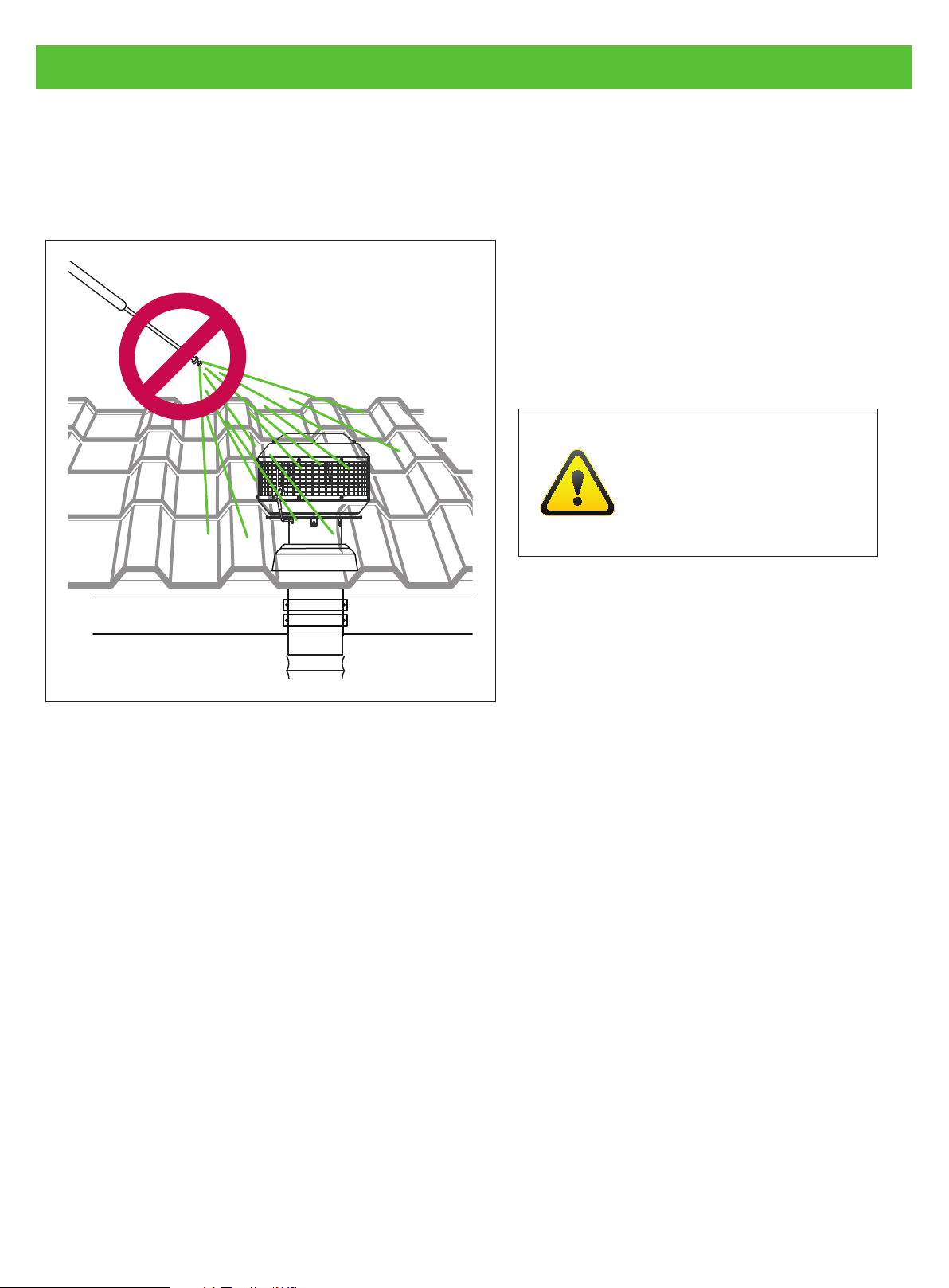

Roof Restoration or Cleaning ______________________________________________________________ 19
9. Warranty/Disclaimer _______________________________________________________________________________________ 19
Page 2
1. Welcome
Thank you for purchasing your new Schweigen Isodrive system.
To get the maximum output from this unit, please read through this operating guide before use
and installation.
The operating guide contains important information on the correct use and maintenance of the unit,
as well as important safety notes. This will ensure your personal safety and the lasting value of your
Isodrive system.
We trust that you will enjoy your new Schweigen Isodrive system.
Please always retain your proof of purchase to aid in any warranty queries.
This appliance and its packaging are produced by processes that minimise waste and respect
the environment.
Please help us to continue this effort to protect the environment by using the appliance efciently
and dispose of the packaging in a responsible manner.
Model
Purchase Date
Purchase Location
Page 3
2. Your Safety
WARNING
Please read this section thoroughly before attempting to operate the
appliance. Inspect your product upon receipt. Any damage or defects
MUST be reported within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, neither the supplier, nor the retailer,
will be responsible for the costs associated with the repair, replacement,
removal or re-installation of the appliances.
This appliance is not intended for use by person/s (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and/or knowledge, unless the person has been given
supervision or instruction concerning the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance: it is not a toy.
Do not install Isodrive motor to a non-Schweigen and/or non-silent rangehood. If you do so, your
warranty will be voided.
The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
Ensure that the location in which this appliance is installed has good and permanent ventilation.
Please consult local laws and regulations and install in accordance.
Use an electrical connector with earthing that is correct for your location.
Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
Before Installation
We recommend this appliance be installed or repaired by a qualied Schweigen Home Appliances
technician.
Please see our website www.schweigen.com.au for recommended installers. For further technical
assistance please call 1300 829 066.
It is dangerous to modify any part of this appliance. Modication of any kind will immediately void
the warranty.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged
it must be replaced by the manufacturer, service agent or a similarly qualied person in order to avoid
a hazard.
Page 4
2. Your Safety
This guide is for the installation of the Isodrive motor system after the canopy/rangehood has been
mounted on the wall or ceiling. (Refer to canopy/rangehood unit installation manual).
NOTE: All PVC pipe and exi ducting measurements are referring to inside measurements, unless
otherwise mentioned.
Motor Features
• Roof and wall mounting with IPX4 degree of weather protection.
• Super quiet, long vane, backward curved centrifugal fan.
• Airow is dependant on installation and the ducting used. Using single 250mm ex duct, you
should attain up to 3200m3/hr depending on the ducting installation. The use of a smaller than
250mm (ISD) pipe would result in a loss of airow.
• Simple installation: mounts onto a 250mm PVC pipe for ultimate strength and allows for easy
Dektite roof sealing.
• Industrial quality motor and fan made in Germany and rated at 40,000 hours.
• Motor is a high efciency PSC type and rated at 150W costing around the same as two 70W light
globes to run.
• WARRANTY 10 YEARS return to manufacturer. Covers faulty manufacturing or components. It does
not cover normal wear and tear.
General Notes on Installation and Use
This fan unit is designed to be installed using 250mm (OSD) PVC pipe as the initial connection to the
fan module. The fan unit is supplied with a 250mm (OSD) PVC pipe, 250mm (ISD) exible duct. (See
page 10 for installation detail).
This fan is suitable for connection to multiple duct runs with a minimum inlet area of 22,000mm2 and
length up to 15 metres maximum (check with supplier if longer duct length required). Where possible
exible ducting must be extended sufciently to present a smooth air passage with bends of at least
the radii of twice the diameter of the duct.
WARNING: The rangehood must not be ducted into a wall cavity or a ceiling space, where a build
up of grease can occur and become a potential re risk. This will void warranty.
NOTE: Fan module and dual foil exi-duct are acoustically matched. Use of semi-rigid or rigid ducting
will result in increased noise and may void warranty. See installation instruction notes ‘Why exi-duct’.
Recommended Installation Distance
Isodrive 3200 motor, recommended 4 to 5 metres of exi ducting.
NOTE: Although less than 4 to 5 metres will increase extraction power this will result in higher noise
level. Maximum duct length 15 metres (use 250mm ducting), however please be aware that
increasing the duct length above 5m will decrease airow. Check with supplier if longer duct length
is required. Do not reduce the duct size at any time and avoid sharp bends.
Page 5
2. Your Safety
Minimum Mounting Height
This fan unit is intended for mounting at a minimum height of 2.1 metres (measured to the lower part
of the fan impeller) above a oor or the ground.
Avoidance of Back Flow
Care should be taken to avoid the back ow of gases into the room from the open ue of gas or
other open re appliances.
Safety of Children
This fan is not intended for use by young children or inrm persons without supervision.
Replacement of supply cord
If the supply cord is damaged, it must be replaced by a service agent or suitably qualied person in
order to avoid a hazard.

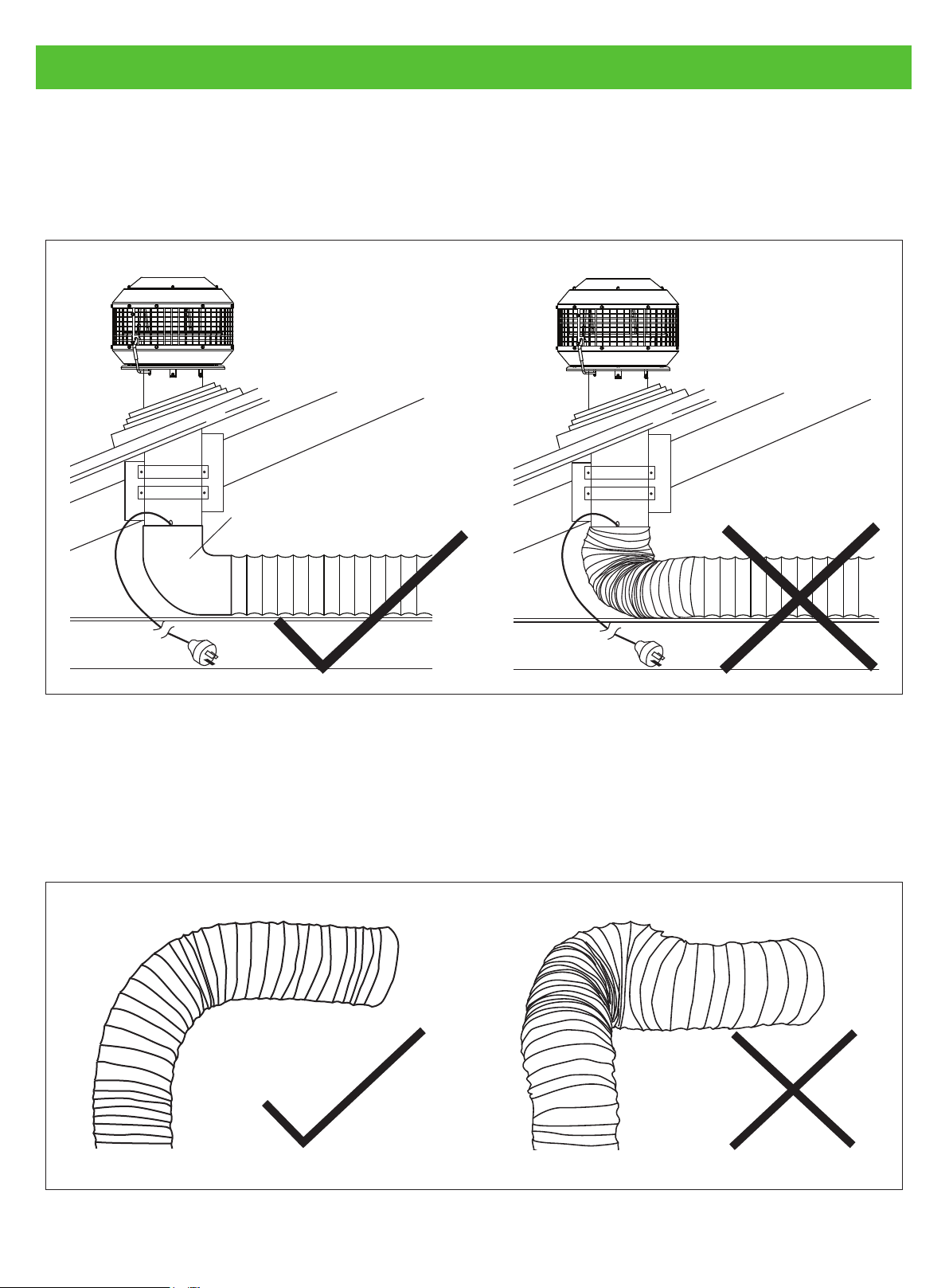

Why Flexi-duct
Some internet sites strongly recommend the use of rigid ducting over fully exible ducting. This may
well be the case with conventional rangehoods with internal motor rangehood but not with external
motor rangehood.
Schweigen’s unique Isodrive system works in the opposite way to conventional rangehoods, pulling
air through the hood and acoustically matched ducting, producing almost silent high volume ow.
The use of a complete rigid or semi-rigid ducting system will allow an organ piping effect to occur;
like a didgeridoo where a noise is produced at one end of a hollow rigid pipe and the noise is
amplied out the other.
The Isodrive system places the noise outside the house and it needs to be kept there.
WARNING: Installation without the use of at least the minimum recommended length of acoustically
matched exi-ducting in the system will void performance expectations. Any installation problem
must be reported to Schweigen. Call outs relating to incorrect installation will result in a service fee
direct to the customer. Schweigen takes no responsibility for problems caused by faulty installation,
this may void warranty. A preferred installer list can be obtained from Schweigen website
www.schweigen.com.au or by calling 1300 881 693.
Page 6
