1. Welcome
Thank you for purchasing your new Schweigen rangehood.
To get the maximum output from this unit, please read through this guide before use.
The guide contains important information on the use and maintenance of the unit, as well as important
safety notes. This will ensure your personal safety and the lasting value of your
professional rangehood.
We trust that you will enjoy your new Schweigen rangehood.
Please always retain your proof of purchase to aid in any warranty queries. This unit comes with a
2 Year Warranty. Please refer to the warranty card for more information.
If you are unable to locate your warranty card, one is available to download from our website.
www.schweigen.com.au
This appliance and its packaging are produced by processes that minimise waste and respect
the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently and
dispose of the packaging in a responsible manner.
Model
Purchase Date
Purchase Location
Page 3
NAUM-9.indd 3 24/02/2017 3:12 PM
2. Your Safety
WARNING
Please read this section thoroughly before attempting to operate the appliance. Inspect your product upon
receipt. Any damage or defects MUST be reported within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the
costs associated with the repair, replacement, removal or re-installation of the appliances.
1. There shall be adequate ventilation in the room when the rangehood is used at the same time as
appliances burning gas or other fuels.
2. There is a re risk if cleaning is not carried out in accordance with the instructions.
3. Do not ambé under the rangehood. This will damage the rangehood and will not be covered by
warranty.
4. Do not ignite burners that give o intense, uncontrolled ames beneath the rangehood.
5. Make sure that no ames emerge from the sides of pans.
6. Do not leave packaging materials (bags, corner brackets, etc) within reach of children.
7. This appliance is not intended for use by person/s (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and/or knowledge. Unless the person has been given
supervision or instruction concerning the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance, it is not a toy.
8. Exhaust air must not be discharged into an existing ue that is used for exhausting fumes from
appliances burning gas or other fuels.
9. Air exhaust must be installed in accordance with local laws. Regulations concerning the discharge of air
have to be fullled.
10. Accessible parts may become hot when used with cooking appliances.
11. Before performing any cleaning or maintenance operation, disconnect the rangehood from the mains
using the respective mains or sector switch or by unplugging it.
12. Do not use the rangehood without the grease lters.
13. Keep the grease lters clean and respect the recommended cleaning frequencies.
14. Turn the rangehood motor on before starting to cook.
15. Turn the rangehood motor o about 10-15 minutes after you nish cooking.
16. It is forbidden to use the rangehood as an aspirator.
17. Never cook foodstu directly over the ame or have the gas burners on under the rangehood without
using cookware.
Page 4
NAUM-9.indd 4 24/02/2017 3:12 PM
2. Your Safety
Before Installation
1. We recommend this appliance be installed or repaired by a qualied Schweigen Home Appliances
technician.
2. Please see our website www.schweigen.com.au for recommended installers.
3. It is dangerous to modify any part of this appliance. Modication of any kind, will immediately void the
warranty.
4. The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
5. Ensure that the location in which this appliance is installed, has good and permanent ventilation.
6. Please consult local laws and regulations and install in accordance.
7. Use an electrical connector with earth that is correct for your location.
8. Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
9. This appliance must be connected to an electricity supply with a ground connection.
10. Check that the installation and electrical connections are made by a qualied technician and that the
indicated instructions and local regulations in force are met, using materials that are compliant with the
applicable legislation.
11. The company will not be responsible for installations executed by non-qualied sta and installations
that fail to heed the applicable legislation on electrical safety (with regard to both modes and
materials).
12. The electrical technical data can be found inside the rangehood, after removing the grease lters.
13. The exible power cable supplied is already connected internally and emerges from the rangehood
near the air outlet tube.
14. Before installing the electrical connections, you should:
• Verify that the indicated electrical data coincide with the voltage values and frequency of the
electrical circuit in the house where the rangehood is to be installed;
• Check that the premises has electrical protection against short circuits and electrocution,
pursuant to the applicable legislation;
• Always switch o the current using the double-pole switch before maintenance and turn the
power on again for normal use only when the operation has been completed.
Page 5
NAUM-9.indd 5 24/02/2017 3:12 PM
2. Your Safety
Product Use
This product is designed for household use and should not be used for commercial applications.
After use, always ensure that all controls are in the “OFF” position.
When frying with a gas ame, take particular care not to allow the oil or grease in the pan to catch re.
(Flambé)
Maintenance and Service
The rangehood surface should be cleaned with soft cloth and non-corrosive detergent. Do not
leave the rangehood wet after cleaning or use, please keep rangehood dry.
IMPORTANT: Never attempt to repair this appliance by yourself. Always refer to a qualied
Service Technician.
Always switch o the electricity and unplug the connection before conducting maintenance
or cleaning.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged,
it must be replaced by the manufacturer, service agent or a similarly qualied person in order to avoid a
hazard.
Page 6
NAUM-9.indd 6 24/02/2017 3:12 PM
3. Tips & Suggestions
The rangehood has one mode of operation:
Air extraction: The air is drawn in and cleaned by the grease lters and directed outside. Please check the
cleaning and maintenance section for the lters’ cleaning periods.
For Users
1. Do not leave the frying pan or fryer unattended, as the oil could overheat and catch re.
2. Never ambé any foods beneath the rangehood. The ames could cause a re.
3. Before carrying out any operation inside the rangehood, unplug the appliance from the
electrical mains.
4. Respect the cleaning frequencies and intervals for changing the lters, as otherwise the accumulated
grease could cause a re or damage the product.
5. Changes made to the steel surface will render the warranty invalid.
For Installers and Users
1. In addition to the size, the height of the rangehood above the cooktop is important to obtain the best
performance.
2. For recommended height, please refer to Mounting Laws and Regulations.
OPTIMAL
Rangehood bigger than the
cooking area.
NAUM-9.indd 7 24/02/2017 3:12 PM
Rangehood equal to the cooking
ADEQUATE
area.
INADEQUATE
Rangehood smaller than the
cooking area.
Page 7
4. Description

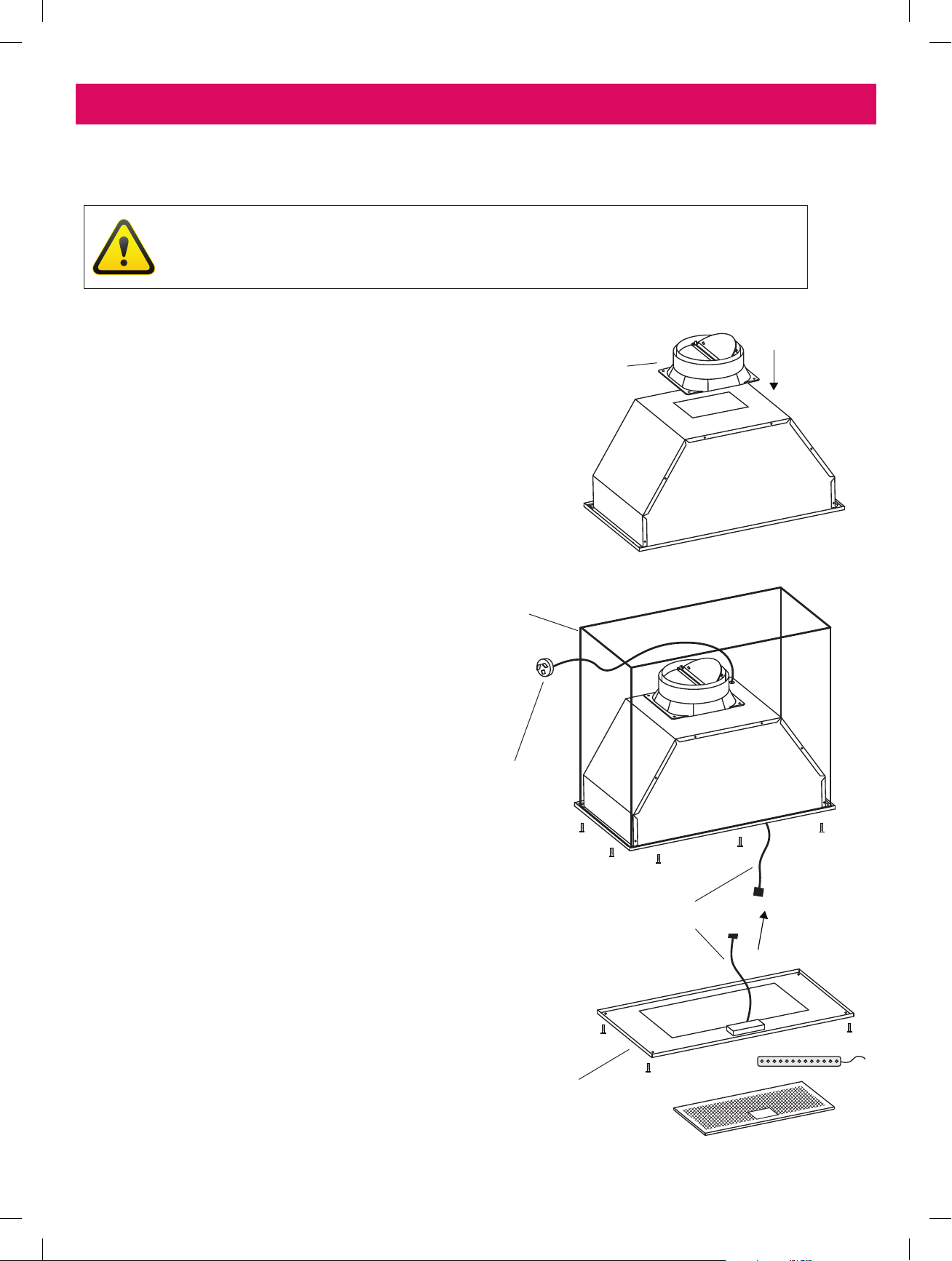

Main Rangehood
1
Male Plug (Main Power 240V)
2
Single Outlet 150mm
1
3
Filter
4
Lamp (LED Strip)
NOTE: Filter and light quantity may vary from model to
model.
2
3
Speed Control
This undermount is equipped with a 3 speed mechanical control. Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
• High speed for heavy frying or heavy cooking.
4
Page 8
NAUM-9.indd 8 24/02/2017 3:12 PM
Push Button Control Panel
Turn o the rangehood
Low speed setting
Medium speed setting
High speed setting
Turn on/o the lamp
5. Operation
Page 9
NAUM-9.indd 9 24/02/2017 3:12 PM
6. Cleaning & Maintenance
Warning
Always switch o and disconnect power before cleaning.
Surfaces
Wash with warm soapy water and a soft sponge. Never use abrasive detergent, scouring pads, steel wool or
solvents on any part of this appliance, Always make sure to dry the appliance after cleaning and never leave
wet, as this will cause irreparable damage.
Filters
• For this appliance to function eectively, regular maintenance is a must.
• The function of the lter is to absorb the grease particles given o during cooking.
• Clogged lters and heavy oil deposits restrict airow and may cause the motor to overheat and become a
re hazard.
• Filters should be cleaned every 3-6 weeks or after 40 hours of use.
• Disconnect electricity connection before maintenance and cleaning process.
• To remove the lter press handle and remove it through the front guide; bend it slightly and remove lter.
To replace, perform the same operation but in reverse.
• In ceiling-mounted rangehoods, the doors or glass must be opened before accessing the lters.
• For induction cooktop, please aim to clean them at least every 10 days, depending on use.
• The lters can be washed by hand or in the dishwasher.
Washing by hand - Immerse the lter in hot water and a suitable detergent and when clean, rinse with
plenty of hot water.
Dishwasher - Put the lter in the dishwasher and select a short program at low temperature.
NOTE: The colour of the metal mesh lters may change after several washes. This is normal and it is not
necessary to change the lters.
Page 10
NAUM-9.indd 10 24/02/2017 3:12 PM
6. Cleaning & Maintenance
WARNING
• If the grease lters are very dirty, the motor will extract only a small quantity of
air, which reduces its eciency;
• The grease deposits that build up on the lter are highly ammable and COULD
EASILY CATCH FIRE.
• The manufacturer is exonerated from all responsibility in the event of re due
to poor maintenance of the grease lters.
Cleaning the Interior
Clean the interior of the rangehood with a damp cloth and a neutral detergent or denatured alcohol.
NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or the
motor with liquids or solvents.
Cleaning the Exterior
We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly.
For better results, you can use high quality cleaning and protection products (eg. Steel Kleen) to clean your
rangehood.
WARNING
• Make sure that the electrical power is o.
• The recommended detergent is a solution of water and a neutral liquid soap.
• It is very important for the liquid soap to not contain granules that could
scratch the surface.
• First apply the solution to a soft cloth and then rub the cloth over the
rangehood. It is important to follow the direction of the stained surface with
the cloth (refer to gure on left).
• Do not pour any liquid directly on to the rangehood.
• The cloth must have no buttons, zips or fasteners that could scratch the
surface.
• It is strictly forbidden to use chemical solvents, aggressive, grainy or
abrasive products, naphtha, alcohol or similar products that could damage
the surface of the rangehood.
• The manufacturer will not be held responsible for functional or aesthetic
damage caused by cleaning with products which are not suitable or using
inadequate cleaning methods.
Page 11
NAUM-9.indd 11 24/02/2017 3:12 PM
7. Installation
DANGER
Always switch o and disconnect power before installing the rangehood. Failure to do so
may cause serious injury.
Cabinet Cutout Size
Present the rangehood to your cabinet maker so that they may take their own measurements and check
that the rangehood ts in the cabinet correctly.
NOTE: Please make sure that all plastic protection on the rangehood and lters are removed before use.
Mounting Laws and Regulations
Minimum and Maximum heights (cooktop-to-canopy) are legally required, and recommended for
optimum rangehood performance in an indoor kitchen:
Schweigen
Type of
Cooktop Min. Height
Electric 600mm 750mm 800mm Gas 650mm 750mm 800mm Induction 700mm 750mm* 800mm *Schweigen’s recommended height
• The location of the installation must have permanent openings for ventilation.
• Regulations concerning the expelling of air have to be fullled.
• It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop, this will
greatly improve its performance.
Recommended
Height Max. Height Notes
will help avoid condensation, peculiar
to cooking with an Induction Cooktop.
Refer to additional notes on page19.
IMPORTANT: Please ensure rangehood installation complies with all State and Federal Laws
relating to minimum & maximum rangehood mounting heights, and regulations concerning
the expelling of air. Rangehoods should be installed in accordance with all local laws and
regulations.
Page 12
NAUM-9.indd 12 24/02/2017 3:12 PM
FRONT VIEWSIDE VIEW
FRONT VIEWSIDE VIEW
Measurements are from
the top of the trivets to
the lowest part of the
rangehood, including the
button section.
7. Installation
WARNING
If the user decides to install
the rangehood at a distance
of less than minimum height
above the cooking surface, the
company declines responsibility
for damages suered by the
rangehood due to excess heat
or damage to objects, people
and others caused directly or
indirectly by a malfunction,
breakage or re. See Mounting
Laws and Regulations.
Mounting Points
DANGER
Always switch o and disconnect power before
installing the rangehood. Failure to do so may
cause serious injury.
NOTE: Please make sure that all plastic protection on the rangehood and lters are removed before use.
Page 13
NAUM-9.indd 13 24/02/2017 3:12 PM
7. Installation
Installation Example
WARNING
Please remove lters before installations. Failure to do so may damage the clips.
Step 1
Please make sure the cut out size is correct
before installing the rangehood.
Install the back draft base to the rangehood.
Back Draft Base
Step 2
Secure the undermount into cavity using
screws. All screws are installed from the bottom
of the rangehood into the cabinet.
Step 3
Cabinet
Male Plug
(Main power)
6 pin connector
Connect the 6 pin connector (on the face plate)
to the rangehood before securing the face plate
to the cabinet using provided screws. Insert the
light globes and lter into place last.
Page 14
NAUM-9.indd 14 24/02/2017 3:12 PM
Face Plate
7. Installation
Ducting
Please do not crush or kink ducting, as it will reduce air ow and may cause noise to occur through the
system. Ducting needs to be kept taut at all times.
Back Draft Fins
Should your Back Draft Fins get stuck, this is not a warranty issue.
When installing Back Draft Fins, please ensure that you insert the Back Draft Fins onto the back draft base,
which are attached to the top of the motor outlet before installation.
NOTE: Please make sure when ducting is installed, that it does not impede the Back Draft Fins
from operation.
Back Draft Fins
Back Draft Base
Page 15
NAUM-9.indd 15 24/02/2017 3:12 PM
7. Installation
Installation Advice
• Never reduce ue diameter right next to the rangehood outlet tting, refer to gure 1.
• Never t reductions next to curves or bends in the installations. They must always be in straight sections
and as far as possible from the rangehood, refer to gure 2.
• Avoid exccessive reduction of the ue size, as this drastically reduces extraction capacity, refer to
gure 3.
• Use an air extraction ue which is as short as possible.
• You should not have more than one bend in the installation, refer to gure 4.
• Keep the curves or bends to a minimum. If they do exist, try to keep the angles as open as possible, refer
to gure 5.
Adding charcoal lters (optional)
If you are using the appliance in the recirculation mode, a carbon lter must be tted.
• Detach the grease lter rst.
• Press the lock and pull it downward.
• Plug the activated carbon lter into the unit and turn it in a clockwise direction.
• Repeat the same on the other side.
• Please ensure that the lter is securely locked, otherwise it can come loose and become a hazard.
• When the carbon lter is attached, the suction power may be lower.
• Please replace the carbon lter every 4 to 6 months; depending on cooking frequency & method, you
may need to replace the lter more or less frequently.
Page 16
NAUM-9.indd 16 24/02/2017 3:12 PM
7. Installation
Figure 1
Figure 2
Figure 3 Figure 4
Figure 5
Page 17
NAUM-9.indd 17 24/02/2017 3:12 PM
7. Installation
Roof Cowls / Roof Seal Kit
WARNING
All electrical wiring should be kept inside the roof space.
Roof Cowls*
1
1
2
Maximum of 4
metres of ducting
for best result
34
Flexi Ducting must be pulled taut.
2
DO NOT crush or kink the ducting.
Connect exi ducting to the outlet
3
on rangehood using duct tape or
cable tie. Please DO NOT rip the
ducting.
4
Main Power Lead (Male Plug)
*NOTE: Motor system does not include the roof seal kit/roof cowls, cable tie, duct tape or the
support straps.
For best result, please install ducting in a straight line and duct length no longer than 4 metres.
Page 18
NAUM-9.indd 18 24/02/2017 3:12 PM
8. Maintenance
Cooking with Induction Cooktops
Cooking with an induction or similar cooktop may produce condensation on the rangehood.
Unlike basic electric or gas cooking, induction cooktops heat food and liquid instantly, which in turn, produces
vapours rapidly. Because of this faster process, the rangehood lters do not have enough time to warm, which
increases the chance of condensation forming.
There are many variables that may contribute to condensation forming, some of which include but are not limited
to:
• Variance in climate – geographical location
• Position of your home & kitchen – morning/afternoon sun
• Distance from cooktop to the rangehood
• Speed of food & liquid heating
• Angle of ducting – Schweigen ‘S’ bend preferred
• Filter size - larger canopy preferred
• Quality of pots or cookware you are using – high quality recommended
How to reduce the possibility of condensation forming:
• Ensure the rangehood is installed by a qualied professional, carefully following installation guide
• Turn on the rangehood 5-10 minutes prior to cooking, and leave on for 5-10 minutes after cooking; this
helps clear remaining vapours from the ue.
• Start the cooking process at a low-to-medium setting and allow time for the rangehood to become warm.
• Clean lters regularly.
• Ensure constant airow in the cooking zone; this helps optimise the rate of extraction.
• Follow all induction cooktop manufacturer advice.
For further advice, tips or information regarding cooking with induction, please contact the induction
cooktop manufacturer.
Page 19
NAUM-9.indd 19 24/02/2017 3:12 PM
8. Maintenance
Troubleshooting
If the product does not work:
Before you contact the technical service department, make sure that the product is plugged in, the electric
fuse (on selected models) is in correctly and electric wiring is connected. (Fuses can be purchased from
your local electrical dealer or hardware store). Weak air suction may be caused by back draft ns remaining
closed. Do not take any action that will damage the product.
Rangehood does not work
Light does not work
Rangehood air suction is weak
Rangehood does not direct air out
(through chimney)
Loud noise from the rangehood
Check electric connection. Voltage of the
electric network should be between 220 -
240V, rangehood should be connected to
grounded plug and turned on.
Check motor switch. Please ensure that there
is power to the rangehood and the rangehood
is switched on.
Check lamp switch. Lamp switch should be at
on position.
Check metal lter. Metal lter should be
washed regularly, see lter cleaning.
Check lamps. Lamps should be rm.
Check outlet. Outlet should be open.
X X
X X X X
X
X X
X X X
Check lamps and fuse. Make sure they are not
broken or faulty.
Please make sure there is no obstruction in
ducting or back draft fins.
Check the outlet, make sure it is not blocked
and you have the correct diameter ducting
installed.
X
Page 20
NAUM-9.indd 20 24/02/2017 3:12 PM
Technical Specications
8. Specications
Model
Feeding Voltage
Lamp Power — LED Strip (W)
Front
NAUM-9
240V 50Hz
2 x 2.5W (supplied)
71mm
295mm
165mm
150mm
265mm
269 .5 mm
865mm
898mm
Page 21
NAUM-9.indd 21 24/02/2017 3:12 PM
10. Technical Support
Technical Support
It is not the responsibility of Schweigen Home Appliances to rectify any incorrect installations. A service call
out fee will be charged for any Schweigen technician that attends a call, whereby it’s established that the
fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such
a way that the service agent is unable to gain access to the appliance, the person/s who own the premises
or the appliance where the appliance resides — will be responsible to provide access to the appliance at their
expense.
In the event that the failure is not due to the faults mentioned in Trouble Shooting, contact the Technical
Service 1300 829 066.
A service request will require the following information:
• The purchase date
• The rangehood model and motor type (eg. IsoDrive® 650)
• The rangehood serial number or batch number (this number is on a sticker inside the rangehood)
Disclaimer
Under our policy of continuous product development, product specications may change without notice.
Prospective purchasers should therefore check with the retailer to ensure this publication correctly
describes the products being oered for sale. All information supplied is to be used for general reference
purposes only and is on the understanding that Schweigen Home Appliances will not be liable for any loss,
liability or damage of whatever kind arising as a result of any reliance upon such information. All pictures
used in the guide are for illustrative purposes only.
The symbol on the product or its packaging indicates that it cannot be treated as normal
household waste. Take this product to your nearest electrical and electronic equipment
waste point for recycling. By correctly disposing of this product, you will be helping to prevent
potentially negative consequences for the environment and public health, which could arise if
this product is not handled in the appropriate way. For more details about the recycling of this
product please contact the authorities of your city or town, your local household waste service
or the store where you purchased the product.
Page 22
NAUM-9.indd 22 24/02/2017 3:12 PM
Notes
Page 23
NAUM-9.indd 23 24/02/2017 3:12 PM
Australia 8/3-4 Anzed Court, Mulgrave VIC 3170. Phone 1300 881 693
Email sales@schweigen.com.au Web www.schweigen.com.au
New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510
Email info.parex@emerson.com Web www.parex.co.nz
Distributed by Axis Group International Pty Ltd
ACN 124 141 322
NAUM-9.indd 24 24/02/2017 3:12 PM
Loading...
