Welcome
Thank you for purchasing your new Schweigen Isodrive system.
To get the maximum output from this unit, please read through this guide before use and installation.
This guide contains important information on the correct use and maintenance of the unit, as well as important
safety notes. This will ensure your personal safety and the lasting value of your Isodrive system.
Please always retain your proof of purchase to aid in any warranty queries.
This appliance and its packaging are produced by processes that minimise waste and respect the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently and dispose
of the packaging in a responsible manner.
Receiving your rangehood ______________________________________________________________________ 4
Before Installation ______________________________________________________________________________ 4
Electrical Cord __________________________________________________________________________________ 4
Motor Features ________________________________________________________________________________ 5
General Notes on Installation and Use ____________________________________________________________ 5
Recommended Installation Distance _____________________________________________________________ 5
Minimum Mounting Height ______________________________________________________________________ 6
Avoidance of Back Flow _________________________________________________________________________ 6
Safety of Children ______________________________________________________________________________ 6
Replacement of Supply Cord _____________________________________________________________________ 6
™
Why Schweigen SteelFlex
3. Description
Isodrive Motor _________________________________________________________________________________ 7
Please read this section thoroughly before attempting to operate the appliance.
Inspect your product upon receipt. Any damage or defects MUST be reported
within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, the supplier, nor the retailer, will be responsible
for the costs associated with the repair, replacement, removal or re-installation of
the appliances.
This appliance is not intended for use by person/s (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and/or knowledge. Unless the person has been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance, it is not a toy.
Do not install Isodrive motor to a non-Schweigen and/or non-silent rangehood. If you fail to do so, your
warranty will be voided.
The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
Ensure that the location in which this appliance is installed, has good and permanent ventilation.
Please consult local laws and regulations and install in accordance.
Use an electrical connector with earth that is correct for your location.
Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
Before Installation
We recommend this appliance to be installed or repaired by an experienced Home Appliances technician.
Please see our website www.schweigen.com.au for experienced installers.
It is dangerous to modify any part of this appliance. Modication of any kind, will immediately void the warranty.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged, it must be
replaced by the manufacturer, service agent or a similarly qualied person in order to avoid a hazard. The power
supply cord connection MUST BE installed in such a way that access is easy in case of emergency.
Page 4
Page 5
2. Your Safety
This guide is for the installation of the motor used in the Isodrive systems after the canopy/rangehood has
been mounted on the wall or ceiling. (Refer to canopy/rangehood unit installation manual).
™
NOTE: All PVC pipe and SteelFlex
ducting measurements are referring to inside measurements, unless
otherwise mentioned..
Motor Features
• Roof and wall mounting with IPX4 degree of weather protection.
• Super quiet, long vane, backward curved centrifugal fan.
• Airow is dependant on installation and the ducting used. Using a single 250mm SteelFlex
3
should attain up to 3200m
/hr depending on the ducting installation. The use of a smaller than
250mm ducting would result in a loss of airow.
• Simple installation: The motor mounts onto a 250mm PVC pipe for ultimate strength and allows for easy
Dektite roof sealing.
• Industrial quality motor and fan made in Germany and rated at 40,000 hours.
• Motor is a high eciency PSC type and rated at 150W costing around the same as two 70W light globes
to run.
• WARRANTY 10 YEARS return to manufacturer. Covers faulty manufacturing or components. It does not
cover normal wear and tear, chemical or storm damage etc. (see warranty card for more information).
™
duct, you
General Notes on Installation and Use
This fan unit is designed to be installed using 250mm (ISD) PVC pipe as the initial connection duct to the fan
™
module, and is supplied with a 250mm (ISD) PVC pipe and 250mm (ISD) SteelFlex
(see page 17 for installation
details).
This fan is suitable for connection to multiple duct runs with a minimum inlet area of 22,000mm
™
installing, maximum 8 metres of the 250mm SteelFlex
™
the ducting. Where possible SteelFlex
ducting must be extended suciently to present a smooth air passage
ducting MUST be used and no more than 2 to 3 bends in
2
. When
with bends of at least the radius of twice the diameter of the duct. Excessive bends in the ducting will
compromised extraction.
WARNING: The rangehood must not be ducted into a wall cavity or a ceiling space, where a build up of grease
can occur and become a potential re risk. This will void your warranty.
™
NOTE: Fan module and SteelFlex
in increased noise and may void warranty. See installation instruction notes ‘Why Schweigen SteelFlex
duct are acoustically matched. Use of semi-rigid or rigid ducting will result
™
Safety Duct’.
Recommended Installation Distance
Isodrive 3200 motor, recommended 4 to 6 metres of SteelFlex™ ducting and with at least two bends.
NOTE: Although less than 4 to 5 metres will increase extraction power this may result in a higher air noise level. Maximum duct length 8 metres (use 250mm ducting), however please be aware that increasing the
duct length above 5 metre will decrease airow. Check with supplier if longer duct length is required. Do not reduce the duct size at any time and avoid sharp bends.
Page 5
Page 6
2. Your Safety
Minimum Mounting Height
This fan unit is intended for mounting at a minimum height of 2.1 metres (measured to the lower part of the
fan impeller) above a oor or the ground.
Avoidance of Back Flow
Care should be taken to avoid the back ow of gases into the room from the open ue of gas or other open re
appliances.
Safety of Children
This fan is not intended for use by young children or inrm persons without supervision.
Replacement of Supply Cord
If the supply cord is damaged, it must be replaced by a service agent or suitably qualied person in order to
avoid a hazard.
Why Schweigen SteelFlex™ Safety Duct
Schweigen SteelFlex™ is an ultra-strong and exible high-performance safety ducting made
®
of Shirikon Firemesh
Schweigen – the Silent Rangehood specialists, for quiet and ecient high-volume transfers
of temperature-sensitive air. Engineered to enhance the health and safety of your home,
Schweigen SteelFlex
It is reproof, pest and crush proof with a treated surface that prevents the build-up of grease
and bacteria.
Schweigen’s unique Isodrive system works in the opposite way to conventional rangehoods, pulling air through
the hood and acoustically matched ducting, producing almost silent high volume ow. The use of a complete
rigid or semi-rigid ducting system will allow an organ piping eect to occur; like a didgeridoo where a noise is
produced at one end of a hollow rigid pipe and the noise is amplied out the other.
– a tri-layer tear-resistant UV-treated sleeve. Both are developed by
™
is antimicrobial treated, thermally insulated and acoustically dampened.
The Isodrive system places the noise outside the house.
WARNING: Installation without the use of at least the minimum recommended length of acoustically matched
™
SteelFlex
to Schweigen. Call outs relating to incorrect installation will result in a service fee direct to the customer.
Schweigen takes no responsibility for problems caused by faulty installation, this may void warranty.
An experienced installer list can be obtained from Schweigen website www.schweigen.com.au or by
calling 1300 881 693.
Page 6
in the system will void performance expectations. Any installation problem must be reported
Page 7
NOTE
For more SteelFlex™ ducting instructions, refer page 17.
3. Description
Isodrive Motor
Included in the box:
1. Isodrive 3200 motor
Approx. 3 metre, 10amp cable and standard plug
2. Fire resistant 250mm outside dimension PVC riser pipe
3. SteelFlex
250mm (260mm outside dimension) diameter
4. SteelFlex
200mm (210mm outside dimension) diameter
5. 4 x Steel ring clamps
6. 6 x 20mm self-drilling button head screws
7. 250-200mm reducer (only use when connecting the
Isodrive 3200 motor to a single 200mm opening on a
rangehood)
Not included in the box:
• Roof seal kit / Dektite
• Support straps for poly pipe which connects to the
Mount 250mm (ISD) rigid PVC pipe securely to beams, trusses or other appropriate structures: refer gure 1.
The pipe should be mounted vertically with the roof penetration being sealed using a Dektite or other appropriate
sealing membrane or device when installing through a metal nished roof. DO NOT install on a over lapping join.
Ensure that the PVC pipe protrudes a minimum of 50mm past the top of the Dektite, checking that the fan
assembly clears the roof cladding at upper edge as shown in gure 1 — Roof Mount Option.
Pass power cord and plug through mounting ange and pipe, then out the slotted PVC pipe for connection to the
socket coming from the canopy/rangehood. Refer to gure 1.
Do not insert plug into socket outlet or switch on until installation has been completed. Fit fan module to pipe and
x in position using side locking screw.
Certain external installation congurations may cause audible levels of noise to be heard due to the air being
expelled from the motor. To minimize external noise disturbance you can use between 4 to 8 metres of SteelFlex
duct to place the Isodrive motor in an appropriate position.
3
Please be aware that the 3200 motor is capable of expelling air at 3200m
/hr.
For more information on environmental noise limit and conditions please contact your local Council. We have a list
of experienced installers available on the Schweigen website.
™
Do not install the SteelFlex
in a straight line and minimum of two gentle bends in the ducts is required.
NOTE: Prevent any
cord bunching by
pulling cord through
from plug top end
Connect to power supply
250-200mm reducer
™
200mm SteelFlex
MUST keep taught
duct
Only use when
connecting
the motor to a
single 200mm
outlet on the
rangehood.

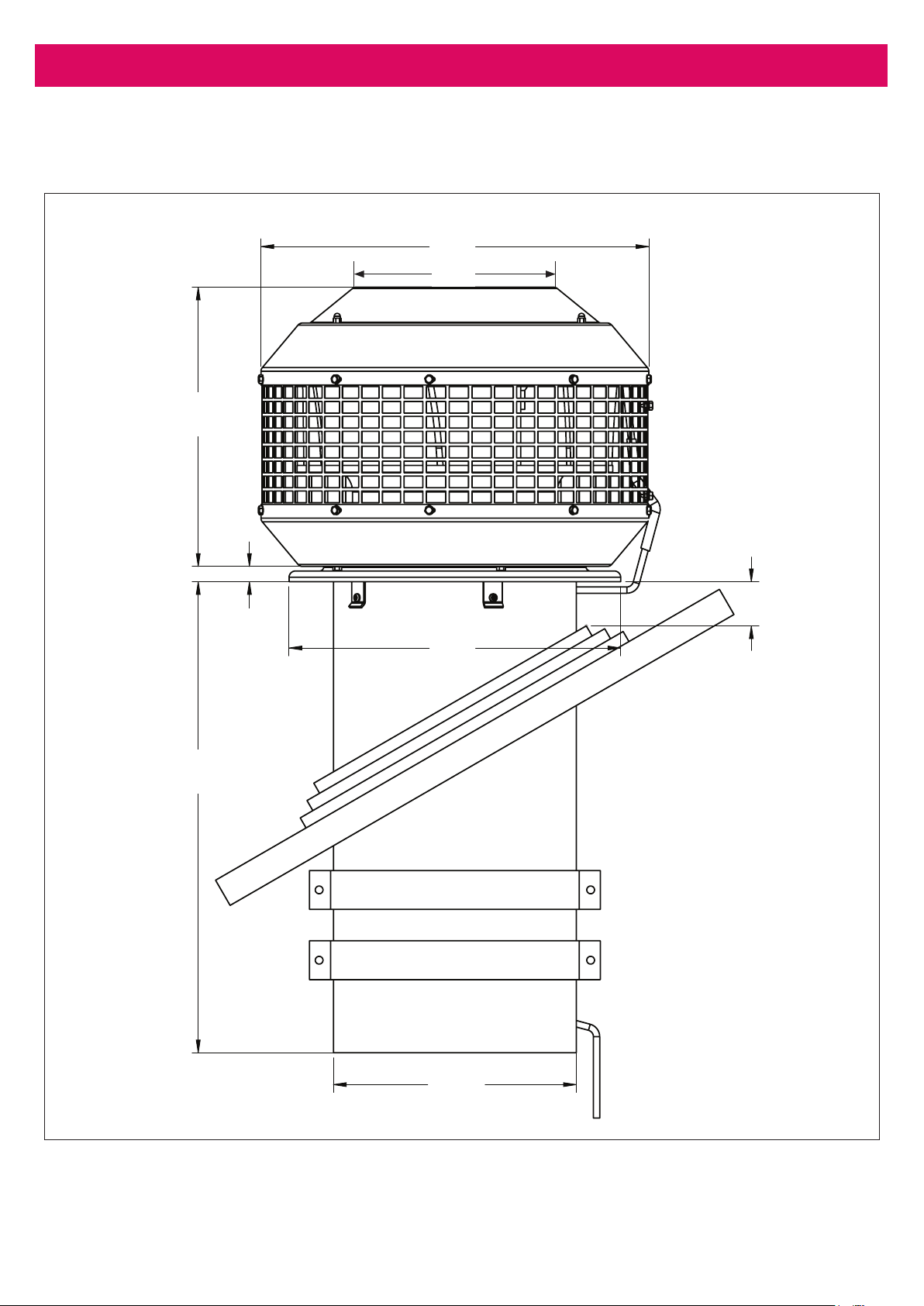

Figure 1: Roof mount option
IMPORTANT
For more SteelFlex™ ducting instructions, refer page 17.
Page 9
Page 10
4. Installation
Through Wall Installation
Minimum protrusion
distance from wall
40mm
70mm (End of pipe)
Wall
Connecting pipe
ø 250mm
Recommended to x pipe to a
support structure or strapping
bracket (not included in
mounting kit).
Power cable
Mounting points
Ensure power cable,
pipe and cover plate
slot is at the bottom.

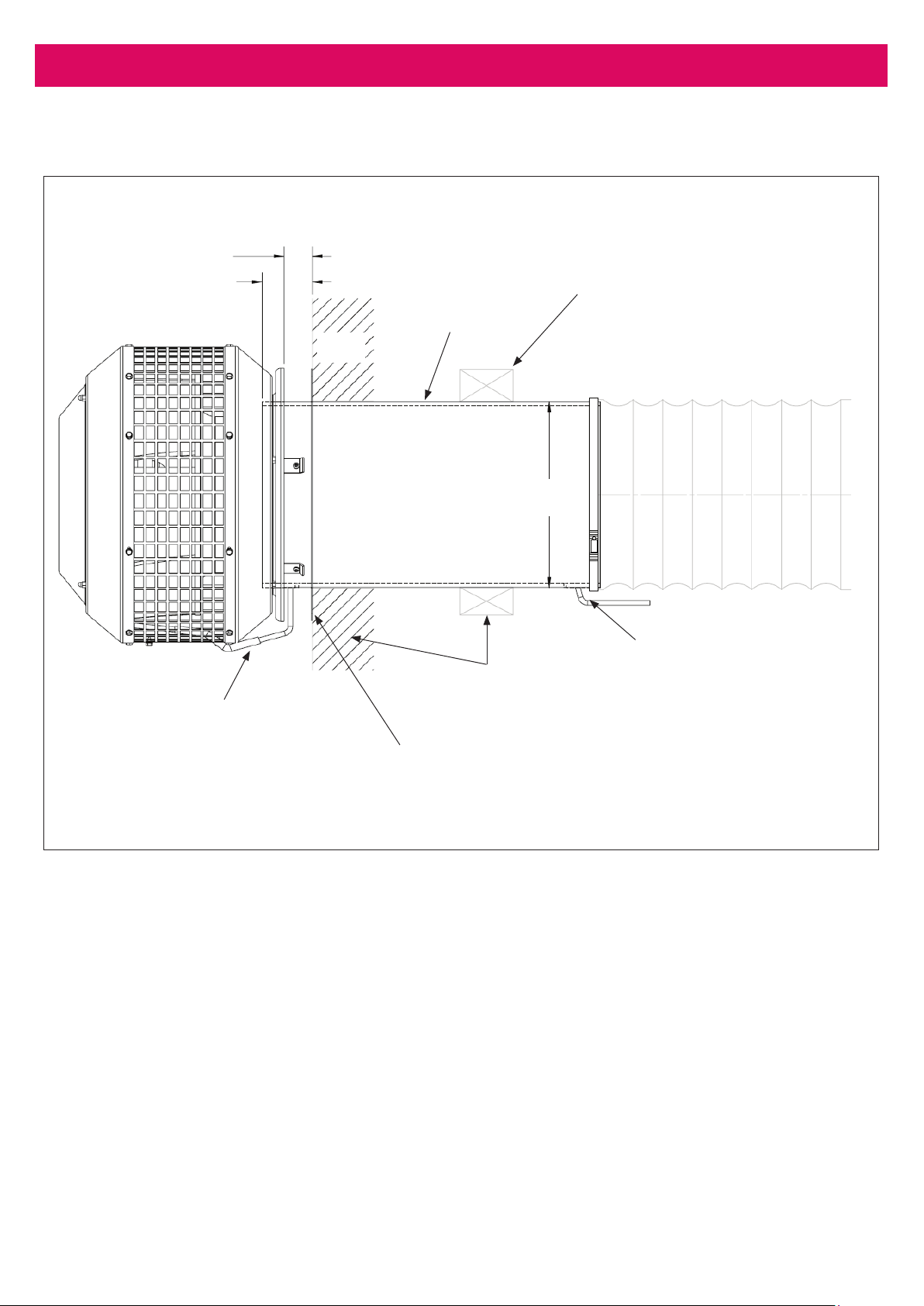

Figure 2: Through wall installation
NOTE: Make sure that the connecting pipe is well supported, at least 2 mounting points recommended.
Wall cover plate (Optional - Part Number P2025)
Page 10
Page 11
4. Installation
Install fan
unit last
70mm
Marked fastening
holes rst before
installing
Protrude pipe to distance
(use as reference only)
Ensure slot cover
plate, power cable
and pipe slot is at
the bottom.
Mounting points
Fix pipe to structure or
with a strapping bracket.
Wall cover plate
(Optional - Part Number P2025)

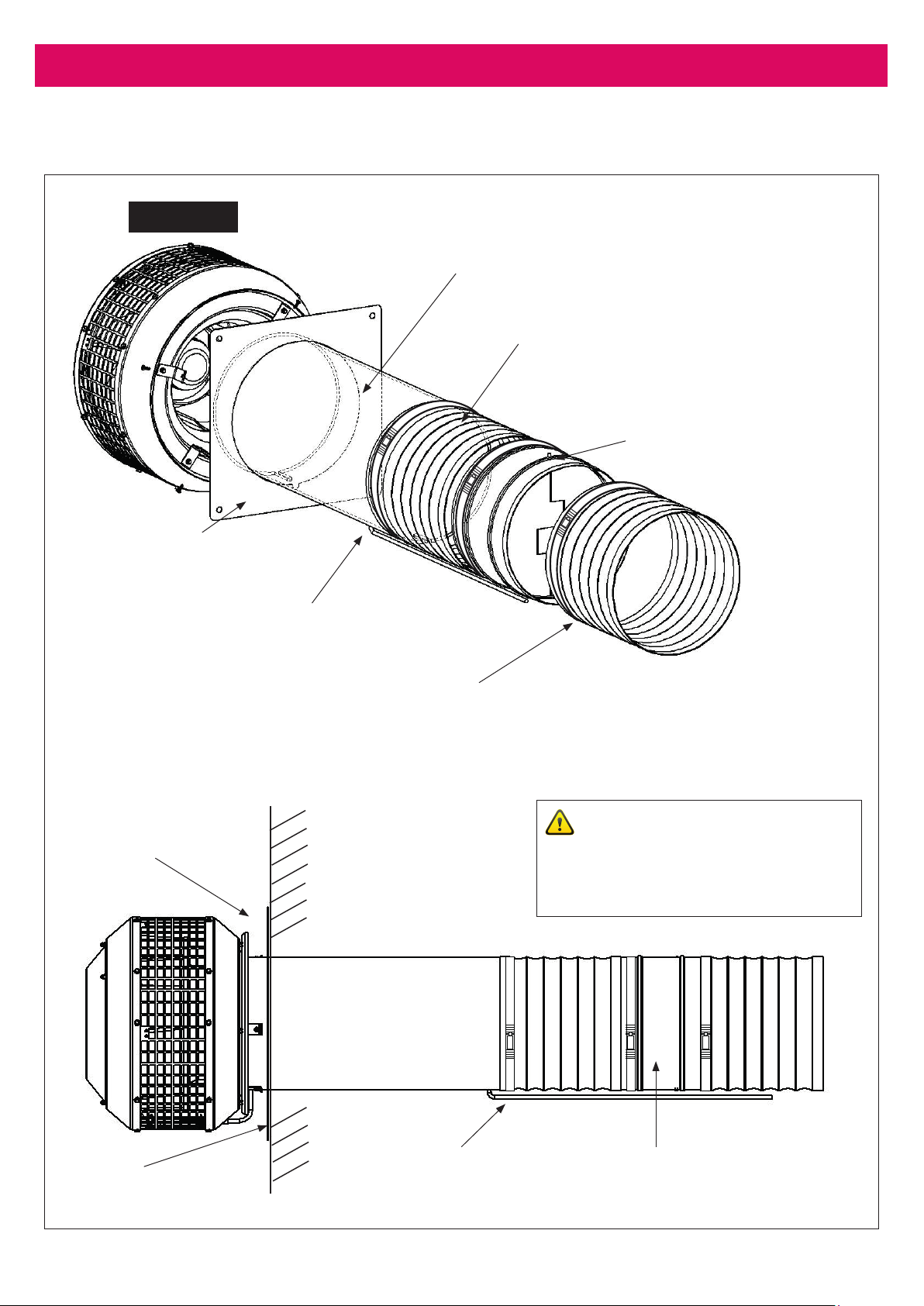

Figure 3: Through wall installation
Page 11
Page 12
4. Installation
Twin 200mm Outlet Installation Example (3200 kit required)
This is for use where one motor is to be used and there are two 200mm outlets.
3200 motor
™
ducting
250 x 200 x 200mm
If multi-t Y joint supplied you
will need to cut to correct size.
Ensure SteelFlex
is fully extended and as
short as possible. Use
smooth owing curves for
maximum air ow. Remove
excess ducting by trimming
to length.
250mm SteelFlex™
ducting
Try to keep length of
™
SteelFlex
ducting as
even as possible other
wise motors will draw air
o each other
200mm
™
SteelFlex
duct
250
200
200
Figure 4: Roof mount option
200mm SteelFlex
ducting
200mm outlet
™
Page 12
Page 13
4. Installation
Optional Backdraft Shutter Installation Through Roof
• Cut 250mm SteelFlex™ duct length to minimum 400mm.
• Assemble by tting shutter assembly into the ducting.
• Check to ensure the aps close and open freely before assembling the bottom end of the ducting.
3200 motor
NOTE
Ensure the aps open upwards before assembling
ducting to bottom end of the shutter system. If
aps open downwards, the assembly is incorrect.
50mm
PVC Storm pipe
Cut existing ducting to
150mm to 200mm length
minimum 400mm
Attach ducting to backdraft
shutter and secure with
duct tape and clamp
250mm SteelFlex™
ducting
Shutter System (optional)
part number
2500MMBDSSBUILDASS
Assemble ducting to bottom
end of backdraft shutter
and secure with duct tape
and clap - see NOTE.
Reducer
Figure 5: Backdraft shutter roof mount
Page 13
Page 14
4. Installation
Optional Backdraft Shutter Installation Through Wall
3200 motor
PVC storm pipe
Cut existing ducting length to minimum
400mm and assemble to the shutter system.
Secure with duct tape and clamp.
Backdraft shutter system
(optional) Make sure the
aps are vertical
Wall cover plate with notch at
bottom (optional part)
part number P2025
Ensure that power cable passes
through the cover palte notched
recess and is clear of cut edge
Wall
Minimum pipe
protrusion from
wall surface
Assemble existing ducting to the end of
shutter system and secure with duct tape
and clamp - see NOTE.
NOTE
Through wall installations ap shaft will
be close to vertical and ensure aps open
towards the fan unit.
Wall cover plate (optional
part) part number P2025
Page 14
Power cordBackdraft shutter system
(optional) part number
250MMBDSSBUILDASS
Figure 6: Optional backdraft shutter wall mount
Page 15
4. Installation
Optional Weather Shield Installation Guide
Step 1
Remove Weather Shield (1 pc), P1128 Screws (2pcs) and P1128N Nuts (2pcs), Weather Shield Mounting Bracket
(5 pcs) and P1124 Hex Head Screws (15pcs) from packaging.
Step 2
Remove plastic cover from Weather Shield and bend
to form a circle. Fasten P1128 Screws with P1128N
Nuts at location shown.
P1128N at the back
Step 3
Place Mounting Brackets on to Fan Guard, and
fasten 2 pieces of P1124 as shown. Ensure
orientation of Bracket is mounted as shown.
Step 4
Repeat Step 3 for the rest of the Brackets.
P1128
Mounting bracket
P1124
Fan guard
Step 5
Mount Weather Shield and align mounting holes
with the Brackets, and fasten with P1124 (5 areas).
Align mounting holes with the brackets
Page 15
Page 16
5. Measurements
5. Measurements
Measurements for Isodrive 3200
Dimensions in mm
Ø400
400
205
288
(Not to Scale)
Isodrive 3200 weighs
8.3 kg without the PVC
pipe.
420290
440
15
15.7
Ø340
342
50
50
Page 16
250.5
Ø250
Figure 7: Measurements for Isodrive 3200
Page 17
6. SteelFlex™ Safety Duct
SteelFlex
SteelFlex™ safety ducting must be fully extended and cut to the required length upon installation. Maximum
fan performance will not be achieved unless the ducting is fully extended. Failure to fully extend ducting
results in a smaller air passage and lower airows. Incorrect installation may reduce airow or increase noise
levels. Call outs relating to incorrect installation will result in a service fee directed to the customer. Schweigen
will take no responsibility for problems caused by faulty installation. A list of preferred installers can be
obtained from the Schweigen website www.schweigen.com.au.
™
Safety Ducting
3200 motor
Please keep the SteelFlex™ ducting
taut, 4 to 5 metres in length is optimal
NOTE: In shallow roof spaces
extend exi ducting horizontally
Figure 8: SteelFlex™ Safety Ducting
250mm SteelFlex
DO NOT reduce ducting size.
200mm SteelFlex
™
ducting
Reducer
™
ducting
Page 17
Page 18
6. SteelFlex™ Safety Duct
Assembling SteelFlex
SteelFlex™ safety duct must be secured to a 250mm mounting pipe.
Parts required:
1. SteelFlex
2. Steel ring clamp
3. 20mm self-drilling button head screws
4. 250mm PVC riser pipe
™
safety ducting
™
Safety Duct
1
2
43
1. Slide the steel ring clamp over the end
of the duct then insert the PVC riser
pipe into the duct end
2. Secure duct to the riser pipe at regular
intervals with 4 x 20mm button head
screws
3. Slide the steel ring clamp back up and
tighten to secure the riser pipe and the
duct
x4
Figure 9: Duct assembling
NOTE: Do not use duct tape to fasten the duct – the screws and hose clamp are adequate to secure the duct
to the riser pipe.
Page 18
Page 19
6. SteelFlex™ Safety Duct
Shallow Roof Space
In shallow roof spaces, do not crush or kink SteelFlex™ ducting, as it will reduce air ow severely. 90 degree
curve made of PVC or galvanise can be used as a substitute for the bend, refer to gure 10.
90 degree curve PVC or
galvanise curve
250mm exible ducting
DO NOT reduce ducting size.
Figure 10: Shallow roof space
Important Note
Please do not crush or kink SteelFlex™ ducting, as it will reduce air ow and may cause noise to occur through
the system. Ducting needs to be kept taut at all times.
Figure 11: SteelFlex
™
duct recommended installation
Page 19
Page 20
6. SteelFlex™ Safety Duct
Securing SteelFlex
SteelFlex™ safety duct must be installed with supports at maximum intervals of 1.5 metres. SteelFlex™ safety
ductwork can be supported by using good quality gaer or aluminium foil tape. Provided that it does not
restrict the internal diameter of the ducting. Ducting installed looped over hanging beams should be installed
in such a manner as to ensure the changes of direction are gradual. Support of the ducting with the use of
hangers may be required, see option 2.
NOTE: Ducting should be kept taut at all times.
Option 1
™
Secure the SteelFlex
duct to the beam
™
Safety Duct
Aluminium foil
tape
Option 2
™
Support SteelFlex
duct by using hangers.
NOTE: Care shall be
taken to minimize
sagging or snaking
of the duct between
supports.
250mm SteelFlex™ ducting,
DO NOT reduce ducting size.
Hanger
Aluminium foil tape
Figure 12: Securing SteelFlex™ Safety Duct
Page 20
Page 21
Parts List for Isodrive 3200
143
151
4
7. Parts List
11
3
4
1
11
12
12
14
15
16
16
17
17
18
18
10
10
21
21
20
20
19
19
Page 21
Page 22
7. Parts List
Parts List for Isodrive 3200
NumberPart NumberDescriptionQuantity
1P1114Capacitor 4µF1
3P40112Terminal Box – Box Base and Lid1
4P807Terminal Block1
11P1101Fan Top Spinning1
12P2011M5X8 SUS Hex Nut Cap4
14P2003Fan Guard1
15P1124M4X12 Hex Washer Head S/S ST22
16P2007Fan Bottom Spinning1
17P20043200 Inlet Cone1
18P2005Pipe Bracket4
19P1125M4X14 Pan Head S/S TT4
20P2006250mm PVC Pipe1
21P301Power Cable1
22P2020M5X16 Hex Head Machine Screw4
23P2023Cable Protective Grommet (200mm)1
P2025Optional Wall Cover Plate
Page 22
200MM BDSS
BUILD ASS
ISO3200
WG BUILD ASS
Optional Backdraft Stopper
Optional Weather Shield
Page 23
8. Maintenance
Roof Restoration or Cleaning
Before doing your roof restoration or cleaning, please completely cover the outside motor system and avoid all
chemical contact.
IMPORTANT
Any damages caused by the
use of chemical products are
not covered by warranty.
Figure 13: Avoid chemical contact to motor system
**Images for illustration purposes only.
Applies for all motors.
Page 23
Page 24
9. Warranty / Disclaimer
Warranty
Isodrive motor has a 10-Year replacement product warranty.* The consumer is responsible for any charges
associated with removal of the faulty unit and installation of the new unit. The customer is also responsible
for any freight charges incurred in this change over process. Schweigen SteelFlex
Warranty*.
(See warranty for more information)
™
comes with a Lifetime
Disclaimer
Under our policy of continuous product development, product specications may change without notice.
Prospective purchasers should therefore check with the retailer to ensure this publication correctly describes
the products being oered for sale. All information supplied is to be used for general reference purposes only
and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage
of whatever kind arising as a result of any reliance upon such information. All pictures used in the guide are for
illustrative purposes only.
*Terms and conditions apply.
Page 24
Page 25
Notes
Page 25
Page 26
Notes
Page 26
Page 27
Notes
Page 27
Page 28
Australia Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172. Phone 1300 881 693
Email sales@schweigen.com.au Web www.schweigen.com.au
