ISODRIVE® S1.650 SILENT RANGEHOOD MOTOR SOLUTION
...........................................................................................................................................................
...........................................................................................................................................................
SILENT
SYSTEM
■ Schweigen’s patented Isodrive© motor
solution is to take the fan and motor out of the
rangehood and mount them outside the home
on the roof, wall or eave
■ German engineered Silent Isodrive
®
650m3/h
motor with patented Australian venting system
■ Extracts smoke, steam and airborne grease, fat
and oil particles in one complete process
■ Unique motor design resulting in minimal
external obstruction
GERMAN
E
ENERGY
EFFICIENT
SILENT
SYSTEM
FRESH
ODOUR
REMOVAL
AUSTRALIAN
OWNED
MADE
MOTOR
WARRANTY

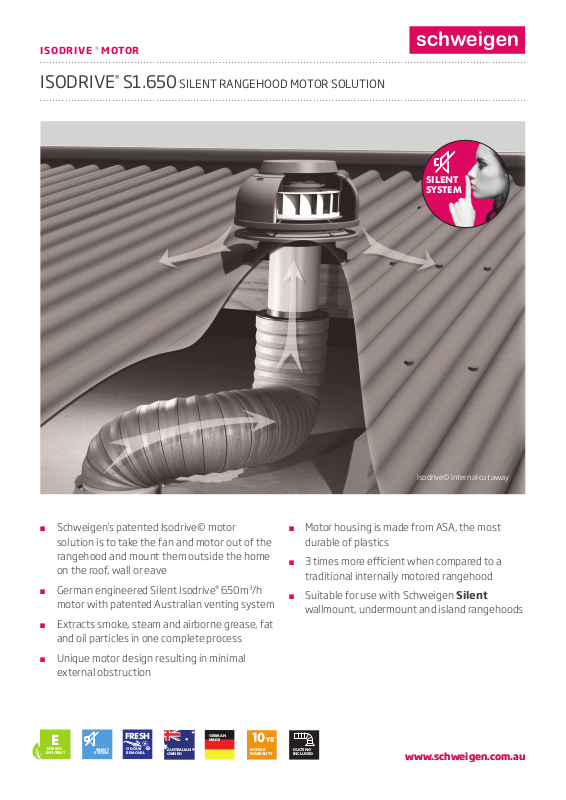

Isodrive© internal cut away
■ Motor housing is made from ASA, the most
durable of plastics
■ 3 times more ecient when compared to a
traditional internally motored rangehood
■ Suitable for use with Schweigen Silent
wallmount, undermount and island rangehoods
*
YR
DUCTING
INCLUDED
www.schweigen.com.au
www.schweigen.com.au
ISODRIVE ® MOTOR
...........................................................................................................................................................
ISODRIVE® S1.650 SILENT RANGEHOOD MOTOR SOLUTION
...........................................................................................................................................................
DESCRIPTION
• Isodrive
®
motor with
mounting system
• Patented anti-water intrusion,
weather protection system
(IPX4 rated)
• Super quiet, long vane, backward
curved centrifugal fan
• Motor can be mounted 3 to 4 metres
from the rangehood
• Mounts on the roof, wall or eave
• Ducting included
...........................................................................................................................................................
...........................................................................................................................................................
TECHNICAL DATA
Isodrive
®
650
• Fan Module
• 3.5 metre 10amp cable
• Bell Mouth Adaptor
• Flexible Ducting (4m), 150mm
• 100mm Fire resistant PVC riser pipe
• Instruction Manual
Optional Accessories:
• Back draft shutter for
inducting/in-line installation
278mm
157mm
MOTOR POWER
• Single motor - 650m
power
• 10 Year Warranty on Motor
28mm
3
/hr extraction
For more
information
370mm
35mm
29mm
110mm
195mm
35mm minimum
Weight: 2.9 kg without the PVC pipe.
Product specications subject to change without notice, images are for illustrative purposes only. Please check nal product details with your retailer.
© Schweigen Home Appliances Pty Ltd. 2018. 8/3-4 Anzed Court, Mulgrave, Victoria 3170. Phone: 1300 881 693. Email: sales@schweigen.com.au. www.schweigen.com.au
