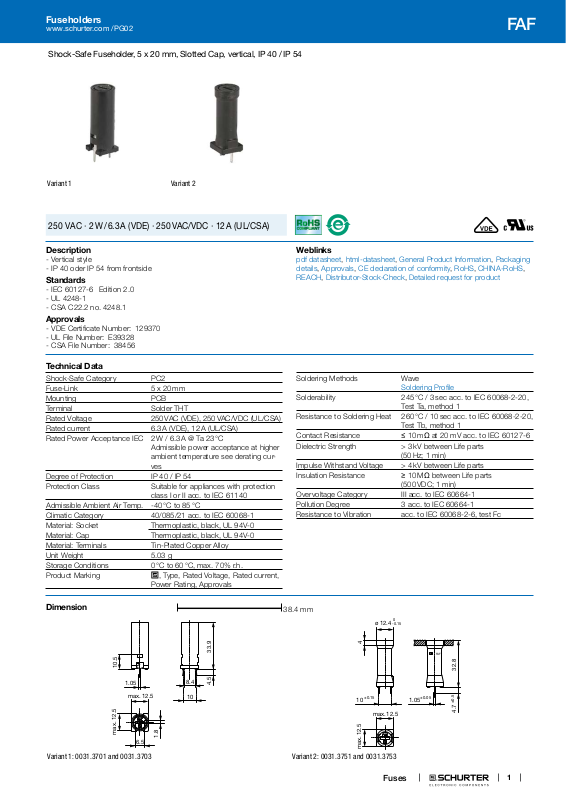

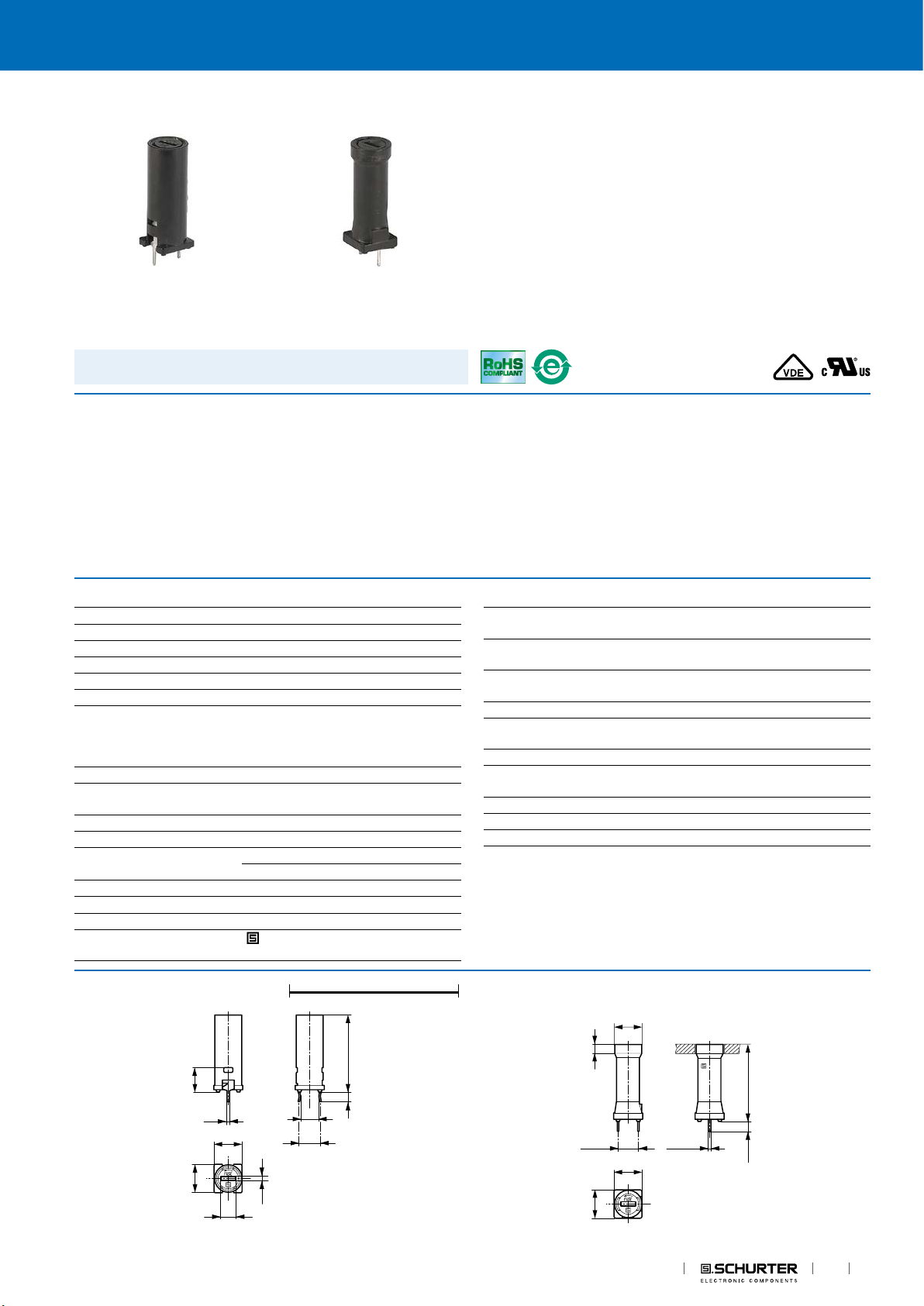

Page 1
Fuseholders
0
www.schurter.com /PG02
Shock-Safe Fuseholder, 5 x 20 mm, Slotted Cap, vertical, IP 40 / IP 54
Variant 1 Variant 2
250 VAC · 2 W / 6.3 A (VDE) · 250 VAC/VDC · 12 A (UL/CSA)
FAF
Description
- Vertical style
- IP 40 oder IP 54 from frontside
Standards
- IEC 60127-6 ␣Edition 2.0
- UL 4248-1
- CSA C22.2 no. 4248.1
Approvals
- VDE Certificate Number: 129370
- UL File Number: E39328
- CSA File Number: 38456
Technical Data
Shock-Safe Category PC2
Fuse-Link 5 x 20 mm
Mounting PCB
Terminal Solder THT
Rated Voltage 250 VAC (VDE), 250 VAC/VDC (UL/CSA)
Rated current 6.3 A (VDE), 12 A (UL/CSA)
Rated Power Acceptance IEC 2 W / 6.3 A @ Ta 23 °C
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Degree of Protection IP 40 / IP 54
Protection Class Suitable for appliances with protection
class I or II acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Socket Thermoplastic, black, UL 94V-0
Material: Cap Thermoplastic, black, UL 94V-0
Material: Terminals Tin-Plated Copper Alloy
Unit Weight 5.03 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking , Type, Rated Voltage, Rated current,
Power Rating, Approvals
Weblinks
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Approvals, CE declaration of conformity, RoHS, CHINA-RoHS,
REACH, Distributor-Stock-Check, Detailed request for product
Soldering Methods Wave
Soldering Profile
Solderability 245 °C / 3 sec acc. to IEC 60068-2-20,
Test Ta, method 1
Resistance to Soldering Heat 260 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 1
Contact Resistance ≤ 10 mΩ at 20 mV acc. to IEC 60127-6
Dielectric Strength > 3 kV between Life parts
(50 Hz; 1 min)
Impulse Withstand Voltage > 4 kV between Life parts
Insulation Resistance ≥ 10 MΩ between Life parts
(500 VDC; 1 min)
Overvoltage Category III acc. to IEC 60664-1
Pollution Degree 3 acc. to IEC 60664-1
Resistance to Vibration acc. to IEC 60068-2-6, test Fc
Dimension
10.5
1.05
max. 12.5
max. 12.5
6.5
Variant 1: 0031.3701 and 0031.3703
1.8
8.4
38.4 mm
-0.15
2.41 ø
4
FAF
4.5 33.9
10
±0.15 ±0.05
10
max. 12.5
max. 12.5
1.05
±0.5
4.7 32.8
Variant 2: 0031.3751 and 0031.3753
Fuses
1

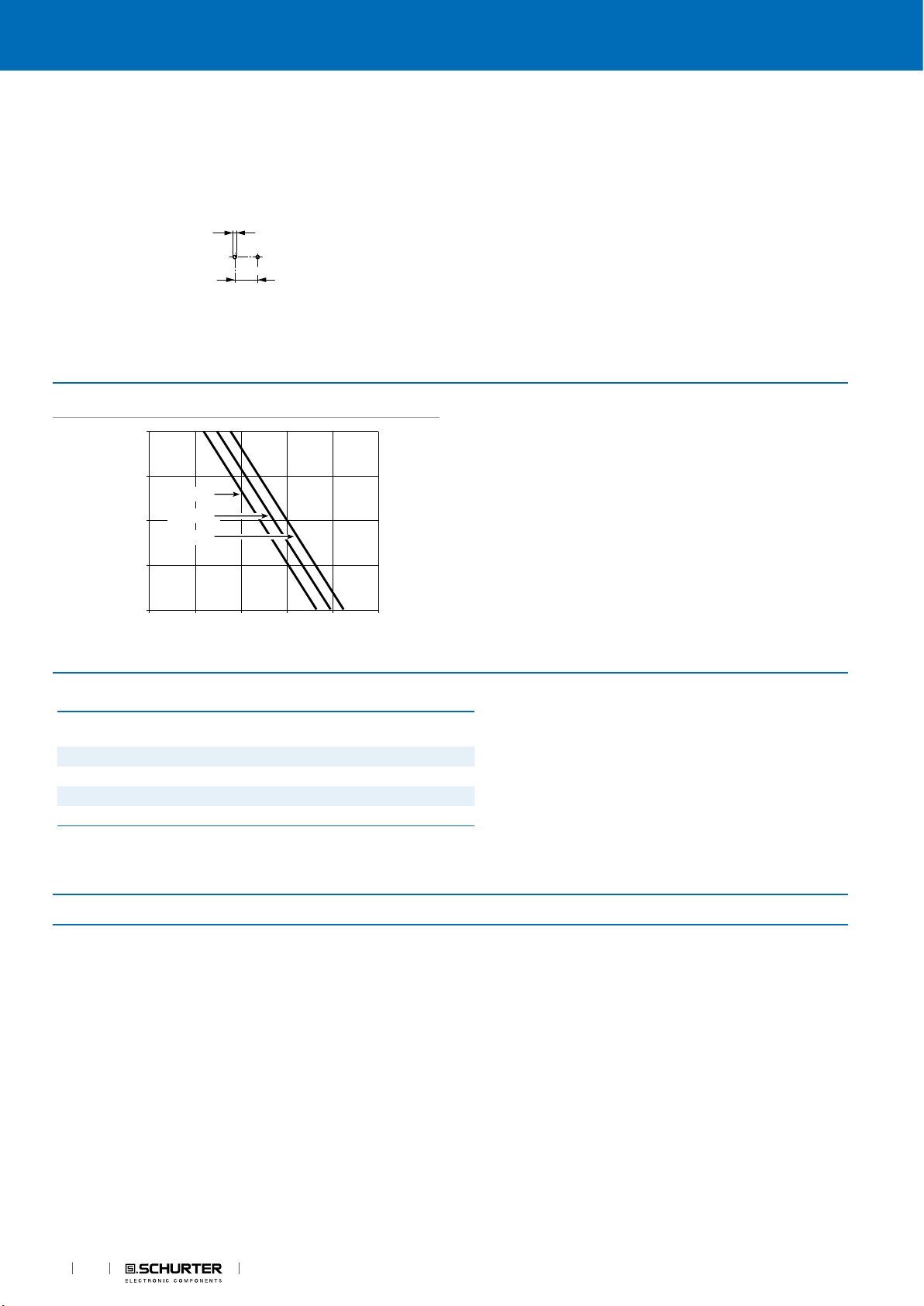

Page 2
FAF
2.0
Drilling diagram
Derating Curves
1.5
1.0
0.5
I = 1.0 I
I = 0.7 I
I = << I
www.schurter.com /PG02
Fuseholders
+0.1
0
1.3
±0.1
10
n
n
n
Admissible Power Acceptance in Watt
0.0
020406080 100
Ambient Air Temperature Ta °C
All Variants
Holder Cap Terminal Degree of Pro-
l
l
l
l
█ Most Popular.
Availability for all products can be searched real-time:http://www.schurter.com/Stock-
Check/Stock-Check-SCHURTER
Packaging Unit
slotted straight IP 40 0031.3701
slotted kinked IP 40 0031.3703
slotted straight IP 40 0031.3751
slotted straight IP 54 0031.3753
Bulk (100 pcs.)
tection
Order Number
█
█
█
█
19.01.2017
The specifications, descriptions and illustrations indicated in this document are based on current
2
Fuses
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
