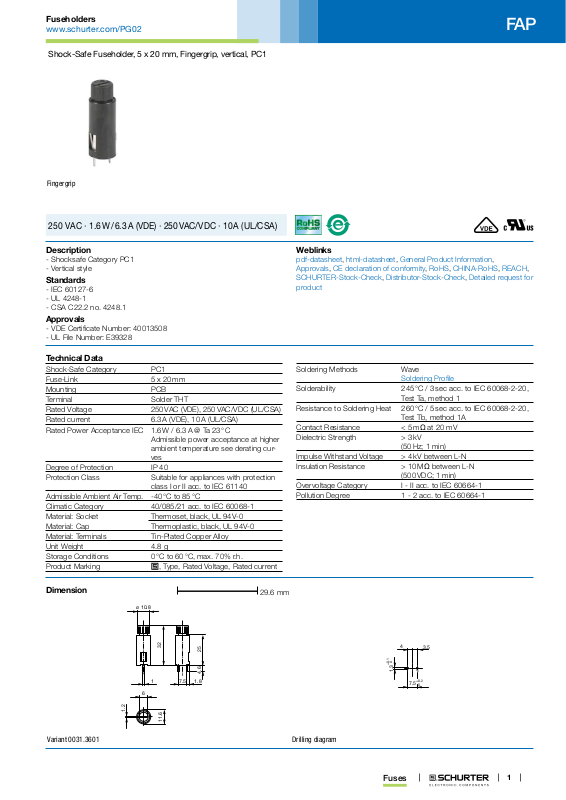

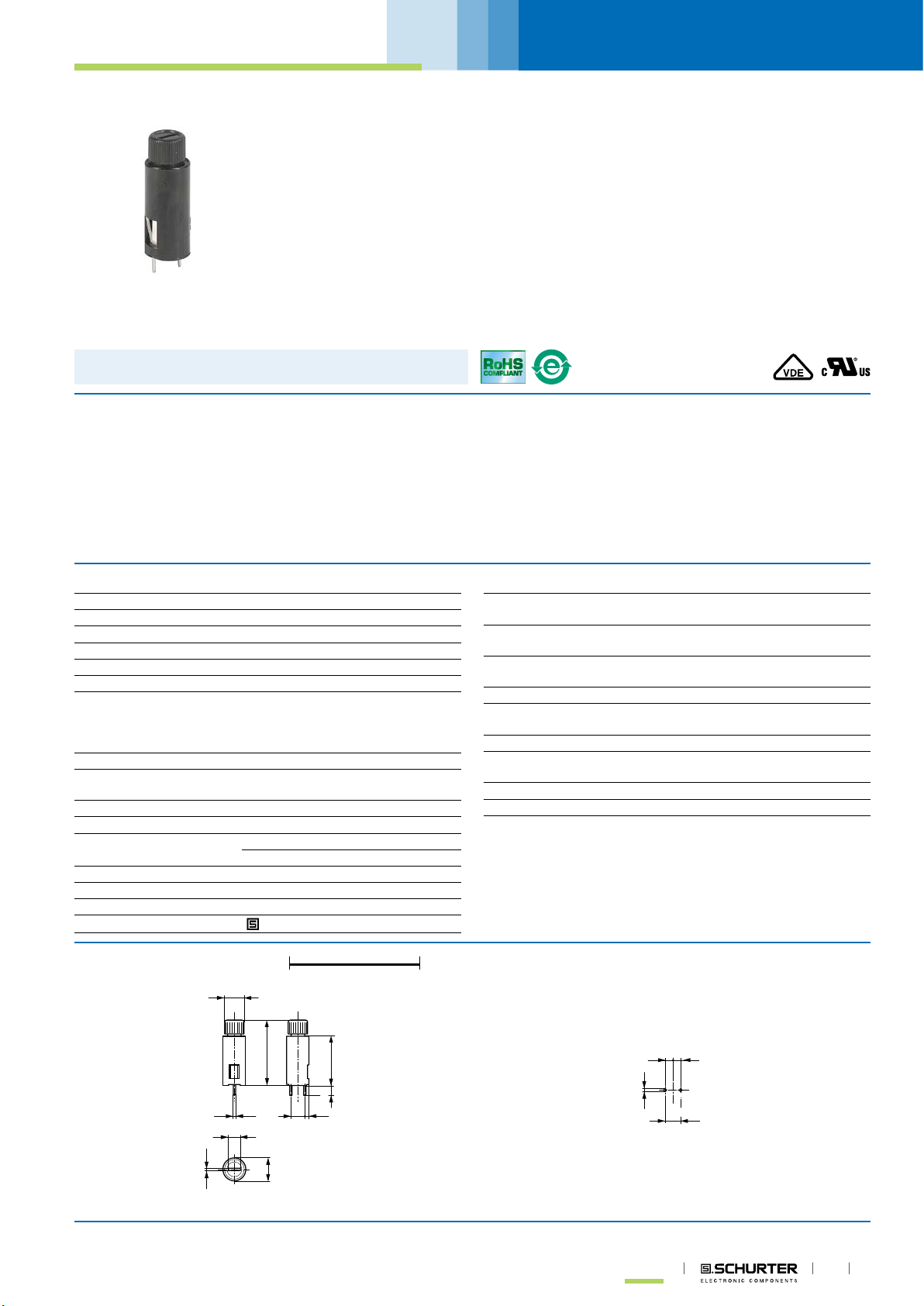

Fuseholders
www.schurter.com/PG02
Shock-Safe Fuseholder, 5 x 20 mm, Fingergrip, vertical, PC1
Fingergrip
250 VAC · 1.6 W / 6.3 A (VDE) · 250 VAC/VDC · 10 A (UL/CSA)
FAP
Description
- Shocksafe Category PC1
- Vertical style
Standards
- IEC 60127-6
- UL 4248-1
- CSA C22.2 no. 4248.1
Approvals
- VDE Certificate Number: 40013508
- UL File Number: E39328
Technical Data
Shock-Safe Category PC1
Fuse-Link 5 x 20 mm
Mounting PCB
Terminal Solder THT
Rated Voltage 250 VAC (VDE), 250 VAC/VDC (UL/CSA)
Rated current 6.3 A (VDE), 10 A (UL/CSA)
Rated Power Acceptance IEC 1.6 W / 6.3 A @ Ta 23 °C
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Degree of Protection IP 40
Protection Class Suitable for appliances with protection
class I or II acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Socket Thermoset, black, UL 94V-0
Material: Cap Thermoplastic, black, UL 94V-0
Material: Terminals Tin-Plated Copper Alloy
Unit Weight 4.8 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking , Type, Rated Voltage, Rated current
Weblinks
pdf-datasheet, html-datasheet, General Product Information,
Approvals, CE declaration of conformity, RoHS, CHINA-RoHS, REACH,
SCHURTER-Stock-Check, Distributor-Stock-Check, Detailed request for
product
Soldering Methods Wave
Soldering Profile
Solderability 245 °C / 3 sec acc. to IEC 60068-2-20,
Test Ta, method 1
Resistance to Soldering Heat 260 °C / 5 sec acc. to IEC 60068-2-20,
Test Tb, method 1A
Contact Resistance < 5 mΩ at 20 mV
Dielectric Strength > 3 kV
(50 Hz; 1 min)
Impulse Withstand Voltage > 4 kV between L-N
Insulation Resistance > 10 MΩ between L-N
(500 VDC; 1 min)
Overvoltage Category I - II acc. to IEC 60664-1
Pollution Degree 1 - 2 acc. to IEC 60664-1
Dimension
Variant 0031.3601
29.6 mm
ø 10.8
32
6
1.2
11.6
254.6
7.51
1.8
4
3.5
+0.1
0
P
1.3
+0.2
7.5
0
Drilling diagram
Fuses
1
Page 2
FAP
1.6

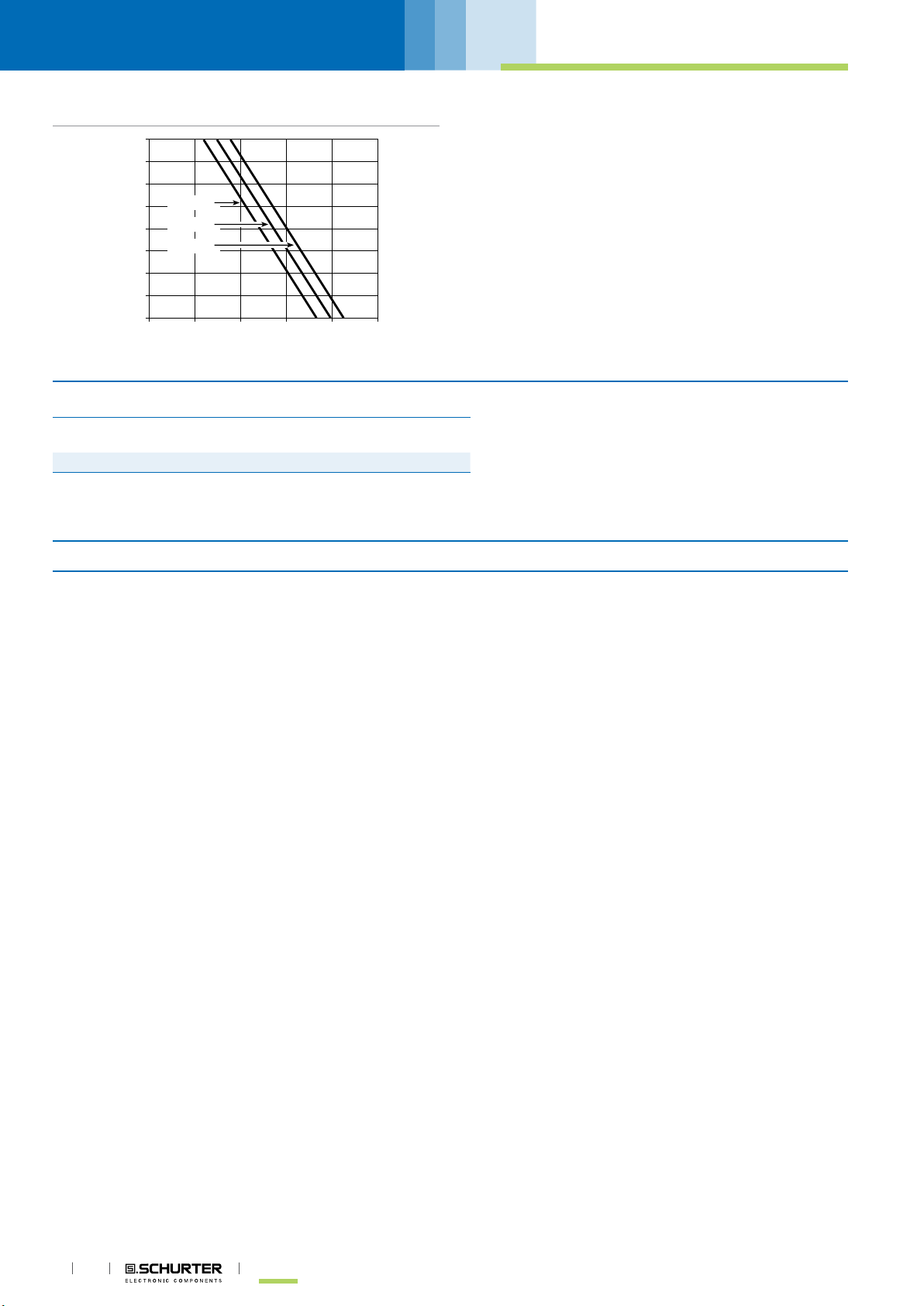

Derating Curves
1.4
1.2
I = 1.0 I
I = 0.7 I
I = << I
n
n
n
1.0
0.8
0.6
0.4
0.2
Admissible power acceptance in Watt
0.0
020406080 100
Ambient air temperature Ta °C
All Variants
Holder Cap Terminal Degree of Pro-
l
slotted straight IP 40 0031.3601
www.schurter.com/PG02
Fuseholders
Order Number
tection
█
█ Most Popular.
Availability for all products can be searched real-time:http://www.schurter.com/Stock-
Check/Stock-Check-SCHURTER
Packaging Unit
Bulk (100 pcs.)
04.07.2016
