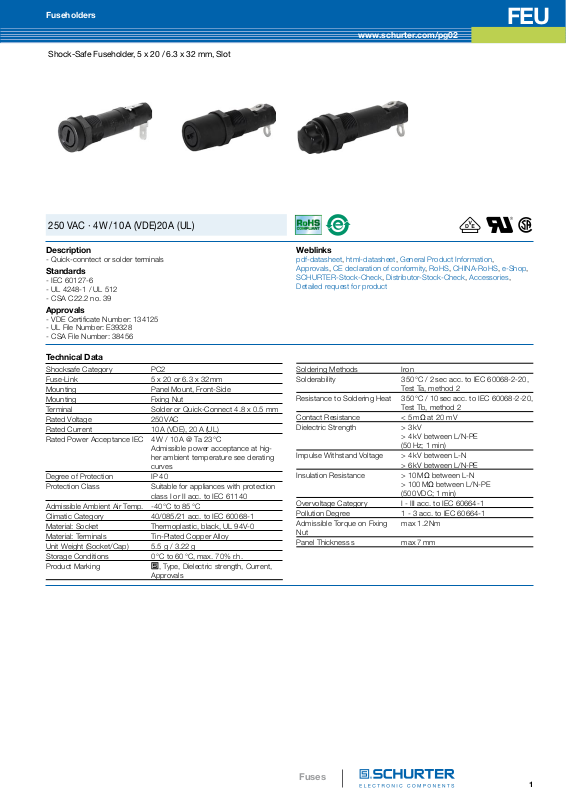

Fuseholders

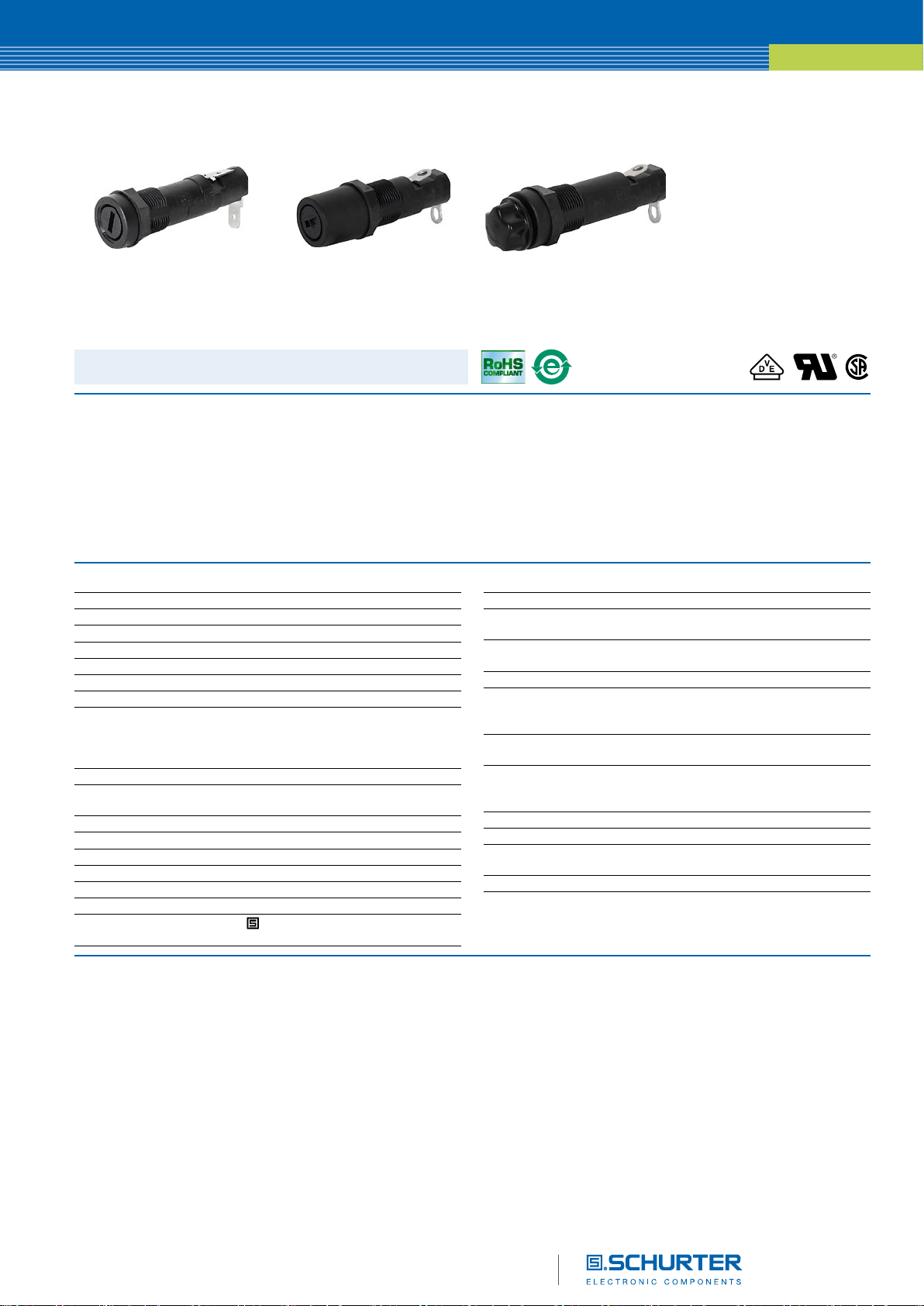

Shock-Safe Fuseholder, 5 x 20 / 6.3 x 32 mm, Slot
250 VAC · 4 W / 10 A (VDE)20 A (UL)
FEU
www.schurter.com/pg02
Description
- Quick-conntect or solder terminals
Standards
- IEC 60127-6
- UL 4248-1 / UL 512
- CSA C22.2 no. 39
Approvals
- VDE Certificate Number: 134125
- UL File Number: E39328
- CSA File Number: 38456
Technical Data
Shocksafe Category PC2
Fuse-Link 5 x 20 or 6.3 x 32 mm
Mounting Panel Mount, Front-Side
Mounting Fixing Nut
Terminal Solder or Quick-Connect 4.8 x 0.5 mm
Rated Voltage 250 VAC
Rated Current 10 A (VDE), 20 A (UL)
Rated Power Acceptance IEC 4 W / 10 A @ Ta 23 °C
Admissible power acceptance at higher ambient temperature see derating
curves
Degree of Protection IP 40
Protection Class Suitable for appliances with protection
class I or II acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Socket Thermoplastic, black, UL 94V-0
Material: Terminals Tin-Plated Copper Alloy
Unit Weight (Socket/Cap) 5.5 g / 3.22 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking , Type, Dielectric strength, Current,
Approvals
Weblinks
pdf-datasheet, html-datasheet, General Product Information,
Approvals, CE declaration of conformity, RoHS, CHINA-RoHS, e-Shop,
SCHURTER-Stock-Check, Distributor-Stock-Check, Accessories,
Detailed request for product
Soldering Methods Iron
Solderability 350 °C / 2 sec acc. to IEC 60068-2-20,
Resistance to Soldering Heat 350 °C / 10 sec acc. to IEC 60068-2-20,
Contact Resistance < 5 mΩ at 20 mV
Dielectric Strength > 3 kV
Impulse Withstand Voltage > 4 kV between L-N
Insulation Resistance > 10 MΩ between L-N
Overvoltage Category I - III acc. to IEC 60664-1
Pollution Degree 1 - 3 acc. to IEC 60664-1
Admissible Torque on Fixing
Nut
Panel Thickness s max 7 mm
Test Ta, method 2
Test Tb, method 2
> 4 kV between L/N-PE
(50 Hz; 1 min)
> 6 kV between L/N-PE
> 100 MΩ between L/N-PE
(500 VDC; 1 min)
max 1.2 Nm
Fuses
1
Page 2
2
FEU
ø 15
0.5 6.5
46.5
16.2
M12.7x1.5
max.7
4
4.8
SW14
1.8
12.8
ø 15
0.5
6.5
53.7
16.2
M12.7x1.5
max.7
4
SW14
1.8
ø 15
0.5 6.5
45 16.2
M12.7x1.5
max.7 3.5x2.5
14
SW14
1.8
ø 15
0.5 6.5
45 16.2
M12.7x1.5
max.7 3.5x2.5
4
SW14
1.8
11.7
0
-0.13
12.2
0
-0.13
13
0
-0.3
12.7
0
-0.1
12.7
0
-0.1
Fuseholders
www.schurter.com/pg02

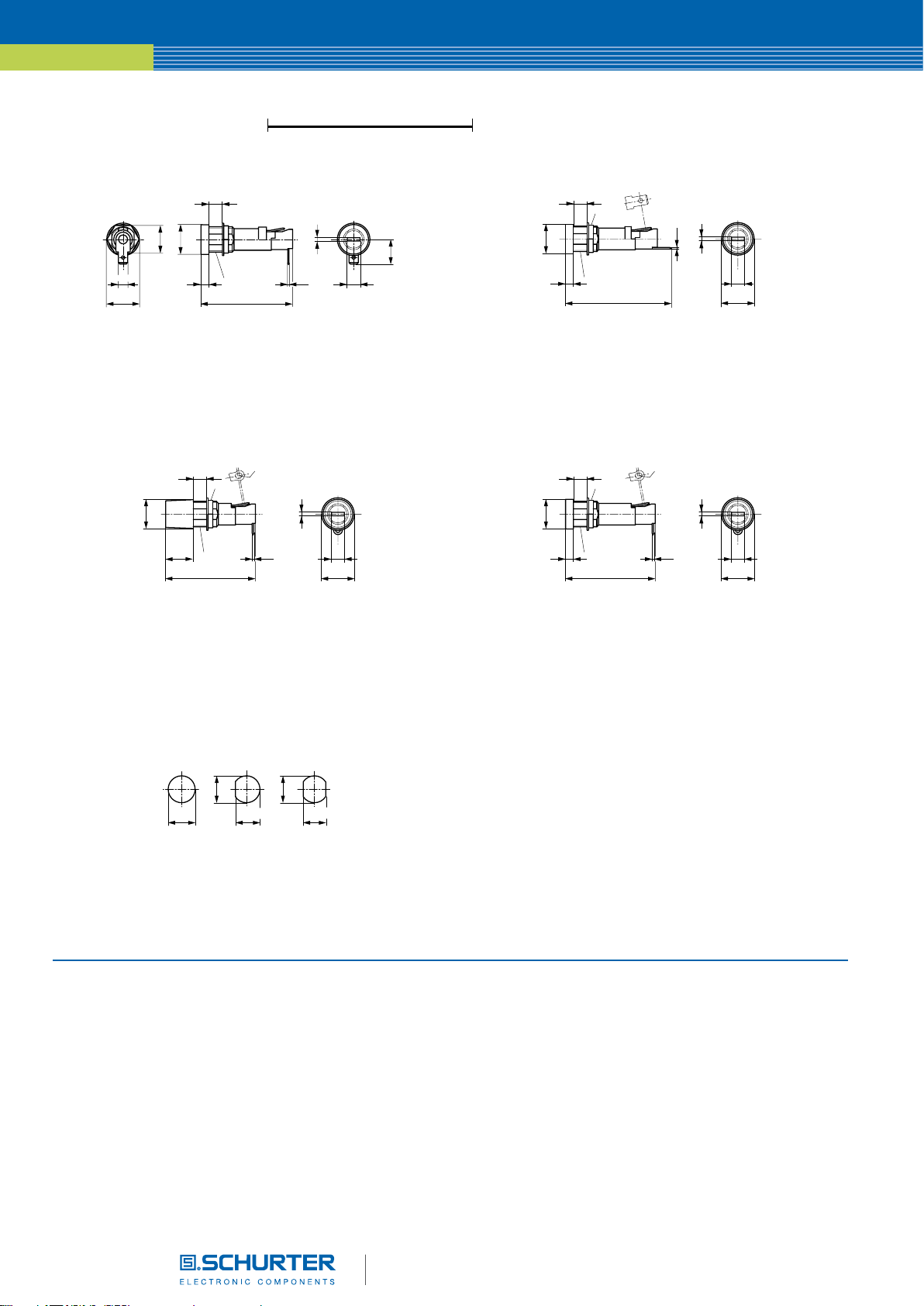

Dimensions
Variants: 0031.1693 and 0031.8822
46.5 mm
Variant 0031.1694
Variants 0031.1653, 0031.1695, 0031.1696
Mounting holes
Variant 0031.1673
Fuses
Page 3
Fuseholders
0 20 40 60 80 100
0.5
0.0
I = << I
n
I = 0.7 I
n
I = 1.0 I
n
4.0
1.5
1.0
2.0
3.0
2.5
3.5

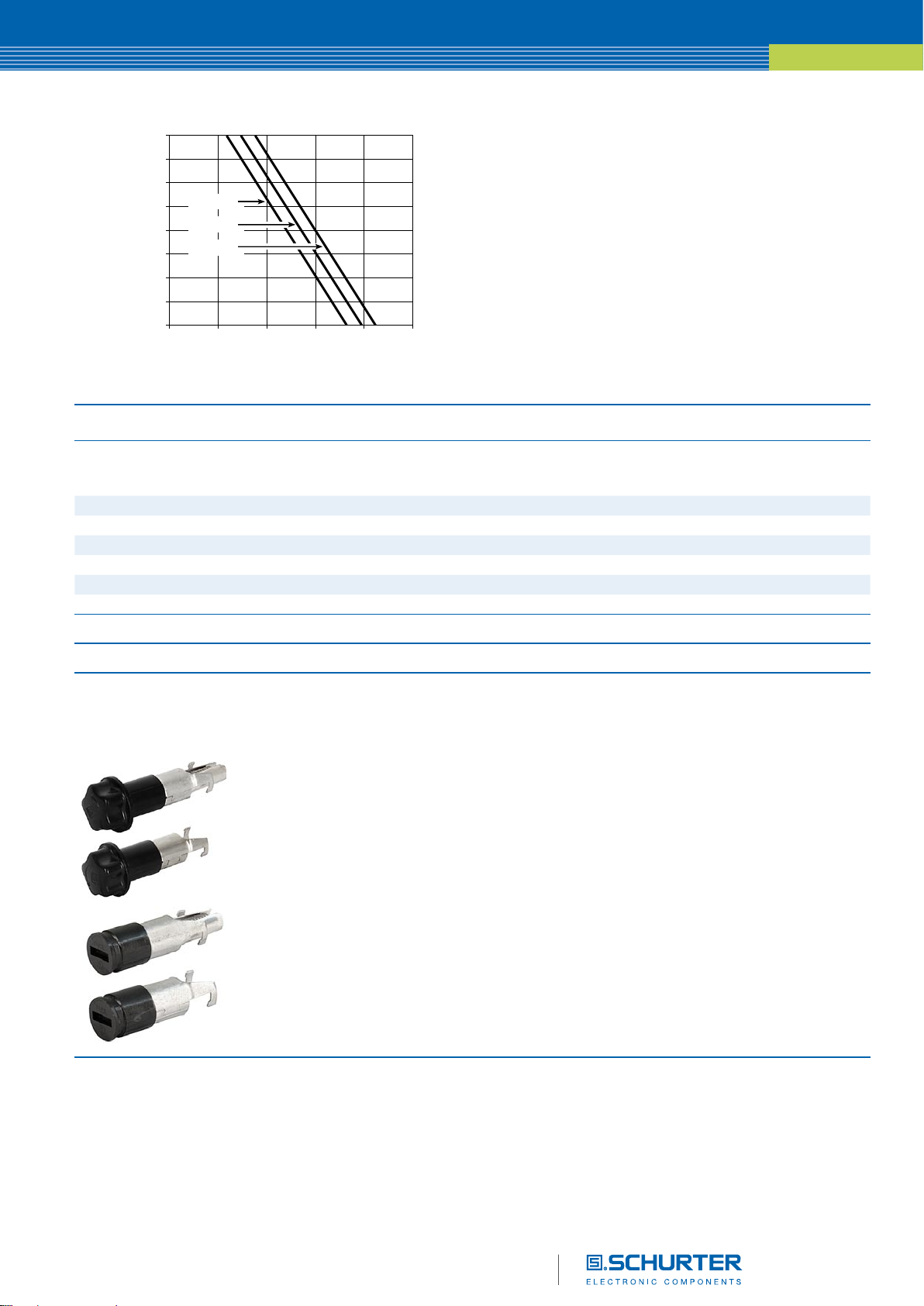

Derating Curves
Admissible Power Acceptance in Watt
Ambient Air Temperature Ta °C
Variants
Holder Cap Fuse-Link Terminal Position End-Terminal Degree of
l
- 5 x 20 or 6.3 x 32mm Quick-Connect 4.8 x 0.5 90° to Fuse Axis IP 40 - - 0031.1693
l
- 5 x 20 or 6.3 x 32mm Quick-Connect 4.8 x 0.5 Straight to Fuse Axis IP 40 - - 0031.1694
l
- 5 x 20 or 6.3 x 32mm Solder 90° to Fuse Axis IP 40 - - 0031.8822
l
- 5 x 20 or 6.3 x 32mm Solder 90° to Fuse Axis IP 40 - - 0031.1653
l
- 5 x 20 or 6.3 x 32mm Solder 90° to Fuse Axis IP 40 - - 0031.1673
l
Fingergrip 5 x 20mm Quick-Connect 4.8 x 0.5 90° to Fuse Axis IP 40 - 0031.1693 + 0031.1741 0031.1762
l
Fingergrip 5 x 20mm Solder 90° to Fuse Axis IP 40 - 0031.1673 + 0031.1741 0031.1756
0031.1695 + 0031.1696 are made out of thermoset material.
Protection
www.schurter.com/pg02
Colour
Remark Order Number
Cap
FEU
Packaging Unit
Bulk (100 pcs.)
Required Accessory
Description
Fingergrip FEU, FAU, FAC
Caps Fingergrip for Holder FEU, FAU, FAC
Caps to FEU, FAU, FAC
Caps to Holder FEU, FEU (Med), FAU, FAC
Fuses
3
Page 4
FEU
Accessories
Fuseholders
www.schurter.com/pg02

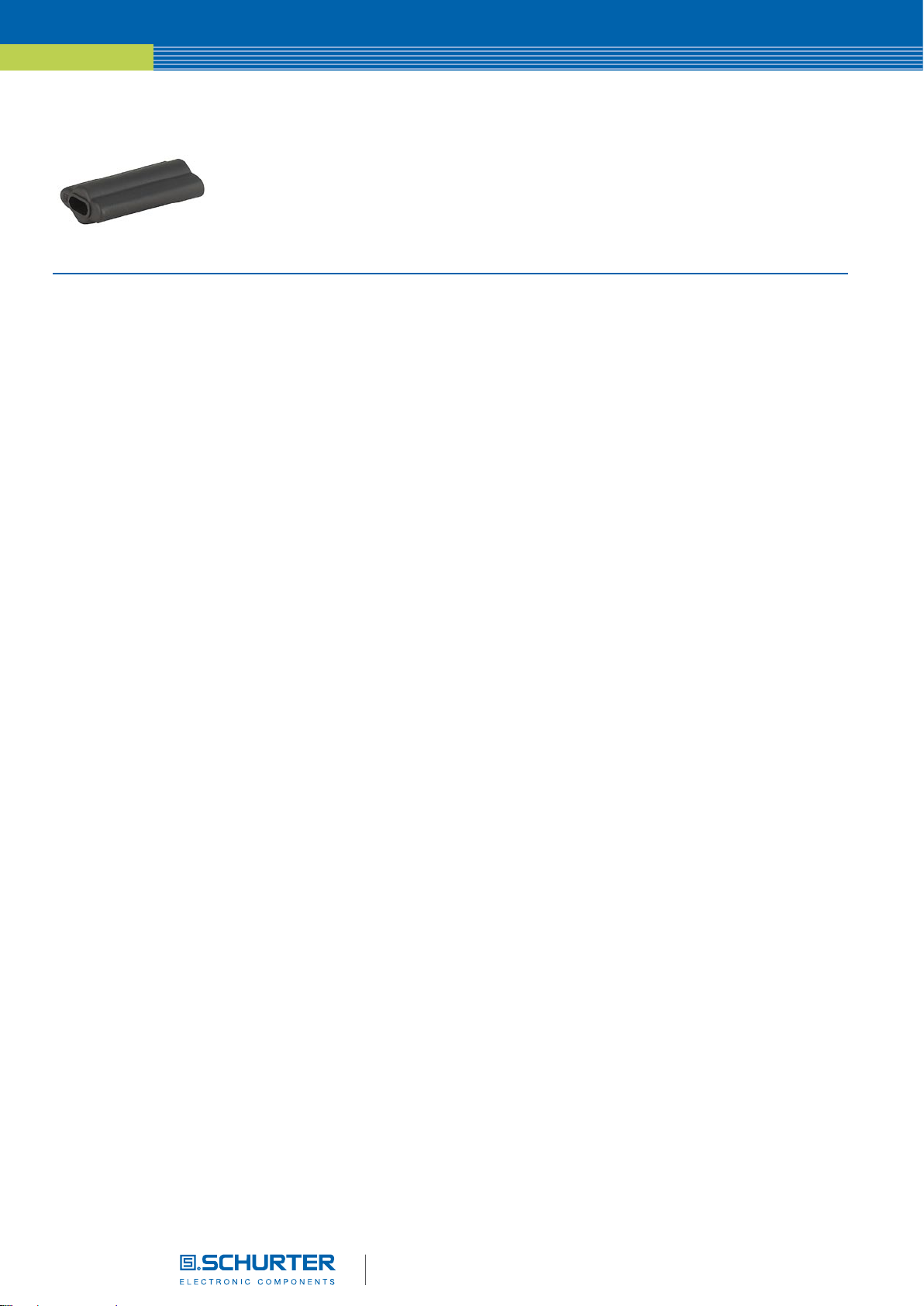

Cover FEU, FEU (Med)
Insulation Cover for FEU, FEU (Med)
03.04.2013
