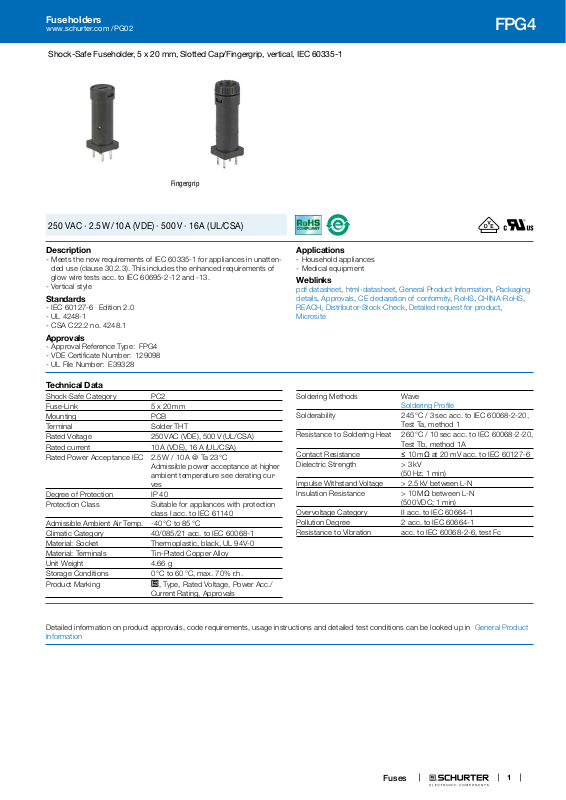

Page 1
Fuseholders
www.schurter.com /PG02
Shock-Safe Fuseholder, 5 x 20 mm, Slotted Cap/Fingergrip, vertical, IEC 60335-1
Fingergrip
250 VAC · 2.5 W / 10 A (VDE) · 500 V · 16 A (UL/CSA)
FPG4
Description
- Meets the new requirements of IEC 60335-1 for appliances in unattended use (clause 30.2.3). This includes the enhanced requirements of
glow wire tests acc. to IEC 60695-2-12 and -13.
- Vertical style
Standards
- IEC 60127-6 ␣Edition 2.0
- UL 4248-1
- CSA C22.2 no. 4248.1
Approvals
- Approval Reference Type: FPG4
- VDE Certificate Number: 129098
- UL File Number: E39328
Technical Data
Shock-Safe Category PC2
Fuse-Link 5 x 20 mm
Mounting PCB
Terminal Solder THT
Rated Voltage 250 VAC (VDE), 500 V (UL/CSA)
Rated current 10 A (VDE), 16 A (UL/CSA)
Rated Power Acceptance IEC 2.5 W / 10 A @ Ta 23 °C
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Degree of Protection IP 40
Protection Class Suitable for appliances with protection
class I acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Socket Thermoplastic, black, UL 94V-0
Material: Terminals Tin-Plated Copper Alloy
Unit Weight 4.66 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking , Type, Rated Voltage, Power Acc./
Current Rating, Approvals
Applications
- Household appliances
- Medical equipment
Weblinks
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Approvals, CE declaration of conformity, RoHS, CHINA-RoHS,
REACH, Distributor-Stock-Check, Detailed request for product,
Microsite
Soldering Methods Wave
Soldering Profile
Solderability 245 °C / 3 sec acc. to IEC 60068-2-20,
Test Ta, method 1
Resistance to Soldering Heat 260 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 1A
Contact Resistance ≤ 10 mΩ at 20 mV acc. to IEC 60127-6
Dielectric Strength > 3 kV
(50 Hz; 1 min)
Impulse Withstand Voltage > 2.5 kV between L-N
Insulation Resistance > 10 MΩ between L-N
(500 VDC; 1 min)
Overvoltage Category II acc. to IEC 60664-1
Pollution Degree 2 acc. to IEC 60664-1
Resistance to Vibration acc. to IEC 60068-2-6, test Fc
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in General Product
Information
Fuses
1

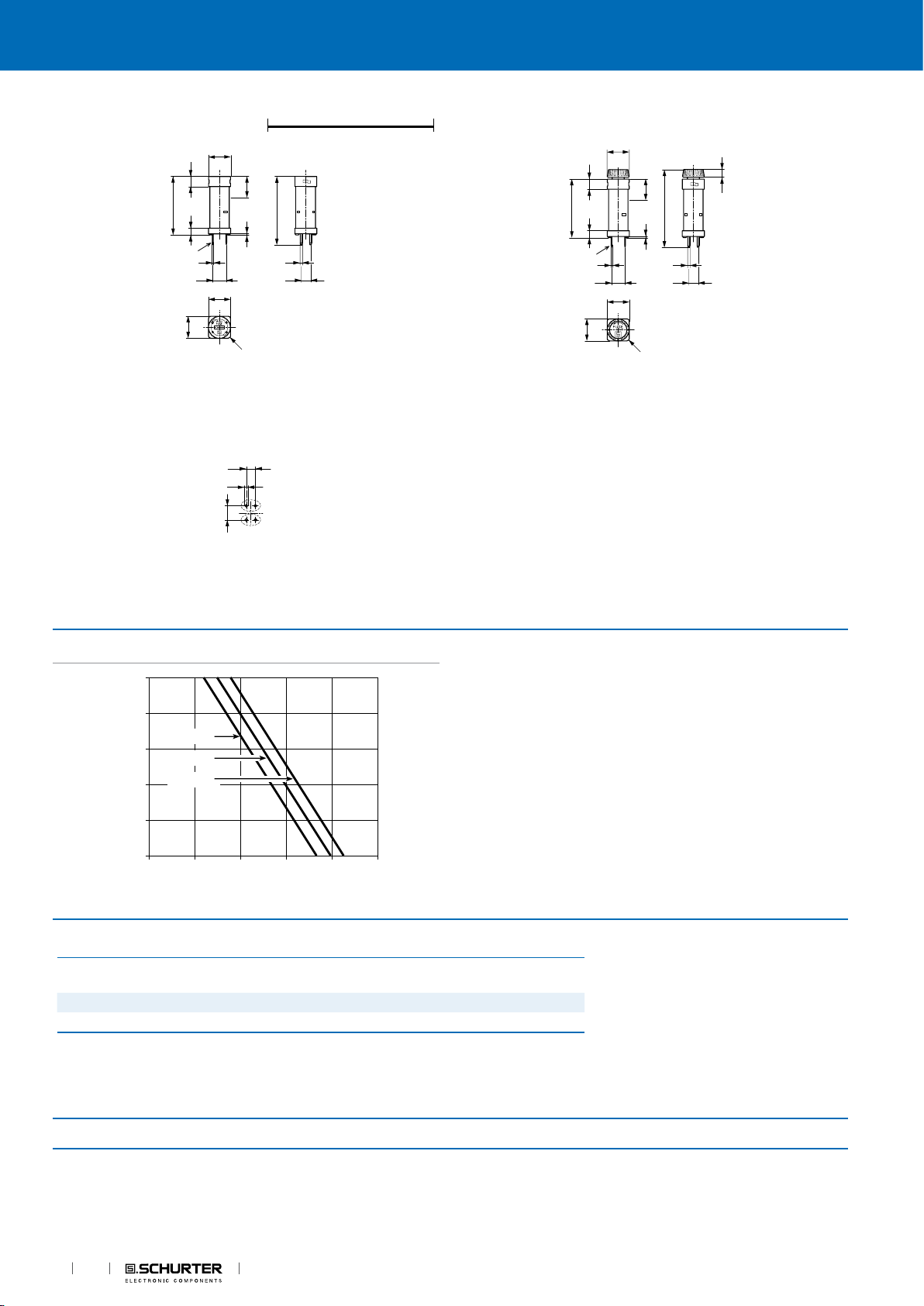

Page 2
FPG4
2.5
www.schurter.com /PG02
Fuseholders
Dimension
Variant 3101.0040
32.6
12.5
37.8 mm
32.6
12.5
ø 12.5
5.5
3.8
P
12
42.8
0.6
5.0
12.5
R 1.4
4
1.1
80.5
2.51 ø
5.5
3.8
P
12
37.8
0.6
5.0
26.7
12.5
R 1.4
1.1
80.5
Variant Fingergrip 3101.0045
±0.1
5.08
+0.1
0
1.3
±0.1
7.62
P
Drilling diagram
Derating Curves
2.0
I = 1.0 I
I = 0.7 I
I = << I
n
n
n
1.5
1.0
0.5
Admissible power acceptance in Watt
0.0
020406080 100
Ambient air temperature Ta °C
All Variants
Holder Cap Terminal Material Remark Order Number
l
slotted straight Thermoplastic - 3101.0040
l
Fingergrip straight Thermoplastic - 3101.0045
█ Most Popular.
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-
SCHURTER
█
█
Packaging Unit
2
Bulk 186 x 91 x 91 mm (100 pcs.)
Fuses
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
