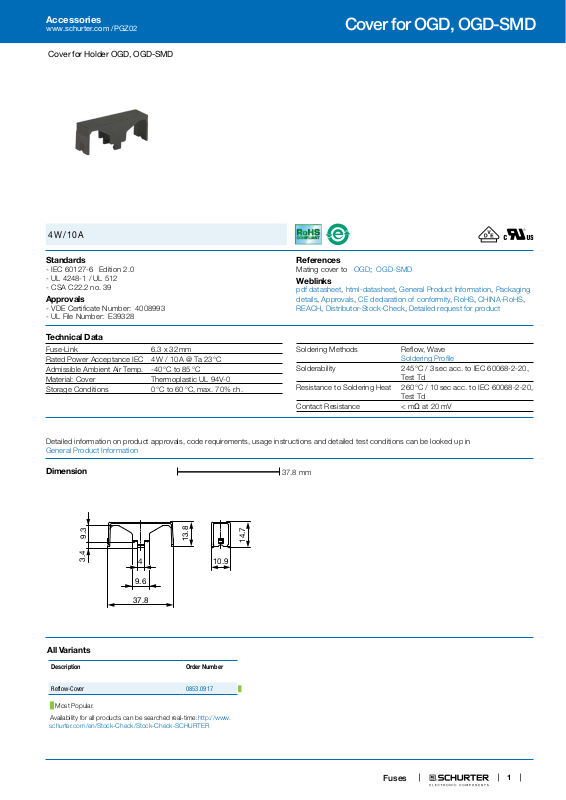

Accessories
www.schurter.com /PGZ02
Cover for Holder OGD, OGD-SMD
4 W / 10 A
Cover for OGD, OGD-SMD
Standards
- IEC 60127-6 ␣Edition 2.0
- UL 4248-1 / UL 512
- CSA C22.2 no. 39
Approvals
- VDE Certificate Number: 4008993
- UL File Number: E39328
Technical Data
Fuse-Link 6.3 x 32 mm
Rated Power Acceptance IEC 4 W / 10 A @ Ta 23 °C
Admissible Ambient Air Temp. -40 °C to 85 °C
Material: Cover Thermoplastic UL 94V-0
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
General Product Information

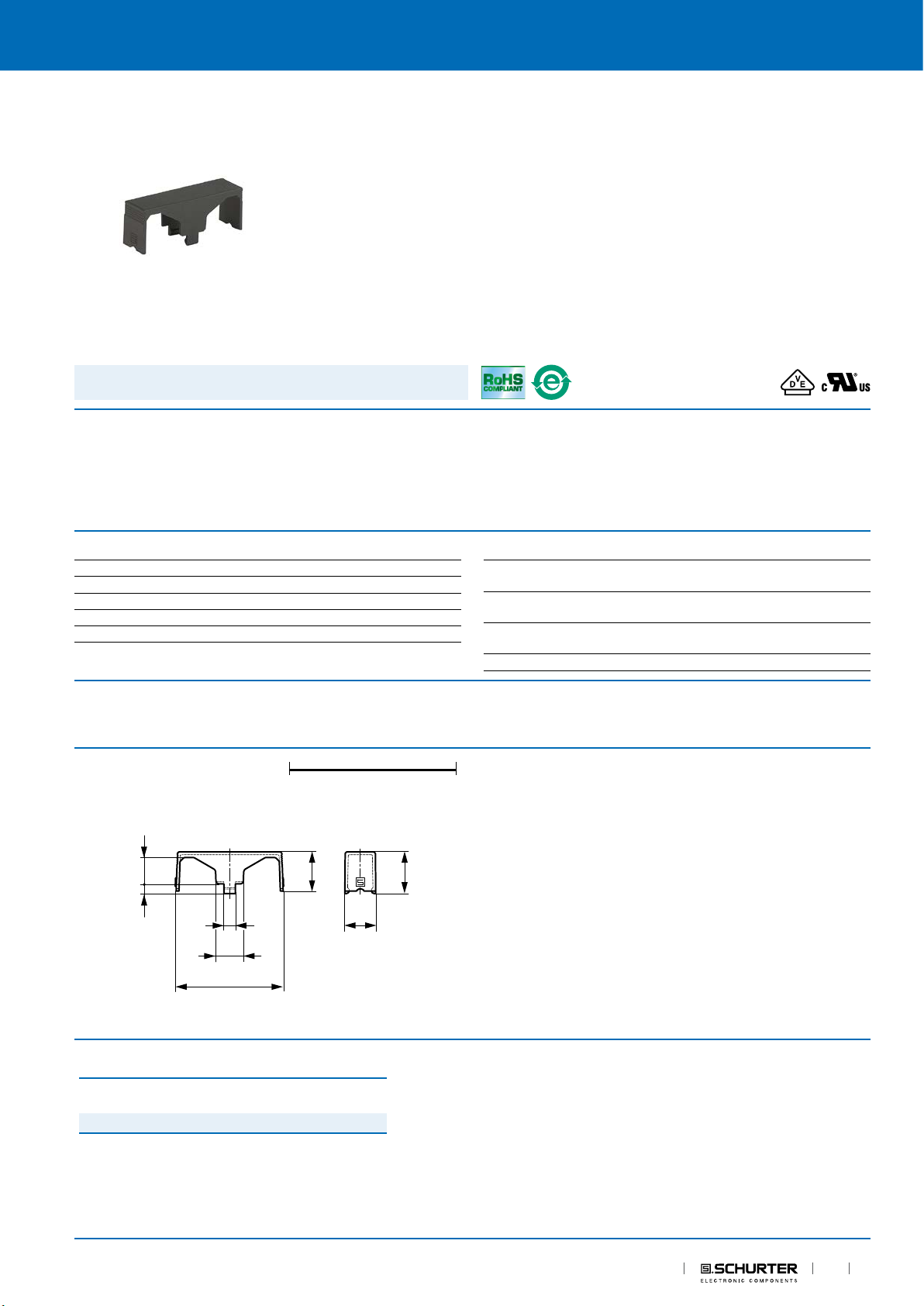

Dimension
References
Mating cover to OGD; OGD-SMD
Weblinks
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Approvals, CE declaration of conformity, RoHS, CHINA-RoHS,
REACH, Distributor-Stock-Check, Detailed request for product
Soldering Methods Reflow, Wave
Soldering Profile
Solderability 245 °C / 3 sec acc. to IEC 60068-2-20,
Test Td
Resistance to Soldering Heat 260 °C / 10 sec acc. to IEC 60068-2-20,
Test Td
Contact Resistance < mΩ at 20 mV
37.8 mm
9.3
3.4
4
13.8
10.9
9.6
37.8
All Variants
Description Order Number
Reflow-Cover 0853.0917
█ Most Popular.
Availability for all products can be searched real-time:http://www.
schurter.com/en/Stock-Check/Stock-Check-SCHURTER
█
14.7
Fuses
1
Page 2
Cover for OGD, OGD-SMD
www.schurter.com /PGZ02
Accessories
Packaging Unit
Bulk (100 pcs.)
09.05.2017
The specifications, descriptions and illustrations indicated in this document are based on current
2
Fuses
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
