D
OOGGD
OGD

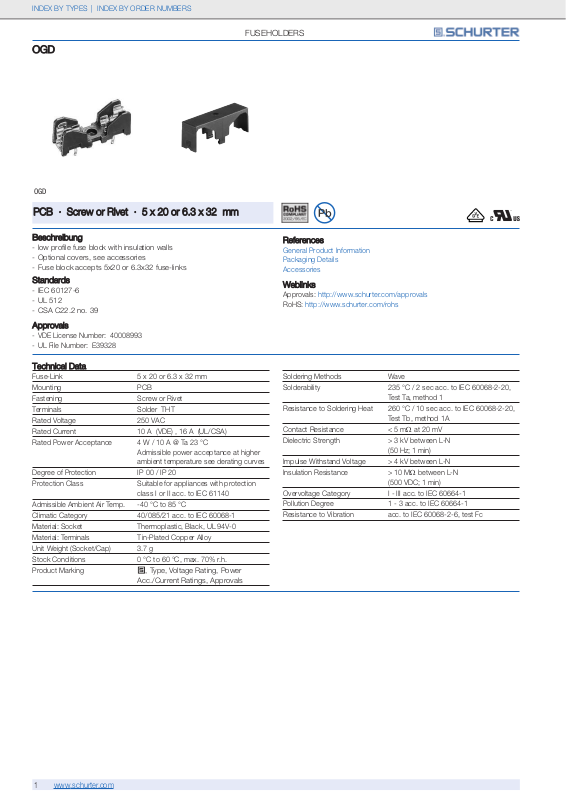

FUSEHOLDERS
PPCCBB··SSccrreeww oorr RRiivveett··55 xx 2200 oorr 66..33 xx 3322mmm
BBeesscchhrreeiibbuunng
- low profile fuse block with insulation walls
- Optional covers, see accessories
- Fuse block accepts 5x20 or 6.3x32 fuse-links
SSttaannddaarrdds
- IEC 60127-6
- UL 512
- CSA C22.2 no. 39
AApppprroovvaalls
- VDE License Number: 40008993
- UL File Number: E39328
TTeecchhnniiccaall DDaatta
Fuse-Link 5 x 20 or 6.3 x 32 mm
Mounting PCB
Fastening Screw or Rivet
Terminals Solder THT
Rated Voltage 250 VAC
Rated Current 10 A (VDE) , 16 A (UL/CSA)
Rated Power Acceptance 4 W / 10 A @ Ta 23 °C
Degree of Protection IP 00 / IP 20
otection Class
Pr
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Socket Thermoplastic, Black, UL 94V-0
Material: Terminals Tin-Plated Copper Alloy
Unit Weight (Socket/Cap) 3.7 g
Stock Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking
g
s
s
a
Admissible power acceptance at higher
ambient temperature see derating curves
Suitable for appliances with pr
class I or II acc. to IEC 61140
, Type, Voltage Rating, Power
Acc./Current Ratings, Approvals
m
otection
RReeffeerreennccees
General Product Information
Packaging Details
Accessories
WWeebblliinnkks
Approvals: http://www.schurter.com/approvals
RoHS: http://www.schurter.com/rohs
Soldering Methods Wave
Solderability 235 °C / 2 sec acc. to IEC 60068-2-20,
Resistance to Soldering Heat 260 °C / 10 sec acc. to IEC 60068-2-20,
Contact Resistance < 5 mΩ at 20 mV
Dielectric Strength > 3 kV between L-N
Impulse Withstand Voltage
Insulation Resistance > 10 MΩ between L-N
Overvoltage Category I - III acc. to IEC 60664-1
Pollution Degree 1 - 3 acc. to IEC 60664-1
Resistance to Vibration acc. to IEC 60068-2-6, test Fc
s
s
Test Ta, method 1
Test Tb, method 1A
(50 Hz; 1 min)
> 4 kV between L-N
(500 VDC; 1 min)
1
.schurter.com
www
Page 2
INDEX BY TYPES | INDEX BY ORDER NUMBERS
10.9
ø 4.8
5
0.7
20
ø 2.7
1.1
15.8
12.7
±0.5
1.3
+0.1
-0
20
±0.1
5
±0.1
D
OOGGD
FUSEHOLDERS
DDiimmeennssiioonns
Variant 0031.8231
s
DDeerraattiinngg CCuurrvvees
in Watt
Length 35.4 mm
Drilling holes
s
Admissible Power Acceptance
Ambient Air Temperature Ta °C
VVaarriiaanntts
s
OOrrddeerr NNuummbbeerr TTyyppee HHoollddeerr TTeerrmmiinnaallss
0031.8231 OGD
PPaacckkaaggiinngg UUnniitt
l
Bulk (100 pcs.)
THT
2
