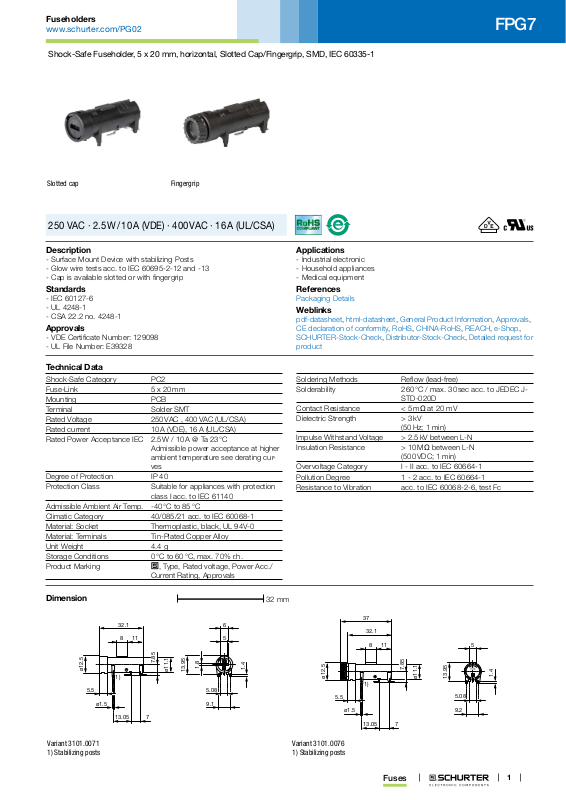

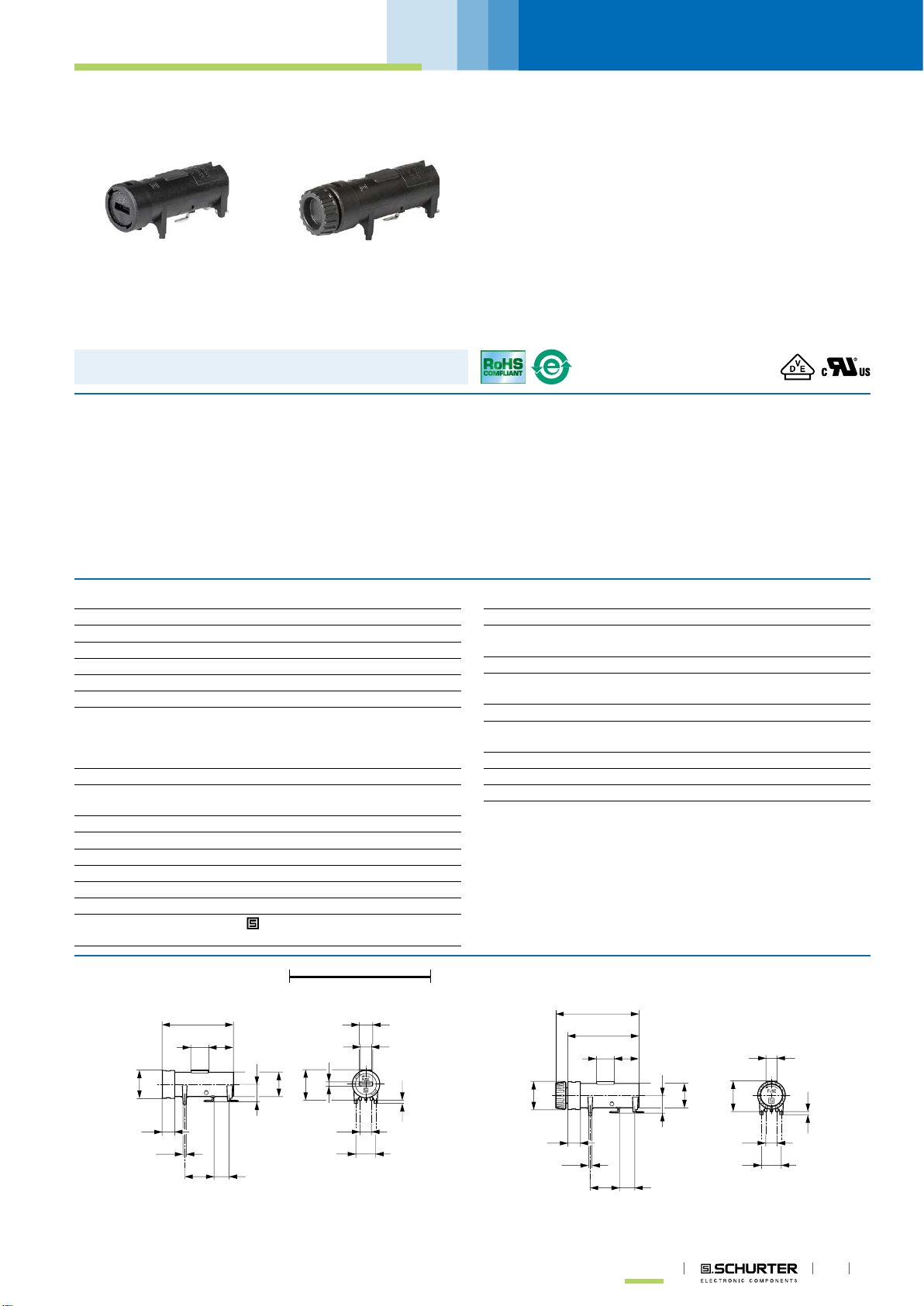

Page 1
Fuseholders
www.schurter.com/PG02
Shock-Safe Fuseholder, 5 x 20 mm, horizontal, Slotted Cap/Fingergrip, SMD, IEC 60335-1
Slotted cap Fingergrip
250 VAC · 2.5 W / 10 A (VDE) · 400 VAC · 16 A (UL/CSA)
FPG7
Description
- Surface Mount Device with stabilizing Posts
- Glow wire tests acc. to IEC 60695-2-12 and -13
- Cap is available slotted or with fingergrip
Standards
- IEC 60127-6
- UL 4248-1
- CSA 22.2 no. 4248-1
Approvals
- VDE Certificate Number: 129098
- UL File Number: E39328
Technical Data
Shock-Safe Category PC2
Fuse-Link 5 x 20 mm
Mounting PCB
Terminal Solder SMT
Rated Voltage 250 VAC , 400 VAC (UL/CSA)
Rated current 10 A (VDE), 16 A (UL/CSA)
Rated Power Acceptance IEC 2.5 W / 10 A @ Ta 23 °C
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Degree of Protection IP 40
Protection Class Suitable for appliances with protection
class I acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Socket Thermoplastic, black, UL 94V-0
Material: Terminals Tin-Plated Copper Alloy
Unit Weight 4.4 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking , Type, Rated voltage, Power Acc./
Current Rating, Approvals
Applications
- Industrial electronic
- Household appliances
- Medical equipment
References
Packaging Details
Weblinks
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, REACH, e-Shop,
SCHURTER-Stock-Check, Distributor-Stock-Check, Detailed request for
product
Soldering Methods Reflow (lead-free)
Solderability 260 °C / max. 30 sec acc. to JEDEC J-
STD-020D
Contact Resistance < 5 mΩ at 20 mV
Dielectric Strength > 3 kV
(50 Hz; 1 min)
Impulse Withstand Voltage > 2.5 kV between L-N
Insulation Resistance > 10 MΩ between L-N
(500 VDC; 1 min)
Overvoltage Category I - II acc. to IEC 60664-1
Pollution Degree 1 - 2 acc. to IEC 60664-1
Resistance to Vibration acc. to IEC 60068-2-6, test Fc
Dimension
ø12.5
5.5
Variant 3101.0071
1) Stabilizing posts
32.1 6
118
7.85
1)
ø1.5
13.05
ø11.1
7
13.95
1.8
9.1
32 mm
37
ø1.5
32.1
1)
13.05
118
7.85
ø11.1
7
13.95
5
1.4
80.5
9.2
5
1.4
80.5
ø12.5
5.5
Variant 3101.0076
1) Stabilizing posts
Fuses
1

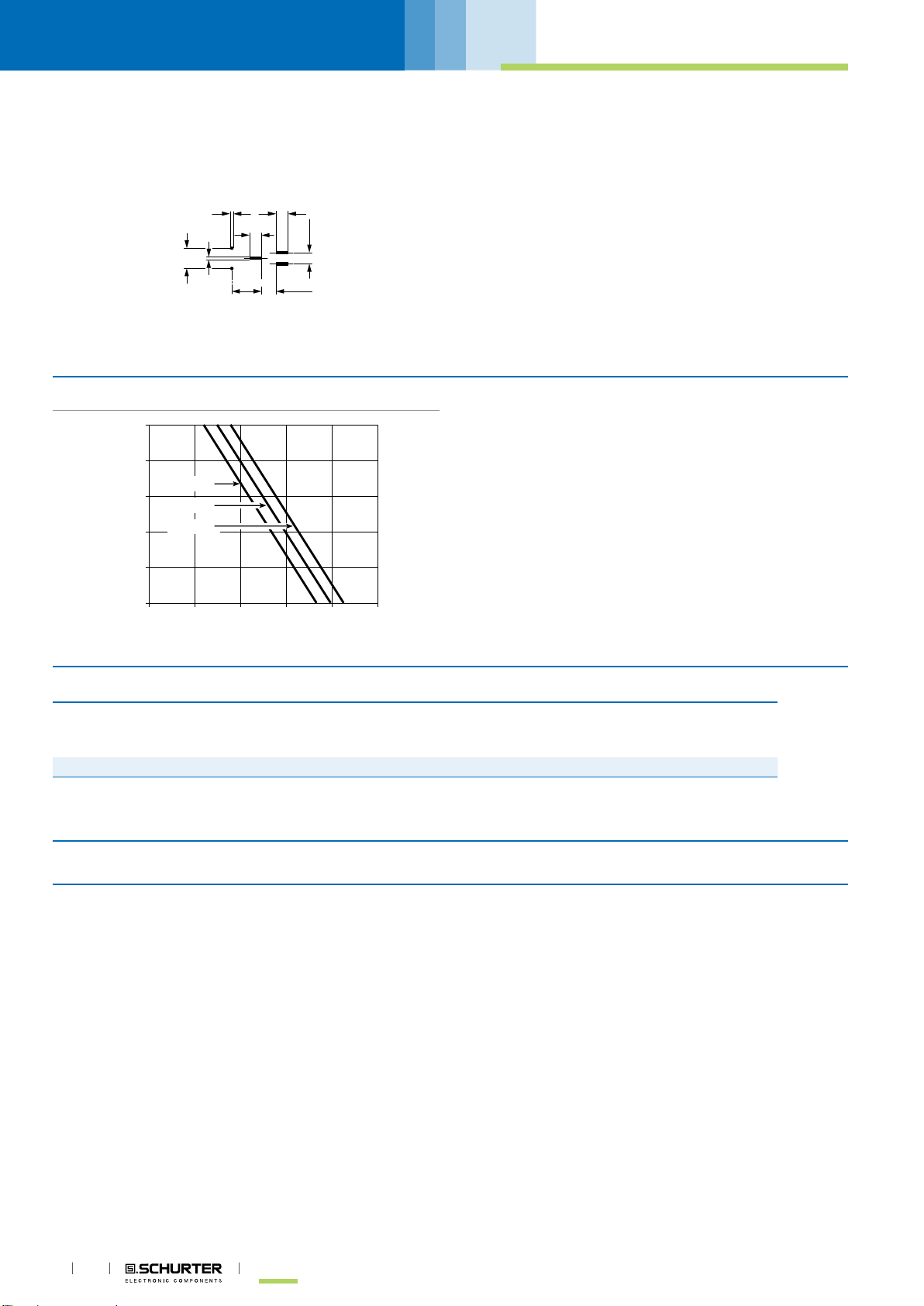

Page 2
FPG7
2.5
±0.05
9.2
Soldering pads and mounting holes
Derating Curves
2.0
I = 1.0 I
1.5
I = 0.7 I
I = << I
1.0
1.5
www.schurter.com/PG02
Fuseholders
+0.1
0
13.5
5.5
6.5
- 0.1
±0.1
5.08
0
5.5
±0.05
ø1.6
n
n
n
0.5
Admissible power acceptance in Watt
0.0
020406080 100
Ambient air temperature Ta °C
All Variants
Holder Cap Material Reflow Condition Remark Order
l
slotted Spec. Thermoplastic acc. to JEDEC J-STD-020D, Tp=260 +0/-5 °C, tp = max. 30 s - 3101.0071
l
Fingergrip Spec. Thermoplastic acc. to JEDEC J-STD-020D, Tp=260 +0/-5 °C, tp = max. 30 s - 3101.0076
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Spec. thermoplastic meets the new requirements of IEC 60335-1 for appliances in unattended use (clause 30.2.3). This standard includes the enhanced requi-
rements of glow wire tests acc. to IEC 60695-2-12 and -13.
Packaging Unit
xxxx.xxxx Bulk 186 x 91 x 91 mm (100 pcs.)
xxxx.xxxx.D2 Blister Tape 38 cm Reel (250 pcs.)
Number
16.06.2015
The specifications, descriptions and illustrations indicated in this document are based on current
2
Fuses
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
