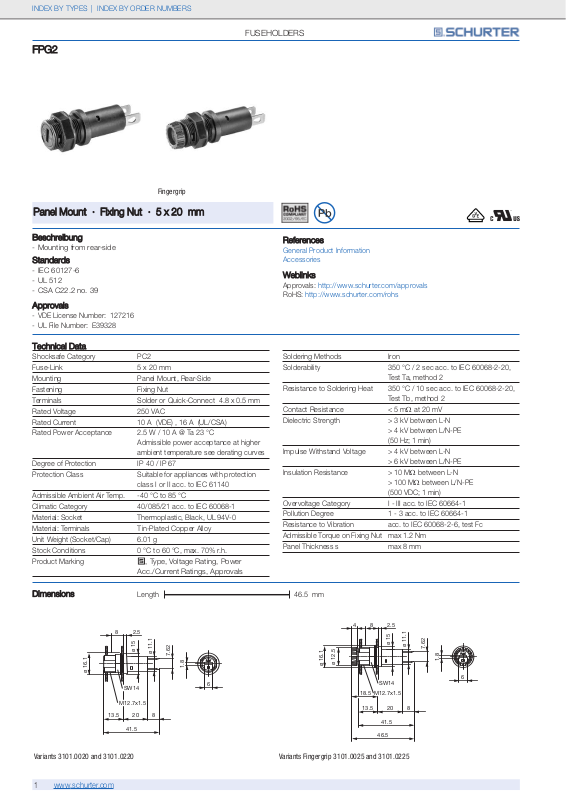

Page 1
INDEX BY TYPES | INDEX BY ORDER NUMBERS
8
6
ø 16.1
ø 11.1
7.62
1.8
2.5
ø 15
20
13.5
8
41.5
M12.7x1.5
SW14
8
ø 16.1
ø 11.1
7.62
2.5
ø 15
4
20
13.5
8
41.5
M12.7x1.5
SW14
18.5
46.5
6
1.8
12.5 ø
2
FFPPGG2
Fingergrip
FUSEHOLDERS
PPaanneell MMoouunntt··FFiixxiinngg NNuutt··55 xx 2200mmm
BBeesscchhrreeiibbuunng
g
m
- Mounting from rear-side
SSttaannddaarrdds
s
- IEC 60127-6
- UL 512
- CSA C22.2 no. 39
AApppprroovvaalls
s
- VDE License Number: 127216
- UL File Number: E39328
TTeecchhnniiccaall DDaatta
a
Shocksafe Category PC2
Fuse-Link 5 x 20 mm
Mounting Panel Mount, Rear-Side
Fastening Fixing Nut
Terminals Solder or Quick-Connect 4.8 x 0.5 mm
Rated Voltage 250 VAC
Rated Current 10 A (VDE) , 16 A (UL/CSA)
Rated Power Acceptance 2.5 W / 10 A @ Ta 23 °C
Admissible power acceptance at higher
ambient temperature see derating curves
Degree of Protection
IP 40 / IP 67
Protection Class Suitable for appliances with protection
class I or II acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category 40/085/21 acc. to IEC 60068-1
Material: Socket Thermoplastic, Black, UL 94V-0
Material: Terminals Tin-Plated Copper Alloy
Unit Weight (Socket/Cap) 6.01 g
Stock Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking
, Type, Voltage Rating, Power
Acc./Current Ratings, Approvals
RReeffeerreennccees
s
General Product Information
Accessories
WWeebblliinnkks
s
Approvals: http://www.schurter.com/approvals
RoHS: http://www.schurter.com/rohs
Soldering Methods Iron
Solderability 350 °C / 2 sec acc. to IEC 60068-2-20,
Test Ta, method 2
Resistance to Soldering Heat 350 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 2
Contact Resistance < 5 mΩ at 20 mV
Dielectric Strength > 3 kV between L-N
> 4 kV between L/N-PE
(50 Hz; 1 min)
Impulse Withstand Voltage > 4 kV between L-N
> 6 kV between L/N-PE
Insulation Resistance > 10 MΩ between L-N
> 100 MΩ between L/N-PE
(500 VDC; 1 min)
Overvoltage Category I - III acc. to IEC 60664-1
Pollution Degree 1 - 3 acc. to IEC 60664-1
Resistance to Vibration acc. to IEC 60068-2-6, test Fc
Admissible Torque on Fixing Nut max 1.2 Nm
Panel Thickness s max 8
mm
DDiimmeennssiioonns
Variants 3101.0020 and 3101.0220
1
www
s
.schurter.com
Length 46.5 mm
ariants F
V
ingergrip 3101.0025 and 3101.0225
Page 2
INDEX BY TYPES | INDEX BY ORDER NUMBERS
8
6
ø 16.1
ø 11.1
7.62
1.8
2.5
ø 15
20.6
12.9
8
41.5
M12.7x1.5
SW14
8
ø 16.1
ø 11.1
7.62
2.5
ø 15
4
20.6
12.9
8
41.5
M12.7x1.5
SW14
17.9
46.5
6
1.8
12.5 ø
11.7
0
-0.15
12
0
-0.1
13
0
-0.3
12.7
0
-0.1
12.7
0
-0.1
2
FFPPGG2
FUSEHOLDERS
Variants 3101.0120 and 3101.0320
Mounting holes
DDeerraattiinngg CCuurrvvees
s
in Watt
Variants Fingergrip 3101.0125 and 3101.0325
Admissible Power Acceptance
Ambient Air Temperature Ta °C
VVaarriiaanntts
s
OOrrddeerr NNuummbbeerr HHoollddeerr CCaapp TTeerrmmiinnaallss DDeeggrreeee ooff PPrrootteecc--
ttiioonn
3101.0020
3101.0220
3101.0025
3101.0225
3101.0120
3101.0320
3101.0125
3101.0325
White and grey colours available on request
PPaacckkaaggiinngg UUnniitt
2
.schurter.com
www
l
l
l
l
l
l
l
l
Slotted Solder IP 40
Slotted Quick-Connect 4.8 x 0.5 mm IP 40
Fingergrip Solder IP 40
Fingergrip Quick-Connect 4.8 x 0.5 mm IP 40
Slotted Solder IP 67
Slotted Quick-Connect 4.8 x 0.5 mm IP 67
ingergrip
F
ingergrip
F
Bulk (100 pcs.)
Solder IP 67
Quick-Connect 4.8 x 0.5 mm IP 67
