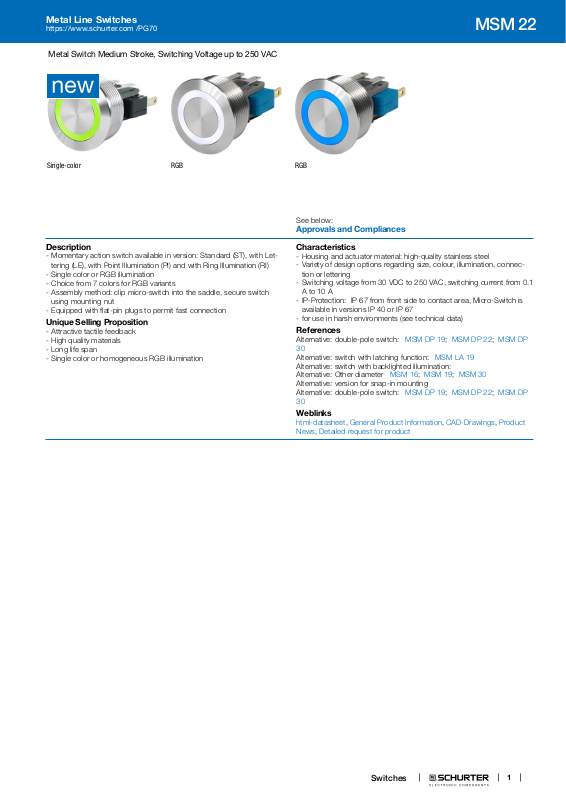

Page 1

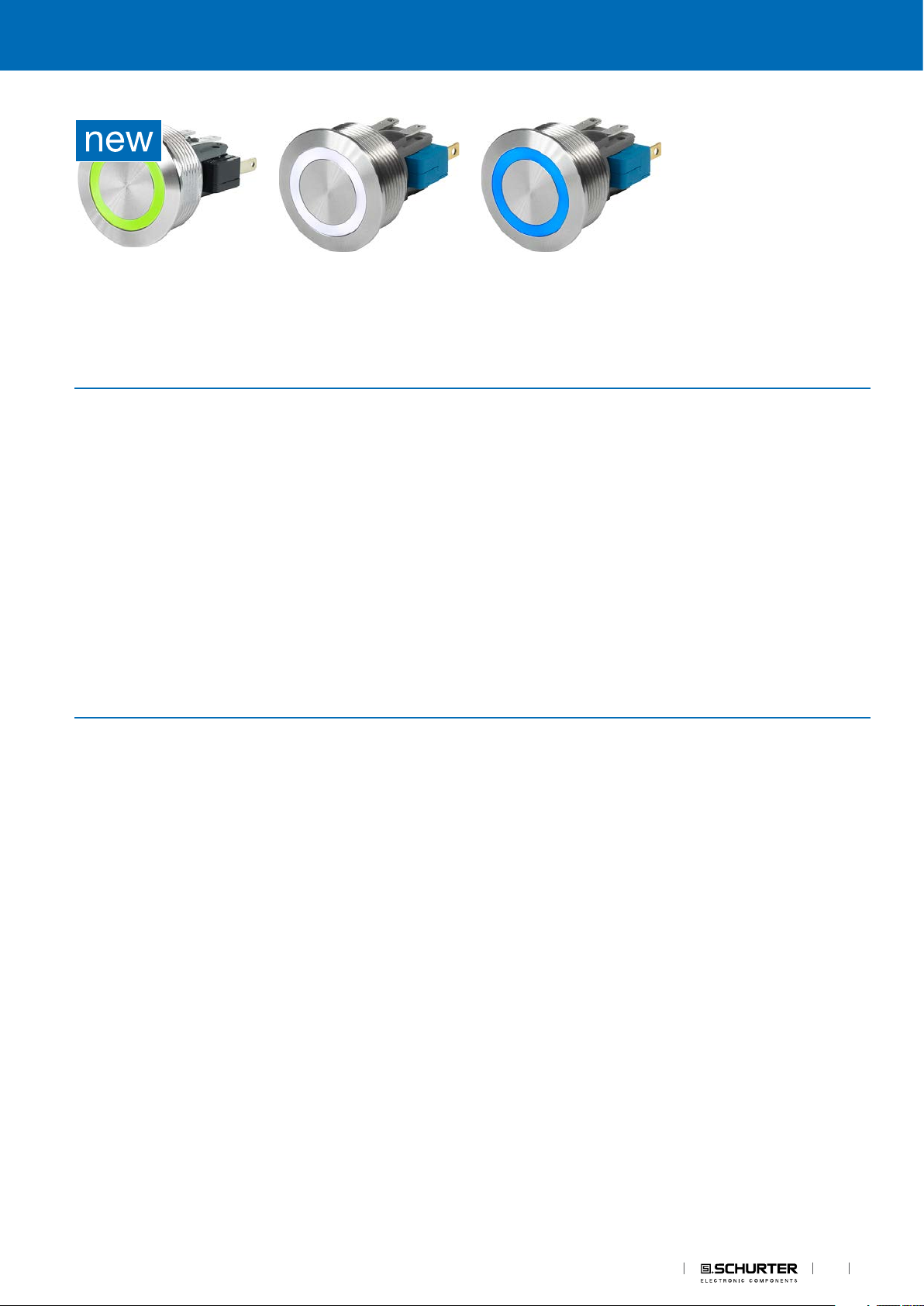

Metal Line Switches

https://www.schurter.com /PG70

Metal Switch Medium Stroke, Switching Voltage up to 250 VAC

Single-color RGB RGB

See below:

Approvals and Compliances

MSM 22

Description

- Momentary action switch available in version: Standard (ST), with Lettering (LE), with Point Illumination (PI) and with Ring Illumination (RI)

- Single color or RGB illumination

- Choice from 7 colors for RGB variants

- Assembly method: clip micro-switch into the saddle, secure switch using mounting nut

- Equipped with flat-pin plugs to permit fast connection

Unique Selling Proposition

- Attractive tactile feedback

- High quality materials

- Long life span

- Single color or homogeneous RGB illumination

Characteristics

- Housing and actuator material: high-quality stainless steel

- Variety of design options regarding size, colour, illumination, connection or lettering

- Switching voltage from 30 VDC to 250 VAC, switching current from 0.1 A to 10 A

- IP-Protection: IP 67 from front side to contact area, Micro-Switch is available in versions IP 40 or IP 67

- for use in harsh environments (see technical data)

References

Alternative: double-pole switch: MSM DP 19; MSM DP 22; MSM DP

Alternative: switch with latching function: MSM LA 19 Alternative: switch with backlighted illumination: Alternative: Other diameter MSM 16; MSM 19; MSM 30 Alternative: version for snap-in mounting Alternative: double-pole switch: MSM DP 19; MSM DP 22; MSM DP

Weblinks

html-datasheet, General Product Information, CAD-Drawings, Product News, Detailed request for product

Switches

Page 2

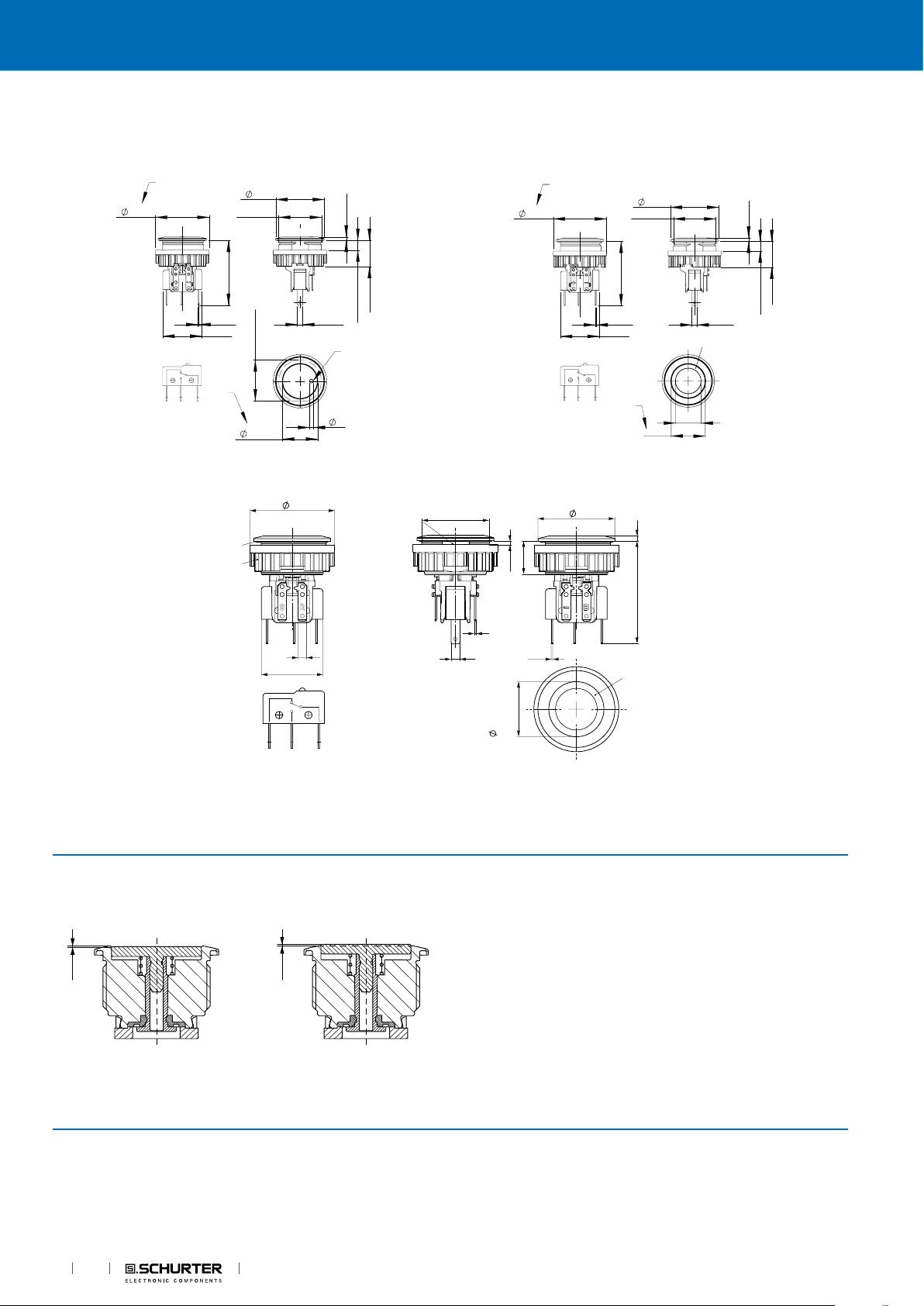

MSM 22

Metal Line Switches

https://www.schurter.com /PG70

Technical Data

Electrical Data

Switching Function N.O., N.C., N.O./N.C. Number of Poles 1-pole Supply Voltage 24 VDC * Ring Illumination , Point Illumi-

Impulse Withstand Voltage (ESD)

Micro Switch 5 A / 125 VAC or 3 A / 250 VAC, IP40

Contact Material Ag Switching Voltage max. 125 / 250 VAC Switching Current max. 5 / 3 A Rated Switching Capacity 750 W Lifetime 0.2 million actuations at Rated Swit-

Contact Resistance < 30 mΩ Insulation Resistance > 100 MΩ Duration of Bounce < 5 ms

Micro Switch 0,1 A / 30 VDC, IP40

Contact Material Au Switching Voltage max. 30 VDC Switching Current max. 0.1 A Rated Switching Capacity 3 W Lifetime 0.2 million actuations at Rated Swit-

Contact Resistance < 50 mΩ Insulation Resistance > 100 MΩ Duration of Bounce < 5 ms

Micro Switch for Electrical Rating 10 A / 250 VAC (Protection Class IP40)

Contact Material Ag Switching Voltage max. 250 VAC Switching Current max. 10 A Rated Switching Capacity 2500 W Lifetime 0.05 million actuations at Rated Swit-

Contact Resistance < 30 mΩ Insulation Resistance > 100 MΩ Duration of Bounce < 5 ms

Micro Switch 6 A / 250 VAC, IP67

Switching Voltage max. 250 VAC Switching Current max. 5 Rated Switching Capacity 1250 W Lifetime 0.05 million actuations at Rated Swit-

Micro Switch 0,1 A / 250 VAC, IP67 - on request

Switching Voltage max. 250 VAC Switching Current max. 0.1 Rated Switching Capacity 25 W Lifetime 0.05 million actuations at Rated Swit-

Micro Switch 10 A / 250 VAC, IP67 - on request

Switching Voltage max. 250 VAC Switching Current max. 10 A Rated Switching Capacity 2500 W Lifetime 0.01 million actuations at Rated Swit-

nation without series resistor , LED operating data are listed in separate table 4 kV MSM ST / MSM LE

ching Capacity

Mechanical Data

Actuating Force 4.5 N Actuating Travel 1.0 mm Lifetime 1.5 million actuations Shock Protection IK 07 Tightening Torque Plastic Nut max. 3.5 Nm Tightening Torque Stainless

Steel Nut

Climatical Data

Operating Temperature -25 to +85 °C Storage Temperature -25 to +85 °C Protection Class IP 67 Switching Unit IP 40 ␣ IP 67 optional Salt Spray Test (acc. to DIN

50021-SS)

Material

Housings Stainless Steel Actuator Stainless Steel Light Conductor (Point Illumi-

nation) Illuminated Ring (Ring Illumi-

nation) ␣ PMMA for RGB and homogeneous sin-

Seal Ring NBR70 Switcher Collet PA

max. 16 Nm

24 h / 48 h / 96 h Residence Time

PA for dotted single color variants

gle color variants

* 5 V or 12 V variants (except for multicolor) on request

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about

Approvals

Approval Reference Type: MSM 22

Switches

Page 3

Metal Line Switches

https://www.schurter.com /PG70

Approval Logo Certification Body Description

Low Voltage Directive 2014/35/EU compliant following certificate numbers apply to micro switch

VDE / ENEC Certificate Number (Omron): 40008425, 129246, 125256

UL UL / CSA File Number (Omron): E41515

VDE / ENEC Certificate Number (Marquardt): 097550

UL UL / CSA File Number (Marquardt): E41791

KEMA KEMA / ENEC File Number (Cherry): 2089323.01

UL UL / CSA File Number (Cherry): E23301

CQC CQC File Number (Marquardt): CQC13005090991

Product standards

Product standards that are referenced

Organization Design Standard Description

Designed according to DIN EN 61058-1 Switches for appliances. Part 1. General requirements

MSM 22

Designed according to UL 1054 UL standard for safety special-use switches

Application standards

Application standards where the product can be used

Organization Design Standard Description

Designed for applications acc. IEC/UL 60950 IEC 60950-1 includes the basic requirements for the safety of information

technology equipment.

Compliances

The product complies with following Guide Lines

Identification Details Initiator Description

RoHS SCHURTER AG EU Directive RoHS 2011/65/EU

REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,

Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

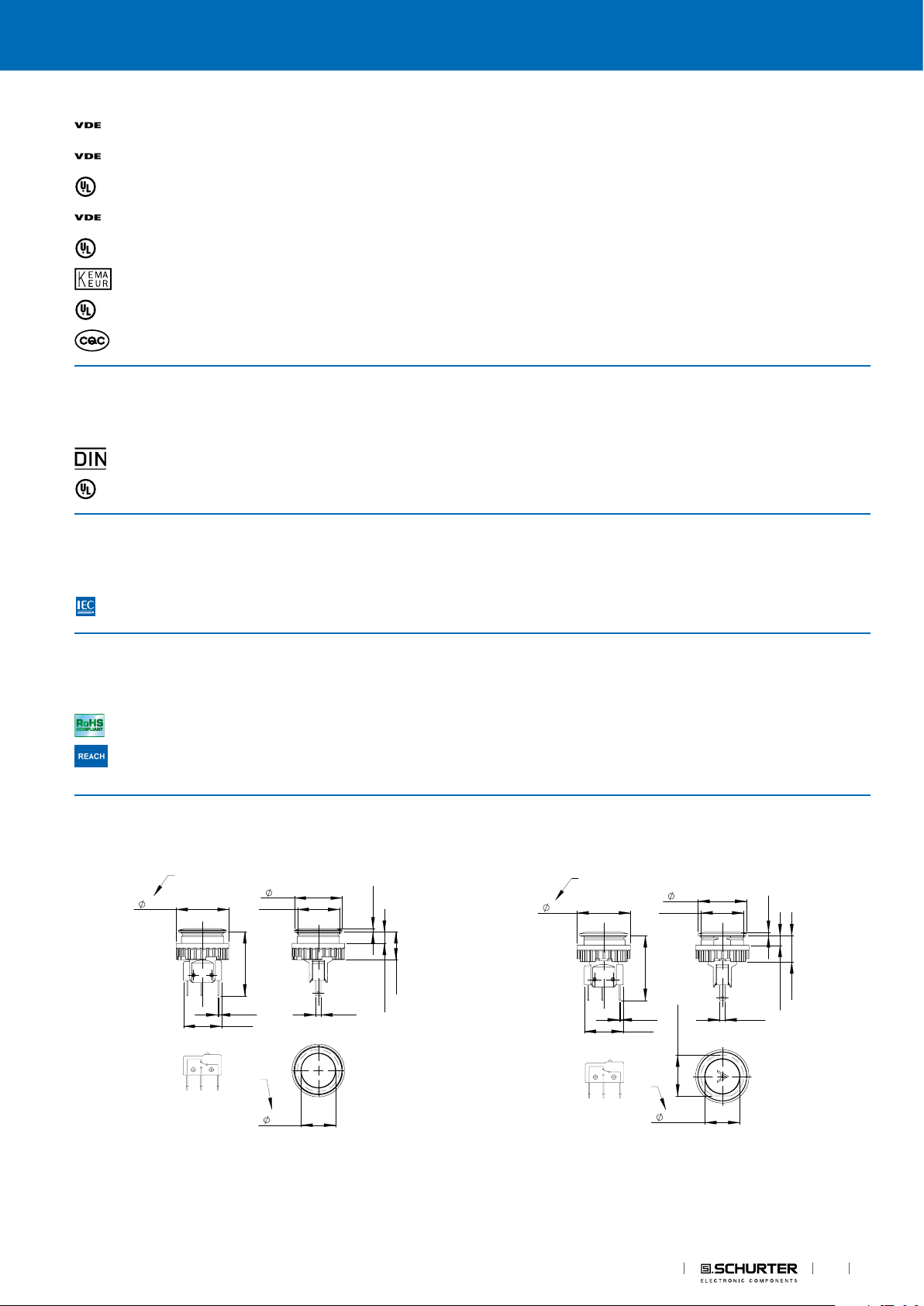

Dimension [mm]

MSM 22 ST

27,60

1,75

MSM 22 LE

27,60

x122

1,75

NO COM

0,50

33,40

14,50

2,80

max. 6mm

33,40

0,50

-0,0521,10

COMNC NO

Switches

2,80

max. 5

13,50

Page 4

MSM 22

Metal Line Switches

https://www.schurter.com /PG70

MSM 22 PI

MSM 22 RI RGB

27,60

MSM 22 RI Single color

1,75

13,50

max. 5

2,80

Verdrehsicherung anti-rotation protection

M22x1

NONC COM

33,40

0,50

O-Ring

Mutter

nut

M22

-0,0521,10

27.6

0.50 20

22Mmmx1

33.40

ø 13.5

ø 17.9

1.75

33.4

1.75

13.50

max. 5

2.80

27.60

NCBNO COM

10.8

max. 5

2.8

COM

Legend A = Illumination Area B = Actuating Area C = Width Across Flats D = Nut

Tolerance Range

Actuator Tolerance Range

0.20

The mounting tolerance range of the actuator varies from 0.2 mm projection length

and 0.2 mm short length to the housing edge. The slanting position of the actuator

can range within this tolerance.

0.20

2.8

0.5

17.9

0.5

Betätigungsfläche

actuator area

Leuchtring

illuminated Ring

Switches

Page 5

Metal Line Switches

https://www.schurter.com /PG70

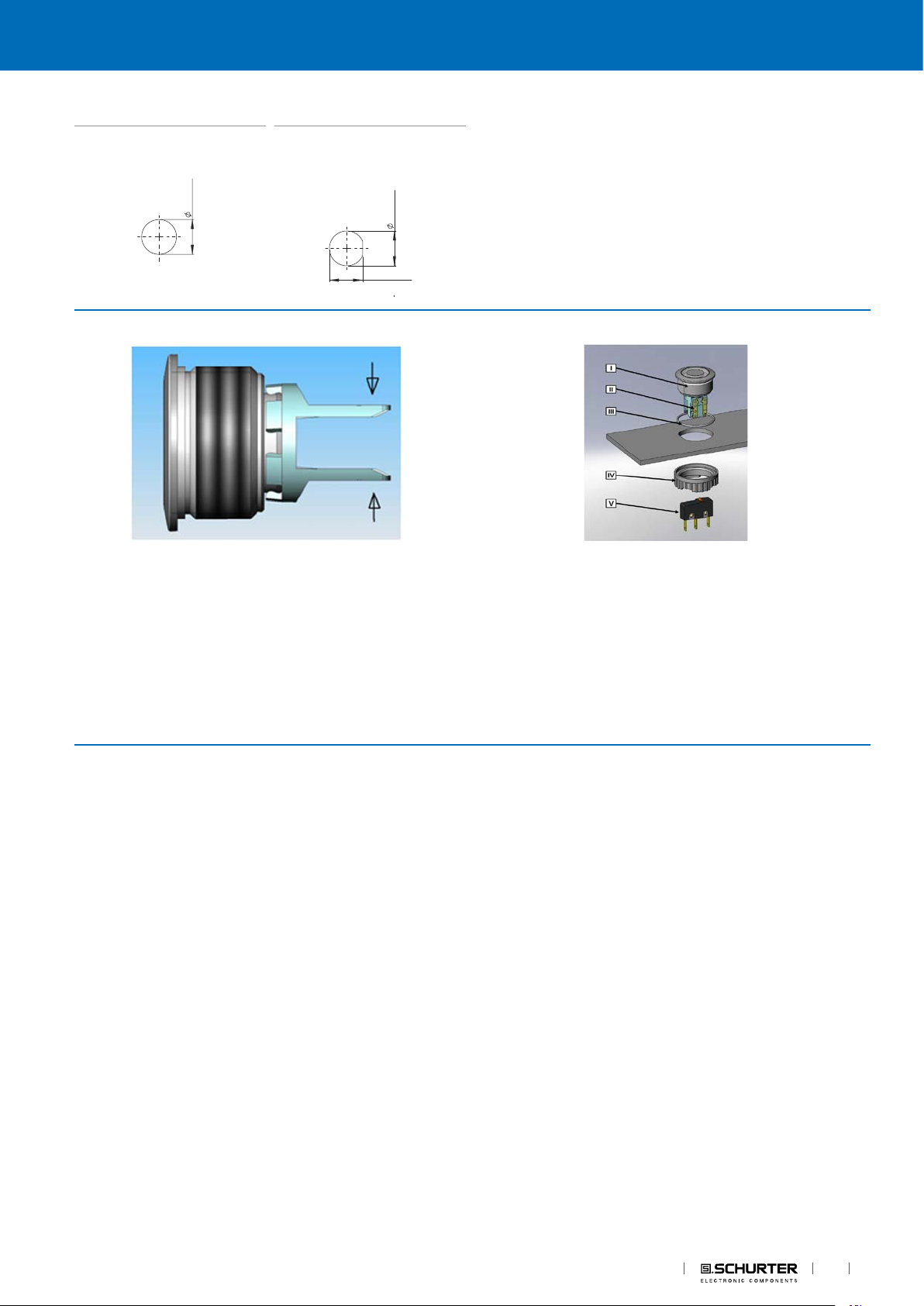

Dimension

MSM 22 ST / MSM 22 RI



Assembly Instructions

MSM 22

MSM 22 LE / MSM 22 PI / MSM 22 RI optional





During assembly, the protruding bars of the holder should not be pressed together. I Housing

II Flat Pin Terminal (Illumination) III Gasket IV Nut (Nut type see Dimensions) V Module Switching Contact

Installation Instruction:

1.) Place the gasket accurately on the actuator housing. Then mount the actuator housing assembly into the panel.

2.) Tighten the screw nut according to the torque instructions.

3.) Clasp the module switching contact into the micro switch holder of the actuator housing.

Installation information:

1.) The power supply and the configuration of the flat pin terminals have to be installed correctly for the illumination and micro switch function.

2.) Insulate the terminals as required. Fully insulated plug-in sleeves are recommended.

3.) Installation instructions according to VDE-standard DIN VDE 0100-100 or alternatively IEC 60354 standard.

Switches

Page 6

MSM 22

terminal LED +pole r

terminal LED +pole gr

terminal LED +pole blue LED

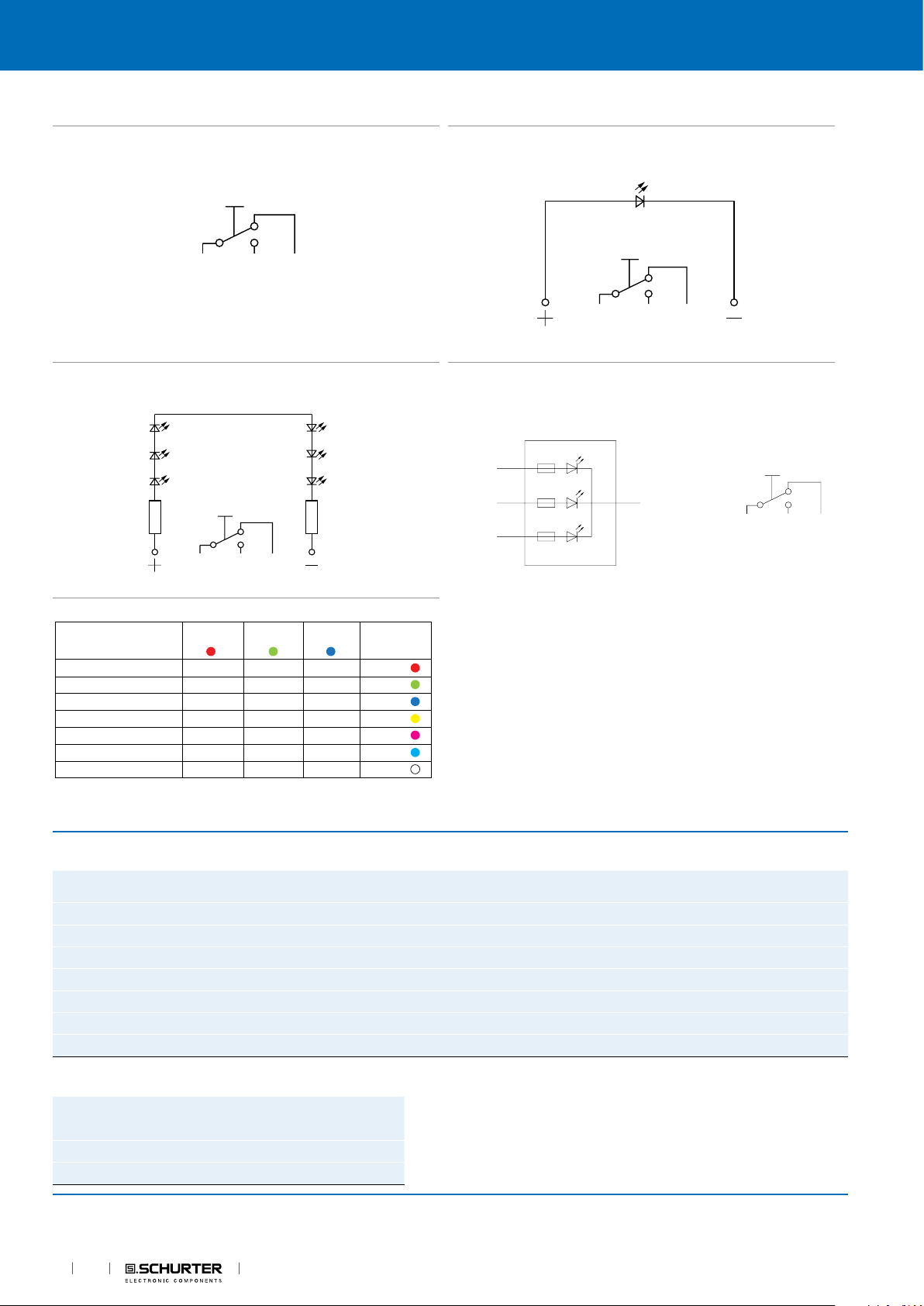

Diagrams

MSM ST / MSM LE

Metal Line Switches

https://www.schurter.com /PG70

MSM PI

COM NO NC

MSM RI / 24 V Single color

Rv Rv

COM NO NC

Lighting type Active Active Active Resulting terminal terminal terminal Color R) G) B)

Singlecolor x Red

Singlecolor x Green

Singlecolor x Blue

RGB Additive 2 x x Yellow

RGB Additive 2 x x Magenta

RGB Additive 2 x x Cyan

RGB Additive 3 x x x White

Illumination options for RGB

MSM RI / 24 V RGB

terminal assignment with resistors for 24 VDC

ed LED

een LED

terminalLED -pole ground (GND)

COM NO NC

Point Illumination

Operating Data Forward Current max. Forward Voltage at

LED red

LED green

LED yellow

LED blue

LED white

LED red / green

Attention: Switches are delivered without series resistor.

30 mA 1.9 VDC 3.0 VDC

30 mA 2.1 VDC 3.0 VDC

20 mA 3.7 VDC 4.5 VDC

30 mA 3.6 VDC 4.0 VDC

25 mA 2.0 VDC / 2.2 VDC

10 mA

Lettering

The last three digits in the order number define the lettering:

000 No Lettering

001-074 Standard Lettering

101- Customized Lettering

Switches

Forward Voltage at 8 mA

Forward Voltage at 20 mA

Forward Voltage max.

Page 7

Metal Line Switches

https://www.schurter.com /PG70

Lettering Colour of Laser Lettering

Material Lettering Colour

Stainless Steel black Filled letters

Order Index Lettering

Laser Marking

001 = A 021 = U 041 = ÷ 061 = EIN

002 = B 022 = V 042 = ✳ 062 = AUS

003 = C 023 = W 043 = = 063 = AUF

004 = D 024 = X 044 = # 064 = AB

005 = E 025 = Y 045 = ↔ 065 = ON

006 = F 026 = Z 046 = ↕ 066 = OFF

007 = G 027 = 0 047 = → 067 = UP

008 = H 028 = 1 048 = ← 068 = DOWN

009 = I 029 = 2 049 = ↓ 069 = HIGH

010 = J 030 = 3 050 = ↑ 070 = LOW

011 = K 031 = 4 051 = % 071 = ON/OFF

012 = L 032 = 5 052 = √ 072 = START

013 = M 033 = 6 053 = CTRL 073 = RESET

014 = N 034 = 7 054 = RETURN

015 = O 035 = 8 055 = SHIFT

016 = P 036 = 9 056 = LOCK

017 = Q 037 = + 057 = STOP

018 = R 038 = - 058 = ENTER

019 = S 039 = . 059 = BACK

020 = T 040 = x 060 = LINE

074 =

075 =

076 =

077 =

MSM 22

All Variants

IP Switching Unit

IP 40 100 mA 30 VDC non-illuminated Stainless Steel ,no Stainless Steel ,no MSM 22 ST 1241.6631.1110000

IP 40 5 / 3 A 125 / 250 VAC non-illuminated Stainless Steel ,no Stainless Steel ,no MSM 22 ST 1241.6631.1120000

IP 40 10 A 250 VAC non-illuminated Stainless Steel ,no Stainless Steel ,no MSM 22 ST 1241.6631.1130000

IP 67 6 A 250 VAC non-illuminated Stainless Steel ,no Stainless Steel ,no MSM 22 ST 1241.6631.1180000

IP 40 100 mA 30 VDC non-illuminated Stainless Steel ,yes Stainless Steel ,yes MSM 22 LE 1241.6632.1110000

IP 40 5 / 3 A 125 / 250 VAC non-illuminated Stainless Steel ,yes Stainless Steel ,yes MSM 22 LE 1241.6632.1120000

IP 40 5 / 3 A 125 / 250 VAC non-illuminated Alu red ,yes Alu red ,yes MSM 22 LE 1241.6632.3120000

IP 40 5 / 3 A 125 / 250 VAC non-illuminated Alu red ,yes Alu red ,yes MSM 22 LE 1241.6632.3120057

IP 40 5 / 3 A 125 / 250 VAC non-illuminated Alu red ,yes Alu red ,yes MSM 22 LE 1241.6632.3120062

IP 40 5 / 3 A 125 / 250 VAC non-illuminated Alu red ,yes Alu red ,yes MSM 22 LE 1241.6632.3120066

IP 40 10 A 250 VAC non-illuminated Alu red ,yes Alu red ,yes MSM 22 LE 1241.6632.3130062

IP 40 5 / 3 A 125 / 250 VAC non-illuminated Alu green ,yes Alu green ,yes MSM 22 LE 1241.6632.5120000

IP 40 5 / 3 A 125 / 250 VAC non-illuminated Alu green ,yes Alu green ,yes MSM 22 LE 1241.6632.5120061

IP 40 5 / 3 A 125 / 250 VAC non-illuminated Alu green ,yes Alu green ,yes MSM 22 LE 1241.6632.5120065

IP 40 100 mA 30 VDC Point Illumination, red Stainless Steel ,yes Stainless Steel ,yes MSM 22 PI red 1241.6633.1111000

IP 40 100 mA 30 VDC Point Illumination, green Stainless Steel ,yes Stainless Steel ,yes MSM 22 PI green 1241.6633.1112000

IP 40 100 mA 30 VDC Point Illumination, blue Stainless Steel ,yes Stainless Steel ,yes MSM 22 PI blue 1241.6633.1114000

IP 40 5 / 3 A 125 / 250 VAC Point Illumination, red Stainless Steel ,yes Stainless Steel ,yes MSM 22 PI red 1241.6633.1121000

IP 40 5 / 3 A 125 / 250 VAC Point Illumination, green Stainless Steel ,yes Stainless Steel ,yes MSM 22 PI green 1241.6633.1122000

Switching Current

[A] [VAC/ VDC]

Switching Voltage Illumination, LED Housing Material,

Torsion Protection

Actuator Material, Torsion Protection

Config. Code Order Number

█

Switches

Page 8

MSM 22

Metal Line Switches

https://www.schurter.com /PG70

IP Switching Unit

IP 40 5 / 3 A 125 / 250 VAC Point Illumination, blue Stainless Steel ,yes Stainless Steel ,yes MSM 22 PI blue 1241.6633.1124000

IP 40 5 / 3 A 125 / 250 VAC Point Illumination, red / green Stainless Steel ,yes Stainless Steel ,yes MSM 22 PI red / green 1241.6633.1126000

IP 40 10 A 250 VAC Point Illumination, red Stainless Steel ,yes Stainless Steel ,yes MSM 22 PI red 1241.6633.1131000

IP 40 10 A 250 VAC Point Illumination, green Stainless Steel ,yes Stainless Steel ,yes MSM 22 PI green 1241.6633.1132000

IP 40 10 A 250 VAC Point Illumination, blue Stainless Steel ,yes Stainless Steel ,yes MSM 22 PI blue 1241.6633.1134000

IP 40 100 mA 30 VDC Ring dotted, red, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI red 1241.6634.1111000

IP 40 100 mA 30 VDC Ring dotted, green, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI green 1241.6634.1112000

IP 40 100 mA 30 VDC Ring dotted, yellow, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI yellow 1241.6634.1113000

IP 40 100 mA 30 VDC Ring dotted, blue, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI blue 1241.6634.1114000

IP 40 5 / 3 A 125 / 250 VAC Ring dotted, red, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI red 1241.6634.1121000

IP 40 5 / 3 A 125 / 250 VAC Ring dotted, green, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI green 1241.6634.1122000

IP 40 5 / 3 A 125 / 250 VAC Ring dotted, yellow, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI yellow 1241.6634.1123000

IP 40 5 / 3 A 125 / 250 VAC Ring dotted, blue, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI blue 1241.6634.1124000

IP 40 5 / 3 A 125 / 250 VAC Ring dotted, white, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI white 1241.6634.1125000

IP 40 10 A 250 VAC Ring dotted, red, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI red 1241.6634.1131000

IP 40 10 A 250 VAC Ring dotted, green, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI green 1241.6634.1132000

IP 67 6 A 250 VAC Ring dotted, red, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI red 1241.6634.1181000

IP 67 6 A 250 VAC Ring dotted, green, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI green 1241.6634.1182000

IP 67 6 A 250 VAC Ring dotted, blue, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI blue 1241.6634.1184000

IP 40 100 mA 30 VDC Ring homogeneous, RGB, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI RGB 3-102-773

IP 40 10 A 250 VAC Ring homogeneous, RGB, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI RGB 3-102-784

IP 40 100 mA 30 VDC Ring homogeneous, red, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI red 3-108-955

IP 40 5 / 3 A 125 / 250 VAC Ring homogeneous, red, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI red 3-108-956

IP 40 10 A 250 VAC Ring homogeneous, red, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI red 3-108-957

IP 40 100 mA 30 VDC Ring homogeneous, green, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI green 3-108-958

IP 40 5 / 3 A 125 / 250 VAC Ring homogeneous, green, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI green 3-108-959

IP 40 10 A 250 VAC Ring homogeneous, green, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI green 3-108-960

IP 40 100 mA 30 VDC Ring homogeneous, blue, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI blue 3-108-961

IP 40 5 / 3 A 125 / 250 VAC Ring homogeneous, blue, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI blue 3-108-972

IP 40 10 A 250 VAC Ring homogeneous, blue, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI blue 3-108-973

IP 67 100 mA 250 VAC Ring homogeneous, RGB, 24 VDC Stainless Steel ,yes Stainless Steel ,yes MSM 22 RI RGB 3-109-580

Switching Current

[A] [VAC/ VDC]

Switching Voltage Illumination, LED Housing Material,

Torsion Protection

Actuator Material, Torsion Protection

Config. Code Order Number

█

IP-Protection: IP 67 from front side to contact area, Micro-Switch is available in versions IP 40 or IP 67, see Technical Data Micro-Switch

Variants with 6 A micro switch have IP67

The MOQ for standard laser lettering on standard variants is 10 pieces.

Customer-specific versions available on request.

Special materials for use in salt and chlorinated environment on request.

The nut with gasket and micro switch are enclosed in the box.

█ Most Popular.

Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER

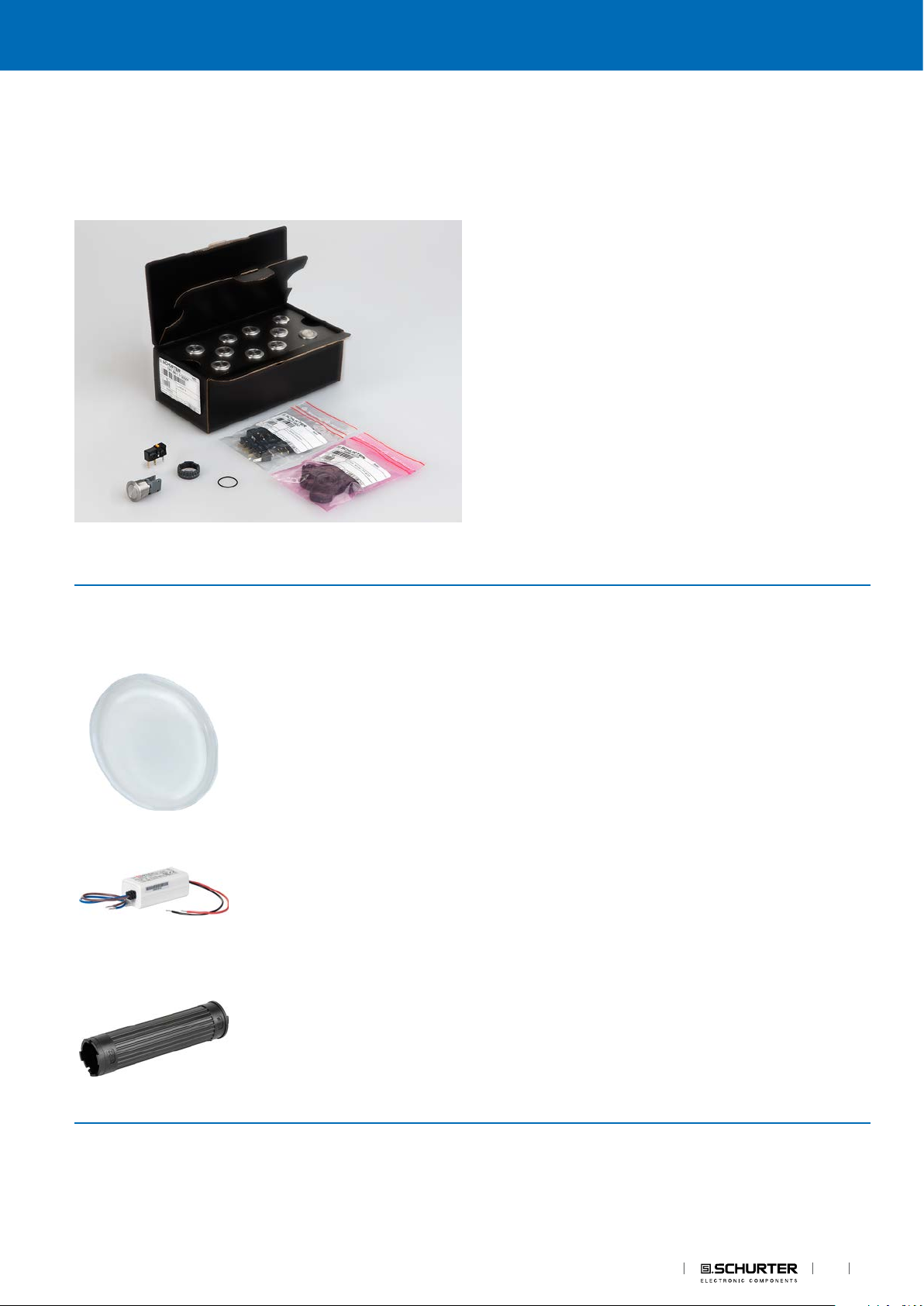

Packaging unit

10 in box with insert or packed in air cushion bags

Switches

Page 9

Metal Line Switches

https://www.schurter.com /PG70

MSM 22

- Actuating elements in ESD safe packaging

- Screw nuts and sealing rings in a bag (enclosd in the box)

- Micro switches in a bag (enclosed in the box)

Accessories

Description

MSM Cover

Protection cover for MSM 19 and MSM 22

Power Supply

Power Supply IP42 for LED- and Illumination applications indoor 90~264 VAC => 24 VDC 0.34 A 8 W

Installation Wrench MSM 22

Installation wrench

The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability and test each product selected for their own applications.

Switches

04.09.2018

Page 10

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Schurter:

1241.6633.1124000 1241.6633.1111000 1241.6633.1112000 1241.6633.1131000 1241.6633.1132000

1241.6633.1121000 1241.6633.1122000 1241.6631.1110000 1241.6631.1130000 1241.6632.1110000

1241.6632.1130000 1241.6699.1120000 1241.6697.1121000 1241.6697.1122000 1241.6695.1120000

1241.6693.1121000 1241.6693.1122000 1241.6634.1181000 1241.6631.1180000 1241.6632.1120000

1241.6634.1111000 1241.6634.1112000 1241.6634.1114000 1241.6631.1120000 1241.6634.1122000

1241.6634.1121000 1241.6634.1124000 1241.6632.3120000 1241.6632.3120057 1241.6632.3120062

1241.6632.3120066 1241.6632.3130062 1241.6632.5120000 1241.6632.5120061 1241.6632.5120065 1241.671

1241.6634.1111000B 1241.6641.1120000 1241.6634.1114000B 3-102-784 3-102-773
