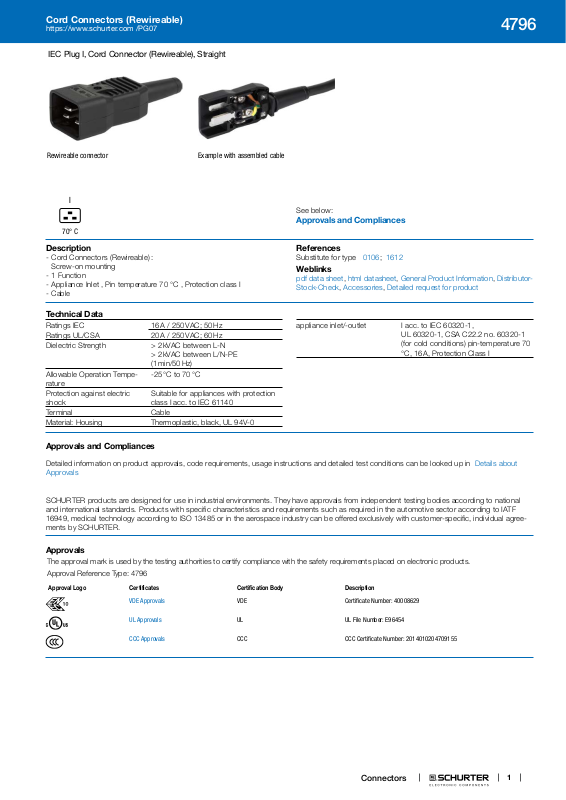

Cord Connectors (Rewireable)
https://www.schurter.com /PG07

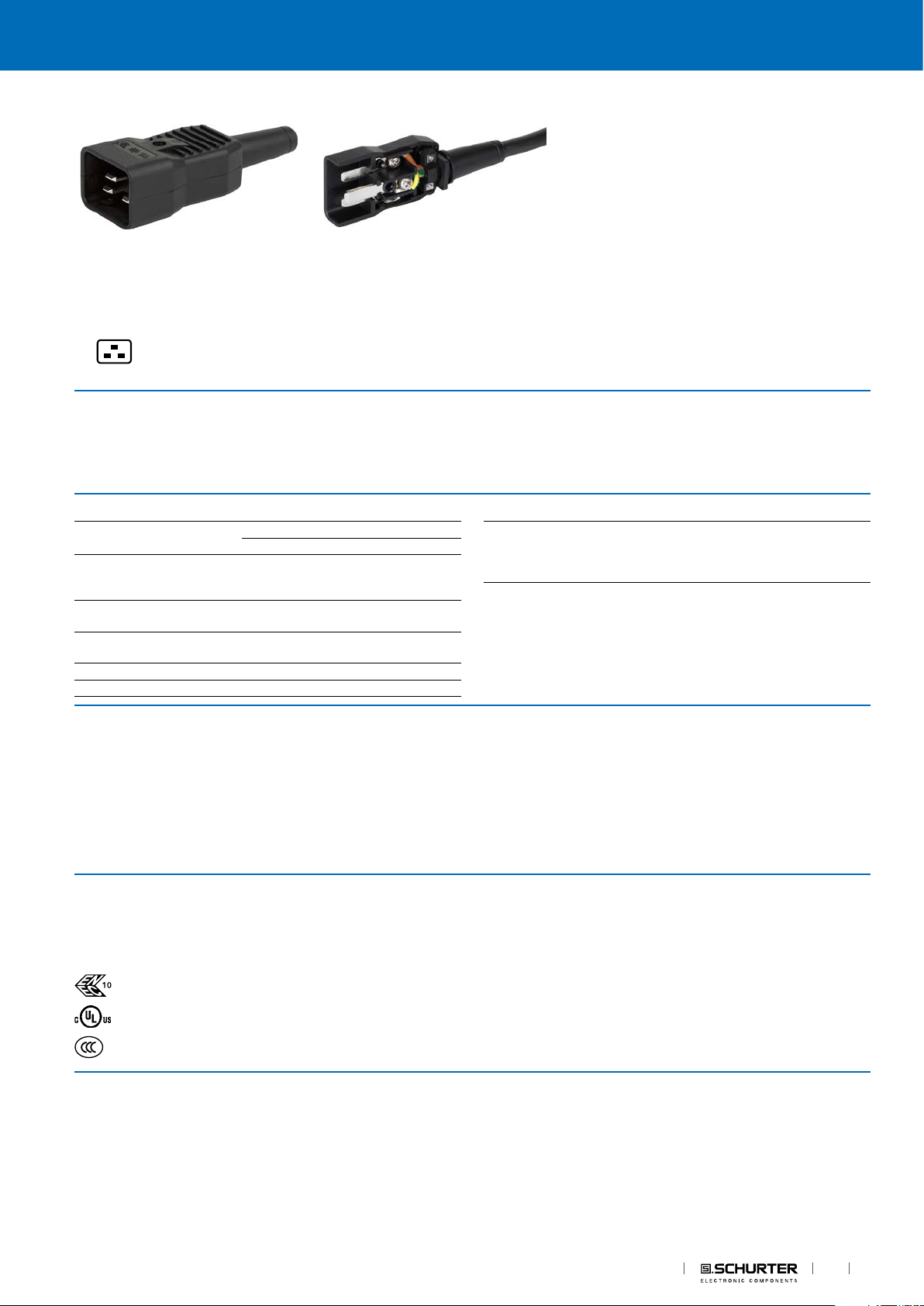

IEC Plug I, Cord Connector (Rewireable), Straight
Rewireable connector Example with assembled cable
I
70° C
4796
See below:
Approvals and Compliances
Description
- Cord Connectors (Rewireable) :
Screw-on mounting
- 1 Function
- Appliance Inlet , Pin temperature 70 °C , Protection class I
- Cable
Technical Data
Ratings IEC 16 A / 250 VAC; 50 Hz
Ratings UL/CSA 20 A / 250 VAC; 60 Hz
Dielectric Strength > 2 kVAC between L-N
Allowable Operation Temperature
Protection against electric
shock
Terminal Cable
Material: Housing Thermoplastic, black, UL 94V-0
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
Suitable for appliances with protection
class I acc. to IEC 61140
References
Substitute for type 0106; 1612
Weblinks
pdf data sheet, html datasheet, General Product Information, DistributorStock-Check, Accessories, Detailed request for product
appliance inlet/-outlet I acc. to IEC 60320-1,
UL 60320-1, CSA C22.2 no. 60320-1
(for cold conditions) pin-temperature 70
°C, 16 A, Protection Class I
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about
Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national
and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF
16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 4796
Approval Logo Certificates Certification Body Description
VDE Approvals VDE Certificate Number: 40008629
UL Approvals UL UL File Number: E96454
CCC Approvals CCC CCC Certificate Number: 2014010204709155
Connectors
1
Page 2
4796
Product standards
Product standards that are referenced
Organization Design Standard Description
Designed according to IEC 60320-1 Appliance couplers for household and similar general purposes
Designed according to UL 60320-1 Standard for Attachment Plugs and Receptacles
Designed according to CSA C22.2 no. 60320-1 General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization Design Standard Description
Designed for applications acc. IEC/UL 60950 IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification Details Initiator Description
CE declaration of conformity SCHURTER AG The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
RoHS SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Cord Connectors (Rewireable)
https://www.schurter.com /PG07
China RoHS SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,

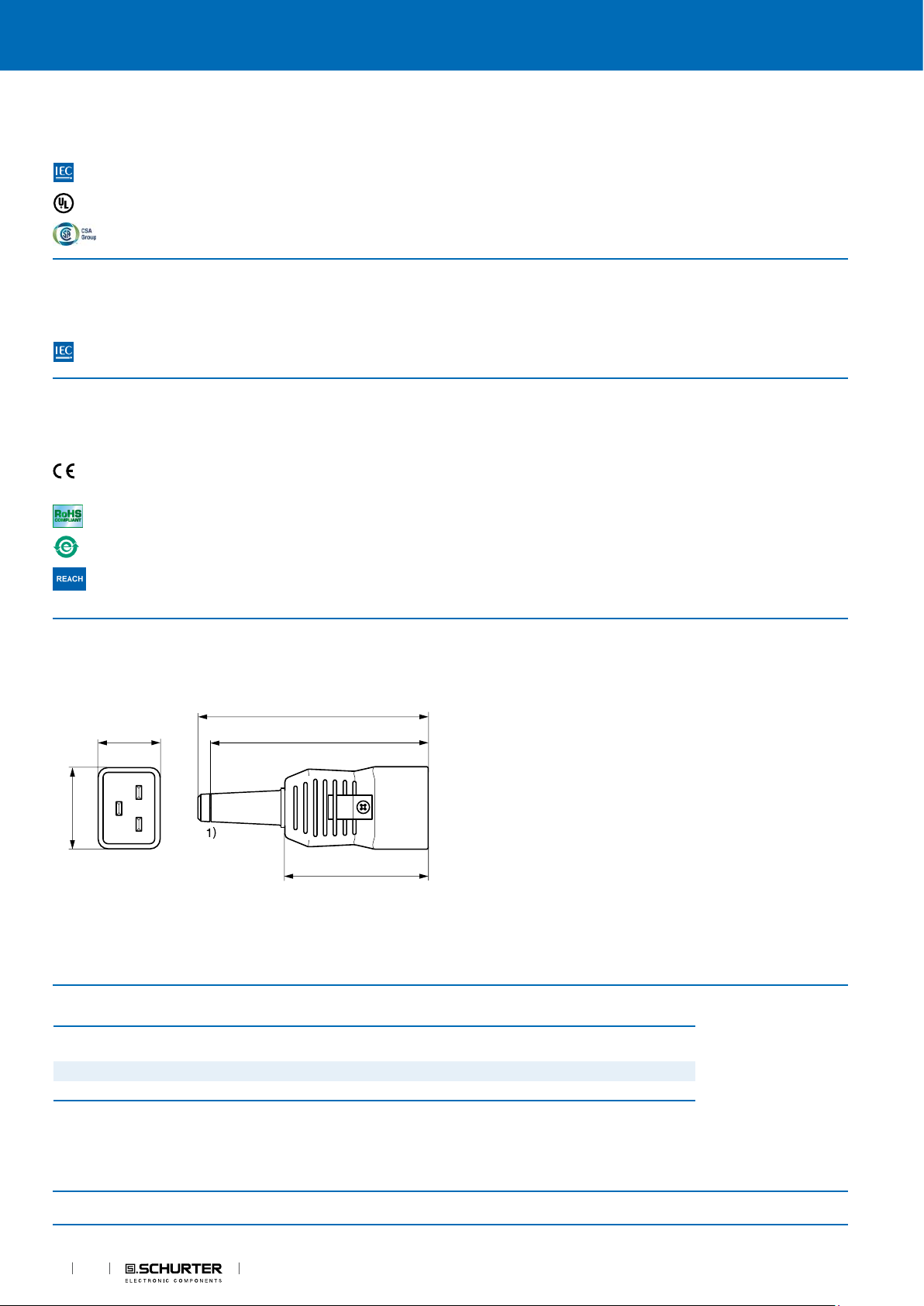

Dimensions [mm]
25.7
33.7
1) Cut strain relief 8 (10) mm here for 10 mm cable
A: Strain relief 8 mm: 93.2 mm
B: Strain relief 10 mm: 88.2 mm
2007. It is similar to the EU directive RoHS.
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
A
B
58.2
All Variants
Color Recommended cable diameter Max. wire size L = Length of cable guard Order Number
black 8 (10) mm 3 x 1.5 mm² / 3 x 14 AWG - 4796.0000
black 10 mm 3 x 1.5 mm² / 3 x 14 AWG - 4796.0100
█ Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Max. torque for screws: Terminals: 0.8 Nm, Cable clamps: 0.4 Nm, Cover: 0.4 Nm
Packaging unit
2
50 Pcs
Connectors
█
Page 3
Cord Connectors (Rewireable)
https://www.schurter.com /PG07

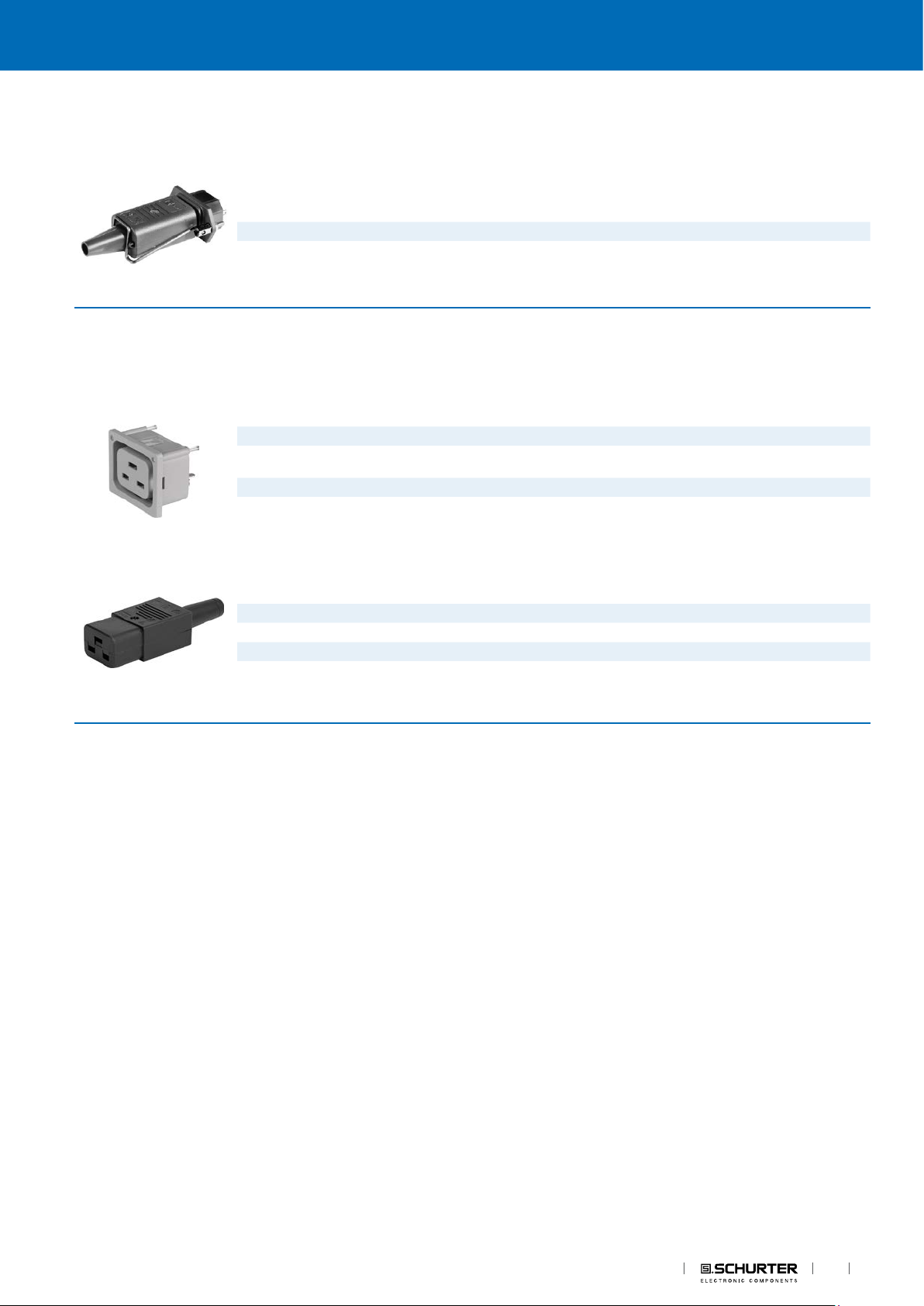

Accessories
Description
Cord retaining kits
Cord retaining strain relief
Countersunk, J 4700.0009
Flat head, L 4700.0011
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
4797-5, Mounting: Snap-in version, For PCB mounting, 250 VAC, 16 A, Appliance Outlet: IEC type J 4797-5
4797, Mounting: Snap-in or screw-on mounting, Solder terminals or quick connect terminals, 250 VAC, 16 A, Appliance Outlet: IEC type J
5017, Mounting: Screw-on mounting, 250 VAC, 16 A, Appliance Outlet: IEC 5017
5216, Mounting: Screw-on mounting, Quick connect terminals, 250 VAC, 16 A, Appliance Outlet: IEC type J 5216
Appliance Outlet further types to 4796
4796
4797
Connector Overview complete
4795, Mounting: Power Cord, Cable Connector: IEC C19 4795
4790, Mounting: Power Cord, Screw Connector: IEC C19 4790
0104U, Mounting: Power Supply Cord, Screw clamps Connector: IEC C19 0104U
Connector further types to 4796
