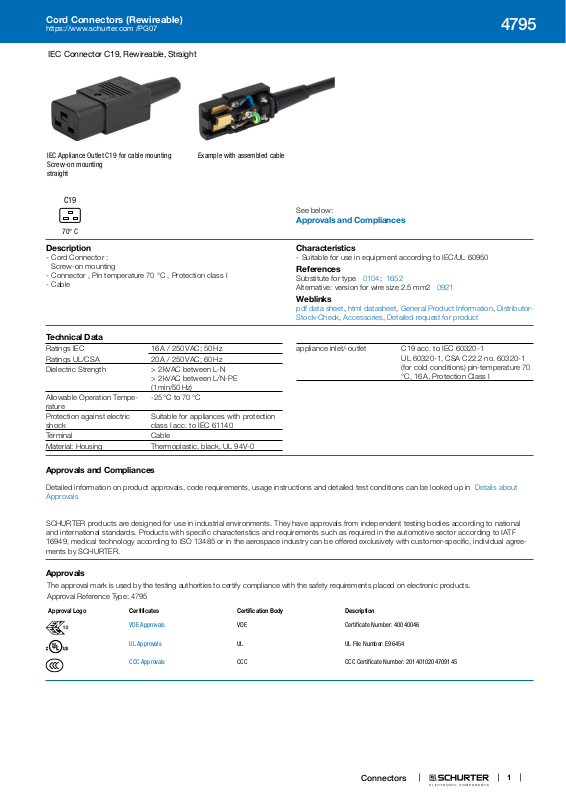

Page 1
Cord Connectors (Rewireable)
https://www.schurter.com /PG07

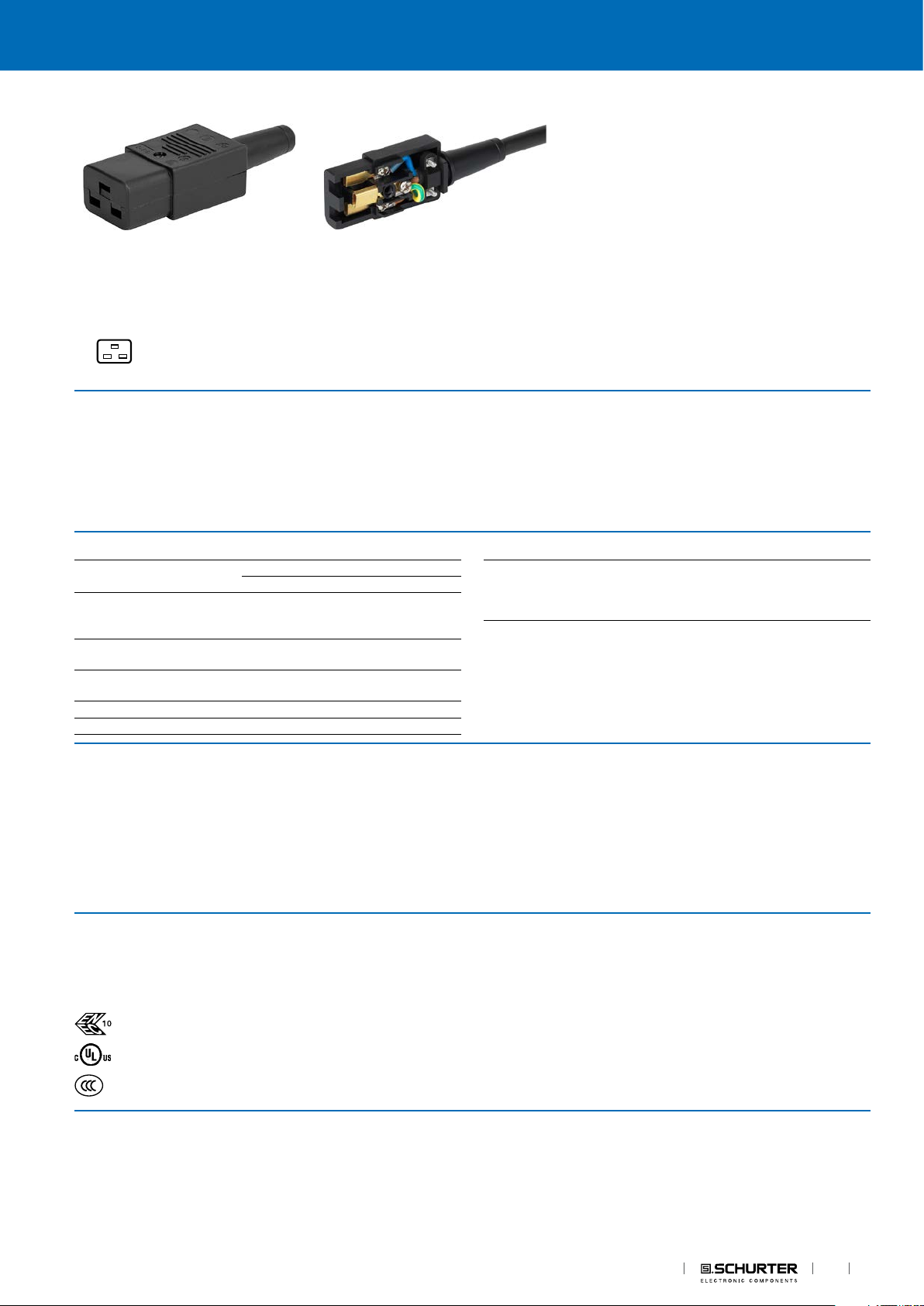

IEC Connector C19, Rewireable, Straight
4795
IEC Appliance Outlet C19 for cable mounting
Screw-on mounting
straight
Example with assembled cable
C19
70° C
Description
- Cord Connector :
Screw-on mounting
- Connector , Pin temperature 70 °C , Protection class I
- Cable
Technical Data
Ratings IEC 16 A / 250 VAC; 50 Hz
Ratings UL/CSA 20 A / 250 VAC; 60 Hz
Dielectric Strength > 2 kVAC between L-N
Allowable Operation Temperature
Protection against electric
shock
Terminal Cable
Material: Housing Thermoplastic, black, UL 94V-0
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
Suitable for appliances with protection
class I acc. to IEC 61140
See below:
Approvals and Compliances
Characteristics
- Suitable for use in equipment according to IEC/UL 60950
References
Substitute for type 0104; 1652
Alternative: version for wire size 2.5 mm2 0921
Weblinks
pdf data sheet, html datasheet, General Product Information, DistributorStock-Check, Accessories, Detailed request for product
appliance inlet/-outlet C19 acc. to IEC 60320-1
UL 60320-1, CSA C22.2 no. 60320-1
(for cold conditions) pin-temperature 70
°C, 16 A, Protection Class I
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about
Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national
and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF
16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 4795
Approval Logo Certificates Certification Body Description
VDE Approvals VDE Certificate Number: 40040046
UL Approvals UL UL File Number: E96454
CCC Approvals CCC CCC Certificate Number: 2014010204709145
Connectors
1
Page 2
4795
Product standards
Product standards that are referenced
Organization Design Standard Description
Designed according to IEC 60320-1 Appliance couplers for household and similar general purposes
Designed according to UL 60320-1 Standard for Attachment Plugs and Receptacles
Designed according to CSA C22.2 no. 60320-1 General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization Design Standard Description
Designed for applications acc. IEC/UL 60950 IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification Details Initiator Description
CE declaration of conformity SCHURTER AG The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
RoHS SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Cord Connectors (Rewireable)
https://www.schurter.com /PG07
China RoHS SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,

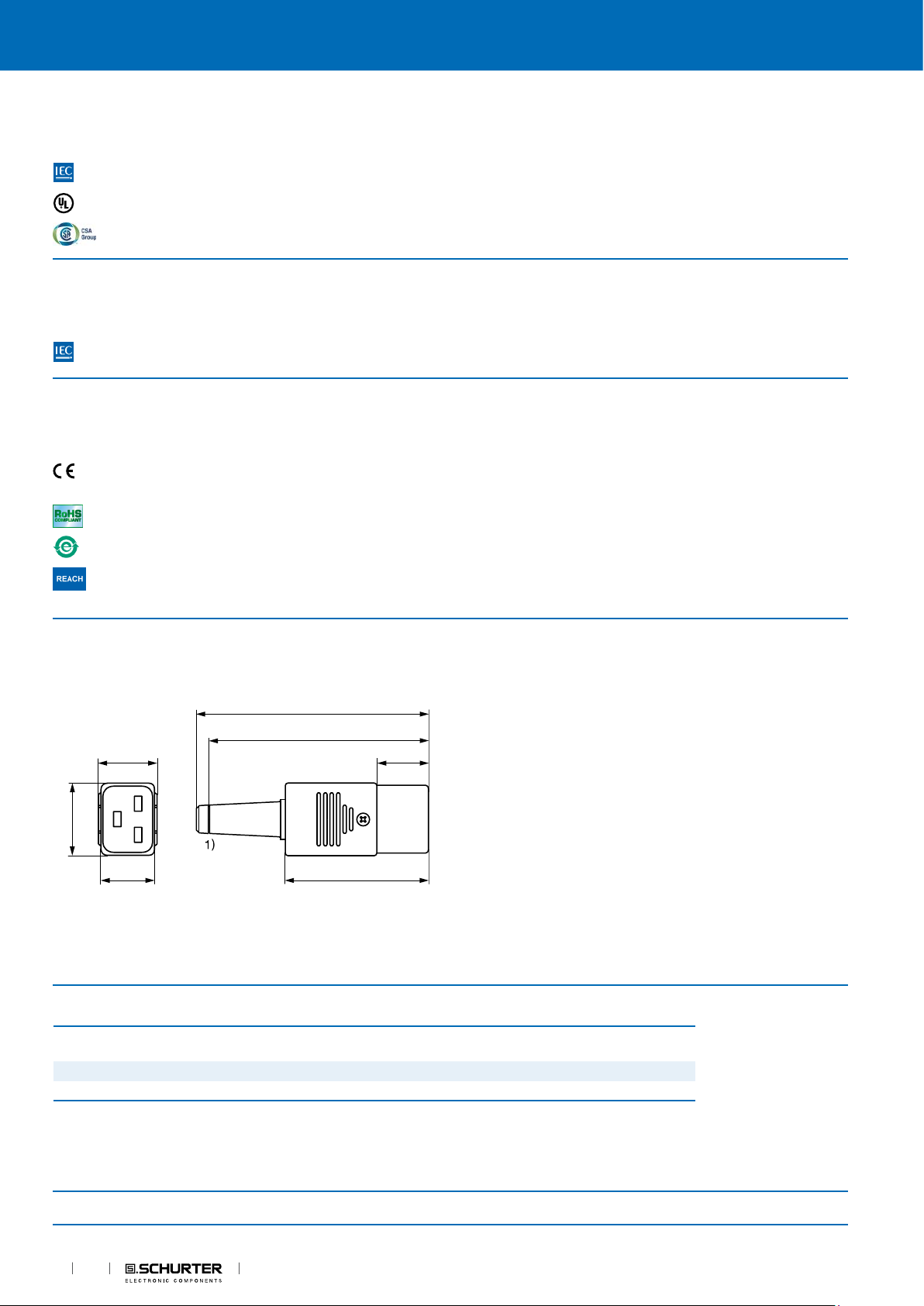

Dimensions [mm]
23.0
29.8
21.0
1) Cut strain relief 8 (10) mm here for 10 mm cable
A: Strain relief 8 mm: 92.0 mm
B: Strain relief 10 mm: 87.0 mm
2007. It is similar to the EU directive RoHS.
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
A
B
20.5
57.0
All Variants
Color Recommended cable diameter Max. wire size L = Length of cable guard Order Number
black 8 (10) mm 3 x 1.5 mm² / 3 x 14 AWG - 4795.0000
black 10 mm 3 x 1.5 mm² / 3 x 14 AWG - 4795.0100
█ Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Max. torque for screws: Terminals: 0.8 Nm, Cable clamps: 0.4 Nm, Cover: 0.5 Nm
Packaging unit
2
50 Pcs
Connectors
█
Page 3
Cord Connectors (Rewireable)
https://www.schurter.com /PG07

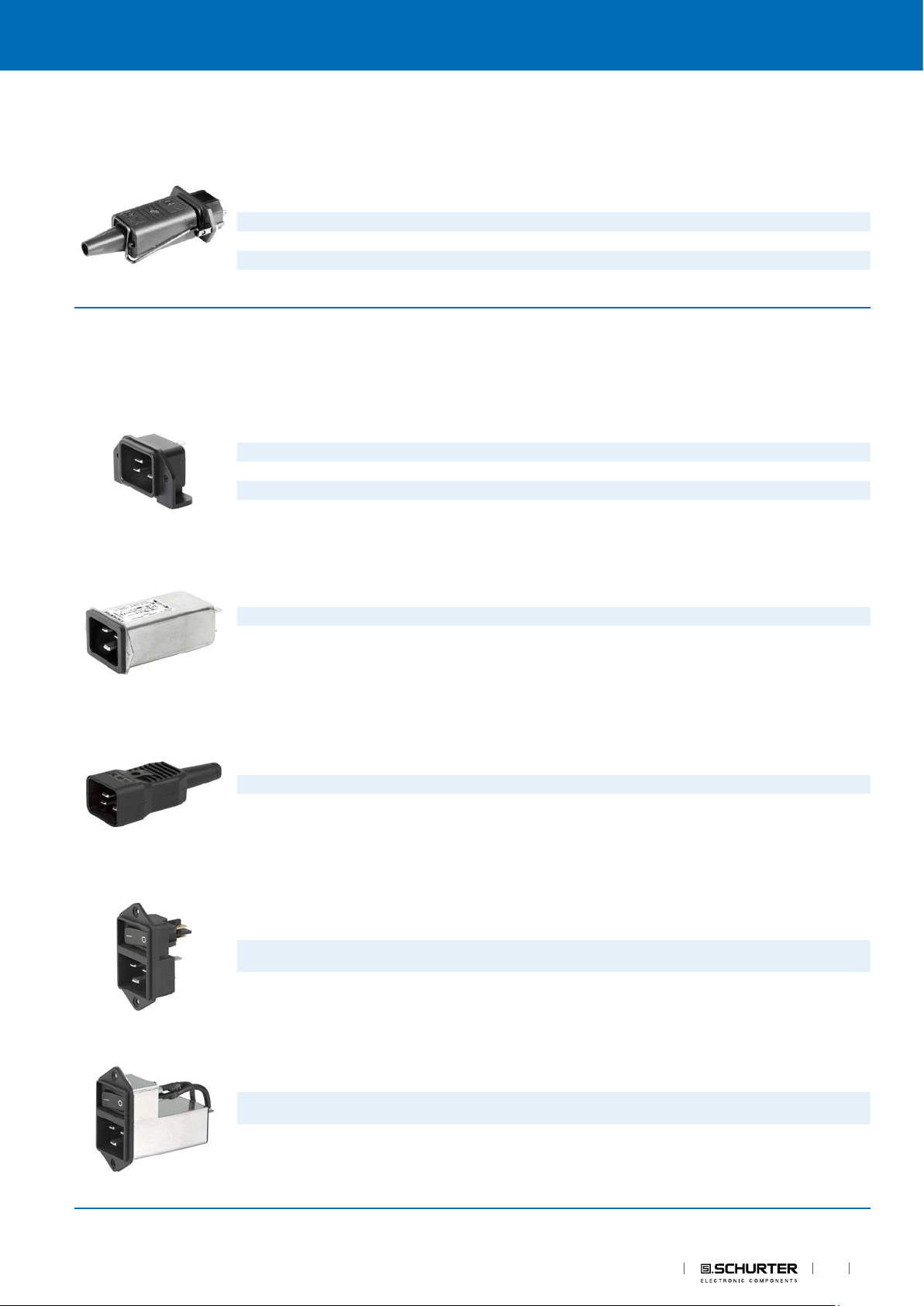

Accessories
Description
Cord retaining kits
Cord retaining strain relief
Flat head, H 4700.0008
Countersunk, K 4700.0010
Flat head, L 4700.0011
Mating Inlets/Plugs
Category / Description
Appliance Inlet Overview complete
1601, Mounting: Screw, Solder terminal straight, IP20, Appliance Inlet, C20 1601
4793, Mounting: Snap-in, IP30, Appliance Inlet: IEC C20, Suitable for appliances with protection class I or II 4793
IEC Appliance Inlet C20, Screw-on Mounting, Front Side, Solder, Quick-connect or Screw Terminal 1621
Appliance Inlet further types to 4795
4795
IEC Inlet Filter Overview complete
IEC Appliance Inlet C20 with Filter, ECO design, front or rear side Mounting 5130
C22F, Mounting: Screw Front-/Rear-Side, Filter: Standard and Medical Version, Capacitor: X2, 16 A, Solder, quick connect or wires (stranded), prewired
IEC Inlet Filter further types to 4795
Plug Overview complete
4796, Mounting: Power Cord, Cable, Plug: IEC I 4796
4789, Mounting: Power Cord, Screw, Plug: IEC I 4789
Plug further types to 4795
Power Entry Module Overview complete
EC11, Mounting: Screw, Rocker switch: non-illuminated or illuminated 2-pole, Appliance Inlet IEC C20, Quick connect
terminals 6.3 x 0.8 mm, prewired
Power Entry Module further types to 4795
C22F
EC11
Power Entry Module with line filter Overview complete
EC12, Mounting: Screw Front Side, Filter: Standard and Medical Version, Capacitor: X2, 16 A, Quick connect terminals
6.3 x 0.8 mm, prewired
IEC Appliance Inlet C20 with Filter, Circuit Breaker TA45 (recessed) EF12
Power Entry Module with line filter further types to 4795
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Connectors
EC12
31.01.2020
3
