Fuseholders
17.5 35
78
52.6 56
43
13
Type: F SO
Midge t Fus e Hol der
1000 VDC , 30 A, 20 k A
Wire R ange : 2-1 0 mm
2
Stra nded
2-6 mm
2
Soli d
Manuf actur er Ce rtifi ed
75°C CU Wi re On ly
Wire Rang e: #8 -14 S tran ded
#1 0-14 Soli d
Torque t o 2 N-m ( 17.7 IN L BS)
Cable 1 to 16 m m
2
/ 18 to 6 AWG
Do no t ope n und er L oad
Made in Ch ina

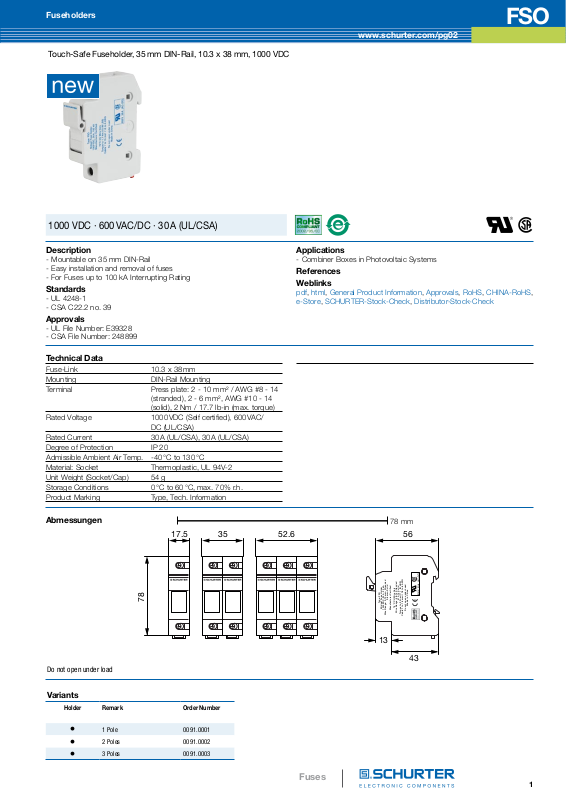

Touch-Safe Fuseholder, 35 mm DIN-Rail, 10.3 x 38 mm, 1000 VDC
1000 VDC · 600 VAC/DC · 30 A (UL/CSA)
FSO
www.schurter.com/pg02
Description
- Mountable on 35 mm DIN-Rail
- Easy installation and removal of fuses
- For Fuses up to 100 kA Interrupting Rating
Standards
- UL 4248-1
- CSA C22.2 no. 39
Approvals
- UL File Number: E39328
- CSA File Number: 248899
Technical Data
Fuse-Link 10.3 x 38 mm
Mounting DIN-Rail Mounting
Terminal Press plate: 2 - 10 mm² / AWG #8 - 14
(stranded), 2 - 6 mm², AWG #10 - 14
(solid), 2 Nm / 17.7 lb-in (max. torque)
Rated Voltage 1000 VDC (Self certified), 600 VAC/
DC (UL/CSA)
Rated Current 30 A (UL/CSA), 30 A (UL/CSA)
Degree of Protection IP 20
Admissible Ambient Air Temp. -40 °C to 130 °C
Material: Socket Thermoplastic, UL 94V-2
Unit Weight (Socket/Cap) 54 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking Type, Tech. Information
Abmessungen
Applications
- Combiner Boxes in Photovoltaic Systems
References
Weblinks
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
e-Store, SCHURTER-Stock-Check, Distributor-Stock-Check
78 mm
Do not open under load
Variants
Holder Remark Order Number
l
l
l
1 Pole 0091.0001
2 Poles 0091.0002
3 Poles 0091.0003
Fuses
1
Page 2
FSO
Fuseholders
www.schurter.com/pg02
Packaging Unit
0091.0001 Bulk (10 pcs.)
0091.0002 Bulk (5 pcs.)
0091.0003 Bulk (4 pcs.)
