Non resettable fuses
ø 10.3
38
38.9
0.5
1.5
10
7.1
3
3
12.7
www.schurter.com/pg01_2

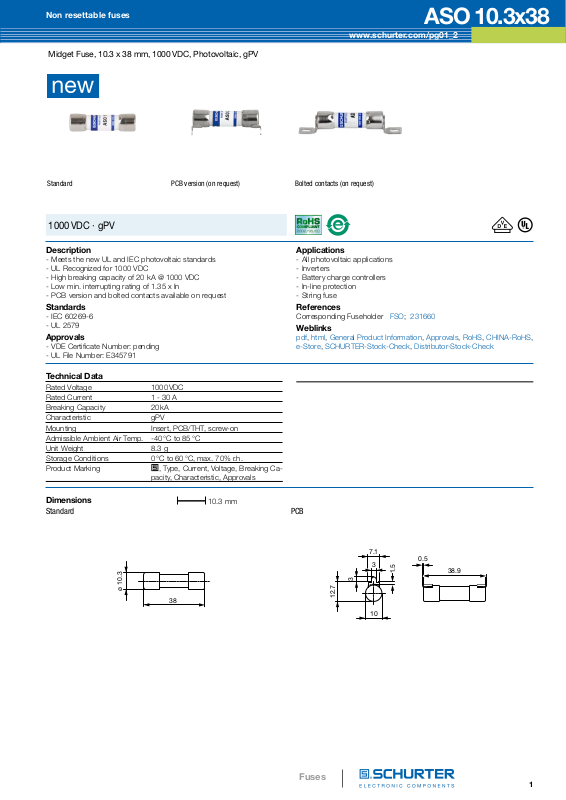

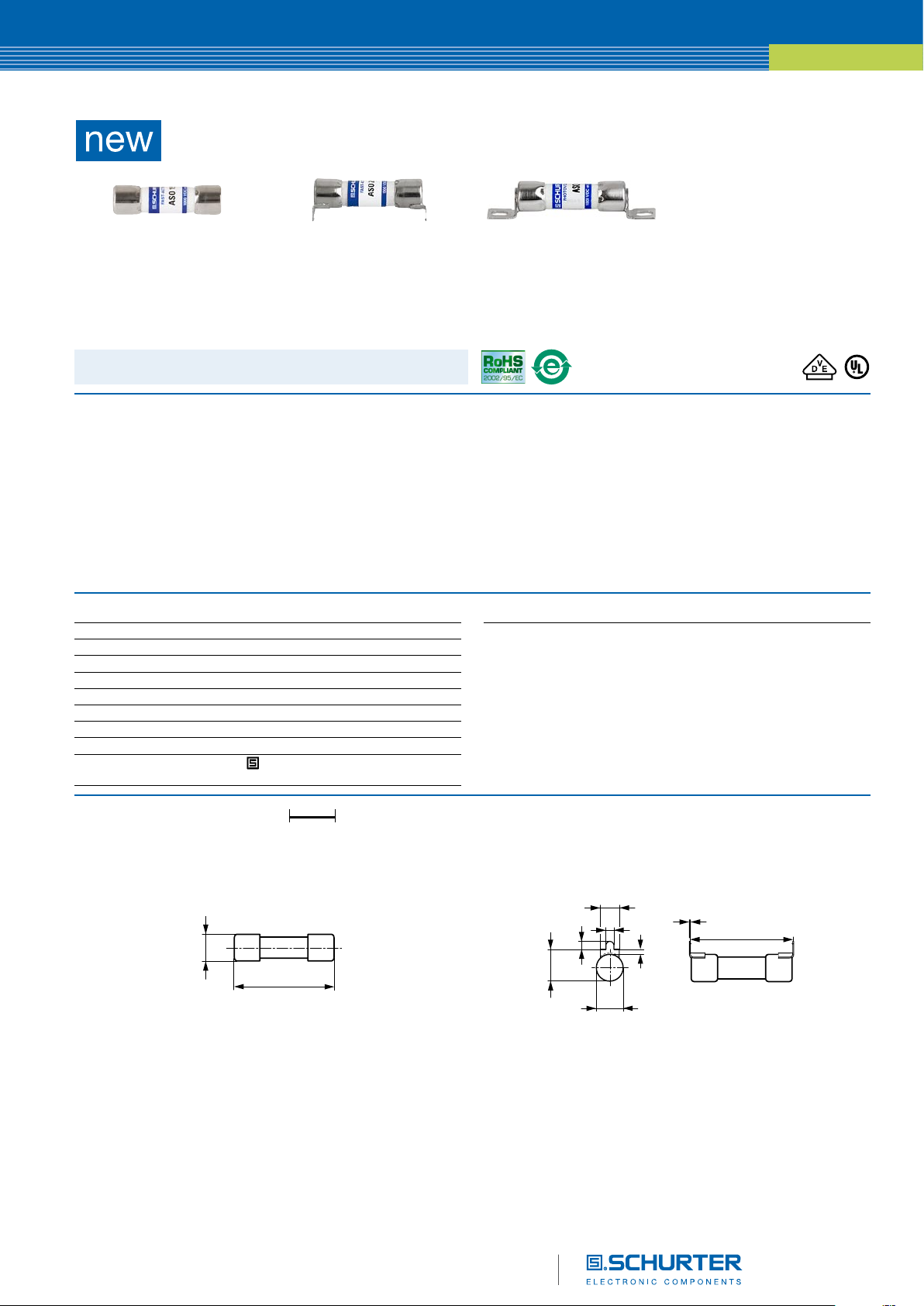

Midget Fuse, 10.3 x 38 mm, 1000 VDC, Photovoltaic, gPV
Standard PCB version (on request) Bolted contacts (on request)
1000 VDC · gPV
ASO 10.3x38
Description
- Meets the new UL and IEC photovoltaic standards
- UL Recognized for 1000 VDC
- High breaking capacity of 20 kA @ 1000 VDC
- Low min. interrupting rating of 1.35 x In
- PCB version and bolted contacts available on request
Standards
- IEC 60269-6
- UL 2579
Approvals
- VDE Certificate Number: pending
- UL File Number: E345791
Technical Data
Rated Voltage 1000 VDC
Rated Current 1 - 30 A
Breaking Capacity 20 kA
Characteristic gPV
Mounting Insert, PCB/THT, screw-on
Admissible Ambient Air Temp. -40 °C to 85 °C
Unit Weight 8.3 g
Storage Conditions 0 °C to 60 °C, max. 70% r.h.
Product Marking , Type, Current, Voltage, Breaking Ca-
Dimensions
pacity, Characteristic, Approvals
10.3 mm
Standard
Applications
- All photovoltaic applications
- Inverters
- Battery charge controllers
- In-line protection
- String fuse
References
Corresponding Fuseholder FSO; 231660
Weblinks
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
e-Store, SCHURTER-Stock-Check, Distributor-Stock-Check
PCB
Fuses
1
Page 2
2
ASO 10.3x38
380.8
10
10.25
58.8
50.8
6.0
10.4
6.4
6.0
4.0
80
60
40
20
0
-20
-40
-60
-80
-60 -40 -20 0 20 40 60 80 100 120 140
www.schurter.com/pg01_2
Bolted contacts

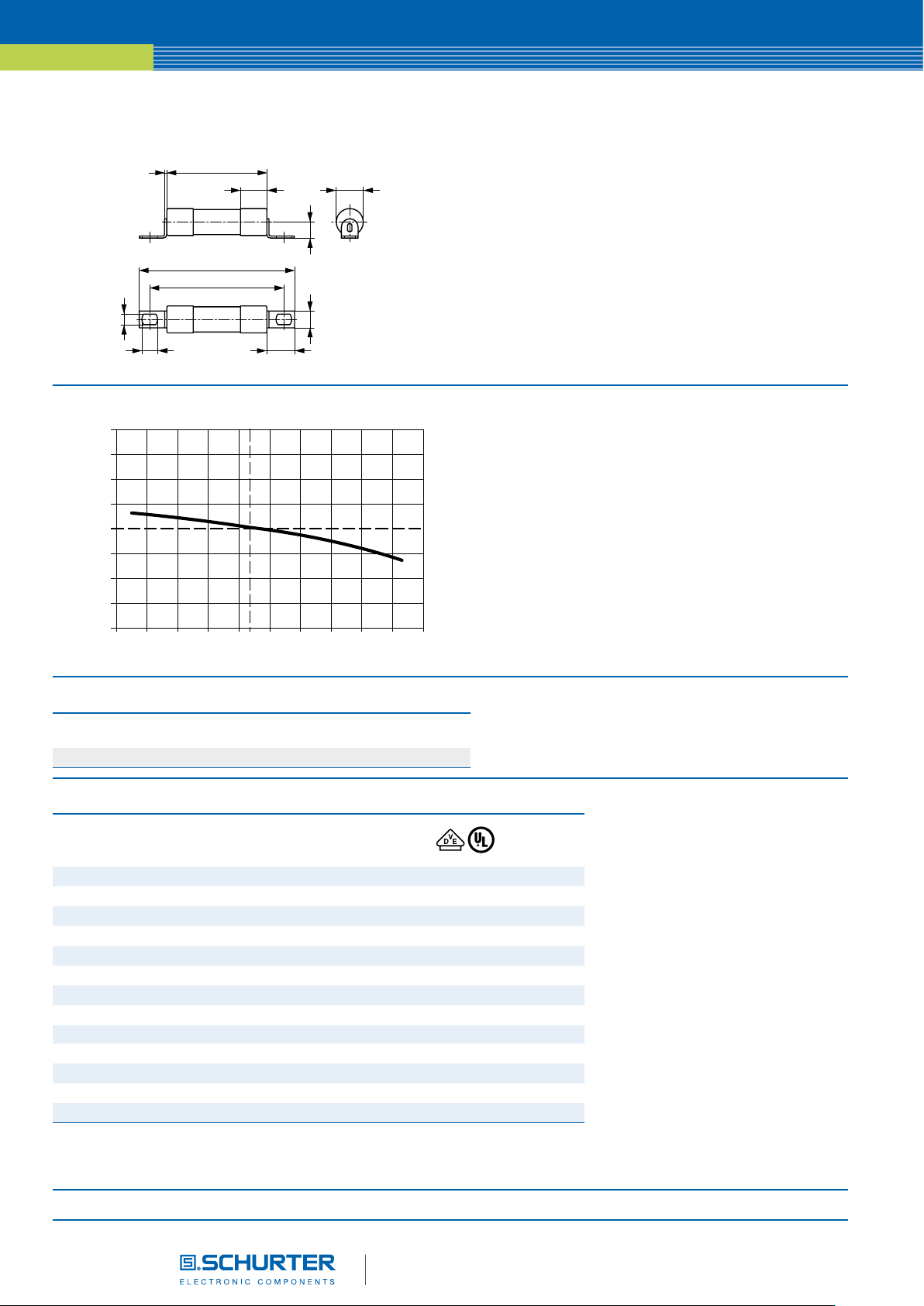

Derating Curves
Non resettable fuses
Percentage of Rating [%]
Ambient Temperature [°C]
Pre-Arcing Time
Rated Current In 1.0 x In min. 1.13 x In min. 1.35 x In min. 1.45 x In max. 2.0 x In max.
1 A - 30 A 60 min 60 min 60 min 60 min 4 min
Variants
Rated Cur-
rent [A]
1) 20 kA @ 1000 VDC, L/R < 2ms
PCB version on request
Bolted contacts on request
Packaging Unit
Mounting Rated Vol-
1 Insert 1000 1) 1059 3.42
2 Insert 1000 1) 1586 4.755
3 Insert 1000 1) 1504 7.882
4 Insert 1000 1) 1491 23.03
5 Insert 1000 1) 1465 42.6
6 Insert 1000 1) 1348 80.25
8 Insert 1000 1) 1610 199
10 Insert 1000 1) 1760 401
12 Insert 1000 1) 1965 642
15 Insert 1000 1) 1914 505
20 Insert 1000 1) 2810 1313
25 Insert 1000 1) 2981 2371
30 Insert 1000 1) 3923 2679
Bulk (10 pcs.)
tage [VDC]
Breaking
Capacity
Power Dissi-
pation 1.0 In
typ. [mW]
Melting I²t 20
kA typ. [A²s]
Fuses
l l
l l
l l
l l
l l
l l
l l
l l
l l
l l
l l
l l
l
0090.0030
Order Number
0090.0001
0090.0002
0090.0003
0090.0004
0090.0005
0090.0006
0090.0008
0090.0010
0090.0012
0090.0015
0090.0020
0090.0025
Page 3
Non resettable fuses
0.1
0.0001
0.001
0.01
1
10
100
1000
10000
1 10010 1000
0090.0001
0090.0002
0090.0003
0090.0004
0090.0005
0090.0006
0090.0008
0090.0010
0090.0012
0090.0015
0090.0020
0090.0025
0090.0030
0090.0001
0090.0002
0090.0003
0090.0004
0090.0005
0090.0006
0090.0008
0090.0010
0090.0012
0090.0015
0090.0020
0090.0025
0090.0030

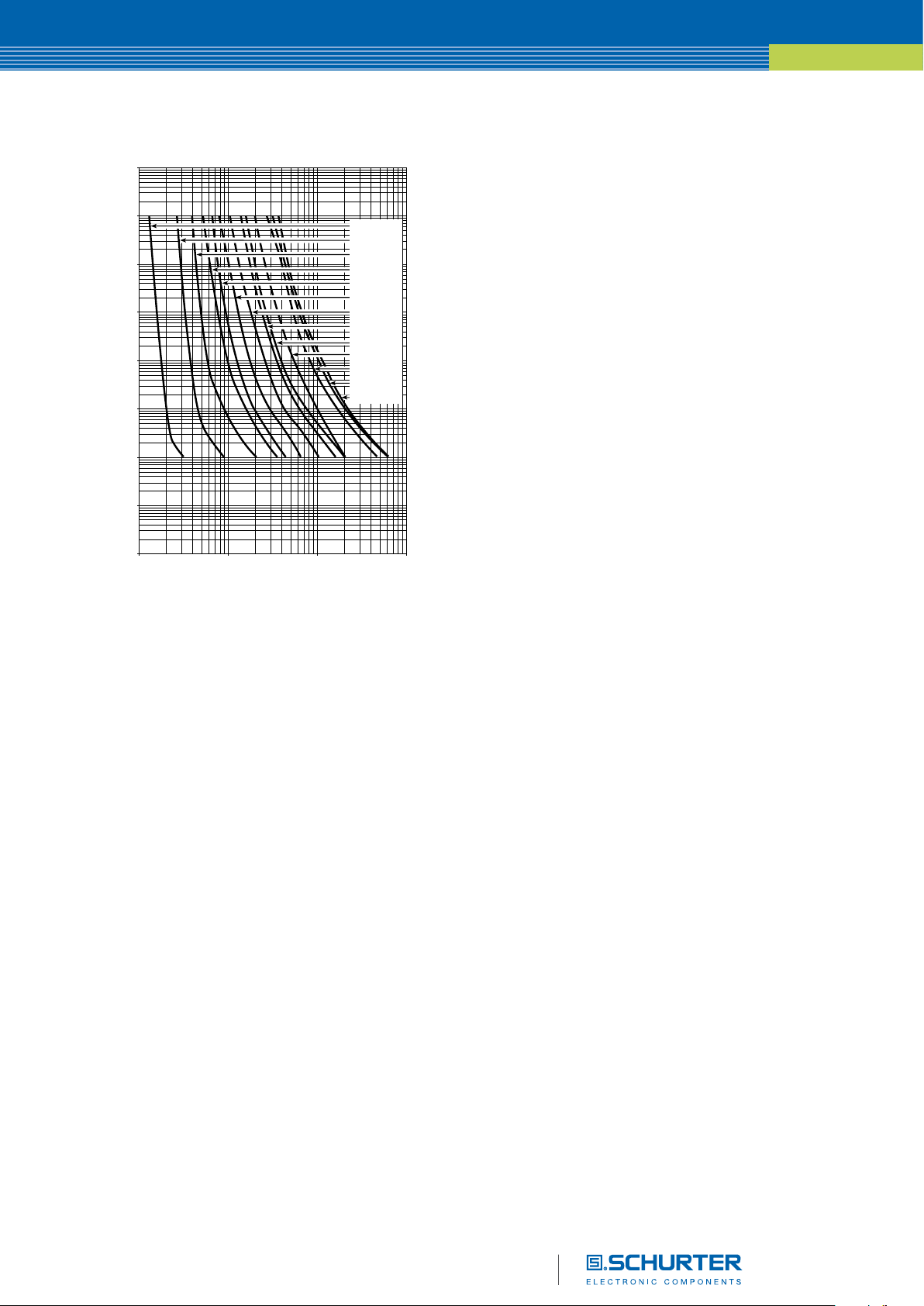

Time-Current-Curves
Time in Seconds
ASO 10.3x38
www.schurter.com/pg01_2
Current in Amperes
The specifications, descriptions and illustrations indicated in this document are based on
current information. All content is subject to modifications and amendments.
Fuses
3
