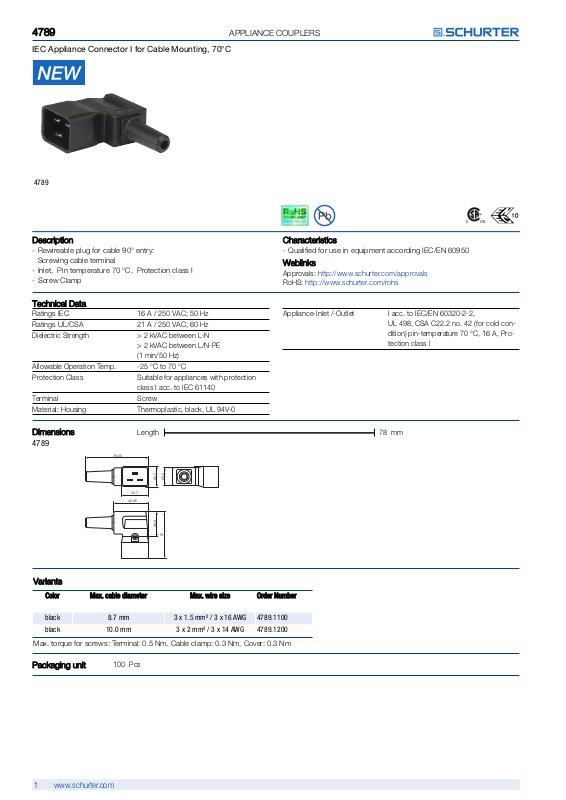

SCHURTER 4789 User Manual

4477889

33.7

4

2.85

25.7

22.2

30.9

57

78.25

9

IEC Appliance Connector I for Cable Mounting, 70°C

4789

APPLIANCE COUPLERS

DDeessccrriippttiioon

n

- Rewireable plug for cable 90° entry:
Screwing cable terminal

- Inlet, Pin temperature 70 °C, Protection class I

- Screw Clamp

TTeecchhnniiccaall DDaatta

a

Ratings IEC 16 A / 250 VAC; 50 Hz
Ratings UL/CSA 21 A / 250 VAC; 60 Hz
Dielectric Strength > 2 kVAC between L-N

> 2 kVAC between L/N-PE

(1 min/50 Hz)
Allowable Operation Temp. -25 °C to 70 °C
Protection Class Suitable for appliances with protection

class I acc. to IEC 61140
Terminal Screw
Material: Housing Thermoplastic, black, UL 94V-0

DDiimmeennssiioonns

s

Length 78 mm

4789

CChhaarraacctteerriissttiiccs

s

- Qualified for use in equipment according IEC/EN 60950

WWeebblliinnkks

s

Approvals: http://www.schurter.com/approvals
RoHS: http://www.schurter.com/rohs

Appliance-Inlet /-Outlet I acc. to IEC/EN 60320-2-2,

UL 498, CSA C22.2 no. 42 (for cold con­dition) pin-temperature 70 °C, 16 A, Pro­tection class I

VVaarriiaanntts

s

CCoolloorr MMaaxx.. ccaabbllee ddiiaammeetteerr MMaaxx.. wwiirree ssiizzee OOrrddeerr NNuummbbeerr

black 8.7 mm 3 x 1.5 mm² / 3 x 16 AWG 4789.1100
black 10.0 mm 3 x 2 mm² / 3 x 14

erminal: 0.5 Nm, Cable clamp: 0.3 Nm, Cover: 0.3 Nm

ews: T

100 Pcs

que for scr

Max. tor

PPaacckkaaggiinngg uunniitt

1

www.schurter.com

AWG

4789.1200
