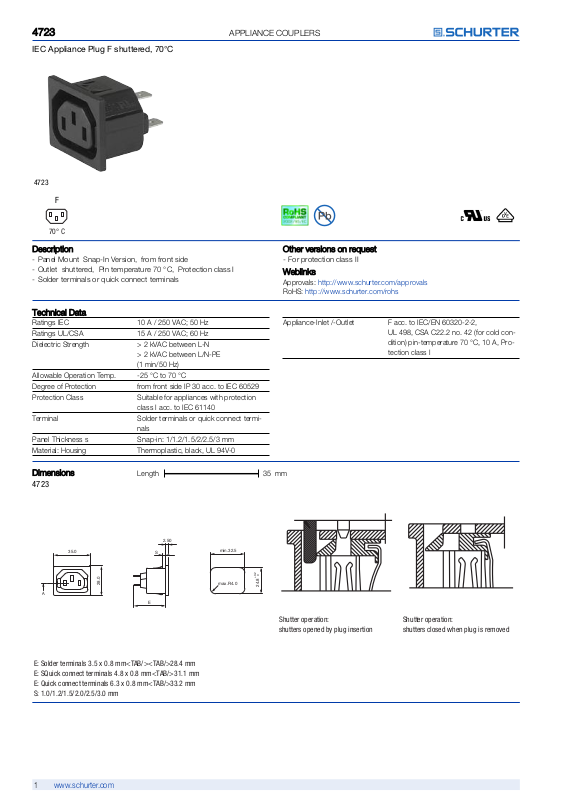

SCHURTER 4723 User Manual
4477223
24.8
min.32.5
max.R4.0
28.0
35.0
S
2.50
E
A
+0.2
0
3
IEC Appliance Plug F shuttered, 70°C
4723
F
70° C
APPLIANCE COUPLERS
DDeessccrriippttiioon
n
- Panel Mount Snap-In Version, from front side
- Outlet shuttered, Pin temperature 70 °C, Protection class I
- Solder terminals or quick connect terminals
TTeecchhnniiccaall DDaatta
a
Ratings IEC 10 A / 250 VAC; 50 Hz
Ratings UL/CSA 15 A / 250 VAC; 60 Hz
Dielectric Strength > 2 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
Allowable Operation Temp. -25 °C to 70 °C
Degree of Protection from front side IP 30 acc. to IEC 60529
Protection Class Suitable for appliances with protection
class I acc. to IEC 61140
Terminal Solder terminals or quick connect termi-
nals
Panel Thickness s Snap-in: 1/1.2/1.5/2/2.5/3 mm
Material: Housing Thermoplastic, black, UL 94V-0
DDiimmeennssiioonns
s
Length 35 mm
4723
OOtthheerr vveerrssiioonnss oonn rreeqquueesst
t
- For protection class II
WWeebblliinnkks
s
Approvals: http://www.schurter.com/approvals
RoHS: http://www.schurter.com/rohs
Appliance-Inlet /-Outlet F acc. to IEC/EN 60320-2-2,
UL 498, CSA C22.2 no. 42 (for cold condition) pin-temperature 70 °C, 10 A, Protection class I
Solder terminals 3.5 x 0.8 mm<T
E:
SQuick connect terminals 4.8 x 0.8 mm<T
E:
Quick connect terminals 6.3 x 0.8 mm<T
E:
AB/><TAB/>28.4 mm
AB/>31.1 mm
AB/>33.2 mm
Shutter opera
tion:
shutters opened by plug insertion
Shutter opera
shutters c
tion:
losed when plug is removed
S: 1.0/1.2/1.5/2.0/2.5/3.0 mm
1
www.schurter.com
4477223
3
VVaarriiaanntts
s
TTyyppee PPaanneell mmoouunnttiinngg PPaanneell TThhiicckknneessss ss
[[mmmm]]
4723 Snap-in 1 Quick connect terminals 4.8 x 0.8 mm 4723.0100
4723 Snap-in 1.2 Quick connect terminals 4.8 x 0.8 mm 4728.0100
4723 Snap-in 1.5 Quick connect terminals 4.8 x 0.8 mm 4724.0100
4723 Snap-in 2 Quick connect terminals 4.8 x 0.8 mm 4725.0100
4723 Snap-in 2.5 Quick connect terminals 4.8 x 0.8 mm 4726.0100
4723 Snap-in 3 Quick connect terminals 4.8 x 0.8 mm 4727.0100
4723 Snap-in 1 Quick connect terminals 6.3 x 0.8 mm 4723.0000
4723 Snap-in 1.2 Quick connect terminals 6.3 x 0.8 mm 4728.0000
4723 Snap-in 1.5 Quick connect terminals 6.3 x 0.8 mm 4724.0000
4723 Snap-in 2 Quick connect terminals 6.3 x 0.8 mm 4725.0000
4723 Snap-in 2.5 Quick connect terminals 6.3 x 0.8 mm 4726.0000
4723 Snap-in 3 Quick connect terminals 6.3 x 0.8 mm 4727.0000
4723 Snap-in 1 Solder terminals 3.8 x 0.8 mm 4723.0300
4723 Snap-in 1.2 Solder terminals 3.8 x 0.8 mm 4728.0300
4723 Snap-in 1.5 Solder terminals 3.8 x 0.8 mm 4724.0300
4723 Snap-in 2 Solder terminals 3.8 x 0.8 mm 4725.0300
4723 Snap-in 2.5 Solder terminals 3.8 x 0.8 mm 4726.0300
4723 Snap-in 3 Solder terminals 3.8 x 0.8 mm 4727.0300
Class II product also available on request
Cord retaining clamps and insulation covers see accessories
APPLIANCE COUPLERS
TTeerrmmiinnaall OOrrddeerr NNuummbbeerr
PPaacckkaaggiinngg uunniitt
AAcccceessssoorry
y
100 Pcs
DDeessccrriippttiioonn
Assorted Covers
Cord retaining kits
2
