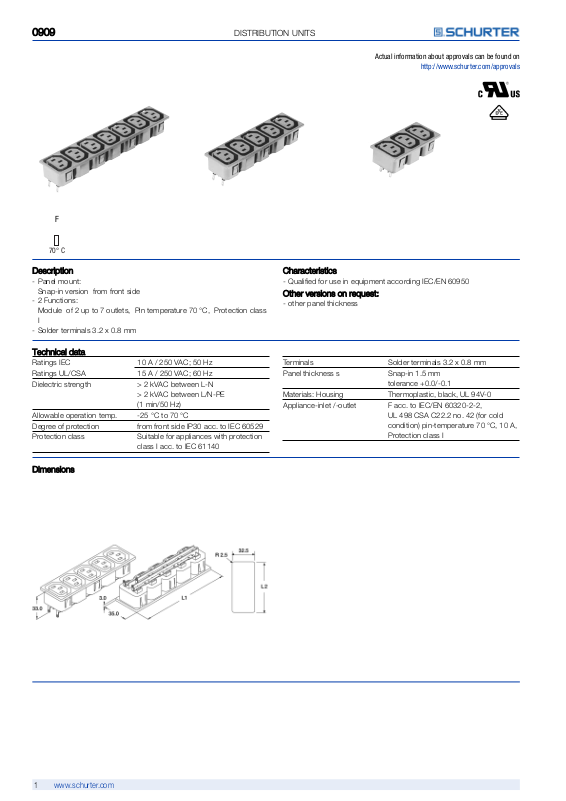

SCHURTER 0909 User Manual

0099009

9

DISTRIBUTION UNITS

F

70° C

DDeessccrriippttiioon

- Panel mount:
Snap-in version from front side

- 2 Functions:
Module of 2 up to 7 outlets, Pin temperature 70 °C, Protection class
I

- Solder terminals 3.2 x 0.8 mm

n

Actual information about approvals can be found on

CChhaarraacctteerriissttiiccs

- Qualified for use in equipment according IEC/EN 60950

OOtthheerr vveerrssiioonnss oonn rreeqquueesstt:

- other panel thickness

s

:

http://www.schurter.com/approvals

TTeecchhnniiccaall ddaatta

Ratings IEC 10 A / 250 VAC; 50 Hz
Ratings UL/CSA 15 A / 250 VAC; 60 Hz
Dielectric strength

Allowable operation temp. -25 °C to 70 °C
Degree of protection
Protection class Suitable for appliances with protection

DDiimmeennssiioonns

a

> 2 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)

from front side IP30 acc. to IEC 60529

class I acc. to IEC 61140

s

Terminals Solder terminals 3.2 x 0.8 mm
Panel thickness s

Materials: Housing Thermoplastic, black, UL 94V-0
Appliance-inlet /-outlet

Snap-in 1.5 mm
tolerance +0.0/-0.1

F acc. to IEC/EN 60320-2-2,
UL 498 CSA C22.2 no. 42 (for cold
condition) pin-temperature 70 °C, 10 A,
Protection class I

1

www

.schurter

.com

9

0099009

s

VVaarriiaanntts

OOrrddeerr NNuummbbeerr PPaanneell tthhiicckknneessss ss

[[mmmm]]

0909.0001 1.5 2 51 48.3

0909.0011 1.5 3 75 72.3

0909.0021 1.5 4 99 96.3

0909.0031 1.5 5 123 120.3

0909.0041 1.5 6 147 144.3

0909.0051 1.5 7 171 168.3

AApppplliiaannccee oouuttlleett LLeennggtthh LL11 [[mmmm]] LLeennggtthh LL22 [[mmmm]]

DISTRIBUTION UNITS

PPaacckkaaggiinngg uunniitt

120 Pcs
