Original operating manual
Assembly and operating manual
PWG-S
2-finger angular gripper
Imprint
Imprint
Copyright:
This manual is protected by copyright. The author is SCHUNK GmbH & Co. KG. All rights
reserved. Any reproduction, processing, distribution (making available to third parties),
translation or other usage - even excerpts - of the manual is especially prohibited and
requires our written approval.
Technical changes:
We reserve the right to make alterations for the purpose of technical improvement.
Document number: 389361
Version: 03.00|26/04/2019|en
© SCHUNK GmbH & Co. KG
All rights reserved.
Dear Customer,
thank you for trusting our products and our family-owned company, the leading
technology supplier of robots and production machines.
Our team is always available to answer any questions on this product and other solutions.
Ask us questions and challenge us. We will find a solution!
Best regards,
Your SCHUNK team
SCHUNK GmbH & Co. KG
Spann- und Greiftechnik
Bahnhofstr. 106 – 134
D-74348 Lauffen/Neckar
Tel. +49-7133-103-0
Fax +49-7133-103-2399
info@de.schunk.com
schunk.com
2
03.00 | PWG-S | Assembly and operating manual | en | 389361
Table of contents
Table of contents
1 General.................................................................................................................... 5
1.1 About this manual ................................................................................................5
1.1.1 Presentation of Warning Labels ...............................................................5
1.1.2 Applicable documents ..............................................................................5
1.1.3 Sizes ..........................................................................................................6
1.2 Warranty .............................................................................................................. 6
1.3 Scope of delivery ..................................................................................................6
1.3.1 Sealing kit ................................................................................................. 6
1.4 Accessories ........................................................................................................... 6
1.4.1 Sealing kit ................................................................................................. 6
2 Basic safety notes ................................................................................................... 7
2.1 Intended use......................................................................................................... 7
2.2 Not intended use.................................................................................................. 7
2.3 Constructional changes ........................................................................................7
2.4 Spare parts ........................................................................................................... 7
2.5 Gripper fingers ..................................................................................................... 8
2.6 Environmental and operating conditions .............................................................8
2.7 Personnel qualification......................................................................................... 8
2.8 Personal protective equipment............................................................................ 9
2.9 Notes on safe operation ....................................................................................... 9
2.10 Transport .............................................................................................................. 9
2.11 Malfunctions....................................................................................................... 10
2.12 Disposal .............................................................................................................. 10
2.13 Fundamental dangers......................................................................................... 10
2.13.1 Protection during handling and assembly ..............................................10
2.13.2 Protection during commissioning and operation ...................................11
2.13.3 Protection against dangerous movements.............................................11
2.14 Notes on particular risks..................................................................................... 12
3 Technical data.........................................................................................................13
4 Assembly ................................................................................................................14

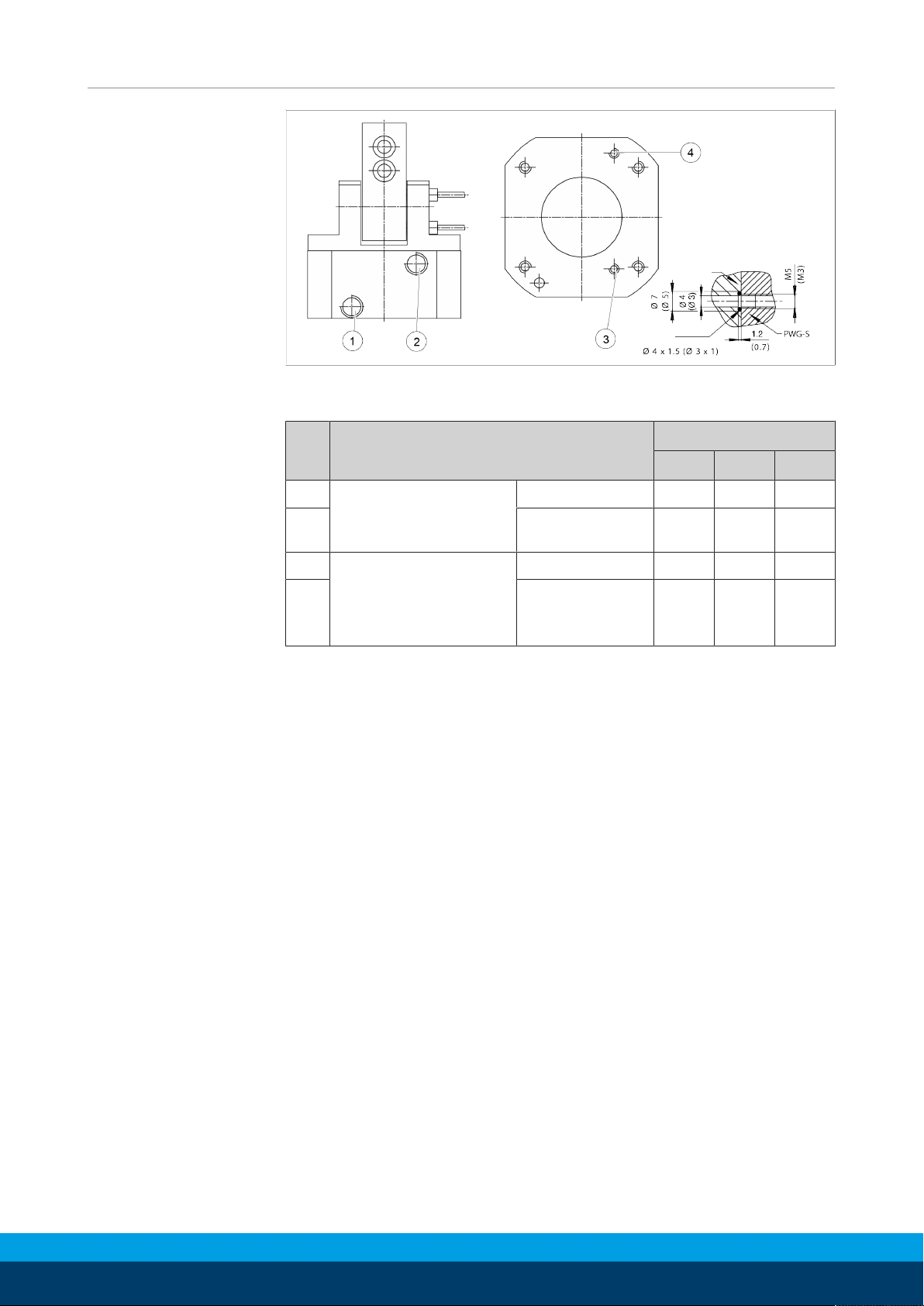

4.1 Connections........................................................................................................ 14
4.1.1 Mechanical connection...........................................................................14
4.1.2 Pneumatic connection............................................................................15

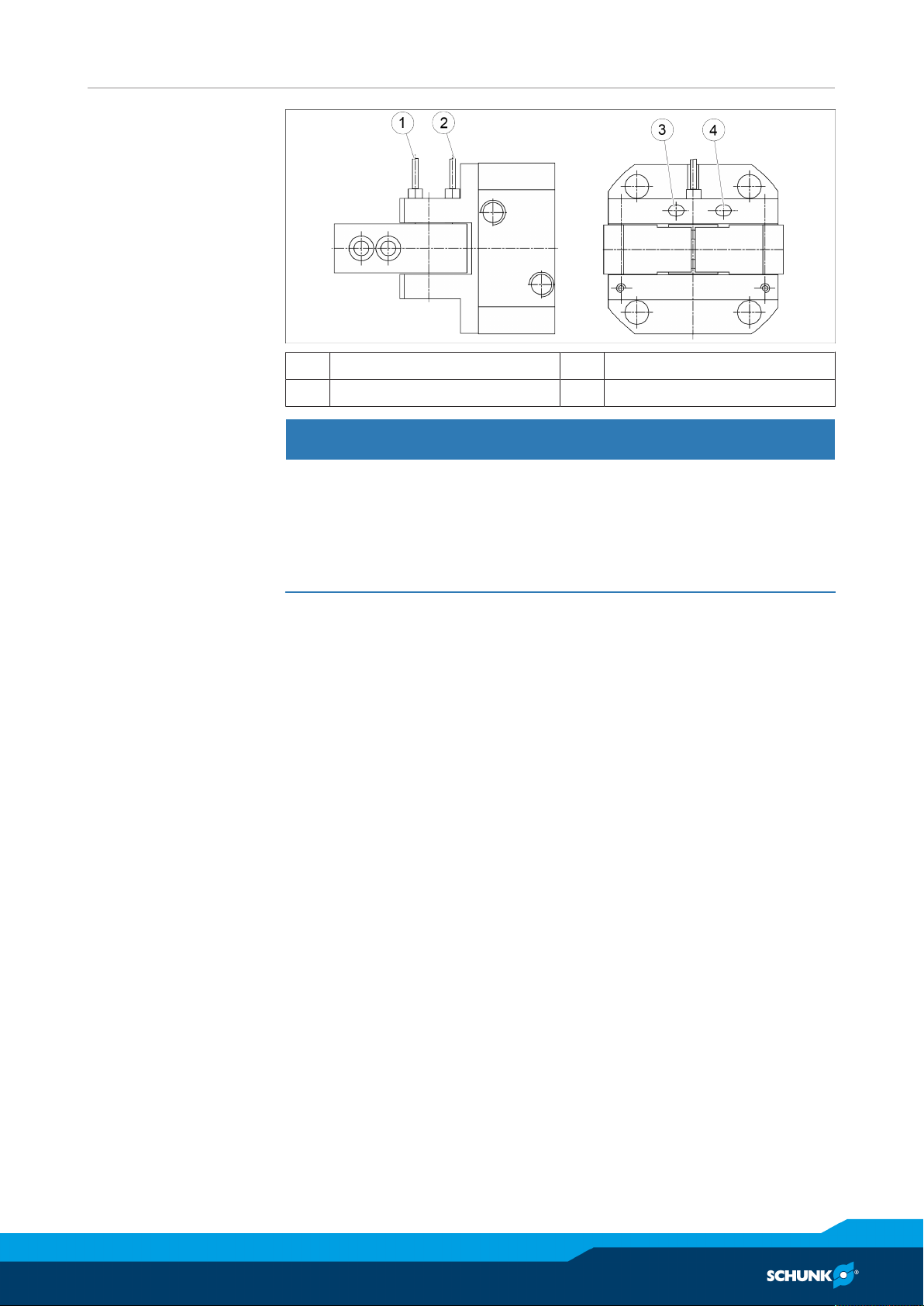

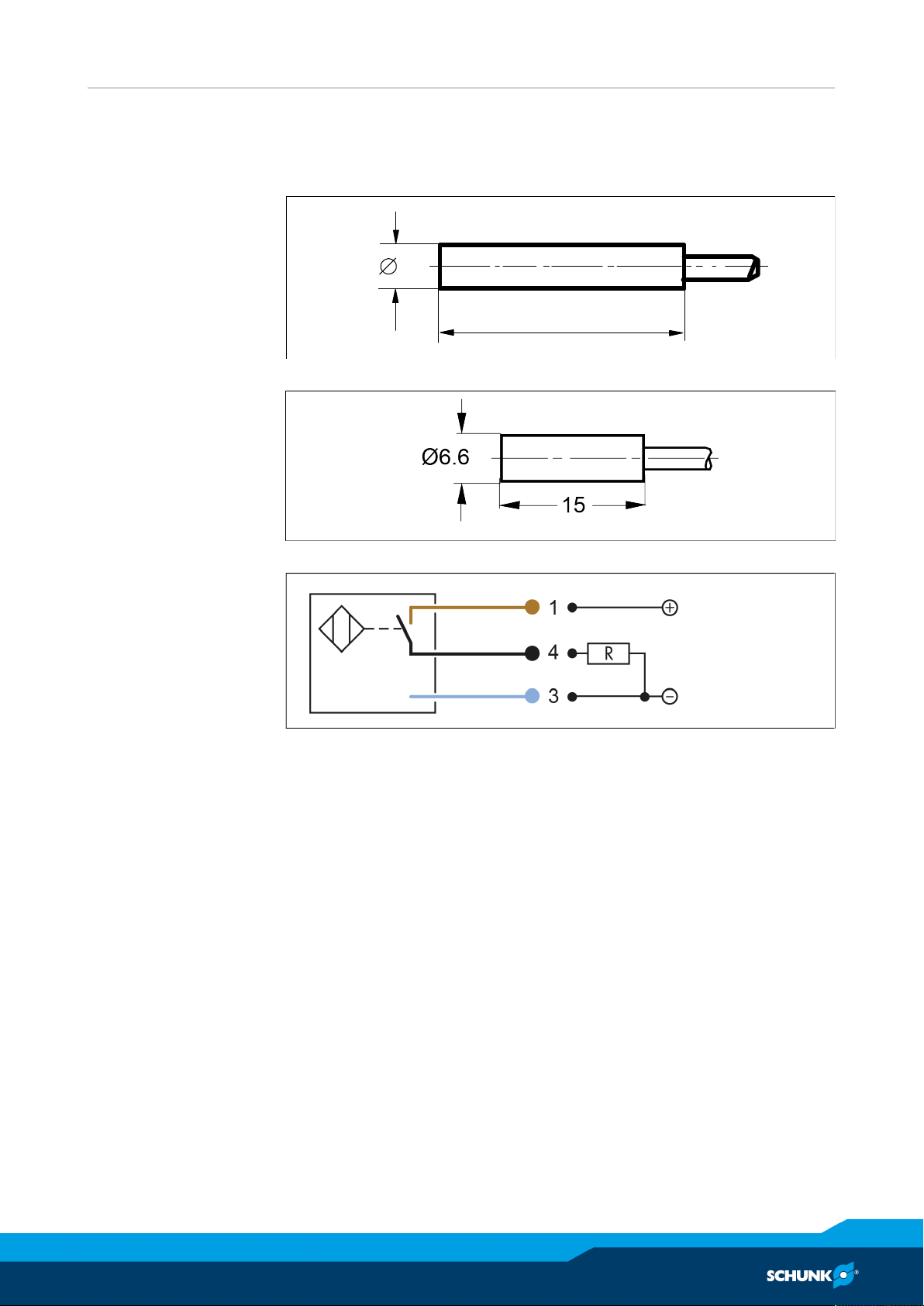

4.2 Mounting the sensors......................................................................................... 17
5 Troubleshooting .....................................................................................................20
5.1 Product does not move ......................................................................................20
5.2 Product is not executing the complete stroke ................................................... 20
5.3 Gripping force is dropping.................................................................................. 20
03.00 | PWG-S | Assembly and operating manual | en | 389361
3
Table of contents
6 Maintenance ..........................................................................................................21
6.1 Notes .................................................................................................................. 21
6.2 Maintenance interval ......................................................................................... 21
6.3 Lubricants/Lubrication points (basic lubrication) ..............................................21
6.4 Disassembling the module ................................................................................. 22
6.5 Servicing and assembling the module ................................................................22

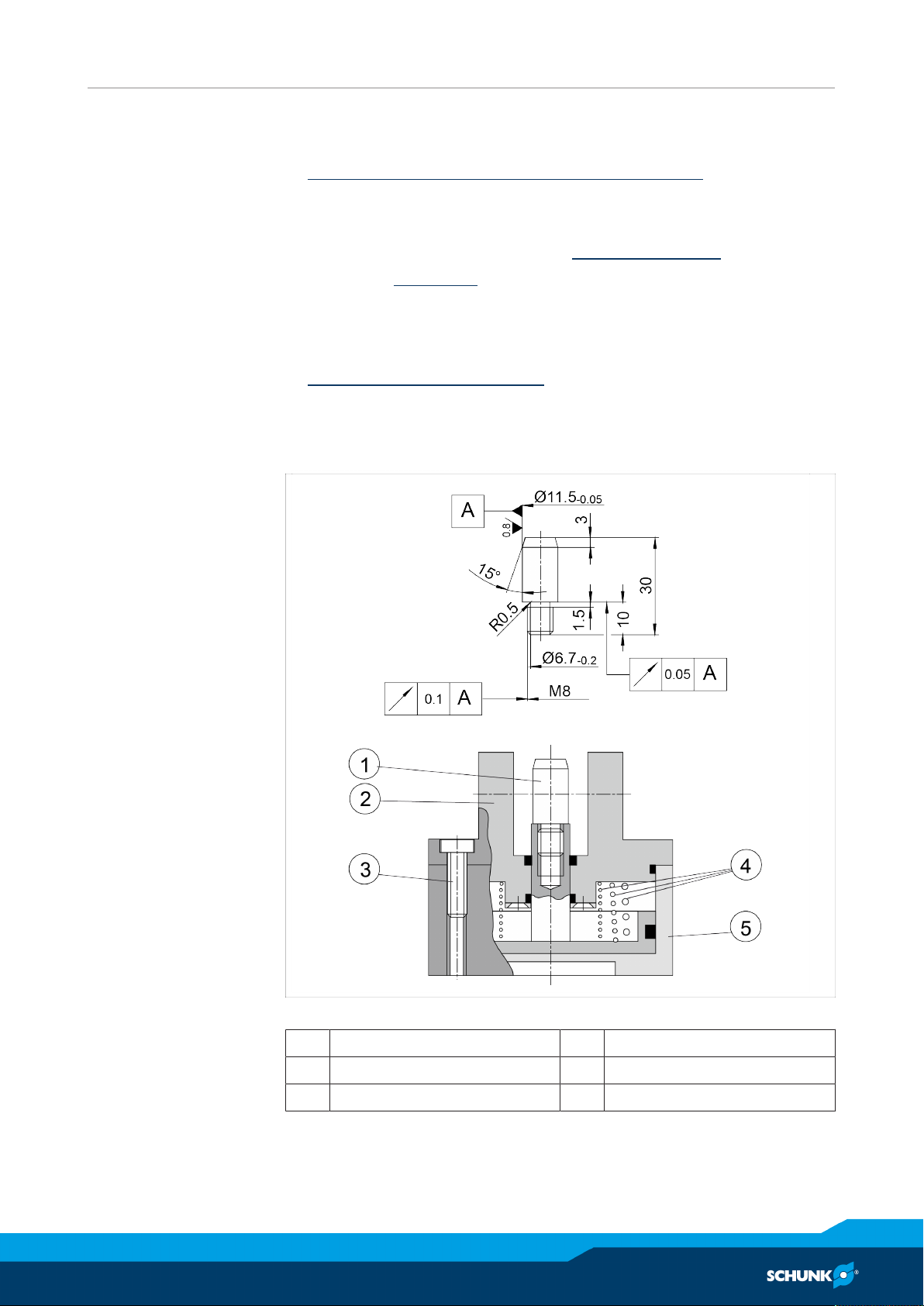

6.5.1 Assembly with assembly bolt .................................................................23

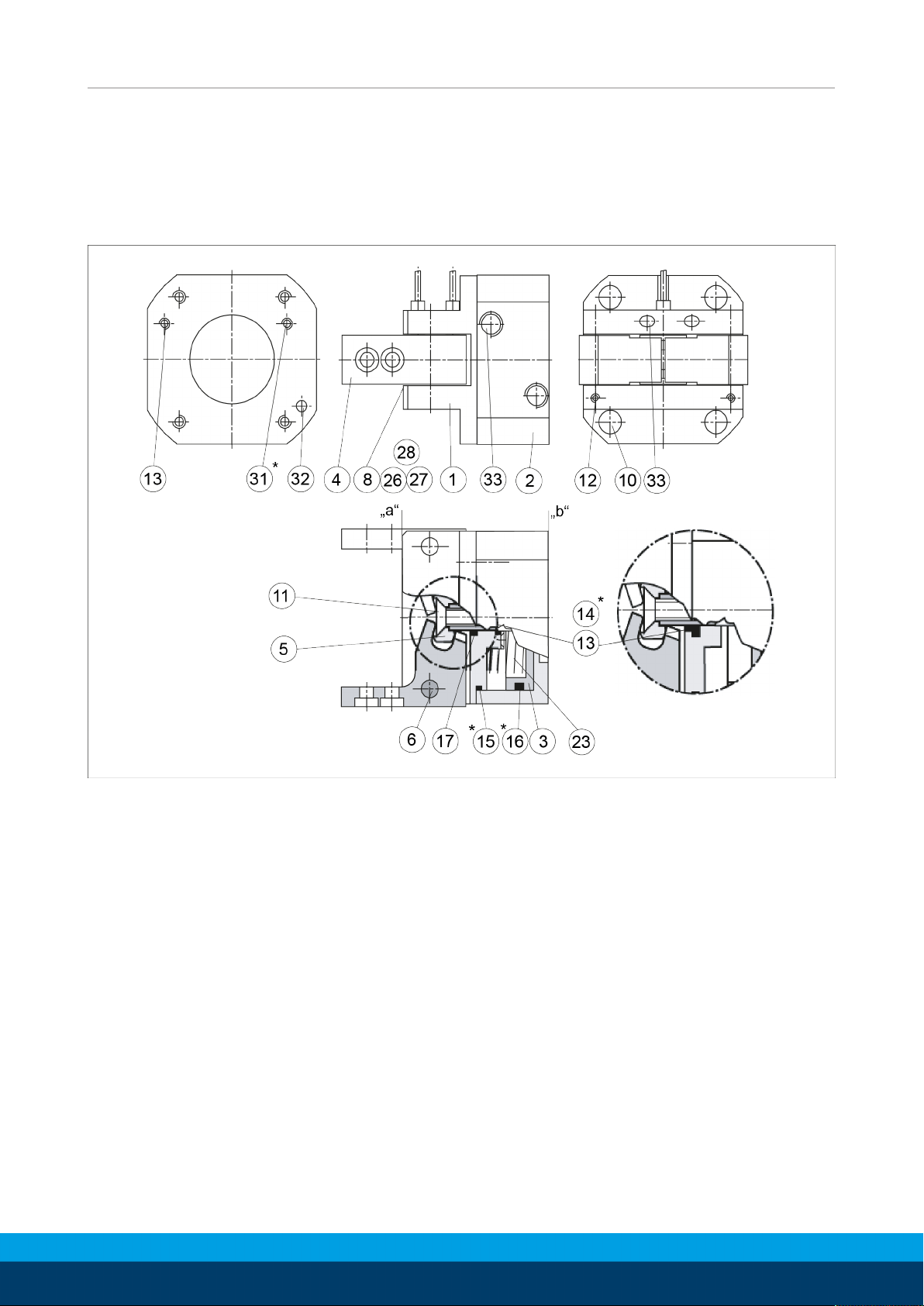

6.6 Assembly drawing............................................................................................... 24
7 Translation of original declaration of incorporation ................................................25
8 Annex to Declaration of Incorporation....................................................................26
4
03.00 | PWG-S | Assembly and operating manual | en | 389361
1 General
1.1 About this manual
This manual contains important information for a safe and
appropriate use of the product.
This manual is an integral part of the product and must be kept
accessible for the personnel at all times.
Before starting work, the personnel must have read and
understood this operating manual. Prerequisite for safe working is
the observance of all safety instructions in this manual.
Illustrations in this manual are provided for basic understanding
and may differ from the actual product design.
In addition to these instructions, the documents listed under
Applicable documents [}5] are applicable.
1.1.1 Presentation of Warning Labels
General
To make risks clear, the following signal words and symbols are
used for safety notes.
DANGER
Danger for persons!
Non-observance will inevitably cause irreversible injury or death.
WARNING
Dangers for persons!
Non-observance can lead to irreversible injury and even death.
CAUTION
Dangers for persons!
Non-observance can cause minor injuries.
NOTICE
Material damage!
Information about avoiding material damage.
1.1.2 Applicable documents
• General terms of business*
• Catalog data sheet of the purchased product *
• Assembly and operating manuals of the accessories *
The documents marked with an asterisk (*) can be downloaded on
our homepage schunk.com
03.00 | PWG-S | Assembly and operating manual | en | 389361
5
General
1.1.3 Sizes
This operating manual applies to the following sizes:
• PWG-S 40
• PWG-S 60
• PWG-S 80
1.2 Warranty
If the product is used as intended, the warranty is valid for 24 months
from the ex-works delivery date under the following conditions:
• Observe the specified maintenance and lubrication intervals
• Observe the ambient conditions and operating conditions
Parts touching the workpiece and wear parts are not included in the warranty.
1.3 Scope of delivery
The scope of delivery includes
• 2-finger angular gripper PWG-S in the version ordered
• Assembly and Operating Manual
• Accessory pack
1.3.1 Sealing kit
Content of the accessory pack:
• 2 x O-ring for hose-free direct connection
• 1x cylindrical pin
• PWG-S 80: 2 x locking screw for hose connections
ID.-No. of the accessory pack
Accessory pack for ID number
PWG-S 40 5509449
PWG-S 60 5509450
PWG-S 80 5509451
1.4 Accessories
A wide range of accessories are available for this product
For information regarding which accessory articles can be used
with the corresponding product variants, see catalog data sheet.
1.4.1 Sealing kit
Content of the sealing kit:
• 1 x sealing wiper ring
• PWG-S 40: 1 x sealing wiper ring (PUR)
• PWG-S 40: 3 x O-rings for hose-freedirect connection:
PWG-S 60-80: 4 x O-rings for hose-free direct connection
• PWG-S 40/80: 2 x quad ring
PWG-S 60: 1x quad ring
• PWG-S 80: 1 x sealing ring
ID.-No. of the seal kit
Seal kit for ID number
PWG-S 40 0370550
PWG-S 60 0370551
PWG-S 80 0370552
6
03.00 | PWG-S | Assembly and operating manual | en | 389361
Basic safety notes
2 Basic safety notes
2.1 Intended use
The product is designed exclusively for gripping and temporarily
holding workpieces or objects.
• The product may only be used within the scope of its technical
data, Technical data [}13].
• When implementing and operating components in safetyrelated parts of the control systems, the basic safety principles
in accordance with DIN EN ISO 13849-2 apply. The proven safety
principles in accordance with DIN EN ISO 13849-2 also apply to
categories 1, 2, 3 and 4.
• The product is intended for installation in a machine/system.
The applicable guidelines must be observed and complied with.
• The product is intended for industrial and industry-oriented use.
• Appropriate use of the product includes compliance with all
instructions in this manual.
2.2 Not intended use
It is not intended use if the product is used, for example, as a
pressing tool, stamping tool, lifting gear, guide for tools, cutting
tool, clamping device or a drilling tool.
• Any utilization that exceeds or differs from the appropriate use
is regarded as misuse.
2.3 Constructional changes
Implementation of structural changes
By conversions, changes, and reworking, e.g. additional threads,
holes, or safety devices can impair the functioning or safety of the
product or damage it.
• Structural changes should only be made with the written
approval of SCHUNK.
2.4 Spare parts
Use of unauthorized spare parts
Using unauthorized spare parts can endanger personnel and
damage the product or cause it to malfunction.
• Use only original spare parts or spares authorized by SCHUNK.
03.00 | PWG-S | Assembly and operating manual | en | 389361
7
Basic safety notes
2.5 Gripper fingers
Requirements for the gripper fingers
Stored energy within the product creates the risk of serious
injuries and significant property damage.
• Arrange the gripper fingers in a way that the product reaches
either the position "open" or "closed" in a de-energized state.
• Only exchange the gripper fingers when no residual energy
remains in the product.
• Make sure that the product and the top jaws are a sufficient
size for the application.
2.6 Environmental and operating conditions
Required ambient conditions and operating conditions
Incorrect ambient and operating conditions can make the product
unsafe, leading to the risk of serious injuries, considerable material
damage and/or a significant reduction to the product's life span.
See also Link Ungebungs- und Einsatzbedingungen.
Trained electrician
Qualified personnel
2.7 Personnel qualification
Inadequate qualifications of the personnel
If the personnel working with the product is not sufficiently
qualified, the result may be serious injuries and significant
property damage.
• All work may only be performed by qualified personnel.
• Before working with the product, the personnel must have read
and understood the complete assembly and operating manual.
• Observe the national safety regulations and rules and general
safety instructions.
The following personal qualifications are necessary for the various
activities related to the product:
Due to their technical training, knowledge and experience, trained
electricians are able to work on electrical systems, recognize and
avoid possible dangers and know the relevant standards and
regulations.
Due to its technical training, knowledge and experience, qualified
personnel is able to perform the delegated tasks, recognize and
avoid possible dangers and knows the relevant standards and
regulations.
Instructed person
Instructed persons were instructed by the operator about the
delegated tasks and possible dangers due to improper behaviour.
Service personnel of
the manufacturer
Due to its technical training, knowledge and experience, service
personnel of the manufacturer is able to perform the delegated
tasks and to recognize and avoid possible dangers.
8
03.00 | PWG-S | Assembly and operating manual | en | 389361
Basic safety notes
2.8 Personal protective equipment
Use of personal protective equipment
Personal protective equipment serves to protect staff against
danger which may interfere with their health or safety at work.
• When working on and with the product, observe the
occupational health and safety regulations and wear the
required personal protective equipment.
• Observe the valid safety and accident prevention regulations.
• Wear protective gloves to guard against sharp edges and
corners or rough surfaces.
• Wear heat-resistant protective gloves when handling hot
surfaces.
• Wear protective gloves and safety goggles when handling
hazardous substances.
• Wear close-fitting protective clothing and also wear long hair in
a hairnet when dealing with moving components.
2.9 Notes on safe operation
Incorrect handling of the personnel
Incorrect handling and assembly may impair the product's safety
and cause serious injuries and considerable material damage.
• Avoid any manner of working that may interfere with the
function and operational safety of the product.
• Use the product as intended.
• Observe the safety notes and assembly instructions.
• Do not expose the product to any corrosive media. This does
not apply to products that are designed for special
environments.
• Eliminate any malfunction immediately.
• Observe the care and maintenance instructions.
• Observe the current safety, accident prevention and
environmental protection regulations regarding the product's
application field.
2.10 Transport
Handling during transport
Incorrect handling during transport may impair the product's
safety and cause serious injuries and considerable material
damage.
• When handling heavy weights, use lifting equipment to lift the
product and transport it by appropriate means.
• Secure the product against falling during transportation and
handling.
• Stand clear of suspended loads.
03.00 | PWG-S | Assembly and operating manual | en | 389361
9
Basic safety notes
2.11 Malfunctions
Behavior in case of malfunctions
• Immediately remove the product from operation and report the
malfunction to the responsible departments/persons.
• Order appropriately trained personnel to rectify the
malfunction.
• Do not recommission the product until the malfunction has
been rectified.
• Test the product after a malfunction to establish whether it still
functions properly and no increased risks have arisen.
2.12 Disposal
Handling of disposal
The incorrect handling of disposal may impair the product's safety
and cause serious injuries as well as considerable material and
environmental harm.
• Follow local regulations on dispatching product components for
recycling or proper disposal.
2.13 Fundamental dangers
General
• Observe safety distances.
• Never deactivate safety devices.
• Before commissioning the product, take appropriate protective
measures to secure the danger zone.
• Disconnect power sources before installation, modification,
maintenance, or calibration. Ensure that no residual energy
remains in the system.
• If the energy supply is connected, do not move any parts by
hand.
• Do not reach into the open mechanism or movement area of
the product during operation.
2.13.1 Protection during handling and assembly
Incorrect handling and assembly
Incorrect handling and assembly may impair the product's safety
and cause serious injuries and considerable material damage.
• Have all work carried out by appropriately qualified personnel.
• For all work, secure the product against accidental operation.
• Observe the relevant accident prevention rules.
• Use suitable assembly and transport equipment and take
precautions to prevent jamming and crushing.
10
03.00 | PWG-S | Assembly and operating manual | en | 389361
Incorrect lifting of loads
Falling loads may cause serious injuries and even death.
• Stand clear of suspended loads and do not step into their
swiveling range.
• Never move loads without supervision.
• Do not leave suspended loads unattended.
2.13.2 Protection during commissioning and operation
Falling or violently ejected components
Falling and violently ejected components can cause serious injuries
and even death.
• Take appropriate protective measures to secure the danger
zone.
• Never step into the danger zone during operation.
2.13.3 Protection against dangerous movements
Basic safety notes
Unexpected movements
Residual energy in the system may cause serious injuries while
working with the product.
• Switch off the energy supply, ensure that no residual energy
remains and secure against inadvertent reactivation.
• Never rely solely on the response of the monitoring function to
avert danger. Until the installed monitors become effective, it
must be assumed that the drive movement is faulty, with its
action being dependent on the control unit and the current
operating condition of the drive. Perform maintenance work,
modifications, and attachments outside the danger zone
defined by the movement range.
• To avoid accidents and/or material damage, human access to
the movement range of the machine must be restricted. Limit/
prevent accidental access for people in this area due through
technical safety measures. The protective cover and protective
fence must be rigid enough to withstand the maximum possible
movement energy. EMERGENCY STOP switches must be easily
and quickly accessible. Before starting up the machine or
automated system, check that the EMERGENCY STOP system is
working. Prevent operation of the machine if this protective
equipment does not function correctly.
03.00 | PWG-S | Assembly and operating manual | en | 389361
11
Basic safety notes
2.14 Notes on particular risks
DANGER
Risk of fatal injury from suspended loads!
Falling loads can cause serious injuries and even death.
• Stand clear of suspended loads and do not step within their
swiveling range.
• Never move loads without supervision.
• Do not leave suspended loads unattended.
• Wear suitable protective equipment.
WARNING
Risk of injury from objects falling and being ejected!
Falling and ejected objects during operation can lead to serious
injury or death.
• Take appropriate protective measures to secure the danger
zone.
WARNING
Risk of injury due to unexpected movements!
If the power supply is switched on or residual energy remains in
the system, components can move unexpectedly and cause
serious injuries.
• Before starting any work on the product: Switch off the power
supply and secure against restarting.
• Make sure, that no residual energy remains in the system.
WARNING
Risk of injury from crushing and impacts!
Serious injury could occur during the base jaw procedure and
when breaking or loosening the gripper fingers.
• Wear suitable protective equipment.
• Do not reach into the open mechanism or the movement area
of the product.
WARNING
Risk of injury from sharp edges and corners!
Sharp edges and corners can cause cuts.
• Use suitable protective equipment.
12
03.00 | PWG-S | Assembly and operating manual | en | 389361
Technical data
3 Technical data
Designation PWG-S
Pressure medium Compressed air, compressed
air quality according to
ISO 8573-1:7 4 4
Nominal working pressure
6
[bar]
Min. pressure [bar] 4
Max. pressure [bar] 8
Ambient temperature [°C]
Min.
Max.
-10°C
90°C
Noise emission [dB(A)] ≤70
More technical data is included in the catalog data sheet.
Whichever is the latest version.
03.00 | PWG-S | Assembly and operating manual | en | 389361
13
Assembly
4 Assembly
4.1 Connections
4.1.1 Mechanical connection
WARNING
Risk of injury due to unexpected movements!
If the power supply is switched on or residual energy remains in
the system, components can move unexpectedly and cause
serious injuries.
• Before starting any work on the product: Switch off the power
supply and secure against restarting.
• Make sure, that no residual energy remains in the system.
Evenness of the
mounting surface
Mounting
The values apply to the whole mounting surface to which the
product is mounted.
Requirements for evenness of the mounting surface (Dimensions in mm)
Edge length Permissible unevenness
< 100 < 0.02
> 100 < 0.05
Fasten the gripper to the base surface using four threaded holes.
A centering bore and fixing bore are in the base surface in order to
position the gripper.
Item Designation PWG-S
1 Mounting thread M4 M5 M6
Max. depth of
engagement from
locating surface [mm]
2 Centering bore [H7] Ø20H7 Ø25H7 Ø40H7
3 Fixing bore [H7] Ø4H7 Ø4H7 Ø5H7
14
03.00 | PWG-S | Assembly and operating manual | en | 389361
40 60 80
10 14 16
4.1.2 Pneumatic connection
WARNING
Risk of injury due to unexpected movements!
If the power supply is switched on or residual energy remains in
the system, components can move unexpectedly and cause
serious injuries.
• Before starting any work on the product: Switch off the power
supply and secure against restarting.
• Make sure, that no residual energy remains in the system.
NOTICE
Damage to the gripper is possible!
If the maximum permissible finger weight or the permissible
mass moment of inertia of the fingers is exceeded, the gripper
can be damaged.
Assembly
• A jaw movement always has to be without jerks and bounce.
• You must therefore implement sufficient reduction and/or
damping.
• Observe the diagrams and information in the catalog data
sheet.
NOTE
• Observe the requirements for the compressed air supply,
Technical data [}13].
• In case of compressed air loss (cutting off the energy line), the
components lose their dynamic effects and do not remain in a
secure position. However, the use of a SDV-P pressure
maintenance valve is recommended in this case in order to
maintain the dynamic effect for some time. Product variants
are also offered with mechanical gripping force via springs,
which also ensure a minimum clamping force in the event of a
pressure drop.
Screw in the seal set-screws only flush.
03.00 | PWG-S | Assembly and operating manual | en | 389361
15
Assembly
Adapter
O-ring
Pneumatic connection
Thread diameter of the air connections
PWG-S
Item Designation
1 Main connections
(Hose connection )
2 M5 M5 R1/8”
40 60 80
M5 M5 R1/8”
(A = open, B = close)
3 Hose-free direct
connection at the
4 M5 M5 M5
M5 M5 M5
base
(a = open, b = close)
• Only open the air connections required.
• Seal air connections not required using
the locking screws from the enclosed pack.
• For hose-free direct connections use the two O-rings from the
enclosed pack.
16
03.00 | PWG-S | Assembly and operating manual | en | 389361
4.2 Mounting the sensors
4
25
brown
black
blue
load
closer
The gripper is prepared for the application of the IN 40 / IN 60
sensors.
IN 40
Assembly
IN 60
The inductive proximity switches used are equipped with reverse
polarity protection and are short-circuit-proof.
Make sure that you handle the proximity switches properly:
• Do not pull on the cable.
• Do not allow the sensor to dangle from the cable.
• Do not overtighten the mounting screw or mounting clip
• Please adhere to a permitted bend radius of the cable (☞
cataolg).
• Avoid contact of the proximity switches with hard objects and
with chemicals, in particular nitric acid, chromic acid and
sulphuric acid.
03.00 | PWG-S | Assembly and operating manual | en | 389361
17
Assembly
The inductive proximity switches are electronic components,
which can react sensitively to high-frequency interference or
electromagnetic fields.
• Check to make sure that the cable is fastened and installed
correctly. Provide for sufficient clearance to sources of highfrequency interference and their supply cables.
• Parallel switching of several sensor outputs of the same type
(npn, pnp) is permissible, but does not increase the permissible
load current.
• Note that the leakage current of the individual sensors (approx.
2 mA) is cumulative.
• If you require further information on sensor operation, contact
your SCHUNK contact person or download information from our
homepage.
• Technical data for the sensors can be found in the data sheets
(included in the scope of delivery).
18
03.00 | PWG-S | Assembly and operating manual | en | 389361
Assembly of the
proximity switch
Assembly
1 Proximity switch "open" 3 attachment screw "open"
2 Proximity switch "closed" 4 attachment screw "closed"
NOTICE
Material damage due to an incorrect tightening torque!
If the threaded pin is tightened with an incorrect tightening
torque, the product may be damaged.
• Observe a maximum tightening torque of 10 Ncm for the set-
screws.
Gripper open:
Ø Set the gripper to "open" position.
Ø Loosen the attachment screw (3) "open".
Ø Carefully push the proximity switch (1) into the bracket until it
touches the control cam.
Ø Pull back the proximity switch approx 0.5 mm.
Ø Fasten the proximity switch by tightening the attachment screw
(3).
Ø Connect the proximity switch.
Ø Move the gripper into "open" position and test the function.
Gripper closed:
Ø Set the gripper to "closed" position.
Ø Loosen the attachment screw (3) "closed".
Ø Carefully push the proximity switch (2) into the bracket until it
touches the control cam.
Ø Pull back the proximity switch approx 0.5 mm.
Ø Fasten the proximity switch by tightening the attachment screw
(4).
Ø Connect the proximity switch.
Ø Move the gripper into "closed" position and test the function.
03.00 | PWG-S | Assembly and operating manual | en | 389361
19
Troubleshooting
5 Troubleshooting
5.1 Product does not move
Possible cause Corrective action
Base jaws jam in housing, e.g. mounting
surface is not sufficiently even.
Pressure drops below minimum. Check air supply.
Compressed air lines switched. Check compressed air lines.
Proximity switch defective or set incorrect. Readjust or change sensor.
Unused air connections open. Close unused air connections.
Flow control valve closed. Open the flow control valve.
Component part defective. Replace component or send it to SCHUNK
Check the evenness of the mounting surface.
Mechanical connection [}14]
Technical data [}13]
Pneumatic connection [}15]
for repair.
5.2 Product is not executing the complete stroke
Possible cause Corrective action
Dirt deposits between cover and piston. Clean and if necessary re-lubricate.
Dirt deposits between basic jaws and
guidance.
Pressure drops below minimum. Check air supply.
Disassemble and clean the product.
Pneumatic connection [}15]
Mounting surface is not sufficiently flat. Check the evenness of the mounting surface.
Mechanical connection [}14]
Component part defective. Replace component or send it to SCHUNK
for repair.
5.3 Gripping force is dropping
Possible cause Corrective action
Compressed air can escape. Check seals, if necessary, disassemble the
product and replace seals.
Too much grease in the mechanical
movement space.
Pressure drops below minimum. Check air supply.
Component part defective. Replace component or send it to SCHUNK
Clean and lubricate product.
Pneumatic connection [}15]
for repair.
20
03.00 | PWG-S | Assembly and operating manual | en | 389361
Maintenance
6 Maintenance
6.1 Notes
Original spare parts
Use only original spare parts of SCHUNK when replacing spare and
wear parts.
It is of advantage to have maintenance performed and the seals
replaced at SCHUNK. If this is not possible, you can perform the
maintenance and replace the seals yourself.
To replace parts, send the complete gripper with a repair order to
SCHUNK.
In the case of the PWG-S 80, the piston and body must be aligned
and mounted with a device during the assembly.
• Description for the disassembly of the PWG-S Disassembling the
module [}22]
• Drawing for the construction of the device Assembly drawing [}24]
• RM assembly drawings Assembly drawing [}24]
6.2 Maintenance interval
NOTICE
Material damage due to hardening lubricants!
Lubricants harden more quickly at temperatures above 60°C,
leading to possible product damage.
• Reduce the lubricant intervals accordingly.
Interval [Mio. cycles] 2
6.3 Lubricants/Lubrication points (basic lubrication)
SCHUNK recommends the lubricants listed.
During maintenance, treat all greased areas with lubricant. Thinly
apply lubricant with a lint-free cloth.
Lubricant point Lubricant
Metallic sliding surfaces Molykote BR 2 plus,
All seals Renolit HLT 2
Bore hole at the piston
03.00 | PWG-S | Assembly and operating manual | en | 389361
Metaflux- lubricating metal
21
Maintenance
6.4 Disassembling the module
Position of the item numbers Assembly drawing [}24]
WARNING
Risk of injury due to unexpected movements!
If the power supply is switched on or residual energy remains in
the system, components can move unexpectedly and cause
serious injuries.
• Before starting any work on the product: Switch off the power
supply and secure against restarting.
• Make sure, that no residual energy remains in the system.
Ø Remove the compressed air line.
Ø Loosen the set-screws (12).
Ø Push out both bolts (6).
Ø Pull out the fingers (4) and compensation disks from the side of
the body.
Ø Connect the pressure line to the CLOSED connection and apply
air pressure of 6 bar to the gripper.
Ø Unscrew the countersunk screw (11) and remove the bar (5).
Ø Depressurize the gripper and remove the pressure line.
WARNING
The body (1) is under spring tension.
Risk of injury due to spring forces!
Strictly adhere to the following instructions. Carefully
disassemble the module.
Ø Clamp the body (1) and cylinder (2) between "a" and "b".
Ø Remove the screws (10).
Ø Unclamp slowly until the springs are no longer under tension.
Ø Remove the body (1).
Ø Pull the piston (3) out of the cylinder (2)
Ø Remove all seals according to the sealing kit list.
6.5 Servicing and assembling the module
Position of the item numbers Assembly drawing [}24]
WARNING
Risk of injury due to spring forces!
The cover is under spring tension.
• Carefully disassemble the product.
22
03.00 | PWG-S | Assembly and operating manual | en | 389361
Maintenance
Maintenance
Assembly
• Clean all parts thoroughly and check for damage and wear.
• Treat all greased areas with lubricant.
Lubricants/Lubrication points (basic lubrication) [}21]
• Oil or grease bare external steel parts.
• Replace all wear parts / seals.
– Position of the wearing parts Assembly drawing [}24]
– Seal kit Sealing kit [}6]
Assembly takes place in the opposite order to disassembly.
Observe the following:
• An assembly bolt is required for the assembly of the PGW-S 80
Assembly with assembly bolt [}23].
• Unless otherwise specified, secure all screws and nuts with Loctite
no. 243 and tighten with the appropriate tightening torque.
6.5.1 Assembly with assembly bolt
Dimensions and purpose of the assembly bolt
1 Assembly bolt 4 Compression spring
2 Body 5 Cylinder
3 Cylindrical screws
Ø Screw in the assembly bolt (1) by hand.
Ø Press the body (2) onto the cylinder (5).
Ø Screw in the cylindrical screws (3).
03.00 | PWG-S | Assembly and operating manual | en | 389361
23
Maintenance
6.6 Assembly drawing
The following figure is an example image.
It serves for illustration and assignment of the spare parts.
Variations are possible depending on size and variant.
* Wearing part, replace during maintenance.
Included in the seal kit. Seal kit can only be ordered completely.
24
03.00 | PWG-S | Assembly and operating manual | en | 389361
Translation of original declaration of incorporation
7 Translation of original declaration of incorporation
in terms of the Directive 2006/42/EG, Annex II, Part 1.B of the European Parliament and of
the Council on machinery.
Manufacturer/
Distributor
SCHUNK GmbH & Co. KG Spann- und Greiftechnik
Bahnhofstr. 106 – 134
D-74348 Lauffen/Neckar
We hereby declare that on the date of the declaration the following partly completed
machine complied with all basic safety and health regulations found in the directive
2006/42/EC of the European Parliament and of the Council on machinery. The declaration
is rendered invalid if modifications are made to the product.
Product designation: 2-finger angular gripper / PWG-S / pneumatic
ID number 0302611, 0302612, 0302613
The partly completed machine may not be put into operation until conformity of the
machine into which the partly completed machine is to be installed with the provisions of
the Machinery Directive (2006/42/EC) is confirmed.
Applied harmonized standards, especially:
EN ISO 12100:2010 Safety of machinery - General principles for design -
Risk assessment and risk reduction
The manufacturer agrees to forward on demand the relevant technical documentation for
the partly completed machinery in electronic form to national authorities.
The relevant technical documentation according to AnnexVII, Part B, belonging to the
partly completed machinery, has been created.
Person authorized to compile the technical documentation:
Robert Leuthner, Address: see manufacturer's address
Lauffen/Neckar, April 2019 p.p. Ralf Winkler,
Manager for development
of gripping system components
03.00 | PWG-S | Assembly and operating manual | en | 389361
25
Annex to Declaration of Incorporation
8 Annex to Declaration of Incorporation
according 2006/42/EG, Annex II, No. 1 B
1.Description of the essential health and safety requirements pursuant to 2006/42/EC,
Annex I that are applicable and that have been fulfilled with:
Product designation 2-finger angular gripper
Type designation PWG-S
ID number 0302611, 0302612, 0302613
To be provided by the System Integrator for the overall machine ⇓
Fulfilled for the scope of the partly completed machine ⇓
Not relevant ⇓
1.1 Essential Requirements
1.1.1 Definitions X
1.1.2 Principles of safety integration X
1.1.3 Materials and products X
1.1.4 Lighting X
1.1.5 Design of machinery to facilitate its handling X
1.1.6 Ergonomics X
1.1.7 Operating positions X
1.1.8 Seating X
1.2 Control Systems
1.2.1 Safety and reliability of control systems X
1.2.2 Control devices X
1.2.3 Starting X
1.2.4 Stopping X
1.2.4.1 Normal stop X
1.2.4.2 Operational stop X
1.2.4.3 Emergency stop X
1.2.4.4 Assembly of machinery X
1.2.5 Selection of control or operating modes X
1.2.6 Failure of the power supply X
1.3 Protection against mechanical hazards
1.3.1 Risk of loss of stability X
1.3.2 Risk of break-up during operation X
1.3.3 Risks due to falling or ejected objects X
1.3.4 Risks due to surfaces, edges or angles X
1.3.5 Risks related to combined machinery X
26
03.00 | PWG-S | Assembly and operating manual | en | 389361
Annex to Declaration of Incorporation
1.3 Protection against mechanical hazards
1.3.6 Risks related to variations in operating conditions X
1.3.7 Risks related to moving parts X
1.3.8 Choice of protection against risks arising from moving parts X
1.3.8.1 Moving transmission parts X
1.3.8.2 Moving parts involved in the process X
1.3.9 Risks of uncontrolled movements X
1.4 Required characteristics of guards and protective devices
1.4.1 General requirements X
1.4.2 Special requirements for guards X
1.4.2.1 Fixed guards X
1.4.2.2 Interlocking movable guards X
1.4.2.3 Adjustable guards restricting access X
1.4.3 Special requirements for protective devices X
1.5 Risks due to other hazards
1.5.1 Electricity supply X
1.5.2 Static electricity X
1.5.3 Energy supply other than electricity X
1.5.4 Errors of fitting X
1.5.5 Extreme temperatures X
1.5.6 Fire X
1.5.7 Explosion X
1.5.8 Noise X
1.5.9 Vibrations X
1.5.10 Radiation X
1.5.11 External radiation X
1.5.12 Laser radiation X
1.5.13 Emissions of hazardous materials and substances X
1.5.14 Risk of being trapped in a machine X
1.5.15 Risk of slipping, tripping or falling X
1.5.16 Lightning X
1.6 Maintenance
1.6.1 Machinery maintenance X
1.6.2 Access to operating positions and servicing points X
1.6.3 Isolation of energy sources X
1.6.4 Operator intervention X
1.6.5 Cleaning of internal parts X
03.00 | PWG-S | Assembly and operating manual | en | 389361
27
Annex to Declaration of Incorporation
1.7 Information
1.7.1 Information and warnings on the machinery X
1.7.1.1 Information and information devices X
1.7.1.2 Warning devices X
1.7.2 Warning of residual risks X
1.7.3 Marking of machinery X
1.7.4 Instructions X
1.7.4.1 General principles for the drafting of instructions X
1.7.4.2 Contents of the instructions X
1.7.4.3 Sales literature X
The classification from Annex 1 is to be supplemented from here
forward.
2 Supplementary essential health and safety requirements for certain
categories of machinery
2.1 Foodstuffs machinery and machinery for cosmetics or pharmaceutical
products
2.2 Portable hand-held and/or guided machinery X
2.2.1 Portable fixing and other impact machinery X
2.3 Machinery for working wood and material with similar physical
characteristics
3 Supplementary essential health and safety requirements to offset
X
hazards due to the mobility of machinery
4 Supplementary essential health and safety requirements to offset
X
hazards due to lifting operations
5 Supplementary essential health and safety requirements for machinery
intended for underground work
6 Supplementary essential health and safety requirements for machinery
X
presenting particular hazards due to the lifting of persons
X
X
X
X
28
03.00 | PWG-S | Assembly and operating manual | en | 389361
Loading...
