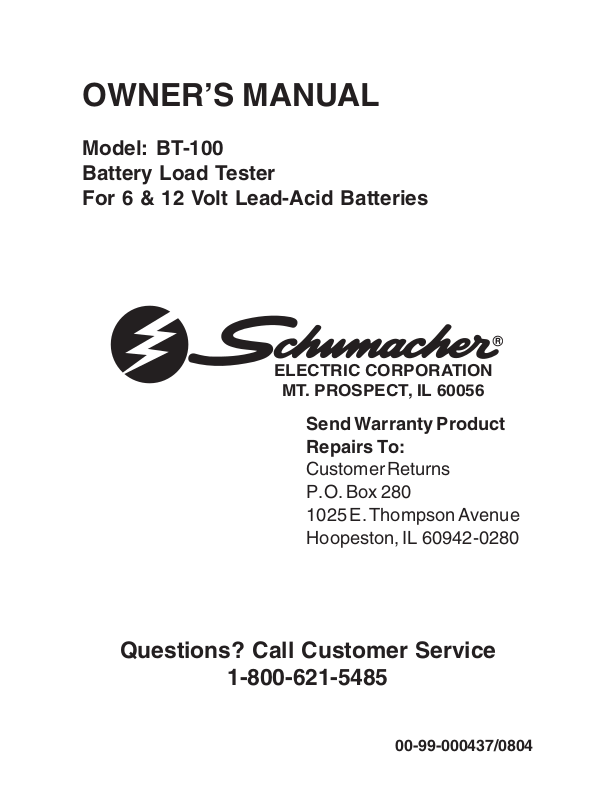

OWNER’S MANUAL
Model: BT-100 Battery Load Tester For 6 & 12 Volt Lead-Acid Batteries
ELECTRIC CORPORATION
MT. PROSPECT, IL 60056
Send Warranty Product Repairs To:
Customer Returns P.O. Box 280 1025 E. Thompson Avenue Hoopeston, IL 60942-0280
Questions? Call Customer Service
1-800-621-5485
00-99-000437/0804
WARNING: Handling the cord on this product or cords
associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Wash hands after handling.
BASIC BATTERY LOAD TEST
(Conventional & Maintenance-Free Types)
1. Connect clamps to battery posts Red (+) Pos, Black (-) Neg and note the battery’s capacity. Engine and all electrical accessories must be off when testing battery.
2. Hold load switch “on” for 10 seconds.
3. Read meter with load still on then refer to battery analysis table on back of Tester.
COLD TEMPERATURE EFFECTS
A battery will test lower when cold than when warm. For more accurate results, please reduce the battery’s nominal rating by 200 cranking amperes (one step on meter scale) for each 20°F drop below 40°F. If cranking ampere rating is 800 and battery temperature is 0°F, test as a 400 cranking ampere battery (i.e. 2 steps down).
TEMPERATURE COMPENSATION
BATTERY +20°F 0°F -20° TEMPERATURE
DECREASE BAT. 1 STEP 2 STEP 3 STEP RATING BY:
1 STEP = 200 Cranking Amps.
