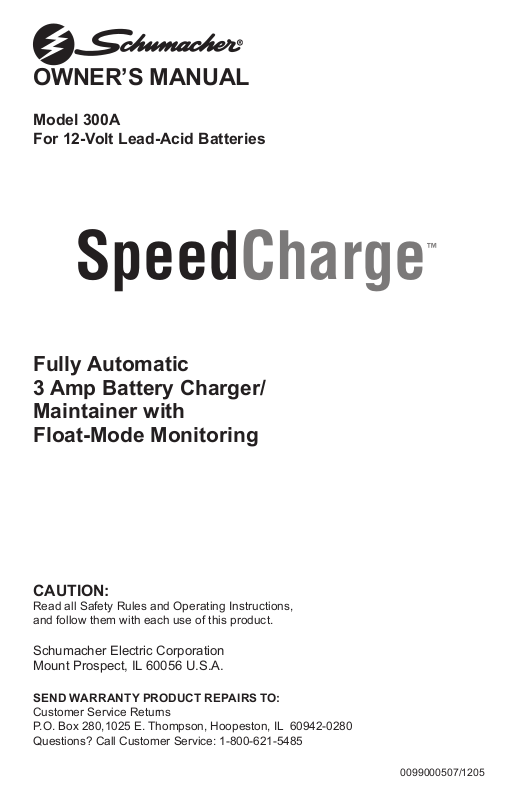

OWNER’S MANUAL
SpeedCharge
™
Model 300A
For 12-Volt Lead-Acid Batteries
Fully Automatic
3 Amp Battery Charger/
Maintainer with
Float-Mode Monitoring
CAUTION:
Read all Safety Rules and Operating Instructions,
and follow them with each use of this product.
Schumacher Electric Corporation
Mount Prospect, IL 60056 U.S.A.
SEND WARRANTY PRODUCT REPAIRS TO:
Customer Service Returns
P.O. Box 280,1025 E. Thompson, Hoopeston, IL 60942-0280
Questions? Call Customer Service: 1-800-621-5485
0099000507/1205
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ................................................................... 3
PERSONAL SAFETY PRECAUTIONS ...................................................................... 4
BEFORE USING YOUR BATTERY CHARGER ........................................................ 5
Plugging It In ......................................................................................................... 5
Using An Extension Cord ...................................................................................... 5
Battery Clamps ...................................................................................................... 5
12v Accessory Plug ............................................................................................... 5
Ring Connectors.................................................................................................... 5
USING YOUR BATTERY CHARGER ......................................................................... 6
PREPARING YOUR BATTERY TO BE CHARGED .................................................. 6
OPERATING INSTRUCTIONS ................................................................................... 7
Charging Battery In The Vehicle ............................................................................ 7
Charging Battery Removed From The Vehicle ...................................................... 8
MAINTENANCE AND CARE ..................................................................................... 8
BATTERY PERCENT AND CHARGE TIME ............................................................... 9
LIMITED WARRANTY ............................................................................................... 9
SAVE THIS OWNER’S MANUAL AND READ BEFORE EACH USE.
Model 300A, Fully Automatic Battery Charger offers features to accommodate the
needs for home or light commercial use. This manual will explain how to use the charger safely and effectively. Please read and follow these instructions and precautions
carefully.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment on and off, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio technician for help.
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING – RISK OF EXPLOSIVE GASES
WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT EACH
TIME BEFORE USING YOUR CHARGER, YOU READ THIS MANUAL AND
FOLLOW THE INSTRUCTIONS EXACTLY.
To reduce risk of battery explosion, follow these instructions and those published by
battery manufacturer and manufacturer of any equipment you intend to use in vicinity
of battery. Review cautionary markings on these products and on engine.
SAVE THESE INSTRUCTIONS
This manual contains important safety
and operating instructions for battery
charger Model 300A.
• WARNING: Handling the cord on this
product or cords associated with accessories sold with this product, will
expose you to lead, a chemical known
to the State of California to cause
cancer and birth defects or other
reproductive harm. Wash hands after
handling.
• Read all instructions and cautions
printed on the battery charger, battery,
and vehicle or equipment using battery.
• Use charger only on lead-acid type
rechargeable batteries, such as those
used in cars, trucks, tractors, airplanes, vans, RVs, trolling motors, etc.
This charger is not intended to supply
power to a low voltage electrical
system other than in a starter-motor
application.
• Never use charger for charging dry
cell batteries that are commonly used
with home appliances like radios, stereos, remote controls, etc. These batteries may burst and cause personal
injury.
• Do not disassemble charger. Take it
to a qualied service professional if
service or repair is required. Incorrect
assembly may result in re or electrical shock.
• To reduce risk of electrical shock,
unplug the charger from the 120V AC
electrical wall outlet before attempting
any maintenance or cleaning.
• Always charge battery in a well-ventilated area.
• WARNING: Battery chargers get hot
during operation and must have prop-
er ventilation. Air needs to ow around
entire charger. Do not set charger on
ammable materials like carpeting,
upholstery, paper, cardboard, etc.
Charger may damage leather, plastic
and rubber.
HELP US HELP YOU ——
Remember:
Place charger as far away from the
battery being charged as the charger
cables will permit.
Do not expose charger to rain or snow.
Never charge a frozen battery. If battery
uid (electrolyte) becomes frozen, bring
battery into a warm area to allow battery
to thaw before you begin charging.
Never allow battery acid to drip on
charger when reading specic gravity or
lling battery.
Never set a battery on top of charger.
Never place charger directly above
battery being charged. The gases from
the battery will corrode and damage the
charger.
3
