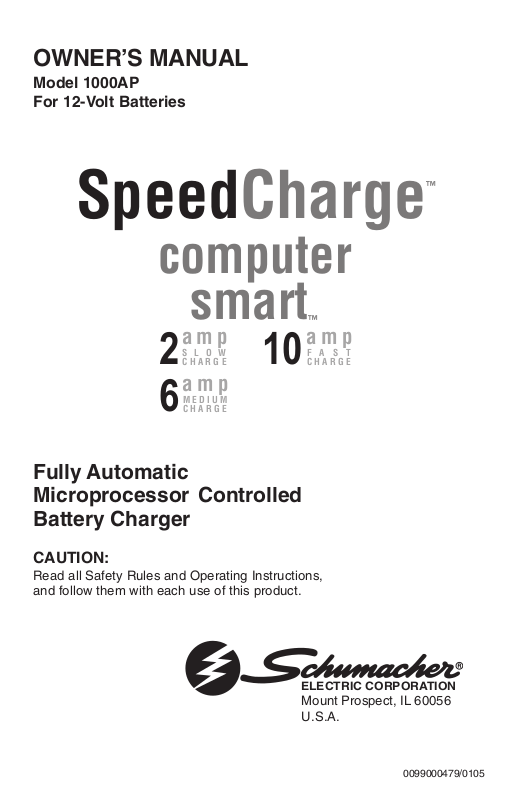

OWNER’S MANUAL
Model 1000AP
For 12-Volt Batteries
SpeedCharge
computer
™
smart
amp
SLOW
2
CHARGE
amp
MEDIUM
6
CHARGE
Fully Automatic
Microprocessor Controlled
Battery Charger
CAUTION:
Read all Safety Rules and Operating Instructions,
and follow them with each use of this product.
10
™
amp
FAST
CHARGE
ELECTRIC CORPORATION
Mount Prospect, IL 60056
U.S.A.
0099000479/0105
Page 2
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .................................................................... 3
PERSONAL SAFETY PRECAUTIONS ...................................................................... 4
BEFORE USING YOUR BATTERY CHARGER ......................................................... 5
PLUGGING IT IN .................................................................................................. 5
USING AN EXTENSION CORD ........................................................................... 5
PREPARING YOUR BATTERY TO BE CHARGED ................................................... 5
OPERATING INSTRUCTIONS ................................................................................... 6
Charging Battery In The Vehicle ........................................................................... 6
Charging Battery Removed From The Vehicle..................................................... 7
SPEEDCHARGE CONTROLS .................................................................................... 8
USING YOUR BATTERY CHARGER ......................................................................... 9
KNOW YOUR CHARGER ......................................................................................... 10
MAINTENANCE AND CARE .................................................................................... 10
BATTERY CHARGE TIME ........................................................................................ 10
TROUBLESHOOTING .............................................................................................. 11
LIMITED WARRANTY............................................................................................... 12
SAVE THIS OWNER’S MANUAL AND READ BEFORE EACH USE.
Model 1000AP, Fully Automatic Battery Charger offers features to accommodate the
needs for home or light commercial use. This manual will explain how to use the
charger safely and effectively. Please read and follow these instructions and precautions carefully.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio technician for help.
2
Page 3
IMPORTANT SAFETY INSTRUCTIONS
WARNING – RISK OF EXPLOSIVE GASES
WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY
OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT
EACH TIME BEFORE USING YOUR CHARGER, YOU READ THIS MANUAL
AND FOLLOW THE INSTRUCTIONS EXACTLY.
To reduce risk of battery explosion, follow these instructions and those published by
battery manufacturer and manufacturer of any equipment you intend to use in vicinity
of battery. Review cautionary markings on these products and on engine.
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions for battery charger
Model 1000AP.
• WARNING: Handling the cord on this
product or cords associated with
accessories sold with this product, will
expose you to lead, a chemical known
to the State of California to cause
cancer and birth defects or other
reproductive harm.
Wash hands after
handling.
• Read all instructions and cautions
printed on the battery charger,
battery, and vehicle or equipment
using battery.
• Use charger only on lead-acid type
rechargeable batteries, such as those
used in cars, trucks, tractors, airplanes, vans, RV’s, trolling motors,
etc. This charger is not intended to
supply power to a low voltage
electrical system other than in a
starter-motor application.
• Never use charger for charging dry
cell batteries that are commonly used
with home appliances like radios,
stereos, remote controls, etc. These
batteries may burst and cause
personal injury.
• Do not disassemble charger. Take it
to a qualified service professional if
service or repair is required. Incorrect
assembly may result in fire or
electrical shock.
• To reduce risk of electrical shock,
unplug the charger from the outlet
before attempting any maintenance or
cleaning.
• Always charge battery in a wellventilated area.
• WARNING: Battery chargers get hot
during operation and must have
proper ventilation. Air needs to flow
around entire charger. Do not set
charger on flammable materials like
carpeting, upholstery, paper, cardboard, etc. Charger may damage
leather, plastic and rubber.
HELP US HELP YOU ——
Remember:
Place charger as far away from the
battery being charged as the charger
cables will permit.
Do not expose charger to rain or snow.
Never charge a frozen battery. If battery
fluid (electrolyte) becomes frozen, bring
battery into a warm area to allow the
battery to thaw before you begin
charging.
Never allow battery acid to drip on
charger when reading specific gravity or
filling battery.
3
Page 4
Never set a battery on top of charger.
Never place charger directly above
battery being charged. The gases from
the battery will corrode and damage the
charger.
Never touch the battery clamps together
when the charger is on. You could
cause a spark.
Never operate charger if it has received
a hard blow, been dropped, or otherwise
damaged. Take it to a qualified professional for inspection and repair.
PERSONAL SAFETY PRECAUTIONS
Be sure to position the charger power
cord to prevent it from being stepped
on, tripped over, or damaged.
Never pull out the plug by the cord
when unplugging the charger. Pulling on
the cord may cause damage to the cord
or the plug.
Do not operate the charger if it has a
damaged power cord or plug. Have the
cord replaced.
• Wear complete eye and clothing
protection when working with leadacid batteries.
• Make sure that someone is within
range of your voice to come to your
aid if needed while you work with or
are near a lead-acid battery.
• Have plenty of fresh water and
soap nearby for use in case battery
acid contacts your eyes, skin, or
clothing. If this happens, wash
immediately with soap and water.
Then get medical attention.
• Avoid touching your eyes while
working with a battery. Acid particles
(corrosion) may get into your eyes. If
this occurs, flush eyes immediately
with running cold water for at least 10
minutes. Then immediately get
medical attention.
• Never charge a frozen battery.
• Remove all personal metal items
from your body such as rings,
bracelets, necklaces and watches,
while working with a lead-acid battery.
A battery can produce a short circuit
current high enough to weld a ring (or
the like) to metal, causing a severe
burn.
• Take care not to drop any metal tool
or metal object onto the battery. This
may result in a spark or short circuit
across the battery or another electrical device that may cause an explosion.
• Always operate the battery charger in
an open, well-ventilated area.
• Never smoke or allow a spark or
flame in the vicinity of the battery or
engine. Batteries generate explosive
gases.
• Neutralize any acid spills thoroughly
with baking soda before attempting to
clean up.
4
Page 5
BEFORE USING YOUR BATTERY CHARGER
It is important to understand the charger’s requirements. This section explains the
charger’s electrical requirements and how to prepare a battery for charging.
PLUGGING IT IN
Your charger requires a 120V AC
receptacle installed according to all local
codes and ordinances.
extension cord, please make sure that
you follow these guidelines:
• Make sure that pins on plug of
extension cord are the same number,
size, and shape as those of plug on
charger.
• Check that the extension cord is
properly wired and in good electrical
condition.
• Make sure that the wire size is large
enough for its length and for the AC
ampere rating, as specified in the
chart below.
MINIMUM RECOMMENDED EXTENSION CORD
USING AN EXTENSION CORD
Length of Cord, in Feet 25 50 100 150
The use of an extension cord is not
recommended. If you must use an
AWG* Size of Cord 18 16 12 10
*AWG=American Wire Gauge
PREPARING YOUR BATTERY TO BE CHARGED
It is important that you read and follow these guidelines while you are preparing to
charge the battery.
• Make sure that you have a 12 volt
lead-acid battery. Determine voltage
of battery by referring to vehicle
owner’s manual. Charge battery
initially at charger’s lowest rate.
• Clean the battery terminals. Be
careful to keep corrosion from getting
in or around your eyes.
• Wear safety glasses. See additional
“Personal Safety Precautions” on
page 4.
• For batteries with removable vent
caps, if required, add distilled water to
each cell until the battery acid
reaches the level recommended by
the manufacturer. This will help purge
excessive gases from the cells. Be
careful not to overfill. If you have a
sealed battery with non-removable
vent caps, no action is necessary.
• Take time to read all of the battery
manufacturer’s specific precautions,
such as removing or not removing
vent caps while charging, and
recommended rates of charge.
• Be sure that the area around the
battery is well ventilated while it is
being charged. Gas can be forcefully
blown away by using a piece of
cardboard or other nonmetallic
material as a fan.
• If it is necessary to remove the battery
from the vehicle to charge it, always
remove the grounded terminal from
the battery first. Turn off all vehicle
accessories to avoid sparks from
occurring.
• NOTE: A marine (boat) battery
installed in a boat must be removed
and charged on shore.
5
Page 6
OPERATING INSTRUCTIONS
IMPORTANT: Follow all safety instructions and precautions when charging your
battery. Wear complete eye protection and clothing protection. Charge your battery in
a well-ventilated area.
CHARGING BATTERY IN THE
VEHICLE:
1. Avoid personal injury by keeping
clear of fan blades, belts, pulleys and
other engine parts.
2. Avoid damaging the charger by
keeping the power cord and output
cords away from the hood, door or
moving engine parts.
3. Note the polarity of the battery posts
by checking the identification marks
on the battery: POSITIVE (POS, P or
+) and NEGATIVE (NEG, N or -). The
positive post is usually larger than
the negative post.
4. Identify which battery post is
grounded or connected to the
chassis. THIS IS NORMALLY THE
NEGATIVE POST.
NEGATIVE GROUNDED SYSTEM
5. Connecting to a negativegrounded system: Connect the red
(POSITIVE) output clamp to the
POSITIVE post of the battery. Rock
and twist the clamp back and forth to
be sure a solid electrical connection
is made. Then connect the black
(NEGATIVE) output clamp to a
heavy, unpainted metal part of the
chassis or engine block, away from
the battery (see figure above). DO
NOT connect clamp to negative
battery post, carburetor, and fuel line
or sheet metal part.
Connecting to a positive-grounded
system: Connect the black (NEGA-
TIVE) output clamp to the NEGATIVE post of the battery. Rock and
twist the clamp back and forth to be
sure a solid electrical connection is
made. Then connect the red (POSITIVE) output clamp to a heavy,
unpainted metal part of the chassis
or engine block, away from the
battery. DO NOT connect clamp to
positive battery post, carburetor, and
fuel line or sheet metal part.
6. Plug power cord into an AC outlet.
The charger will be set to the 2 Amp
for REGULAR battery type.
7. Press the appropriate control buttons
to select the desired charge rate and
battery type. The CHARGING
(yellow) LED should light and the
charging process should start. If the
CHECK (red) LED is on, check for
correct cable connections.
8. To disconnect the charger, unplug its
power cord before attempting to
disconnect the output clamps. Then,
standing away from the battery,
remove the output clamp from the
chassis or engine block. Finally,
remove the output clamp from the
battery post.
9. Clean and store the charger in a dry
location.
6
Page 7
CHARGING BATTERY REMOVED
FROM THE VEHICLE:
POSITIVE NEGATIVE
BATTERY
24", 6 GAUGE
CABLE
BATTERY CHARGER
POWER
CORD
GROUNDED
POWER
OUTLET
1. Note the polarity of the battery posts
by checking the identification marks
on the battery: POSITIVE (POS, P or
+) and NEGATIVE (NEG, N or -). The
positive post is usually larger than
the negative post.
2. Attach at least a 24-inch-long, 6gauge (AWG), insulated battery
cable to NEGATIVE (NEG, N or -)
battery post. Rock and twist the
clamp back and forth to be sure a
solid electrical connection is made.
3. Connect the red (POSITIVE) output
clamp to the POSITIVE battery post.
Rock and twist the clamp back and
forth to be sure a solid electrical
connection is made.
4. Position yourself as far away from
the battery as possible, and then
connect the black (NEGATIVE)
output clamp to the free end of the
cable.
5. Plug power cord into an AC outlet.
The charger will be set to the 2 Amp
for REGULAR battery type.
6. Press the appropriate control buttons
to select the desired charge rate and
battery type. The CHARGING
(yellow) LED should light and the
charging process should start. If the
CHECK (red) LED is on, check for
TO
correct cable connections.
7. To disconnect the charger, unplug its
power cord before attempting to
disconnect the charger clamps. Then,
standing away from the battery,
remove the output clamp from the
NEGATIVE battery post. Finally,
remove the output clamp from the
POSITIVE battery post.
8. Clean and store the charger in a dry
location.
IMPORTANT: Follow all safety instructions and precautions when charging
your battery. Wear complete eye
protection and clothing protection.
Charge your battery in a well-ventilated
area.
7
Page 8
SPEEDCHARGE CONTROL
SpeedCharge
CHARGED
2A
™
REGULAR
CHARGING
CHECK
CHARGE RATE SWITCH
Use this switch button to set the charge
rate to one of the following three.
• 2A CHARGE RATE: Intended for
charging small batteries such as
those commonly used in garden
tractors, snow mobiles and motorcycles. The 2A rate is not intended to
be used as a trickle charger for larger
batteries.
BATTERY TYPE SWITCH
Use this switch button to set the type of
battery to be charged to one of the
following three.
• REGULAR: This is the type of
battery usually used in cars, trucks,
and motorcycles. These batteries
have vent caps and are often marked
“low maintenance” or “maintenancefree”.
• DEEP CYCLE: Deep cycle batteries
are usually marked as “deep cycle” or
“marine”. Deep cycle batteries are
usually larger than the other types.
CHARGE RATE
1000AP CONTROL PANEL
6A
10A
• AGM, GEL CELL: AGM and gel cell
batteries have sealed cases without
vent caps. Such batteries are often
smaller than the other types.
• 6A or 10A CHARGE RATE: Use for
charging automotive batteries, marine
batteries, and deep cycle batteries.
Not intended for industrial applications.
With the exception of AGM and gel cell
batteries, all other battery types may or
may not have vent caps.
located on top of the battery and provide
a means to add distilled water when
needed
with their type. If charging a battery that
is not marked, check the manual of the
item that uses the battery. If the battery
type is unknown, use the REGULAR
setting. Make sure the battery complies
with the safety instructions on page 3.
DEEP CYCLE
AGM, GEL CELL
BATTERY TYPE
Vent caps are
. Batteries should be marked
8
Page 9
USING YOUR BATTERY CHARGER
OVERVIEW
Using the battery charger is very simple.
First, connect the battery and AC power
following the precautions listed under
“OPERATING INSTRUCTIONS”. Then
select the appropriate BATTERY TYPE
and CHARGE RATE for your battery.
The Charger will then do everything
automatically. This section explains a
few details.
CHARGING: If the charger does not
detect a properly connected battery, the
CHECK (red) LED will light continuously
until a battery is detected. Charging will
not begin while the CHECK light is on.
When charging begins, the CHARGING
LED will be lit.
AUTOMATIC SHUT OFF: When the 2A,
6A, or 10A charge rate is selected, the
charger is set to perform an automatic
charge. When an automatic charge is
performed, the charger stops charging
automatically after the battery is fully
charged.
ABORTED CHARGE: If charging can’t
be completed normally, charging will be
aborted. When charging is aborted, the
charger’s output is shut off and the red
CHECK LED blinks on and off. In that
state, the charger ignores all buttons. To
reset the charger from after an aborted
charge, either disconnect the battery or
unplug the charger.
DESULFATION MODE: If a battery is
left discharged for an extended period, it
could become sulfated and not accept a
normal charge. If the charger detects a
sulfated battery, the charger will switch
to a special mode of operation designed
for such batteries. Activation of the
special desulfation mode is indicated by
blinking the CHARGING LED. If
successful, normal charging will resume
after the battery is desulfated. The
CHARGING LED will then stop blinking
and light continuously. Desulfation could
take up to 10 hours. If desulfation fails,
charging will be aborted and the CHECK
(red) LED will blink.
COMPLETION OF CHARGING: Charge
completion is indicated by the
CHARGED (green) LED; when lit, the
charger has stopped charging and
switched to the Maintain Mode of
operation.
MAINTAIN MODE: When the
CHARGED (green) LED is lit, the
charger has started Maintain Mode. This
mode of operation is also known as
Float-Mode Monitoring. In this mode,
the charger keeps the battery fully
charged by delivering a small current,
when necessary. The voltage is maintained at a level determined by the
BATTERY TYPE selected.
GENERAL CHARGING NOTES:
If the charge mode is changed after
charging has started (by pressing the
CHARGE RATE or BATTERY TYPE
button), the charging process will be
restarted.
9
Page 10
KNOW YOUR CHARGER
Read this entire manual before using your charger. The items below are additional
features of your charger.
Relay: Your charger is equipped with a
relay. This device turns the charge
current on and off to the battery. It is
normal to occasionally hear a clicking
sound when the relay is turned on or off.
Fan: Your charger is equipped with a
fan. It is normal for the fan to be on all
the time. Keep the area near the charger
clear of obstructions to allow the fan to
operate efficiently.
MAINTENANCE AND CARE
A minimal amount of care can keep your battery charger working properly for years.
1. Clean the clamps each time you are finished charging. Wipe off any battery fluid
that may have come in contact with the clamps to prevent corrosion.
2. Coil the input and output cords neatly when storing the charger. This will help
prevent accidental damage to the cords and charger.
3. Occasional cleaning of the case of the charger with a soft cloth will keep the finish
shiny and help prevent corrosion.
4. Store the battery charger in a clean and dry location.
BATTERY CHARGE TIME
This charger adjusts the charging time
in order to charge the battery completely, efficiently and safely. The microprocessor automatically makes the
necessary decisions. However, this
section includes guidelines that can be
used to estimate charging times.
The duration of the charging process
depends on three factors:
1. Battery State – If a battery has only
been slightly discharged, it can be
charged in less than a few hours. The
same battery could take up to 10
hours if very weak.
2. Battery rating – A higher rated
battery will take longer to charge than
a lower rated battery under the same
conditions. A battery is rated in
ampere-hours (AH), reserve capacity
(RC) and cold cranking amps (CCA).
The lower the rating the faster the
battery will be charged.
3. Charge rate – The charge rate is
measured in amps. This charger
provides charge rates of 2A, 6A and
10A. The 2A rate is for charging
smaller batteries such as those used
for motorcycles and garden tractors.
Such batteries should not be charged
using the 6A or 10A rates. The 6A
and 10A rates are for charging larger
batteries. The charger charges at the
selected charge rate and eventually
reduces the charge rate in a controlled manner. After the charging
process has started, the charger led’s
can be used to determine charging
progress.
There are some important facts to keep
in mind when charging a battery.
• When the led below the charged led is
lit, the battery has been charged
enough to start most vehicles and has
already been charged as much as by
many other battery chargers.
• The more a battery is discharged, the
faster it absorbs charge from a
charger. That means that the battery
charge increases faster at the
beginning of the charging process
than at the end. In other words, it
takes longer for the battery to absorb
the last few percent of charge than
the first several percent.
10
Page 11
TROUBLESHOOTING
Performance problems often can be corrected by the user. Please completely read
this chart for possible solutions to common problems.
PROBLEM POSSIBLE CAUSE SOLUTION
Check RED light Is on. The battery is not connected Connect or adjust clips.
Indicator lights are lit in an A button may have been Make sure nothing is
erratic manner not explained pressed when the charger touching the control panel,
in the “Using Your Battery was plugged in. then unplug the unit and
Charger” section. plug it in again.
The Check RED light is Charger in abort mode. See “Using Your Battery
flashing. Battery may be bad. Charger."
The CHECK (red) light This will happen if the Reset the charger by unalways flashes before the battery did not reach full plugging it or briefly disconbattery is completely charge within 24 hours. May necting the negative battery
charged. be due to a very large clip. Select the desired
The green CHARGED light The battery may be fully If the battery is in a vehicle,
turns on a few minutes after charged or recently charged, turn the headlights on for a
connecting to the battery. leaving the battery voltage few minutes to reduce the
The charger is making an The charger has a relay that No problem, this is a normal
audible clicking sound. turns the current on and off condition.
correctly. Check for correct polarity.
The battery is less than one Replace the battery or try
volt. using a manual charger to
bring above 1 volt.
The charger may be Return to place of purchase
defective. for replacement.
battery or a bank of batteries charge rate and battery type
requiring more power than again, if necessary.
the charger can deliver in
24 hours. Battery may also
be faulty.
high enough to appear to be battery voltage and try
fully charged. charging again. Also try a
lower CHARGE RATE
selection.
to the battery.
11
Page 12
LIMITED WARRANTY
SCHUMACHER ELECTRIC CORPORATION,
801 BUSINESS CENTER DRIVE,
MOUNT PROSPECT, ILLINOIS 60056-2179
MAKES THIS LIMITED WARRANTY TO THE ORIGINAL PURCHASER AT RETAIL
OF THIS PRODUCT. THIS LIMITED WARRANTY IS NOT TRANSFERABLE.
Schumacher Electric Corporation warrants this battery charger for five years from
date of purchase at retail against defective material or workmanship. If such should
occur, the unit will be repaired or replaced at the option of the manufacturer. It is the
obligation of the purchaser to forward the unit together with the original sales receipt,
transportation and/or mailing charges prepaid to the manufacturer or its authorized
representative.
This limited warranty is void if the product is misused, subjected to careless handling,
or repaired by anyone other than the manufacturer or its authorized representative.
The manufacturer makes no warranty other than this limited warranty and expressly
excludes any implied warranty including any warranty for consequential damages.
THIS IS THE ONLY EXPRESS LIMITED WARRANTY AND THE MANUFACTURER
NEITHER ASSUMES NOR AUTHORIZES ANYONE TO ASSUME OR MAKE ANY
OTHER OBLIGATION TOWARDS THE PRODUCT OTHER THAN THIS EXPRESS
LIMITED WARRANTY. THE MANUFACTURER MAKES NO WARRANTY OF
MERCHANTABILITY OR FITNESS FOR PURPOSE OF THIS PRODUCT AND
EXPRESSLY EXCLUDES SUCH FROM THIS LIMITED WARRANTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LENGTH OF IMPLIED WARRANTY SO
THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO
HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
WARRANTY VALIDATION: The enclosed “Warranty Validation Card” must be
completed and mailed within 10 days of product purchase to activate this limited
warranty.
12
Loading...
