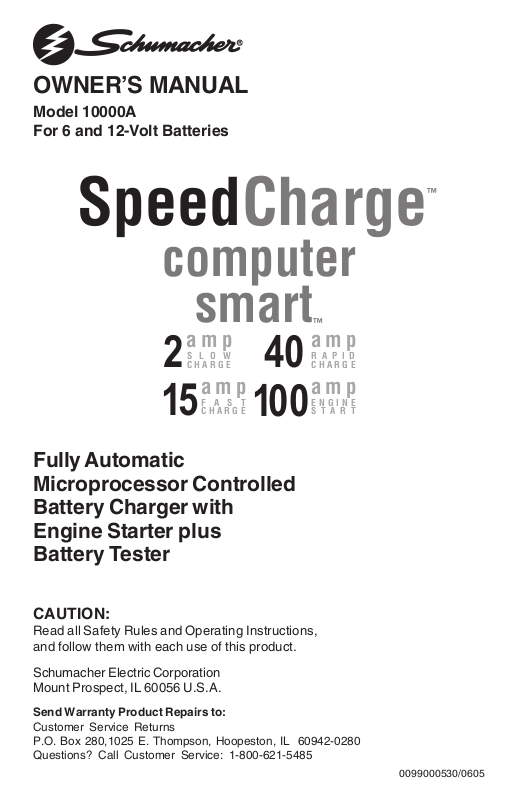

OWNER’S MANUAL
Model 10000A
For 6 and 12-Volt Batteries
SpeedCharge
computer
™
smart
amp
SLOW
2
CHARGE
amp
FAST
15
CHARGE
Fully Automatic
Microprocessor Controlled
Battery Charger with
Engine Starter plus
Battery Tester
CAUTION:
Read all Safety Rules and Operating Instructions,
and follow them with each use of this product.
Schumacher Electric Corporation
Mount Prospect, IL 60056 U.S.A.
40
10 0
™
amp
RAPID
CHARGE
amp
ENGINE
START
Send Warranty Product Repairs to:
Customer Service Returns
P.O. Box 280,1025 E. Thompson, Hoopeston, IL 60942-0280
Questions? Call Customer Service: 1-800-621-5485
0099000530/0605
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ......................................................................... 3
PERSONAL SAFETY PRECAUTIONS ........................................................................... 4
BEFORE USING YOUR BATTERY CHARGER ................................................................ 5
PLUGGING IT IN ................................................................................................... 5
USING AN EXTENSION CORD ............................................................................ 5
PREPARING YOUR BATTERY TO BE CHARGED .......................................................... 5
OPERATING INSTRUCTIONS ....................................................................................... 6
Charging Battery In The Vehicle ........................................................................... 6
Charging Battery Removed From The Vehicle .................................................... 7
Using Engine Start ............................................................................................... 7
CHARGER CONTROLS ................................................................................................ 8
CONTROL PANEL GUIDE ............................................................................................. 9
USING THE BUILT-IN BATTERY TESTER ....................................................................10
USING YOUR ENGINE STARTER ................................................................................ 11
USING YOUR BATTERY CHARGER ............................................................................ 12
CHARGING TIPS ......................................................................................................... 13
BATTERY PERCENT AND CHARGE TIME ................................................................... 14
TROUBLESHOOTING ................................................................................................. 15
MAINTENANCE AND CARE ........................................................................................ 16
LIMITED WARRANTY ................................................................................................. 16
PLEASE SAVE THIS OWNER’S MANUAL AND READ BEFORE EACH USE.
Model 10000A, Fully Automatic Battery Charger/Tester and Engine Starter, offers
features to accommodate the needs for home or light commercial use. This manual
will explain how to use the battery charger safely and effectively. Please read and
follow these instructions and precautions carefully.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules and Canadian specification ICES-003. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment on and off, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio technician for help.
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING – RISK OF EXPLOSIVE GASES
WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY
OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT
EACH TIME BEFORE USING YOUR CHARGER, YOU READ THIS MANUAL
AND FOLLOW THE INSTRUCTIONS EXACTLY.
To reduce risk of battery explosion, follow these instructions and those published by
battery manufacturer and manufacturer of any equipment you intend to use in vicinity
of battery. Review cautionary marking on these products and on engine.
SAVE THESE INSTRUCTIONS
• WARNING: Handling the cord on this
product or cords associated with
accessories sold with this product, will
expose you to lead, a chemical known
to the State of California to cause
cancer and birth defects or other
reproductive harm.
Wash hands after
handling.
• Read all instructions and cautions
printed on the battery charger,
battery, and vehicle or equipment
using battery.
• Use charger only on lead-acid type
rechargeable batteries, such as those
used in cars, trucks, tractors, airplanes, vans, RV’s, trolling motors,
etc. This charger is not intended to
supply power to a low voltage
electrical system other than in a
starter-motor application.
• Never use charger for charging dry
cell batteries that are commonly used
with home appliances like radios,
stereos, remote controls, etc. These
batteries may burst and cause
personal injury.
• Do not disassemble charger. Take it
to a qualified service professional if
service or repair is required. Incorrect
assembly may result in fire or
electrical shock.
• To reduce risk of electrical shock,
unplug the charger from the outlet
before attempting any maintenance
or cleaning.
• Always charge battery in a wellventilated area.
• WARNING: Battery chargers get hot
during operation and must have
proper ventilation. Air needs to flow
around entire charger. Do not set
charger on flammable materials like
carpeting, upholstery, paper, cardboard, etc. Charger may damage
leather and melt plastic and rubber.
HELP US HELP YOU ——
Remember:
Place charger as far away from the
battery being charged as the charger
cables will permit.
Do not expose charger to rain or snow.
Never charge a frozen battery. If battery
fluid (electrolyte) becomes frozen, bring
battery into a warm area to thaw before
you begin charging.
Never allow battery acid to drip on
charger when reading specific gravity or
filling battery.
Never set a battery on top of the
charger.
3
Never place charger directly above
battery being charged. The gases from
the battery will corrode and damage the
charger.
Never touch the battery clamps together
when the charger is on. You could
cause a spark.
Never operate charger if it has received
a hard blow, been dropped, or otherwise
damaged. Take it to a qualified professional for inspection and repair.
PERSONAL SAFETY PRECAUTIONS
Be sure to position the charger power
cord to prevent it from being stepped
on, tripped over, or damaged.
Never pull out the plug by the cord
when unplugging the charger. Pulling
on the cord may cause damage to the
cord or the plug.
Do not operate the charger if it has a
damaged power cord or plug. Have the
cord replaced.
• Wear complete eye and clothing
protection when working with leadacid batteries.
• Make sure that someone is within
range of your voice to come to your
aid if needed while you work with or
are near a lead-acid battery.
• Have plenty of fresh water and
soap nearby for use in case battery
acid contacts your eyes, skin, or
clothing. If this happens, wash
immediately with soap and water.
Then get medical attention.
• Avoid touching your eyes while
working with a battery. Acid particles
(corrosion) may get into your eyes. If
this occurs, flush eyes immediately
with running cold water for at least 10
minutes. Then immediately get
medical attention.
• Never charge a frozen battery.
• Remove all personal metal items
from your body such as rings,
bracelets, necklaces and watches,
while working with a lead-acid battery.
A battery can produce a short circuit
current high enough to weld a ring (or
the like) to metal, causing a severe
burn.
• Take care not to drop any metal tool
or metal object onto the battery. This
may spark or short circuit the battery
or another electrical device that may
cause an explosion.
• Always operate the battery charger in
an open, well-ventilated area.
• Never smoke or allow a spark or
flame in the vicinity of the battery or
engine. Batteries generate explosive
gases.
• Neutralize any acid spills thoroughly
with baking soda before attempting to
clean up.
4
BEFORE USING YOUR BATTERY CHARGER
It is important to understand the charger’s requirements. This section explains the
charger’s electrical requirements and how to prepare a battery for charging.
PLUGGING IT IN
Your charger requires a 120V AC
receptacle installed according to all local
codes and ordinances.
extension cord, please make sure that
you follow these guidelines:
• Make sure that pins on plug of
extension cord are the same number,
size, and shape as those of plug on
charger.
• Check that the extension cord is
properly wired and in good electrical
condition.
• Make sure that the wire size is large
enough for its length and for the AC
ampere rating, as specified in the
chart below.
MINIMUM RECOMMENDED EXTENSION CORD
USING AN EXTENSION CORD
The use of an extension cord is not
recommended. If you must use an
Length of Cord, in Feet 25 50 100 150
AWG* Size of Cord 18 16 12 10
*AWG=American Wire Gauge
PREPARING YOUR BATTERY TO BE CHARGED
It is important that you read and follow these guidelines while you are preparing to
charge the battery.
• Make sure that you have a 12 volt or 6
volt lead-acid battery. Determine
voltage of battery by referring to
vehicle owner’s manual or the battery
markings. Be sure to set the charger
to the 6V or 12V mode accordingly.
Charge battery initially at charger’s
lowest rate.
• Clean the battery terminals. Be
careful to keep corrosion from getting
in or around your eyes.
• Wear safety glasses. See additional
“Personal Safety Precautions” on
page 4.
• If required, for batteries with removable vent caps, add distilled water to
each cell until the battery acid
reaches the level recommended by
the manufacturer. This will help purge
excessive gases from the cells. Be
careful not to overfill. If you have a
sealed battery with non-removable
vent caps, no action is necessary.
• Take time to read all of the battery
manufacturer’s specific precautions,
such as removing or not removing
vent caps while charging, and
recommended rates of charge.
• Be sure that the area around the
battery is well ventilated while it is
being charged. Gas can be forcefully
blown away by using a piece of
cardboard or other nonmetallic
material as a fan.
• If it is necessary to remove the battery
from the vehicle to charge it, always
remove the grounded terminal from
the battery first. Turn off all vehicle
accessories to avoid sparks from
occurring.
• NOTE: A marine (boat) battery
installed in a boat must be removed
and charged on shore.
5
