MARCY
the anterior-walker for more independence
and mobility
Instructions for use
2
Dear Costumer,
At this point we would like to thank you for placing your trust in our company and
for purchasing our product.
We ask you to read through the Instructions for use carefully prior to initial commissioning of the product, and to observe them. Please note that guidelines and
representations in these Instructions for use may deviate from your product due to
differing equipment.
We reserve the right to make technical modications.
Important information!
Ensure that these Instructions for use remain with the product.
Your Schuchmann Team
3
Content
1. Preparation of the anterior-walker for use .....................................................................................4
1.1 Delivery .........................................................................................................................................4
1.2 Safety measures prior to use ........................................................................................................4
1.3 Safe disposal ................................................................................................................................4
1.4 Where to store the Instructions for use .........................................................................................4
2. Product description ..........................................................................................................................5
2.1 Material informationen ..................................................................................................................5
2.2 Handling / Transport ......................................................................................................................5
2.3 Application areas, use according to the intended purpose ...........................................................5
2.4 Use not in accordance with the intended purpose / warning guidelines .......................................6
2.5 Equipment for basic model ...........................................................................................................7
2.6 List of accessories ........................................................................................................................7
2.7 Product overview ..........................................................................................................................7
3. Settings .............................................................................................................................................8
3.1 Handles.........................................................................................................................................8
3.1.1 Handle height adjustment....................................................................................................8
3.1.2 Setting the handles width ....................................................................................................8
3.2 Direction locks (optional) ..............................................................................................................9
3.3 Friction brake (optional) ................................................................................................................9
3.4 Parking brake (optional)................................................................................................................9
3.5 Bench (optional)..........................................................................................................................10
3.6 Storage basket (optional) ...........................................................................................................10
3.7 Lower armrests (optional) ...........................................................................................................11
3.8 Handle/grip ball for lower armrests .............................................................................................11
3.9 Folding the frame up/down ........................................................................................................12
3.10 Backwards stop (optional) ........................................................................................................12
4.1 Cleaning......................................................................................................................................13
4.2 Repairs .......................................................................................................................................13
4.3 Spare parts .................................................................................................................................13
4.4 Duration of use and re-use .........................................................................................................13
5. Technical data .................................................................................................................................14
6. Guarantee ........................................................................................................................................14
7. Identication ...................................................................................................................................15
7.1 EC declaration of conformity.......................................................................................................15
7.2 Serial number / date of manufacture ..........................................................................................16
7.3 Product version ...........................................................................................................................16
7.4 Issue of the document ................................................................................................................16
7.5 Name and address of the manufacturer, specialist dealer supplying the product .....................16
4
1. Preparation of the anterior-walker for use
1.1 Delivery
On receiving the product, please check it for completeness, lack of faults and check
it for any transport damage.
Inspect the goods in the presence of your forwarder
Should transport damage have occurred, please arrange for an inventory (determination of the faults) to be made in the presence of the forwarder. Please send a
complaint in writing to the specialist dealer responsible.
1.2 Safety measures prior to use
Correct usage of the anterior walker requires precise and careful training of the accompanying person. We ask you to read through the Instructions for use carefully
prior to initial commissioning of the upright trainer, and to observe them. Cushioned
parts may become warm when exposed to direct sunlight. Cover these parts or
protect the equipment from direct sunlight.
1.3 Safe disposal
In order to preserve and protect the environment, to prevent environmental pollution, and to improve the recycling of raw materials, please note the disposal instructions in points 1.3.1 and 1.3.2.
1.3.1 Packaging
The product packaging should be stored in case the product needs to be transported again. Should you have to return the product for repairs or in case of a guarantee claim, please if possible use the original box so that the product is optimally
packaged.
Separate the packaging materials for recycling according to their classication. Do
not leave packaging materials unattended, as they are a possible source of danger.
1.3.2 Product
Separate the raw materials used in the product for recycling according to their
classication (see material information under 2.1).
1.4 Where to store the Instructions for use
Please store these Instructions for use carefully and ensure that these Instructions
for use remain with the product in case of re-use.
5
2.3 Application areas, use according to the intended purpose
Indications
The anterior-walker MARCY has been designed for children and teenagers who
receive too much support from a posterior-walker but would not manage a standard
anterior-walker. The user‘s torso must provide more stabilisation when using an
anterior-walker in comparison to a posterior-walker.
MARCY offers the opportunity to adjust the wheel base and therefore increase
the support area to the back. This is how the patient‘s body centre of gravity shifts
within the support area of the anterior-walker.
When walking with MARCY, the muscle tension in the arms and legs increases and
precisely this increased strain represents an important indication for an anteriorwalker seen from a medical-therapeutic point of view.
Contraindications
In general, the indications for walking training should be approved by a doctor or
orthopedist. It should therefore be claried prior to procurement whether contraindications exist for the user. In general, any type of pain represents a contraindication.
Walking training should not be provided without establishing prior to use whether
the user has an abnormal foot position, which requires medical attention.
2. Product description
2.1 Material informationen
The base frame and the individual elements are made of aluminium which is noncorroding and powder-coated. The lower arm rests are made of PU and the bench
is padded and covered. The cover is made of 100% polyester and are ame resistant (according to DIN EN 1021-1+2).
2.2 Handling / Transport
The posterior walker is not designed to be carried, as it is tted with wheels. Should
you have to carry the equipment due to obstacles, ensure that all moving parts are
tightened. Stand next to the posterior walker, hold on to the left and right handles
and lift it over the obstacle. To transport the posterior walker, fold the frame (see
point 3.9).
The frame of the MARCY Size 0 + 1 cannot be folded! In this case, set everything at its most compact (fold up bench, set handles to lowest setting etc.) Lift
the compact unit by stepping between the frame from the rear and then holding on
to it on the left and right.
6
CAUTION!
2.4 Use not in accordance with the intended purpose / warning guidelines
• Correct usage of the product requires precise and careful training of the
accompanying person.
• The product may not be used without supervision.
• The anterior-walker may only be used indoors on a solid, even
ground.
• The max. height adjustment is specied by a marking -
no settings may be made beyond this range.
• Please observe point 5 „Technical data“ in these instructions for use for the
maximum permitted patient weight.
• After all adjustments, rmly re-tighten the screw connections you have
loosened!
• Hanging on heavy bags or other items can negatively inuence the
stability.
• Only use accessories and spare parts made by Schuchmann, otherwise you
will endanger the child.
• Please ensure that none of the user‘s extremities are in the respective area when
making adjustments to avoid the risk of injury.
• Users who have difculty reading must have someone read these Instructions for use
aloud so that they understand how to use the product.
7
2.5 Equipment for basic model
• Light and folding aluminium frame (Size 2+3 folds down)
• Individually height and width adjustable handles
• PU tyres (150 mm for Size 0+1, 200 mm for Size 2+3)
2.6 List of accessories
• Lower armrests with handles
• Lower armrests with grip balls
• Bench
• Parking handbrake
• Friction brake
• Storage basket
• Direction locks
• Telescopic wheelbase
2.7 Product overview
The Fig. below is intended to show you the designation of the most important com-
ponents as well as the terms which you will nd in these Instructions for use.
PU tyres
Seat
Direction locks (optional)
for the guide wheels
Storage basket
Handles
Adjustable wheel-
base (optional)
Folding frame
(only for Size 2+3)
Light aluminium frame (Size 2 +3 folds down)
8
3. Settings
Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor.
Please ensure that none of the user‘s extremities are in the respective area when
making adjustments to avoid the risk of injury.
3.1 Handles
The handles can be individually be adjusted in
height and width for adjustment to individual
body size.
3.1.1 Handle height adjustment
To adjust the height, please loosen the star
handles (A), bring the handles into the required
position and then re-tighten the star handles. A
gauge (B) permits precise height adjustment of
the handles. Make sure that the handle is not
pulled out of the handle mount beyond the STOP
marking (C) as sufcient clamping can no longer
be guaranteed in this case. The height can also
be changed by using the width adjustment (see 3.1.2).
The handles may not be pulled out of the handle mount beyond the
STOP mark!
3.1.2 Setting the handles width
To adjust the width, please loosen the cylinder
head screw with inner hexagon (D), bring the
handles into the required position and then retighten the cylinder head screw with inner hexagon.
As previously mentioned in point 3.1.1, the handle height can also be changed by adjusting the
width (E).
After each adjustment, please re-tighten all screw connections!
B
C
A
D
E
9

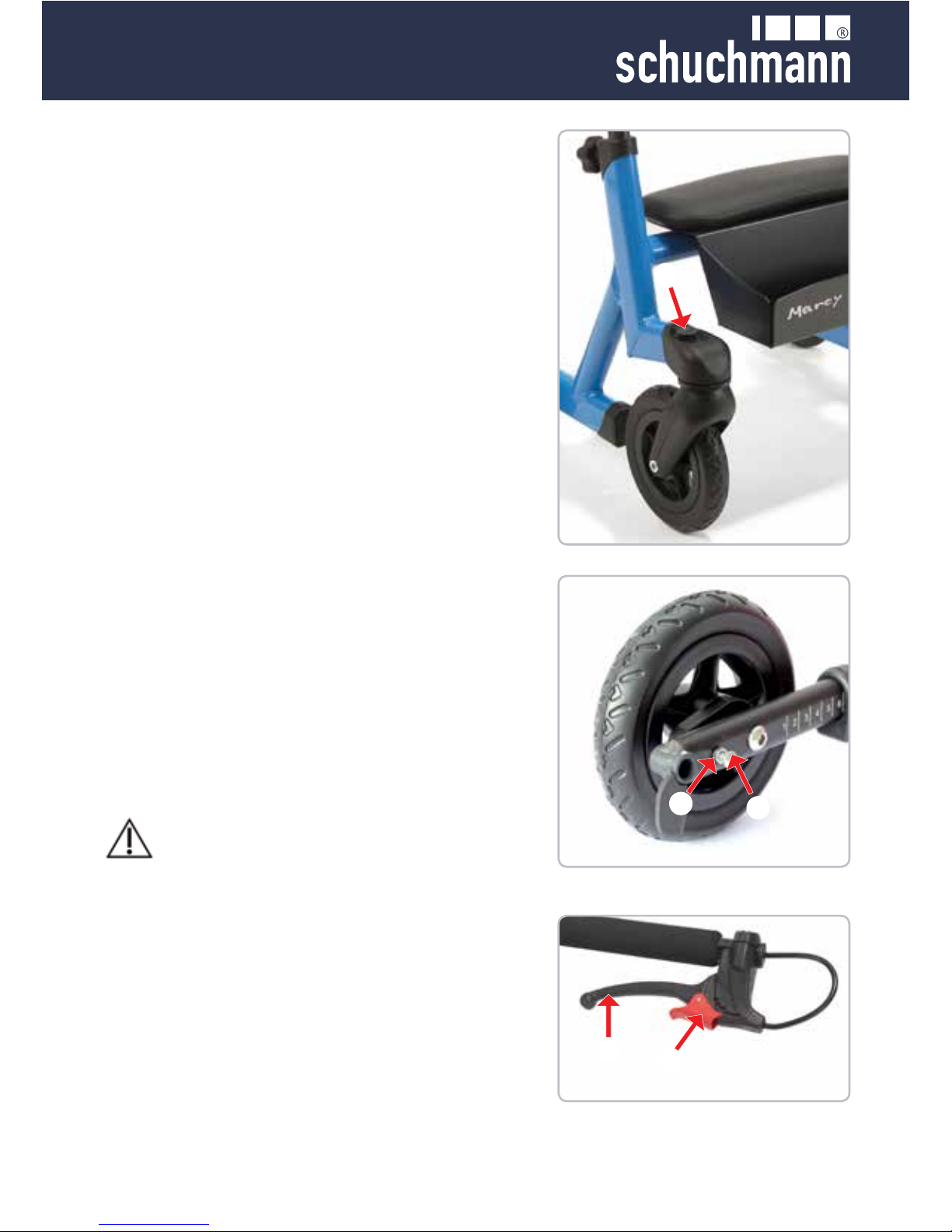

3.2 Direction locks (optional)
It is possible to drive straight on by locking the
guide wheels.
To release the guide wheels lock, pull the direction lock (A) gently upwards and turn it a quarter
turn to the left or right. The guide wheels can now
move freely and allow independent steering.
Pull the direction lock (A) gently upwards and
turn it a quarter turn to the left or right again to
apply the guide wheels lock. The direction locks
click back in as soon as the guide wheels are aligned straight.
3.3 Friction brake (optional)
The function of the friction brake is to slowly reduce the speed of the rear wheel rollover.
By turning screw (B) (loosen lock nut (C) beforehand) in and out, the pressure the friction brake
has on the wheel can be changed and therefore
the wheel rolling speed.
After each adjustment, please retighten
the lock nut
3.4 Parking brake (optional)
Against unintentionally rolling away and for a secure footing the posterior walker can be equipped
with a parking handbrake. Please pull the brake
lever (D) and lock into the red catch (E). To release, please pull the lever again (D) and pull at
the same time the red pawls (E).
A
C
B
D
E
10
3.5 Bench (optional)
The bench is padded and covered. It is permanently mounted to the frame and includes
a back strap.
3.6 Storage basket (optional)
The storage basket is permanently mounted to
the frame and offers space for toys, drinks or similar items.
The maximum loading of the storage
basket for size 0 + 1 of 8 kg must not
be exceeded !
The maximum loading of the storage
basket for size 2 + 3 of 5 kg must not
be exceeded !
11
3.7 Lower armrests (optional)
The lower armrests can be equipped with a handle or grip ball. They can be adjusted in depth,
height, angle and inclination.
Depth adjustment
Loosen the cylinder head screw with inner hexagon (A) beneath the lower armrest. Now you
can slide it onto the pipe (B) and bring it into the
required position.
Height adjustment
The handles are used to set the height (see
points 3.1.1 + 3.1.2).
Adjustment of the angle
The angle (C) is set using a locking hinge. Loosen the cylinder head screw with inner hexagon
(A) beneath the lower armrest and bring the lower armrest into the required position.
Angle adjustment
Loosen the cylinder head screw with inner hexagon (A) beneath the lower armrest to set the inclination (D) and bring the lower armrest into the
required position.
C
D
After each adjustment, please re-tighten all screw connections!
3.8 Handle/grip ball for lower armrests
Please loosen the hexagon socket screws (E)
and bring the handle (F) or grip ball (G) into the
required position.
A
B
E
E
F
G
Note the setting mark on the tube (B).
12
3.9 Folding the frame up/down
Frame sizes 2 + 3 can be folded for easy transportation or better storage of the anterior-walker.
Pull both locking bolts (A) at the same time and
fold the frame up (B).
Simply pull the frame apart to unfold. Make sure
that the locking bolts click back in.
Locking bolts must click back in
again after unfolding.
Ony the frames of the MARCY Size 2 +
3 can be folded!
3.10 Backwards stop (optional)
In order to prevent unintentional rolling back,
MARCY can be optionally equipped with the
backwards stop.
The backwards locks are integrated in the rear
wheels and can be activated or deactivated depending on the situation.
Activating the backwards stop
Turn the locking bar (C) by a half turn upwards and move the wheel backwards until
the locking bar (A) audibly clicks in.
Deactivating the backwards stop
Turn the locking bar (C) a half turn downwards until it is held in place by the catch.
A
B
C
13
4.3 Spare parts
Should you wish to order spare parts, please contact the specialist dealer who
supplied you with the upright trainer, stating the serial number of the upright trainer
(see 7.5).
Necessary spare parts and accessories must only be installed by trained personnel.
4.2 Repairs
Please carry out a daily visual inspection and check the anterior walker regularly for
cracks, breaks, missing parts and malfunctions. In case of a defect or malfunction,
please contact the specialist dealer who supplied you with the product (see 7.5).
4. Repairs and cleaning
4.1 Cleaning
All frame elements and surfaces can be cleaned with a sponge or moist cloth using
normal antibacterial detergents. The covers can be removed and washed at 30° in
the washing machine.
Please also pay attention to our general cleaning and hygiene advice. You can nd
them at www.schuchmann-reha.com/MARCY
4.4 Duration of use and re-use
The expected duration of use of our product, dependent on the usage intensity and
amount of re-use, totals up to "8" years, if the usage takes place in accordance with
the information in these Instructions for use. It may be possible to use the product
over and above this time period if it is in a safe condition. The expected duration of
use does not refer to wear parts, such as for example covers, wheels .....
The maintenance and evaluation of the condition, and if applicable the potential for
re-use, must be decided by the specialist trader.
The upright trainer is suitable for re-use. Prior to forwarding on, please follow the
cleaning and disinfection instructions in Chapter 4. Accompanying documents such
as these instructions for use are part of the product, and must be transferred to the
new user. Accompanying documents such as these Instructions for use are part of
the product and must be passed on to the new user. No disassembly is required
prior to re-use. In the case of storage, it is recommended to fold the product frame
(see point 3.9) to the smallest dimension to save space.
14
6. Guarantee
The two-year statutory guarantee period shall apply for all products. This guarantee
period shall begin with the delivery or handover of the goods. Should a veriable
material or manufacturing fault occur within this time period, we shall, after carriage
paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion.
5. Technical data
Dimensions - basic model
MARCY Size 0 MARCY Size 1 MARCY Size 2 MARCY Size 3
A1
Handle height 30 - 47 cm 38 - 59 cm 53 - 75 cm 63 - 88 cm
A2
Height of lower armrests 41 - 58 cm 49 - 70 cm 63 - 85 cm 73 - 98 cm
B
Handle spacing 18 - 32 cm 22 - 36 cm 30 - 44 cm 36 - 50 cm
C
Seat height 25 cm 30 cm 45 cm 45 cm
D
Total width 44 cm 48 cm 62 cm 71 cm
E
Total length 36,5 cm 42,5 cm 57,5 cm 61 cm
E
Total length (telescopic
wheelbase)
39 - 47 cm 45 - 55 cm 60 - 74 cm 65 - 79 cm
Max. load 20 kg 30 kg 50 kg 65 kg
Weight 4,2 kg 5 kg 7,4 kg 9,1 kg
E
A1
A2
C
D
B
15
7. Identication
7.1 EC declaration of conformity
Company Schuchmann GmbH & Co.KG
Dütestr. 3
D-49205 Hasbergen
Tel.: +49 (0) 54 05 / 909 - 0
Fax: +49 (0) 54 05 / 909 - 109
declares on their sole responsibility that the product named below is classi-
ed as product class 1
„MARCY“ - the anterior-walker for more independence and mobility
Art.-No.: 76 00 000 (Gr. 0) 76 00 100 (Gr. 0 - telescopic)
76 01 000 (Gr. 1) 76 01 100 (Gr. 1 - telescopic)
76 02 000 (Gr. 2) 76 02 100 (Gr. 2 - telescopic)
76 03 000 (Gr. 3) 76 03 100 (Gr. 3 - telescopic)
The relevant regulations of the regulations and guidelines listed below accord with:
• EC Directive 93/42/EEC on medical products from 14th June 1993
• DIN EN 12182:1999 Technical aids for the disabled
• EN ISO 14971 Medical products - Application of risk management
on medical products
• DIN EN ISO 11199-3:2005 Walking aids manipulated by both arms - Require-
ments and test methods - Part 3: Walking tables
This declaration of conformity applies only for products with the article
numbers stated above and is valid until 01.10.2016.
Date 27.08.2014
Signature ________________________
Name Torsten Schuchmann
Role Safety Representative for Medical Products
16
This product has been delivered by the following specialist dealer:
7.3 Product version
The MARCY anterior-walker is available in four sizes and can be supplemented
through a diverse range of accessories (see Point 2.5). Each size is also available
as a telescopic version.
7.4 Issue of the document
Instructions for use MARCY - Change status C; Issue 02.2016
7.5 Name and address of the manufacturer, specialist dealer supplying the
product
This product was manufactured by:
Schuchmann GmbH & Co. KG
Dütestraße 3 · 49205 Hasbergen
Tel. +49 (0)5405/909-0 · Fax +49 (0)5405/909-109
info@schuchmann-reha.de · www.schuchmann-reha.de
7.2 Serial number / date of manufacture
The serial number, the date of manufacture and other information can be found on
the type plate, which is located on all of our products (A).
A
Schuchmann GmbH & Co. KG
Dütestr. 3 · 49205 Hasbergen · Germany
www.schuchmann-reha.de · info@schuchmann-reha.de · Fon +49 (0) 5405 / 909 - 0
Typ
Product
SN
Max. load
Size
Size
Max. load
Date of manufacture
Part number
Product name
Serial number
Loading...
