Schrader Electronics PTPMS13 User Manual

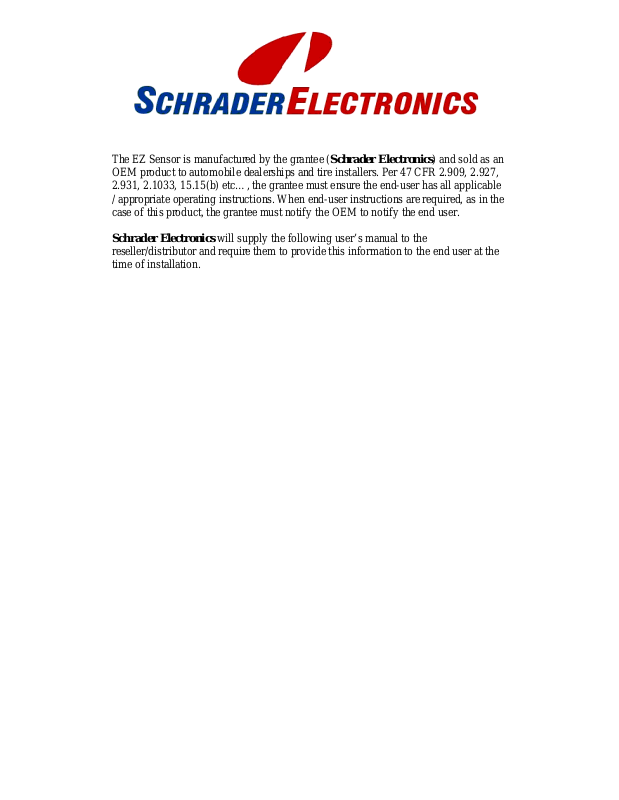

The EZ Sensor is manufactured by the grantee (Schrader Electronics) and sold as an
OEM product to automobile dealerships and tire installers. Per 47 CFR 2.909, 2.927,

2.931, 2.1033, 15.15(b) etc…, the grantee must ensure the end-user has all applicable
/ appropriate operating instructions. When end-user instructions are required, as in the
case of this product, the grantee must notify the OEM to notify the end user.

Schrader Electronics will supply the following user’s manual to the
reseller/distributor and require them to provide this information to the end user at the
time of installation.

EZ Sensor

END CONSUMER USER MANUAL

The Schrader Electronics EZ Sensor is a configurable sensor designed to be used in a
direct measurement TPM (Tire Pressure M onitoring) System. The TPM Sensor is intended
to interface to a receiver/decoder that has been designed to accept the TPM sensor
protocol. The TPM Sensor is designed to monitor a vehicle's tyre pressure whilst driving
or stationary. An electronic unit inside each tyre (referred to as the TPM Sensor or TPM
transmitter) mounted to the valve stem, periodically measures actual tyre
pressure/temperature. By means of an RF link, this pressure information is transmitted
to a receiver/decoder. The incoming radio frequency signals are decoded, and the
data used to inform the driver of the tyre pressure information via the vehicles TPM
interface.

TPM Sensor main functions are:

• Regularly measure the tyre pressure.

• Monitor if the wheel is moving.

• Periodically transmit tyre pressure using an RF link and a specific protocol.

• Monitor condition of the battery and notify the system during an RF transmission if
the battery performance degrades.

• Notify the system if there are abnormal pressure variations (leak) in the tyre.
NOTICE: This device complies with Part 15 of the FCC Rules and with RSS-210 of

Industry Canada. Operation is subje ct to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This devic e m u s t ac c e pt any interference re c eived, including inte rference

that may cause undesired operation.

WARNING: Changes or modifications not expressively approved by the party
responsible for compliance could void the user's authority to operate the equipment.

The term “IC:” before the radio certification number only signifies that Industry
Canada technical specifications were met.
