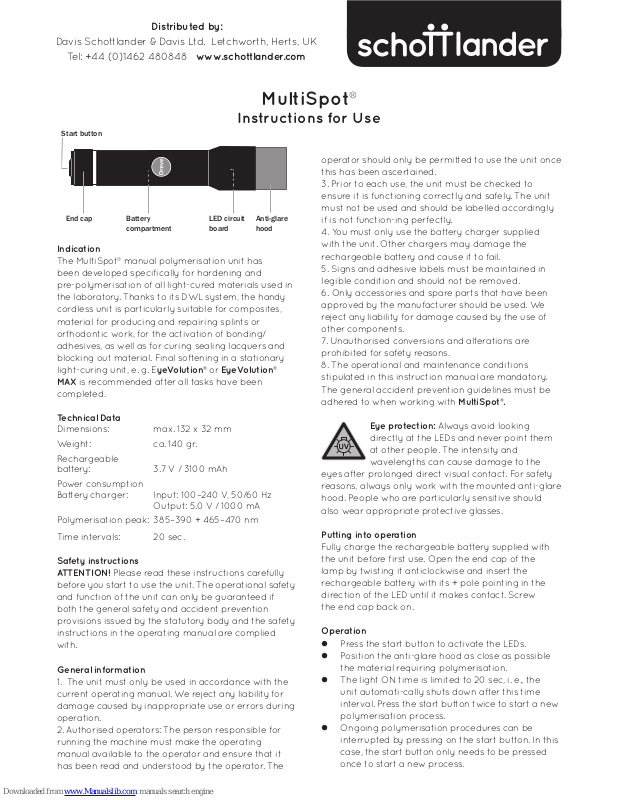

MultiSpot®
Instructions for Use
Indication
The MultiSpot® manual polymerisation unit has
been developed specifically for hardening and
pre-polymerisation of all light-cured materials used in
the laboratory. Thanks to its DWL system, the handy
cordless unit is particularly suitable for composites,
material for producing and repairing splints or
orthodontic work, for the activation of bonding/
adhesives, as well as for curing sealing lacquers and
blocking out material. Final softening in a stationary
light-curing unit, e. g. EyeVolution® or EyeVolution®
MAX is recommended after all tasks have been
completed.
Technical Data
Dimensions: max. 132 x 32 mm
Weight: ca. 140 gr.
Rechargeable
battery: 3.7 V / 3100 mAh
Power consumption
Battery charger: Input: 100–240 V, 50/60 Hz
Output: 5.0 V / 1000 mA
Polymerisation peak: 385–390 + 465–470 nm
Time intervals: 20 sec.
Safety instructions
ATTENTION! Please read these instructions carefully
before you start to use the unit. The operational safety
and function of the unit can only be guaranteed if
both the general safety and accident prevention
provisions issued by the statutory body and the safety
instructions in the operating manual are complied
with.
General information
1. The unit must only be used in accordance with the
current operating manual. We reject any liability for
damage caused by inappropriate use or errors during
operation.
2. Authorised operators: The person responsible for
running the machine must make the operating
manual available to the operator and ensure that it
has been read and understood by the operator. The
Rx Only

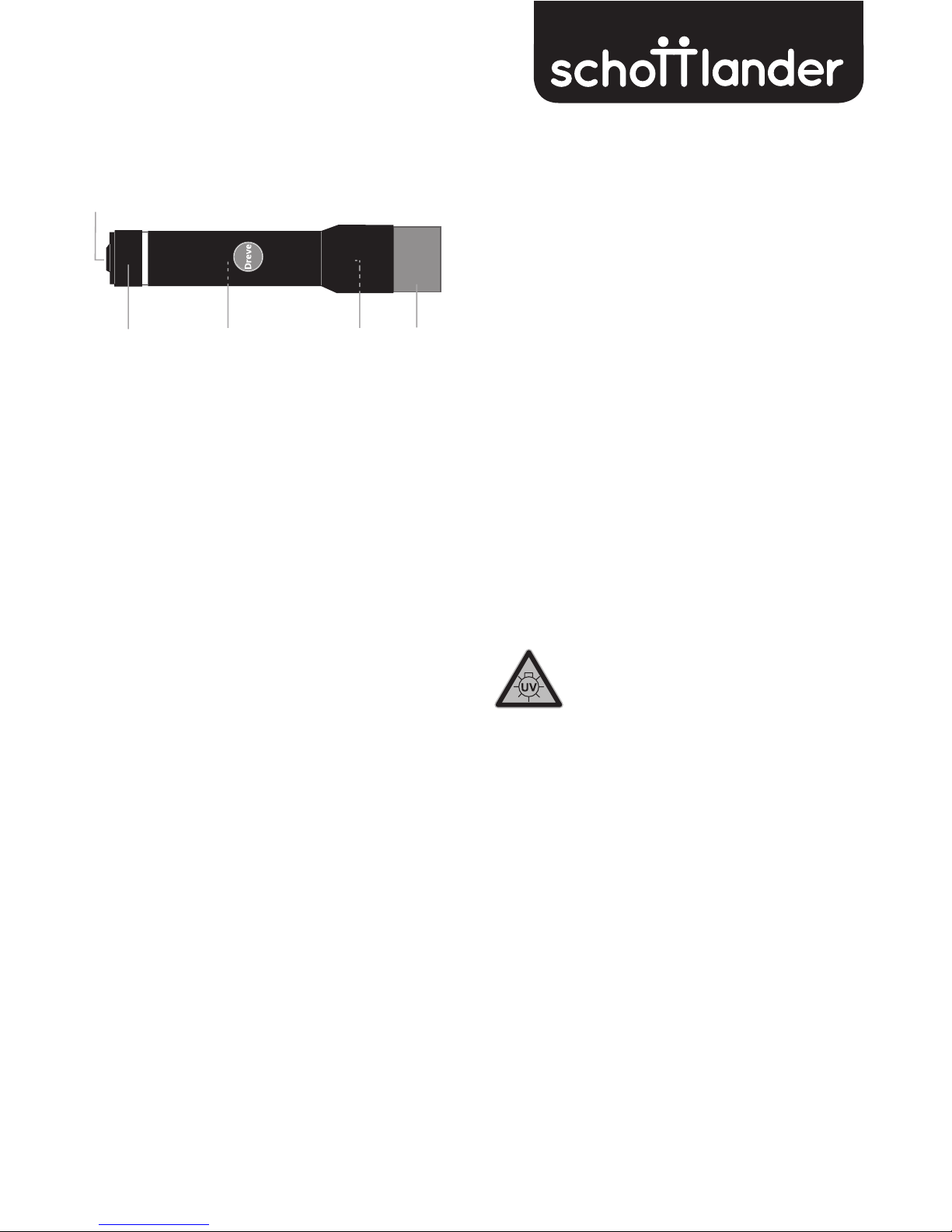

Start button
End cap Battery
compartment
LED circuit
board
Anti-glare
hood
operator should only be permitted to use the unit once
this has been ascertained.
3. Prior to each use, the unit must be checked to
ensure it is functioning correctly and safely. The unit
must not be used and should be labelled accordingly
if is not function-ing perfectly.
4. You must onl y use the battery charger supplied
with the unit. Other chargers may damage the
rechargeable battery and cause it to fail.
5. Signs and adhesive labels must be maintained in
legible condition and should not be removed.
6. Only accessories and spare parts that have been
approved by the manufacturer should be used. We
reject any liability for damage caused by the use of
other components.
7. Unauthorised conversions and alterations are
prohibited for safety reasons.
8. The operational and maintenance conditions
stipulated in this instruction manual are mandatory.
The general accident prevention guidelines must be
adhered to when working with MultiSpot®.
Eye protection: Always avoid looking
directly at the LEDs and never point them
at other people. The intensity and
wavelengths can cause damage to the
eyes after prolonged direct visual contact. For safety
reasons, always only work with the mounted anti-glare
hood. People who are particularly sensitive should
also wear appropriate protective glasses.
Putting into operation
Fully charge the rechargeable battery supplied with
the unit before first use. Open the end cap of the
lamp by twisting it anticlockwise and insert the
rechargeable battery with its + pole pointing in the
direction of the LED until it makes contact. Screw
the end cap back on.
Operation
l Press the start button to activate the LEDs.
l Position the anti-glare hood as close as possible
the material requiring polymerisation.
l The light ON time is limited to 20 sec, i. e., the
unit automati-cally shuts down after this time
interval. Press the start button twice to start a new
polymerisation process.
l Ongoing polymerisation procedures can be
interrupted by pressing on the start button. In this
case, the start button only needs to be pressed
once to start a new process.
Rx Only
compartment
LED circuit
board
Anti-glare
hood
Page 2
This product has been developed for use in the field
of dentistry and must be used in accordance with the
instruction manual. The manufacturer rejects
any liability for damage arising from use in other
applications or non-appropriate use. In addition, the
user is under the obligation to independently check
the product for its suitability and potential application
for the intended purposes prior to using the unit,
especially if these purposes are not listed in the
instruction manual.
Disposal of old appliances pursuant
to WEEE Regulations
The EU Directive 2002 / 96 / EC for the reduction of
the increasing quantities of waste from electric and
electronic equipment. The aim is to avoid and reduce
the increasing quantities of waste from electric and
electrical equipment and to dispose of such waste
in an environmentally friendly manner. Appliances
labelled accordingly must not be disposed of with
household waste, but correctly at disposed of at
communal rubbish dumps, by your specialist dealer
or the manufacturer.
W3790/0118
l Attention: When the MultiSpot® starts flashing,
the rechargeable battery needs loading. Further
use of the MultiSpot® may lead to deep discharge
of the battery. In this case recharging becomes
impossible. The rechargeable battery will then be
defective and must be replaced which leads to
the loss of warranty.
Keep out of reach and sight of children!
Only suitable for dental applications on the model.
Form of delivery
D38110 MultiSpot®
1 x MultiSpot manual lamp
1 x Li-ion rechargeable battery
3.7 V / 3100 mAh
1 x battery charger
1 x instruction manual
Accessories
D38111 3 anti-glare hoods
D38112 1 Li-ion battery 3.7 V / 3100 mAh
D38113 1 battery charger
LED circuit
board
Anti-glare
hood
Rx Only
